0-41 — FUEL FILTER AND BRACKET (#5914) — 35 parça

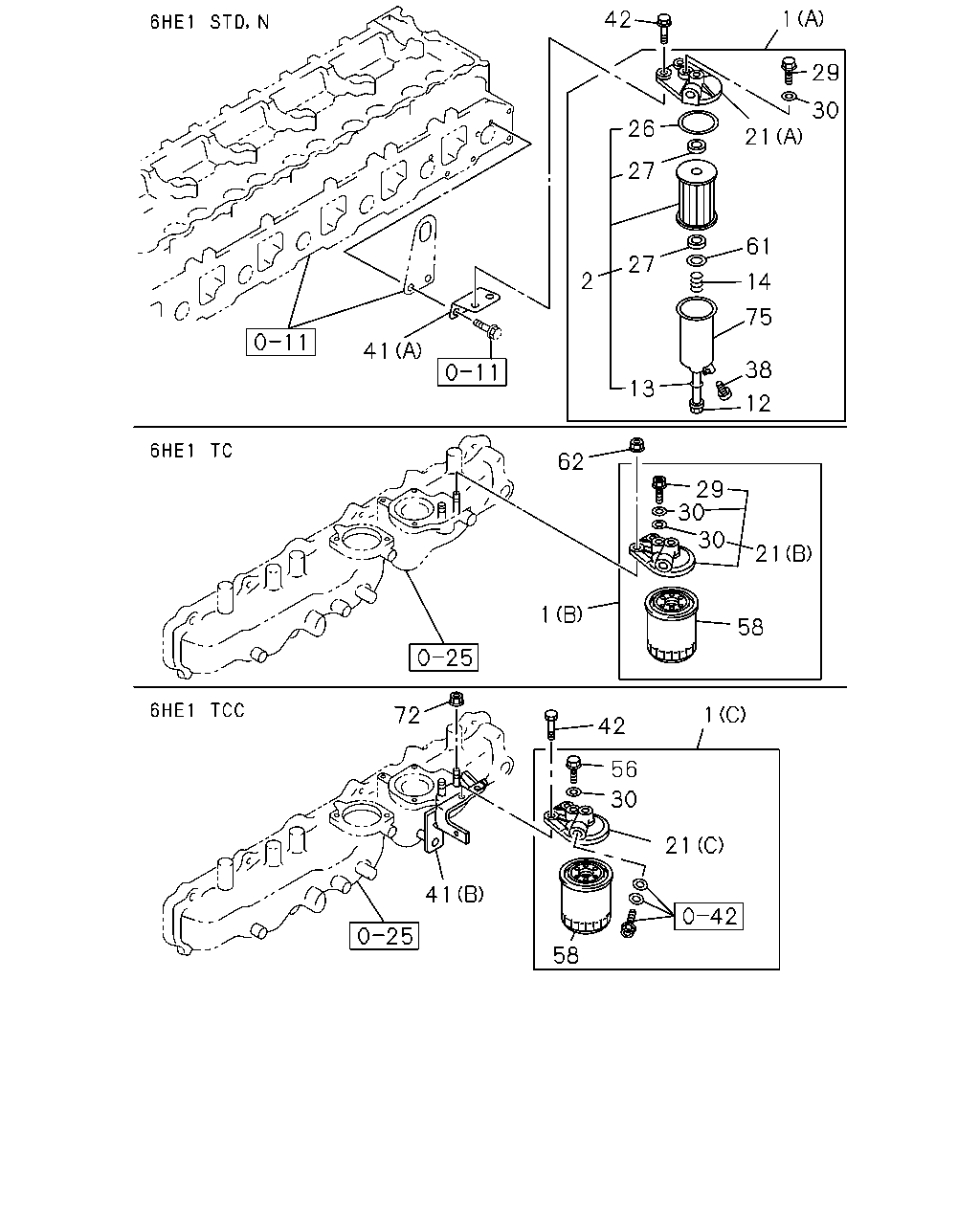

çizim 41318
1 42 29 30 26 21 27 61 27 2 14 75 41 38 13 12 62 29 30 30 21 1 58 1 72 42 56 30 21 41 58
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 FILTER ASM; FUEL
(A) 		8-94397-113-3 01 1 9606-9810 ● ●
1 FILTER ASM; FUEL
(B) 		8-94393-449-2 01 1 9811-0203 ●
1 FILTER ASM; FUEL
(C) 		1-13200-890-4 01 1 9903- ●
2 ELEMENT KIT; FUEL FILTER 9-88511-191-1 01 1 9606-9810 ● ●
12 BOLT; CENTER,FUEL FILTER 1-13231-053-0 01 1 9606-9810 ● ●
13 GASKET; CENTER BOLT 9-09720-541-0 01 1 9606-9810 ● ●
14 SPRING; ELEMENT SUPPORT,FUEL FILTER 9-09742-109-0 01 1 9606-9810 ● ●
21 COVER; UPR,FUEL FILTER
(A) 		9-13212-804-0 01 1 9606-9810 ● ●
21 COVER; UPR,FUEL FILTER
(B) 		8-94396-669-0 01 1 9811-0203 ●
21 COVER; UPR,FUEL FILTER
(C) 		1-13212-108-1 01 1 9903-0710 ●
26 GASKET; COVER TO BODY 9-13213-601-0 01 1 9606-9810 ● ●
27 GASKET; ELEMENT 9-09720-542-0 02 1 9606-9810 ● ●
29 VALVE; OVERFLOW 8-94399-170-0 01 1 9606-9810 ● ●
29 VALVE; OVERFLOW 8-94399-170-0 01 1 9811-0203 ●
30 GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9606-9810 ● ●
30 GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9811-0203 ●
30 GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 01 1 0204-0206 ●
30 GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 01 1 9903-0203 ●
38 PLUG; DRAIN 1-13219-052-0 01 1 9606-9810 ● ●
41 BRACKET; FUEL FILTER
(A) 		8-94399-441-0 01 1 9606-9810 ● ●
41 BRACKET; FUEL FILTER
(B) 		8-94395-066-1 01 1 9903-0108 ●
41 BRACKET; FUEL FILTER
(B) 		8-94391-451-0 01 1 0109- ●
42 BOLT; FUEL FILTER
M10X35 FLANGE 		0-28081-035-0 02 1 9606-9709 ● ●
42 BOLT; FUEL FILTER
M10X35 FLANGE 		0-28681-035-0 02 1 9710-9810 ● ●
42 BOLT; FUEL FILTER
M10X35 FLANGE 		0-28681-035-0 02 1 9903-0512 ●
42 BOLT; FUEL FILTER
M10X35 FLANGE 		0-28651-035-0 02 1 0601- ●
56 PLUG; FUEL FILTER
M14X9 		9-99202-314-0 01 1 9903-0206 ●
58 ELEMENT; FUEL FILTER 8-94394-079-2 01 1 9811-0203 ●
58 ELEMENT; FUEL FILTER 1-13240-079-1 01 1 9903-0711 ●
58 ELEMENT; FUEL FILTER 8-98036-654-0 01 1 0712- ●
61 SEAT; SPR ELEMENT 9-09651-068-0 01 1 9606-9810 ● ●
62 NUT; FUEL FILTER
M10 FLANGE 		0-91150-110-0 02 1 9811-0203 ●
72 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91150-110-0 02 1 9903-0602 ●
72 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91180-110-0 02 1 0603- ●
75 BODY; FUEL FILTER 8-94393-518-1 01 1 9606-9810 ● ●
