◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10739 - FSR-LHD(BUS CHASSIS) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40 - FUEL INJECTION SYSTEM ▶
0-40 — FUEL INJECTION SYSTEM (#5913) — 556 parça

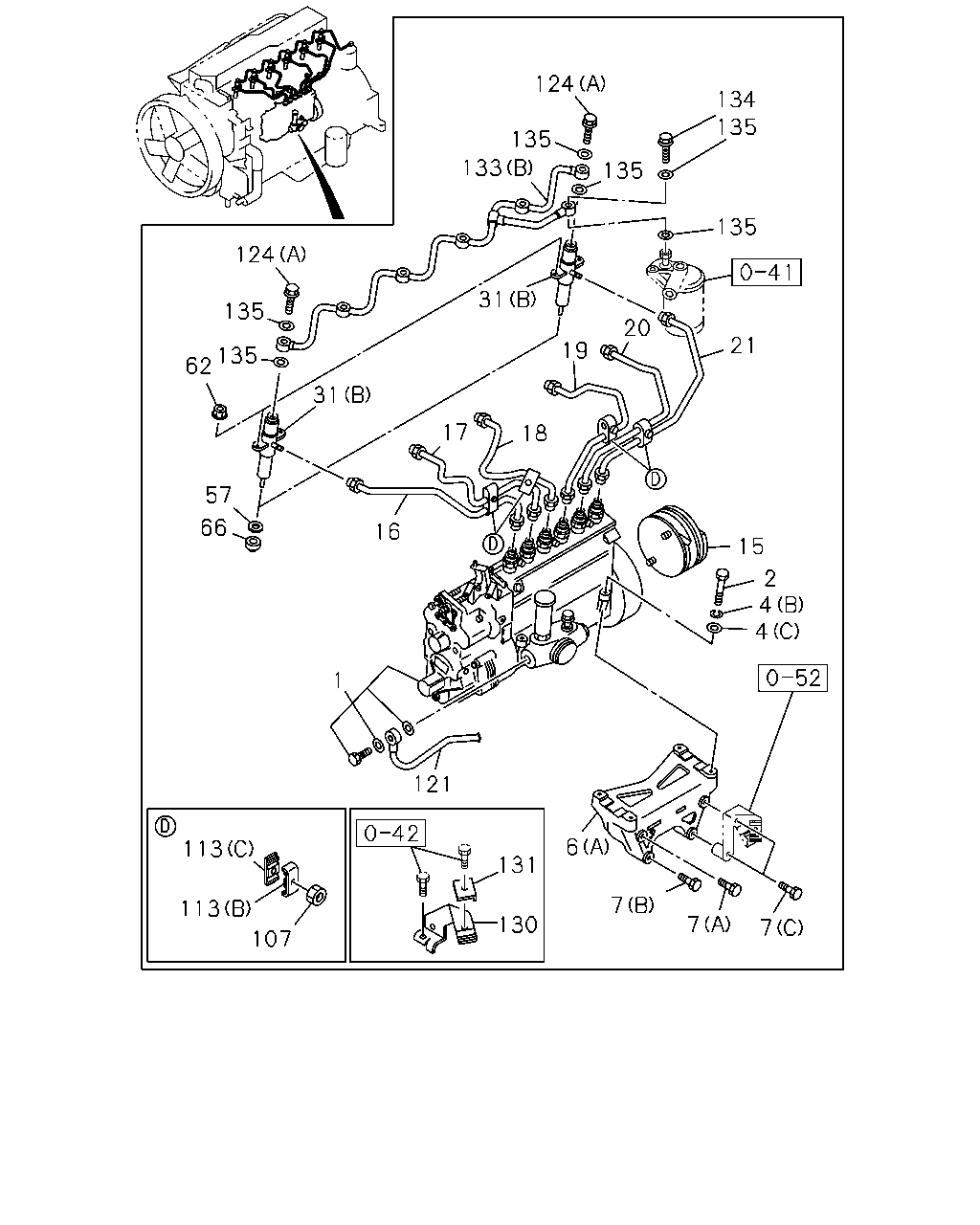

çizim 6340
124 134 135 135 133 135 135 124 31 135 20 21 19 135 62 31 17 18 57 66 16 15 2 4 4 1 121 6 113 131 7 113 7 130 7 107
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		8-94393-462-3 01 1 9606-9810 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. RLD GOVERNOR ADR VAR14(Q2D) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		8-94394-314-1 01 1 9606-9810 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-94391-170-1 01 1 9811-0203 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. RLD GOVERNOR ADR VAR14(Q2D),INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		8-94393-459-2 01 1 9606-9810 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		8-94393-474-1 01 1 9606-9810 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		8-94393-465-0 01 1 9606-9810 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-94392-009-1 01 1 9903- ●
2 BOLT; INJ PUMP
M8X75 		0-10810-875-0 04 1 9606-9810 ● ●
2 BOLT; INJ PUMP
M8X75 		0-10810-875-0 04 1 9811-0203 ●
2 BOLT; INJ PUMP
M8X80 FLANGE 		0-28080-880-0 04 1 9903-0512 ●
2 BOLT; INJ PUMP
M8X80 FLANGE 		0-28050-880-0 04 1 0601- ●
4 WASHER; INJ PUMP
(A) ID=8.5 KAWASAKI 		9-09851-983-0 04 1 9606-9810 ● ●
4 WASHER; INJ PUMP
(B) ID=8.5 KAWASAKI 		9-09851-983-0 04 1 9811-0203 ●
4 WASHER; INJ PUMP
(C) ID=8.5 MITSUBISHI 		9-09851-934-0 04 1 9811-0203 ●
6 BRACKET; INJ PUMP TO C/BL
(A) 		8-94394-086-0 01 1 9606-9810 ● ●
6 BRACKET; INJ PUMP TO C/BL
(A) 		8-94393-689-2 01 1 9811-0203 ●
6 BRACKET; INJ PUMP TO C/BL
(B) 		8-94395-540-1 01 1 9903- ●
7 BOLT; INJ PUMP BRKT
(A) M10X75 FLANGE 		8-94399-669-1 02 1 9606-9810 ● ●
7 BOLT; INJ PUMP BRKT
(A) M10X75 FLANGE 		8-94399-669-1 01 1 9811-0203 ●
7 BOLT; INJ PUMP BRKT
(B) M10X55 FLANGE 		8-94399-863-1 02 1 9606-9810 ● ●
7 BOLT; INJ PUMP BRKT
(B) M10X55 FLANGE 		8-94399-863-1 01 1 9811-0203 ●
7 BOLT; INJ PUMP BRKT
(C) M10X80 FLANGE 		0-28181-080-0 02 1 9811-0203 ●
7 BOLT; INJ PUMP BRKT
(D) M10X40 FLANGE 		0-28181-040-0 03 1 9903-0512 ●
7 BOLT; INJ PUMP BRKT
(D) M10X40 FLANGE 		0-28151-040-0 03 1 0601- ●
7 BOLT; INJ PUMP BRKT
(E) M10X80 FLANGE 		0-28181-080-0 03 1 9903-0512 ●
7 BOLT; INJ PUMP BRKT
(E) M10X80 FLANGE 		0-28151-080-0 03 1 0601- ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		8-94393-155-0 01 1 9606-9810 ● ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		8-94393-962-2 01 1 9811-0203 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		8-94396-483-1 01 1 9903- ●
16 PIPE; INJ NO.1 8-94396-001-5 01 1 9606-9810 ●
16 PIPE; INJ NO.1 8-94393-845-1 01 1 9811-0203 ●
16 PIPE; INJ NO.1 8-94396-007-2 01 1 9606-9810 ●
16 PIPE; INJ NO.1 8-94394-223-1 01 1 9903-0108 ●
16 PIPE; INJ NO.1 8-94391-422-0 01 1 0109- ●
17 PIPE; INJ NO.2 8-94396-002-6 01 1 9606-9810 ●
17 PIPE; INJ NO.2 8-94393-846-1 01 1 9811-0203 ●
17 PIPE; INJ NO.2 8-94396-008-3 01 1 9606-9810 ●
17 PIPE; INJ NO.2 8-94394-224-1 01 1 9903-0108 ●
17 PIPE; INJ NO.2 8-94391-423-0 01 1 0109-0109 ●
17 PIPE; INJ NO.2 8-97602-329-0 01 1 0110- ●
18 PIPE; INJ NO.3 8-94396-003-4 01 1 9606-9810 ●
18 PIPE; INJ NO.3 8-94393-897-1 01 1 9811-0203 ●
18 PIPE; INJ NO.3 8-94396-009-3 01 1 9606-9810 ●
18 PIPE; INJ NO.3 8-94390-830-0 01 1 9903-0108 ●
18 PIPE; INJ NO.3 8-97602-257-0 01 1 0109- ●
19 PIPE; INJ NO.4 8-94396-004-5 01 1 9606-9810 ●
19 PIPE; INJ NO.4 8-94393-757-1 01 1 9811-0203 ●
19 PIPE; INJ NO.4 8-94396-010-4 01 1 9606-9810 ●
19 PIPE; INJ NO.4 8-94394-226-1 01 1 9903-0108 ●
19 PIPE; INJ NO.4 8-94391-425-0 01 1 0109- ●
20 PIPE; INJ NO.5 8-94396-005-2 01 1 9606-9810 ●
20 PIPE; INJ NO.5 8-94393-758-1 01 1 9811-0203 ●
20 PIPE; INJ NO.5 8-94396-011-2 01 1 9606-9810 ●
20 PIPE; INJ NO.5 8-94394-227-1 01 1 9903-0108 ●
20 PIPE; INJ NO.5 8-94391-426-0 01 1 0109- ●
21 PIPE; INJ NO.6 8-94396-364-3 01 1 9606-9810 ●
21 PIPE; INJ NO.6 8-94393-759-1 01 1 9811-0203 ●
21 PIPE; INJ NO.6 8-94396-494-3 01 1 9606-9810 ●
21 PIPE; INJ NO.6 8-94394-228-1 01 1 9903-0108 ●
21 PIPE; INJ NO.6 8-94391-427-0 01 1 0109- ●
31 NOZZLE ASM; INJ
(A) 		8-94394-787-1 06 1 9606-9810 ● ●
31 NOZZLE ASM; INJ
(B) 		8-94395-923-2 06 1 9811-0203 ●
31 NOZZLE ASM; INJ
(C) 		8-94394-606-6 06 1 9903- ●
57 GASKET; DUST COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 		9-09563-215-0 06 1 9610-9810 ● ●
57 GASKET; DUST COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 		9-09563-215-0 06 1 9811-9902 ●
57 GASKET; DUST COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 		9-09563-215-0 06 1 9903-0203 ● ●
57 GASKET; DUST COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 		9-09563-215-0 06 1 0204- ●
62 NUT; NOZZLE HOLDER
M8 FLANGE 		0-91150-108-0 12 1 9606-9810 ● ●
62 NUT; NOZZLE HOLDER
M8 FLANGE 		0-91150-108-0 12 1 9811-9902 ●
62 NUT; NOZZLE HOLDER
M8 FLANGE 		0-91150-108-0 12 1 9903-0203 ● ●
62 NUT; NOZZLE HOLDER
M8 FLANGE 		0-91150-108-0 12 1 0204-0602 ●
62 NUT; NOZZLE HOLDER
M8 FLANGE 		0-91180-108-0 12 1 0603- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94377-623-0 06 1 9606-9703 ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97171-333-0 06 1 9704-9810 ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97171-333-0 06 1 9811-0203 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94391-472-0 12 1 9903- ●
107 NUT; INJ PIPE CLIP
M6 FLANGE 		0-91150-106-0 04 1 9811-0203 ●
107 NUT; INJ PIPE CLIP
M6 FLANGE 		0-91150-106-0 05 1 9903-0108 ●
107 NUT; INJ PIPE CLIP
M6 FLANGE 		0-91150-106-0 06 1 0109-0602 ●
107 NUT; INJ PIPE CLIP
M6 FLANGE 		0-91180-106-0 06 1 0603- ●
113 CLIP; INJ PIPE
(A) 		1-09701-091-0 02 1 9606-9810 ● ●
113 CLIP; INJ PIPE
(C) 		8-94396-793-0 04 1 9811-9902 ●
113 CLIP; INJ PIPE
(B) 		8-94397-444-0 05 1 9903-0108 ●
113 CLIP; INJ PIPE
(D) 		1-09701-132-1 10 1 0109- ●
113 CLIP; INJ PIPE
(B) 		8-94397-444-0 01 1 9606-9810 ● ●
113 CLIP; INJ PIPE
(B) 		8-94397-444-0 04 1 9811-0203 ●
113 CLIP; INJ PIPE
(C) 		8-94396-793-0 04 1 9903-0108 ● ●
113 CLIP; INJ PIPE
(C) 		8-94396-793-0 04 1 0109-0203 ●
121 PIPE; FUEL,FEED PUMP,SUCTION
FRONT AXLE F049<FS4> 		8-94393-021-0 01 1 9610-9810 ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94397-335-1 01 1 9606-9609 ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION
EXC. FRONT AXLE F049<FS4> 		8-94397-335-1 01 1 9610-9810 ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94397-335-1 01 1 9610-9810 ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94394-408-0 01 1 9811-0203 ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94395-043-2 01 1 9903- ●
124 BOLT; EYE LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 06 1 0005-0203 ●
124 BOLT; EYE LEAK OFF PIPE
(B) M8X18 EYE-BOLT 		1-09675-037-1 05 1 9903- ●
124 BOLT; EYE LEAK OFF PIPE
(C) M8X30 FLANGE 		1-09675-039-1 01 1 9903- ●
130 BRACKET; OVERFLOW TO LEAK OFF 8-94394-456-1 01 1 9811-0203 ●
130 BRACKET; OVERFLOW TO LEAK OFF 8-94394-980-2 01 1 9903- ●
131 CLIP; OVERFLOW LEAK OFF 8-94394-267-0 01 1 9811-0203 ●
131 CLIP; OVERFLOW LEAK OFF 1-09701-091-0 01 1 9903- ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-94395-144-0 01 1 9606-9810 ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-94395-145-0 01 1 9811-0203 ●
133 PIPE; INJ NOZZLE LEAK OFF
(C) 		8-94390-071-0 01 1 9903- ●
134 BOLT; JOINT,LEAK OFF PIPE
M8X18 EYE-BOLT 		1-09675-037-1 01 1 9606-9810 ● ●
134 BOLT; JOINT,LEAK OFF PIPE
M8X18 EYE-BOLT 		1-09675-037-1 01 1 9811-0203 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2 		1-09630-082-0 02 1 9606-9810 ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2 		1-09630-082-0 02 1 9811-0004 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2 		1-09630-082-0 14 1 0005-0203 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2 		1-09630-082-0 13 1 9903- ●

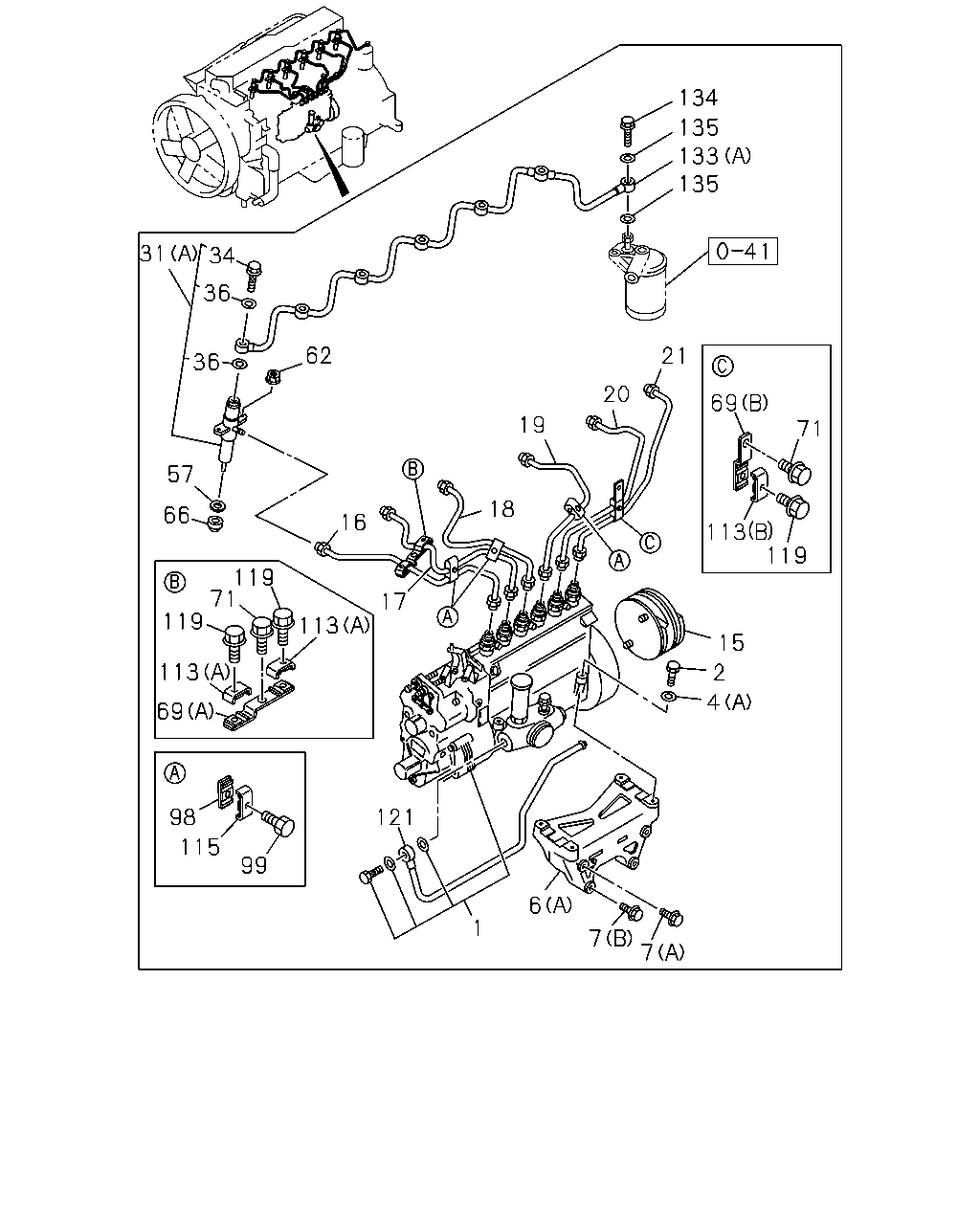

çizim 6494
134 135 133 135 31 34 36 62 21 36 20 69 19 71 57 18 66 16 113 119 119 71 119 17 113 15 113 2 4 69 98 121 115 99 6 1 7 7
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		8-94393-462-3 01 1 9606-9810 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. RLD GOVERNOR ADR VAR14(Q2D) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		8-94394-314-1 01 1 9606-9810 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-94391-170-1 01 1 9811-0203 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. RLD GOVERNOR ADR VAR14(Q2D),INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		8-94393-459-2 01 1 9606-9810 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		8-94393-474-1 01 1 9606-9810 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		8-94393-465-0 01 1 9606-9810 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-94392-009-1 01 1 9903- ●
2 BOLT; INJ PUMP
M8X75 		0-10810-875-0 04 1 9606-9810 ● ●
2 BOLT; INJ PUMP
M8X75 		0-10810-875-0 04 1 9811-0203 ●
2 BOLT; INJ PUMP
M8X80 FLANGE 		0-28080-880-0 04 1 9903-0512 ●
2 BOLT; INJ PUMP
M8X80 FLANGE 		0-28050-880-0 04 1 0601- ●
4 WASHER; INJ PUMP
(A) ID=8.5 KAWASAKI 		9-09851-983-0 04 1 9606-9810 ● ●
4 WASHER; INJ PUMP
(B) ID=8.5 KAWASAKI 		9-09851-983-0 04 1 9811-0203 ●
4 WASHER; INJ PUMP
(C) ID=8.5 MITSUBISHI 		9-09851-934-0 04 1 9811-0203 ●
6 BRACKET; INJ PUMP TO C/BL
(A) 		8-94394-086-0 01 1 9606-9810 ● ●
6 BRACKET; INJ PUMP TO C/BL
(A) 		8-94393-689-2 01 1 9811-0203 ●
6 BRACKET; INJ PUMP TO C/BL
(B) 		8-94395-540-1 01 1 9903- ●
7 BOLT; INJ PUMP BRKT
(A) M10X75 FLANGE 		8-94399-669-1 02 1 9606-9810 ● ●
7 BOLT; INJ PUMP BRKT
(A) M10X75 FLANGE 		8-94399-669-1 01 1 9811-0203 ●
7 BOLT; INJ PUMP BRKT
(B) M10X55 FLANGE 		8-94399-863-1 02 1 9606-9810 ● ●
7 BOLT; INJ PUMP BRKT
(B) M10X55 FLANGE 		8-94399-863-1 01 1 9811-0203 ●
7 BOLT; INJ PUMP BRKT
(C) M10X80 FLANGE 		0-28181-080-0 02 1 9811-0203 ●
7 BOLT; INJ PUMP BRKT
(D) M10X40 FLANGE 		0-28181-040-0 03 1 9903-0512 ●
7 BOLT; INJ PUMP BRKT
(D) M10X40 FLANGE 		0-28151-040-0 03 1 0601- ●
7 BOLT; INJ PUMP BRKT
(E) M10X80 FLANGE 		0-28181-080-0 03 1 9903-0512 ●
7 BOLT; INJ PUMP BRKT
(E) M10X80 FLANGE 		0-28151-080-0 03 1 0601- ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		8-94393-155-0 01 1 9606-9810 ● ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		8-94393-962-2 01 1 9811-0203 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		8-94396-483-1 01 1 9903- ●
16 PIPE; INJ NO.1 8-94396-001-5 01 1 9606-9810 ●
16 PIPE; INJ NO.1 8-94393-845-1 01 1 9811-0203 ●
16 PIPE; INJ NO.1 8-94396-007-2 01 1 9606-9810 ●
16 PIPE; INJ NO.1 8-94394-223-1 01 1 9903-0108 ●
16 PIPE; INJ NO.1 8-94391-422-0 01 1 0109- ●
17 PIPE; INJ NO.2 8-94396-002-6 01 1 9606-9810 ●
17 PIPE; INJ NO.2 8-94393-846-1 01 1 9811-0203 ●
17 PIPE; INJ NO.2 8-94396-008-3 01 1 9606-9810 ●
17 PIPE; INJ NO.2 8-94394-224-1 01 1 9903-0108 ●
17 PIPE; INJ NO.2 8-94391-423-0 01 1 0109-0109 ●
17 PIPE; INJ NO.2 8-97602-329-0 01 1 0110- ●
18 PIPE; INJ NO.3 8-94396-003-4 01 1 9606-9810 ●
18 PIPE; INJ NO.3 8-94393-897-1 01 1 9811-0203 ●
18 PIPE; INJ NO.3 8-94396-009-3 01 1 9606-9810 ●
18 PIPE; INJ NO.3 8-94390-830-0 01 1 9903-0108 ●
18 PIPE; INJ NO.3 8-97602-257-0 01 1 0109- ●
19 PIPE; INJ NO.4 8-94396-004-5 01 1 9606-9810 ●
19 PIPE; INJ NO.4 8-94393-757-1 01 1 9811-0203 ●
19 PIPE; INJ NO.4 8-94396-010-4 01 1 9606-9810 ●
19 PIPE; INJ NO.4 8-94394-226-1 01 1 9903-0108 ●
19 PIPE; INJ NO.4 8-94391-425-0 01 1 0109- ●
20 PIPE; INJ NO.5 8-94396-005-2 01 1 9606-9810 ●
20 PIPE; INJ NO.5 8-94393-758-1 01 1 9811-0203 ●
20 PIPE; INJ NO.5 8-94396-011-2 01 1 9606-9810 ●
20 PIPE; INJ NO.5 8-94394-227-1 01 1 9903-0108 ●
20 PIPE; INJ NO.5 8-94391-426-0 01 1 0109- ●
21 PIPE; INJ NO.6 8-94396-364-3 01 1 9606-9810 ●
21 PIPE; INJ NO.6 8-94393-759-1 01 1 9811-0203 ●
21 PIPE; INJ NO.6 8-94396-494-3 01 1 9606-9810 ●
21 PIPE; INJ NO.6 8-94394-228-1 01 1 9903-0108 ●
21 PIPE; INJ NO.6 8-94391-427-0 01 1 0109- ●
31 NOZZLE ASM; INJ
(A) 		8-94394-787-1 06 1 9606-9810 ● ●
31 NOZZLE ASM; INJ
(B) 		8-94395-923-2 06 1 9811-0203 ●
31 NOZZLE ASM; INJ
(C) 		8-94394-606-6 06 1 9903- ●
34 BOLT; EYE,NOZZLE HOLDER
M8X18 EYE-BOLT 		1-09675-037-1 06 1 9606-9810 ● ●
34 BOLT; EYE,NOZZLE HOLDER 1-15339-009-0 06 1 9903- ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2 		1-09630-082-0 12 1 9606-9810 ● ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-15339-010-0 12 1 9903- ●
57 GASKET; DUST COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 		9-09563-215-0 06 1 9610-9810 ● ●
57 GASKET; DUST COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 		9-09563-215-0 06 1 9811-9902 ●
57 GASKET; DUST COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 		9-09563-215-0 06 1 9903-0203 ● ●
57 GASKET; DUST COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 		9-09563-215-0 06 1 0204- ●
62 NUT; NOZZLE HOLDER
M8 FLANGE 		0-91150-108-0 12 1 9606-9810 ● ●
62 NUT; NOZZLE HOLDER
M8 FLANGE 		0-91150-108-0 12 1 9811-9902 ●
62 NUT; NOZZLE HOLDER
M8 FLANGE 		0-91150-108-0 12 1 9903-0203 ● ●
62 NUT; NOZZLE HOLDER
M8 FLANGE 		0-91150-108-0 12 1 0204-0602 ●
62 NUT; NOZZLE HOLDER
M8 FLANGE 		0-91180-108-0 12 1 0603- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94377-623-0 06 1 9606-9703 ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97171-333-0 06 1 9704-9810 ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97171-333-0 06 1 9811-0203 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94391-472-0 12 1 9903- ●
69 BRACKET; INJ PIPE CLIP
(A) 		8-94396-086-0 01 1 9606-9810 ● ●
69 BRACKET; INJ PIPE CLIP
(B) 		8-94396-087-0 01 1 9606-9810 ● ●
71 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 02 1 9606-9810 ● ●
98 CLIP; "A",INJ PIPE 8-94397-445-0 03 1 9606-9810 ● ●
99 BOLT; CLIP,INJ,PIPE 8-94365-129-0 03 1 9606-9810 ● ●
113 CLIP; INJ PIPE
(A) 		1-09701-091-0 02 1 9606-9810 ● ●
113 CLIP; INJ PIPE
(C) 		8-94396-793-0 04 1 9811-9902 ●
113 CLIP; INJ PIPE
(B) 		8-94397-444-0 05 1 9903-0108 ●
113 CLIP; INJ PIPE
(D) 		1-09701-132-1 10 1 0109- ●
113 CLIP; INJ PIPE
(B) 		8-94397-444-0 01 1 9606-9810 ● ●
113 CLIP; INJ PIPE
(B) 		8-94397-444-0 04 1 9811-0203 ●
113 CLIP; INJ PIPE
(C) 		8-94396-793-0 04 1 9903-0108 ● ●
113 CLIP; INJ PIPE
(C) 		8-94396-793-0 04 1 0109-0203 ●
115 CLIP; "B",INJ PIPE 8-94397-444-0 03 1 9606-9810 ● ●
119 BOLT; CLIP,INJ PIPE
M6X22 FLANGE 		0-28080-622-0 03 1 9606-9810 ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION
FRONT AXLE F049<FS4> 		8-94393-021-0 01 1 9610-9810 ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94397-335-1 01 1 9606-9609 ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION
EXC. FRONT AXLE F049<FS4> 		8-94397-335-1 01 1 9610-9810 ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94397-335-1 01 1 9610-9810 ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94394-408-0 01 1 9811-0203 ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94395-043-2 01 1 9903- ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-94395-144-0 01 1 9606-9810 ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-94395-145-0 01 1 9811-0203 ●
133 PIPE; INJ NOZZLE LEAK OFF
(C) 		8-94390-071-0 01 1 9903- ●
134 BOLT; JOINT,LEAK OFF PIPE
M8X18 EYE-BOLT 		1-09675-037-1 01 1 9606-9810 ● ●
134 BOLT; JOINT,LEAK OFF PIPE
M8X18 EYE-BOLT 		1-09675-037-1 01 1 9811-0203 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2 		1-09630-082-0 02 1 9606-9810 ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2 		1-09630-082-0 02 1 9811-0004 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2 		1-09630-082-0 14 1 0005-0203 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2 		1-09630-082-0 13 1 9903- ●

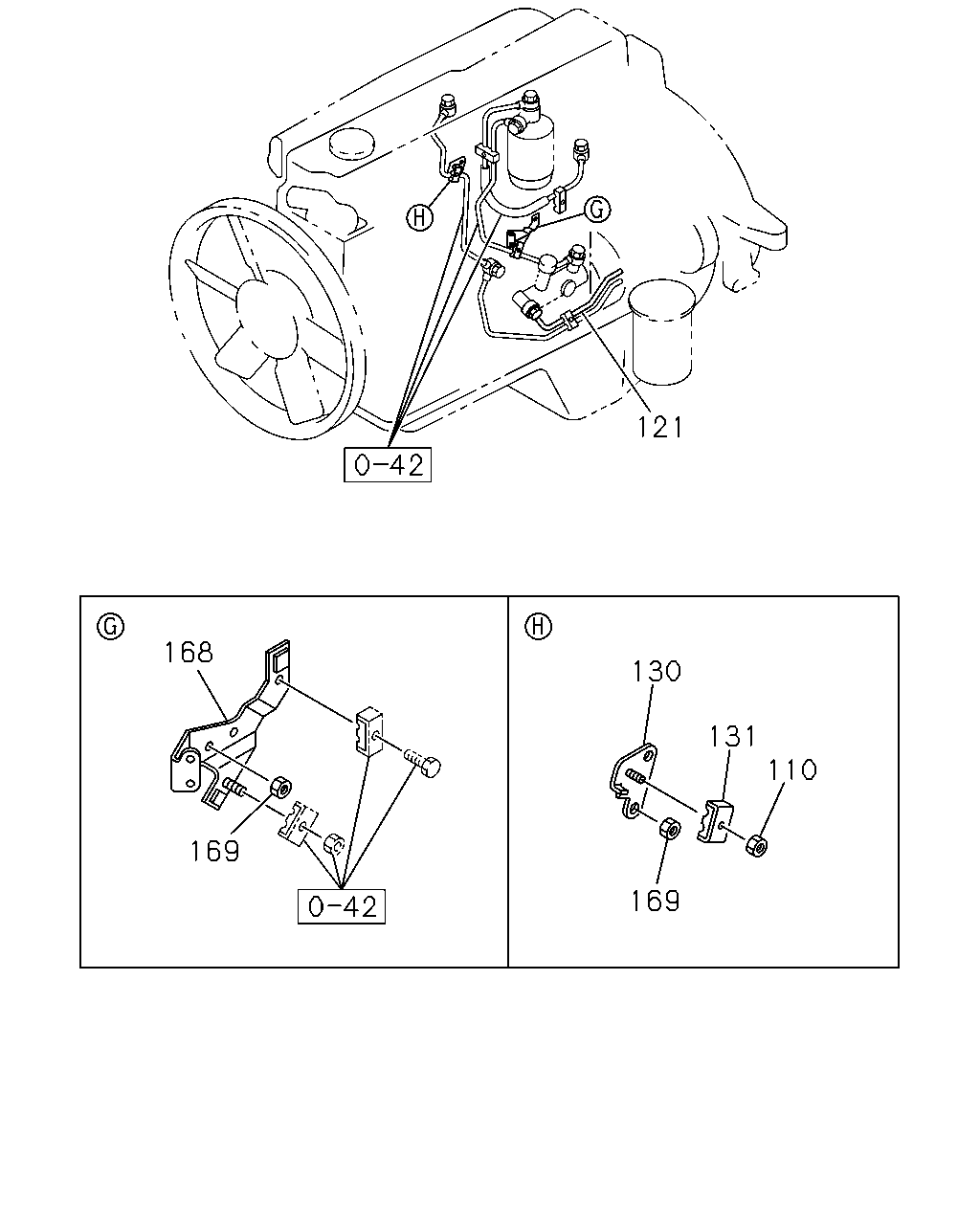

çizim 7027
121 168 130 131 110 169 169
BalonParca AdiParca NoAdetTipApplied Date A B C D
110 NUT; CLIP
M6 FLANGE 		0-91150-106-0 01 1 9903-0602 ●
110 NUT; CLIP
M6 FLANGE 		0-91180-106-0 01 1 0603- ●
121 PIPE; FUEL,FEED PUMP,SUCTION
FRONT AXLE F049<FS4> 		8-94393-021-0 01 1 9610-9810 ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94397-335-1 01 1 9606-9609 ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION
EXC. FRONT AXLE F049<FS4> 		8-94397-335-1 01 1 9610-9810 ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94397-335-1 01 1 9610-9810 ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94394-408-0 01 1 9811-0203 ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94395-043-2 01 1 9903- ●
130 BRACKET; OVERFLOW TO LEAK OFF 8-94394-456-1 01 1 9811-0203 ●
130 BRACKET; OVERFLOW TO LEAK OFF 8-94394-980-2 01 1 9903- ●
131 CLIP; OVERFLOW LEAK OFF 8-94394-267-0 01 1 9811-0203 ●
131 CLIP; OVERFLOW LEAK OFF 1-09701-091-0 01 1 9903- ●
168 BRACKET; FUEL PIPE 8-94395-046-2 01 1 9903- ●
169 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 9903-0602 ●
169 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0603- ●

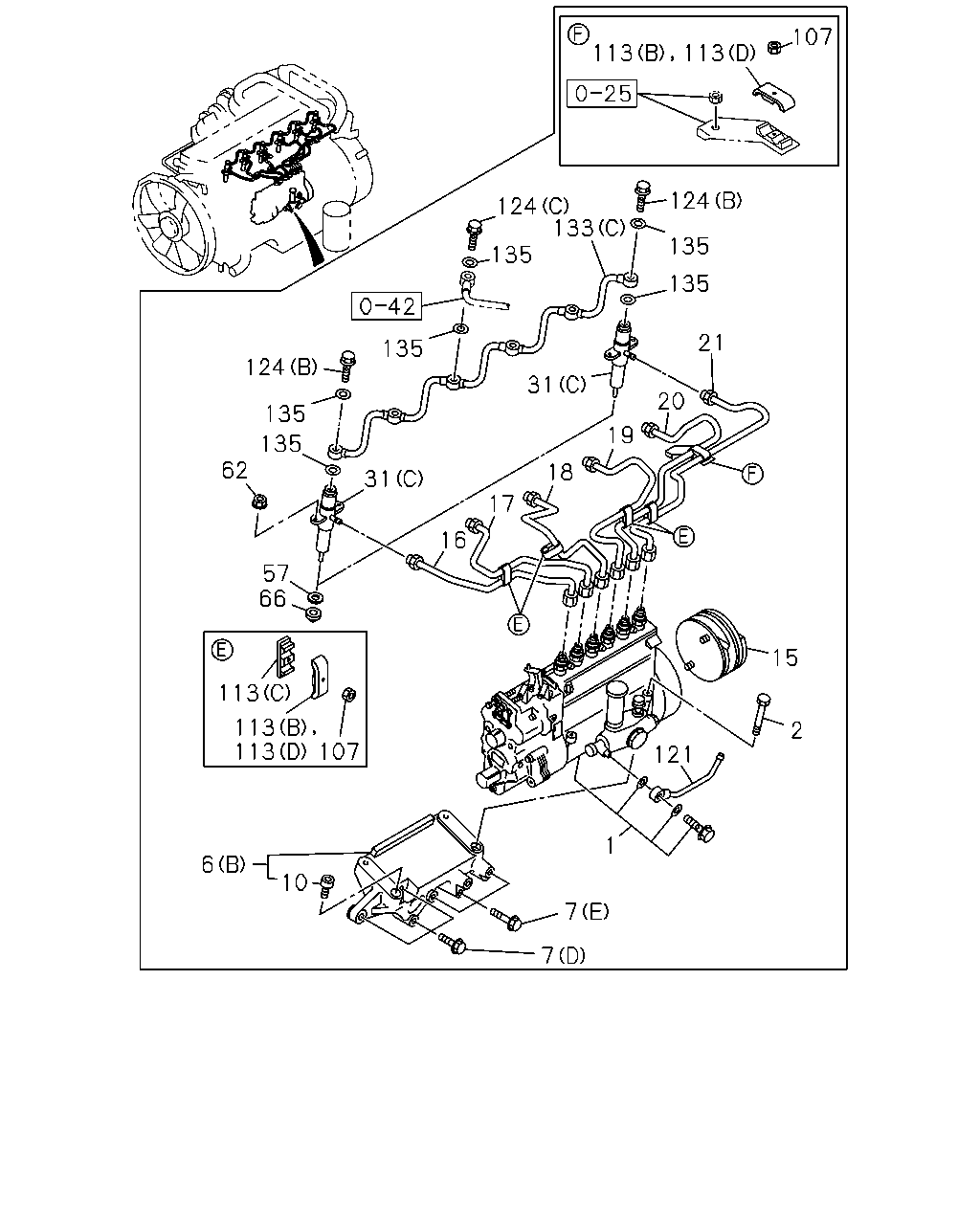

çizim 8285
107 113 113 124 124 133 135 135 135 21 135 124 31 20 135 19 135 18 62 31 17 16 57 66 15 113 113 113 107 2 121 1 6 10 7 7
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		8-94393-462-3 01 1 9606-9810 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. RLD GOVERNOR ADR VAR14(Q2D) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		8-94394-314-1 01 1 9606-9810 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-94391-170-1 01 1 9811-0203 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. RLD GOVERNOR ADR VAR14(Q2D),INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		8-94393-459-2 01 1 9606-9810 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		8-94393-474-1 01 1 9606-9810 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		8-94393-465-0 01 1 9606-9810 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-94392-009-1 01 1 9903- ●
2 BOLT; INJ PUMP
M8X75 		0-10810-875-0 04 1 9606-9810 ● ●
2 BOLT; INJ PUMP
M8X75 		0-10810-875-0 04 1 9811-0203 ●
2 BOLT; INJ PUMP
M8X80 FLANGE 		0-28080-880-0 04 1 9903-0512 ●
2 BOLT; INJ PUMP
M8X80 FLANGE 		0-28050-880-0 04 1 0601- ●
6 BRACKET; INJ PUMP TO C/BL
(A) 		8-94394-086-0 01 1 9606-9810 ● ●
6 BRACKET; INJ PUMP TO C/BL
(A) 		8-94393-689-2 01 1 9811-0203 ●
6 BRACKET; INJ PUMP TO C/BL
(B) 		8-94395-540-1 01 1 9903- ●
7 BOLT; INJ PUMP BRKT
(A) M10X75 FLANGE 		8-94399-669-1 02 1 9606-9810 ● ●
7 BOLT; INJ PUMP BRKT
(A) M10X75 FLANGE 		8-94399-669-1 01 1 9811-0203 ●
7 BOLT; INJ PUMP BRKT
(B) M10X55 FLANGE 		8-94399-863-1 02 1 9606-9810 ● ●
7 BOLT; INJ PUMP BRKT
(B) M10X55 FLANGE 		8-94399-863-1 01 1 9811-0203 ●
7 BOLT; INJ PUMP BRKT
(C) M10X80 FLANGE 		0-28181-080-0 02 1 9811-0203 ●
7 BOLT; INJ PUMP BRKT
(D) M10X40 FLANGE 		0-28181-040-0 03 1 9903-0512 ●
7 BOLT; INJ PUMP BRKT
(D) M10X40 FLANGE 		0-28151-040-0 03 1 0601- ●
7 BOLT; INJ PUMP BRKT
(E) M10X80 FLANGE 		0-28181-080-0 03 1 9903-0512 ●
7 BOLT; INJ PUMP BRKT
(E) M10X80 FLANGE 		0-28151-080-0 03 1 0601- ●
10 DOWEL; INJ PUMP
OD=14 L=9 		9-19759-019-1 02 1 9903- ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		8-94393-155-0 01 1 9606-9810 ● ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		8-94393-962-2 01 1 9811-0203 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		8-94396-483-1 01 1 9903- ●
16 PIPE; INJ NO.1 8-94396-001-5 01 1 9606-9810 ●
16 PIPE; INJ NO.1 8-94393-845-1 01 1 9811-0203 ●
16 PIPE; INJ NO.1 8-94396-007-2 01 1 9606-9810 ●
16 PIPE; INJ NO.1 8-94394-223-1 01 1 9903-0108 ●
16 PIPE; INJ NO.1 8-94391-422-0 01 1 0109- ●
17 PIPE; INJ NO.2 8-94396-002-6 01 1 9606-9810 ●
17 PIPE; INJ NO.2 8-94393-846-1 01 1 9811-0203 ●
17 PIPE; INJ NO.2 8-94396-008-3 01 1 9606-9810 ●
17 PIPE; INJ NO.2 8-94394-224-1 01 1 9903-0108 ●
17 PIPE; INJ NO.2 8-94391-423-0 01 1 0109-0109 ●
17 PIPE; INJ NO.2 8-97602-329-0 01 1 0110- ●
18 PIPE; INJ NO.3 8-94396-003-4 01 1 9606-9810 ●
18 PIPE; INJ NO.3 8-94393-897-1 01 1 9811-0203 ●
18 PIPE; INJ NO.3 8-94396-009-3 01 1 9606-9810 ●
18 PIPE; INJ NO.3 8-94390-830-0 01 1 9903-0108 ●
18 PIPE; INJ NO.3 8-97602-257-0 01 1 0109- ●
19 PIPE; INJ NO.4 8-94396-004-5 01 1 9606-9810 ●
19 PIPE; INJ NO.4 8-94393-757-1 01 1 9811-0203 ●
19 PIPE; INJ NO.4 8-94396-010-4 01 1 9606-9810 ●
19 PIPE; INJ NO.4 8-94394-226-1 01 1 9903-0108 ●
19 PIPE; INJ NO.4 8-94391-425-0 01 1 0109- ●
20 PIPE; INJ NO.5 8-94396-005-2 01 1 9606-9810 ●
20 PIPE; INJ NO.5 8-94393-758-1 01 1 9811-0203 ●
20 PIPE; INJ NO.5 8-94396-011-2 01 1 9606-9810 ●
20 PIPE; INJ NO.5 8-94394-227-1 01 1 9903-0108 ●
20 PIPE; INJ NO.5 8-94391-426-0 01 1 0109- ●
21 PIPE; INJ NO.6 8-94396-364-3 01 1 9606-9810 ●
21 PIPE; INJ NO.6 8-94393-759-1 01 1 9811-0203 ●
21 PIPE; INJ NO.6 8-94396-494-3 01 1 9606-9810 ●
21 PIPE; INJ NO.6 8-94394-228-1 01 1 9903-0108 ●
21 PIPE; INJ NO.6 8-94391-427-0 01 1 0109- ●
31 NOZZLE ASM; INJ
(A) 		8-94394-787-1 06 1 9606-9810 ● ●
31 NOZZLE ASM; INJ
(B) 		8-94395-923-2 06 1 9811-0203 ●
31 NOZZLE ASM; INJ
(C) 		8-94394-606-6 06 1 9903- ●
57 GASKET; DUST COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 		9-09563-215-0 06 1 9610-9810 ● ●
57 GASKET; DUST COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 		9-09563-215-0 06 1 9811-9902 ●
57 GASKET; DUST COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 		9-09563-215-0 06 1 9903-0203 ● ●
57 GASKET; DUST COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 		9-09563-215-0 06 1 0204- ●
62 NUT; NOZZLE HOLDER
M8 FLANGE 		0-91150-108-0 12 1 9606-9810 ● ●
62 NUT; NOZZLE HOLDER
M8 FLANGE 		0-91150-108-0 12 1 9811-9902 ●
62 NUT; NOZZLE HOLDER
M8 FLANGE 		0-91150-108-0 12 1 9903-0203 ● ●
62 NUT; NOZZLE HOLDER
M8 FLANGE 		0-91150-108-0 12 1 0204-0602 ●
62 NUT; NOZZLE HOLDER
M8 FLANGE 		0-91180-108-0 12 1 0603- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94377-623-0 06 1 9606-9703 ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97171-333-0 06 1 9704-9810 ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97171-333-0 06 1 9811-0203 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94391-472-0 12 1 9903- ●
107 NUT; INJ PIPE CLIP
M6 FLANGE 		0-91150-106-0 04 1 9811-0203 ●
107 NUT; INJ PIPE CLIP
M6 FLANGE 		0-91150-106-0 05 1 9903-0108 ●
107 NUT; INJ PIPE CLIP
M6 FLANGE 		0-91150-106-0 06 1 0109-0602 ●
107 NUT; INJ PIPE CLIP
M6 FLANGE 		0-91180-106-0 06 1 0603- ●
113 CLIP; INJ PIPE
(A) 		1-09701-091-0 02 1 9606-9810 ● ●
113 CLIP; INJ PIPE
(C) 		8-94396-793-0 04 1 9811-9902 ●
113 CLIP; INJ PIPE
(B) 		8-94397-444-0 05 1 9903-0108 ●
113 CLIP; INJ PIPE
(D) 		1-09701-132-1 10 1 0109- ●
113 CLIP; INJ PIPE
(B) 		8-94397-444-0 01 1 9606-9810 ● ●
113 CLIP; INJ PIPE
(B) 		8-94397-444-0 04 1 9811-0203 ●
113 CLIP; INJ PIPE
(C) 		8-94396-793-0 04 1 9903-0108 ● ●
113 CLIP; INJ PIPE
(C) 		8-94396-793-0 04 1 0109-0203 ●
121 PIPE; FUEL,FEED PUMP,SUCTION
FRONT AXLE F049<FS4> 		8-94393-021-0 01 1 9610-9810 ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94397-335-1 01 1 9606-9609 ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION
EXC. FRONT AXLE F049<FS4> 		8-94397-335-1 01 1 9610-9810 ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94397-335-1 01 1 9610-9810 ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94394-408-0 01 1 9811-0203 ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94395-043-2 01 1 9903- ●
124 BOLT; EYE LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 06 1 0005-0203 ●
124 BOLT; EYE LEAK OFF PIPE
(B) M8X18 EYE-BOLT 		1-09675-037-1 05 1 9903- ●
124 BOLT; EYE LEAK OFF PIPE
(C) M8X30 FLANGE 		1-09675-039-1 01 1 9903- ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-94395-144-0 01 1 9606-9810 ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-94395-145-0 01 1 9811-0203 ●
133 PIPE; INJ NOZZLE LEAK OFF
(C) 		8-94390-071-0 01 1 9903- ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2 		1-09630-082-0 02 1 9606-9810 ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2 		1-09630-082-0 02 1 9811-0004 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2 		1-09630-082-0 14 1 0005-0203 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2 		1-09630-082-0 13 1 9903- ●
çizim 40913
31 32 58 140 44 43 146 46 33 35
BalonParca AdiParca NoAdetTipApplied Date A B C D
31 NOZZLE ASM; INJ
(A) 		8-94394-787-1 06 1 9606-9810 ● ●
31 NOZZLE ASM; INJ
(B) 		8-94395-923-2 06 1 9811-0203 ●
31 NOZZLE ASM; INJ
(C) 		8-94394-606-6 06 1 9903- ●
32 HOLDER ASM; NOZZLE 8-94394-788-0 06 1 9606-9810 ● ●
32 HOLDER ASM; NOZZLE 8-94394-788-0 06 1 9811-0203 ●
32 HOLDER ASM; NOZZLE 8-94395-197-1 06 1 9903- ●
33 NOZZLE; INJ 8-94396-575-1 06 1 9606-9810 ● ●
33 NOZZLE; INJ 8-94390-399-0 06 1 9811-0203 ●
33 NOZZLE; INJ 8-94394-699-0 06 1 9903- ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 8-94174-184-0 06 1 9606-9810 ● ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 8-94174-184-0 06 1 9811-9902 ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 8-94174-184-0 06 1 9903-0203 ● ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 8-94174-184-0 06 1 0204- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER 8-94329-555-0 06 1 9606-9810 ● ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER 8-94329-555-0 06 1 9811-9902 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER 8-94329-555-0 06 1 9903-0203 ● ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER 8-94329-555-0 06 1 0204- ●
44 SPRING; NOZZLE,NOZZLE HOLDER 8-94174-141-0 06 1 9606-9810 ● ●
44 SPRING; NOZZLE,NOZZLE HOLDER 8-94174-141-0 06 1 9811-9902 ●
44 SPRING; NOZZLE,NOZZLE HOLDER 8-94174-141-0 06 1 9903-0203 ● ●
44 SPRING; NOZZLE,NOZZLE HOLDER 8-94174-141-0 06 1 0204- ●
46 PIN; NOZZLE SET,NOZZLE HOLDER 8-94174-139-0 12 1 9606-9810 ● ●
46 PIN; NOZZLE SET,NOZZLE HOLDER 8-94174-139-0 12 1 9811-9902 ●
46 PIN; NOZZLE SET,NOZZLE HOLDER 8-94174-139-0 12 1 9903-0203 ● ●
46 PIN; NOZZLE SET,NOZZLE HOLDER 8-94174-139-0 12 1 0204- ●
58 FLANGE; INJ,NOZZLE HOLDER 8-97065-713-0 06 1 9606-9810 ● ●
58 FLANGE; INJ,NOZZLE HOLDER 8-97065-713-0 06 1 9811-9902 ●
58 FLANGE; INJ,NOZZLE HOLDER 8-97065-713-0 06 1 9903-0203 ● ●
58 FLANGE; INJ,NOZZLE HOLDER 8-97065-713-0 06 1 0204- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.10 		8-97116-029-0 AR 1 9606-9810 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.20 		8-97116-032-0 AR 1 9606-9810 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.30 		8-97116-033-0 AR 1 9606-9810 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.40 		8-97116-034-0 AR 1 9606-9810 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.50 		8-97116-035-0 AR 1 9606-9810 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.51 		8-97116-036-0 AR 1 9606-9810 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.52 		8-97116-037-0 AR 1 9606-9810 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.53 		8-97116-038-0 AR 1 9606-9810 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.54 		8-97116-039-0 AR 1 9606-9810 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.55 		8-97116-040-0 AR 1 9606-9810 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.56 		8-97116-041-0 AR 1 9606-9810 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.57 		8-97116-042-0 AR 1 9606-9810 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.58 		8-97116-043-0 AR 1 9606-9810 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.59 		8-97116-044-0 AR 1 9606-9810 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.10 		8-97116-029-0 AR 1 9811-0203 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.20 		8-97116-032-0 AR 1 9811-0203 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.30 		8-97116-033-0 AR 1 9811-0203 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.40 		8-97116-034-0 AR 1 9811-0203 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.50 		8-97116-035-0 AR 1 9811-0203 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.51 		8-97116-036-0 AR 1 9811-0203 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.52 		8-97116-037-0 AR 1 9811-0203 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.53 		8-97116-038-0 AR 1 9811-0203 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.54 		8-97116-039-0 AR 1 9811-0203 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.55 		8-97116-040-0 AR 1 9811-0203 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.56 		8-97116-041-0 AR 1 9811-0203 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.57 		8-97116-042-0 AR 1 9811-0203 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.58 		8-97116-043-0 AR 1 9811-0203 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.59 		8-97116-044-0 AR 1 9811-0203 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(C) T=0.10 		8-97027-432-0 AR 1 9903- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(C) T=0.20 		8-97027-433-0 AR 1 9903- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(C) T=0.30 		8-97027-434-0 AR 1 9903- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(C) T=0.40 		8-97027-435-0 AR 1 9903- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(C) T=0.50 		8-97027-436-0 AR 1 9903- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(C) T=0.52 		8-97027-437-0 AR 1 9903- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(C) T=0.54 		8-97027-438-0 AR 1 9903- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(C) T=0.56 		8-97027-439-0 AR 1 9903- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(C) T=0.58 		8-97027-440-0 AR 1 9903- ●
146 SPACER; NOZZLE 1-15339-095-0 06 1 9606-9810 ● ●
146 SPACER; NOZZLE 1-15339-095-0 06 1 9811-9902 ●
146 SPACER; NOZZLE 1-15339-095-0 06 1 9903-0203 ● ●
146 SPACER; NOZZLE 1-15339-095-0 06 1 0204- ●
çizim 42450
31 32 34 36 36 58 145 140 44 43 146 46 33 35
BalonParca AdiParca NoAdetTipApplied Date A B C D
31 NOZZLE ASM; INJ
(A) 		8-94394-787-1 06 1 9606-9810 ● ●
31 NOZZLE ASM; INJ
(B) 		8-94395-923-2 06 1 9811-0203 ●
31 NOZZLE ASM; INJ
(C) 		8-94394-606-6 06 1 9903- ●
32 HOLDER ASM; NOZZLE 8-94394-788-0 06 1 9606-9810 ● ●
32 HOLDER ASM; NOZZLE 8-94394-788-0 06 1 9811-0203 ●
32 HOLDER ASM; NOZZLE 8-94395-197-1 06 1 9903- ●
33 NOZZLE; INJ 8-94396-575-1 06 1 9606-9810 ● ●
33 NOZZLE; INJ 8-94390-399-0 06 1 9811-0203 ●
33 NOZZLE; INJ 8-94394-699-0 06 1 9903- ●
34 BOLT; EYE,NOZZLE HOLDER
M8X18 EYE-BOLT 		1-09675-037-1 06 1 9606-9810 ● ●
34 BOLT; EYE,NOZZLE HOLDER 1-15339-009-0 06 1 9903- ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 8-94174-184-0 06 1 9606-9810 ● ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 8-94174-184-0 06 1 9811-9902 ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 8-94174-184-0 06 1 9903-0203 ● ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 8-94174-184-0 06 1 0204- ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2 		1-09630-082-0 12 1 9606-9810 ● ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-15339-010-0 12 1 9903- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER 8-94329-555-0 06 1 9606-9810 ● ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER 8-94329-555-0 06 1 9811-9902 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER 8-94329-555-0 06 1 9903-0203 ● ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER 8-94329-555-0 06 1 0204- ●
44 SPRING; NOZZLE,NOZZLE HOLDER 8-94174-141-0 06 1 9606-9810 ● ●
44 SPRING; NOZZLE,NOZZLE HOLDER 8-94174-141-0 06 1 9811-9902 ●
44 SPRING; NOZZLE,NOZZLE HOLDER 8-94174-141-0 06 1 9903-0203 ● ●
44 SPRING; NOZZLE,NOZZLE HOLDER 8-94174-141-0 06 1 0204- ●
46 PIN; NOZZLE SET,NOZZLE HOLDER 8-94174-139-0 12 1 9606-9810 ● ●
46 PIN; NOZZLE SET,NOZZLE HOLDER 8-94174-139-0 12 1 9811-9902 ●
46 PIN; NOZZLE SET,NOZZLE HOLDER 8-94174-139-0 12 1 9903-0203 ● ●
46 PIN; NOZZLE SET,NOZZLE HOLDER 8-94174-139-0 12 1 0204- ●
58 FLANGE; INJ,NOZZLE HOLDER 8-97065-713-0 06 1 9606-9810 ● ●
58 FLANGE; INJ,NOZZLE HOLDER 8-97065-713-0 06 1 9811-9902 ●
58 FLANGE; INJ,NOZZLE HOLDER 8-97065-713-0 06 1 9903-0203 ● ●
58 FLANGE; INJ,NOZZLE HOLDER 8-97065-713-0 06 1 0204- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.10 		8-97116-029-0 AR 1 9606-9810 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.20 		8-97116-032-0 AR 1 9606-9810 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.30 		8-97116-033-0 AR 1 9606-9810 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.40 		8-97116-034-0 AR 1 9606-9810 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.50 		8-97116-035-0 AR 1 9606-9810 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.51 		8-97116-036-0 AR 1 9606-9810 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.52 		8-97116-037-0 AR 1 9606-9810 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.53 		8-97116-038-0 AR 1 9606-9810 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.54 		8-97116-039-0 AR 1 9606-9810 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.55 		8-97116-040-0 AR 1 9606-9810 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.56 		8-97116-041-0 AR 1 9606-9810 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.57 		8-97116-042-0 AR 1 9606-9810 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.58 		8-97116-043-0 AR 1 9606-9810 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.59 		8-97116-044-0 AR 1 9606-9810 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.10 		8-97116-029-0 AR 1 9811-0203 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.20 		8-97116-032-0 AR 1 9811-0203 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.30 		8-97116-033-0 AR 1 9811-0203 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.40 		8-97116-034-0 AR 1 9811-0203 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.50 		8-97116-035-0 AR 1 9811-0203 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.51 		8-97116-036-0 AR 1 9811-0203 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.52 		8-97116-037-0 AR 1 9811-0203 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.53 		8-97116-038-0 AR 1 9811-0203 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.54 		8-97116-039-0 AR 1 9811-0203 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.55 		8-97116-040-0 AR 1 9811-0203 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.56 		8-97116-041-0 AR 1 9811-0203 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.57 		8-97116-042-0 AR 1 9811-0203 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.58 		8-97116-043-0 AR 1 9811-0203 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.59 		8-97116-044-0 AR 1 9811-0203 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(C) T=0.10 		8-97027-432-0 AR 1 9903- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(C) T=0.20 		8-97027-433-0 AR 1 9903- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(C) T=0.30 		8-97027-434-0 AR 1 9903- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(C) T=0.40 		8-97027-435-0 AR 1 9903- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(C) T=0.50 		8-97027-436-0 AR 1 9903- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(C) T=0.52 		8-97027-437-0 AR 1 9903- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(C) T=0.54 		8-97027-438-0 AR 1 9903- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(C) T=0.56 		8-97027-439-0 AR 1 9903- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(C) T=0.58 		8-97027-440-0 AR 1 9903- ●
145 GASKET; RET NUT 8-94128-915-0 06 1 9903- ●
146 SPACER; NOZZLE 1-15339-095-0 06 1 9606-9810 ● ●
146 SPACER; NOZZLE 1-15339-095-0 06 1 9811-9902 ●
146 SPACER; NOZZLE 1-15339-095-0 06 1 9903-0203 ● ●
146 SPACER; NOZZLE 1-15339-095-0 06 1 0204- ●
çizim 44565
31 34 32 36 36 31 58 140 44 43 146 46 33 35
BalonParca AdiParca NoAdetTipApplied Date A B C D
31 NOZZLE ASM; INJ
(A) 		8-94394-787-1 06 1 9606-9810 ● ●
31 NOZZLE ASM; INJ
(B) 		8-94395-923-2 06 1 9811-0203 ●
31 NOZZLE ASM; INJ
(C) 		8-94394-606-6 06 1 9903- ●
32 HOLDER ASM; NOZZLE 8-94394-788-0 06 1 9606-9810 ● ●
32 HOLDER ASM; NOZZLE 8-94394-788-0 06 1 9811-0203 ●
32 HOLDER ASM; NOZZLE 8-94395-197-1 06 1 9903- ●
33 NOZZLE; INJ 8-94396-575-1 06 1 9606-9810 ● ●
33 NOZZLE; INJ 8-94390-399-0 06 1 9811-0203 ●
33 NOZZLE; INJ 8-94394-699-0 06 1 9903- ●
34 BOLT; EYE,NOZZLE HOLDER
M8X18 EYE-BOLT 		1-09675-037-1 06 1 9606-9810 ● ●
34 BOLT; EYE,NOZZLE HOLDER 1-15339-009-0 06 1 9903- ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 8-94174-184-0 06 1 9606-9810 ● ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 8-94174-184-0 06 1 9811-9902 ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 8-94174-184-0 06 1 9903-0203 ● ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 8-94174-184-0 06 1 0204- ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2 		1-09630-082-0 12 1 9606-9810 ● ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-15339-010-0 12 1 9903- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER 8-94329-555-0 06 1 9606-9810 ● ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER 8-94329-555-0 06 1 9811-9902 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER 8-94329-555-0 06 1 9903-0203 ● ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER 8-94329-555-0 06 1 0204- ●
44 SPRING; NOZZLE,NOZZLE HOLDER 8-94174-141-0 06 1 9606-9810 ● ●
44 SPRING; NOZZLE,NOZZLE HOLDER 8-94174-141-0 06 1 9811-9902 ●
44 SPRING; NOZZLE,NOZZLE HOLDER 8-94174-141-0 06 1 9903-0203 ● ●
44 SPRING; NOZZLE,NOZZLE HOLDER 8-94174-141-0 06 1 0204- ●
46 PIN; NOZZLE SET,NOZZLE HOLDER 8-94174-139-0 12 1 9606-9810 ● ●
46 PIN; NOZZLE SET,NOZZLE HOLDER 8-94174-139-0 12 1 9811-9902 ●
46 PIN; NOZZLE SET,NOZZLE HOLDER 8-94174-139-0 12 1 9903-0203 ● ●
46 PIN; NOZZLE SET,NOZZLE HOLDER 8-94174-139-0 12 1 0204- ●
58 FLANGE; INJ,NOZZLE HOLDER 8-97065-713-0 06 1 9606-9810 ● ●
58 FLANGE; INJ,NOZZLE HOLDER 8-97065-713-0 06 1 9811-9902 ●
58 FLANGE; INJ,NOZZLE HOLDER 8-97065-713-0 06 1 9903-0203 ● ●
58 FLANGE; INJ,NOZZLE HOLDER 8-97065-713-0 06 1 0204- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.10 		8-97116-029-0 AR 1 9606-9810 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.20 		8-97116-032-0 AR 1 9606-9810 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.30 		8-97116-033-0 AR 1 9606-9810 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.40 		8-97116-034-0 AR 1 9606-9810 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.50 		8-97116-035-0 AR 1 9606-9810 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.51 		8-97116-036-0 AR 1 9606-9810 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.52 		8-97116-037-0 AR 1 9606-9810 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.53 		8-97116-038-0 AR 1 9606-9810 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.54 		8-97116-039-0 AR 1 9606-9810 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.55 		8-97116-040-0 AR 1 9606-9810 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.56 		8-97116-041-0 AR 1 9606-9810 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.57 		8-97116-042-0 AR 1 9606-9810 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.58 		8-97116-043-0 AR 1 9606-9810 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.59 		8-97116-044-0 AR 1 9606-9810 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.10 		8-97116-029-0 AR 1 9811-0203 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.20 		8-97116-032-0 AR 1 9811-0203 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.30 		8-97116-033-0 AR 1 9811-0203 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.40 		8-97116-034-0 AR 1 9811-0203 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.50 		8-97116-035-0 AR 1 9811-0203 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.51 		8-97116-036-0 AR 1 9811-0203 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.52 		8-97116-037-0 AR 1 9811-0203 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.53 		8-97116-038-0 AR 1 9811-0203 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.54 		8-97116-039-0 AR 1 9811-0203 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.55 		8-97116-040-0 AR 1 9811-0203 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.56 		8-97116-041-0 AR 1 9811-0203 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.57 		8-97116-042-0 AR 1 9811-0203 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.58 		8-97116-043-0 AR 1 9811-0203 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.59 		8-97116-044-0 AR 1 9811-0203 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(C) T=0.10 		8-97027-432-0 AR 1 9903- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(C) T=0.20 		8-97027-433-0 AR 1 9903- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(C) T=0.30 		8-97027-434-0 AR 1 9903- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(C) T=0.40 		8-97027-435-0 AR 1 9903- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(C) T=0.50 		8-97027-436-0 AR 1 9903- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(C) T=0.52 		8-97027-437-0 AR 1 9903- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(C) T=0.54 		8-97027-438-0 AR 1 9903- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(C) T=0.56 		8-97027-439-0 AR 1 9903- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(C) T=0.58 		8-97027-440-0 AR 1 9903- ●
146 SPACER; NOZZLE 1-15339-095-0 06 1 9606-9810 ● ●
146 SPACER; NOZZLE 1-15339-095-0 06 1 9811-9902 ●
146 SPACER; NOZZLE 1-15339-095-0 06 1 9903-0203 ● ●
146 SPACER; NOZZLE 1-15339-095-0 06 1 0204- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
