Sayfa 0-39 - Isuzu EPC

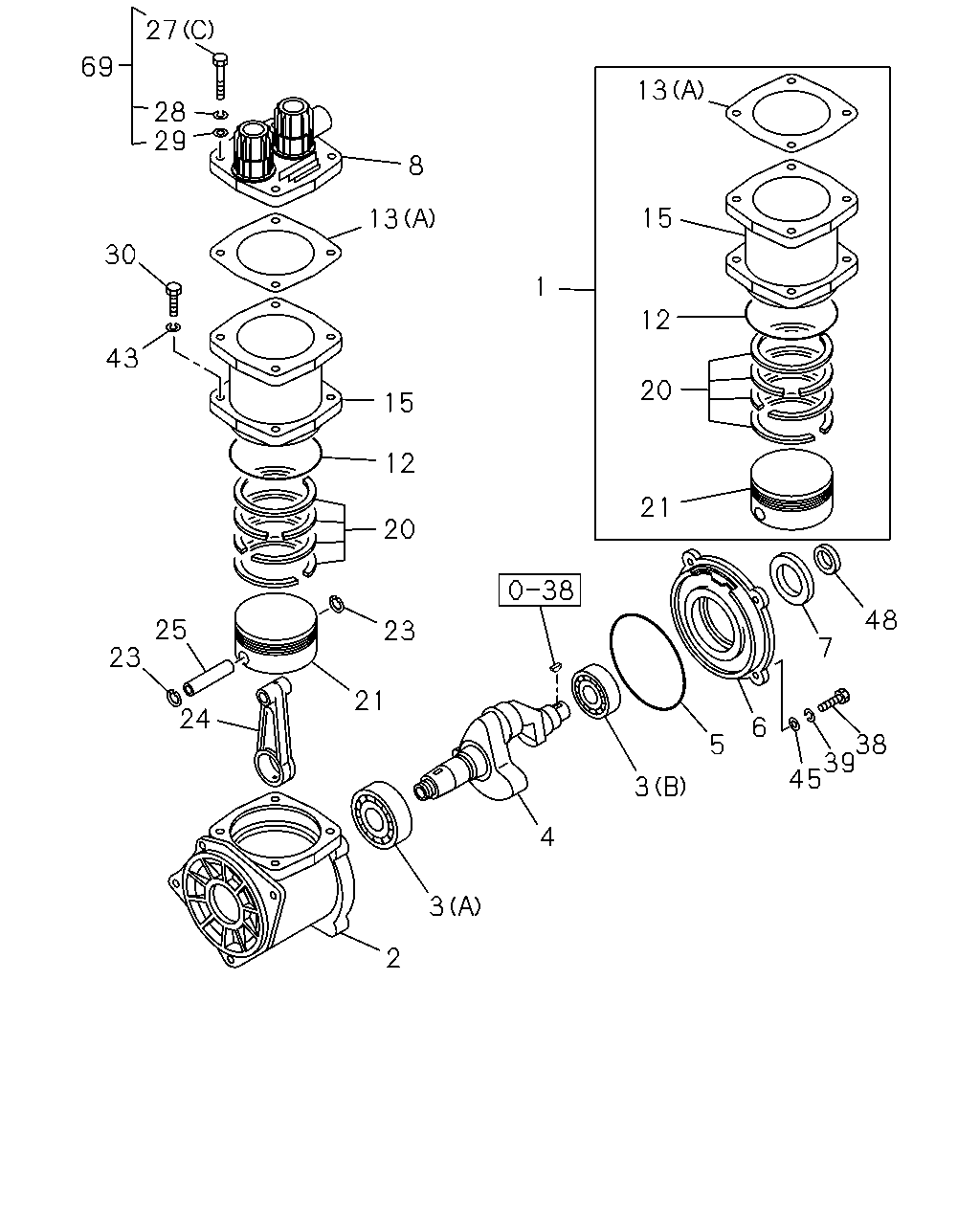

0-39 — AIR COMPRESSOR; BRAKE (#5912) — 316 parça

27 69 13 28 29 8 15 13 30 1 12 43 20 15 12 21 20 48 25 23 7 23 21 24 6 38 39 45 5 3 4 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	LINER KIT; CYL,AIR CMPR	1-19163-050-1	01	1	9606-9810	●
1	LINER KIT; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-050-1	01	1	9606-9810		●
1	LINER KIT; CYL,AIR CMPR	1-19163-050-1	01	1	9811-0203			●
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-053-2	01	1	9606-9810		●
1	LINER KIT; CYL,AIR CMPR	1-19163-052-1	01	1	9903-				●
2	CRANKCASE; AIR CMPR	1-19151-266-1	01	1	9606-9810	●	●
2	CRANKCASE; AIR CMPR	1-19151-266-1	01	1	9811-0203			●
2	CRANKCASE; AIR CMPR	1-19151-274-0	01	1	9903-				●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	9606-9810	●	●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	9811-9902			●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	9903-0203			●	●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	0204-				●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	9606-9810	●	●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	9811-9902			●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	9903-0203			●	●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	0204-				●
4	CRANKSHAFT; AIR CMPR	1-19171-047-1	01	1	9606-9810	●
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-047-1	01	1	9606-9810		●
4	CRANKSHAFT; AIR CMPR	1-19171-047-1	01	1	9811-0203			●
4	CRANKSHAFT; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-048-1	01	1	9606-9810		●
4	CRANKSHAFT; AIR CMPR	1-19171-028-0	01	1	9903-				●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	9606-9810	●	●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	9811-9902			●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	9903-0203			●	●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	0204-				●
6	COVER ASM; BRG,AIR CMPR	1-19156-058-1	01	1	9606-9810	●	●
6	COVER ASM; BRG,AIR CMPR	1-19156-058-1	01	1	9811-0203			●
6	COVER ASM; BRG,AIR CMPR	1-19156-039-0	01	1	9903-				●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-19158-026-0	01	1	9606-9810	●	●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-19158-026-0	01	1	9811-0203			●
8	HEAD ASM; CYL,AIR CMPR	1-19110-019-0	01	1	9606-9810	●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-019-0	01	1	9606-9810		●
8	HEAD ASM; CYL,AIR CMPR	1-19110-019-0	01	1	9811-0203			●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-052-1	01	1	9606-9810		●
8	HEAD ASM; CYL,AIR CMPR	1-19110-056-1	01	1	9903-				●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9606-9810	●	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9811-9902			●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9903-0203			●	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	0204-				●
13	GASKET; AIR CMPR (E)	1-19139-016-0	01	1	0204-				●
13	GASKET; AIR CMPR (A)	1-19115-006-1	01	1	9606-9810	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19115-006-1	01	1	9606-9810		●
13	GASKET; AIR CMPR (A)	1-19115-006-1	01	1	9811-0203			●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B) T=0.8	1-19139-004-0	01	1	9606-9805		●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-09623-626-0	01	1	9806-9810		●
13	GASKET; AIR CMPR (C)	1-19139-002-0	01	1	9903-0203				●
13	GASKET; AIR CMPR (D) T=0.8	1-19139-004-0	01	1	9903-0203				●
15	CYLINDER; AIR CMPR	1-19151-250-0	01	1	9606-9810	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-250-0	01	1	9606-9810		●
15	CYLINDER; AIR CMPR	1-19151-250-0	01	1	9811-0203			●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-219-0	01	1	9606-9810		●
15	CYLINDER; AIR CMPR	1-19151-218-0	01	1	9903-				●
20	RING KIT; PISTON,AIR CMPR	1-19163-043-0	01	1	9606-9810	●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-043-0	01	1	9606-9810		●
20	RING KIT; PISTON,AIR CMPR	1-19163-043-0	01	1	9811-0203			●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	01	1	9606-9810		●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	9903-0812				●
20	RING KIT; PISTON,AIR CMPR	1-19163-058-0	01	1	0901-				●
21	PISTON; AIR CMPR	1-19161-021-0	01	1	9606-9810	●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-021-0	01	1	9606-9810		●
21	PISTON; AIR CMPR	1-19161-021-0	01	1	9811-0203			●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	01	1	9606-9810		●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	9903-0812				●
21	PISTON; AIR CMPR	1-19161-027-0	01	1	0901-				●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	9606-9810	●	●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	9811-0203			●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-008-0	02	1	9903-0812				●
23	RING; SNAP,PISTON,AIR CMPR	1-19169-004-0	02	1	0901-				●
24	ROD ASM; CONN,AIR CMPR	1-19173-017-0	01	1	9606-9810	●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-017-0	01	1	9606-9810		●
24	ROD ASM; CONN,AIR CMPR	1-19173-017-0	01	1	9811-0203			●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-010-0	01	1	9606-9810		●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	9903-				●
25	PIN; PISTON,AIR CMPR	9-19167-006-0	01	1	9606-9810	●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-006-0	01	1	9606-9810		●
25	PIN; PISTON,AIR CMPR	9-19167-006-0	01	1	9811-0203			●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-003-0	01	1	9606-9810		●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	9903-0812				●
25	PIN; PISTON,AIR CMPR	1-19167-003-0	01	1	0901-				●
27	BOLT; HD (C) M10X30	9-02061-030-0	04	1	9606-9805	●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M10X30	9-02061-030-0	04	1	9606-9805		●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M10X45	9-01066-045-0	02	1	9606-9810		●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M10X60	9-01066-060-0	02	1	9606-9810		●
27	BOLT; HD (D) M10X45	9-01066-045-0	02	1	9903-				●
27	BOLT; HD (A) M10X60	9-01066-060-0	02	1	9903-				●
28	WASHER; LK,HD BOLT ID=10.2	9-09150-610-0	04	1	9606-9609	●
28	WASHER; LK,HD BOLT EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.2	9-09150-610-0	04	1	9606-9609		●
28	WASHER; LK,HD BOLT EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.2	9-09150-610-0	04	1	9610-9805	●	●
29	WASHER; PL,HD BOLT ID=10.5	9-09164-510-0	04	1	9606-9609	●
29	WASHER; PL,HD BOLT EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.5	9-09164-510-0	04	1	9606-9609		●
29	WASHER; PL,HD BOLT EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.5	9-09164-510-0	04	1	9610-9805	●	●
30	BOLT; CYL TO CRANKCASE	1-09000-332-0	04	1	9606-9805	●
30	BOLT; CYL TO CRANKCASE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09000-332-0	04	1	9606-9805		●
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY(E1Q) M10X25	9-02051-025-0	04	1	9606-9805		●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	9806-9810	●	●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	9811-0203			●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	04	1	9903-				●
38	BOLT; COVER FIX	9-81385-023-0	04	1	9606-9810	●	●
38	BOLT; COVER FIX	9-81385-023-0	04	1	9811-0203			●
38	BOLT; COVER FIX	1-19179-011-0	04	1	9903-				●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9606-9810	●	●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9811-9902			●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9903-0203			●	●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	0204-				●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	04	1	9606-9805	●	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	04	1	9903-				●
45	WASHER; PL,COVER FIX,AIR CMPR ID=8.4	9-09160-508-0	04	1	9606-9810	●	●
45	WASHER; PL,COVER FIX,AIR CMPR ID=8.4	9-09160-508-0	04	1	9811-0203			●
48	SLEEVE; CR/SHF	1-19179-014-0	01	1	9606-9810	●	●
48	SLEEVE; CR/SHF	1-19179-014-0	01	1	9811-0203			●
69	BOLT ASM; AIR COMP	1-19119-031-0	04	1	9806-9810	●
69	BOLT ASM; AIR COMP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19119-031-0	04	1	9806-9810		●
69	BOLT ASM; AIR COMP	1-19119-031-0	04	1	9811-0203			●

8 9 27 13 13 27 13 1 15 13 13 13 12 30 20 43 15 21 12 20 25 23 23 8 39 21 24 6 5 3 4 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	LINER KIT; CYL,AIR CMPR	1-19163-050-1	01	1	9606-9810	●
1	LINER KIT; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-050-1	01	1	9606-9810		●
1	LINER KIT; CYL,AIR CMPR	1-19163-050-1	01	1	9811-0203			●
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-053-2	01	1	9606-9810		●
1	LINER KIT; CYL,AIR CMPR	1-19163-052-1	01	1	9903-				●
2	CRANKCASE; AIR CMPR	1-19151-266-1	01	1	9606-9810	●	●
2	CRANKCASE; AIR CMPR	1-19151-266-1	01	1	9811-0203			●
2	CRANKCASE; AIR CMPR	1-19151-274-0	01	1	9903-				●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	9606-9810	●	●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	9811-9902			●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	9903-0203			●	●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	0204-				●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	9606-9810	●	●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	9811-9902			●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	9903-0203			●	●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	0204-				●
4	CRANKSHAFT; AIR CMPR	1-19171-047-1	01	1	9606-9810	●
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-047-1	01	1	9606-9810		●
4	CRANKSHAFT; AIR CMPR	1-19171-047-1	01	1	9811-0203			●
4	CRANKSHAFT; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-048-1	01	1	9606-9810		●
4	CRANKSHAFT; AIR CMPR	1-19171-028-0	01	1	9903-				●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	9606-9810	●	●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	9811-9902			●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	9903-0203			●	●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	0204-				●
6	COVER ASM; BRG,AIR CMPR	1-19156-058-1	01	1	9606-9810	●	●
6	COVER ASM; BRG,AIR CMPR	1-19156-058-1	01	1	9811-0203			●
6	COVER ASM; BRG,AIR CMPR	1-19156-039-0	01	1	9903-				●
8	HEAD ASM; CYL,AIR CMPR	1-19110-019-0	01	1	9606-9810	●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-019-0	01	1	9606-9810		●
8	HEAD ASM; CYL,AIR CMPR	1-19110-019-0	01	1	9811-0203			●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-052-1	01	1	9606-9810		●
8	HEAD ASM; CYL,AIR CMPR	1-19110-056-1	01	1	9903-				●
9	VALVE ASM; UNLOADER,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19120-017-1	01	1	9606-9810		●
9	VALVE ASM; UNLOADER,AIR CMPR	1-19120-017-1	01	1	9903-				●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9606-9810	●	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9811-9902			●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9903-0203			●	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	0204-				●
13	GASKET; AIR CMPR (E)	1-19139-016-0	01	1	0204-				●
13	GASKET; AIR CMPR (A)	1-19115-006-1	01	1	9606-9810	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19115-006-1	01	1	9606-9810		●
13	GASKET; AIR CMPR (A)	1-19115-006-1	01	1	9811-0203			●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B) T=0.8	1-19139-004-0	01	1	9606-9805		●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-09623-626-0	01	1	9806-9810		●
13	GASKET; AIR CMPR (C)	1-19139-002-0	01	1	9903-0203				●
13	GASKET; AIR CMPR (D) T=0.8	1-19139-004-0	01	1	9903-0203				●
15	CYLINDER; AIR CMPR	1-19151-250-0	01	1	9606-9810	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-250-0	01	1	9606-9810		●
15	CYLINDER; AIR CMPR	1-19151-250-0	01	1	9811-0203			●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-219-0	01	1	9606-9810		●
15	CYLINDER; AIR CMPR	1-19151-218-0	01	1	9903-				●
20	RING KIT; PISTON,AIR CMPR	1-19163-043-0	01	1	9606-9810	●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-043-0	01	1	9606-9810		●
20	RING KIT; PISTON,AIR CMPR	1-19163-043-0	01	1	9811-0203			●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	01	1	9606-9810		●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	9903-0812				●
20	RING KIT; PISTON,AIR CMPR	1-19163-058-0	01	1	0901-				●
21	PISTON; AIR CMPR	1-19161-021-0	01	1	9606-9810	●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-021-0	01	1	9606-9810		●
21	PISTON; AIR CMPR	1-19161-021-0	01	1	9811-0203			●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	01	1	9606-9810		●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	9903-0812				●
21	PISTON; AIR CMPR	1-19161-027-0	01	1	0901-				●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	9606-9810	●	●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	9811-0203			●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-008-0	02	1	9903-0812				●
23	RING; SNAP,PISTON,AIR CMPR	1-19169-004-0	02	1	0901-				●
24	ROD ASM; CONN,AIR CMPR	1-19173-017-0	01	1	9606-9810	●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-017-0	01	1	9606-9810		●
24	ROD ASM; CONN,AIR CMPR	1-19173-017-0	01	1	9811-0203			●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-010-0	01	1	9606-9810		●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	9903-				●
25	PIN; PISTON,AIR CMPR	9-19167-006-0	01	1	9606-9810	●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-006-0	01	1	9606-9810		●
25	PIN; PISTON,AIR CMPR	9-19167-006-0	01	1	9811-0203			●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-003-0	01	1	9606-9810		●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	9903-0812				●
25	PIN; PISTON,AIR CMPR	1-19167-003-0	01	1	0901-				●
27	BOLT; HD (C) M10X30	9-02061-030-0	04	1	9606-9805	●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M10X30	9-02061-030-0	04	1	9606-9805		●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M10X45	9-01066-045-0	02	1	9606-9810		●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M10X60	9-01066-060-0	02	1	9606-9810		●
27	BOLT; HD (D) M10X45	9-01066-045-0	02	1	9903-				●
27	BOLT; HD (A) M10X60	9-01066-060-0	02	1	9903-				●
30	BOLT; CYL TO CRANKCASE	1-09000-332-0	04	1	9606-9805	●
30	BOLT; CYL TO CRANKCASE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09000-332-0	04	1	9606-9805		●
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY(E1Q) M10X25	9-02051-025-0	04	1	9606-9805		●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	9806-9810	●	●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	9811-0203			●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	04	1	9903-				●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9606-9810	●	●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9811-9902			●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9903-0203			●	●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	0204-				●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	04	1	9606-9805	●	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	04	1	9903-				●

13 27 27 9 8 15 13 12 1 30 20 43 15 21 12 48 20 7 25 23 23 38 39 21 45 24 6 5 3 4 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	LINER KIT; CYL,AIR CMPR	1-19163-050-1	01	1	9606-9810	●
1	LINER KIT; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-050-1	01	1	9606-9810		●
1	LINER KIT; CYL,AIR CMPR	1-19163-050-1	01	1	9811-0203			●
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-053-2	01	1	9606-9810		●
1	LINER KIT; CYL,AIR CMPR	1-19163-052-1	01	1	9903-				●
2	CRANKCASE; AIR CMPR	1-19151-266-1	01	1	9606-9810	●	●
2	CRANKCASE; AIR CMPR	1-19151-266-1	01	1	9811-0203			●
2	CRANKCASE; AIR CMPR	1-19151-274-0	01	1	9903-				●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	9606-9810	●	●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	9811-9902			●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	9903-0203			●	●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	0204-				●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	9606-9810	●	●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	9811-9902			●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	9903-0203			●	●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	0204-				●
4	CRANKSHAFT; AIR CMPR	1-19171-047-1	01	1	9606-9810	●
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-047-1	01	1	9606-9810		●
4	CRANKSHAFT; AIR CMPR	1-19171-047-1	01	1	9811-0203			●
4	CRANKSHAFT; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-048-1	01	1	9606-9810		●
4	CRANKSHAFT; AIR CMPR	1-19171-028-0	01	1	9903-				●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	9606-9810	●	●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	9811-9902			●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	9903-0203			●	●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	0204-				●
6	COVER ASM; BRG,AIR CMPR	1-19156-058-1	01	1	9606-9810	●	●
6	COVER ASM; BRG,AIR CMPR	1-19156-058-1	01	1	9811-0203			●
6	COVER ASM; BRG,AIR CMPR	1-19156-039-0	01	1	9903-				●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-19158-026-0	01	1	9606-9810	●	●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-19158-026-0	01	1	9811-0203			●
8	HEAD ASM; CYL,AIR CMPR	1-19110-019-0	01	1	9606-9810	●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-019-0	01	1	9606-9810		●
8	HEAD ASM; CYL,AIR CMPR	1-19110-019-0	01	1	9811-0203			●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-052-1	01	1	9606-9810		●
8	HEAD ASM; CYL,AIR CMPR	1-19110-056-1	01	1	9903-				●
9	VALVE ASM; UNLOADER,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19120-017-1	01	1	9606-9810		●
9	VALVE ASM; UNLOADER,AIR CMPR	1-19120-017-1	01	1	9903-				●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9606-9810	●	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9811-9902			●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9903-0203			●	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	0204-				●
13	GASKET; AIR CMPR (E)	1-19139-016-0	01	1	0204-				●
13	GASKET; AIR CMPR (A)	1-19115-006-1	01	1	9606-9810	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19115-006-1	01	1	9606-9810		●
13	GASKET; AIR CMPR (A)	1-19115-006-1	01	1	9811-0203			●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B) T=0.8	1-19139-004-0	01	1	9606-9805		●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-09623-626-0	01	1	9806-9810		●
13	GASKET; AIR CMPR (C)	1-19139-002-0	01	1	9903-0203				●
13	GASKET; AIR CMPR (D) T=0.8	1-19139-004-0	01	1	9903-0203				●
15	CYLINDER; AIR CMPR	1-19151-250-0	01	1	9606-9810	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-250-0	01	1	9606-9810		●
15	CYLINDER; AIR CMPR	1-19151-250-0	01	1	9811-0203			●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-219-0	01	1	9606-9810		●
15	CYLINDER; AIR CMPR	1-19151-218-0	01	1	9903-				●
20	RING KIT; PISTON,AIR CMPR	1-19163-043-0	01	1	9606-9810	●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-043-0	01	1	9606-9810		●
20	RING KIT; PISTON,AIR CMPR	1-19163-043-0	01	1	9811-0203			●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	01	1	9606-9810		●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	9903-0812				●
20	RING KIT; PISTON,AIR CMPR	1-19163-058-0	01	1	0901-				●
21	PISTON; AIR CMPR	1-19161-021-0	01	1	9606-9810	●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-021-0	01	1	9606-9810		●
21	PISTON; AIR CMPR	1-19161-021-0	01	1	9811-0203			●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	01	1	9606-9810		●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	9903-0812				●
21	PISTON; AIR CMPR	1-19161-027-0	01	1	0901-				●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	9606-9810	●	●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	9811-0203			●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-008-0	02	1	9903-0812				●
23	RING; SNAP,PISTON,AIR CMPR	1-19169-004-0	02	1	0901-				●
24	ROD ASM; CONN,AIR CMPR	1-19173-017-0	01	1	9606-9810	●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-017-0	01	1	9606-9810		●
24	ROD ASM; CONN,AIR CMPR	1-19173-017-0	01	1	9811-0203			●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-010-0	01	1	9606-9810		●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	9903-				●
25	PIN; PISTON,AIR CMPR	9-19167-006-0	01	1	9606-9810	●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-006-0	01	1	9606-9810		●
25	PIN; PISTON,AIR CMPR	9-19167-006-0	01	1	9811-0203			●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-003-0	01	1	9606-9810		●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	9903-0812				●
25	PIN; PISTON,AIR CMPR	1-19167-003-0	01	1	0901-				●
27	BOLT; HD (C) M10X30	9-02061-030-0	04	1	9606-9805	●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M10X30	9-02061-030-0	04	1	9606-9805		●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M10X45	9-01066-045-0	02	1	9606-9810		●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M10X60	9-01066-060-0	02	1	9606-9810		●
27	BOLT; HD (D) M10X45	9-01066-045-0	02	1	9903-				●
27	BOLT; HD (A) M10X60	9-01066-060-0	02	1	9903-				●
30	BOLT; CYL TO CRANKCASE	1-09000-332-0	04	1	9606-9805	●
30	BOLT; CYL TO CRANKCASE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09000-332-0	04	1	9606-9805		●
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY(E1Q) M10X25	9-02051-025-0	04	1	9606-9805		●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	9806-9810	●	●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	9811-0203			●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	04	1	9903-				●
38	BOLT; COVER FIX	9-81385-023-0	04	1	9606-9810	●	●
38	BOLT; COVER FIX	9-81385-023-0	04	1	9811-0203			●
38	BOLT; COVER FIX	1-19179-011-0	04	1	9903-				●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9606-9810	●	●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9811-9902			●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9903-0203			●	●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	0204-				●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	04	1	9606-9805	●	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	04	1	9903-				●
45	WASHER; PL,COVER FIX,AIR CMPR ID=8.4	9-09160-508-0	04	1	9606-9810	●	●
45	WASHER; PL,COVER FIX,AIR CMPR ID=8.4	9-09160-508-0	04	1	9811-0203			●
48	SLEEVE; CR/SHF	1-19179-014-0	01	1	9606-9810	●	●
48	SLEEVE; CR/SHF	1-19179-014-0	01	1	9811-0203			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
