Isuzu WW
▶
TRUCKS
▶
FSS
▶
11401 - FSS(RHD)EURO1
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-01 - FRONT BUMPER
▶

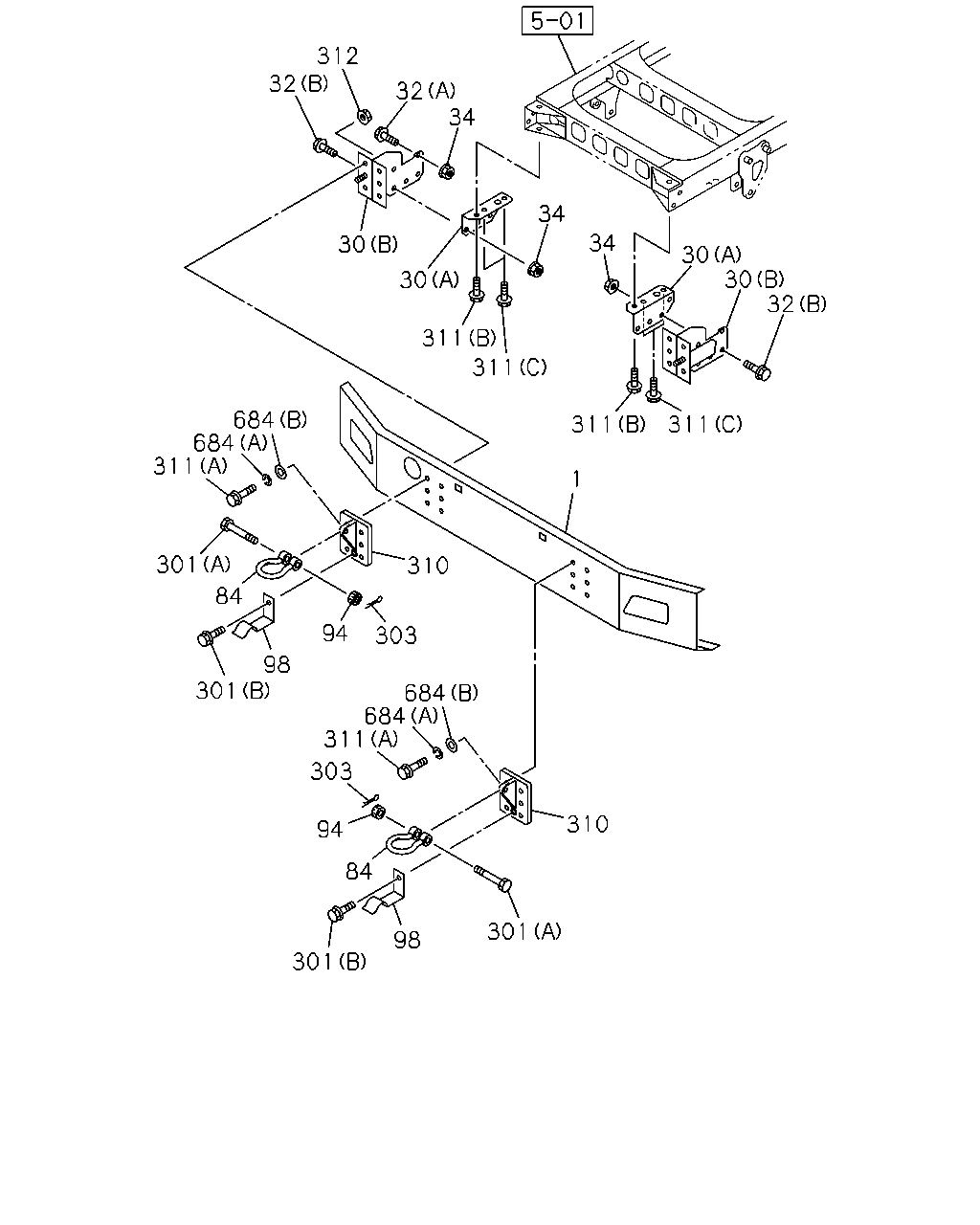

6-01 — FRONT BUMPER
(#59112) — 22 parça
312
32
32
34
34
34
30
30
30
32
30
311
311
684
684
311
311
311
1
301
310
84
94
303
98
301
684
684
311
303
310
94
84
301
98
301
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BUMPER ASM; FRT
8-98136-823-1
01
1
1112-
30
BRACKET; FRT BUMPER
(A)
8-98117-297-1
01
1
1112-
30
BRACKET; FRT BUMPER
(B)
8-98117-300-1
01
1
1112-
30
BRACKET; FRT BUMPER
(A)
8-98117-296-1
01
1
1112-
30
BRACKET; FRT BUMPER
(B)
8-98117-299-1
01
1
1112-
32
BOLT; BRKT,BUMPER
(A) M12X40 FLANGE
0-28651-240-0
02
1
1112-
32
BOLT; BRKT,BUMPER
(B) M14X45 FLANGE
0-28851-445-0
08
1
1112-
34
NUT; BRKT,BUMPER
M12 FLANGE
0-91180-112-0
02
1
1112-
34
NUT; BRKT,BUMPER
M14 FLANGE
0-91180-114-0
08
1
1112-
84
HOOK
1-57181-023-1
02
1
1112-
94
NUT; HOOK
M24
1-09442-032-0
02
1
1112-
98
STOPPER; SPR,FRT HOOK
1-09700-971-0
02
1
1112-
301
BOLT; HOOK TO FRAME
(B) M8X16 FLANGE
0-28050-816-0
02
1
1112-
301
BOLT; HOOK TO FRAME
(A) M24X124.5
1-09042-026-1
02
1
1112-
303
PIN; FRT HOOK
OD=4.6 L=35
0-81125-035-0
02
1
1112-
310
BRACKET; LOOP
1-57189-177-3
02
1
1112-
311
BOLT; BRKT
(A) M14X50
0-10856-450-0
10
1
1112-
311
BOLT; BRKT
(B) M10X40 FLANGE
0-28651-040-0
02
1
1112-
311
BOLT; BRKT
(C) M14X45 FLANGE
0-28851-445-0
04
1
1112-
312
NUT; BRKT
M14
0-91110-514-0
12
1
1112-
684
WASHER
(A) ID=14.2
0-91510-814-0
12
1
1112-
684
WASHER
(B) ID=15
0-91610-514-0
12
1
1112-
