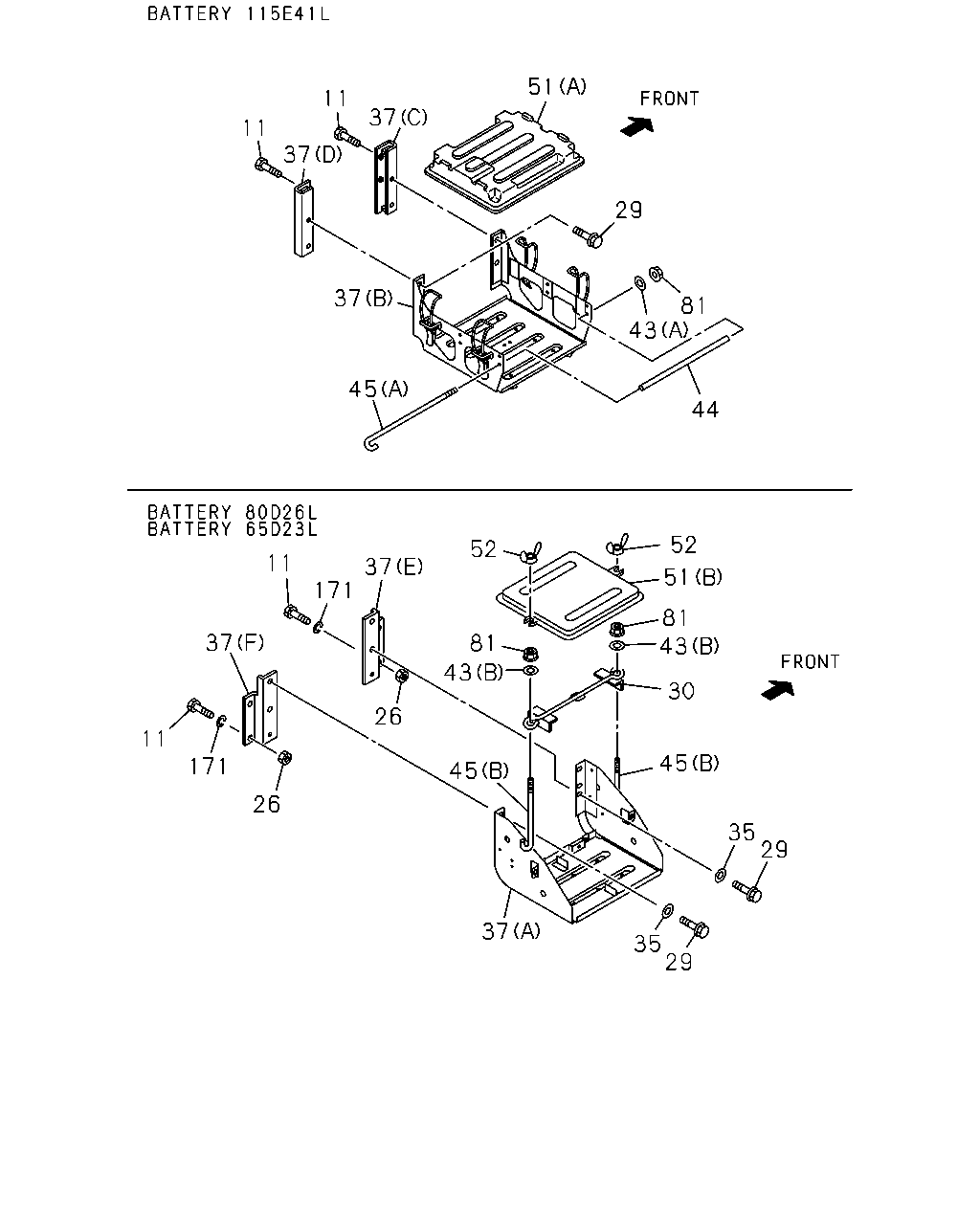

5-20 — BATTERY CARRIER (#59110) — 23 parça

11 11 37 37 51 37 45 29 81 43 44 11 171 37 11 171 26 37 26 52 81 43 45 37 35 29 29 35 45 30 43 81 51 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	BOLT; BRKT FIX M14X35	0-20851-435-0	04	1	1112-
26	NUT; BRKT BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M14	0-91110-514-0	04	1	1112-
29	BOLT; BRKT TO FRAME M10X35 FLANGE	0-28651-035-0	04	1	1112-
30	PLATE; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	5-53615-004-1	01	1	1112-
35	WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22	0-91614-610-0	04	1	1112-
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (B)	8-98167-768-0	01	1	1112-1405
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (B)	8-98261-640-1	01	1	1406-
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (C)	8-98097-579-0	01	1	1112-
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (D)	8-98097-581-0	01	1	1112-
37	BRACKET; BATTERY BATTERY 65D23L<8EJ> (A)	8-97384-068-2	01	1	1112-
37	BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	1112-
37	BRACKET; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (E)	1-53619-056-1	01	1	1112-
37	BRACKET; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (F)	1-53619-057-2	01	1	1112-
43	WASHER; PL,CLAMP BATTERY 115E41L<8MA> (A) ID=8.4 OD=16	0-91610-508-0	02	1	1112-
43	WASHER; PL,CLAMP BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) ID=8.4 OD=22	0-91614-708-0	02	1	1112-
44	SPACER; BATTERY BATTERY 115E41L<8MA>	8-98261-682-0	02	1	1406-
45	ROD; TENSION,BATTERY BATTERY 115E41L<8MA> (A) L=430	8-97134-740-0	02	1	1112-
45	ROD; TENSION,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) L=120	9-53616-615-0	02	1	1112-
51	COVER; BATTERY BATTERY 115E41L<8MA> (A)	1-53612-037-2	01	1	1112-
51	COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	8-97120-747-0	01	1	1112-
52	NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT	0-91118-408-0	02	1	1112-
81	NUT; BATTERY M8 FLANGE	0-91180-108-0	02	1	1112-
171	WASHER; BRKT BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=14.2	0-91510-814-0	04	1	1112-
