Sayfa 0-38 - Isuzu EPC

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#5911) — 350 parça

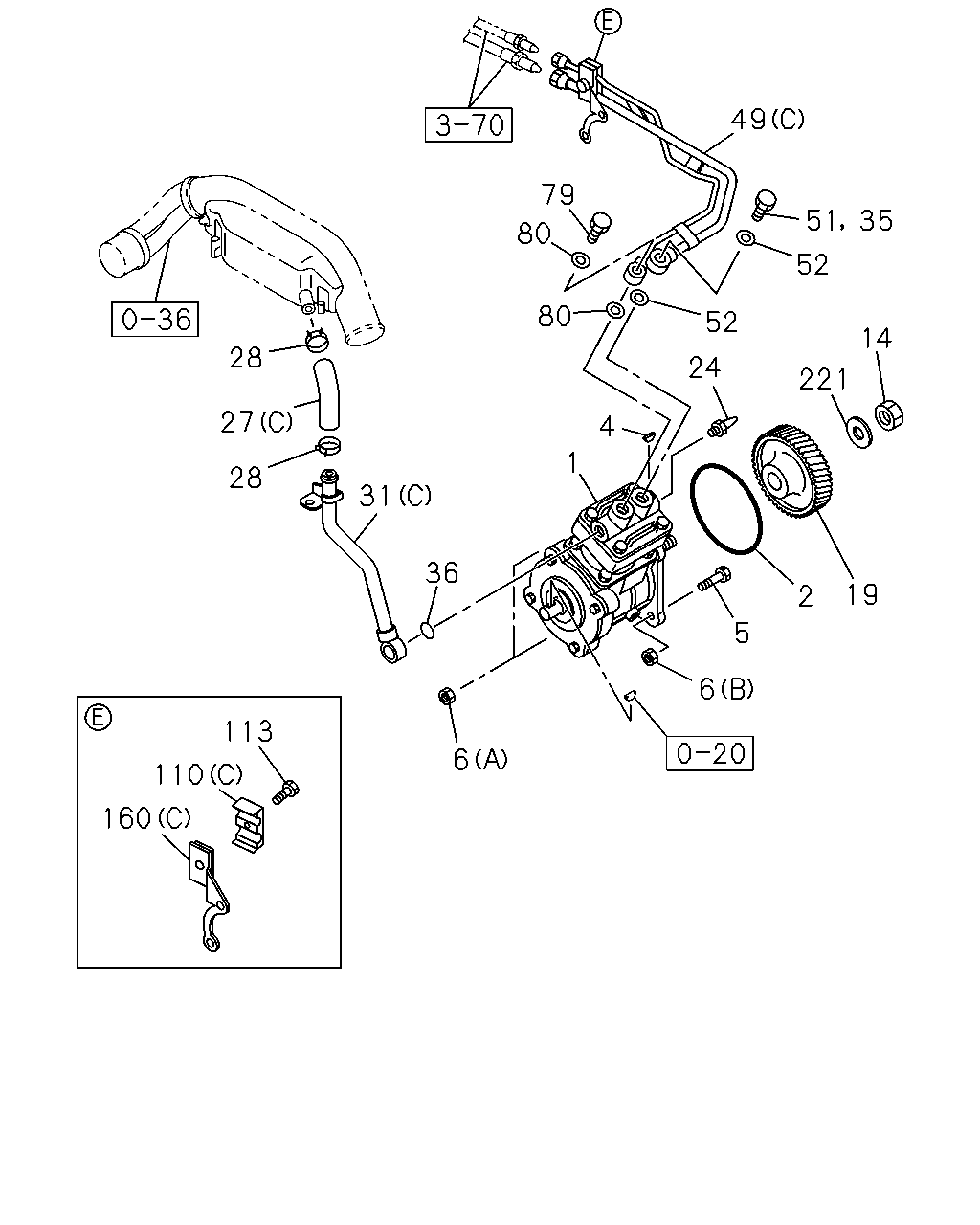

49 79 51 35 80 52 80 52 14 28 24 221 27 4 1 28 31 36 19 2 5 6 113 6 110 160

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-891-4	01	1	9606-9810	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-891-4	01	1	9606-9810		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-891-4	01	1	9811-0203			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-892-8	01	1	9606-9810		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-4	01	1	9903-				●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9606-9810	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9811-0203			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162.6	1-09623-570-0	01	1	9903-				●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	9606-9810	●	●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	9811-0203			●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	9606-9810	●	●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	9811-0203			●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	9606-9810	●	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	9811-0203			●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	9606-9810	●	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	9811-0203			●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91150-212-0	01	1	9903-0602				●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91180-212-0	01	1	0603-				●
14	NUT; GEAR M20	9-99110-520-0	01	1	9811-9902			●
14	NUT; GEAR M20	9-99110-520-0	01	1	9903-0203			●	●
14	NUT; GEAR M20	9-99110-520-0	01	1	0204-0512				●
14	NUT; GEAR M20	0-91110-520-0	01	1	0601-				●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	9606-9810	●	●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	9811-0203			●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	9606-9810	●	●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	9811-0203			●
27	HOSE; AIR CMPR,SUCTION (A)	8-94395-082-0	01	1	9606-9810	●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94395-082-0	01	1	9606-9810		●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94395-083-0	01	1	9606-9810		●
27	HOSE; AIR CMPR,SUCTION (C)	8-94394-515-0	01	1	9811-0203			●
27	HOSE; AIR CMPR,SUCTION (D) L=80 SERVICED BY L=1500	1-09360-476-0	01	1	9903-				●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9811-9902			●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9903-0203			●	●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	0204-				●
31	PIPE; AIR,AIR CMPR SUCTION (A)	8-94399-942-1	01	1	9606-9810	●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94399-942-1	01	1	9606-9810		●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94399-954-0	01	1	9606-9810		●
31	PIPE; AIR,AIR CMPR SUCTION (C)	8-94390-516-0	01	1	9811-0203			●
31	PIPE; AIR,AIR CMPR SUCTION (D)	8-94390-405-0	01	1	9903-				●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-132-0	01	1	9811-0203			●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-424-0	01	1	9606-9609	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32	9-09571-424-0	01	1	9606-9609		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32	9-09571-424-0	01	1	9610-9810	●	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9811-0203			●
49	PIPE; AIR,CHARGE (A)	8-94393-198-0	01	1	9606-9810	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94393-198-0	01	1	9606-9810		●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94393-200-0	01	1	9606-9810		●
49	PIPE; AIR,CHARGE (C)	8-94390-063-1	01	1	9811-0203			●
49	PIPE; AIR,CHARGE (D)	8-94395-723-0	01	1	9903-				●
51	BOLT; EYE,AIR PIPE TO CMPR M20X38	1-09675-133-0	01	1	9606-9810	●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-0	01	1	9606-9810		●
51	BOLT; EYE,AIR PIPE TO CMPR M20X38	1-09675-133-0	01	1	9811-0203			●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-132-0	01	1	9606-9810		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	9903-				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-420-0	02	1	9606-9810	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0	9-09571-420-0	02	1	9606-9810		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=20.5 OD=28.0	9-09571-420-0	02	1	9811-0203			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32	9-09571-424-0	02	1	9606-9810		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9903-				●
79	BOLT; EYE,AIR PIPE TO CMPR M18X33	1-09675-058-0	01	1	9606-9810	●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	9606-9810		●
79	BOLT; EYE,AIR PIPE TO CMPR M18X33	1-09675-058-0	01	1	9811-0203			●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	9606-9810		●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9903-				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4	1-09630-087-0	02	1	9606-9810	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	9606-9810		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4	1-09630-087-0	02	1	9811-0203			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	02	1	9606-9810		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9903-				●
110	CLIP; AIR PIPE (A)	8-94393-037-0	03	1	9606-9810	●	●
110	CLIP; AIR PIPE (C)	8-94393-037-0	01	1	9811-0203			●
110	CLIP; AIR PIPE (B)	8-94393-090-0	02	1	9606-9810	●	●
110	CLIP; AIR PIPE (D)	8-94393-037-0	02	1	9903-				●
113	BOLT; CLIP,AIR PIPE M6X16 FLANGE	0-28280-616-0	01	1	9606-9810	●	●
113	BOLT; CLIP,AIR PIPE M6X30 FLANGE	0-28280-630-0	03	1	9606-9810	●	●
113	BOLT; CLIP,AIR PIPE M6X40 W/LK&PL WASHER	0-50140-640-0	03	1	9606-9709	●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	03	1	9710-9810	●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	9811-0203			●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	02	1	9903-0512				●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28050-640-0	02	1	0601-				●
113	BOLT; CLIP,AIR PIPE M6X20 FLANGE	0-28680-620-0	01	1	9903-0512				●
113	BOLT; CLIP,AIR PIPE M6X20 FLANGE	0-28650-620-0	01	1	0601-0611				●
113	BOLT; CLIP,AIR PIPE M6X30 FLANGE	0-28050-630-0	01	1	0612-				●
160	BRACKET; AIR PIPE FRONT AXLE F049<FS4> (A)	8-94394-455-0	01	1	9610-9810	●
160	BRACKET; AIR PIPE (B)	8-94393-202-0	01	1	9606-9609	●	●
160	BRACKET; AIR PIPE EXC. FRONT AXLE F049<FS4> (B)	8-94393-202-0	01	1	9610-9810	●
160	BRACKET; AIR PIPE (B)	8-94393-202-0	01	1	9610-9810		●
160	BRACKET; AIR PIPE (C)	8-94394-406-0	01	1	9811-0203			●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	9811-9902			●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	9903-0203			●	●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	0204-0605				●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	0606-				●

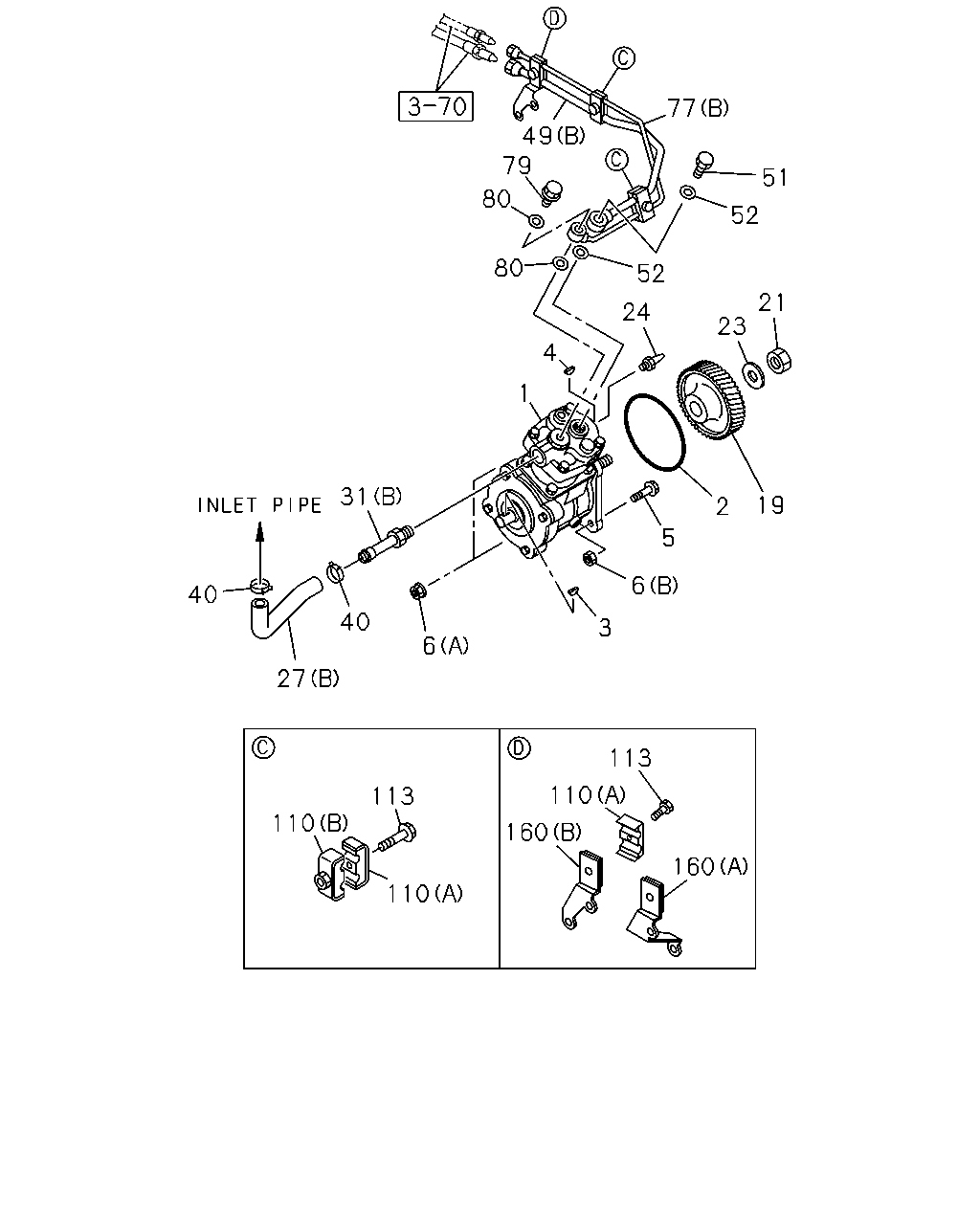

77 49 79 51 80 52 80 52 21 24 23 4 1 31 19 2 5 6 40 40 3 6 27 113 110 113 110 160 160 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-891-4	01	1	9606-9810	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-891-4	01	1	9606-9810		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-891-4	01	1	9811-0203			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-892-8	01	1	9606-9810		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-4	01	1	9903-				●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9606-9810	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9811-0203			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162.6	1-09623-570-0	01	1	9903-				●
3	KEY; COUPLING,INJ PUMP	9-08055-416-0	01	1	9606-9810	●	●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	9606-9810	●	●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	9811-0203			●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	9606-9810	●	●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	9811-0203			●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	9606-9810	●	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	9811-0203			●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	9606-9810	●	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	9811-0203			●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91150-212-0	01	1	9903-0602				●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91180-212-0	01	1	0603-				●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	9606-9810	●	●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	9811-0203			●
21	NUT; PUMP GEAR M20	9-99110-520-0	01	1	9606-9810	●	●
23	WASHER; PL,PUMP GEAR ID=21	9-09160-520-0	01	1	9606-9810	●	●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	9606-9810	●	●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	9811-0203			●
27	HOSE; AIR CMPR,SUCTION (A)	8-94395-082-0	01	1	9606-9810	●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94395-082-0	01	1	9606-9810		●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94395-083-0	01	1	9606-9810		●
27	HOSE; AIR CMPR,SUCTION (C)	8-94394-515-0	01	1	9811-0203			●
27	HOSE; AIR CMPR,SUCTION (D) L=80 SERVICED BY L=1500	1-09360-476-0	01	1	9903-				●
31	PIPE; AIR,AIR CMPR SUCTION (A)	8-94399-942-1	01	1	9606-9810	●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94399-942-1	01	1	9606-9810		●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94399-954-0	01	1	9606-9810		●
31	PIPE; AIR,AIR CMPR SUCTION (C)	8-94390-516-0	01	1	9811-0203			●
31	PIPE; AIR,AIR CMPR SUCTION (D)	8-94390-405-0	01	1	9903-				●
40	CLIP; AIR PIPE ID=26	1-09707-091-0	02	1	9606-9810	●	●
49	PIPE; AIR,CHARGE (A)	8-94393-198-0	01	1	9606-9810	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94393-198-0	01	1	9606-9810		●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94393-200-0	01	1	9606-9810		●
49	PIPE; AIR,CHARGE (C)	8-94390-063-1	01	1	9811-0203			●
49	PIPE; AIR,CHARGE (D)	8-94395-723-0	01	1	9903-				●
51	BOLT; EYE,AIR PIPE TO CMPR M20X38	1-09675-133-0	01	1	9606-9810	●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-0	01	1	9606-9810		●
51	BOLT; EYE,AIR PIPE TO CMPR M20X38	1-09675-133-0	01	1	9811-0203			●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-132-0	01	1	9606-9810		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	9903-				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-420-0	02	1	9606-9810	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0	9-09571-420-0	02	1	9606-9810		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=20.5 OD=28.0	9-09571-420-0	02	1	9811-0203			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32	9-09571-424-0	02	1	9606-9810		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9903-				●
77	PIPE; AIR,GOV (A)	8-94393-199-0	01	1	9606-9810	●
77	PIPE; AIR,GOV EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94393-199-0	01	1	9606-9810		●
77	PIPE; AIR,GOV AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94393-795-0	01	1	9606-9810		●
77	PIPE; AIR,GOV (C)	8-94394-960-1	01	1	9903-				●
79	BOLT; EYE,AIR PIPE TO CMPR M18X33	1-09675-058-0	01	1	9606-9810	●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	9606-9810		●
79	BOLT; EYE,AIR PIPE TO CMPR M18X33	1-09675-058-0	01	1	9811-0203			●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	9606-9810		●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9903-				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4	1-09630-087-0	02	1	9606-9810	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	9606-9810		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4	1-09630-087-0	02	1	9811-0203			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	02	1	9606-9810		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9903-				●
110	CLIP; AIR PIPE (A)	8-94393-037-0	03	1	9606-9810	●	●
110	CLIP; AIR PIPE (C)	8-94393-037-0	01	1	9811-0203			●
110	CLIP; AIR PIPE (B)	8-94393-090-0	02	1	9606-9810	●	●
110	CLIP; AIR PIPE (D)	8-94393-037-0	02	1	9903-				●
113	BOLT; CLIP,AIR PIPE M6X16 FLANGE	0-28280-616-0	01	1	9606-9810	●	●
113	BOLT; CLIP,AIR PIPE M6X30 FLANGE	0-28280-630-0	03	1	9606-9810	●	●
113	BOLT; CLIP,AIR PIPE M6X40 W/LK&PL WASHER	0-50140-640-0	03	1	9606-9709	●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	03	1	9710-9810	●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	9811-0203			●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	02	1	9903-0512				●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28050-640-0	02	1	0601-				●
113	BOLT; CLIP,AIR PIPE M6X20 FLANGE	0-28680-620-0	01	1	9903-0512				●
113	BOLT; CLIP,AIR PIPE M6X20 FLANGE	0-28650-620-0	01	1	0601-0611				●
113	BOLT; CLIP,AIR PIPE M6X30 FLANGE	0-28050-630-0	01	1	0612-				●
160	BRACKET; AIR PIPE FRONT AXLE F049<FS4> (A)	8-94394-455-0	01	1	9610-9810	●
160	BRACKET; AIR PIPE (B)	8-94393-202-0	01	1	9606-9609	●	●
160	BRACKET; AIR PIPE EXC. FRONT AXLE F049<FS4> (B)	8-94393-202-0	01	1	9610-9810	●
160	BRACKET; AIR PIPE (B)	8-94393-202-0	01	1	9610-9810		●
160	BRACKET; AIR PIPE (C)	8-94394-406-0	01	1	9811-0203			●

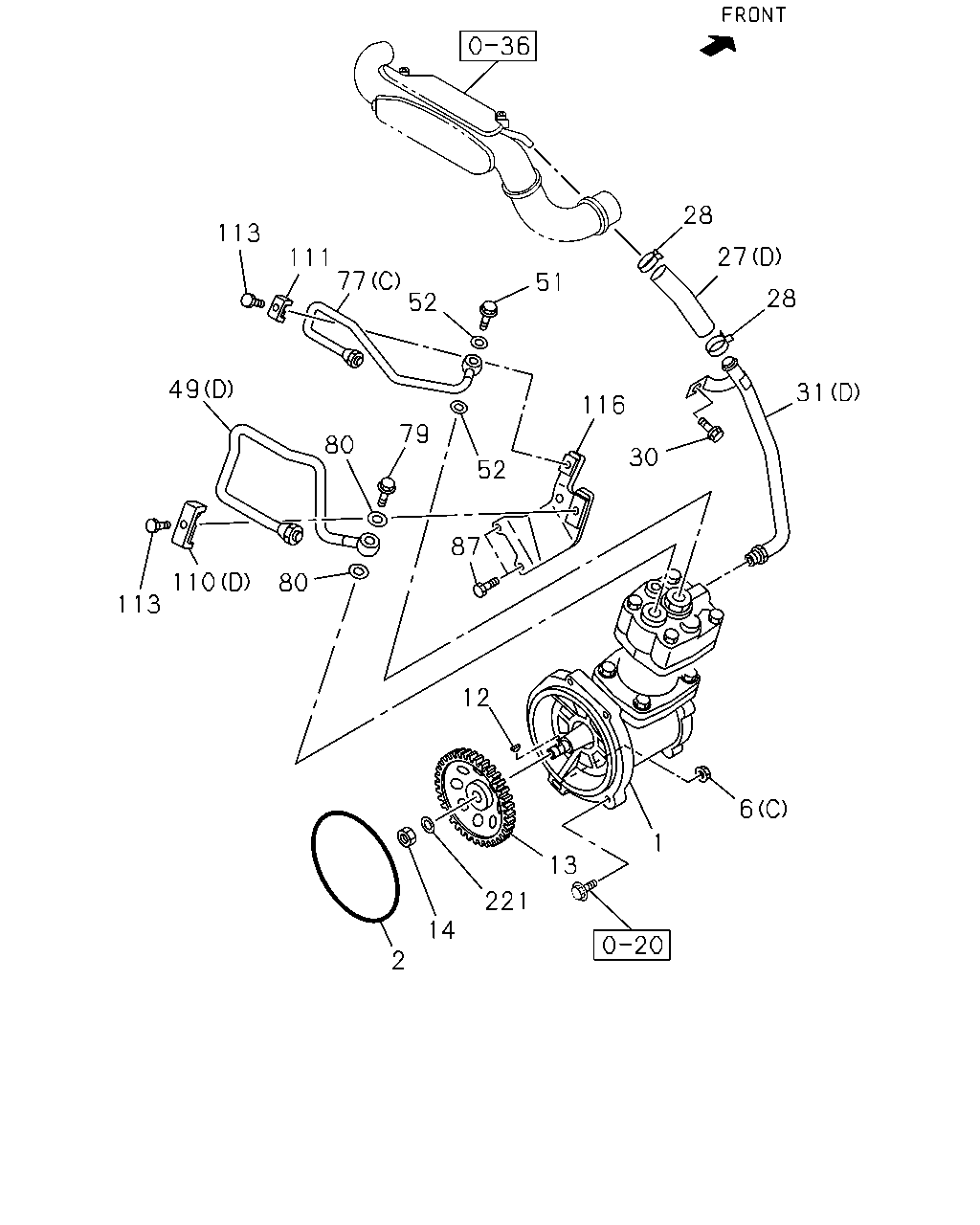

28 113 27 111 77 52 51 28 49 31 116 79 80 30 52 87 110 80 113 12 6 1 13 221 14 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-891-4	01	1	9606-9810	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-891-4	01	1	9606-9810		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-891-4	01	1	9811-0203			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-892-8	01	1	9606-9810		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-4	01	1	9903-				●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9606-9810	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9811-0203			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162.6	1-09623-570-0	01	1	9903-				●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	9606-9810	●	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	9811-0203			●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	9606-9810	●	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	9811-0203			●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91150-212-0	01	1	9903-0602				●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91180-212-0	01	1	0603-				●
12	KEY; AIR CMPR GEAR	9-08055-516-0	01	1	9903-				●
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	9903-				●
14	NUT; GEAR M20	9-99110-520-0	01	1	9811-9902			●
14	NUT; GEAR M20	9-99110-520-0	01	1	9903-0203			●	●
14	NUT; GEAR M20	9-99110-520-0	01	1	0204-0512				●
14	NUT; GEAR M20	0-91110-520-0	01	1	0601-				●
27	HOSE; AIR CMPR,SUCTION (A)	8-94395-082-0	01	1	9606-9810	●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94395-082-0	01	1	9606-9810		●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94395-083-0	01	1	9606-9810		●
27	HOSE; AIR CMPR,SUCTION (C)	8-94394-515-0	01	1	9811-0203			●
27	HOSE; AIR CMPR,SUCTION (D) L=80 SERVICED BY L=1500	1-09360-476-0	01	1	9903-				●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9811-9902			●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9903-0203			●	●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	0204-				●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28080-812-0	01	1	9903-0512				●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28050-812-0	01	1	0601-				●
31	PIPE; AIR,AIR CMPR SUCTION (A)	8-94399-942-1	01	1	9606-9810	●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94399-942-1	01	1	9606-9810		●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94399-954-0	01	1	9606-9810		●
31	PIPE; AIR,AIR CMPR SUCTION (C)	8-94390-516-0	01	1	9811-0203			●
31	PIPE; AIR,AIR CMPR SUCTION (D)	8-94390-405-0	01	1	9903-				●
49	PIPE; AIR,CHARGE (A)	8-94393-198-0	01	1	9606-9810	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94393-198-0	01	1	9606-9810		●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94393-200-0	01	1	9606-9810		●
49	PIPE; AIR,CHARGE (C)	8-94390-063-1	01	1	9811-0203			●
49	PIPE; AIR,CHARGE (D)	8-94395-723-0	01	1	9903-				●
51	BOLT; EYE,AIR PIPE TO CMPR M20X38	1-09675-133-0	01	1	9606-9810	●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-0	01	1	9606-9810		●
51	BOLT; EYE,AIR PIPE TO CMPR M20X38	1-09675-133-0	01	1	9811-0203			●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-132-0	01	1	9606-9810		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	9903-				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-420-0	02	1	9606-9810	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0	9-09571-420-0	02	1	9606-9810		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=20.5 OD=28.0	9-09571-420-0	02	1	9811-0203			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32	9-09571-424-0	02	1	9606-9810		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9903-				●
77	PIPE; AIR,GOV (A)	8-94393-199-0	01	1	9606-9810	●
77	PIPE; AIR,GOV EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94393-199-0	01	1	9606-9810		●
77	PIPE; AIR,GOV AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94393-795-0	01	1	9606-9810		●
77	PIPE; AIR,GOV (C)	8-94394-960-1	01	1	9903-				●
79	BOLT; EYE,AIR PIPE TO CMPR M18X33	1-09675-058-0	01	1	9606-9810	●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	9606-9810		●
79	BOLT; EYE,AIR PIPE TO CMPR M18X33	1-09675-058-0	01	1	9811-0203			●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	9606-9810		●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9903-				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4	1-09630-087-0	02	1	9606-9810	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	9606-9810		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4	1-09630-087-0	02	1	9811-0203			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	02	1	9606-9810		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9903-				●
87	BOLT; BRKT FIX M8X16 FLANGE	0-28080-816-0	02	1	9903-0512				●
87	BOLT; BRKT FIX M8X16 FLANGE	0-28050-816-0	02	1	0601-				●
110	CLIP; AIR PIPE (A)	8-94393-037-0	03	1	9606-9810	●	●
110	CLIP; AIR PIPE (C)	8-94393-037-0	01	1	9811-0203			●
110	CLIP; AIR PIPE (B)	8-94393-090-0	02	1	9606-9810	●	●
110	CLIP; AIR PIPE (D)	8-94393-037-0	02	1	9903-				●
111	CLIP; AIR PIPE	1-09701-091-0	01	1	9903-				●
113	BOLT; CLIP,AIR PIPE M6X16 FLANGE	0-28280-616-0	01	1	9606-9810	●	●
113	BOLT; CLIP,AIR PIPE M6X30 FLANGE	0-28280-630-0	03	1	9606-9810	●	●
113	BOLT; CLIP,AIR PIPE M6X40 W/LK&PL WASHER	0-50140-640-0	03	1	9606-9709	●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	03	1	9710-9810	●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	9811-0203			●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	02	1	9903-0512				●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28050-640-0	02	1	0601-				●
113	BOLT; CLIP,AIR PIPE M6X20 FLANGE	0-28680-620-0	01	1	9903-0512				●
113	BOLT; CLIP,AIR PIPE M6X20 FLANGE	0-28650-620-0	01	1	0601-0611				●
113	BOLT; CLIP,AIR PIPE M6X30 FLANGE	0-28050-630-0	01	1	0612-				●
116	BRACKET; AIR PIPE	8-94394-594-2	01	1	9903-				●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	9811-9902			●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	9903-0203			●	●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	0204-0605				●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	0606-				●

77 49 79 51 80 52 80 52 21 24 23 4 19 2 5 6 3 40 1 36 31 40 27 6 113 110 113 110 160 160 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-891-4	01	1	9606-9810	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-891-4	01	1	9606-9810		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-891-4	01	1	9811-0203			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-892-8	01	1	9606-9810		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-4	01	1	9903-				●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9606-9810	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9811-0203			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162.6	1-09623-570-0	01	1	9903-				●
3	KEY; COUPLING,INJ PUMP	9-08055-416-0	01	1	9606-9810	●	●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	9606-9810	●	●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	9811-0203			●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	9606-9810	●	●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	9811-0203			●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	9606-9810	●	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	9811-0203			●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	9606-9810	●	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	9811-0203			●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91150-212-0	01	1	9903-0602				●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91180-212-0	01	1	0603-				●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	9606-9810	●	●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	9811-0203			●
21	NUT; PUMP GEAR M20	9-99110-520-0	01	1	9606-9810	●	●
23	WASHER; PL,PUMP GEAR ID=21	9-09160-520-0	01	1	9606-9810	●	●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	9606-9810	●	●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	9811-0203			●
27	HOSE; AIR CMPR,SUCTION (A)	8-94395-082-0	01	1	9606-9810	●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94395-082-0	01	1	9606-9810		●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94395-083-0	01	1	9606-9810		●
27	HOSE; AIR CMPR,SUCTION (C)	8-94394-515-0	01	1	9811-0203			●
27	HOSE; AIR CMPR,SUCTION (D) L=80 SERVICED BY L=1500	1-09360-476-0	01	1	9903-				●
31	PIPE; AIR,AIR CMPR SUCTION (A)	8-94399-942-1	01	1	9606-9810	●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94399-942-1	01	1	9606-9810		●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94399-954-0	01	1	9606-9810		●
31	PIPE; AIR,AIR CMPR SUCTION (C)	8-94390-516-0	01	1	9811-0203			●
31	PIPE; AIR,AIR CMPR SUCTION (D)	8-94390-405-0	01	1	9903-				●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-424-0	01	1	9606-9609	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32	9-09571-424-0	01	1	9606-9609		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32	9-09571-424-0	01	1	9610-9810	●	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9811-0203			●
40	CLIP; AIR PIPE ID=26	1-09707-091-0	02	1	9606-9810	●	●
49	PIPE; AIR,CHARGE (A)	8-94393-198-0	01	1	9606-9810	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94393-198-0	01	1	9606-9810		●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94393-200-0	01	1	9606-9810		●
49	PIPE; AIR,CHARGE (C)	8-94390-063-1	01	1	9811-0203			●
49	PIPE; AIR,CHARGE (D)	8-94395-723-0	01	1	9903-				●
51	BOLT; EYE,AIR PIPE TO CMPR M20X38	1-09675-133-0	01	1	9606-9810	●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-0	01	1	9606-9810		●
51	BOLT; EYE,AIR PIPE TO CMPR M20X38	1-09675-133-0	01	1	9811-0203			●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-132-0	01	1	9606-9810		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	9903-				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-420-0	02	1	9606-9810	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0	9-09571-420-0	02	1	9606-9810		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=20.5 OD=28.0	9-09571-420-0	02	1	9811-0203			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32	9-09571-424-0	02	1	9606-9810		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9903-				●
77	PIPE; AIR,GOV (A)	8-94393-199-0	01	1	9606-9810	●
77	PIPE; AIR,GOV EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94393-199-0	01	1	9606-9810		●
77	PIPE; AIR,GOV AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94393-795-0	01	1	9606-9810		●
77	PIPE; AIR,GOV (C)	8-94394-960-1	01	1	9903-				●
79	BOLT; EYE,AIR PIPE TO CMPR M18X33	1-09675-058-0	01	1	9606-9810	●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	9606-9810		●
79	BOLT; EYE,AIR PIPE TO CMPR M18X33	1-09675-058-0	01	1	9811-0203			●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	9606-9810		●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9903-				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4	1-09630-087-0	02	1	9606-9810	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	9606-9810		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4	1-09630-087-0	02	1	9811-0203			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	02	1	9606-9810		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9903-				●
110	CLIP; AIR PIPE (A)	8-94393-037-0	03	1	9606-9810	●	●
110	CLIP; AIR PIPE (C)	8-94393-037-0	01	1	9811-0203			●
110	CLIP; AIR PIPE (B)	8-94393-090-0	02	1	9606-9810	●	●
110	CLIP; AIR PIPE (D)	8-94393-037-0	02	1	9903-				●
113	BOLT; CLIP,AIR PIPE M6X16 FLANGE	0-28280-616-0	01	1	9606-9810	●	●
113	BOLT; CLIP,AIR PIPE M6X30 FLANGE	0-28280-630-0	03	1	9606-9810	●	●
113	BOLT; CLIP,AIR PIPE M6X40 W/LK&PL WASHER	0-50140-640-0	03	1	9606-9709	●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	03	1	9710-9810	●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	9811-0203			●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	02	1	9903-0512				●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28050-640-0	02	1	0601-				●
113	BOLT; CLIP,AIR PIPE M6X20 FLANGE	0-28680-620-0	01	1	9903-0512				●
113	BOLT; CLIP,AIR PIPE M6X20 FLANGE	0-28650-620-0	01	1	0601-0611				●
113	BOLT; CLIP,AIR PIPE M6X30 FLANGE	0-28050-630-0	01	1	0612-				●
160	BRACKET; AIR PIPE FRONT AXLE F049<FS4> (A)	8-94394-455-0	01	1	9610-9810	●
160	BRACKET; AIR PIPE (B)	8-94393-202-0	01	1	9606-9609	●	●
160	BRACKET; AIR PIPE EXC. FRONT AXLE F049<FS4> (B)	8-94393-202-0	01	1	9610-9810	●
160	BRACKET; AIR PIPE (B)	8-94393-202-0	01	1	9610-9810		●
160	BRACKET; AIR PIPE (C)	8-94394-406-0	01	1	9811-0203			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
