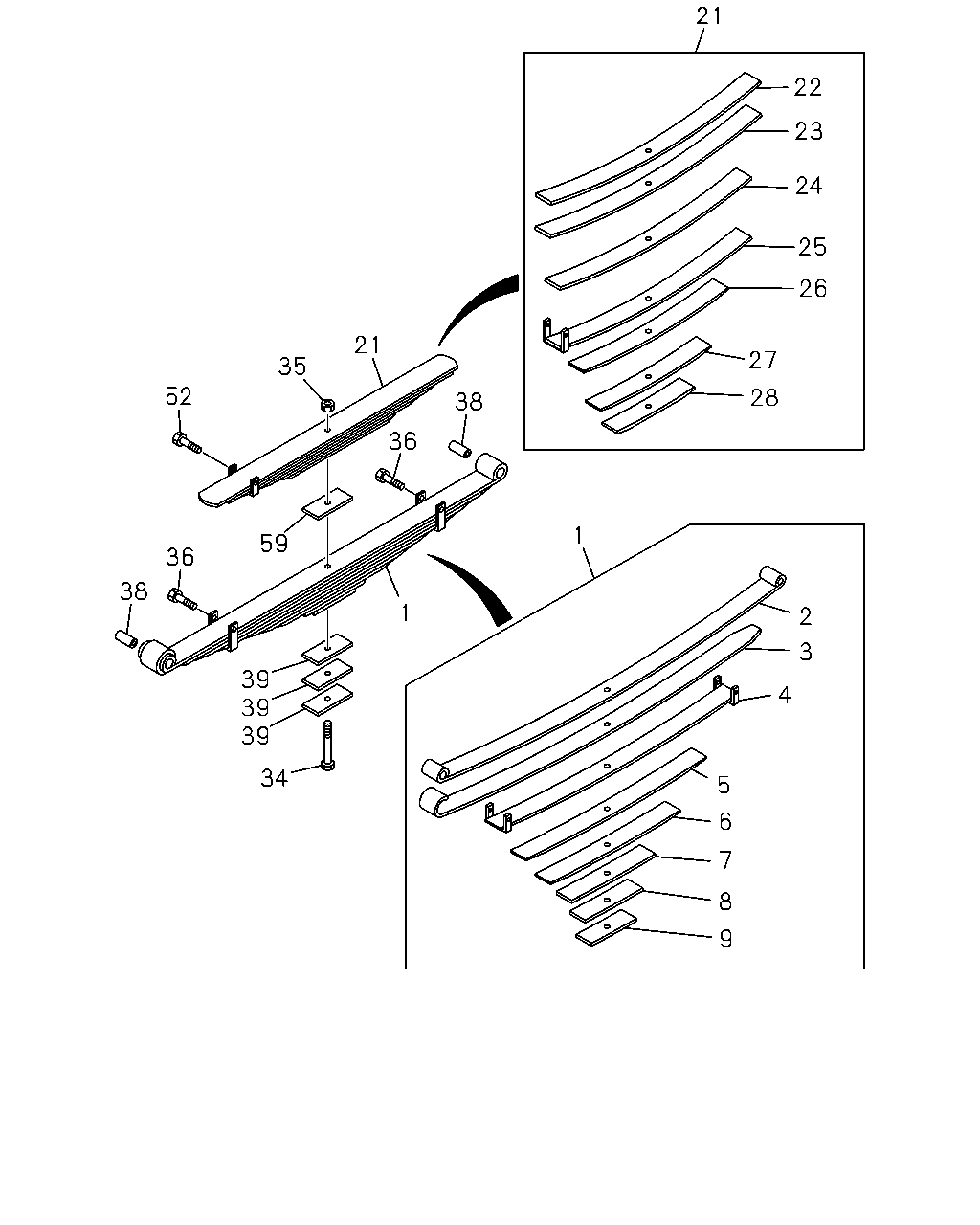

4-65 — REAR LEAF SPRING (#59105) — 24 parça

21 22 23 24 25 26 21 27 35 52 28 38 36 1 59 36 38 1 2 3 39 39 39 4 34 5 6 7 8 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR MAIN ASM PART: A = 8-98050-307-0	8-98083-184-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 8-98050-307-0	1-51411-102-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-98050-307-0	1-51412-102-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-98050-307-0	8-98083-176-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: A = 8-98050-307-0	1-51414-102-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: A = 8-98050-307-0	1-51415-102-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: A = 8-98050-307-0	1-51416-102-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN ASM PART: A = 8-98050-307-0	1-51417-102-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN ASM PART: A = 8-98050-307-0	1-51418-102-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: A = 8-98050-307-0	8-98083-185-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-98050-307-0	8-98083-177-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: A = 8-98050-307-0	8-98083-178-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB ASM PART: A = 8-98050-307-0	8-98083-179-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB ASM PART: A = 8-98050-307-0	8-98083-180-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB ASM PART: A = 8-98050-307-0	8-98083-181-0	01	1	-
27	SPRING; LEAF,NO 6,RR SUB ASM PART: A = 8-98050-307-0	8-98083-182-0	01	1	-
28	SPRING; LEAF,NO 7,RR SUB ASM PART: A = 8-98050-307-0	8-98083-183-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=215 ASM PART: A = 8-98050-307-0	1-51356-190-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: A = 8-98050-307-0	9-99110-512-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR M8X87 ASM PART: A = 8-98050-307-0	1-09000-335-0	02	1	-
38	BUSHING; LEAF SPR,RR ID=25 ASM PART: A = 8-98050-307-0	9-51151-032-0	02	1	-
39	SEAT; LEAF SPR,RR MAIN T=8 ASM PART: A = 8-98050-307-0	8-98049-852-0	03	1	-
52	BOLT; CLIP,LEAF SPR,RR SUB M8X87 ASM PART: A = 8-98050-307-0	1-09000-335-0	01	1	-
59	SEAT; RR SPRING,SUB T=6 ASM PART: A = 8-98050-307-0	1-51377-359-0	01	1	-
