◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11401 - FSS(RHD)EURO1 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#59101) — 35 parça

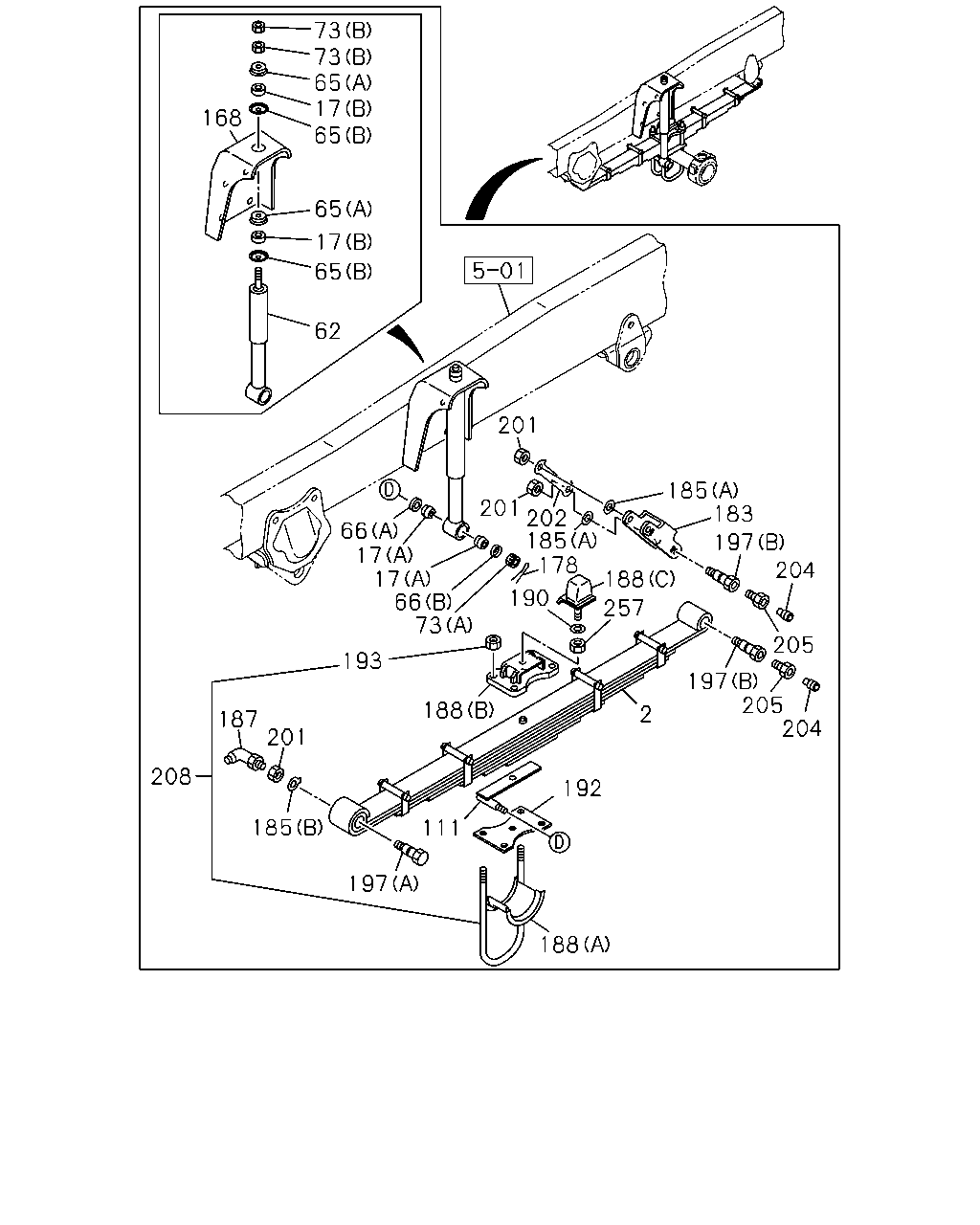

çizim 150519
73 73 65 17 65 168 65 17 65 62 201 185 183 201 202 185 178 66 17 17 66 73 197 204 188 190 257 205 193 197 205 204 188 2 187 201 208 192 185 111 197 188
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-98147-528-0 02 1 1112-
17 BUSHING; RUBBER,S/ABS
(A) 		1-51631-009-1 04 1 1112-
17 BUSHING; RUBBER,S/ABS
(B) 		9-51631-050-0 04 1 1112-
62 ABSORBER ASM; SHOCK,FRT 1-51630-180-4 02 1 1112-
62 ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS 		1-87610-153-0 02 1 1112-1412
65 WASHER; S/ABS
(A) ID=16.8 		1-51631-022-0 04 1 1112-
65 WASHER; S/ABS
(B) ID=14.5 		9-51631-051-0 04 1 1112-
66 WASHER; LK,S/ABS SETTING
(A) ID=23 		1-51631-019-0 02 1 1112-
66 WASHER; LK,S/ABS SETTING
(B) ID=17 		1-51631-020-0 02 1 1112-
73 NUT; BRKT,SHOCK
(A) M16 SLOTTED 		0-91116-516-0 02 1 1112-1204
73 NUT; BRKT,SHOCK
(A) M16 SLOTTED 		8-98049-689-0 02 1 1205-
73 NUT; BRKT,SHOCK
(B) M12 		8-98010-412-0 04 1 1112-
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-528-3 01 1 1112-
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-529-3 01 1 1112-
168 BRACKET; S/ABS,FRT SUSP 1-51681-360-0 02 1 1112-
178 PIN; SPLIT,S/ABS
OD=3.7 L=25 		0-81124-025-0 02 1 1112-
183 SHACKLE; FRT SUSP 1-51162-028-0 02 1 1112-
185 WASHER; LK,PIN
(A) ID=25.5 		8-98010-404-0 04 1 1112-
185 WASHER; LK,PIN
(B) ID=23 		8-98010-411-0 02 1 1112-
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 1112-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(A) 		1-43219-029-2 01 1 1112-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(B) 		1-51173-019-0 02 1 1112-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(C) 		1-51174-019-0 02 1 1112-
190 WASHER; LK,CUSHION RUBBER
ID=12.2 		0-91510-512-0 02 1 1112-
192 PIECE; DIST 1-51177-207-2 01 1 1112-
192 PIECE; DIST 1-51177-215-1 01 1 1112-
193 NUT; U BOLT
M16 		8-97360-121-0 08 1 1112-
197 PIN; FRT SPR,FRT
(B) 		8-98060-333-0 04 1 1112-
197 PIN; FRT SPR,FRT
(A) 		8-98060-335-0 02 1 1112-
201 NUT; PIN LK
M22 		0-91111-522-0 06 1 1112-
202 PLATE; LK,SPR PIN 1-51169-015-0 02 1 1112-
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		0-90301-410-0 04 1 1112-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 04 1 1112-
208 U-BOLT SET; FRT SPRING
L=320 		1-87870-490-0 02 1 1112-
257 NUT; CUSHION RUBBER
M12 		0-91110-512-0 02 1 1112-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
