◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10585 - CXH RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#591) — 1120 parça
çizim 26757
171 38 16 27 231
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 07 1 8712-
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 04 1 8712-9007
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=11 L=41 		1-09700-403-0 04 1 8712-9007
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=11 L=41 		1-09700-403-0 04 1 9008-9206
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=11 L=41 		1-09700-403-0 06 1 9207-9306
16 CLIP; HARNESS
(M) ID=15 L=35 		1-09700-507-0 02 1 8712-9306
16 CLIP; HARNESS
(B) ID=12 L=20 		1-09700-605-0 02 1 8712-
16 CLIP; HARNESS
(L) ID=15 L=20 		1-09700-606-0 01 1 8712-
16 CLIP; HARNESS
(P) 		1-09700-894-0 01 1 8712-
16 CLIP; HARNESS
EXC. INTERMITTENT WIPER<C13> (P) 		1-09700-894-0 01 1 8712-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-0 02 1 8712-9306
16 CLIP; HARNESS
(H) W=18 		8-94224-891-1 02 1 8712-
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-035-0 01 1 8712-9306
16 CLIP; HARNESS
(B) ID=19 H=50 L=25 		9-09916-622-0 01 1 8712-
16 CLIP; HARNESS
(D) ID=25 L=55 		9-09917-573-0 03 1 8712-
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-032-0 02 1 8802-
16 CLIP; HARNESS
(C) L=219.5 		1-09987-136-0 04 1 9002-
16 CLIP; HARNESS
(J) L=135 		1-09987-143-1 01 1 9002-9201
16 CLIP; HARNESS
(C) L=175 		8-94155-593-1 01 1 9202-9205
16 CLIP; HARNESS
(E) L=300 		1-09707-001-0 01 1 9007-
16 CLIP; HARNESS
(C) L=175 		8-94155-593-1 03 1 9206-
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9307-
16 CLIP; HARNESS
V TYPE ENG<91L> (D) ID=11 L=41 		1-09700-403-0 03 1 9307-
16 CLIP; HARNESS
(D) ID=11 L=61 		1-09700-484-0 09 1 9307-
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 9307-
16 CLIP; HARNESS
(N) ID=29 L=35 		5-09700-293-1 01 1 9307-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-0 03 1 9307-
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-035-0 01 1 9307-
16 CLIP; HARNESS
V TYPE ENG<91L> (A) ID=11 L=20 		9-09525-035-0 01 1 9307-
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (Q) L=46 		1-09700-493-0 01 1 8712-9306
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (G) ID=35 L=35 W/NUT 		1-09700-684-0 01 1 8712-9306
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (F) ID=35 L=35 		1-09700-726-0 01 1 8712-9306
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=18 L=48 		9-09917-429-0 02 1 8712-9306
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=20 L=50 		9-09917-430-0 04 1 8712-9306
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (I) OD=9 H=6 		1-09709-178-0 07 1 9104-
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (A) ID=11 L=50 		9-09525-085-0 02 1 9104-
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (C) L=140 		5-09707-031-0 01 1 9206-9306
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=14 L=44 		9-09917-427-0 01 1 9307-
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (K) ID=27 L=32 		1-09700-712-0 01 1 8712-8912
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (K) ID=29 L=35 		5-09700-293-1 01 1 8712-9306
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1) (D) ID=11 L=61 		1-09700-484-0 01 1 8712-
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1) (K) ID=27 L=32 		1-09700-712-0 01 1 8712-8912
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1) (D) ID=20 L=65 		1-09700-978-0 20 1 8712-9306
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1) (K) ID=28 L=32 		1-09701-107-0 01 1 9001-9003
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (K) ID=28 L=32 		1-09701-107-0 01 1 9001-9003
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 01 1 9004-9306
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1) (K) ID=28 L=32 		1-09701-107-1 01 1 9004-9306
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (K) ID=28 L=32 		1-09701-107-1 01 1 9004-9306
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1) (D) ID=20 L=70 		1-09700-485-0 20 1 9307-
16 CLIP; HARNESS
EXC. HONG KONG EQUIPMENT(PQ1) (D) ID=11 L=41 		1-09700-403-0 01 1 8712-9003
16 CLIP; HARNESS
EXC. HONG KONG EQUIPMENT(PQ1) (D) ID=11 L=41 		1-09700-403-0 01 1 8712-
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1) AIR DRYER<PS7> (D) ID=11 L=41 		1-09700-403-0 01 1 8712-
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (D) ID=11 L=41 		1-09700-403-0 01 1 8712-
16 CLIP; HARNESS
EXC. HONG KONG EQUIPMENT(PQ1) (D) ID=20 L=50 		9-09917-430-0 23 1 8712-9008
16 CLIP; HARNESS
EXC. HONG KONG EQUIPMENT(PQ1) (D) ID=20 L=50 		9-09917-430-0 26 1 9009-
16 CLIP; HARNESS
L TYPE ENG<90L> (N) ID=20 L=50 		1-09700-679-1 01 1 8712-
16 CLIP; HARNESS
L TYPE ENG<90L> (M) ID=15 L=35 		1-09700-507-0 01 1 9307-9309
16 CLIP; HARNESS
L TYPE ENG<90L> (H) W=14 		8-94225-185-0 01 1 9307-9309
16 CLIP; HARNESS
(H) W=14 		8-94225-185-0 02 1 9310-
16 CLIP; HARNESS
NEW ZEALAND EQUIPMENT(PK5) (C) L=140 		5-09707-031-0 01 1 9403-
16 CLIP; HARNESS
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,PAPUA NEW GUINEA EQUIPMENT(PV5) (D) ID=11 L=61 		1-09700-484-0 09 1 8712-9011
16 CLIP; HARNESS
(D) ID=11 L=61 		1-09700-484-0 09 1 9012-9306
16 CLIP; HARNESS
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),PAPUA NEW GUINEA EQUIPMENT(PV5) (D) ID=11 L=41 		1-09700-403-0 06 1 8712-9011
16 CLIP; HARNESS
NYLON TUBE AIR PIPING<Z29> (E) L=150 		1-09707-145-0 01 1 8910-
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER<SH5> (C) L=250 		5-09707-030-0 01 1 8712-
16 CLIP; HARNESS
V TYPE ENG<91L> (A) ID=11 L=40 		9-09525-075-0 02 1 8712-9306
16 CLIP; HARNESS
V TYPE ENG<91L> (A) ID=19 L=20 		9-09525-835-0 01 1 8712-9306
16 CLIP; HARNESS
V TYPE ENG<91L> (A) ID=19 L=20 		9-09525-836-0 01 1 9307-
16 CLIP; HARNESS
V TYPE ENG<91L> (D) ID=15 L=45 		1-09700-402-0 01 1 9002-
16 CLIP; HARNESS
V TYPE ENG<91L> (D) ID=11 L=41 		1-09700-403-0 03 1 9002-9007
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9008-9306
16 CLIP; HARNESS
V TYPE ENG<91L> (D) ID=11 L=41 		1-09700-403-0 03 1 9008-9306
16 CLIP; HARNESS
V TYPE ENG<91L> (H) ID=18 		8-94225-185-0 02 1 9307-9309
16 CLIP; HARNESS
V TYPE ENG<91L> (A) ID=11 L=40 		9-09525-075-0 02 1 9307-
16 CLIP; HARNESS
6RB1TC ENG(30L) (O) ID=11 L=30 		1-09700-511-0 01 1 8712-9204
16 CLIP; HARNESS
(O) ID=11 L=30 		1-09700-511-0 01 1 9205-9306
16 CLIP; HARNESS
6RB1TC ENG(30L) (O) ID=11 L=30 		1-09700-511-0 01 1 9205-9306
16 CLIP; HARNESS
6RB1TC ENG(30L) 14INCH TWO PLATE SPICER CLUTCH(M07) EXH HEAT WARNING<W50> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (O) ID=11 L=30 		1-09700-511-0 01 1 9307-
27 PROTECTOR; EDGE
120X150 		1-72370-001-0 01 1 8712-
27 PROTECTOR; EDGE
150X315 		1-72370-002-0 01 1 8712-
38 BOLT; CLIP,HARNESS
M6X22 W/LK&PL WASHER 		8-94122-770-0 01 1 8712-9212
38 BOLT; CLIP,HARNESS
M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9301-9301
38 BOLT; CLIP,HARNESS
M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9302-9306
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		9-01900-620-0 03 1 8712-9011
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		9-01900-620-0 02 1 9012-9204
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		0-50040-620-0 02 1 9205-9302
38 BOLT; CLIP,HARNESS
M6X20 FLANGE 		0-28080-620-0 02 1 9303-
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		9-01900-820-0 04 1 8712-9204
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		0-50040-820-0 04 1 9205-9302
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 04 1 9303-9306
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 04 1 9307-
38 BOLT; CLIP,HARNESS
M8X25 W/LK WASHER 		9-01900-825-0 03 1 8712-9011
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		0-50041-020-0 02 1 9012-9106
38 BOLT; CLIP,HARNESS
M10X25 W/LK WASHER 		0-50041-025-0 02 1 9107-
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 01 1 8712-9011
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 02 1 9012-9204
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		0-50040-830-0 02 1 9205-9302
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		9-01911-020-0 02 1 8712-9002
38 BOLT; CLIP,HARNESS
M12X25 W/LK&PL WASHER 		9-01961-225-0 01 1 8712-9101
38 BOLT; CLIP,HARNESS
M12X16 FLANGE 		1-09044-079-0 01 1 9102-
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 01 1 9002-9204
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 01 1 9205-9302
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 03 1 9303-9306
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X30 FLANGE 		0-28080-830-0 03 1 9303-9306
38 BOLT; CLIP,HARNESS
M8X25 W/LK WASHER 		9-01900-825-0 01 1 9012-9204
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X25 W/LK WASHER 		9-01900-825-0 01 1 9012-9204
38 BOLT; CLIP,HARNESS
M8X25 W/LK WASHER 		0-50040-825-0 01 1 9205-9302
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X25 W/LK WASHER 		0-50040-825-0 01 1 9205-9302
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28080-825-0 01 1 9303-9306
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X25 FLANGE 		0-28080-825-0 01 1 9303-9306
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 02 1 9307-
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X20 FLANGE 		0-28080-820-0 02 1 9307-
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28080-825-0 01 1 9307-
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X25 FLANGE 		0-28080-825-0 01 1 9307-
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 01 1 9307-
38 BOLT; CLIP,HARNESS
M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9307-
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28010-820-0 02 1 9104-9204
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 02 1 9205-9302
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 02 1 9303-9306
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X20 FLANGE 		0-28080-820-0 02 1 9303-9306
38 BOLT; CLIP,HARNESS
EXC. AUTO CAB TILT<WV2> M6X20 W/LK WASHER 		9-01900-620-0 01 1 8712-8912
38 BOLT; CLIP,HARNESS
EXC. AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28010-820-0 01 1 9001-9204
38 BOLT; CLIP,HARNESS
EXC. AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 01 1 9205-9306
38 BOLT; CLIP,HARNESS
EXC. AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 03 1 9307-
38 BOLT; CLIP,HARNESS
HONG KONG EQUIPMENT(PQ1) M8X30 W/LK WASHER 		9-01900-830-0 29 1 8712-9001
38 BOLT; CLIP,HARNESS
10PC1 STD ENG(10L) M8X30 W/LK WASHER 		9-01900-830-0 02 1 8712-9001
38 BOLT; CLIP,HARNESS
HONG KONG EQUIPMENT(PQ1) M8X30 FLANGE 		0-28010-830-0 31 1 9002-9204
38 BOLT; CLIP,HARNESS
HONG KONG EQUIPMENT(PQ1) M8X30 FLANGE 		0-28080-830-0 31 1 9205-
38 BOLT; CLIP,HARNESS
EXC. HONG KONG EQUIPMENT(PQ1) M8X25 W/LK WASHER 		9-01900-825-0 25 1 8712-9001
38 BOLT; CLIP,HARNESS
EXC. HONG KONG EQUIPMENT(PQ1) M8X25 FLANGE 		0-28010-825-0 26 1 9002-9204
38 BOLT; CLIP,HARNESS
EXC. HONG KONG EQUIPMENT(PQ1) M8X25 FLANGE 		0-28080-825-0 26 1 9205-9404
38 BOLT; CLIP,HARNESS
EXC. HONG KONG EQUIPMENT(PQ1) M8X25 FLANGE 		0-28080-825-0 10 1 9405-
38 BOLT; CLIP,HARNESS
NEW ZEALAND EQUIPMENT(PK5) M8X25 FLANGE 		0-28080-825-0 17 1 9405-
38 BOLT; CLIP,HARNESS
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8X25 FLANGE 		0-28080-825-0 18 1 9405-
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X20 W/LK WASHER 		9-01900-820-0 02 1 8712-9204
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205-9302
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X30 W/LK WASHER 		9-01900-830-0 02 1 9002-9011
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X30 W/LK WASHER 		9-01900-830-0 03 1 9012-9204
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X30 W/LK WASHER 		0-50040-830-0 03 1 9205-9302
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X20 FLANGE 		0-28080-820-0 01 1 9307-
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X30 FLANGE 		0-28080-830-0 03 1 9307-
171 CLIP; STARTER HARNESS
(B) L=140 		5-09707-031-0 04 1 8712-9011
171 CLIP; STARTER HARNESS
V TYPE ENG<91L> (B) L=140 		5-09707-031-0 04 1 9012-9306
171 CLIP; STARTER HARNESS
AUTO CAB TILT<WV2> (A) ID=15 L=45 		1-09700-402-0 02 1 9206-9306
171 CLIP; STARTER HARNESS
AUTO CAB TILT<WV2> (A) ID=11 L=41 		1-09700-403-0 04 1 9206-9306
171 CLIP; STARTER HARNESS
INTAKE HEATER<SL2> (A) ID=11 L=41 		1-09700-403-0 03 1 8712-9306
171 CLIP; STARTER HARNESS
L TYPE ENG<90L> (B) L=140 		5-09707-031-0 02 1 9012-9306
171 CLIP; STARTER HARNESS
V TYPE ENG<91L> (B) L=140 		5-09707-031-0 05 1 9307-
171 CLIP; STARTER HARNESS
L TYPE ENG<90L> (B) L=140 		5-09707-031-0 02 1 9307-
231 CLIP; BAND,OIL PRESS
L=140 		5-09707-031-0 01 1 8712-9001
231 CLIP; BAND,OIL PRESS
L=250 		5-09707-030-0 01 1 9002-
231 CLIP; BAND,OIL PRESS
10PC1 STD ENG(10L) L=140 		5-09707-031-0 01 1 8805-9001

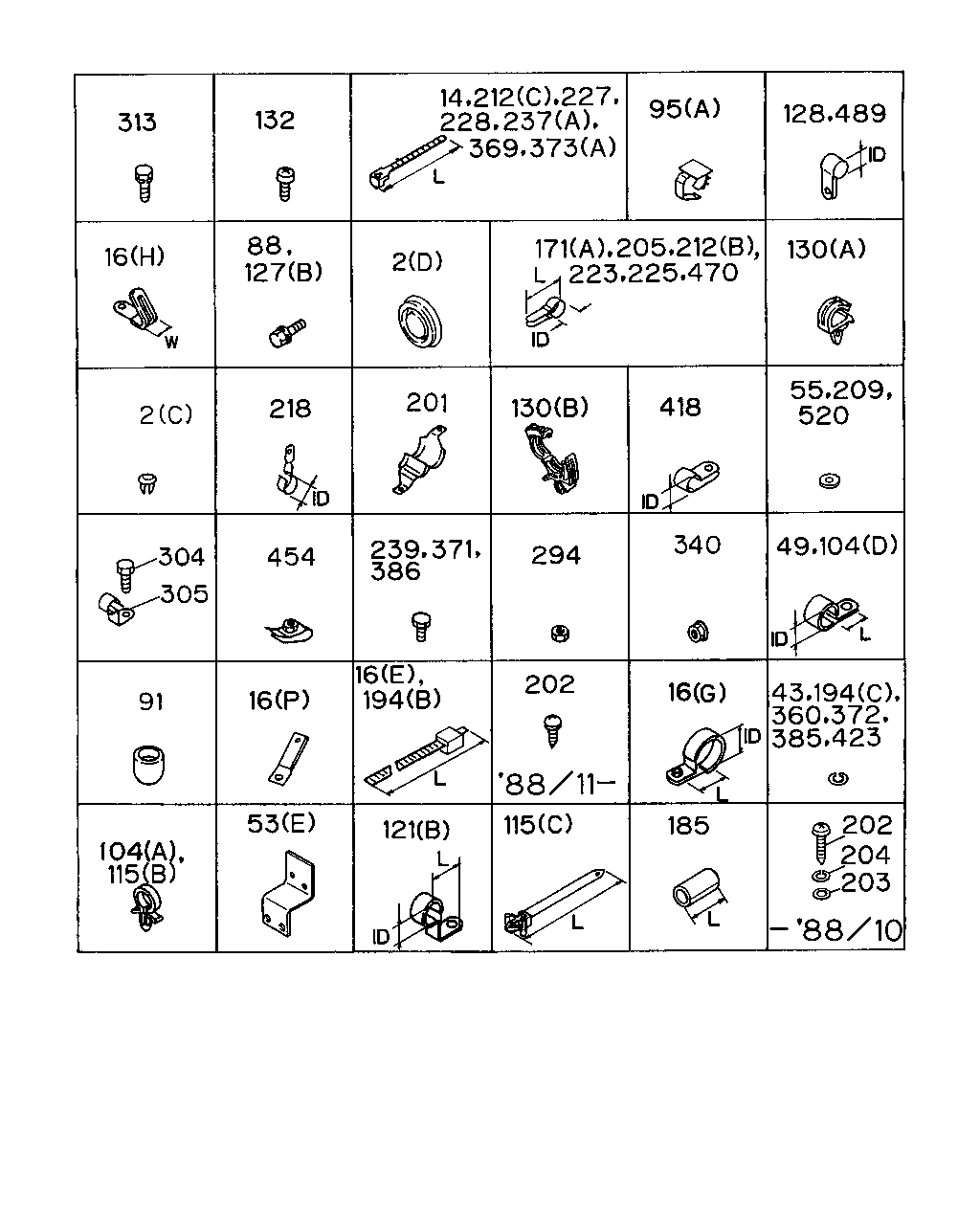

çizim 28104
313 132 14 212 227 228 237 369 373 95 128 489 489 130 212 205 171 223 225 470 2 88 127 16 2 218 201 130 418 55 209 520 49 104 340 294 239 371 386 454 304 305 91 16 16 194 202 16 43 194 360 372 385 423 202 204 203 185 115 121 53 104 115
BalonParca AdiParca NoAdetTipApplied Date
2 GROMMET; CLIP HOLE,HARNESS
(D) OD=48.5 		1-73907-231-0 01 1 9202-
2 GROMMET; CLIP HOLE,HARNESS
EXC. AUTO CAB TILT<WV2> (C) OD=12.8 		1-09983-065-0 07 1 8712-
2 GROMMET; CLIP HOLE,HARNESS
DELUXE CAB<W14> (B) OD=47 		1-09983-039-1 01 1 8712-
2 GROMMET; CLIP HOLE,HARNESS
DELUXE CAB<W14> (C) OD=12.8 		1-09983-065-0 01 1 8712-
2 GROMMET; CLIP HOLE,HARNESS
EXC. DELUXE CAB<W14> (B) OD=47 		1-09983-039-1 02 1 8712-
2 GROMMET; CLIP HOLE,HARNESS
EXC. DELUXE CAB<W14> (C) OD=12.8 		1-09983-065-0 02 1 8712-
2 GROMMET; CLIP HOLE,HARNESS
HONG KONG EQUIPMENT(PQ1),PAPUA NEW GUINEA EQUIPMENT(PV5) (A) ID=20 OD=40 		1-09983-077-0 01 1 8712-9001
2 GROMMET; CLIP HOLE,HARNESS
EXC. LAMPS FOUR ROOF MARKER<PJ5> (A) ID=20 OD=40 		1-09983-077-0 01 1 9002-
14 CLIP; BAND,HARNESS
AIR DRYER<PS7> L=140 		5-09707-031-0 01 1 9307-9312
14 CLIP; BAND,HARNESS
6RB1TC ENG(30L) L=140 		5-09707-031-0 01 1 9401-
14 CLIP; BAND,HARNESS
HONG KONG EQUIPMENT(PQ1) AIR DRYER<PS7> L=140 		5-09707-031-0 01 1 9401-
14 CLIP; BAND,HARNESS
HONG KONG EQUIPMENT(PQ1) AIR DRYER<PS7> L=140 		5-09707-031-0 01 1 8806-9306
14 CLIP; BAND,HARNESS
L=140 		5-09707-031-0 02 1 8712-
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 07 1 8712-
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 04 1 8712-9007
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=11 L=41 		1-09700-403-0 04 1 8712-9007
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=11 L=41 		1-09700-403-0 04 1 9008-9206
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=11 L=41 		1-09700-403-0 06 1 9207-9306
16 CLIP; HARNESS
(M) ID=15 L=35 		1-09700-507-0 02 1 8712-9306
16 CLIP; HARNESS
(B) ID=12 L=20 		1-09700-605-0 02 1 8712-
16 CLIP; HARNESS
(L) ID=15 L=20 		1-09700-606-0 01 1 8712-
16 CLIP; HARNESS
(P) 		1-09700-894-0 01 1 8712-
16 CLIP; HARNESS
EXC. INTERMITTENT WIPER<C13> (P) 		1-09700-894-0 01 1 8712-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-0 02 1 8712-9306
16 CLIP; HARNESS
(H) W=18 		8-94224-891-1 02 1 8712-
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-035-0 01 1 8712-9306
16 CLIP; HARNESS
(B) ID=19 H=50 L=25 		9-09916-622-0 01 1 8712-
16 CLIP; HARNESS
(D) ID=25 L=55 		9-09917-573-0 03 1 8712-
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-032-0 02 1 8802-
16 CLIP; HARNESS
(C) L=219.5 		1-09987-136-0 04 1 9002-
16 CLIP; HARNESS
(J) L=135 		1-09987-143-1 01 1 9002-9201
16 CLIP; HARNESS
(C) L=175 		8-94155-593-1 01 1 9202-9205
16 CLIP; HARNESS
(E) L=300 		1-09707-001-0 01 1 9007-
16 CLIP; HARNESS
(C) L=175 		8-94155-593-1 03 1 9206-
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9307-
16 CLIP; HARNESS
V TYPE ENG<91L> (D) ID=11 L=41 		1-09700-403-0 03 1 9307-
16 CLIP; HARNESS
(D) ID=11 L=61 		1-09700-484-0 09 1 9307-
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 9307-
16 CLIP; HARNESS
(N) ID=29 L=35 		5-09700-293-1 01 1 9307-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-0 03 1 9307-
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-035-0 01 1 9307-
16 CLIP; HARNESS
V TYPE ENG<91L> (A) ID=11 L=20 		9-09525-035-0 01 1 9307-
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (Q) L=46 		1-09700-493-0 01 1 8712-9306
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (G) ID=35 L=35 W/NUT 		1-09700-684-0 01 1 8712-9306
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (F) ID=35 L=35 		1-09700-726-0 01 1 8712-9306
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=18 L=48 		9-09917-429-0 02 1 8712-9306
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=20 L=50 		9-09917-430-0 04 1 8712-9306
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (I) OD=9 H=6 		1-09709-178-0 07 1 9104-
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (A) ID=11 L=50 		9-09525-085-0 02 1 9104-
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (C) L=140 		5-09707-031-0 01 1 9206-9306
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=14 L=44 		9-09917-427-0 01 1 9307-
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (K) ID=27 L=32 		1-09700-712-0 01 1 8712-8912
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (K) ID=29 L=35 		5-09700-293-1 01 1 8712-9306
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1) (D) ID=11 L=61 		1-09700-484-0 01 1 8712-
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1) (K) ID=27 L=32 		1-09700-712-0 01 1 8712-8912
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1) (D) ID=20 L=65 		1-09700-978-0 20 1 8712-9306
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1) (K) ID=28 L=32 		1-09701-107-0 01 1 9001-9003
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (K) ID=28 L=32 		1-09701-107-0 01 1 9001-9003
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 01 1 9004-9306
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1) (K) ID=28 L=32 		1-09701-107-1 01 1 9004-9306
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (K) ID=28 L=32 		1-09701-107-1 01 1 9004-9306
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1) (D) ID=20 L=70 		1-09700-485-0 20 1 9307-
16 CLIP; HARNESS
EXC. HONG KONG EQUIPMENT(PQ1) (D) ID=11 L=41 		1-09700-403-0 01 1 8712-9003
16 CLIP; HARNESS
EXC. HONG KONG EQUIPMENT(PQ1) (D) ID=11 L=41 		1-09700-403-0 01 1 8712-
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1) AIR DRYER<PS7> (D) ID=11 L=41 		1-09700-403-0 01 1 8712-
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (D) ID=11 L=41 		1-09700-403-0 01 1 8712-
16 CLIP; HARNESS
EXC. HONG KONG EQUIPMENT(PQ1) (D) ID=20 L=50 		9-09917-430-0 23 1 8712-9008
16 CLIP; HARNESS
EXC. HONG KONG EQUIPMENT(PQ1) (D) ID=20 L=50 		9-09917-430-0 26 1 9009-
16 CLIP; HARNESS
L TYPE ENG<90L> (N) ID=20 L=50 		1-09700-679-1 01 1 8712-
16 CLIP; HARNESS
L TYPE ENG<90L> (M) ID=15 L=35 		1-09700-507-0 01 1 9307-9309
16 CLIP; HARNESS
L TYPE ENG<90L> (H) W=14 		8-94225-185-0 01 1 9307-9309
16 CLIP; HARNESS
(H) W=14 		8-94225-185-0 02 1 9310-
16 CLIP; HARNESS
NEW ZEALAND EQUIPMENT(PK5) (C) L=140 		5-09707-031-0 01 1 9403-
16 CLIP; HARNESS
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,PAPUA NEW GUINEA EQUIPMENT(PV5) (D) ID=11 L=61 		1-09700-484-0 09 1 8712-9011
16 CLIP; HARNESS
(D) ID=11 L=61 		1-09700-484-0 09 1 9012-9306
16 CLIP; HARNESS
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),PAPUA NEW GUINEA EQUIPMENT(PV5) (D) ID=11 L=41 		1-09700-403-0 06 1 8712-9011
16 CLIP; HARNESS
NYLON TUBE AIR PIPING<Z29> (E) L=150 		1-09707-145-0 01 1 8910-
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER<SH5> (C) L=250 		5-09707-030-0 01 1 8712-
16 CLIP; HARNESS
V TYPE ENG<91L> (A) ID=11 L=40 		9-09525-075-0 02 1 8712-9306
16 CLIP; HARNESS
V TYPE ENG<91L> (A) ID=19 L=20 		9-09525-835-0 01 1 8712-9306
16 CLIP; HARNESS
V TYPE ENG<91L> (A) ID=19 L=20 		9-09525-836-0 01 1 9307-
16 CLIP; HARNESS
V TYPE ENG<91L> (D) ID=15 L=45 		1-09700-402-0 01 1 9002-
16 CLIP; HARNESS
V TYPE ENG<91L> (D) ID=11 L=41 		1-09700-403-0 03 1 9002-9007
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9008-9306
16 CLIP; HARNESS
V TYPE ENG<91L> (D) ID=11 L=41 		1-09700-403-0 03 1 9008-9306
16 CLIP; HARNESS
V TYPE ENG<91L> (H) ID=18 		8-94225-185-0 02 1 9307-9309
16 CLIP; HARNESS
V TYPE ENG<91L> (A) ID=11 L=40 		9-09525-075-0 02 1 9307-
16 CLIP; HARNESS
6RB1TC ENG(30L) (O) ID=11 L=30 		1-09700-511-0 01 1 8712-9204
16 CLIP; HARNESS
(O) ID=11 L=30 		1-09700-511-0 01 1 9205-9306
16 CLIP; HARNESS
6RB1TC ENG(30L) (O) ID=11 L=30 		1-09700-511-0 01 1 9205-9306
16 CLIP; HARNESS
6RB1TC ENG(30L) 14INCH TWO PLATE SPICER CLUTCH(M07) EXH HEAT WARNING<W50> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (O) ID=11 L=30 		1-09700-511-0 01 1 9307-
43 WASHER; LK,HARNESS
L TYPE ENG<90L> ID=5.1 		9-09150-505-0 01 1 9002-
49 CLIP; GEN HARNESS
EXC. HONG KONG EQUIPMENT(PQ1) ID=16 L=20 		9-09525-532-0 01 1 8712-9306
49 CLIP; GEN HARNESS
L TYPE ENG<90L> ID=16 L=20 		9-09525-532-0 01 1 9307-
49 CLIP; GEN HARNESS
V TYPE ENG<91L> ID=19 L=20 		9-09525-832-0 01 1 8712-
53 BRACKET; HARNESS
(B) 		1-82699-199-0 01 1 8712-
53 BRACKET; HARNESS
(A) 		1-82699-390-2 01 1 9307-
53 BRACKET; HARNESS
AUTO CAB TILT<WV2> (E) 		1-82699-295-0 01 1 8712-9306
53 BRACKET; HARNESS
EXC. AUTO CAB TILT<WV2> (A) 		1-82699-103-1 01 1 8712-8912
53 BRACKET; HARNESS
EXC. AUTO CAB TILT<WV2> (A) 		1-82699-390-2 01 1 9001-9306
53 BRACKET; HARNESS
AUTO ENG SHUTOFF<KB6> (C) 		1-71907-151-0 01 1 9307-9307
53 BRACKET; HARNESS
AUTO ENG SHUTOFF<KB6> (D) 		1-71997-996-1 01 1 9308-
55 WASHER; PL,CLIP
L TYPE ENG<90L> ID=5.3 		9-09160-505-0 01 1 8712-
88 BOLT; DOOR HARNESS EARTH
DELUXE CAB<W14> M6X22 W/LK&PL WASHER 		1-09980-537-0 01 1 8712-9303
88 BOLT; DOOR HARNESS EARTH
DELUXE CAB<W14> M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9304-
91 CAP; BOLT,HARNESS 1-82699-340-0 02 1 9004-
95 CLIP; CABLE
(B) L=135 		1-09987-143-1 02 1 8712-9201
95 CLIP; CABLE
(B) L=175 		8-94155-593-1 02 1 9202-9205
95 CLIP; CABLE
INTAKE HEATER<SL2> (B) L=175 		8-94155-593-1 01 1 9206-9306
95 CLIP; CABLE
(A) 		1-09987-155-0 03 1 8712-9202
95 CLIP; CABLE
(A) 		1-09987-155-0 02 1 9203-
104 CLIP; HEADLAMP HARNESS
(B) ID=9 		5-09707-027-0 02 1 8712-
104 CLIP; HEADLAMP HARNESS
(C) L=112 		8-94232-618-0 08 1 8712-9003
104 CLIP; HEADLAMP HARNESS
(C) L=142 		8-94232-619-0 08 1 9004-
104 CLIP; HEADLAMP HARNESS
(D) ID=19 L=20 		9-09525-832-0 01 1 8712-
104 CLIP; HEADLAMP HARNESS
(D) ID=19 L=32 		9-09525-862-0 01 1 8712-
104 CLIP; HEADLAMP HARNESS
AUTO CAB TILT<WV2> (A) ID=12 		1-09987-201-0 09 1 8905-
104 CLIP; HEADLAMP HARNESS
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C) L=142 		8-94232-619-0 02 1 9307-
115 CLIP; DOOR HARNESS
DELUXE CAB<W14> (B) ID=9 		5-09707-027-0 01 1 8712-
115 CLIP; DOOR HARNESS
POWER WINDOW<A30> (A) 1 SET=5 PIECE 		1-09987-214-0 09 1 9205-
115 CLIP; DOOR HARNESS
POWER WINDOW<A30> (B) ID=9 		5-09707-027-0 02 1 9205-9305
115 CLIP; DOOR HARNESS
POWER WINDOW<A30> (C) L=142 		8-94232-619-0 02 1 9306-
121 CLIP; FACIA HARNESS
(B) ID=23 H=23 L=24 		1-09700-738-0 03 1 8712-
121 CLIP; FACIA HARNESS
(A) ID=16 L=20 		9-09525-532-0 01 1 8712-
121 CLIP; FACIA HARNESS
(A) ID=19 L=20 		9-09525-832-0 01 1 8712-
121 CLIP; FACIA HARNESS
(B) ID=16 H=24 L=20 		9-09527-015-0 02 1 8712-
127 SCREW; FACIA HARNESS CLIP
(B) M6X22 W/LK&PL WASHER 		1-09980-430-0 01 1 8712-9003
127 SCREW; FACIA HARNESS CLIP
(B) M6X22 W/LK&PL WASHER 		1-09980-584-0 01 1 9004-9303
127 SCREW; FACIA HARNESS CLIP
(B) M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9304-
127 SCREW; FACIA HARNESS CLIP
(B) M6X16 W/LK&PL WASHER 		1-09981-375-0 01 1 8712-9304
127 SCREW; FACIA HARNESS CLIP
(B) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9305-
127 SCREW; FACIA HARNESS CLIP
(A) M6X16 W/LK WASHER 		9-03910-616-0 02 1 8712-
128 CLIP; COMB SW HARNESS,STRG COLUMN
ID=16 L=20 		9-09525-532-0 01 1 8712-9001
130 CLIP; WASHER HARNESS
(A) ID=6.5 		8-94206-730-0 01 1 8712-9202
130 CLIP; WASHER HARNESS
(B) ID=7-10 		8-94472-578-0 01 1 9203-9301
132 SCREW; HARNESS
NEW ZEALAND EQUIPMENT(PK5) M5X12 W/LK&PL WASHER 		1-09981-464-0 02 1 9211-
171 CLIP; STARTER HARNESS
(B) L=140 		5-09707-031-0 04 1 8712-9011
171 CLIP; STARTER HARNESS
V TYPE ENG<91L> (B) L=140 		5-09707-031-0 04 1 9012-9306
171 CLIP; STARTER HARNESS
AUTO CAB TILT<WV2> (A) ID=15 L=45 		1-09700-402-0 02 1 9206-9306
171 CLIP; STARTER HARNESS
AUTO CAB TILT<WV2> (A) ID=11 L=41 		1-09700-403-0 04 1 9206-9306
171 CLIP; STARTER HARNESS
INTAKE HEATER<SL2> (A) ID=11 L=41 		1-09700-403-0 03 1 8712-9306
171 CLIP; STARTER HARNESS
L TYPE ENG<90L> (B) L=140 		5-09707-031-0 02 1 9012-9306
171 CLIP; STARTER HARNESS
V TYPE ENG<91L> (B) L=140 		5-09707-031-0 05 1 9307-
171 CLIP; STARTER HARNESS
L TYPE ENG<90L> (B) L=140 		5-09707-031-0 02 1 9307-
185 SLEEVE; RUBBER
ID=15 OD=19 L=50 		1-09337-014-0 01 1 8712-
194 CLIP; BAND
(A) L=140 		5-09707-031-0 02 1 8712-9008
194 CLIP; BAND
INTAKE HEATER<SL2> (A) L=140 		5-09707-031-0 02 1 8712-9008
194 CLIP; BAND
INTAKE HEATER<SL2> (A) L=140 		5-09707-031-0 02 1 9009-9011
194 CLIP; BAND
(A) L=140 		5-09707-031-0 02 1 9012-9306
194 CLIP; BAND
INTAKE HEATER<SL2> (A) L=140 		5-09707-031-0 02 1 9012-9306
194 CLIP; BAND
(A) L=140 		5-09707-031-0 03 1 9009-9011
194 CLIP; BAND
(A) L=140 		5-09707-031-0 01 1 9307-
194 CLIP; BAND
(A) L=140 		5-09707-031-0 02 1 9307-
194 CLIP; BAND
AIR CONDITIONER MANUAL CONTROL(C60) (A) L=140 		5-09707-031-0 01 1 8712-9007
194 CLIP; BAND
(A) L=140 		5-09707-031-0 01 1 9008-9206
194 CLIP; BAND
AUTO CAB TILT<WV2> (A) L=250 		5-09707-030-0 04 1 8712-9103
194 CLIP; BAND
AUTO CAB TILT<WV2> (A) L=250 		5-09707-030-0 03 1 9104-9205
194 CLIP; BAND
AUTO CAB TILT<WV2> (A) L=250 		5-09707-030-0 05 1 9206-9306
194 CLIP; BAND
AUTO CAB TILT<WV2> (B) L=300 		1-09707-001-0 01 1 9206-9306
194 CLIP; BAND
AUTO CAB TILT<WV2> (A) L=140 		5-09707-031-0 03 1 9206-9206
194 CLIP; BAND
AUTO CAB TILT<WV2> (A) L=140 		5-09707-031-0 03 1 9307-
194 CLIP; BAND
AUTO CAB TILT<WV2> (A) L=140 		5-09707-031-0 01 1 9207-9306
194 CLIP; BAND
(A) L=140 		5-09707-031-0 01 1 9207-9306
194 CLIP; BAND
AUTO CAB TILT<WV2> (B) L=180 		1-09707-162-0 01 1 9307-
194 CLIP; BAND
HONG KONG EQUIPMENT(PQ1) (B) L=180 		1-09707-162-0 04 1 8712-9306
194 CLIP; BAND
EXC. HONG KONG EQUIPMENT(PQ1) (B) L=180 		1-09707-162-0 03 1 8712-9306
194 CLIP; BAND
HONG KONG EQUIPMENT(PQ1) (B) L=180 		1-09707-162-0 04 1 9307-
194 CLIP; BAND
HONG KONG EQUIPMENT(PQ1) AUTO CAB TILT<WV2> (A) L=250 		5-09707-030-0 05 1 9307-
194 CLIP; BAND
EXC. HONG KONG EQUIPMENT(PQ1) (A) L=250 		5-09707-030-0 01 1 8712-9306
194 CLIP; BAND
EXC. HONG KONG EQUIPMENT(PQ1) (B) L=180 		1-09707-162-0 03 1 9307-
194 CLIP; BAND
EXC. HONG KONG EQUIPMENT(PQ1) (A) L=250 		5-09707-030-0 01 1 9307-9309
194 CLIP; BAND
FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (A) L=250 		5-09707-030-0 01 1 9307-9309
194 CLIP; BAND
FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (A) L=250 		5-09707-030-0 02 1 9310-
194 CLIP; BAND
EXC. HONG KONG EQUIPMENT(PQ1) (A) L=250 		5-09707-030-0 01 1 9310-
194 CLIP; BAND
L TYPE ENG<90L> (C) ID=5.1 		9-09150-505-0 01 1 8712-9001
201 CLIP; RR COMB CONN
WO/SPONGE RUBBER 		1-09709-103-1 02 1 8712-
202 SCREW; RR COMB LAMP CONN
M6X20 		9-09829-243-0 02 1 8712-8810
202 SCREW; RR COMB LAMP CONN
M6X20 TAPPING W/PL WASHER 		0-74305-620-0 02 1 8811-
203 WASHER; RR COMB LAMP CONNECTOR
ID=6.1 		9-09150-506-0 02 1 8712-8810
204 WASHER; PL,RR COMB LAMP CONN
ID=6.4 		9-09160-506-0 02 1 8712-8810
205 CLIP; BACK LAMP HARNESS
ID=11 L=41 		1-09700-403-0 01 1 8712-
209 WASHER; LK,GEN,EARTH
ID=5.1 		9-09150-505-0 01 1 8712-
212 CLIP; HORN HARNESS
(B) ID=15 L=45 		1-09700-402-0 02 1 8712-9304
212 CLIP; HORN HARNESS
(B) ID=15 L=45 		1-09700-402-0 01 1 9305-
212 CLIP; HORN HARNESS
(A) ID=11 L=30 		1-09700-511-0 01 1 8712-
212 CLIP; HORN HARNESS
(C) L=250 		5-09707-030-0 01 1 9002-
212 CLIP; HORN HARNESS
(D) L=150 		1-09707-145-0 01 1 9305-
218 CLIP; BAND,RR COMB
ID=15 L=42 		1-09700-479-0 02 1 8712-
223 CLIP; AIR TANK HARNESS
ID=15 L=45 		1-09700-402-0 06 1 9307-
223 CLIP; AIR TANK HARNESS
HONG KONG EQUIPMENT(PQ1) ID=15 L=45 		1-09700-402-0 07 1 8712-8801
223 CLIP; AIR TANK HARNESS
HONG KONG EQUIPMENT(PQ1) ID=11 L=41 		1-09700-403-0 02 1 8802-
223 CLIP; AIR TANK HARNESS
EXC. HONG KONG EQUIPMENT(PQ1) ID=15 L=45 		1-09700-402-0 05 1 8712-8801
223 CLIP; AIR TANK HARNESS
ID=15 L=45 		1-09700-402-0 05 1 8802-9306
225 CLIP; AIR TANK HARNESS
HONG KONG EQUIPMENT(PQ1) AIR DRYER<PS7> ID=6 L=36 		9-09917-423-0 01 1 8810-9306
225 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> ID=6 L=36 		9-09917-423-0 01 1 9307-
227 CLIP; FOG LAMP HARNESS
L=140 		5-09707-031-0 02 1 9009-
228 CLIP; COOLER HARNESS
L=140 		5-09707-031-0 01 1 8712-
228 CLIP; COOLER HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) L=140 		5-09707-031-0 05 1 8712-
237 CLIP; BAND,ACL
(B) L=600 		1-09707-107-0 01 1 8808-
237 CLIP; BAND,ACL
(A) L=140 		5-09707-031-0 01 1 9012-
237 CLIP; BAND,ACL
EXC. HONG KONG EQUIPMENT(PQ1) (B) L=600 		1-09707-107-0 01 1 8712-8807
237 CLIP; BAND,ACL
10PC1 STD ENG(10L) (B) L=500 		1-09707-082-0 01 1 8712-8807
239 BOLT; GRAND
EXC. HONG KONG EQUIPMENT(PQ1) M5X10 		9-92040-510-0 01 1 8712-9204
239 BOLT; GRAND
EXC. HONG KONG EQUIPMENT(PQ1) M5X10 		0-20800-510-0 01 1 9205-
239 BOLT; GRAND
V TYPE ENG<91L> M5X8 		9-92040-508-0 01 1 8712-9204
239 BOLT; GRAND
V TYPE ENG<91L> M5X8 		0-20800-508-0 01 1 9205-
294 NUT
M8 		9-09110-408-0 03 1 8712-9306
294 NUT
M8 		9-09110-408-0 03 1 8712-9306
294 NUT
EXC. NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5) 		9-09110-408-0 01 1 9002-9008
294 NUT
EXC. NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5) 		9-09110-408-0 01 1 8712-9201
294 NUT
EXC. HONG KONG EQUIPMENT(PQ1) 		9-09110-408-0 01 1 8712-9201
294 NUT
M8 		9-09110-408-0 06 1 9307-
294 NUT
V TYPE ENG<91L> 		9-09110-408-0 01 1 9307-
304 BOLT; ENG HARNESS CLIP
V TYPE ENG<91L> M10X16 		9-02351-016-0 04 1 8712-8808
304 BOLT; ENG HARNESS CLIP
V TYPE ENG<91L> M10X16 W/LK WASHER 		9-01931-016-0 04 1 8809-9004
304 BOLT; ENG HARNESS CLIP
V TYPE ENG<91L> M10X16 W/LK WASHER 		1-09033-012-0 04 1 9005-
305 CLIP; ENG HARNESS
V TYPE ENG<91L> ID=11 H=20 L=17.5 		1-09700-562-1 07 1 8712-8901
305 CLIP; ENG HARNESS
V TYPE ENG<91L> ID=11 H=20 L=17.5 		1-09700-562-1 06 1 8902-
313 BOLT; BRKT
M6X20 W/LK WASHER 		9-01900-620-0 01 1 8712-9204
313 BOLT; BRKT
M6X20 W/LK WASHER 		0-50040-620-0 01 1 9205-9302
313 BOLT; BRKT
M6X20 FLANGE 		0-28080-620-0 01 1 9303-
313 BOLT; BRKT
M8X16 W/LK WASHER 		9-01900-816-0 02 1 8712-9204
313 BOLT; BRKT
M8X16 W/LK WASHER 		0-50040-816-0 02 1 9205-9302
313 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 02 1 9303-9306
313 BOLT; BRKT
M8X20 FLANGE 		0-28080-820-0 02 1 9307-
313 BOLT; BRKT
M8X30 FLANGE 		0-28080-830-0 01 1 9307-
313 BOLT; BRKT
HONG KONG EQUIPMENT(PQ1) M8X30 W/LK WASHER 		9-01900-830-0 01 1 8712-9008
313 BOLT; BRKT
M8X30 W/LK WASHER 		9-01900-830-0 01 1 9009-9204
313 BOLT; BRKT
M8X30 W/LK WASHER 		0-50040-830-0 01 1 9205-9302
313 BOLT; BRKT
M8X30 FLANGE 		0-28080-830-0 01 1 9303-9306
313 BOLT; BRKT
EXC. HONG KONG EQUIPMENT(PQ1) M8X20 W/LK WASHER 		9-01900-820-0 01 1 8712-9008
313 BOLT; BRKT
V TYPE ENG<91L> M8X25 W/LK WASHER 		9-01900-825-0 01 1 8712-9204
313 BOLT; BRKT
V TYPE ENG<91L> M8X25 W/LK WASHER 		0-50040-825-0 01 1 9205-9302
313 BOLT; BRKT
V TYPE ENG<91L> M8X25 FLANGE 		0-28080-825-0 01 1 9303-
340 NUT; HARNESS CAB TO FRAME
M6 FLANGE 		0-91150-106-0 01 1 8712-9011
340 NUT; HARNESS CAB TO FRAME
M6 FLANGE 		0-91150-106-0 02 1 9012-
360 WASHER; LK,CLIP
ID=5.1 		9-09150-505-0 01 1 8712-
369 CLIP; BAND EDS HARNESS
L=140 		5-09707-031-0 02 1 8712-
369 CLIP; BAND EDS HARNESS
L TYPE ENG<90L> L=100 		5-09707-036-0 01 1 8911-9306
371 BOLT; GEN HARNESS
GENERATOR NIKKO 24V-25A 600W(SB9) RADIO FUJITUU(SQ2),RADIO AM & TAPE PLAYER(UM1) M5X10 		9-92040-510-0 01 1 8712-9202
371 BOLT; GEN HARNESS
L TYPE ENG<90L> M5X10 		9-92040-510-0 01 1 8712-9202
371 BOLT; GEN HARNESS
L TYPE ENG<90L> M5X10 		9-92040-510-0 01 1 9203-9204
371 BOLT; GEN HARNESS
L TYPE ENG<90L> M5X10 		0-20800-510-0 01 1 9205-9306
371 BOLT; GEN HARNESS
GENERATOR NIKKO 24V-25A 600W(SB9) RADIO FUJITUU(SQ2),RADIO AM & TAPE PLAYER(UM1) M5X10 		0-20800-510-0 01 1 9205-9306
371 BOLT; GEN HARNESS
GENERATOR NIKKO 24V-25A 600W(SB9) SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M5X10 		0-20800-510-0 01 1 9205-9306
371 BOLT; GEN HARNESS
GENERATOR NIKKO 24V-25A 600W(SB9) RADIO FUJITUU(SQ2),RADIO AM & TAPE PLAYER(UM1) M5X10 		9-92040-510-0 01 1 9203-9204
371 BOLT; GEN HARNESS
GENERATOR NIKKO 24V-25A 600W(SB9) SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M5X10 		9-92040-510-0 01 1 9203-9204
371 BOLT; GEN HARNESS
HONG KONG EQUIPMENT(PQ1) M6X14 W/LK WASHER 		9-01900-614-0 01 1 8712-9204
371 BOLT; GEN HARNESS
HONG KONG EQUIPMENT(PQ1) M6X14 W/LK WASHER 		0-50040-614-0 01 1 9205-9302
371 BOLT; GEN HARNESS
HONG KONG EQUIPMENT(PQ1) M6X16 FLANGE 		0-28080-616-0 01 1 9303-9306
371 BOLT; GEN HARNESS
L TYPE ENG<90L> M5X10 		0-20800-510-0 01 1 9307-
371 BOLT; GEN HARNESS
V TYPE ENG<91L> M6X16 FLANGE 		0-28080-616-0 01 1 9307-
372 WASHER; LK GEN HARNESS
GENERATOR NIKKO 24V-25A 600W(SB9) RADIO FUJITUU(SQ2),RADIO AM & TAPE PLAYER(UM1) ID=5.1 		9-09150-505-0 01 1 8712-9202
372 WASHER; LK GEN HARNESS
GENERATOR NIKKO 24V-25A 600W(SB9) RADIO FUJITUU(SQ2),RADIO AM & TAPE PLAYER(UM1) ID=5.1 		9-09150-505-0 01 1 9203-9306
372 WASHER; LK GEN HARNESS
GENERATOR NIKKO 24V-25A 600W(SB9) SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> ID=5.1 		9-09150-505-0 01 1 9203-9306
373 CLIP; BAND,GEN HARNESS
HONG KONG EQUIPMENT(PQ1) (B) L=300 		1-09707-001-0 02 1 8712-9306
373 CLIP; BAND,GEN HARNESS
L TYPE ENG<90L> (A) L=250 		5-09707-030-0 01 1 8712-
373 CLIP; BAND,GEN HARNESS
V TYPE ENG<91L> (B) L=300 		1-09707-001-0 02 1 9307-
385 WASHER; LK,CAB EARTH
ID=8.2 		9-09150-508-0 02 1 9002-9212
386 BOLT; GRAND HARNESS
M8X20 		9-02040-820-0 02 1 8712-9204
386 BOLT; GRAND HARNESS
M8X20 		0-20800-820-0 02 1 9205-9212
386 BOLT; GRAND HARNESS
M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 9301-
418 CLIP; LAMP HARNESS
NEW ZEALAND EQUIPMENT(PK5) ID=6 		9-09524-532-0 02 1 9211-
418 CLIP; LAMP HARNESS
NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5) ID=6 		9-09524-532-0 02 1 8712-9202
423 WASHER; HARNESS,EARTH
ID=6.4 		1-09503-263-0 01 1 9301-
454 NUT
M6 FLANGE 		1-09466-001-0 02 1 8712-
470 CLIP; HARNESS,LICENSE LAMP
ID=11 L=41 		1-09700-403-0 01 1 9002-
489 CLIP; HARNESS,OIL PRESS SW
V TYPE ENG<91L> ID=11 L=20 		9-09525-035-0 01 1 8805-
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 9301-9306
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 02 1 9307-

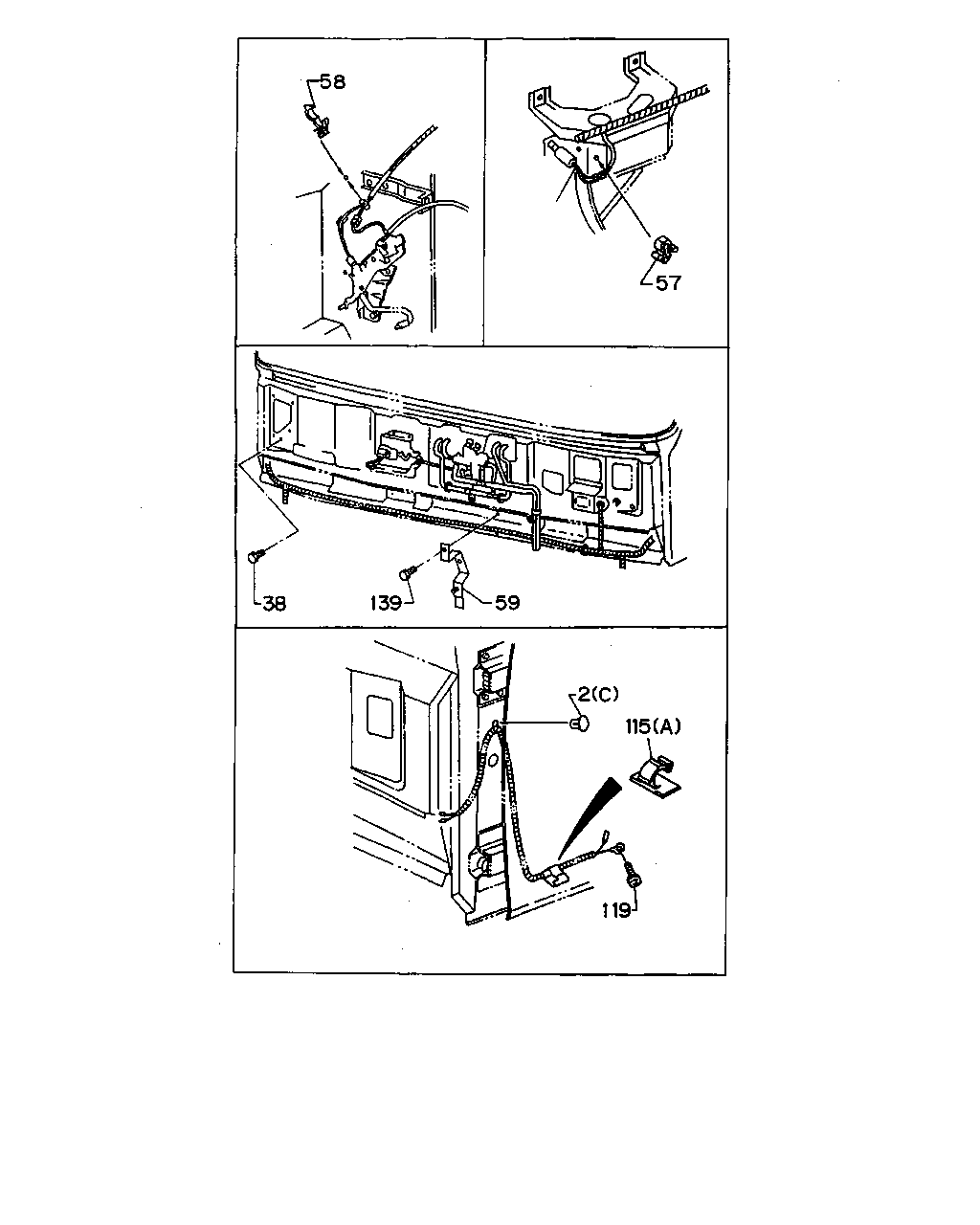

çizim 28832
58 57 59 139 38 2 115 119
BalonParca AdiParca NoAdetTipApplied Date
2 GROMMET; CLIP HOLE,HARNESS
(D) OD=48.5 		1-73907-231-0 01 1 9202-
2 GROMMET; CLIP HOLE,HARNESS
EXC. AUTO CAB TILT<WV2> (C) OD=12.8 		1-09983-065-0 07 1 8712-
2 GROMMET; CLIP HOLE,HARNESS
DELUXE CAB<W14> (B) OD=47 		1-09983-039-1 01 1 8712-
2 GROMMET; CLIP HOLE,HARNESS
DELUXE CAB<W14> (C) OD=12.8 		1-09983-065-0 01 1 8712-
2 GROMMET; CLIP HOLE,HARNESS
EXC. DELUXE CAB<W14> (B) OD=47 		1-09983-039-1 02 1 8712-
2 GROMMET; CLIP HOLE,HARNESS
EXC. DELUXE CAB<W14> (C) OD=12.8 		1-09983-065-0 02 1 8712-
2 GROMMET; CLIP HOLE,HARNESS
HONG KONG EQUIPMENT(PQ1),PAPUA NEW GUINEA EQUIPMENT(PV5) (A) ID=20 OD=40 		1-09983-077-0 01 1 8712-9001
2 GROMMET; CLIP HOLE,HARNESS
EXC. LAMPS FOUR ROOF MARKER<PJ5> (A) ID=20 OD=40 		1-09983-077-0 01 1 9002-
38 BOLT; CLIP,HARNESS
M6X22 W/LK&PL WASHER 		8-94122-770-0 01 1 8712-9212
38 BOLT; CLIP,HARNESS
M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9301-9301
38 BOLT; CLIP,HARNESS
M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9302-9306
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		9-01900-620-0 03 1 8712-9011
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		9-01900-620-0 02 1 9012-9204
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		0-50040-620-0 02 1 9205-9302
38 BOLT; CLIP,HARNESS
M6X20 FLANGE 		0-28080-620-0 02 1 9303-
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		9-01900-820-0 04 1 8712-9204
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		0-50040-820-0 04 1 9205-9302
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 04 1 9303-9306
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 04 1 9307-
38 BOLT; CLIP,HARNESS
M8X25 W/LK WASHER 		9-01900-825-0 03 1 8712-9011
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		0-50041-020-0 02 1 9012-9106
38 BOLT; CLIP,HARNESS
M10X25 W/LK WASHER 		0-50041-025-0 02 1 9107-
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 01 1 8712-9011
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 02 1 9012-9204
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		0-50040-830-0 02 1 9205-9302
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		9-01911-020-0 02 1 8712-9002
38 BOLT; CLIP,HARNESS
M12X25 W/LK&PL WASHER 		9-01961-225-0 01 1 8712-9101
38 BOLT; CLIP,HARNESS
M12X16 FLANGE 		1-09044-079-0 01 1 9102-
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 01 1 9002-9204
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 01 1 9205-9302
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 03 1 9303-9306
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X30 FLANGE 		0-28080-830-0 03 1 9303-9306
38 BOLT; CLIP,HARNESS
M8X25 W/LK WASHER 		9-01900-825-0 01 1 9012-9204
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X25 W/LK WASHER 		9-01900-825-0 01 1 9012-9204
38 BOLT; CLIP,HARNESS
M8X25 W/LK WASHER 		0-50040-825-0 01 1 9205-9302
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X25 W/LK WASHER 		0-50040-825-0 01 1 9205-9302
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28080-825-0 01 1 9303-9306
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X25 FLANGE 		0-28080-825-0 01 1 9303-9306
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 02 1 9307-
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X20 FLANGE 		0-28080-820-0 02 1 9307-
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28080-825-0 01 1 9307-
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X25 FLANGE 		0-28080-825-0 01 1 9307-
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 01 1 9307-
38 BOLT; CLIP,HARNESS
M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9307-
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28010-820-0 02 1 9104-9204
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 02 1 9205-9302
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 02 1 9303-9306
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X20 FLANGE 		0-28080-820-0 02 1 9303-9306
38 BOLT; CLIP,HARNESS
EXC. AUTO CAB TILT<WV2> M6X20 W/LK WASHER 		9-01900-620-0 01 1 8712-8912
38 BOLT; CLIP,HARNESS
EXC. AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28010-820-0 01 1 9001-9204
38 BOLT; CLIP,HARNESS
EXC. AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 01 1 9205-9306
38 BOLT; CLIP,HARNESS
EXC. AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 03 1 9307-
38 BOLT; CLIP,HARNESS
HONG KONG EQUIPMENT(PQ1) M8X30 W/LK WASHER 		9-01900-830-0 29 1 8712-9001
38 BOLT; CLIP,HARNESS
10PC1 STD ENG(10L) M8X30 W/LK WASHER 		9-01900-830-0 02 1 8712-9001
38 BOLT; CLIP,HARNESS
HONG KONG EQUIPMENT(PQ1) M8X30 FLANGE 		0-28010-830-0 31 1 9002-9204
38 BOLT; CLIP,HARNESS
HONG KONG EQUIPMENT(PQ1) M8X30 FLANGE 		0-28080-830-0 31 1 9205-
38 BOLT; CLIP,HARNESS
EXC. HONG KONG EQUIPMENT(PQ1) M8X25 W/LK WASHER 		9-01900-825-0 25 1 8712-9001
38 BOLT; CLIP,HARNESS
EXC. HONG KONG EQUIPMENT(PQ1) M8X25 FLANGE 		0-28010-825-0 26 1 9002-9204
38 BOLT; CLIP,HARNESS
EXC. HONG KONG EQUIPMENT(PQ1) M8X25 FLANGE 		0-28080-825-0 26 1 9205-9404
38 BOLT; CLIP,HARNESS
EXC. HONG KONG EQUIPMENT(PQ1) M8X25 FLANGE 		0-28080-825-0 10 1 9405-
38 BOLT; CLIP,HARNESS
NEW ZEALAND EQUIPMENT(PK5) M8X25 FLANGE 		0-28080-825-0 17 1 9405-
38 BOLT; CLIP,HARNESS
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8X25 FLANGE 		0-28080-825-0 18 1 9405-
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X20 W/LK WASHER 		9-01900-820-0 02 1 8712-9204
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205-9302
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X30 W/LK WASHER 		9-01900-830-0 02 1 9002-9011
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X30 W/LK WASHER 		9-01900-830-0 03 1 9012-9204
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X30 W/LK WASHER 		0-50040-830-0 03 1 9205-9302
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X20 FLANGE 		0-28080-820-0 01 1 9307-
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X30 FLANGE 		0-28080-830-0 03 1 9307-
57 CLIP; INST HARNESS,SW CLU 1-09987-106-0 01 1 8712-8904
57 CLIP; INST HARNESS,SW CLU 1-09987-161-0 01 1 8905-
58 CLIP; INST HARNESS,SW ACCEL
ID=6.5 		8-94206-730-0 01 1 8712-9108
58 CLIP; INST HARNESS,SW ACCEL
ID=7-10 		8-94472-578-0 01 1 9109-
59 BRACKET; FRAME HARNESS 1-82699-264-0 01 1 8712-
115 CLIP; DOOR HARNESS
DELUXE CAB<W14> (B) ID=9 		5-09707-027-0 01 1 8712-
115 CLIP; DOOR HARNESS
POWER WINDOW<A30> (A) 1 SET=5 PIECE 		1-09987-214-0 09 1 9205-
115 CLIP; DOOR HARNESS
POWER WINDOW<A30> (B) ID=9 		5-09707-027-0 02 1 9205-9305
115 CLIP; DOOR HARNESS
POWER WINDOW<A30> (C) L=142 		8-94232-619-0 02 1 9306-
119 SCREW; DOOR HARNESS EARTH
DELUXE CAB<W14> M4X13 		1-09981-148-0 01 1 8712-9204
119 SCREW; DOOR HARNESS EARTH
POWER WINDOW<A30> M4X13 		1-09981-148-0 02 1 9205-
119 SCREW; DOOR HARNESS EARTH
DELUXE CAB<W14> EXC. POWER WINDOW<A30> M4X13 		1-09981-148-0 01 1 9205-
139 BOLT; BRKT
M6X20 		1-09980-279-0 02 1 8712-
139 BOLT; BRKT
V TYPE ENG<91L> M10X20 W/LK WASHER 		9-01931-020-0 01 1 8712-9002
139 BOLT; BRKT
V TYPE ENG<91L> M10X20 W/LK WASHER 		0-50051-020-0 01 1 9003-

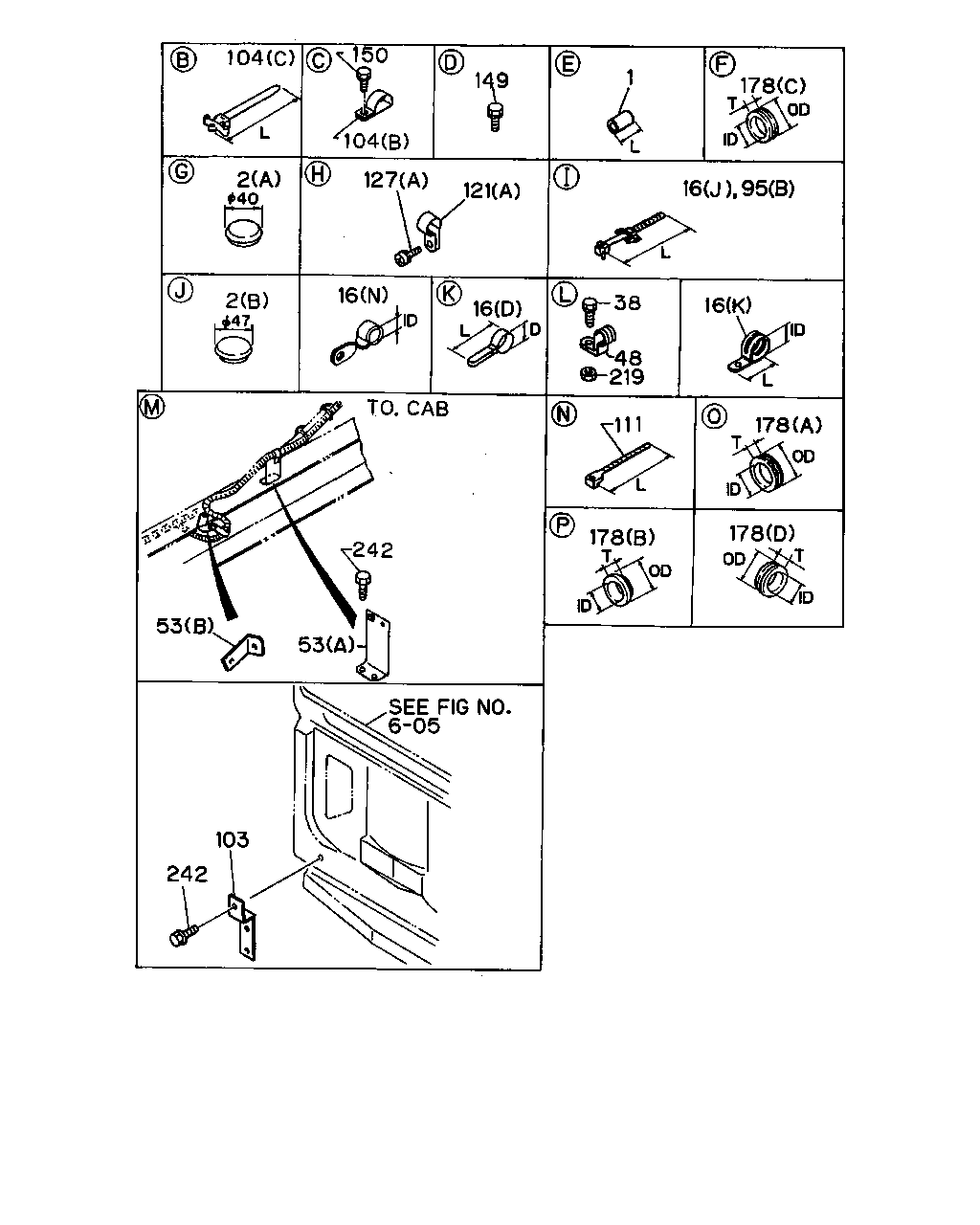

çizim 94005
104 150 104 149 1 178 95 16 121 127 2 2 16 16 38 48 219 16 178 111 178 178 103 242 53 53 242
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
ID=15 OD=19 L=20 		1-09337-007-0 02 1 8712-
2 GROMMET; CLIP HOLE,HARNESS
(D) OD=48.5 		1-73907-231-0 01 1 9202-
2 GROMMET; CLIP HOLE,HARNESS
EXC. AUTO CAB TILT<WV2> (C) OD=12.8 		1-09983-065-0 07 1 8712-
2 GROMMET; CLIP HOLE,HARNESS
DELUXE CAB<W14> (B) OD=47 		1-09983-039-1 01 1 8712-
2 GROMMET; CLIP HOLE,HARNESS
DELUXE CAB<W14> (C) OD=12.8 		1-09983-065-0 01 1 8712-
2 GROMMET; CLIP HOLE,HARNESS
EXC. DELUXE CAB<W14> (B) OD=47 		1-09983-039-1 02 1 8712-
2 GROMMET; CLIP HOLE,HARNESS
EXC. DELUXE CAB<W14> (C) OD=12.8 		1-09983-065-0 02 1 8712-
2 GROMMET; CLIP HOLE,HARNESS
HONG KONG EQUIPMENT(PQ1),PAPUA NEW GUINEA EQUIPMENT(PV5) (A) ID=20 OD=40 		1-09983-077-0 01 1 8712-9001
2 GROMMET; CLIP HOLE,HARNESS
EXC. LAMPS FOUR ROOF MARKER<PJ5> (A) ID=20 OD=40 		1-09983-077-0 01 1 9002-
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 07 1 8712-
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 04 1 8712-9007
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=11 L=41 		1-09700-403-0 04 1 8712-9007
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=11 L=41 		1-09700-403-0 04 1 9008-9206
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=11 L=41 		1-09700-403-0 06 1 9207-9306
16 CLIP; HARNESS
(M) ID=15 L=35 		1-09700-507-0 02 1 8712-9306
16 CLIP; HARNESS
(B) ID=12 L=20 		1-09700-605-0 02 1 8712-
16 CLIP; HARNESS
(L) ID=15 L=20 		1-09700-606-0 01 1 8712-
16 CLIP; HARNESS
(P) 		1-09700-894-0 01 1 8712-
16 CLIP; HARNESS
EXC. INTERMITTENT WIPER<C13> (P) 		1-09700-894-0 01 1 8712-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-0 02 1 8712-9306
16 CLIP; HARNESS
(H) W=18 		8-94224-891-1 02 1 8712-
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-035-0 01 1 8712-9306
16 CLIP; HARNESS
(B) ID=19 H=50 L=25 		9-09916-622-0 01 1 8712-
16 CLIP; HARNESS
(D) ID=25 L=55 		9-09917-573-0 03 1 8712-
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-032-0 02 1 8802-
16 CLIP; HARNESS
(C) L=219.5 		1-09987-136-0 04 1 9002-
16 CLIP; HARNESS
(J) L=135 		1-09987-143-1 01 1 9002-9201
16 CLIP; HARNESS
(C) L=175 		8-94155-593-1 01 1 9202-9205
16 CLIP; HARNESS
(E) L=300 		1-09707-001-0 01 1 9007-
16 CLIP; HARNESS
(C) L=175 		8-94155-593-1 03 1 9206-
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9307-
16 CLIP; HARNESS
V TYPE ENG<91L> (D) ID=11 L=41 		1-09700-403-0 03 1 9307-
16 CLIP; HARNESS
(D) ID=11 L=61 		1-09700-484-0 09 1 9307-
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 9307-
16 CLIP; HARNESS
(N) ID=29 L=35 		5-09700-293-1 01 1 9307-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-0 03 1 9307-
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-035-0 01 1 9307-
16 CLIP; HARNESS
V TYPE ENG<91L> (A) ID=11 L=20 		9-09525-035-0 01 1 9307-
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (Q) L=46 		1-09700-493-0 01 1 8712-9306
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (G) ID=35 L=35 W/NUT 		1-09700-684-0 01 1 8712-9306
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (F) ID=35 L=35 		1-09700-726-0 01 1 8712-9306
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=18 L=48 		9-09917-429-0 02 1 8712-9306
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=20 L=50 		9-09917-430-0 04 1 8712-9306
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (I) OD=9 H=6 		1-09709-178-0 07 1 9104-
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (A) ID=11 L=50 		9-09525-085-0 02 1 9104-
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (C) L=140 		5-09707-031-0 01 1 9206-9306
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=14 L=44 		9-09917-427-0 01 1 9307-
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (K) ID=27 L=32 		1-09700-712-0 01 1 8712-8912
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (K) ID=29 L=35 		5-09700-293-1 01 1 8712-9306
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1) (D) ID=11 L=61 		1-09700-484-0 01 1 8712-
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1) (K) ID=27 L=32 		1-09700-712-0 01 1 8712-8912
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1) (D) ID=20 L=65 		1-09700-978-0 20 1 8712-9306
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1) (K) ID=28 L=32 		1-09701-107-0 01 1 9001-9003
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (K) ID=28 L=32 		1-09701-107-0 01 1 9001-9003
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 01 1 9004-9306
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1) (K) ID=28 L=32 		1-09701-107-1 01 1 9004-9306
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (K) ID=28 L=32 		1-09701-107-1 01 1 9004-9306
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1) (D) ID=20 L=70 		1-09700-485-0 20 1 9307-
16 CLIP; HARNESS
EXC. HONG KONG EQUIPMENT(PQ1) (D) ID=11 L=41 		1-09700-403-0 01 1 8712-9003
16 CLIP; HARNESS
EXC. HONG KONG EQUIPMENT(PQ1) (D) ID=11 L=41 		1-09700-403-0 01 1 8712-
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1) AIR DRYER<PS7> (D) ID=11 L=41 		1-09700-403-0 01 1 8712-
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (D) ID=11 L=41 		1-09700-403-0 01 1 8712-
16 CLIP; HARNESS
EXC. HONG KONG EQUIPMENT(PQ1) (D) ID=20 L=50 		9-09917-430-0 23 1 8712-9008
16 CLIP; HARNESS
EXC. HONG KONG EQUIPMENT(PQ1) (D) ID=20 L=50 		9-09917-430-0 26 1 9009-
16 CLIP; HARNESS
L TYPE ENG<90L> (N) ID=20 L=50 		1-09700-679-1 01 1 8712-
16 CLIP; HARNESS
L TYPE ENG<90L> (M) ID=15 L=35 		1-09700-507-0 01 1 9307-9309
16 CLIP; HARNESS
L TYPE ENG<90L> (H) W=14 		8-94225-185-0 01 1 9307-9309
16 CLIP; HARNESS
(H) W=14 		8-94225-185-0 02 1 9310-
16 CLIP; HARNESS
NEW ZEALAND EQUIPMENT(PK5) (C) L=140 		5-09707-031-0 01 1 9403-
16 CLIP; HARNESS
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,PAPUA NEW GUINEA EQUIPMENT(PV5) (D) ID=11 L=61 		1-09700-484-0 09 1 8712-9011
16 CLIP; HARNESS
(D) ID=11 L=61 		1-09700-484-0 09 1 9012-9306
16 CLIP; HARNESS
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),PAPUA NEW GUINEA EQUIPMENT(PV5) (D) ID=11 L=41 		1-09700-403-0 06 1 8712-9011
16 CLIP; HARNESS
NYLON TUBE AIR PIPING<Z29> (E) L=150 		1-09707-145-0 01 1 8910-
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER<SH5> (C) L=250 		5-09707-030-0 01 1 8712-
16 CLIP; HARNESS
V TYPE ENG<91L> (A) ID=11 L=40 		9-09525-075-0 02 1 8712-9306
16 CLIP; HARNESS
V TYPE ENG<91L> (A) ID=19 L=20 		9-09525-835-0 01 1 8712-9306
16 CLIP; HARNESS
V TYPE ENG<91L> (A) ID=19 L=20 		9-09525-836-0 01 1 9307-
16 CLIP; HARNESS
V TYPE ENG<91L> (D) ID=15 L=45 		1-09700-402-0 01 1 9002-
16 CLIP; HARNESS
V TYPE ENG<91L> (D) ID=11 L=41 		1-09700-403-0 03 1 9002-9007
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9008-9306
16 CLIP; HARNESS
V TYPE ENG<91L> (D) ID=11 L=41 		1-09700-403-0 03 1 9008-9306
16 CLIP; HARNESS
V TYPE ENG<91L> (H) ID=18 		8-94225-185-0 02 1 9307-9309
16 CLIP; HARNESS
V TYPE ENG<91L> (A) ID=11 L=40 		9-09525-075-0 02 1 9307-
16 CLIP; HARNESS
6RB1TC ENG(30L) (O) ID=11 L=30 		1-09700-511-0 01 1 8712-9204
16 CLIP; HARNESS
(O) ID=11 L=30 		1-09700-511-0 01 1 9205-9306
16 CLIP; HARNESS
6RB1TC ENG(30L) (O) ID=11 L=30 		1-09700-511-0 01 1 9205-9306
16 CLIP; HARNESS
6RB1TC ENG(30L) 14INCH TWO PLATE SPICER CLUTCH(M07) EXH HEAT WARNING<W50> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (O) ID=11 L=30 		1-09700-511-0 01 1 9307-
38 BOLT; CLIP,HARNESS
M6X22 W/LK&PL WASHER 		8-94122-770-0 01 1 8712-9212
38 BOLT; CLIP,HARNESS
M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9301-9301
38 BOLT; CLIP,HARNESS
M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9302-9306
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		9-01900-620-0 03 1 8712-9011
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		9-01900-620-0 02 1 9012-9204
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		0-50040-620-0 02 1 9205-9302
38 BOLT; CLIP,HARNESS
M6X20 FLANGE 		0-28080-620-0 02 1 9303-
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		9-01900-820-0 04 1 8712-9204
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		0-50040-820-0 04 1 9205-9302
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 04 1 9303-9306
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 04 1 9307-
38 BOLT; CLIP,HARNESS
M8X25 W/LK WASHER 		9-01900-825-0 03 1 8712-9011
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		0-50041-020-0 02 1 9012-9106
38 BOLT; CLIP,HARNESS
M10X25 W/LK WASHER 		0-50041-025-0 02 1 9107-
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 01 1 8712-9011
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 02 1 9012-9204
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		0-50040-830-0 02 1 9205-9302
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		9-01911-020-0 02 1 8712-9002
38 BOLT; CLIP,HARNESS
M12X25 W/LK&PL WASHER 		9-01961-225-0 01 1 8712-9101
38 BOLT; CLIP,HARNESS
M12X16 FLANGE 		1-09044-079-0 01 1 9102-
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 01 1 9002-9204
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 01 1 9205-9302
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 03 1 9303-9306
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X30 FLANGE 		0-28080-830-0 03 1 9303-9306
38 BOLT; CLIP,HARNESS
M8X25 W/LK WASHER 		9-01900-825-0 01 1 9012-9204
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X25 W/LK WASHER 		9-01900-825-0 01 1 9012-9204
38 BOLT; CLIP,HARNESS
M8X25 W/LK WASHER 		0-50040-825-0 01 1 9205-9302
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X25 W/LK WASHER 		0-50040-825-0 01 1 9205-9302
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28080-825-0 01 1 9303-9306
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X25 FLANGE 		0-28080-825-0 01 1 9303-9306
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 02 1 9307-
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X20 FLANGE 		0-28080-820-0 02 1 9307-
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28080-825-0 01 1 9307-
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X25 FLANGE 		0-28080-825-0 01 1 9307-
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 01 1 9307-
38 BOLT; CLIP,HARNESS
M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9307-
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28010-820-0 02 1 9104-9204
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 02 1 9205-9302
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 02 1 9303-9306
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X20 FLANGE 		0-28080-820-0 02 1 9303-9306
38 BOLT; CLIP,HARNESS
EXC. AUTO CAB TILT<WV2> M6X20 W/LK WASHER 		9-01900-620-0 01 1 8712-8912
38 BOLT; CLIP,HARNESS
EXC. AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28010-820-0 01 1 9001-9204
38 BOLT; CLIP,HARNESS
EXC. AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 01 1 9205-9306
38 BOLT; CLIP,HARNESS
EXC. AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 03 1 9307-
38 BOLT; CLIP,HARNESS
HONG KONG EQUIPMENT(PQ1) M8X30 W/LK WASHER 		9-01900-830-0 29 1 8712-9001
38 BOLT; CLIP,HARNESS
10PC1 STD ENG(10L) M8X30 W/LK WASHER 		9-01900-830-0 02 1 8712-9001
38 BOLT; CLIP,HARNESS
HONG KONG EQUIPMENT(PQ1) M8X30 FLANGE 		0-28010-830-0 31 1 9002-9204
38 BOLT; CLIP,HARNESS
HONG KONG EQUIPMENT(PQ1) M8X30 FLANGE 		0-28080-830-0 31 1 9205-
38 BOLT; CLIP,HARNESS
EXC. HONG KONG EQUIPMENT(PQ1) M8X25 W/LK WASHER 		9-01900-825-0 25 1 8712-9001
38 BOLT; CLIP,HARNESS
EXC. HONG KONG EQUIPMENT(PQ1) M8X25 FLANGE 		0-28010-825-0 26 1 9002-9204
38 BOLT; CLIP,HARNESS
EXC. HONG KONG EQUIPMENT(PQ1) M8X25 FLANGE 		0-28080-825-0 26 1 9205-9404
38 BOLT; CLIP,HARNESS
EXC. HONG KONG EQUIPMENT(PQ1) M8X25 FLANGE 		0-28080-825-0 10 1 9405-
38 BOLT; CLIP,HARNESS
NEW ZEALAND EQUIPMENT(PK5) M8X25 FLANGE 		0-28080-825-0 17 1 9405-
38 BOLT; CLIP,HARNESS
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8X25 FLANGE 		0-28080-825-0 18 1 9405-
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X20 W/LK WASHER 		9-01900-820-0 02 1 8712-9204
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205-9302
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X30 W/LK WASHER 		9-01900-830-0 02 1 9002-9011
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X30 W/LK WASHER 		9-01900-830-0 03 1 9012-9204
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X30 W/LK WASHER 		0-50040-830-0 03 1 9205-9302
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X20 FLANGE 		0-28080-820-0 01 1 9307-
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X30 FLANGE 		0-28080-830-0 03 1 9307-
48 CLIP; FRAME HARNESS
ID=20 H=23 L=27 		1-09700-861-0 06 1 8712-
48 CLIP; FRAME HARNESS
ID=24.5 H=23 L=25 		1-09700-862-0 03 1 8712-8801
48 CLIP; FRAME HARNESS
HONG KONG EQUIPMENT(PQ1) ID=24.5 H=23 L=25 		1-09700-862-0 20 1 8712-8801
48 CLIP; FRAME HARNESS
ID=24.5 H=23 L=25 		1-09700-862-0 04 1 8802-
48 CLIP; FRAME HARNESS
ID=25 L=55 		9-09917-573-0 07 1 9002-
48 CLIP; FRAME HARNESS
HONG KONG EQUIPMENT(PQ1) ID=20 H=23 L=27 		1-09700-861-0 01 1 8802-
48 CLIP; FRAME HARNESS
HONG KONG EQUIPMENT(PQ1) ID=24.5 H=23 L=25 		1-09700-862-0 21 1 8802-
48 CLIP; FRAME HARNESS
EXC. HONG KONG EQUIPMENT(PQ1) ID=24.5 H=23 L=25 		1-09700-862-0 16 1 8712-9310
48 CLIP; FRAME HARNESS
EXC. HONG KONG EQUIPMENT(PQ1) ID=24.5 H=23 L=25 		1-09700-862-0 18 1 9311-9404
48 CLIP; FRAME HARNESS
NEW ZEALAND EQUIPMENT(PK5) ID=24.5 H=23 L=25 		1-09700-862-0 19 1 9405-
48 CLIP; FRAME HARNESS
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ID=24.5 H=23 L=25 		1-09700-862-0 20 1 9405-
53 BRACKET; HARNESS
(B) 		1-82699-199-0 01 1 8712-
53 BRACKET; HARNESS
(A) 		1-82699-390-2 01 1 9307-
53 BRACKET; HARNESS
AUTO CAB TILT<WV2> (E) 		1-82699-295-0 01 1 8712-9306
53 BRACKET; HARNESS
EXC. AUTO CAB TILT<WV2> (A) 		1-82699-103-1 01 1 8712-8912
53 BRACKET; HARNESS
EXC. AUTO CAB TILT<WV2> (A) 		1-82699-390-2 01 1 9001-9306
53 BRACKET; HARNESS
AUTO ENG SHUTOFF<KB6> (C) 		1-71907-151-0 01 1 9307-9307
53 BRACKET; HARNESS
AUTO ENG SHUTOFF<KB6> (D) 		1-71997-996-1 01 1 9308-
95 CLIP; CABLE
(B) L=135 		1-09987-143-1 02 1 8712-9201
95 CLIP; CABLE
(B) L=175 		8-94155-593-1 02 1 9202-9205
95 CLIP; CABLE
INTAKE HEATER<SL2> (B) L=175 		8-94155-593-1 01 1 9206-9306
95 CLIP; CABLE
(A) 		1-09987-155-0 03 1 8712-9202
95 CLIP; CABLE
(A) 		1-09987-155-0 02 1 9203-
103 BRACKET; HD LAMP HARNESS
POWER WINDOW<A30> 		1-61470-692-0 01 1 9307-
104 CLIP; HEADLAMP HARNESS
(B) ID=9 		5-09707-027-0 02 1 8712-
104 CLIP; HEADLAMP HARNESS
(C) L=112 		8-94232-618-0 08 1 8712-9003
104 CLIP; HEADLAMP HARNESS
(C) L=142 		8-94232-619-0 08 1 9004-
104 CLIP; HEADLAMP HARNESS
(D) ID=19 L=20 		9-09525-832-0 01 1 8712-
104 CLIP; HEADLAMP HARNESS
(D) ID=19 L=32 		9-09525-862-0 01 1 8712-
104 CLIP; HEADLAMP HARNESS
AUTO CAB TILT<WV2> (A) ID=12 		1-09987-201-0 09 1 8905-
104 CLIP; HEADLAMP HARNESS
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C) L=142 		8-94232-619-0 02 1 9307-
111 CLIP; STOP LAMP SW HARNESS
L=140 		5-09707-031-0 01 1 8712-
121 CLIP; FACIA HARNESS
(B) ID=23 H=23 L=24 		1-09700-738-0 03 1 8712-
121 CLIP; FACIA HARNESS
(A) ID=16 L=20 		9-09525-532-0 01 1 8712-
121 CLIP; FACIA HARNESS
(A) ID=19 L=20 		9-09525-832-0 01 1 8712-
121 CLIP; FACIA HARNESS
(B) ID=16 H=24 L=20 		9-09527-015-0 02 1 8712-
127 SCREW; FACIA HARNESS CLIP
(B) M6X22 W/LK&PL WASHER 		1-09980-430-0 01 1 8712-9003
127 SCREW; FACIA HARNESS CLIP
(B) M6X22 W/LK&PL WASHER 		1-09980-584-0 01 1 9004-9303
127 SCREW; FACIA HARNESS CLIP
(B) M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9304-
127 SCREW; FACIA HARNESS CLIP
(B) M6X16 W/LK&PL WASHER 		1-09981-375-0 01 1 8712-9304
127 SCREW; FACIA HARNESS CLIP
(B) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9305-
127 SCREW; FACIA HARNESS CLIP
(A) M6X16 W/LK WASHER 		9-03910-616-0 02 1 8712-
149 BOLT; HEADLAMP HARNESS EARTH
M6X22 W/LK&PL WASHER 		1-09980-537-0 01 1 8712-9303
149 BOLT; HEADLAMP HARNESS EARTH
M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9304-
150 BOLT; CLIP
M6X20 W/LK&PL WASHER 		1-09980-493-0 03 1 8712-8909
150 BOLT; CLIP
M6X16 W/LK&PL WASHER 		1-09980-497-0 03 1 8910-
178 GROMMET; HARNESS
(B) T=24 ID=19 OD=23 T=24 		1-09332-103-0 01 1 9002-9003
178 GROMMET; HARNESS
(B) T=24 ID=19 OD=23 T=24 		1-09332-103-0 01 1 9002-9306
178 GROMMET; HARNESS
HONG KONG EQUIPMENT(PQ1) AIR DRYER<PS7> (B) T=24 ID=19 OD=23 T=24 		1-09332-103-0 01 1 9002-9306
178 GROMMET; HARNESS
(C) T=26 ID=15 OD=20 T=26 		1-09332-132-0 01 1 9003-9306
178 GROMMET; HARNESS
(C) T=25 ID=28 OD=35 T=25 		1-09332-011-1 01 1 9307-
178 GROMMET; HARNESS
AUTO CAB TILT<WV2> (C) T=25 ID=28 OD=35 T=25 		1-09332-011-1 01 1 9307-
178 GROMMET; HARNESS
(A) T=22 ID=24 OD=30 T=22 		1-09332-104-0 02 1 9307-
178 GROMMET; HARNESS
(C) T=26 ID=15 OD=20 T=26 		1-09332-132-0 01 1 9307-
178 GROMMET; HARNESS
AIR DRYER<PS7> (B) T=12 ID=8 OD=14 T=12 		1-09332-099-0 01 1 9307-9308
178 GROMMET; HARNESS
AIR DRYER<PS7> (B) OD=29 T=12 ID=18 OD=23 T=12 		1-09332-035-0 01 1 9309-
178 GROMMET; HARNESS
AIR DRYER<PS7> (B) T=24 ID=19 OD=23 T=24 		1-09332-103-0 01 1 9307-9308
178 GROMMET; HARNESS
AUTO CAB TILT<WV2> (C) T=25 ID=28 OD=35 T=25 		1-09332-011-1 01 1 9002-9205
178 GROMMET; HARNESS
AUTO CAB TILT<WV2> (A) T=17 ID=28 OD=35 T=17 		9-09956-256-1 01 1 9206-9306
178 GROMMET; HARNESS
AUTO CAB TILT<WV2> (A) T=33 ID=28 OD=35 		1-09332-127-0 01 1 9206-9306
178 GROMMET; HARNESS
AUTO CAB TILT<WV2> (A) T=12 ID=28 OD=35 T=12 		9-09956-725-0 01 1 9307-
178 GROMMET; HARNESS
FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (A) T=17 ID=24 OD=30 T=17 		9-09956-092-1 01 1 8712-
178 GROMMET; HARNESS
FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (A) T=17 ID=24 OD=30 T=17 		9-09956-092-1 01 1 9307-
178 GROMMET; HARNESS
HONG KONG EQUIPMENT(PQ1) (D) OD=24 T=26 ID=15 		1-09332-094-0 03 1 8712-9002
178 GROMMET; HARNESS
HONG KONG EQUIPMENT(PQ1) (D) OD=24 T=26 ID=15 		1-09332-094-0 02 1 9003-9306
178 GROMMET; HARNESS
HONG KONG EQUIPMENT(PQ1) (B) T=24 ID=19 OD=23 T=24 		1-09332-103-0 02 1 9002-
178 GROMMET; HARNESS
HONG KONG EQUIPMENT(PQ1) (A) T=22 ID=24 OD=30 T=22 		1-09332-104-0 01 1 9002-9302
178 GROMMET; HARNESS
(C) T=25 ID=28 OD=35 T=25 		1-09332-011-1 01 1 9303-9306
178 GROMMET; HARNESS
HONG KONG EQUIPMENT(PQ1) (D) OD=24 T=26 ID=15 		1-09332-094-0 01 1 9307-
178 GROMMET; HARNESS
HONG KONG EQUIPMENT(PQ1) AIR DRYER<PS7> (D) T=12 ID=8 OD=14 T=12 		1-09332-099-0 01 1 8806-9306
178 GROMMET; HARNESS
HONG KONG EQUIPMENT(PQ1) AIR DRYER<PS7> (B) T=24 ID=19 OD=23 T=24 		1-09332-103-0 01 1 8806-
178 GROMMET; HARNESS
EXC. HONG KONG EQUIPMENT(PQ1) (A) ID=15 OD=20 T=22 		9-09956-181-0 03 1 8712-9002
178 GROMMET; HARNESS
EXC. HONG KONG EQUIPMENT(PQ1) (A) T=17 ID=24 OD=30 T=17 		9-09956-092-1 01 1 9002-9003
178 GROMMET; HARNESS
EXC. HONG KONG EQUIPMENT(PQ1) (A) T=17 ID=24 OD=30 T=17 		9-09956-092-1 01 1 9002-9008
178 GROMMET; HARNESS
FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (A) T=17 ID=24 OD=30 T=17 		9-09956-092-1 01 1 9002-9008
178 GROMMET; HARNESS
FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (A) T=17 ID=24 OD=30 T=17 		9-09956-092-1 01 1 9009-9306
178 GROMMET; HARNESS
EXC. HONG KONG EQUIPMENT(PQ1) (A) T=18 ID=19 OD=23 T=18 		9-09956-130-1 01 1 9002-9008
178 GROMMET; HARNESS
EXC. HONG KONG EQUIPMENT(PQ1) (A) T=17 ID=28 OD=35 T=17 		9-09956-256-1 03 1 9009-9302
178 GROMMET; HARNESS
EXC. HONG KONG EQUIPMENT(PQ1) (A) ID=15 OD=20 T=22 		9-09956-181-0 01 1 9003-9308
178 GROMMET; HARNESS
EXC. HONG KONG EQUIPMENT(PQ1) (A) ID=15 OD=20 T=22 		9-09956-181-0 01 1 9309-
178 GROMMET; HARNESS
HONG KONG EQUIPMENT(PQ1) AIR DRYER<PS7> (A) ID=15 OD=20 T=22 		9-09956-181-0 01 1 9309-
178 GROMMET; HARNESS
EXC. HONG KONG EQUIPMENT(PQ1) (A) T=17 ID=28 OD=35 T=17 		9-09956-256-1 02 1 9003-
219 NUT
M5 FLANGE 		5-09440-003-0 05 1 8712-
219 NUT
M6 		9-09110-406-0 01 1 8712-9011
219 NUT
M8 		9-09110-408-0 14 1 8712-9003
219 NUT
M8 		9-09110-408-0 15 1 9004-9011
219 NUT
M5 		9-99110-405-0 01 1 8712-9306
219 NUT
M8 		9-09110-408-0 16 1 9012-9306
219 NUT
EXC. HONG KONG EQUIPMENT(PQ1) M8 		9-09110-408-0 16 1 9012-9306
219 NUT
M10 		9-09110-510-0 02 1 9012-
219 NUT
M8 		9-09110-408-0 16 1 9307-9404
219 NUT
EXC. HONG KONG EQUIPMENT(PQ1) M8 		9-09110-408-0 16 1 9307-9404
219 NUT
NEW ZEALAND EQUIPMENT(PK5) M8 		9-09110-408-0 17 1 9405-
219 NUT
M5 		9-99110-405-0 01 1 9307-
219 NUT
M8 		9-09110-408-0 16 1 9405-
219 NUT
HONG KONG EQUIPMENT(PQ1) M8 		9-09110-408-0 20 1 8712-
219 NUT
EXC. HONG KONG EQUIPMENT(PQ1) M8 		9-09110-408-0 16 1 8712-9011
219 NUT
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8 		9-09110-408-0 18 1 9405-
242 BOLT; BRKT,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 03 1 8712-9204
242 BOLT; BRKT,HARNESS
M8X30 W/LK WASHER 		0-50040-830-0 03 1 9205-9302
242 BOLT; BRKT,HARNESS
M8X30 FLANGE 		0-28080-830-0 03 1 9303-
242 BOLT; BRKT,HARNESS
AUTO CAB TILT<WV2> M8X20 W/LK WASHER 		0-50040-820-0 01 1 9206-9302
242 BOLT; BRKT,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 01 1 9303-9306
242 BOLT; BRKT,HARNESS
POWER WINDOW<A30> M6X20 W/LK&PL WASHER 		1-09980-493-0 01 1 9307-
242 BOLT; BRKT,HARNESS
AUTO ENG SHUTOFF<KB6> M6X20 W/LK&PL WASHER 		1-09980-493-0 02 1 9307-
çizim 94073
16 212 38 16 312 312 312 16 16 237 206 206 64
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 07 1 8712-
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 04 1 8712-9007
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=11 L=41 		1-09700-403-0 04 1 8712-9007
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=11 L=41 		1-09700-403-0 04 1 9008-9206
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=11 L=41 		1-09700-403-0 06 1 9207-9306
16 CLIP; HARNESS
(M) ID=15 L=35 		1-09700-507-0 02 1 8712-9306
16 CLIP; HARNESS
(B) ID=12 L=20 		1-09700-605-0 02 1 8712-
16 CLIP; HARNESS
(L) ID=15 L=20 		1-09700-606-0 01 1 8712-
16 CLIP; HARNESS
(P) 		1-09700-894-0 01 1 8712-
16 CLIP; HARNESS
EXC. INTERMITTENT WIPER<C13> (P) 		1-09700-894-0 01 1 8712-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-0 02 1 8712-9306
16 CLIP; HARNESS
(H) W=18 		8-94224-891-1 02 1 8712-
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-035-0 01 1 8712-9306
16 CLIP; HARNESS
(B) ID=19 H=50 L=25 		9-09916-622-0 01 1 8712-
16 CLIP; HARNESS
(D) ID=25 L=55 		9-09917-573-0 03 1 8712-
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-032-0 02 1 8802-
16 CLIP; HARNESS
(C) L=219.5 		1-09987-136-0 04 1 9002-
16 CLIP; HARNESS
(J) L=135 		1-09987-143-1 01 1 9002-9201
16 CLIP; HARNESS
(C) L=175 		8-94155-593-1 01 1 9202-9205
16 CLIP; HARNESS
(E) L=300 		1-09707-001-0 01 1 9007-
16 CLIP; HARNESS
(C) L=175 		8-94155-593-1 03 1 9206-
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9307-
16 CLIP; HARNESS
V TYPE ENG<91L> (D) ID=11 L=41 		1-09700-403-0 03 1 9307-
16 CLIP; HARNESS
(D) ID=11 L=61 		1-09700-484-0 09 1 9307-
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 9307-
16 CLIP; HARNESS
(N) ID=29 L=35 		5-09700-293-1 01 1 9307-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-0 03 1 9307-
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-035-0 01 1 9307-
16 CLIP; HARNESS
V TYPE ENG<91L> (A) ID=11 L=20 		9-09525-035-0 01 1 9307-
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (Q) L=46 		1-09700-493-0 01 1 8712-9306
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (G) ID=35 L=35 W/NUT 		1-09700-684-0 01 1 8712-9306
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (F) ID=35 L=35 		1-09700-726-0 01 1 8712-9306
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=18 L=48 		9-09917-429-0 02 1 8712-9306
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=20 L=50 		9-09917-430-0 04 1 8712-9306
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (I) OD=9 H=6 		1-09709-178-0 07 1 9104-
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (A) ID=11 L=50 		9-09525-085-0 02 1 9104-
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (C) L=140 		5-09707-031-0 01 1 9206-9306
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=14 L=44 		9-09917-427-0 01 1 9307-
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (K) ID=27 L=32 		1-09700-712-0 01 1 8712-8912
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (K) ID=29 L=35 		5-09700-293-1 01 1 8712-9306
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1) (D) ID=11 L=61 		1-09700-484-0 01 1 8712-
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1) (K) ID=27 L=32 		1-09700-712-0 01 1 8712-8912
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1) (D) ID=20 L=65 		1-09700-978-0 20 1 8712-9306
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1) (K) ID=28 L=32 		1-09701-107-0 01 1 9001-9003
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (K) ID=28 L=32 		1-09701-107-0 01 1 9001-9003
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 01 1 9004-9306
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1) (K) ID=28 L=32 		1-09701-107-1 01 1 9004-9306
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (K) ID=28 L=32 		1-09701-107-1 01 1 9004-9306
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1) (D) ID=20 L=70 		1-09700-485-0 20 1 9307-
16 CLIP; HARNESS
EXC. HONG KONG EQUIPMENT(PQ1) (D) ID=11 L=41 		1-09700-403-0 01 1 8712-9003
16 CLIP; HARNESS
EXC. HONG KONG EQUIPMENT(PQ1) (D) ID=11 L=41 		1-09700-403-0 01 1 8712-
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1) AIR DRYER<PS7> (D) ID=11 L=41 		1-09700-403-0 01 1 8712-
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (D) ID=11 L=41 		1-09700-403-0 01 1 8712-
16 CLIP; HARNESS
EXC. HONG KONG EQUIPMENT(PQ1) (D) ID=20 L=50 		9-09917-430-0 23 1 8712-9008
16 CLIP; HARNESS
EXC. HONG KONG EQUIPMENT(PQ1) (D) ID=20 L=50 		9-09917-430-0 26 1 9009-
16 CLIP; HARNESS
L TYPE ENG<90L> (N) ID=20 L=50 		1-09700-679-1 01 1 8712-
16 CLIP; HARNESS
L TYPE ENG<90L> (M) ID=15 L=35 		1-09700-507-0 01 1 9307-9309
16 CLIP; HARNESS
L TYPE ENG<90L> (H) W=14 		8-94225-185-0 01 1 9307-9309
16 CLIP; HARNESS
(H) W=14 		8-94225-185-0 02 1 9310-
16 CLIP; HARNESS
NEW ZEALAND EQUIPMENT(PK5) (C) L=140 		5-09707-031-0 01 1 9403-
16 CLIP; HARNESS
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,PAPUA NEW GUINEA EQUIPMENT(PV5) (D) ID=11 L=61 		1-09700-484-0 09 1 8712-9011
16 CLIP; HARNESS
(D) ID=11 L=61 		1-09700-484-0 09 1 9012-9306
16 CLIP; HARNESS
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),PAPUA NEW GUINEA EQUIPMENT(PV5) (D) ID=11 L=41 		1-09700-403-0 06 1 8712-9011
16 CLIP; HARNESS
NYLON TUBE AIR PIPING<Z29> (E) L=150 		1-09707-145-0 01 1 8910-
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER<SH5> (C) L=250 		5-09707-030-0 01 1 8712-
16 CLIP; HARNESS
V TYPE ENG<91L> (A) ID=11 L=40 		9-09525-075-0 02 1 8712-9306
16 CLIP; HARNESS
V TYPE ENG<91L> (A) ID=19 L=20 		9-09525-835-0 01 1 8712-9306
16 CLIP; HARNESS
V TYPE ENG<91L> (A) ID=19 L=20 		9-09525-836-0 01 1 9307-
16 CLIP; HARNESS
V TYPE ENG<91L> (D) ID=15 L=45 		1-09700-402-0 01 1 9002-
16 CLIP; HARNESS
V TYPE ENG<91L> (D) ID=11 L=41 		1-09700-403-0 03 1 9002-9007
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9008-9306
16 CLIP; HARNESS
V TYPE ENG<91L> (D) ID=11 L=41 		1-09700-403-0 03 1 9008-9306
16 CLIP; HARNESS
V TYPE ENG<91L> (H) ID=18 		8-94225-185-0 02 1 9307-9309
16 CLIP; HARNESS
V TYPE ENG<91L> (A) ID=11 L=40 		9-09525-075-0 02 1 9307-
16 CLIP; HARNESS
6RB1TC ENG(30L) (O) ID=11 L=30 		1-09700-511-0 01 1 8712-9204
16 CLIP; HARNESS
(O) ID=11 L=30 		1-09700-511-0 01 1 9205-9306
16 CLIP; HARNESS
6RB1TC ENG(30L) (O) ID=11 L=30 		1-09700-511-0 01 1 9205-9306
16 CLIP; HARNESS
6RB1TC ENG(30L) 14INCH TWO PLATE SPICER CLUTCH(M07) EXH HEAT WARNING<W50> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (O) ID=11 L=30 		1-09700-511-0 01 1 9307-
38 BOLT; CLIP,HARNESS
M6X22 W/LK&PL WASHER 		8-94122-770-0 01 1 8712-9212
38 BOLT; CLIP,HARNESS
M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9301-9301
38 BOLT; CLIP,HARNESS
M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9302-9306
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		9-01900-620-0 03 1 8712-9011
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		9-01900-620-0 02 1 9012-9204
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		0-50040-620-0 02 1 9205-9302
38 BOLT; CLIP,HARNESS
M6X20 FLANGE 		0-28080-620-0 02 1 9303-
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		9-01900-820-0 04 1 8712-9204
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		0-50040-820-0 04 1 9205-9302
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 04 1 9303-9306
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 04 1 9307-
38 BOLT; CLIP,HARNESS
M8X25 W/LK WASHER 		9-01900-825-0 03 1 8712-9011
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		0-50041-020-0 02 1 9012-9106
38 BOLT; CLIP,HARNESS
M10X25 W/LK WASHER 		0-50041-025-0 02 1 9107-
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 01 1 8712-9011
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 02 1 9012-9204
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		0-50040-830-0 02 1 9205-9302
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		9-01911-020-0 02 1 8712-9002
38 BOLT; CLIP,HARNESS
M12X25 W/LK&PL WASHER 		9-01961-225-0 01 1 8712-9101
38 BOLT; CLIP,HARNESS
M12X16 FLANGE 		1-09044-079-0 01 1 9102-
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 01 1 9002-9204
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 01 1 9205-9302
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 03 1 9303-9306
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X30 FLANGE 		0-28080-830-0 03 1 9303-9306
38 BOLT; CLIP,HARNESS
M8X25 W/LK WASHER 		9-01900-825-0 01 1 9012-9204
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X25 W/LK WASHER 		9-01900-825-0 01 1 9012-9204
38 BOLT; CLIP,HARNESS
M8X25 W/LK WASHER 		0-50040-825-0 01 1 9205-9302
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X25 W/LK WASHER 		0-50040-825-0 01 1 9205-9302
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28080-825-0 01 1 9303-9306
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X25 FLANGE 		0-28080-825-0 01 1 9303-9306
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 02 1 9307-
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X20 FLANGE 		0-28080-820-0 02 1 9307-
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28080-825-0 01 1 9307-
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X25 FLANGE 		0-28080-825-0 01 1 9307-
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 01 1 9307-
38 BOLT; CLIP,HARNESS
M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9307-
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28010-820-0 02 1 9104-9204
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 02 1 9205-9302
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 02 1 9303-9306
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X20 FLANGE 		0-28080-820-0 02 1 9303-9306
38 BOLT; CLIP,HARNESS
EXC. AUTO CAB TILT<WV2> M6X20 W/LK WASHER 		9-01900-620-0 01 1 8712-8912
38 BOLT; CLIP,HARNESS
EXC. AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28010-820-0 01 1 9001-9204
38 BOLT; CLIP,HARNESS
EXC. AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 01 1 9205-9306
38 BOLT; CLIP,HARNESS
EXC. AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 03 1 9307-
38 BOLT; CLIP,HARNESS
HONG KONG EQUIPMENT(PQ1) M8X30 W/LK WASHER 		9-01900-830-0 29 1 8712-9001
38 BOLT; CLIP,HARNESS
10PC1 STD ENG(10L) M8X30 W/LK WASHER 		9-01900-830-0 02 1 8712-9001
38 BOLT; CLIP,HARNESS
HONG KONG EQUIPMENT(PQ1) M8X30 FLANGE 		0-28010-830-0 31 1 9002-9204
38 BOLT; CLIP,HARNESS
HONG KONG EQUIPMENT(PQ1) M8X30 FLANGE 		0-28080-830-0 31 1 9205-
38 BOLT; CLIP,HARNESS
EXC. HONG KONG EQUIPMENT(PQ1) M8X25 W/LK WASHER 		9-01900-825-0 25 1 8712-9001
38 BOLT; CLIP,HARNESS
EXC. HONG KONG EQUIPMENT(PQ1) M8X25 FLANGE 		0-28010-825-0 26 1 9002-9204
38 BOLT; CLIP,HARNESS
EXC. HONG KONG EQUIPMENT(PQ1) M8X25 FLANGE 		0-28080-825-0 26 1 9205-9404
38 BOLT; CLIP,HARNESS
EXC. HONG KONG EQUIPMENT(PQ1) M8X25 FLANGE 		0-28080-825-0 10 1 9405-
38 BOLT; CLIP,HARNESS
NEW ZEALAND EQUIPMENT(PK5) M8X25 FLANGE 		0-28080-825-0 17 1 9405-
38 BOLT; CLIP,HARNESS
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8X25 FLANGE 		0-28080-825-0 18 1 9405-
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X20 W/LK WASHER 		9-01900-820-0 02 1 8712-9204
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205-9302
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X30 W/LK WASHER 		9-01900-830-0 02 1 9002-9011
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X30 W/LK WASHER 		9-01900-830-0 03 1 9012-9204
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X30 W/LK WASHER 		0-50040-830-0 03 1 9205-9302
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X20 FLANGE 		0-28080-820-0 01 1 9307-
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X30 FLANGE 		0-28080-830-0 03 1 9307-
64 SCREW; CLIP
M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 8712-
64 SCREW; CLIP
M5X10 W/LK+PL WASHER 		9-03920-510-0 01 1 8712-9002
206 CLIP; FUEL TANK HARNESS
(B) L=140 		5-09707-031-0 01 1 8712-9201
206 CLIP; FUEL TANK HARNESS
(B) L=140 		5-09707-031-0 03 1 9202-
206 CLIP; FUEL TANK HARNESS
(A) ID=11 L=16 		9-09525-022-0 01 1 8712-9002
206 CLIP; FUEL TANK HARNESS
NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5) (B) L=140 		5-09707-031-0 02 1 9002-9201
206 CLIP; FUEL TANK HARNESS
EXC. NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5) (B) L=250 		5-09707-030-0 01 1 9002-9201
212 CLIP; HORN HARNESS
(B) ID=15 L=45 		1-09700-402-0 02 1 8712-9304
212 CLIP; HORN HARNESS
(B) ID=15 L=45 		1-09700-402-0 01 1 9305-
212 CLIP; HORN HARNESS
(A) ID=11 L=30 		1-09700-511-0 01 1 8712-
212 CLIP; HORN HARNESS
(C) L=250 		5-09707-030-0 01 1 9002-
212 CLIP; HORN HARNESS
(D) L=150 		1-09707-145-0 01 1 9305-
237 CLIP; BAND,ACL
(B) L=600 		1-09707-107-0 01 1 8808-
237 CLIP; BAND,ACL
(A) L=140 		5-09707-031-0 01 1 9012-
237 CLIP; BAND,ACL
EXC. HONG KONG EQUIPMENT(PQ1) (B) L=600 		1-09707-107-0 01 1 8712-8807
237 CLIP; BAND,ACL
10PC1 STD ENG(10L) (B) L=500 		1-09707-082-0 01 1 8712-8807
312 BRACKET; CLIP HARNESS
(C) L=95 		1-82699-085-0 01 1 8712-
312 BRACKET; CLIP HARNESS
V TYPE ENG<91L> (C) L=95 		1-82699-085-0 01 1 8712-
312 BRACKET; CLIP HARNESS
(B) 		1-82699-141-1 01 1 8712-
312 BRACKET; CLIP HARNESS
V TYPE ENG<91L> (A) 		1-82699-348-0 01 1 8712-
çizim 94861
37 194 333 38 16 373 212 16 16 37 212 208 421 16 455 16 104 334 428 16 53 53
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 07 1 8712-
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 04 1 8712-9007
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=11 L=41 		1-09700-403-0 04 1 8712-9007
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=11 L=41 		1-09700-403-0 04 1 9008-9206
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=11 L=41 		1-09700-403-0 06 1 9207-9306
16 CLIP; HARNESS
(M) ID=15 L=35 		1-09700-507-0 02 1 8712-9306
16 CLIP; HARNESS
(B) ID=12 L=20 		1-09700-605-0 02 1 8712-
16 CLIP; HARNESS
(L) ID=15 L=20 		1-09700-606-0 01 1 8712-
16 CLIP; HARNESS
(P) 		1-09700-894-0 01 1 8712-
16 CLIP; HARNESS
EXC. INTERMITTENT WIPER<C13> (P) 		1-09700-894-0 01 1 8712-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-0 02 1 8712-9306
16 CLIP; HARNESS
(H) W=18 		8-94224-891-1 02 1 8712-
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-035-0 01 1 8712-9306
16 CLIP; HARNESS
(B) ID=19 H=50 L=25 		9-09916-622-0 01 1 8712-
16 CLIP; HARNESS
(D) ID=25 L=55 		9-09917-573-0 03 1 8712-
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-032-0 02 1 8802-
16 CLIP; HARNESS
(C) L=219.5 		1-09987-136-0 04 1 9002-
16 CLIP; HARNESS
(J) L=135 		1-09987-143-1 01 1 9002-9201
16 CLIP; HARNESS
(C) L=175 		8-94155-593-1 01 1 9202-9205
16 CLIP; HARNESS
(E) L=300 		1-09707-001-0 01 1 9007-
16 CLIP; HARNESS
(C) L=175 		8-94155-593-1 03 1 9206-
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9307-
16 CLIP; HARNESS
V TYPE ENG<91L> (D) ID=11 L=41 		1-09700-403-0 03 1 9307-
16 CLIP; HARNESS
(D) ID=11 L=61 		1-09700-484-0 09 1 9307-
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 9307-
16 CLIP; HARNESS
(N) ID=29 L=35 		5-09700-293-1 01 1 9307-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-0 03 1 9307-
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-035-0 01 1 9307-
16 CLIP; HARNESS
V TYPE ENG<91L> (A) ID=11 L=20 		9-09525-035-0 01 1 9307-
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (Q) L=46 		1-09700-493-0 01 1 8712-9306
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (G) ID=35 L=35 W/NUT 		1-09700-684-0 01 1 8712-9306
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (F) ID=35 L=35 		1-09700-726-0 01 1 8712-9306
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=18 L=48 		9-09917-429-0 02 1 8712-9306
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=20 L=50 		9-09917-430-0 04 1 8712-9306
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (I) OD=9 H=6 		1-09709-178-0 07 1 9104-
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (A) ID=11 L=50 		9-09525-085-0 02 1 9104-
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (C) L=140 		5-09707-031-0 01 1 9206-9306
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=14 L=44 		9-09917-427-0 01 1 9307-
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (K) ID=27 L=32 		1-09700-712-0 01 1 8712-8912
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (K) ID=29 L=35 		5-09700-293-1 01 1 8712-9306
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1) (D) ID=11 L=61 		1-09700-484-0 01 1 8712-
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1) (K) ID=27 L=32 		1-09700-712-0 01 1 8712-8912
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1) (D) ID=20 L=65 		1-09700-978-0 20 1 8712-9306
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1) (K) ID=28 L=32 		1-09701-107-0 01 1 9001-9003
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (K) ID=28 L=32 		1-09701-107-0 01 1 9001-9003
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 01 1 9004-9306
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1) (K) ID=28 L=32 		1-09701-107-1 01 1 9004-9306
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (K) ID=28 L=32 		1-09701-107-1 01 1 9004-9306
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1) (D) ID=20 L=70 		1-09700-485-0 20 1 9307-
16 CLIP; HARNESS
EXC. HONG KONG EQUIPMENT(PQ1) (D) ID=11 L=41 		1-09700-403-0 01 1 8712-9003
16 CLIP; HARNESS
EXC. HONG KONG EQUIPMENT(PQ1) (D) ID=11 L=41 		1-09700-403-0 01 1 8712-
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1) AIR DRYER<PS7> (D) ID=11 L=41 		1-09700-403-0 01 1 8712-
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (D) ID=11 L=41 		1-09700-403-0 01 1 8712-
16 CLIP; HARNESS
EXC. HONG KONG EQUIPMENT(PQ1) (D) ID=20 L=50 		9-09917-430-0 23 1 8712-9008
16 CLIP; HARNESS
EXC. HONG KONG EQUIPMENT(PQ1) (D) ID=20 L=50 		9-09917-430-0 26 1 9009-
16 CLIP; HARNESS
L TYPE ENG<90L> (N) ID=20 L=50 		1-09700-679-1 01 1 8712-
16 CLIP; HARNESS
L TYPE ENG<90L> (M) ID=15 L=35 		1-09700-507-0 01 1 9307-9309
16 CLIP; HARNESS
L TYPE ENG<90L> (H) W=14 		8-94225-185-0 01 1 9307-9309
16 CLIP; HARNESS
(H) W=14 		8-94225-185-0 02 1 9310-
16 CLIP; HARNESS
NEW ZEALAND EQUIPMENT(PK5) (C) L=140 		5-09707-031-0 01 1 9403-
16 CLIP; HARNESS
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,PAPUA NEW GUINEA EQUIPMENT(PV5) (D) ID=11 L=61 		1-09700-484-0 09 1 8712-9011
16 CLIP; HARNESS
(D) ID=11 L=61 		1-09700-484-0 09 1 9012-9306
16 CLIP; HARNESS
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),PAPUA NEW GUINEA EQUIPMENT(PV5) (D) ID=11 L=41 		1-09700-403-0 06 1 8712-9011
16 CLIP; HARNESS
NYLON TUBE AIR PIPING<Z29> (E) L=150 		1-09707-145-0 01 1 8910-
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER<SH5> (C) L=250 		5-09707-030-0 01 1 8712-
16 CLIP; HARNESS
V TYPE ENG<91L> (A) ID=11 L=40 		9-09525-075-0 02 1 8712-9306
16 CLIP; HARNESS
V TYPE ENG<91L> (A) ID=19 L=20 		9-09525-835-0 01 1 8712-9306
16 CLIP; HARNESS
V TYPE ENG<91L> (A) ID=19 L=20 		9-09525-836-0 01 1 9307-
16 CLIP; HARNESS
V TYPE ENG<91L> (D) ID=15 L=45 		1-09700-402-0 01 1 9002-
16 CLIP; HARNESS
V TYPE ENG<91L> (D) ID=11 L=41 		1-09700-403-0 03 1 9002-9007
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9008-9306
16 CLIP; HARNESS
V TYPE ENG<91L> (D) ID=11 L=41 		1-09700-403-0 03 1 9008-9306
16 CLIP; HARNESS
V TYPE ENG<91L> (H) ID=18 		8-94225-185-0 02 1 9307-9309
16 CLIP; HARNESS
V TYPE ENG<91L> (A) ID=11 L=40 		9-09525-075-0 02 1 9307-
16 CLIP; HARNESS
6RB1TC ENG(30L) (O) ID=11 L=30 		1-09700-511-0 01 1 8712-9204
16 CLIP; HARNESS
(O) ID=11 L=30 		1-09700-511-0 01 1 9205-9306
16 CLIP; HARNESS
6RB1TC ENG(30L) (O) ID=11 L=30 		1-09700-511-0 01 1 9205-9306
16 CLIP; HARNESS
6RB1TC ENG(30L) 14INCH TWO PLATE SPICER CLUTCH(M07) EXH HEAT WARNING<W50> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (O) ID=11 L=30 		1-09700-511-0 01 1 9307-
37 CLIP; HARNESS,POWER TILT
AUTO CAB TILT<WV2> (B) ID=11 L=30 		1-09700-511-0 01 1 9307-
37 CLIP; HARNESS,POWER TILT
HONG KONG EQUIPMENT(PQ1) AUTO CAB TILT<WV2> (A) L=140 		5-09707-031-0 01 1 9307-
38 BOLT; CLIP,HARNESS
M6X22 W/LK&PL WASHER 		8-94122-770-0 01 1 8712-9212
38 BOLT; CLIP,HARNESS
M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9301-9301
38 BOLT; CLIP,HARNESS
M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9302-9306
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		9-01900-620-0 03 1 8712-9011
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		9-01900-620-0 02 1 9012-9204
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		0-50040-620-0 02 1 9205-9302
38 BOLT; CLIP,HARNESS
M6X20 FLANGE 		0-28080-620-0 02 1 9303-
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		9-01900-820-0 04 1 8712-9204
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		0-50040-820-0 04 1 9205-9302
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 04 1 9303-9306
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 04 1 9307-
38 BOLT; CLIP,HARNESS
M8X25 W/LK WASHER 		9-01900-825-0 03 1 8712-9011
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		0-50041-020-0 02 1 9012-9106
38 BOLT; CLIP,HARNESS
M10X25 W/LK WASHER 		0-50041-025-0 02 1 9107-
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 01 1 8712-9011
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 02 1 9012-9204
38 BOLT; CLIP,HARNESS
M8X30 W/LK WASHER 		0-50040-830-0 02 1 9205-9302
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		9-01911-020-0 02 1 8712-9002
38 BOLT; CLIP,HARNESS
M12X25 W/LK&PL WASHER 		9-01961-225-0 01 1 8712-9101
38 BOLT; CLIP,HARNESS
M12X16 FLANGE 		1-09044-079-0 01 1 9102-
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 01 1 9002-9204
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 01 1 9205-9302
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 03 1 9303-9306
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X30 FLANGE 		0-28080-830-0 03 1 9303-9306
38 BOLT; CLIP,HARNESS
M8X25 W/LK WASHER 		9-01900-825-0 01 1 9012-9204
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X25 W/LK WASHER 		9-01900-825-0 01 1 9012-9204
38 BOLT; CLIP,HARNESS
M8X25 W/LK WASHER 		0-50040-825-0 01 1 9205-9302
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X25 W/LK WASHER 		0-50040-825-0 01 1 9205-9302
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28080-825-0 01 1 9303-9306
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X25 FLANGE 		0-28080-825-0 01 1 9303-9306
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 02 1 9307-
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X20 FLANGE 		0-28080-820-0 02 1 9307-
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28080-825-0 01 1 9307-
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> M8X25 FLANGE 		0-28080-825-0 01 1 9307-
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 01 1 9307-
38 BOLT; CLIP,HARNESS
M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9307-
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28010-820-0 02 1 9104-9204
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 02 1 9205-9302
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 02 1 9303-9306
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X20 FLANGE 		0-28080-820-0 02 1 9303-9306
38 BOLT; CLIP,HARNESS
EXC. AUTO CAB TILT<WV2> M6X20 W/LK WASHER 		9-01900-620-0 01 1 8712-8912
38 BOLT; CLIP,HARNESS
EXC. AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28010-820-0 01 1 9001-9204
38 BOLT; CLIP,HARNESS
EXC. AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 01 1 9205-9306
38 BOLT; CLIP,HARNESS
EXC. AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 03 1 9307-
38 BOLT; CLIP,HARNESS
HONG KONG EQUIPMENT(PQ1) M8X30 W/LK WASHER 		9-01900-830-0 29 1 8712-9001
38 BOLT; CLIP,HARNESS
10PC1 STD ENG(10L) M8X30 W/LK WASHER 		9-01900-830-0 02 1 8712-9001
38 BOLT; CLIP,HARNESS
HONG KONG EQUIPMENT(PQ1) M8X30 FLANGE 		0-28010-830-0 31 1 9002-9204
38 BOLT; CLIP,HARNESS
HONG KONG EQUIPMENT(PQ1) M8X30 FLANGE 		0-28080-830-0 31 1 9205-
38 BOLT; CLIP,HARNESS
EXC. HONG KONG EQUIPMENT(PQ1) M8X25 W/LK WASHER 		9-01900-825-0 25 1 8712-9001
38 BOLT; CLIP,HARNESS
EXC. HONG KONG EQUIPMENT(PQ1) M8X25 FLANGE 		0-28010-825-0 26 1 9002-9204
38 BOLT; CLIP,HARNESS
EXC. HONG KONG EQUIPMENT(PQ1) M8X25 FLANGE 		0-28080-825-0 26 1 9205-9404
38 BOLT; CLIP,HARNESS
EXC. HONG KONG EQUIPMENT(PQ1) M8X25 FLANGE 		0-28080-825-0 10 1 9405-
38 BOLT; CLIP,HARNESS
NEW ZEALAND EQUIPMENT(PK5) M8X25 FLANGE 		0-28080-825-0 17 1 9405-
38 BOLT; CLIP,HARNESS
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8X25 FLANGE 		0-28080-825-0 18 1 9405-
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X20 W/LK WASHER 		9-01900-820-0 02 1 8712-9204
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205-9302
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X30 W/LK WASHER 		9-01900-830-0 02 1 9002-9011
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X30 W/LK WASHER 		9-01900-830-0 03 1 9012-9204
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X30 W/LK WASHER 		0-50040-830-0 03 1 9205-9302
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X20 FLANGE 		0-28080-820-0 01 1 9307-
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X30 FLANGE 		0-28080-830-0 03 1 9307-
53 BRACKET; HARNESS
(B) 		1-82699-199-0 01 1 8712-
53 BRACKET; HARNESS
(A) 		1-82699-390-2 01 1 9307-
53 BRACKET; HARNESS
AUTO CAB TILT<WV2> (E) 		1-82699-295-0 01 1 8712-9306
53 BRACKET; HARNESS
EXC. AUTO CAB TILT<WV2> (A) 		1-82699-103-1 01 1 8712-8912
53 BRACKET; HARNESS
EXC. AUTO CAB TILT<WV2> (A) 		1-82699-390-2 01 1 9001-9306
53 BRACKET; HARNESS
AUTO ENG SHUTOFF<KB6> (C) 		1-71907-151-0 01 1 9307-9307
53 BRACKET; HARNESS
AUTO ENG SHUTOFF<KB6> (D) 		1-71997-996-1 01 1 9308-
104 CLIP; HEADLAMP HARNESS
(B) ID=9 		5-09707-027-0 02 1 8712-
104 CLIP; HEADLAMP HARNESS
(C) L=112 		8-94232-618-0 08 1 8712-9003
104 CLIP; HEADLAMP HARNESS
(C) L=142 		8-94232-619-0 08 1 9004-
104 CLIP; HEADLAMP HARNESS
(D) ID=19 L=20 		9-09525-832-0 01 1 8712-
104 CLIP; HEADLAMP HARNESS
(D) ID=19 L=32 		9-09525-862-0 01 1 8712-
104 CLIP; HEADLAMP HARNESS
AUTO CAB TILT<WV2> (A) ID=12 		1-09987-201-0 09 1 8905-
104 CLIP; HEADLAMP HARNESS
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C) L=142 		8-94232-619-0 02 1 9307-
194 CLIP; BAND
(A) L=140 		5-09707-031-0 02 1 8712-9008
194 CLIP; BAND
INTAKE HEATER<SL2> (A) L=140 		5-09707-031-0 02 1 8712-9008
194 CLIP; BAND
INTAKE HEATER<SL2> (A) L=140 		5-09707-031-0 02 1 9009-9011
194 CLIP; BAND
(A) L=140 		5-09707-031-0 02 1 9012-9306
194 CLIP; BAND
INTAKE HEATER<SL2> (A) L=140 		5-09707-031-0 02 1 9012-9306
194 CLIP; BAND
(A) L=140 		5-09707-031-0 03 1 9009-9011
194 CLIP; BAND
(A) L=140 		5-09707-031-0 01 1 9307-
194 CLIP; BAND
(A) L=140 		5-09707-031-0 02 1 9307-
194 CLIP; BAND
AIR CONDITIONER MANUAL CONTROL(C60) (A) L=140 		5-09707-031-0 01 1 8712-9007
194 CLIP; BAND
(A) L=140 		5-09707-031-0 01 1 9008-9206
194 CLIP; BAND
AUTO CAB TILT<WV2> (A) L=250 		5-09707-030-0 04 1 8712-9103
194 CLIP; BAND
AUTO CAB TILT<WV2> (A) L=250 		5-09707-030-0 03 1 9104-9205
194 CLIP; BAND
AUTO CAB TILT<WV2> (A) L=250 		5-09707-030-0 05 1 9206-9306
194 CLIP; BAND
AUTO CAB TILT<WV2> (B) L=300 		1-09707-001-0 01 1 9206-9306
194 CLIP; BAND
AUTO CAB TILT<WV2> (A) L=140 		5-09707-031-0 03 1 9206-9206
194 CLIP; BAND
AUTO CAB TILT<WV2> (A) L=140 		5-09707-031-0 03 1 9307-
194 CLIP; BAND
AUTO CAB TILT<WV2> (A) L=140 		5-09707-031-0 01 1 9207-9306
194 CLIP; BAND
(A) L=140 		5-09707-031-0 01 1 9207-9306
194 CLIP; BAND
AUTO CAB TILT<WV2> (B) L=180 		1-09707-162-0 01 1 9307-
194 CLIP; BAND
HONG KONG EQUIPMENT(PQ1) (B) L=180 		1-09707-162-0 04 1 8712-9306
194 CLIP; BAND
EXC. HONG KONG EQUIPMENT(PQ1) (B) L=180 		1-09707-162-0 03 1 8712-9306
194 CLIP; BAND
HONG KONG EQUIPMENT(PQ1) (B) L=180 		1-09707-162-0 04 1 9307-
194 CLIP; BAND
HONG KONG EQUIPMENT(PQ1) AUTO CAB TILT<WV2> (A) L=250 		5-09707-030-0 05 1 9307-
194 CLIP; BAND
EXC. HONG KONG EQUIPMENT(PQ1) (A) L=250 		5-09707-030-0 01 1 8712-9306
194 CLIP; BAND
EXC. HONG KONG EQUIPMENT(PQ1) (B) L=180 		1-09707-162-0 03 1 9307-
194 CLIP; BAND
EXC. HONG KONG EQUIPMENT(PQ1) (A) L=250 		5-09707-030-0 01 1 9307-9309
194 CLIP; BAND
FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (A) L=250 		5-09707-030-0 01 1 9307-9309
194 CLIP; BAND
FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> (A) L=250 		5-09707-030-0 02 1 9310-
194 CLIP; BAND
EXC. HONG KONG EQUIPMENT(PQ1) (A) L=250 		5-09707-030-0 01 1 9310-
194 CLIP; BAND
L TYPE ENG<90L> (C) ID=5.1 		9-09150-505-0 01 1 8712-9001
208 CLIP; HARNESS,MAG VLV
ID=11 L=30 		1-09700-511-0 01 1 8712-
208 CLIP; HARNESS,MAG VLV
ID=11 L=41 		1-09700-403-0 01 1 9307-
212 CLIP; HORN HARNESS
(B) ID=15 L=45 		1-09700-402-0 02 1 8712-9304
212 CLIP; HORN HARNESS
(B) ID=15 L=45 		1-09700-402-0 01 1 9305-
212 CLIP; HORN HARNESS
(A) ID=11 L=30 		1-09700-511-0 01 1 8712-
212 CLIP; HORN HARNESS
(C) L=250 		5-09707-030-0 01 1 9002-
212 CLIP; HORN HARNESS
(D) L=150 		1-09707-145-0 01 1 9305-
333 CLIP; BAND SW BACK LAMP
L=140 		5-09707-031-0 01 1 8712-
334 BRACKET
AUTO CAB TILT<WV2> L=55 		1-47475-304-0 01 1 9206-9306
373 CLIP; BAND,GEN HARNESS
HONG KONG EQUIPMENT(PQ1) (B) L=300 		1-09707-001-0 02 1 8712-9306
373 CLIP; BAND,GEN HARNESS
L TYPE ENG<90L> (A) L=250 		5-09707-030-0 01 1 8712-
373 CLIP; BAND,GEN HARNESS
V TYPE ENG<91L> (B) L=300 		1-09707-001-0 02 1 9307-
421 CLIP; FLOOR HARNESS
NYLON TUBE AIR PIPING<Z29> ID=7 		1-09987-055-0 01 1 8712-9003
421 CLIP; FLOOR HARNESS
NYLON TUBE AIR PIPING<Z29> 1 SET=5 PIECE 		1-09987-214-0 01 1 9004-
428 BRACKET 1-82699-109-0 01 1 8712-
455 BRACKET; POWER TILT HARNESS
AUTO CAB TILT<WV2> 		1-82699-125-0 01 1 8712-9302
455 BRACKET; POWER TILT HARNESS
FULL TRACTOR TRUCK<RD6> AUTO CAB TILT<WV2> 		1-82699-125-0 01 1 9303-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
