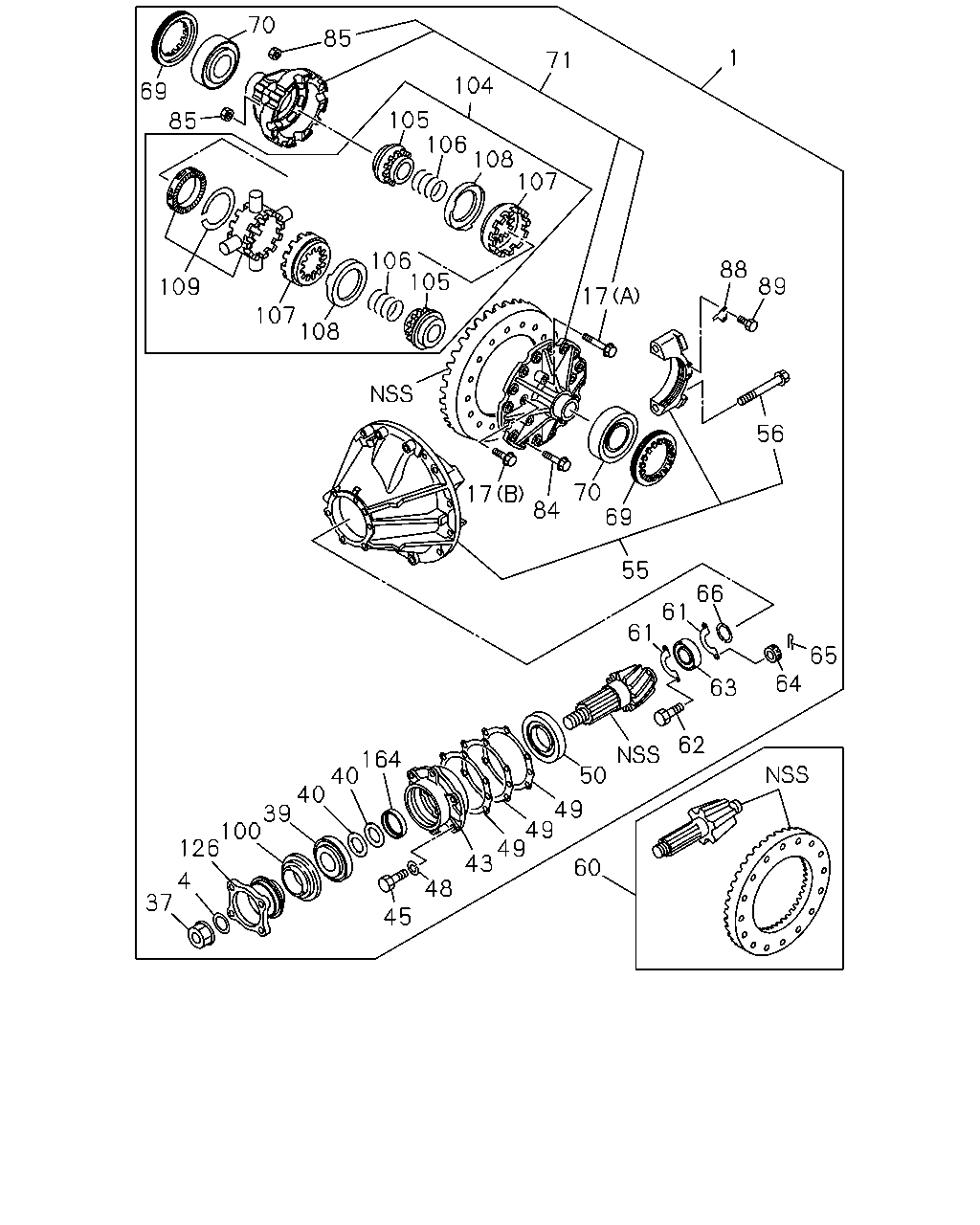

4-25 — REAR FINAL DRIVE (#59093) — 66 parça

70 85 1 71 104 69 105 106 108 107 85 106 105 88 89 109 17 107 108 56 17 84 70 69 55 66 61 61 65 64 63 62 164 40 40 39 100 126 50 49 49 49 43 60 4 37 48 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRIVE ASM; FINAL,RR 39/7	1-41003-295-0	01	1	1112-
4	GASKET; FLANGE,FINAL PINION ID=37.5 T=4	1-09623-582-0	01	1	1112-
17	BOLT; DIFF CAGE SETTING (A) M14X121 FLANGE	1-09044-006-0	04	1	1112-
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	04	1	1112-
37	NUT; DRIVING PINION M36 FLANGE	1-09449-083-0	01	1	1112-
39	BEARING; FINAL PINION JTEKT	5-09812-062-1	01	1	1112-
39	BEARING; FINAL PINION NSK	5-09812-063-0	01	1	1112-
40	SHIM; FINAL PINION T=1.60	1-41229-179-0	AR	1	1112-
40	SHIM; FINAL PINION T=1.61	1-41229-180-0	AR	1	1112-
40	SHIM; FINAL PINION T=1.62	1-41229-181-0	AR	1	1112-
40	SHIM; FINAL PINION T=1.63	1-41229-182-0	AR	1	1112-
40	SHIM; FINAL PINION T=1.64	1-41229-183-0	AR	1	1112-
40	SHIM; FINAL PINION T=1.65	1-41229-184-0	AR	1	1112-
40	SHIM; FINAL PINION T=1.66	1-41229-185-0	AR	1	1112-
40	SHIM; FINAL PINION T=1.67	1-41229-186-0	AR	1	1112-
40	SHIM; FINAL PINION T=1.68	1-41229-187-0	AR	1	1112-
40	SHIM; FINAL PINION T=1.69	1-41229-188-0	AR	1	1112-
40	SHIM; FINAL PINION T=1.70	1-41229-189-0	AR	1	1112-
43	CAGE; FINAL PINION	1-41151-027-0	01	1	1112-
45	BOLT; FINAL PINION CAGE M12X40	9-02361-240-0	06	1	1112-
48	WASHER; LK,FINAL PINION ID=12.2	0-91510-812-0	06	1	1112-
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-021-1	AR	1	1112-
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-051-1	AR	1	1112-
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-052-1	AR	1	1112-
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-053-1	AR	1	1112-
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1112-
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1112-
55	CARRIER; DIFF	1-41110-129-0	01	1	1112-
56	BOLT; BRG CAP M16X100 FLANGE	1-09070-047-0	04	1	1112-
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-391-2	01	1	1112-
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	1112-
62	BOLT; RET M8X35 W/PIN HOLE	1-09042-046-0	02	1	1112-
63	BEARING; PINION PILOT NSK	1-09810-073-2	01	1	1112-
63	BEARING; PINION PILOT JTEKT	1-09810-074-1	01	1	1112-
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1112-
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1112-
66	RING; SNAP,PILOT BRG OD=34.2	1-09588-214-0	01	1	1112-
69	NUT; ADJ,DIFF CAGE M128 H=22	1-41121-013-0	01	1	1112-
69	NUT; ADJ,DIFF CAGE M128 H=30	1-41121-015-0	01	1	1112-
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	1112-
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1112-
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	1112-
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1112-
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-343-0	01	1	1112-
84	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	1112-
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	08	1	1112-
88	PLATE; LK,ADJ NUT T=2.3	9-41124-015-0	02	1	1112-
89	BOLT; LK PLATE M8X12 FLANGE	8-94479-696-1	04	1	1112-
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	1112-
100	SEAL; OIL,FINAL PINION TKK	1-09625-637-0	01	1	1112-
104	DIFF ASM; NO SPIN	1-41530-053-0	01	1	1112-
105	GEAR; SIDE	1-41539-043-0	02	1	1112-
106	SPRING; NO SPIN DIFF	1-41539-006-0	02	1	1112-
107	CLUTCH; DRIVEN	1-41539-003-0	02	1	1112-
108	RING; HOLD OUT	1-41539-004-1	02	1	1112-
109	SPIDER; DIFF	1-41539-014-0	01	1	1112-
126	COUPLING; DRIVING PINION	1-37245-414-0	01	1	1112-
164	COLLAR; DIST,PINION T=10.70	1-36355-031-0	01	1	1112-
164	COLLAR; DIST,PINION T=10.90	1-36355-033-0	01	1	1112-
164	COLLAR; DIST,PINION T=11.10	1-36355-035-0	01	1	1112-
164	COLLAR; DIST,PINION T=11.30	1-36355-037-0	01	1	1112-
164	COLLAR; DIST,PINION T=11.50	1-36355-039-0	01	1	1112-
164	COLLAR; DIST,PINION T=11.70	1-36355-041-0	01	1	1112-
164	COLLAR; DIST,PINION T=11.90	1-36355-043-0	01	1	1112-
164	COLLAR; DIST,PINION T=12.10	1-36355-045-0	01	1	1112-
164	COLLAR; DIST,PINION T=12.30	1-36355-047-0	01	1	1112-
