1 |

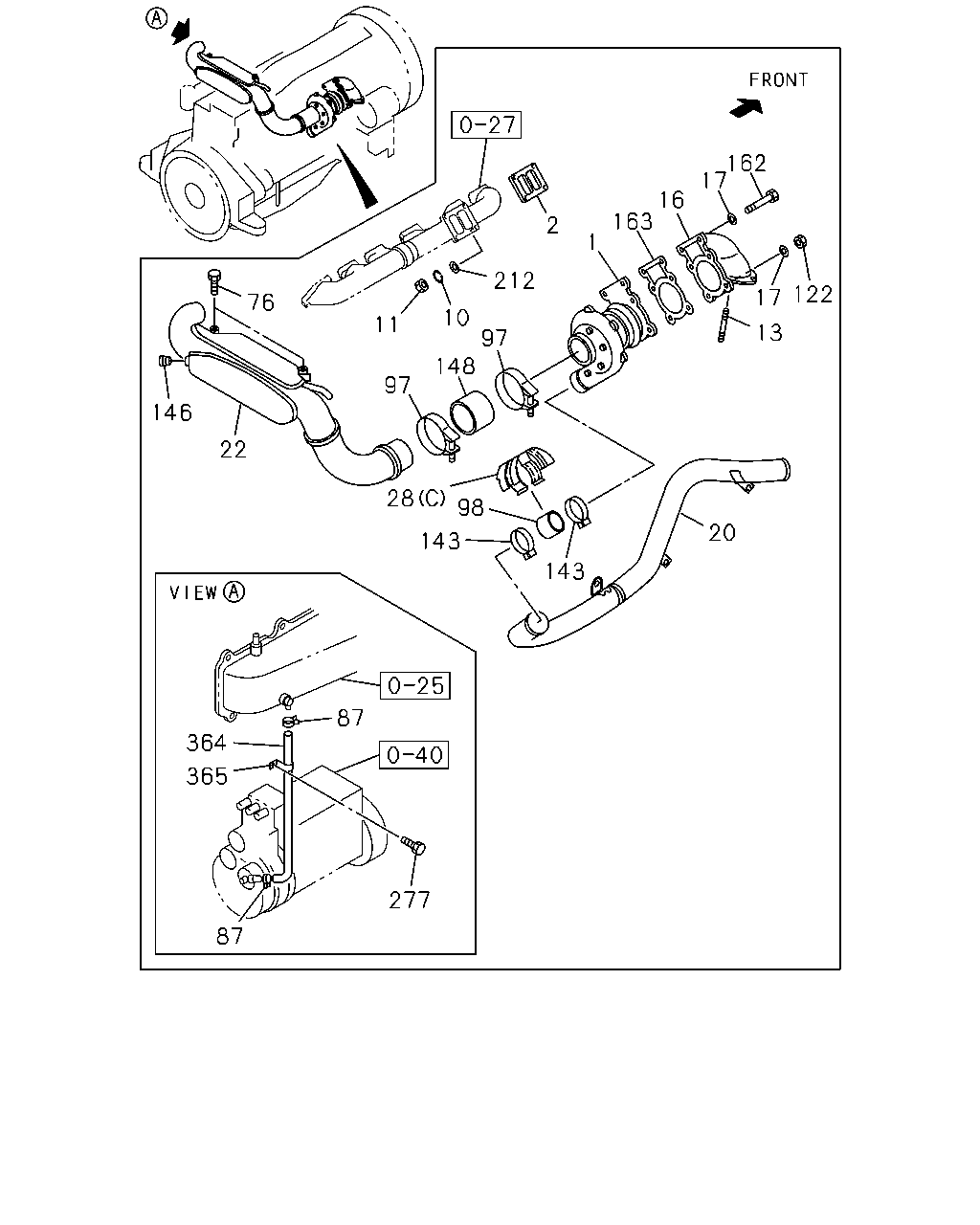

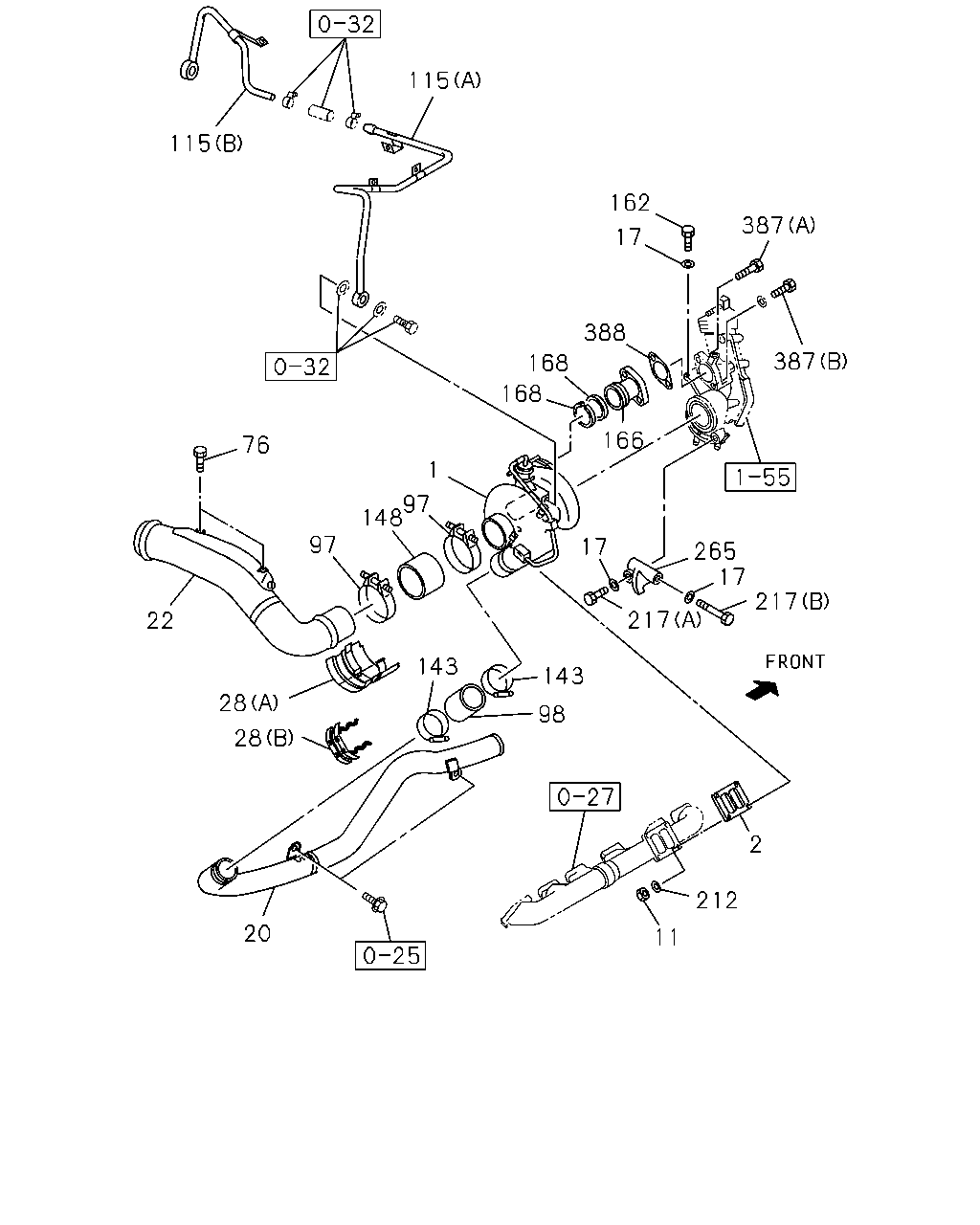

TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
|
8-94394-457-2 |
01 |
1 |
9811-0203 |
● |
|
| |
1 |
TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
|
8-94390-651-0 |
01 |
1 |
9903- |
|
● |
| |
2 |
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
1-14145-121-0 |
01 |
1 |
9811-0203 |
● |
|
| |
2 |
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
8-94390-044-0 |
01 |
1 |
9903- |
|
● |
| |
10 |
WASHER; LK,TURBOCHARGER
T=2.2
|
1-09556-015-0 |
02 |
1 |
9903- |
|
● |
| |
11 |
NUT; TURBOCHARGER
M10
|
1-09420-005-0 |
04 |
1 |
9811-9902 |
● |
|
| |
11 |
NUT; TURBOCHARGER
M10
|
1-09420-005-0 |
04 |
1 |
9903-0203 |
● |
● |
| |
11 |
NUT; TURBOCHARGER
M10
|
1-09420-005-0 |
04 |
1 |
0204- |
|
● |
| |
13 |
STUD; EXH PIPE
M12X103 L=123
|
8-94394-656-0 |
01 |
1 |
9903- |
|
● |
| |
16 |
ADAPTER; EXH PIPE
|
8-94391-161-1 |
01 |
1 |
9903- |
|
● |
| |
17 |
WASHER; PL,ADAPTER
ID=12.2
|
9-09851-933-0 |
04 |
1 |
9811-0203 |
● |
|
| |
17 |
WASHER; PL,ADAPTER
T=1.9
|
5-09500-012-0 |
06 |
1 |
9903- |
|
● |
| |
20 |
PIPE; INL,TURBOCHARGER OUT
|
8-94394-399-1 |
01 |
1 |
9811-0203 |
● |
|
| |
20 |
PIPE; INL,TURBOCHARGER OUT
|
8-94390-649-2 |
01 |
1 |
9903- |
|
● |
| |
22 |
DUCT; INL,ACL TO TURBOCHARGER
|
8-94394-401-1 |
01 |
1 |
9811-0203 |
● |
|
| |
22 |
DUCT; INL,ACL TO TURBOCHARGER
|
8-94390-407-0 |
01 |
1 |
9903- |
|
● |
| |
28 |
PROTECTOR; HEAT,HOSE,AIR DUCT
(A)
|
1-14181-220-0 |
01 |
1 |
9811-0203 |
● |
|
| |
28 |
PROTECTOR; HEAT,HOSE,AIR DUCT
(B)
|
8-94393-182-0 |
01 |
1 |
9811-0203 |
● |
|
| |
28 |
PROTECTOR; HEAT,HOSE,AIR DUCT
(C)
|
1-14181-264-0 |
01 |
1 |
9903- |
|
● |
| |
76 |
BOLT; AIR DUCT
M8X50 FLANGE
|
0-28080-850-0 |
02 |
1 |
9811-9902 |
● |
|
| |
76 |
BOLT; AIR DUCT
M8X50 FLANGE
|
0-28080-850-0 |
02 |
1 |
9903-0203 |
● |
● |
| |
76 |
BOLT; AIR DUCT
M8X50 FLANGE
|
0-28080-850-0 |
02 |
1 |
0204-0512 |
|
● |
| |
76 |
BOLT; AIR DUCT
M8X50 FLANGE
|
0-28050-850-0 |
02 |
1 |
0601- |
|
● |
| |
87 |
CLIP; RUBBER HOSE FIX
ID=11
|
8-94238-570-0 |
02 |
1 |
9903- |
|
● |
| |
97 |
CLIP; HOSE,TURBOCHARGER,INL
ID=86
|
9-09915-592-0 |
02 |
1 |
9811-0203 |
● |
|
| |
97 |
CLIP; HOSE,TURBOCHARGER,INL
ID=77-95
|
1-09707-114-0 |
02 |
1 |
9903-0306 |
|
● |
| |
97 |
CLIP; HOSE,TURBOCHARGER,INL
ID=77-95
|
1-09707-198-0 |
04 |
1 |
0307-0810 |
|
● |
| |
97 |
CLIP; HOSE,TURBOCHARGER,INL
ID=77-95
|
1-09707-114-0 |
04 |
1 |
0811- |
|
● |
| |
98 |
HOSE; RUBBER,TURBOCHARGER OUTLET
|
1-09360-797-1 |
01 |
1 |
9811-0203 |
● |
|
| |
98 |
HOSE; RUBBER,TURBOCHARGER OUTLET
|
1-09360-782-0 |
01 |
1 |
9903- |
|
● |
| |
122 |
NUT; ADAPTER
M8
|
1-09400-118-1 |
01 |
1 |
9903- |
|
● |
| |
143 |
CLIP; HOSE,TURBOCHARGER OUTLET
ID=58-79
|
8-94126-771-0 |
02 |
1 |
9811-0203 |
● |
|
| |
143 |
CLIP; HOSE,TURBOCHARGER OUTLET
ID=50-69
|
8-94316-991-0 |
02 |
1 |
9903-0306 |
|
● |
| |
143 |
CLIP; HOSE,TURBOCHARGER OUTLET
ID=50-65
|
1-09707-204-0 |
02 |
1 |
0307-0810 |
|
● |
| |
143 |
CLIP; HOSE,TURBOCHARGER OUTLET
ID=50-69
|
8-94316-991-0 |
02 |
1 |
0811- |
|
● |
| |
146 |
PLUG; INL PIPE
PT1
|
1-09605-021-0 |
01 |
1 |
9903- |
|
● |
| |
148 |
HOSE; TURBOCHARGER,INL
|
1-09360-600-0 |
01 |
1 |
9811-0203 |
● |
|
| |
148 |
HOSE; TURBOCHARGER,INL
|
5-09360-846-0 |
01 |
1 |
9903- |
|
● |
| |
162 |
BOLT; ADAPTER
M12X30
|
8-94394-324-0 |
02 |
1 |
9811-0203 |
● |
|
| |
162 |
BOLT; ADAPTER
M8X57
|
5-09000-275-0 |
05 |
1 |
9903- |
|
● |
| |
163 |
GASKET; ADAPTER TO EXH PIPE
|
1-14145-162-0 |
01 |
1 |
9903- |
|
● |
| |
212 |
WASHER; PL,TURBOCHARGER
ID=10
|
1-09503-033-1 |
04 |
1 |
9811-9902 |
● |
|
| |
212 |
WASHER; PL,TURBOCHARGER
ID=10
|
1-09503-033-1 |
04 |
1 |
9903-0203 |
● |
● |
| |
212 |
WASHER; PL,TURBOCHARGER
ID=10
|
1-09503-033-1 |
04 |
1 |
0204- |
|
● |
| |
277 |
BOLT; CLIP
M6X10 FLANGE
|
0-28080-610-0 |
01 |
1 |
9903-0512 |
|
● |
| |
277 |
BOLT; CLIP
M6X10 FLANGE
|
0-28050-610-0 |
01 |
1 |
0601- |
|
● |
| |
364 |
HOSE; BOOST
L=200
SERVICED BY L=3000
|
0-04770-300-0 |
01 |
1 |
9903- |
|
● |
| |
365 |
CLIP; RUBBER HOSE,BOOST
D=11 H=40 L=20
|
8-94246-610-0 |
01 |
1 |
9903- |
|
● |
