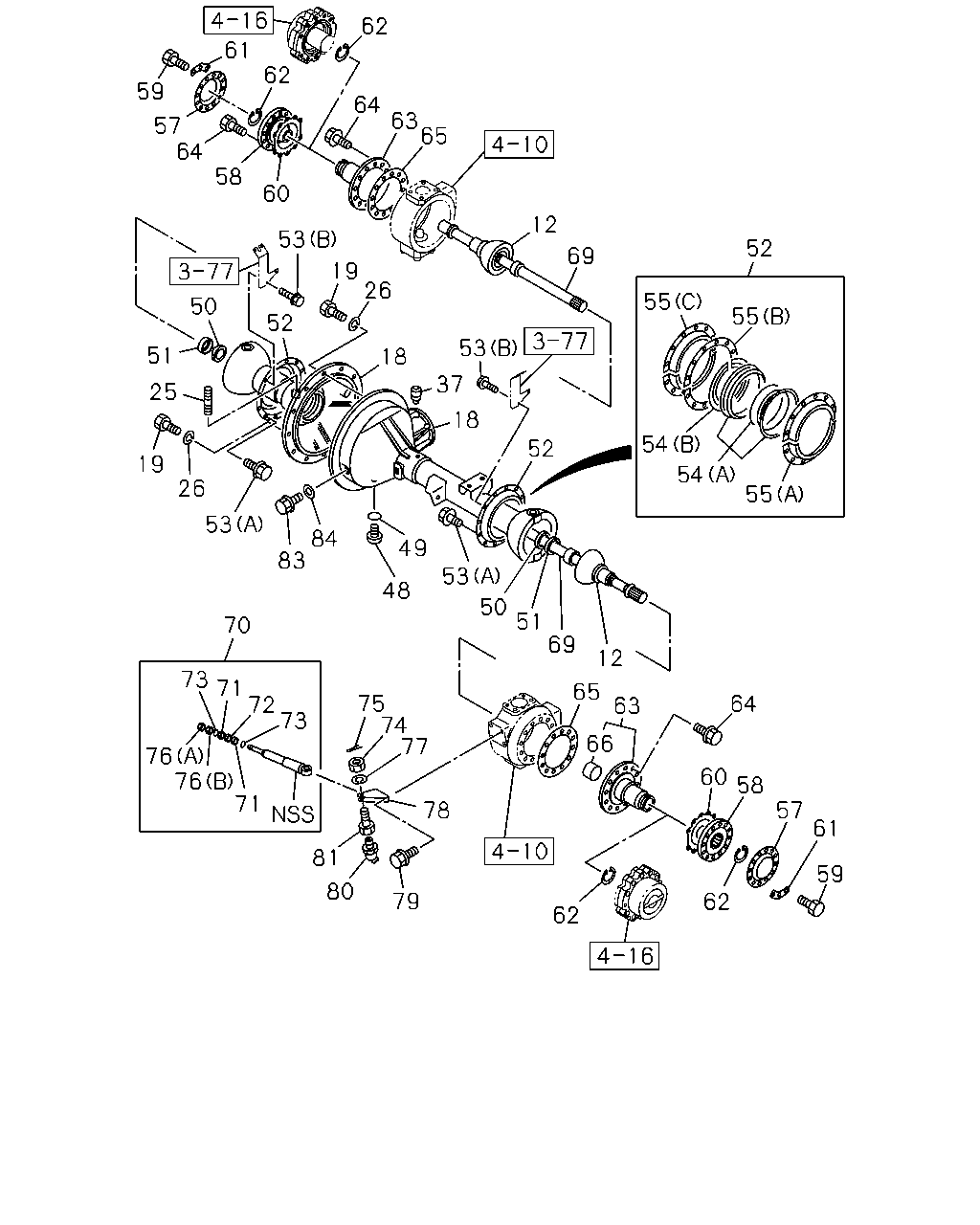

4-12 — FRONT DRIVE SHAFT (#59089) — 49 parça

62 61 62 59 64 63 65 57 64 58 60 12 53 52 69 19 26 55 50 55 52 53 51 18 37 25 18 54 52 19 54 26 55 53 84 83 49 53 48 50 51 70 69 12 73 71 72 73 65 75 74 77 64 63 66 76 76 71 60 58 78 57 61 81 59 80 79 62 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	JOINT ASM LOCKING HUB FRT WHEEL DRIVE(W12)	1-43330-012-0	02	1	1112-
12	JOINT ASM EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-43330-018-0	02	1	1112-
18	CASE; FRT AXLE	1-43210-108-2	01	1	1112-
18	CASE; FRT AXLE	8-98196-257-0	01	1	1112-
19	BOLT; FRT AXLE M12X30	9-02361-230-0	13	1	1112-
25	STUD; AXLE CASE TO SPRING SEAT	8-98169-740-0	04	1	1112-
26	WASHER; LK,CASE,FRT AXLE ID=12.2	0-91510-812-0	13	1	1112-
37	BREATHER; FRT AXLE CASE L=29	8-98006-960-0	01	1	1112-
48	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	1112-
49	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	1112-
50	SEAL; OIL,SHAFT,FRT AXLE	1-09625-192-0	02	1	1112-
51	GUIDE; OIL,FRT AXLE	9-43339-003-0	02	1	1112-
52	SEAL; OIL,KNUCKLE	1-09625-004-0	02	1	1112-
53	BOLT; OIL SEAL (A) M8X12 FLANGE	0-28050-812-0	20	1	1112-
53	BOLT; OIL SEAL (B) M8X16 FLANGE	0-28050-816-0	04	1	1112-
54	GASKET; OIL SEAL (A)	1-09625-241-0	02	1	1112-
54	GASKET; OIL SEAL (B)	1-09625-242-0	02	1	1112-
55	RING; OIL SEAL (A)	1-09625-243-0	04	1	1112-
55	RING; OIL SEAL (B)	1-09625-244-0	04	1	1112-
55	RING; OIL SEAL (C)	1-09625-245-0	04	1	1112-
57	COVER; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	9-42313-116-0	02	1	1112-
58	FLANGE; AXLE SHAFT,FRT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-42312-028-0	02	1	1112-
59	BOLT; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12) M12X45	9-09804-239-1	20	1	1112-
60	GASKET; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-42175-001-0	02	1	1112-
61	PLATE; LK,FLANGE EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-43319-005-0	08	1	1112-
62	RING; SNAP,AXLE SHAFT ID=38.5 T=2.00	9-09952-253-0	02	1	1112-
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT	1-43241-061-0	02	1	1112-
64	BOLT; SPINDLE M12X30 FLANGE	0-28061-230-0	08	1	1112-
64	BOLT; SPINDLE M12X45 FLANGE	0-28061-245-0	16	1	1112-
65	GASKET; KNUCKLE TO SPINDLE	9-43254-005-0	02	1	1112-
66	BUSHING; SPINDLE,FRT AXLE SHAFT	1-43321-011-0	02	1	1112-
69	SHAFT; AXLE,FRT INNER	1-43311-065-0	01	1	1112-
69	SHAFT; AXLE,FRT INNER	1-43311-066-0	01	1	1112-
70	ABSORBER ASM; SHOCK,SHIMMY	1-51600-337-0	01	1	1112-
71	BUSHING; RUB,LWR,FRT S/ABS OD=25.4	9-51631-602-0	02	1	1112-
72	WASHER; CENTER,LWR,FRT S/ABS ID=15.0 OD=32	9-51631-049-0	01	1	1112-
73	WASHER; LWR,FRT S/ABS ID=10.5 OD=32	9-51631-048-0	02	1	1112-
74	NUT; S/ABS M12	0-91116-512-0	01	1	1112-
75	PIN; SPLIT,S/ABS OD=2.8 L=20	0-81123-020-0	01	1	1112-
76	NUT; LWR,FRT S/ABS (A) M10	9-09110-410-0	01	1	1112-
76	NUT; LWR,FRT S/ABS (B) M10	9-09111-410-0	01	1	1112-
77	WASHER; LK,S/ABS ID=12.2	0-91510-512-0	01	1	1112-
78	BRACKET; SHIMMY DAMPER	1-43219-017-0	01	1	1112-
79	BOLT; BRKT M12X16 FLANGE	0-28051-216-0	02	1	1112-
79	BOLT; BRKT M12X25 FLANGE	0-28051-225-0	02	1	1112-
80	NIPPLE; GREASE,BRKT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1112-
81	PIN; SHIMMY DAMPER	1-43219-018-0	01	1	1112-
83	PLUG; OIL FILLER M24X17 FLANGE	1-09604-022-0	01	1	1112-
84	GASKET; PLUG,OIL FILLER ID=26.8	9-09920-605-0	01	1	1112-
