Isuzu WW
▶
TRUCKS
▶
FSS
▶
11401 - FSS(RHD)EURO1
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶

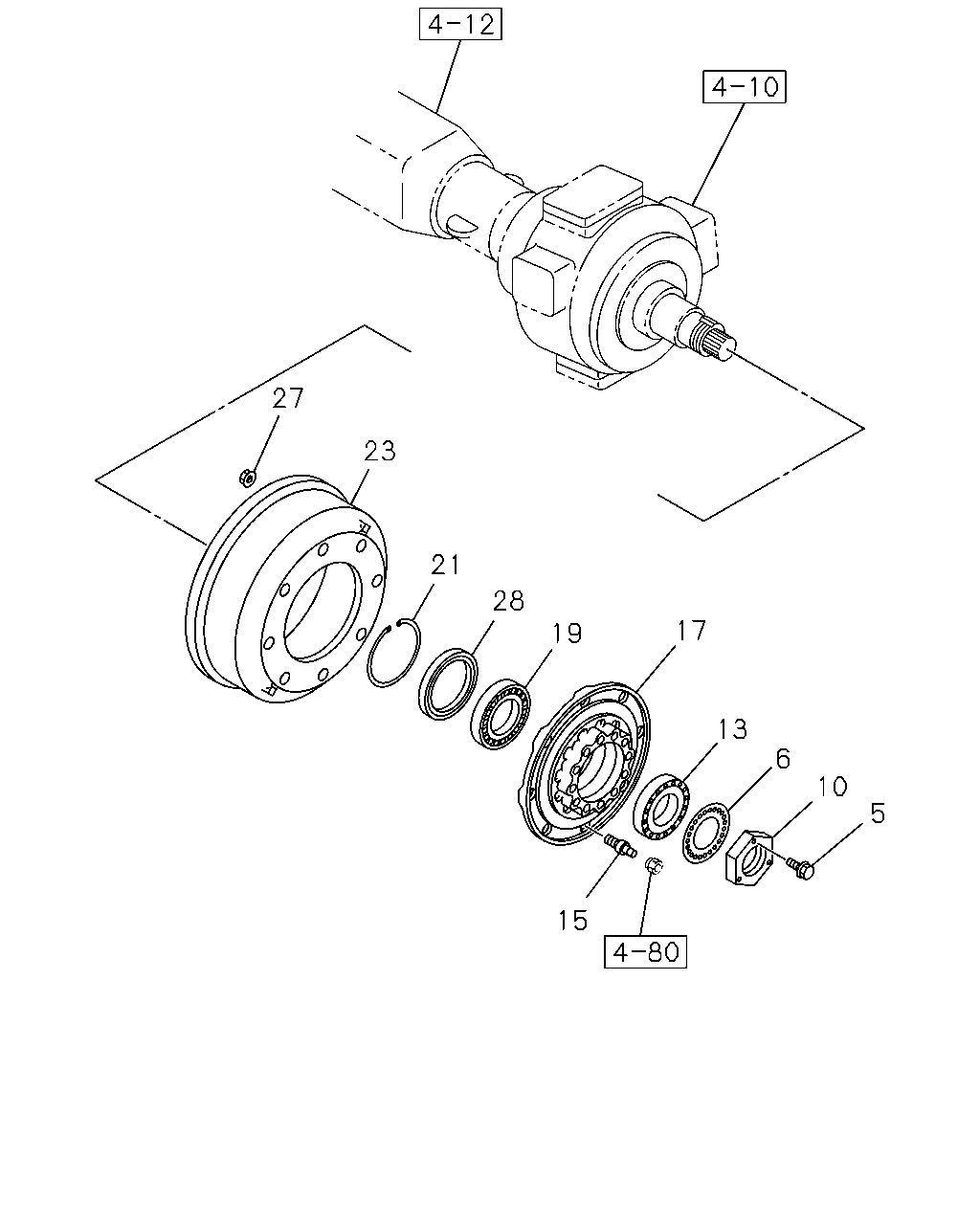

4-11 - FRONT HUB AND DRUM OR ROTOR
▶
4-11 — FRONT HUB AND DRUM OR ROTOR
(#59088) — 15 parça
27
23
21
28
17
19
13
6
10
5
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
BOLT; LK WASHER
M6X16 HEX SOCKET
8-98084-271-0
06
1
1112-1201
5
BOLT; LK WASHER
M6X16 HEX SOCKET
8-98200-943-0
06
1
1202-
6
WASHER; LK,FRT HUB
ID=74.6
1-09533-008-0
02
1
1112-
10
NUT; FRT HUB BRG
M74.6
9-09843-064-2
02
1
1112-
13
BEARING; HUB OUTER,FRT AXLE
NSK
1-09812-153-0
02
1
1112-
13
BEARING; HUB OUTER,FRT AXLE
JTEKT
1-09812-154-0
02
1
1112-
15
PIN; WHEEL,FRT AXLE
M24X37.5,M22X47.5 RH THREAD
1-42331-128-1
08
1
1112-
15
PIN; WHEEL,FRT AXLE
M24X37.5 LH THREAD,M22X47.5 RH THREAD
1-42332-128-1
08
1
1112-
17
HUB; FRT AXLE
1-42312-020-3
02
1
1112-
19
BEARING; HUB INNER,FRT AXLE
NSK
1-09812-150-0
02
1
1112-
19
BEARING; HUB INNER,FRT AXLE
NACHI
1-09812-151-0
02
1
1112-
21
RING; SNAP,HUB
OD=150
9-09950-147-0
02
1
1112-
23
DRUM; BRK,FRT
1-42315-112-1
02
1
1112-
27
NUT; WHEEL PIN,FRT AXLE
M22 FLANGE
1-09440-065-0
16
1
1112-
28
SEAL; OIL,FRT HUB
TKK
9-09924-415-0
02
1
1112-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
