◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11401 - FSS(RHD)EURO1 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#59086) — 145 parça

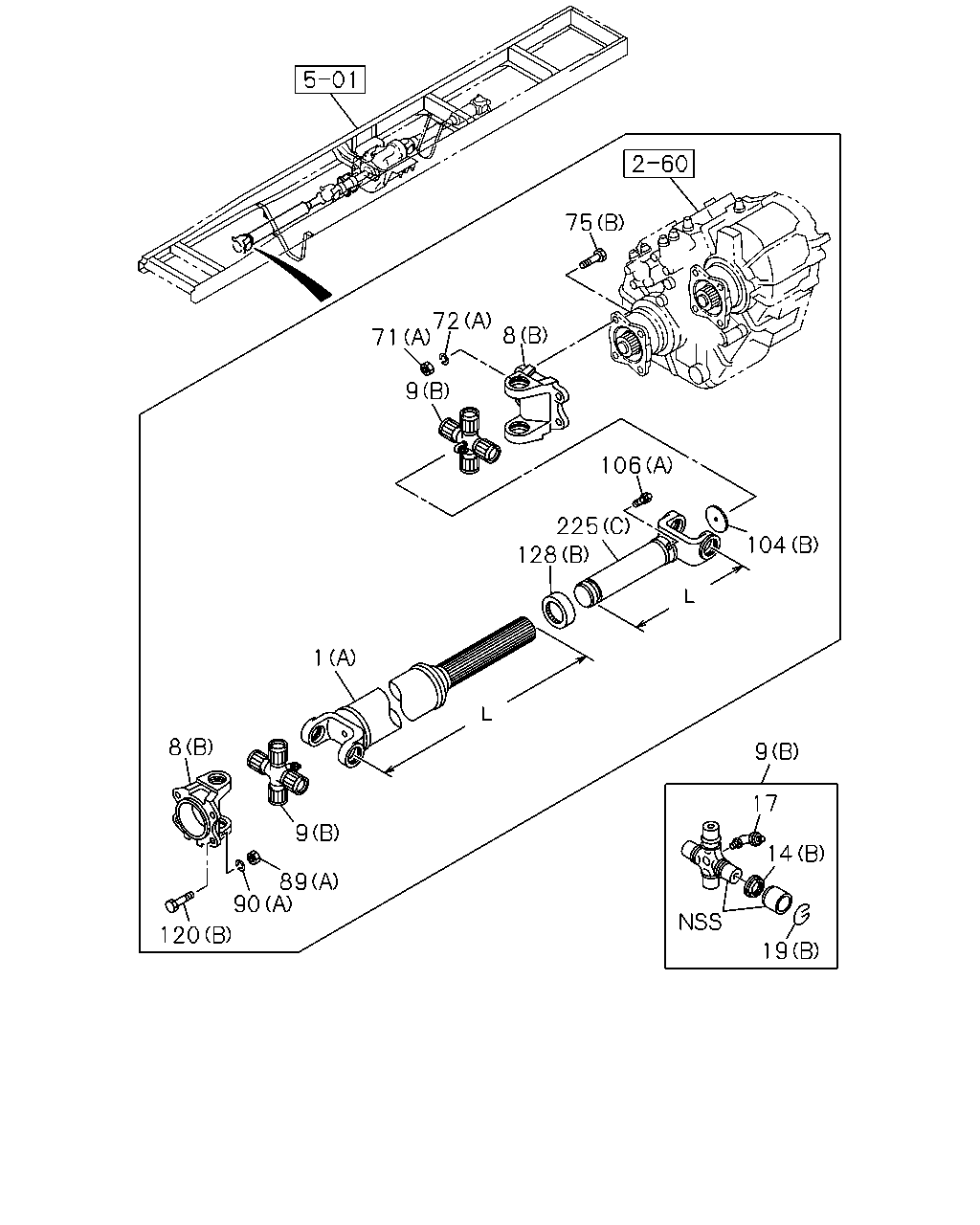

çizim 150503
75 72 8 71 9 106 225 128 104 1 8 9 17 9 14 89 90 120 19
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
(B) L=801 		8-98069-652-0 01 1 1112-
1 SHAFT; PROP
(A) L=1497 		8-98078-995-0 01 1 1112-
8 YOKE; FLANGE,PROP SHAFT
(B) D=80 		1-37211-037-4 02 1 1112-
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 1112-
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 1112-
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 1112-1505
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-1 AR 1 1506-
9 JOURNAL ASM; PROP SHAFT
(B) 		8-98020-789-1 02 1 1112-
9 JOURNAL ASM; PROP SHAFT
(C) 		8-98048-925-1 02 1 1112-
14 COVER; DUST,SPIDER
(A) 		1-37319-012-0 08 1 1112-1505
14 COVER; DUST,SPIDER
(B) 		8-98020-791-0 08 1 1112-
14 COVER; DUST,SPIDER
(C) 		8-98020-800-0 08 1 1112-1505
14 COVER; DUST,SPIDER
(C) 		8-98020-800-0 08 1 1506-
14 COVER; DUST,SPIDER
(C) 		8-98020-800-0 08 1 1506-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1112-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 04 1 1112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 08 1 1112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 08 1 1112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 08 1 1112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1112-
71 NUT; YOKE
(A) M12 		0-91110-512-0 04 1 1112-
71 NUT; YOKE
(B) M14 		0-91110-514-0 04 1 1112-
71 NUT; YOKE
(B) M14 		0-91110-514-0 04 1 1112-
72 WASHER; LK,YOKE
(A) ID=12.2 		0-91510-612-0 04 1 1112-
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-814-0 04 1 1112-1202
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-814-0 04 1 1112-1202
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-614-0 04 1 1203-
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-614-0 04 1 1203-
75 BOLT; PROP SHAFT TO TRANS
(B) M12X32 		1-09000-076-1 04 1 1112-
75 BOLT; PROP SHAFT TO TRANS
(A) M14X37 		1-09000-121-0 04 1 1112-
89 NUT; YOKE TO RR AXLE
(A) M12 		0-91110-512-0 04 1 1112-
89 NUT; YOKE TO RR AXLE
(B) M14 		0-91110-514-0 04 1 1112-
90 WASHER; LK,YOKE TO RR AXLE
(A) ID=12.2 		0-91510-612-0 04 1 1112-
90 WASHER; LK,YOKE TO RR AXLE
(B) ID=14.2 		0-91510-814-0 04 1 1112-1202
90 WASHER; LK,YOKE TO RR AXLE
(B) ID=14.2 		0-91510-614-0 04 1 1203-
104 PLUG; SLEEVE YOKE
(B) 		1-09600-014-0 01 1 1112-
104 PLUG; SLEEVE YOKE
(C) 		1-09600-033-0 01 1 1112-
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 1112-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) M6 STRAIGHT 		0-90301-406-0 01 1 1112-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1112-
120 BOLT; YOKE TO RR AXLE
(B) M12X32 		1-09000-076-1 04 1 1112-
120 BOLT; YOKE TO RR AXLE
(A) M14X37 		1-09000-121-0 04 1 1112-
128 SEAL; SLEEVE
(B) 		1-37247-001-1 01 1 1112-
128 SEAL; SLEEVE
(C) 		1-37247-002-1 01 1 1112-
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 1112-
225 YOKE; SLEEVE,PROP SHAFT
(B) L=154 		1-37241-081-2 01 1 1112-
225 YOKE; SLEEVE,PROP SHAFT
(C) L=228 		1-37241-098-2 01 1 1112-
225 YOKE; SLEEVE,PROP SHAFT
(A) L=254 		8-98020-885-0 01 1 1112-

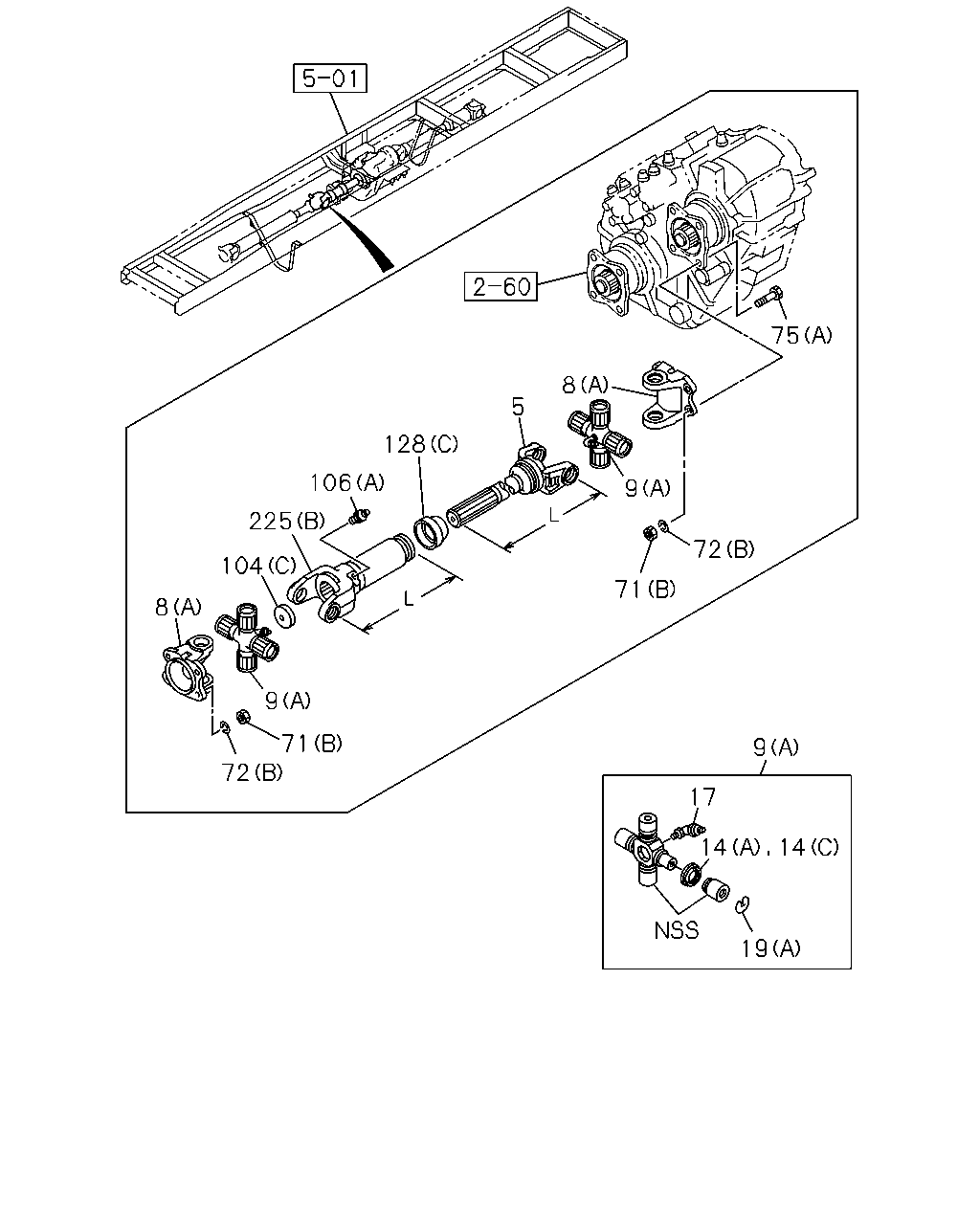

çizim 150508
19 14 14 17 75 72 71 9 8 5 128 106 225 104 8 9 71 72 9
BalonParca AdiParca NoAdetTipApplied Date
5 YOKE; STUB,PROP SHAFT
L=237 		1-37171-087-1 01 1 1112-
8 YOKE; FLANGE,PROP SHAFT
(B) D=80 		1-37211-037-4 02 1 1112-
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 1112-
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 1112-
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 1112-1505
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-1 AR 1 1506-
9 JOURNAL ASM; PROP SHAFT
(B) 		8-98020-789-1 02 1 1112-
9 JOURNAL ASM; PROP SHAFT
(C) 		8-98048-925-1 02 1 1112-
14 COVER; DUST,SPIDER
(A) 		1-37319-012-0 08 1 1112-1505
14 COVER; DUST,SPIDER
(B) 		8-98020-791-0 08 1 1112-
14 COVER; DUST,SPIDER
(C) 		8-98020-800-0 08 1 1112-1505
14 COVER; DUST,SPIDER
(C) 		8-98020-800-0 08 1 1506-
14 COVER; DUST,SPIDER
(C) 		8-98020-800-0 08 1 1506-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1112-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 04 1 1112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 08 1 1112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 08 1 1112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 08 1 1112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1112-
71 NUT; YOKE
(A) M12 		0-91110-512-0 04 1 1112-
71 NUT; YOKE
(B) M14 		0-91110-514-0 04 1 1112-
71 NUT; YOKE
(B) M14 		0-91110-514-0 04 1 1112-
72 WASHER; LK,YOKE
(A) ID=12.2 		0-91510-612-0 04 1 1112-
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-814-0 04 1 1112-1202
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-814-0 04 1 1112-1202
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-614-0 04 1 1203-
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-614-0 04 1 1203-
75 BOLT; PROP SHAFT TO TRANS
(B) M12X32 		1-09000-076-1 04 1 1112-
75 BOLT; PROP SHAFT TO TRANS
(A) M14X37 		1-09000-121-0 04 1 1112-
104 PLUG; SLEEVE YOKE
(B) 		1-09600-014-0 01 1 1112-
104 PLUG; SLEEVE YOKE
(C) 		1-09600-033-0 01 1 1112-
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 1112-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) M6 STRAIGHT 		0-90301-406-0 01 1 1112-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1112-
128 SEAL; SLEEVE
(B) 		1-37247-001-1 01 1 1112-
128 SEAL; SLEEVE
(C) 		1-37247-002-1 01 1 1112-
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 1112-
225 YOKE; SLEEVE,PROP SHAFT
(B) L=154 		1-37241-081-2 01 1 1112-
225 YOKE; SLEEVE,PROP SHAFT
(C) L=228 		1-37241-098-2 01 1 1112-
225 YOKE; SLEEVE,PROP SHAFT
(A) L=254 		8-98020-885-0 01 1 1112-

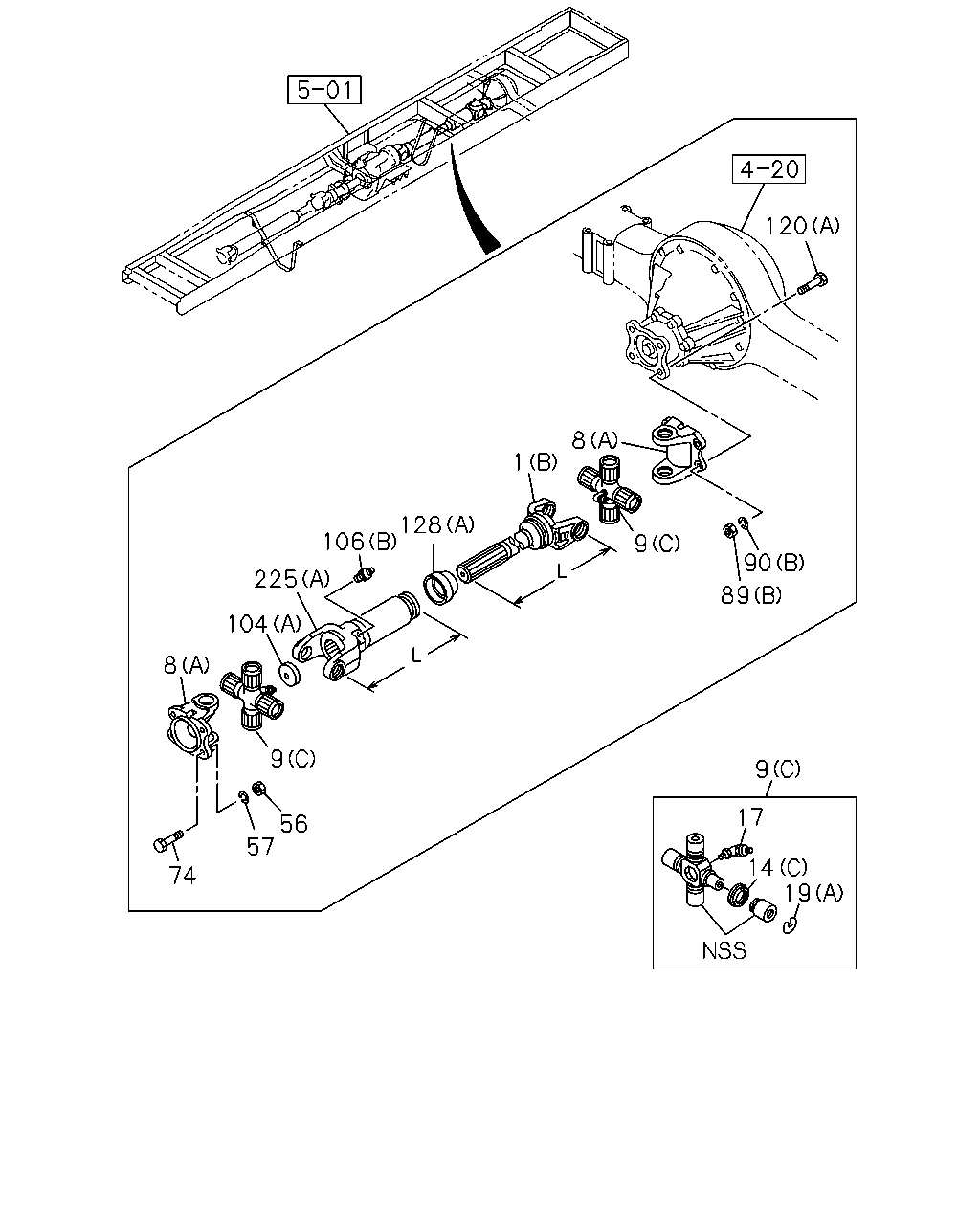

çizim 150521
120 8 1 128 106 9 90 225 89 104 8 9 9 17 56 57 14 19 74
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
(B) L=801 		8-98069-652-0 01 1 1112-
1 SHAFT; PROP
(A) L=1497 		8-98078-995-0 01 1 1112-
8 YOKE; FLANGE,PROP SHAFT
(B) D=80 		1-37211-037-4 02 1 1112-
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 1112-
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 1112-
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 1112-1505
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-1 AR 1 1506-
9 JOURNAL ASM; PROP SHAFT
(B) 		8-98020-789-1 02 1 1112-
9 JOURNAL ASM; PROP SHAFT
(C) 		8-98048-925-1 02 1 1112-
14 COVER; DUST,SPIDER
(A) 		1-37319-012-0 08 1 1112-1505
14 COVER; DUST,SPIDER
(B) 		8-98020-791-0 08 1 1112-
14 COVER; DUST,SPIDER
(C) 		8-98020-800-0 08 1 1112-1505
14 COVER; DUST,SPIDER
(C) 		8-98020-800-0 08 1 1506-
14 COVER; DUST,SPIDER
(C) 		8-98020-800-0 08 1 1506-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1112-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 04 1 1112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 08 1 1112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 08 1 1112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 08 1 1112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1112-
56 NUT; YOKE
M14 		0-91110-514-0 04 1 1112-
57 WASHER; LK,YOKE
ID=14.2 		0-91510-814-0 04 1 1112-1202
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1203-
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1112-
89 NUT; YOKE TO RR AXLE
(A) M12 		0-91110-512-0 04 1 1112-
89 NUT; YOKE TO RR AXLE
(B) M14 		0-91110-514-0 04 1 1112-
90 WASHER; LK,YOKE TO RR AXLE
(A) ID=12.2 		0-91510-612-0 04 1 1112-
90 WASHER; LK,YOKE TO RR AXLE
(B) ID=14.2 		0-91510-814-0 04 1 1112-1202
90 WASHER; LK,YOKE TO RR AXLE
(B) ID=14.2 		0-91510-614-0 04 1 1203-
104 PLUG; SLEEVE YOKE
(B) 		1-09600-014-0 01 1 1112-
104 PLUG; SLEEVE YOKE
(C) 		1-09600-033-0 01 1 1112-
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 1112-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) M6 STRAIGHT 		0-90301-406-0 01 1 1112-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1112-
120 BOLT; YOKE TO RR AXLE
(B) M12X32 		1-09000-076-1 04 1 1112-
120 BOLT; YOKE TO RR AXLE
(A) M14X37 		1-09000-121-0 04 1 1112-
128 SEAL; SLEEVE
(B) 		1-37247-001-1 01 1 1112-
128 SEAL; SLEEVE
(C) 		1-37247-002-1 01 1 1112-
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 1112-
225 YOKE; SLEEVE,PROP SHAFT
(B) L=154 		1-37241-081-2 01 1 1112-
225 YOKE; SLEEVE,PROP SHAFT
(C) L=228 		1-37241-098-2 01 1 1112-
225 YOKE; SLEEVE,PROP SHAFT
(A) L=254 		8-98020-885-0 01 1 1112-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
