◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11401 - FSS(RHD)EURO1 ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#59083) — 28 parça

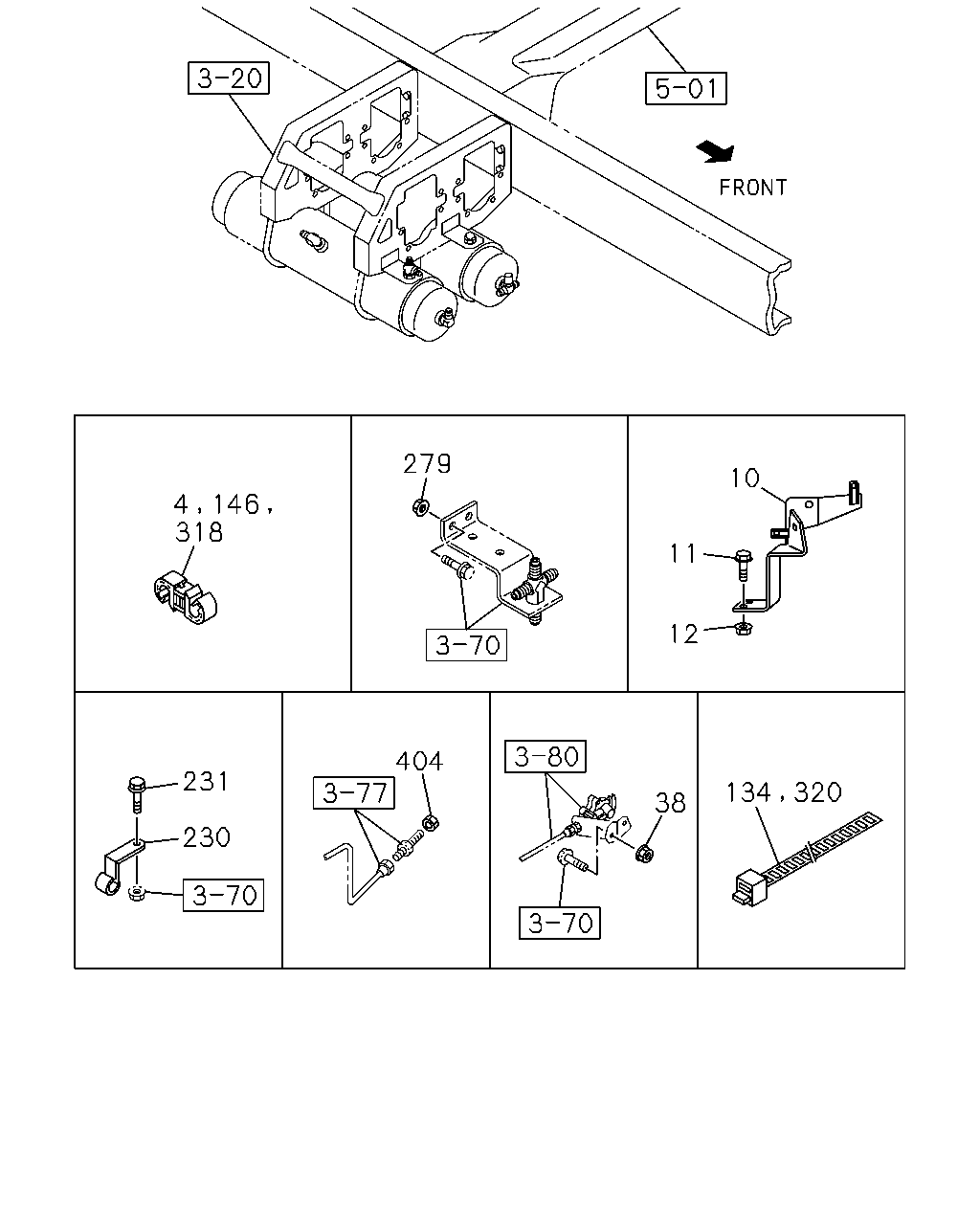

çizim 150495
279 10 318 11 12 404 231 38 230 134 320 4 146
BalonParca AdiParca NoAdetTipApplied Date
4 CLIP; AIR PIPE
ID=6.35 & 6.35 		1-09709-273-1 01 1 1112-
4 CLIP; AIR PIPE
ID=6.35 & 12 		1-09709-275-1 01 1 1112-
4 CLIP; AIR PIPE
ID=10 & 10 		1-09709-277-1 01 1 1112-
4 CLIP; AIR PIPE
TRAILER BRAKE CONTROL<J91> ID=10 & 12 		1-09709-278-1 03 1 1112-
4 CLIP; AIR PIPE
EXC. TRAILER BRAKE CONTROL<J91> ID=10 & 12 		1-09709-278-1 01 1 1112-
10 BRACKET; PIPE CLIP 8-98186-665-0 01 1 1112-
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1112-
12 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 1112-
38 NUT; BRKT
TRAILER BRAKE CONTROL<J91> M10 FLANGE 		0-91180-210-0 02 1 1112-
134 CLIP; AIR PIPE
L=350 		1-09707-183-0 01 1 1112-
146 CLIP; AIR PIPE
ID=10 & 10 		1-09709-277-1 04 1 1112-
230 CLIP; PIPE,AIR
TRAILER BRAKE CONTROL<J91> ID=11 H=20 L=20 		8-98033-780-0 01 1 1112-
231 BOLT; CLIP
TRAILER BRAKE CONTROL<J91> M8X25 FLANGE 		0-28650-825-0 01 1 1112-
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1112-
318 CLIP; AIR PIPE
ID=6.35 & 15 		1-09709-276-1 02 1 1112-
320 CLIP; BAND,FLEX FIX
L=250 		5-09707-030-1 01 1 1112-
404 NUT
M12 		9-09840-280-0 01 1 1112-

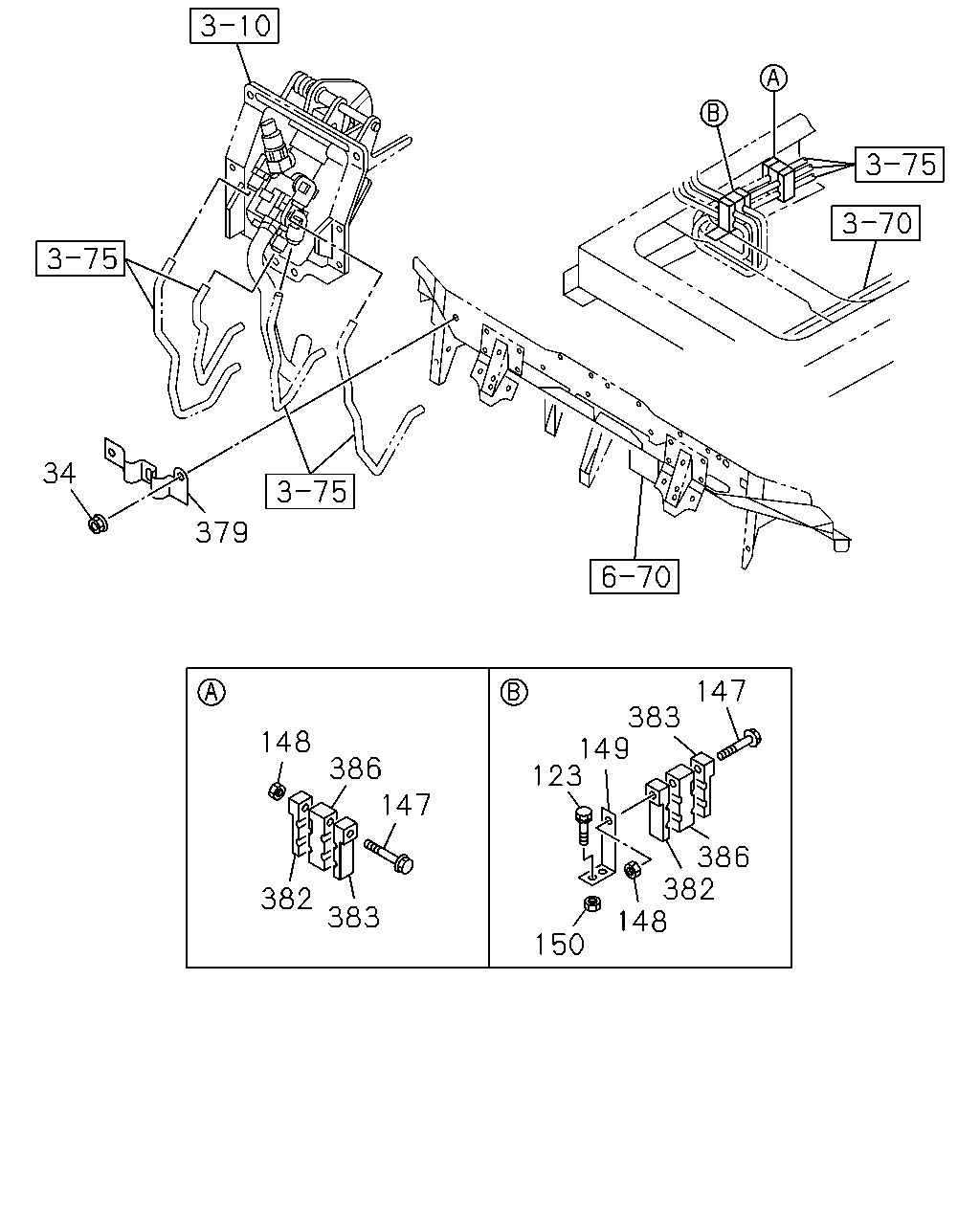

çizim 150499
34 379 147 383 149 123 148 386 147 386 382 148 382 383 150
BalonParca AdiParca NoAdetTipApplied Date
34 NUT; BRKT
M6 FLANGE 		0-91180-106-0 02 1 1112-
123 BOLT; PIPE CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1112-
147 BOLT; PIPE CLIP
M8X70 FLANGE 		0-28050-870-0 04 1 1112-
148 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 04 1 1112-
149 BRACKET; PIPE CLIP 1-47476-792-0 01 1 1112-1409
149 BRACKET; PIPE CLIP 8-98296-534-0 01 1 1410-
150 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 1112-
379 BRACKET; NYLON TUBE 8-98044-013-0 01 1 1112-
382 CLIP; UPR
ID=10 & 10 		1-09709-241-0 04 1 1112-
383 CLIP; LWR
ID=10 & 10 		1-09709-241-0 04 1 1112-
386 CLIP; CENTER
ID=10 		1-09709-242-0 04 1 1112-
