3-77 — BRAKE PIPING; AIR,REAR (#59082) — 13 parça

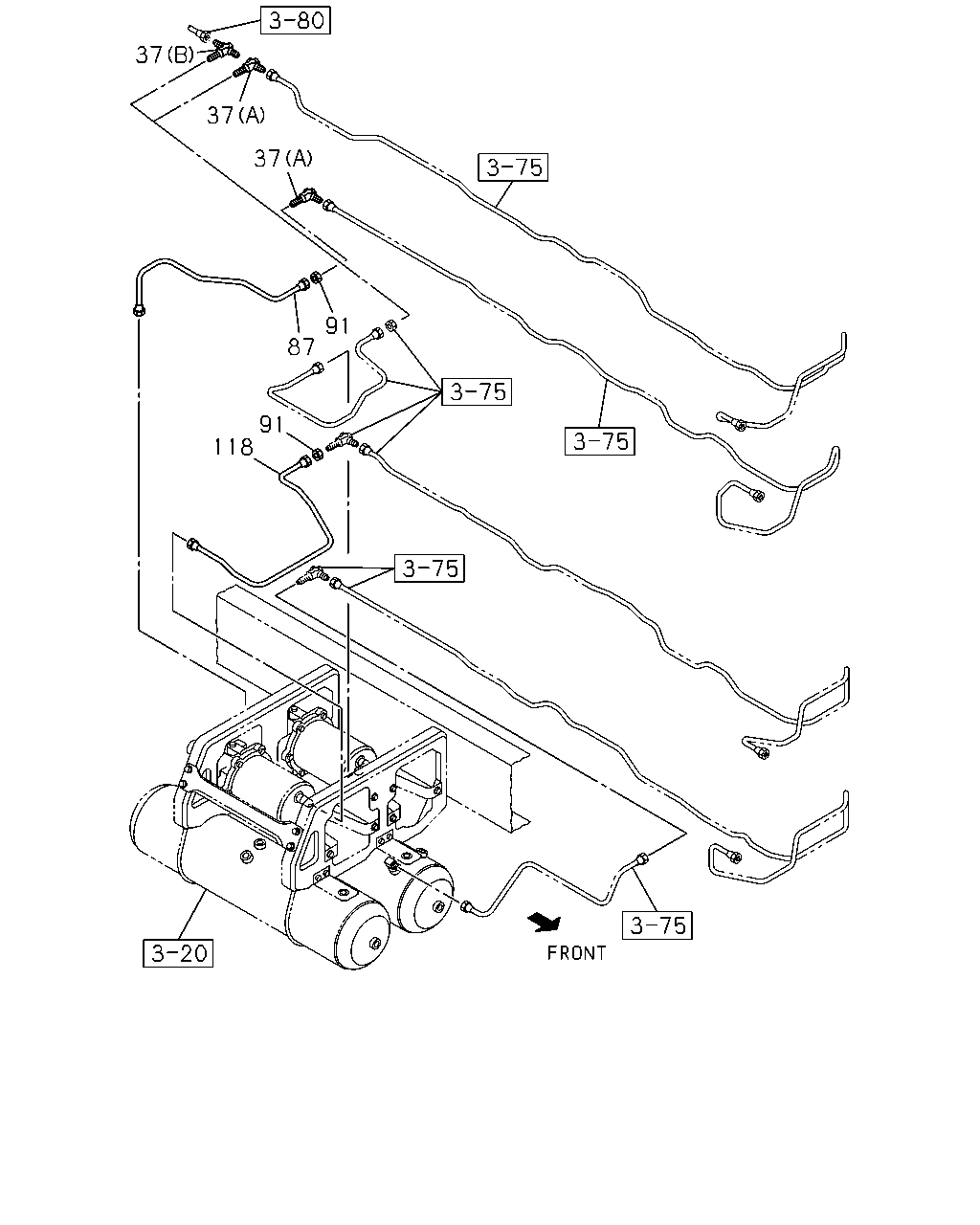

çizim 150501
37 37 37 91 87 91 118
BalonParca AdiParca NoAdetTipApplied Date
37 UNION; AIR PIPE
(A) M16 ELBOW 		0-92135-210-0 01 1 1112-
37 UNION; AIR PIPE
EXC. TRAILER BRAKE CONTROL<J91> (A) M16 ELBOW 		0-92135-210-0 01 1 1112-
37 UNION; AIR PIPE
TRAILER BRAKE CONTROL<J91> (B) M16 3WAY 		0-92148-610-0 01 1 1112-
87 PIPE; AIR,AIR TANK TO UNION
L=625 SERVICED BY L=660 		1-47428-869-0 01 1 1112-
91 NUT; PIPE UNION
M16 		0-91111-516-0 02 1 1112-
118 PIPE; AIR,UNION TO AIR MASTER
L=763 SERVICED BY L=800 		1-47428-872-0 01 1 1112-
çizim 150518
178 50 163 471 46 32
BalonParca AdiParca NoAdetTipApplied Date
32 PIPE; AIR,UNION TO MAG VLV,DIFF LOCK
L=1628 SERVICED BY L=1700 		1-47428-821-0 01 1 1112-
46 NIPPLE; AIR PIPE
M12 L=56.5 		0-92113-106-0 01 1 1112-
50 NUT; UNION BRKT
M8 FLANGE 		0-91180-108-0 02 1 1112-
163 BRACKET; FLEX HOSE 8-98093-260-0 01 1 1112-
163 BRACKET; FLEX HOSE 8-98106-706-0 01 1 1112-
178 BRACKET; UNION 8-98017-052-1 01 1 1112-
471 SEAL; BRKT 1-79738-832-0 01 1 1112-
