Isuzu WW
▶
TRUCKS
▶
FSS
▶
11401 - FSS(RHD)EURO1
▶
3 - Brakes, Brake System
▶
3-70 - BRAKE PIPING; AIR,AIR MASTER
▶
3-70 — BRAKE PIPING; AIR,AIR MASTER
(#59080) — 37 parça
◀

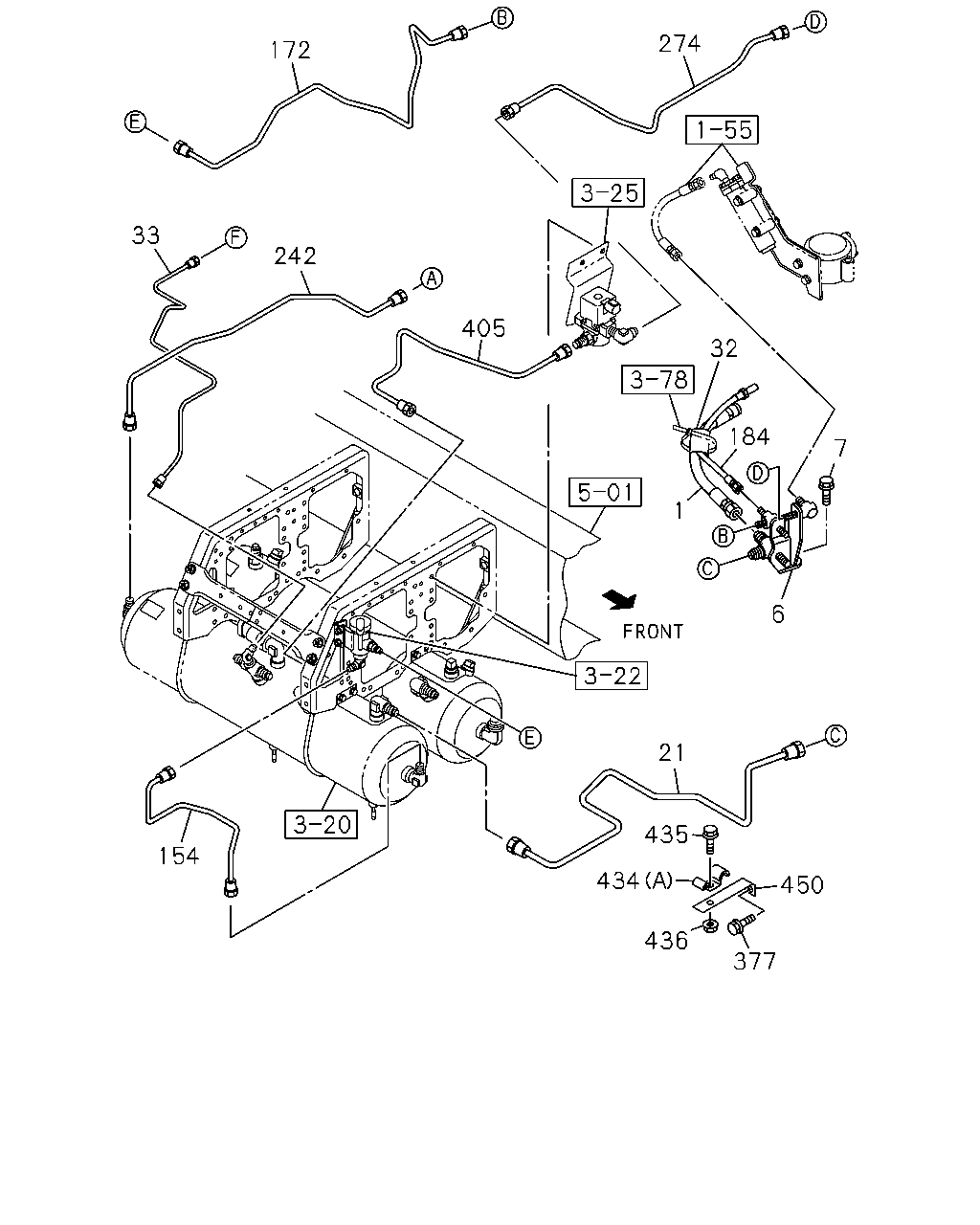

[370A] AIR TANK SIDE (20 parça)

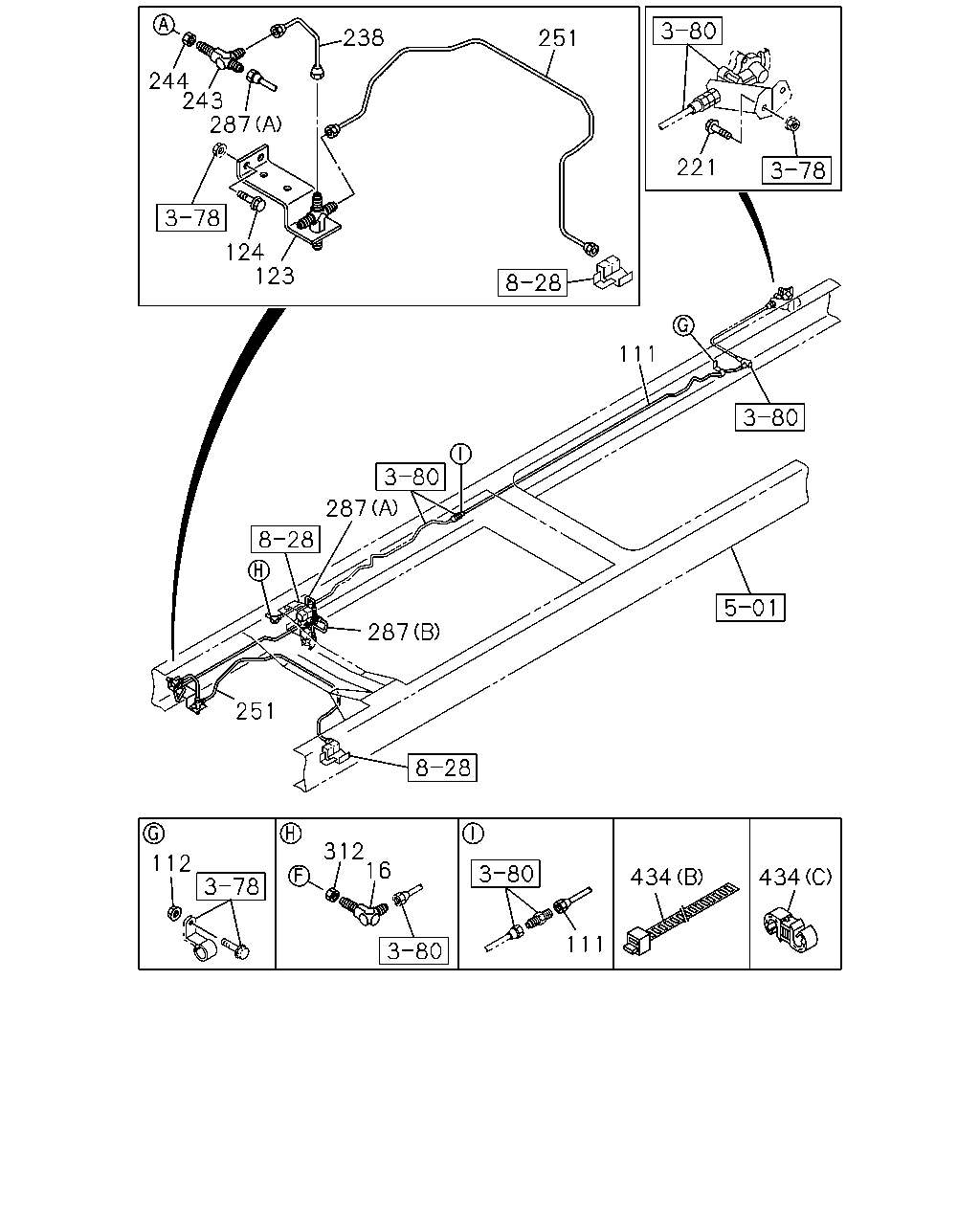

[370A] FRAME SIDE (17 parça)
▶
274
172
33
242
405
32
184
7
1
6
21
435
154
434
450
436
377
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,AIR TANK
8-98140-111-0
01
1
1112-
6
BRACKET; FLEX HOSE,AIR TANK
8-98146-359-0
01
1
1112-
7
BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE
0-28650-830-0
02
1
1112-
21
PIPE; AIR,UNION TO AIR DRYER
L=1033
8-98168-539-0
01
1
1112-
32
SLEEVE; RUBBER,AIR PIPE
ID=32 OD=36 L=50
1-09337-023-0
01
1
1112-
33
PIPE; AIR,UNION TO AIR TANK
TRAILER BRAKE CONTROL<J91> L=900 SERVICED BY L=900
1-47428-873-0
01
1
1112-
154
PIPE; AIR,AIR TANK TO AIR GOV
8-98152-813-0
01
1
1112-
172
PIPE; AIR,GOV TO UNION
8-98190-831-0
01
1
1112-
184
HOSE; FLEX,AIR GOV
L=350
1-09363-624-0
01
1
1112-
242
PIPE; AIR,AIR TANK TO UNION
L=645 SERVICED BY L=650
1-47428-810-0
01
1
1112-
274
PIPE; AIR UNION TO UNION
L=771 SERVICED BY L=800
1-47428-812-0
01
1
1112-
377
BOLT; BRKT FIX
M8X25 FLANGE
0-28650-825-0
01
1
1112-
405
PIPE; AIR,TANK TO MAG VLV
L=471
8-98163-967-0
01
1
1112-
434
CLIP
(A) ID=16 & 7 L=21 & 17
1-09700-675-0
01
1
1112-
434
CLIP
(B) L=600
1-09707-107-1
01
1
1112-
434
CLIP
(C) ID=6.35 & 6.35
1-09709-273-1
01
1
1112-
434
CLIP
(B) L=250
5-09707-030-1
01
1
1112-
435
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
01
1
1112-
436
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
1112-
450
BRACKET; CLIP
L=115 B=25
1-47476-758-0
01
1
1112-
238
251
244
243
287
221
124
123
111
287
287
251
312
16
112
434
434
111
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
UNION; AIR PIPE
TRAILER BRAKE CONTROL<J91> M16 ELBOW
0-92135-210-0
01
1
1112-
111
PIPE; AIR,UNION TO UNION
TRAILER BRAKE CONTROL<J91> L=1711 SERVICED BY L=1783
1-47428-881-0
01
1
1112-
112
NUT
TRAILER BRAKE CONTROL<J91> M8 FLANGE
0-91180-108-0
01
1
1112-
123
BRACKET; UNION
8-98146-591-0
01
1
1112-
124
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
02
1
1112-
221
BOLT; BRKT
TRAILER BRAKE CONTROL<J91> M10X30 FLANGE
0-28651-030-0
02
1
1112-
238
PIPE; AIR,UNION TO UNION
L=266
8-98146-244-0
01
1
1112-
243
UNION; AIR PIPE
M12 3WAY
0-92138-906-0
01
1
1112-
244
NUT; UNION,AIR PIPE
M12
9-09840-280-0
01
1
1112-
251
PIPE; AIR,UNION TO MAG VLV
L=962 SERVICED BY L=1000
1-47428-814-0
01
1
1112-
287
PIPE; AIR,MAG VLV
(A) L=745 SERVICED BY L=800
1-47428-812-0
01
1
1112-
287
PIPE; AIR,MAG VLV
(B) L=236
8-98093-529-0
01
1
1112-
312
NUT; UNION
TRAILER BRAKE CONTROL<J91> M16
0-91111-516-0
01
1
1112-
434
CLIP
(A) ID=16 & 7 L=21 & 17
1-09700-675-0
01
1
1112-
434
CLIP
(B) L=600
1-09707-107-1
01
1
1112-
434
CLIP
(C) ID=6.35 & 6.35
1-09709-273-1
01
1
1112-
434
CLIP
(B) L=250
5-09707-030-1
01
1
1112-
