◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10739 - FSR-LHD(BUS CHASSIS) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-35 - ENGINE CONTROL VALVE AND LEVER ▶
0-35 — ENGINE CONTROL VALVE AND LEVER (#5908) — 35 parça
çizim 7271
52 226 225
BalonParca AdiParca NoAdetTipApplied Date A B C D
52 CABLE; FUEL CUT
EXC. AUTO ENG SHUTOFF(KB6) L=2090 		1-23210-973-2 01 1 9606-9810 ● ●
225 BOLT; CLIP FIX
M8X20 FLANGE 		0-28680-820-0 02 1 9606-9810 ● ●
225 BOLT; CLIP FIX
M8X20 FLANGE 		0-28680-820-0 02 1 9811-0203 ● ●
225 BOLT; CLIP FIX
M8X20 FLANGE 		0-28680-820-0 02 1 0204-0512 ●
225 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
226 CLIP; CABLE END
(D) 		1-09700-787-1 01 1 9606-9810 ● ●
226 CLIP; CABLE END
(A) 		1-09700-787-1 01 1 9811-9902 ● ●
226 CLIP; CABLE END
EXC. EURO2 SPECIFICATION<THN> (A) 		1-09700-787-1 01 1 9903-0203 ● ●
226 CLIP; CABLE END
(C) L=30 		1-09700-326-0 01 1 9811-9902 ● ●
226 CLIP; CABLE END
EXC. EURO2 SPECIFICATION<THN> (C) L=30 		1-09700-326-0 01 1 9903-0203 ● ●
226 CLIP; CABLE END
EURO2 SPECIFICATION<THN> (B) 		1-23219-032-0 01 1 9903-0203 ●
226 CLIP; CABLE END
(B) 		1-23219-032-0 01 1 0204- ●
226 CLIP; CABLE END
EURO2 SPECIFICATION<THN> (B) 		8-94397-228-0 01 1 9903-9905 ●
226 CLIP; CABLE END
EURO2 SPECIFICATION<THN> EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> (B) 		8-94397-228-0 01 1 9906-0203 ●
226 CLIP; CABLE END
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> (B) 		8-94397-228-0 01 1 0204- ●

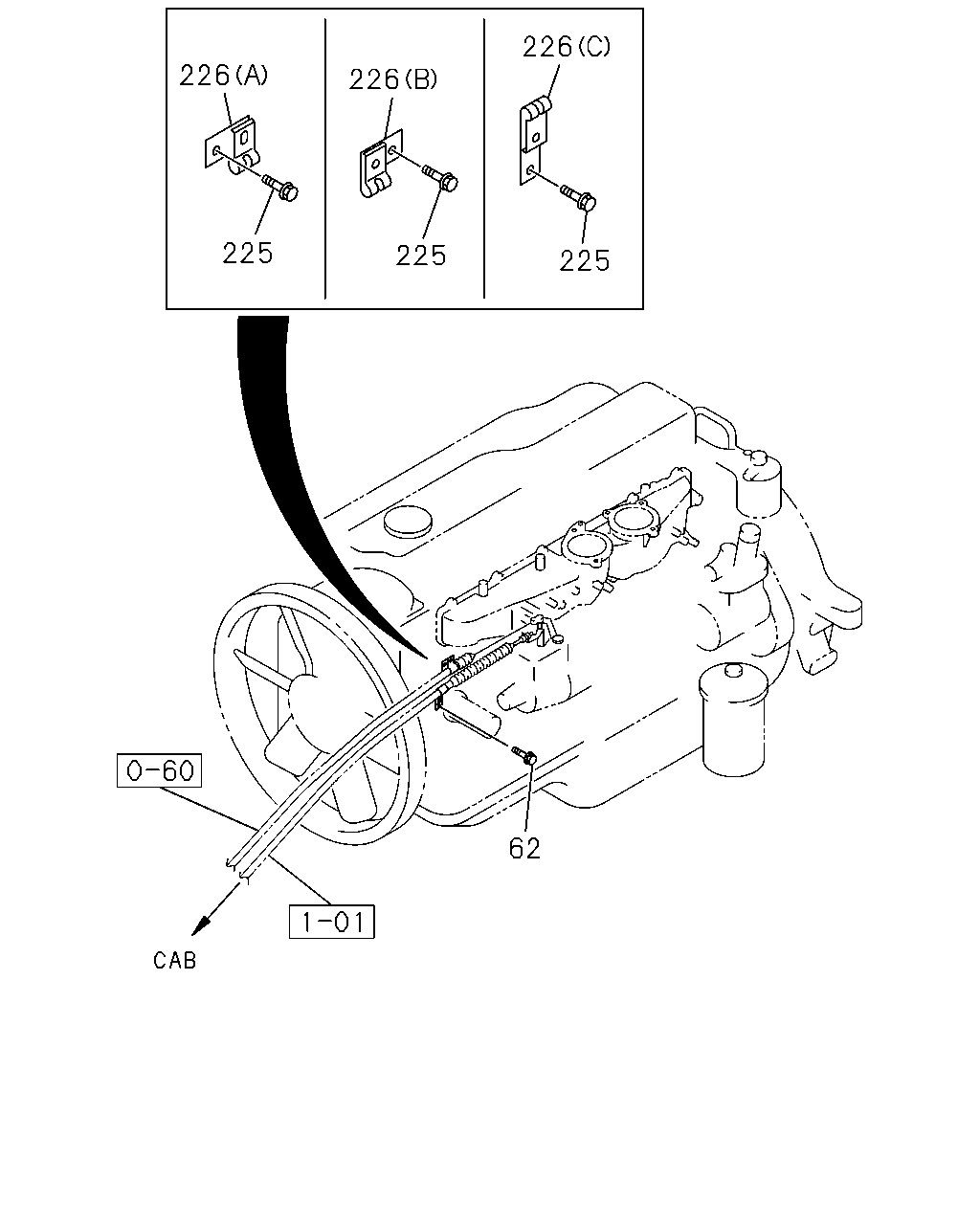

çizim 44506
226 226 226 225 225 225 62
BalonParca AdiParca NoAdetTipApplied Date A B C D
62 BOLT; CABLE END
M6X20 FLANGE 		0-28680-620-0 02 1 9811-9902 ● ●
62 BOLT; CABLE END
EXC. EURO2 SPECIFICATION<THN> M6X20 FLANGE 		0-28680-620-0 02 1 9903-0203 ● ●
62 BOLT; CABLE END
EURO2 SPECIFICATION<THN> M8X20 FLANGE 		0-28680-820-0 02 1 9903-9905 ●
62 BOLT; CABLE END
EURO2 SPECIFICATION<THN> EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> M8X20 FLANGE 		0-28680-820-0 02 1 9906-0203 ●
62 BOLT; CABLE END
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> M8X20 FLANGE 		0-28680-820-0 02 1 0204-0512 ●
62 BOLT; CABLE END
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
225 BOLT; CLIP FIX
M8X20 FLANGE 		0-28680-820-0 02 1 9606-9810 ● ●
225 BOLT; CLIP FIX
M8X20 FLANGE 		0-28680-820-0 02 1 9811-0203 ● ●
225 BOLT; CLIP FIX
M8X20 FLANGE 		0-28680-820-0 02 1 0204-0512 ●
225 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
226 CLIP; CABLE END
(D) 		1-09700-787-1 01 1 9606-9810 ● ●
226 CLIP; CABLE END
(A) 		1-09700-787-1 01 1 9811-9902 ● ●
226 CLIP; CABLE END
EXC. EURO2 SPECIFICATION<THN> (A) 		1-09700-787-1 01 1 9903-0203 ● ●
226 CLIP; CABLE END
(C) L=30 		1-09700-326-0 01 1 9811-9902 ● ●
226 CLIP; CABLE END
EXC. EURO2 SPECIFICATION<THN> (C) L=30 		1-09700-326-0 01 1 9903-0203 ● ●
226 CLIP; CABLE END
EURO2 SPECIFICATION<THN> (B) 		1-23219-032-0 01 1 9903-0203 ●
226 CLIP; CABLE END
(B) 		1-23219-032-0 01 1 0204- ●
226 CLIP; CABLE END
EURO2 SPECIFICATION<THN> (B) 		8-94397-228-0 01 1 9903-9905 ●
226 CLIP; CABLE END
EURO2 SPECIFICATION<THN> EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> (B) 		8-94397-228-0 01 1 9906-0203 ●
226 CLIP; CABLE END
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> (B) 		8-94397-228-0 01 1 0204- ●
