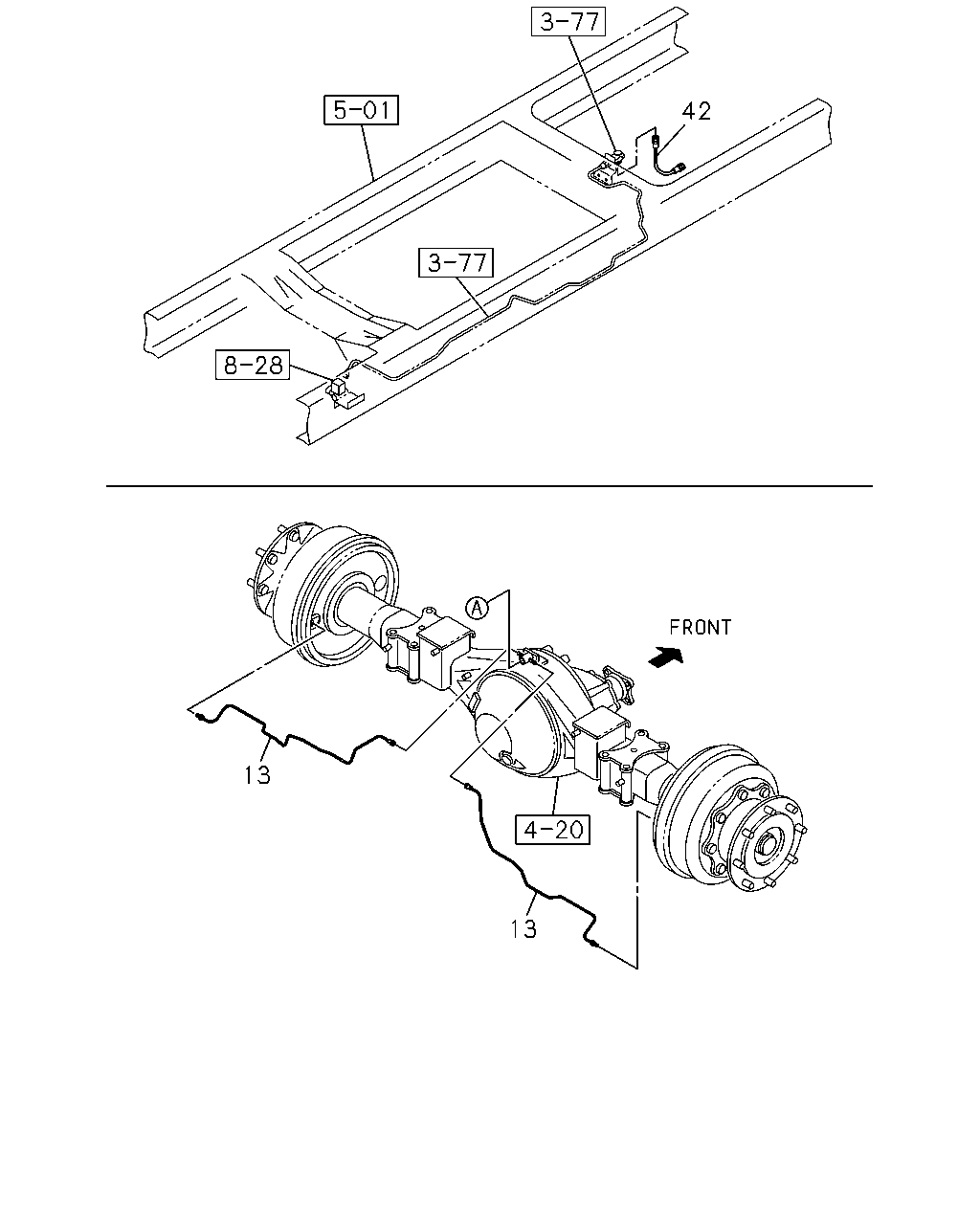

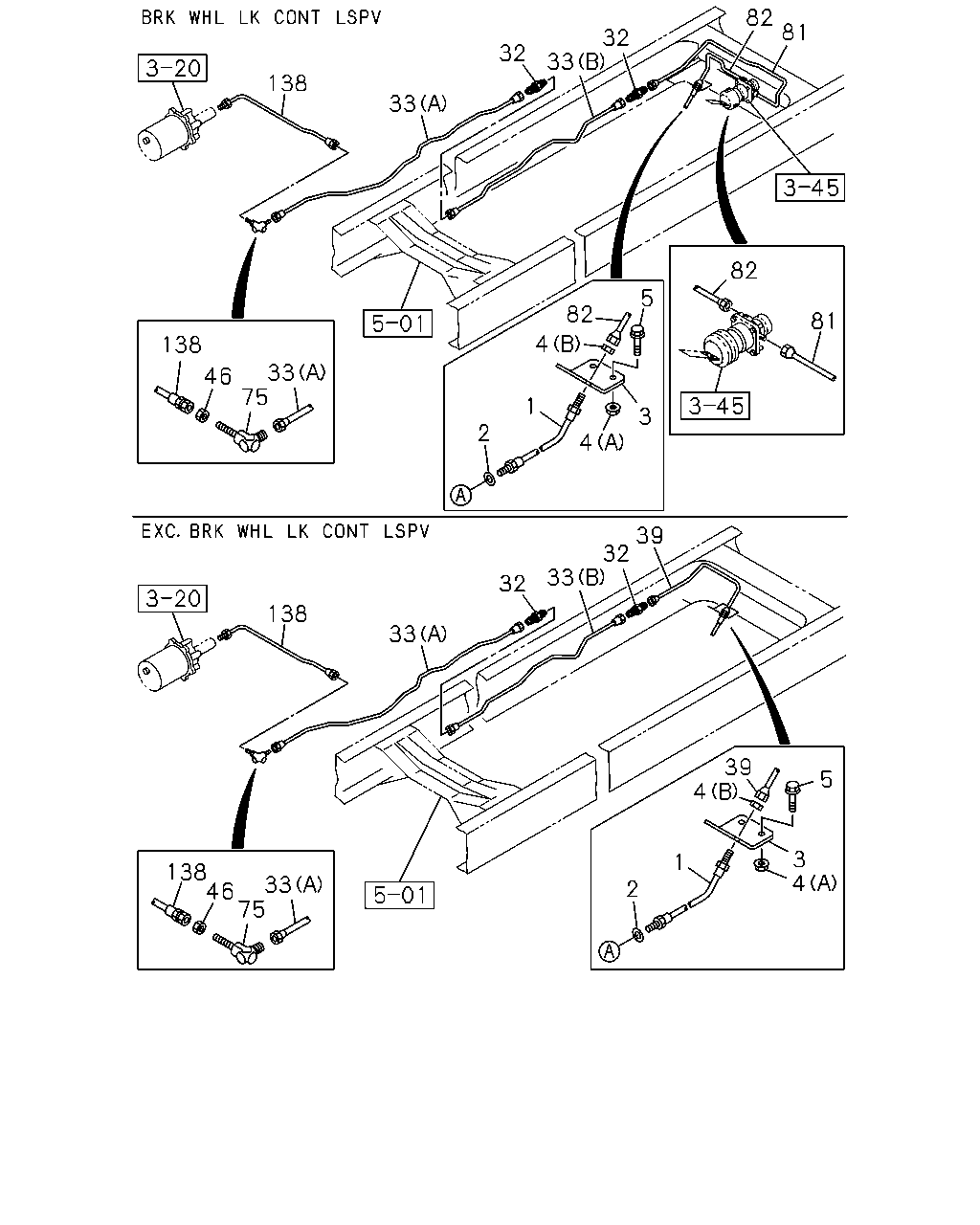

3-55 — BRAKE PIPING; OIL,REAR (#59078) — 18 parça

42 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	PIPE; BRK,RR AXLE	8-98188-331-0	01	1	1112-
13	PIPE; BRK,RR AXLE	8-98188-332-0	01	1	1112-
42	HOSE; FLEX,DIFF LOCK	1-09363-668-0	01	1	1112-

82 81 32 33 32 138 33 82 5 82 81 4 138 46 33 75 1 3 2 4 39 32 33 32 138 33 39 4 5 3 4 1 138 33 46 75 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK L=730	0-05212-730-0	01	1	1112-
2	GASKET; FLEX HOSE,RR BRK ID=9 OD=17	9-09920-472-0	01	1	1112-
3	BRACKET; FLEX HOSE,RR BRK	8-98146-322-0	01	1	1112-
4	NUT; BRKT,FLEX HOSE,RR BRK (A) M8 FLANGE	0-91180-108-0	02	1	1112-
4	NUT; BRKT,FLEX HOSE,RR BRK (B) M12	9-09840-280-0	01	1	1112-
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X30 FLANGE	0-28650-830-0	02	1	1112-
32	UNION; OIL PIPE M12 L=40	0-92113-006-0	02	1	1112-
33	PIPE; OIL,UNION TO UNION (A) L=1010 SERVICED BY L=1100	1-47428-731-0	01	1	1112-
33	PIPE; OIL,UNION TO UNION (B) L=1180 SERVICED BY L=1200	1-47428-732-0	01	1	1112-
39	PIPE; OIL,UNION TO RR FLEX HOSE EXC. BRK WHL LK CONT LSPV<6PH> L=913 SERVICED BY L=1000	1-47428-730-0	01	1	1112-
46	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	1112-
75	UNION; OIL PIPE M12 ELBOW	0-92125-206-0	01	1	1112-
81	PIPE; OIL,UNION TO LSPV BRK WHL LK CONT LSPV<6PH> L=1286 SERVICED BY L=1370	1-47428-734-0	01	1	1112-
82	PIPE; OIL,LSPV TO FLEX HOSE BRK WHL LK CONT LSPV<6PH> L=197	8-98154-819-0	01	1	1112-
138	PIPE; HYDRAULIC UNIT L=409	8-98146-398-0	01	1	1112-
