Isuzu WW
▶
TRUCKS
▶
FSS
▶
11401 - FSS(RHD)EURO1
▶
3 - Brakes, Brake System
▶
3-52 - BRAKE PIPING; OIL,FRONT
▶
3-52 — BRAKE PIPING; OIL,FRONT
(#59077) — 18 parça
◀

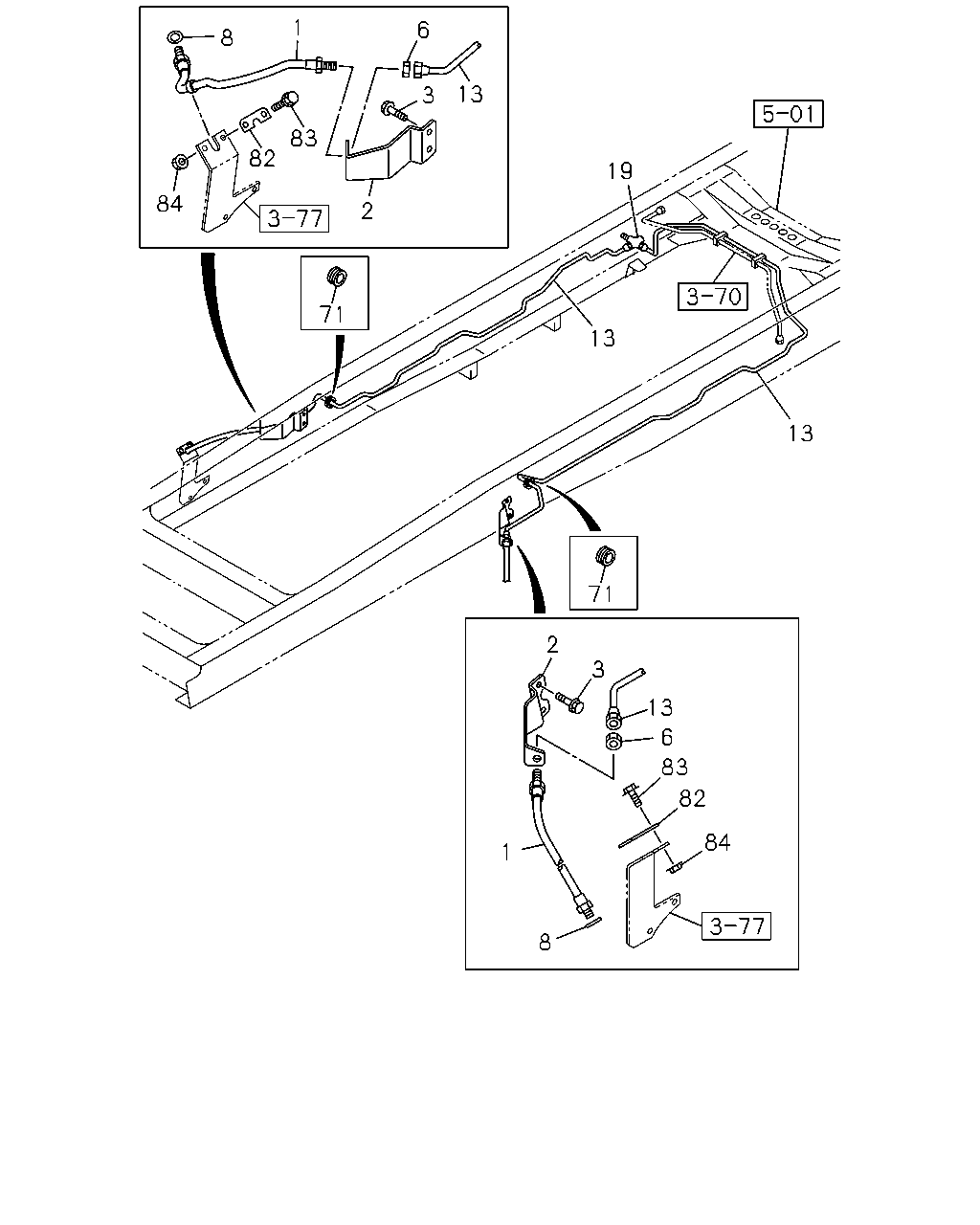

[352A] FRAME SIDE (13 parça)

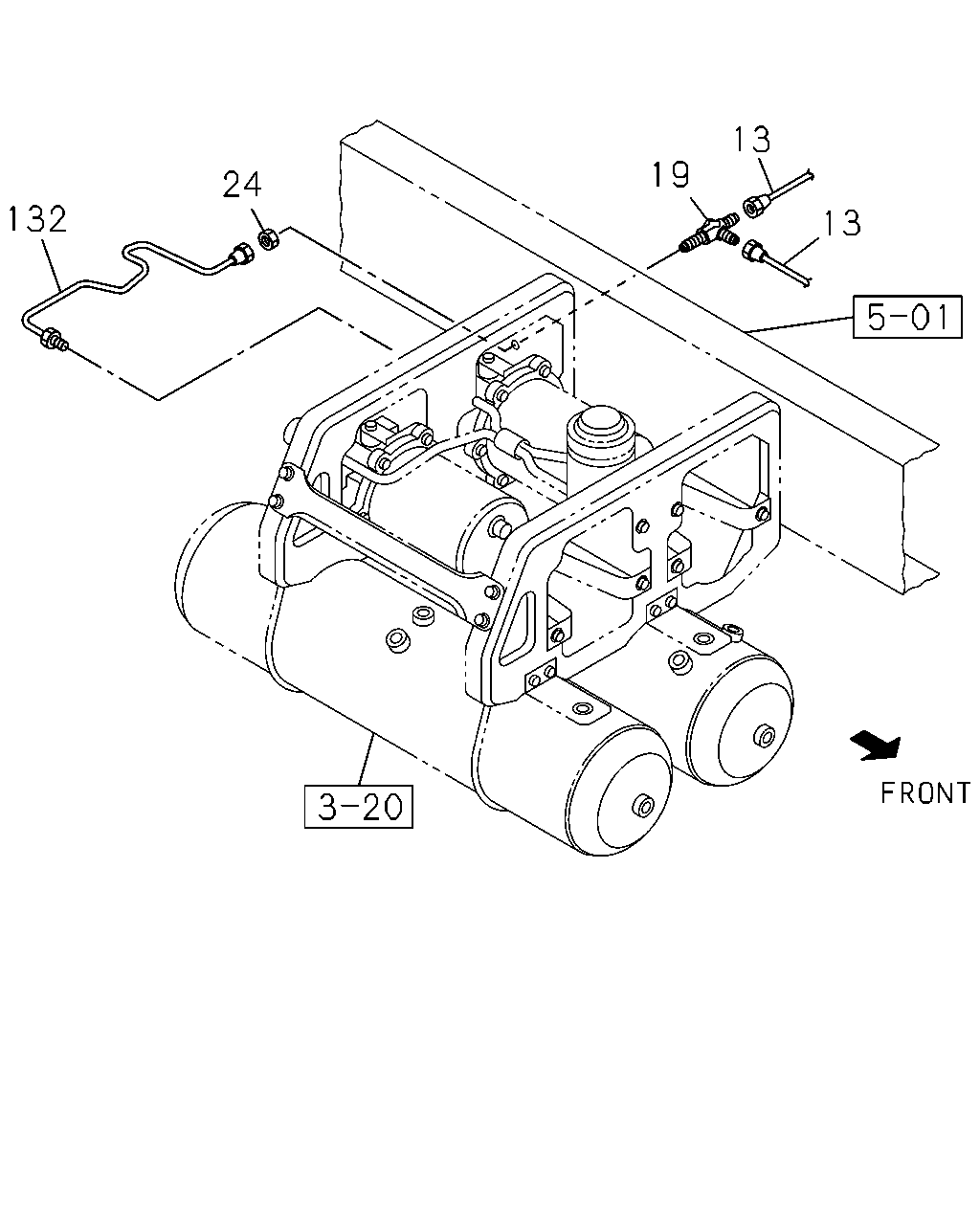

[352A] AIR TANK SIDE (5 parça)
▶
1
6
8
13
3
83
82
19
84
2
71
13
13
71
2
3
13
6
83
82
84
1
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,FRT BRK
L=680
8-98186-674-0
02
1
1112-
2
BRACKET; FLEX HOSE,FRT BRK
8-98089-851-0
01
1
1112-
2
BRACKET; FLEX HOSE,FRT BRK
8-98113-700-0
01
1
1112-
3
BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE
0-28650-825-0
04
1
1112-
6
NUT; FLEX HOSE,FRT BRK
M12
9-09840-280-0
02
1
1112-
8
GASKET; FLEX HOSE,FRT BRK
ID=9 OD=17
9-09920-472-0
02
1
1112-
13
PIPE; OIL,UNION TO UNION
L=2725 SERVICED BY L=2900
1-47428-744-0
01
1
1112-
13
PIPE; OIL,UNION TO UNION
L=1762 SERVICED BY L=1820
1-47428-738-0
01
1
1112-
19
UNION; OIL PIPE
M12 3WAY
0-92138-906-0
01
1
1112-
71
GROMMET; OIL PIPE
ID=24 OD=30 T=17
9-09956-092-1
02
1
1112-
82
PLATE; FLEX HOSE
1-47476-241-1
02
1
1112-
83
BOLT; PLATE
M8X20 FLANGE
0-28650-820-0
04
1
1112-
84
NUT; PLATE
M8 FLANGE
0-91180-108-0
04
1
1112-
13
19
24
132
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
PIPE; OIL,UNION TO UNION
L=2725 SERVICED BY L=2900
1-47428-744-0
01
1
1112-
13
PIPE; OIL,UNION TO UNION
L=1762 SERVICED BY L=1820
1-47428-738-0
01
1
1112-
19
UNION; OIL PIPE
M12 3WAY
0-92138-906-0
01
1
1112-
24
NUT; UNION,OIL PIPE
M12
9-09840-280-0
01
1
1112-
132
PIPE; OIL,BRK,HYD UNIT
L=466
8-98146-396-0
01
1
1112-
