Isuzu WW
▶
TRUCKS
▶
FRR
▶
11333 - FRR(MIDEAST)6H ENG
▶
3 - Brakes, Brake System
▶
3-55 - BRAKE PIPING; OIL,REAR
▶
3-55 — BRAKE PIPING; OIL,REAR
(#59071) — 23 parça
◀
[355A] NO.1 (4 parça)

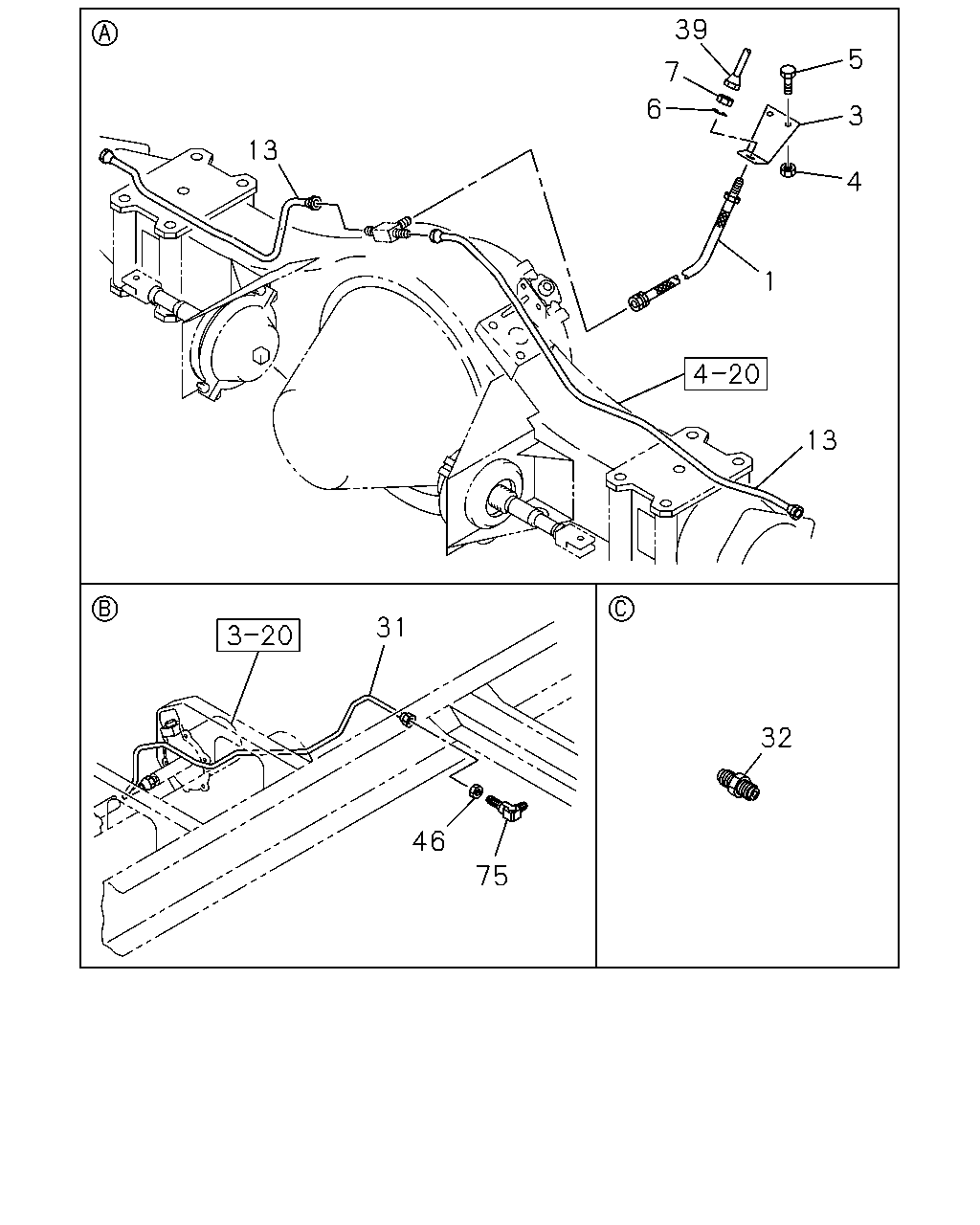

[355A] NO.2 (19 parça)
▶
39
33
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,RR BRK
L=610
0-05313-610-0
01
1
0411-0511
1
HOSE; FLEX,RR BRK
L=610
0-05213-610-0
01
1
0512-
33
PIPE; OIL,UNION TO UNION
L=2156 SERVICED BY L=2200
1-47426-360-0
01
1
0411-
39
PIPE; OIL,UNION TO RR FLEX HOSE
L=1966 SERVICED BY L=2000
1-47426-359-0
01
1
0411-
39
5
7
6
3
13
4
1
13
31
32
46
75
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,RR BRK
L=610
0-05313-610-0
01
1
0411-0511
1
HOSE; FLEX,RR BRK
L=610
0-05213-610-0
01
1
0512-
3
BRACKET; FLEX HOSE,RR BRK
1-47465-251-0
01
1
0411-
4
NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE
0-91150-108-0
02
1
0411-0602
4
NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE
0-91180-108-0
02
1
0603-
5
BOLT; BRKT,FLEX HOSE,RR BRK
M8X25 FLANGE
0-28680-825-0
02
1
0411-0512
5
BOLT; BRKT,FLEX HOSE,RR BRK
M8X25 FLANGE
0-28650-825-0
02
1
0601-
6
WASHER; LK,FLEX HOSE
ID=12.2
9-09150-512-0
01
1
0411-0603
6
WASHER; LK,FLEX HOSE
ID=12.2
0-91510-512-0
01
1
0604-
7
NUT; FLEX HOSE
M12
9-09840-280-0
01
1
0411-
13
PIPE; BRK,RR AXLE
L=675
1-47427-105-0
01
1
0411-
13
PIPE; BRK,RR AXLE
L=847
1-47427-106-0
01
1
0411-
31
PIPE; OIL,AIR MASTER TO UNION
L=890
1-49161-560-0
01
1
0411-
32
UNION; OIL PIPE
M12 L=40
9-09223-006-1
01
1
0411-0607
32
UNION; OIL PIPE
M12 L=40
0-92113-006-0
01
1
0608-
39
PIPE; OIL,UNION TO RR FLEX HOSE
L=1966 SERVICED BY L=2000
1-47426-359-0
01
1
0411-
46
NUT; UNION,OIL PIPE
M12
9-09840-280-0
01
1
0411-
75
UNION; OIL PIPE
M12 ELBOW
9-09225-206-1
01
1
0411-0607
75
UNION; OIL PIPE
M12 ELBOW
0-92125-206-0
01
1
0608-
