0-33 — FAN AND FAN BELT (#5907) — 102 parça

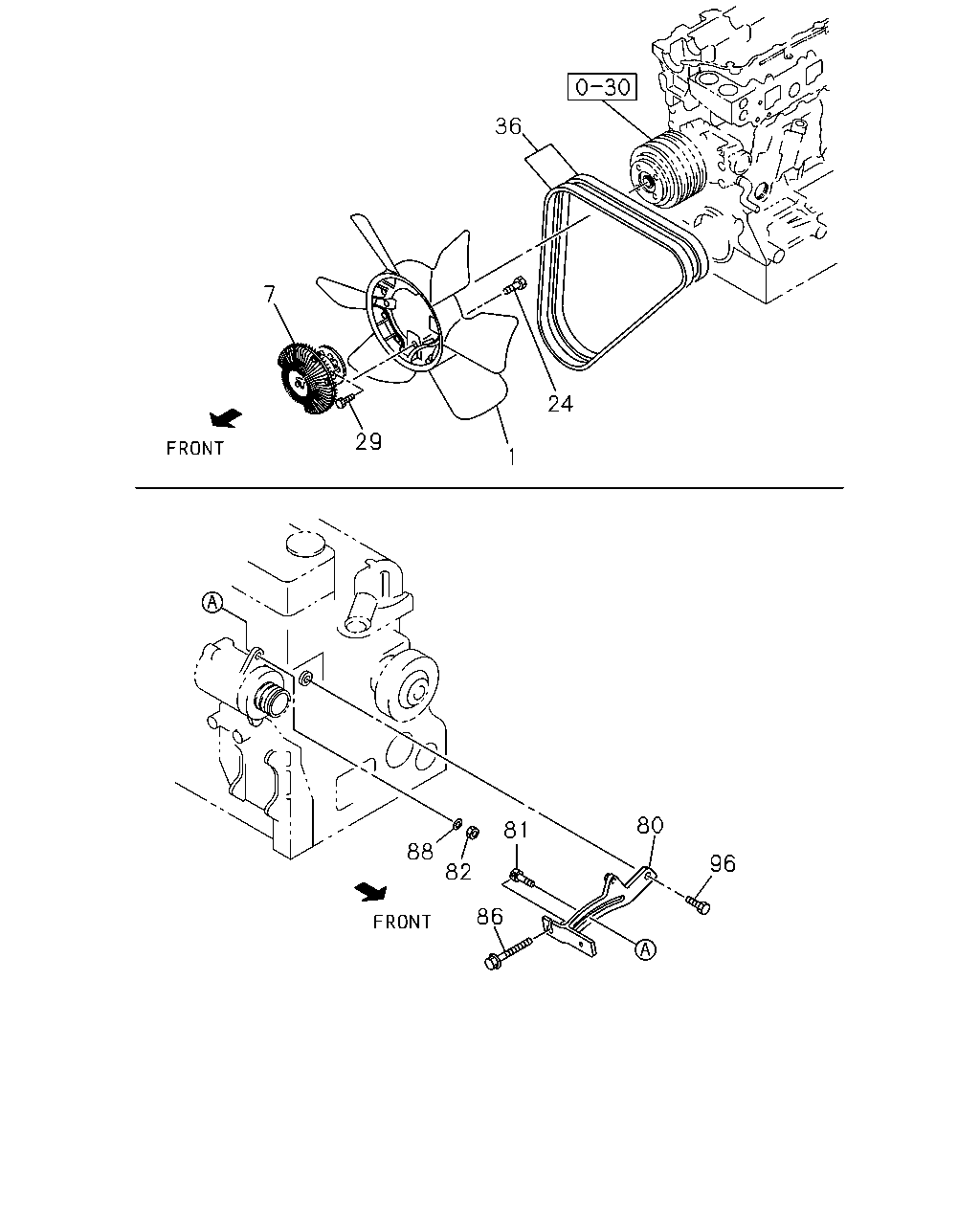

çizim 42172
36 7 24 29 1 81 88 96 82 86
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 FAN; COOLING 5-13662-012-1 01 1 9606-9810 ● ●
1 FAN; COOLING 8-94393-117-0 01 1 9811-9902 ●
1 FAN; COOLING 8-94393-117-0 01 1 9903-0203 ● ●
1 FAN; COOLING 8-94393-117-0 01 1 0204- ●
7 COUPLING; FAN
FLUID DRIVE FAN<KA3> 		8-94393-574-1 01 1 9606-9810 ●
7 COUPLING; FAN 8-94394-009-2 01 1 9811-9902 ●
7 COUPLING; FAN 8-94394-009-2 01 1 9903-0203 ● ●
7 COUPLING; FAN 8-94394-009-2 01 1 0204- ●
24 BOLT; FAN
M8X14 FLANGE 		0-28080-814-0 04 1 9811-9902 ●
24 BOLT; FAN
M8X14 FLANGE 		0-28080-814-0 04 1 9903-0203 ● ●
24 BOLT; FAN
M8X14 FLANGE 		0-28080-814-0 04 1 0204- ●
29 BOLT; COUPLING TO WATER PUMP
FLUID DRIVE FAN<KA3> M8X14 FLANGE 		8-94399-451-1 04 1 9606-9810 ●
29 BOLT; COUPLING TO WATER PUMP
M10X22 FLANGE 		0-28181-022-0 04 1 9811-9902 ●
29 BOLT; COUPLING TO WATER PUMP
M10X22 FLANGE 		0-28181-022-0 04 1 9903-0203 ● ●
29 BOLT; COUPLING TO WATER PUMP
M10X22 FLANGE 		0-28181-022-0 04 1 0204- ●
29 BOLT; COUPLING TO WATER PUMP
EXC. FLUID DRIVE FAN<KA3> M8X70 FLANGE 		0-28080-870-0 04 1 9606-9810 ●
29 BOLT; COUPLING TO WATER PUMP
M8X70 FLANGE 		0-28080-870-0 04 1 9606-9810 ●
36 BELT; COOLING FAN
FLUID DRIVE FAN<KA3> 1 SET=2 PIECE(1136713270) MITSUBOSHI 		1-13671-328-0 01 1 9606-9810 ●
36 BELT; COOLING FAN
1 SET=2 PIECE(1136714050) MITSUBOSHI 		8-94395-171-0 01 1 9811-9902 ●
36 BELT; COOLING FAN
1 SET=2 PIECE(1136714050) MITSUBOSHI 		8-94395-171-1 01 1 9903-0203 ● ●
36 BELT; COOLING FAN
1 SET=2 PIECE(1136714050) MITSUBOSHI 		8-94395-171-1 01 1 0204- ●
36 BELT; COOLING FAN
EXC. FLUID DRIVE FAN<KA3> 1 SET=2 PIECE(1136711970) MITSUBOSHI 		1-13671-194-0 01 1 9606-9810 ●
36 BELT; COOLING FAN
1 SET=2 PIECE(1136711970) MITSUBOSHI 		1-13671-194-0 01 1 9606-9810 ●
81 PIECE; SLIDING
M12X45 		1-13674-160-0 01 1 9606-9810 ● ●
81 PIECE; SLIDING
M12X45 		1-13674-160-0 01 1 9811-9902 ●
81 PIECE; SLIDING
M12X45 		1-13674-160-0 01 1 9903-0203 ● ●
81 PIECE; SLIDING
M12X45 		1-13674-160-0 01 1 0204- ●
82 NUT; ADJ PLATE
M12 FLANGE 		0-91150-112-0 01 1 9606-9810 ● ●
82 NUT; ADJ PLATE
M12 FLANGE 		0-91150-112-0 01 1 9811-9902 ●
82 NUT; ADJ PLATE
M12 FLANGE 		0-91150-112-0 01 1 9903-0203 ● ●
82 NUT; ADJ PLATE
M12 FLANGE 		0-91150-112-0 01 1 0204-0602 ●
82 NUT; ADJ PLATE
M12 FLANGE 		0-91180-112-0 01 1 0603- ●
86 BOLT; ADJ
M10X155 FLANGE 		1-09009-114-1 01 1 9606-9810 ● ●
86 BOLT; ADJ
M10X155 FLANGE 		1-09009-114-1 01 1 9811-9902 ●
86 BOLT; ADJ
M10X155 FLANGE 		1-09009-114-1 01 1 9903-0203 ● ●
86 BOLT; ADJ
M10X155 FLANGE 		1-09009-114-1 01 1 0204- ●
88 WASHER; PL,ADJ PLATE
ID=12.5 OD=32 		9-09164-712-0 01 1 9606-9810 ● ●
88 WASHER; PL,ADJ PLATE
ID=12.5 OD=32 		9-09164-712-0 01 1 9811-9902 ●
88 WASHER; PL,ADJ PLATE
ID=12.5 OD=32 		9-09164-712-0 01 1 9903-0203 ● ●
88 WASHER; PL,ADJ PLATE
ID=12.5 OD=32 		9-09164-712-0 01 1 0204-0605 ●
88 WASHER; PL,ADJ PLATE
ID=12.5 OD=32 		0-91614-712-0 01 1 0606- ●
96 BOLT; ADJ PLATE
M10X45 FLANGE 		0-28181-045-0 01 1 9606-9810 ● ●
96 BOLT; ADJ PLATE
M10X45 FLANGE 		0-28181-045-0 01 1 9811-9902 ●
96 BOLT; ADJ PLATE
M10X45 FLANGE 		0-28181-045-0 01 1 9903-0203 ● ●
96 BOLT; ADJ PLATE
M10X45 FLANGE 		0-28181-045-0 01 1 0204-0512 ●
96 BOLT; ADJ PLATE
M10X45 FLANGE 		0-28151-045-0 01 1 0601- ●

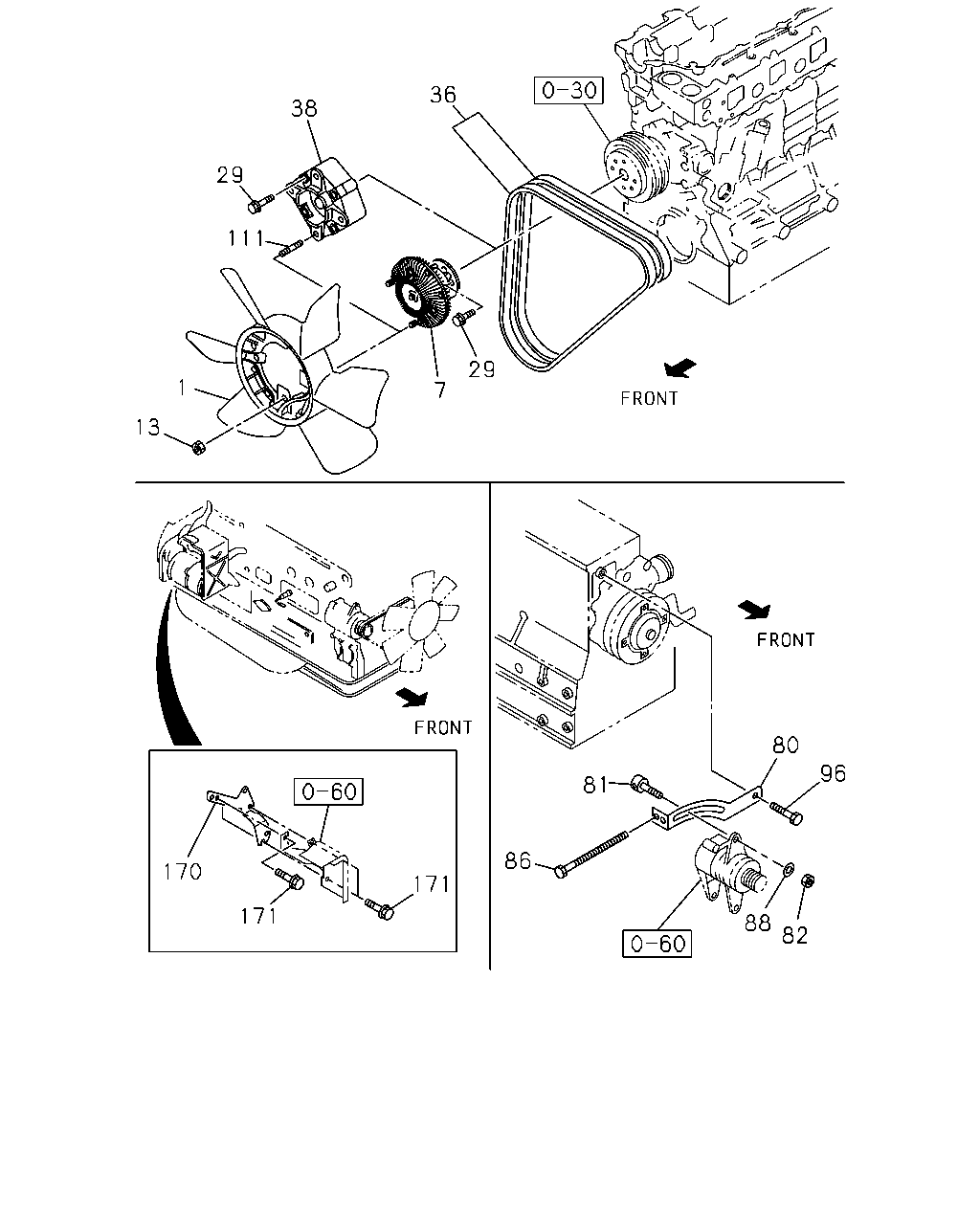

çizim 43806
36 38 29 111 29 1 7 13 80 96 81 86 170 171 88 171 82
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 FAN; COOLING 5-13662-012-1 01 1 9606-9810 ● ●
1 FAN; COOLING 8-94393-117-0 01 1 9811-9902 ●
1 FAN; COOLING 8-94393-117-0 01 1 9903-0203 ● ●
1 FAN; COOLING 8-94393-117-0 01 1 0204- ●
7 COUPLING; FAN
FLUID DRIVE FAN<KA3> 		8-94393-574-1 01 1 9606-9810 ●
7 COUPLING; FAN 8-94394-009-2 01 1 9811-9902 ●
7 COUPLING; FAN 8-94394-009-2 01 1 9903-0203 ● ●
7 COUPLING; FAN 8-94394-009-2 01 1 0204- ●
13 NUT; COOLING FAN
M6 FLANGE 		0-91150-106-0 04 1 9606-9810 ● ●
29 BOLT; COUPLING TO WATER PUMP
FLUID DRIVE FAN<KA3> M8X14 FLANGE 		8-94399-451-1 04 1 9606-9810 ●
29 BOLT; COUPLING TO WATER PUMP
M10X22 FLANGE 		0-28181-022-0 04 1 9811-9902 ●
29 BOLT; COUPLING TO WATER PUMP
M10X22 FLANGE 		0-28181-022-0 04 1 9903-0203 ● ●
29 BOLT; COUPLING TO WATER PUMP
M10X22 FLANGE 		0-28181-022-0 04 1 0204- ●
29 BOLT; COUPLING TO WATER PUMP
EXC. FLUID DRIVE FAN<KA3> M8X70 FLANGE 		0-28080-870-0 04 1 9606-9810 ●
29 BOLT; COUPLING TO WATER PUMP
M8X70 FLANGE 		0-28080-870-0 04 1 9606-9810 ●
36 BELT; COOLING FAN
FLUID DRIVE FAN<KA3> 1 SET=2 PIECE(1136713270) MITSUBOSHI 		1-13671-328-0 01 1 9606-9810 ●
36 BELT; COOLING FAN
1 SET=2 PIECE(1136714050) MITSUBOSHI 		8-94395-171-0 01 1 9811-9902 ●
36 BELT; COOLING FAN
1 SET=2 PIECE(1136714050) MITSUBOSHI 		8-94395-171-1 01 1 9903-0203 ● ●
36 BELT; COOLING FAN
1 SET=2 PIECE(1136714050) MITSUBOSHI 		8-94395-171-1 01 1 0204- ●
36 BELT; COOLING FAN
EXC. FLUID DRIVE FAN<KA3> 1 SET=2 PIECE(1136711970) MITSUBOSHI 		1-13671-194-0 01 1 9606-9810 ●
36 BELT; COOLING FAN
1 SET=2 PIECE(1136711970) MITSUBOSHI 		1-13671-194-0 01 1 9606-9810 ●
38 SPACER; FAN
EXC. FLUID DRIVE FAN<KA3> 		8-94393-896-0 01 1 9606-9810 ●
38 SPACER; FAN 8-94393-896-0 01 1 9606-9810 ●
80 PLATE; ADJ 8-94390-021-1 01 1 9606-9810 ● ●
80 PLATE; ADJ 8-94394-492-1 01 1 9811-9902 ●
80 PLATE; ADJ 8-94394-492-1 01 1 9903-0001 ● ●
80 PLATE; ADJ 8-97601-020-0 01 1 0002-0203 ● ●
80 PLATE; ADJ 8-97601-020-1 01 1 0204- ●
81 PIECE; SLIDING
M12X45 		1-13674-160-0 01 1 9606-9810 ● ●
81 PIECE; SLIDING
M12X45 		1-13674-160-0 01 1 9811-9902 ●
81 PIECE; SLIDING
M12X45 		1-13674-160-0 01 1 9903-0203 ● ●
81 PIECE; SLIDING
M12X45 		1-13674-160-0 01 1 0204- ●
82 NUT; ADJ PLATE
M12 FLANGE 		0-91150-112-0 01 1 9606-9810 ● ●
82 NUT; ADJ PLATE
M12 FLANGE 		0-91150-112-0 01 1 9811-9902 ●
82 NUT; ADJ PLATE
M12 FLANGE 		0-91150-112-0 01 1 9903-0203 ● ●
82 NUT; ADJ PLATE
M12 FLANGE 		0-91150-112-0 01 1 0204-0602 ●
82 NUT; ADJ PLATE
M12 FLANGE 		0-91180-112-0 01 1 0603- ●
86 BOLT; ADJ
M10X155 FLANGE 		1-09009-114-1 01 1 9606-9810 ● ●
86 BOLT; ADJ
M10X155 FLANGE 		1-09009-114-1 01 1 9811-9902 ●
86 BOLT; ADJ
M10X155 FLANGE 		1-09009-114-1 01 1 9903-0203 ● ●
86 BOLT; ADJ
M10X155 FLANGE 		1-09009-114-1 01 1 0204- ●
88 WASHER; PL,ADJ PLATE
ID=12.5 OD=32 		9-09164-712-0 01 1 9606-9810 ● ●
88 WASHER; PL,ADJ PLATE
ID=12.5 OD=32 		9-09164-712-0 01 1 9811-9902 ●
88 WASHER; PL,ADJ PLATE
ID=12.5 OD=32 		9-09164-712-0 01 1 9903-0203 ● ●
88 WASHER; PL,ADJ PLATE
ID=12.5 OD=32 		9-09164-712-0 01 1 0204-0605 ●
88 WASHER; PL,ADJ PLATE
ID=12.5 OD=32 		0-91614-712-0 01 1 0606- ●
96 BOLT; ADJ PLATE
M10X45 FLANGE 		0-28181-045-0 01 1 9606-9810 ● ●
96 BOLT; ADJ PLATE
M10X45 FLANGE 		0-28181-045-0 01 1 9811-9902 ●
96 BOLT; ADJ PLATE
M10X45 FLANGE 		0-28181-045-0 01 1 9903-0203 ● ●
96 BOLT; ADJ PLATE
M10X45 FLANGE 		0-28181-045-0 01 1 0204-0512 ●
96 BOLT; ADJ PLATE
M10X45 FLANGE 		0-28151-045-0 01 1 0601- ●
111 STUD; FAN DRIVE
EXC. FLUID DRIVE FAN<KA3> M6X12 L=21 		9-04110-612-0 04 1 9606-9810 ●
111 STUD; FAN DRIVE
M6X12 L=21 		9-04110-612-0 04 1 9606-9810 ●
170 BRACKET; HEAT PROTECTOR 8-94393-024-0 01 1 9606-9810 ● ●
171 BOLT; HEAT PROTECTOR
M8X14 FLANGE 		0-28080-814-0 02 1 9606-9810 ● ●
171 BOLT; HEAT PROTECTOR
M10X20 FLANGE 		0-28181-020-0 01 1 9606-9810 ● ●
