Isuzu WW
▶
TRUCKS
▶
FRR
▶
11333 - FRR(MIDEAST)6H ENG
▶
3 - Brakes, Brake System
▶
3-22 - AIR CONTROL PARTS
▶

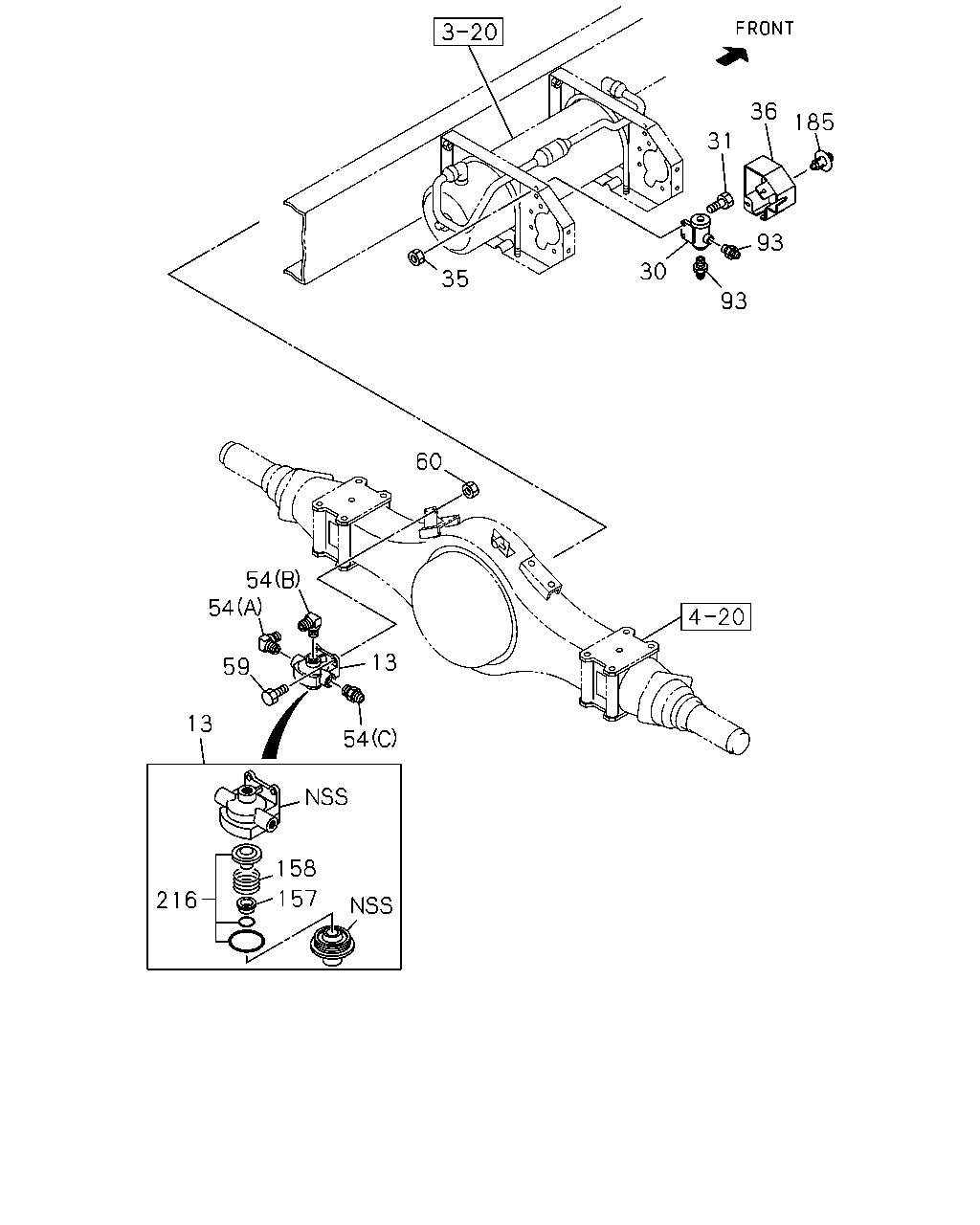

3-22 — AIR CONTROL PARTS
(#59064) — 20 parça
◀
[322A] REPAIR KIT (1 parça)
[322A] VALVE,GOVERNOR (19 parça)
▶
240
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
240
REPAIR KIT; AIR CONT GOV
1-85576-467-0
01
1
0411-
36
185
31
93
30
35
93
60
54
54
13
59
13
54
158
157
216
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
VALVE ASM; QUICK RELEASE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48410-659-0
01
1
0411-
30
GOVERNOR; AIR CONT
1-48350-063-2
01
1
0411-
31
BOLT; GOV TO FRAME
M8X30 FLANGE
0-28680-830-0
02
1
0411-0512
31
BOLT; GOV TO FRAME
M8X30 FLANGE
0-28650-830-0
02
1
0601-
35
NUT; GOV TO FRAME
M8 FLANGE
0-91150-108-0
02
1
0411-0602
35
NUT; GOV TO FRAME
M8 FLANGE
0-91180-108-0
02
1
0603-
36
COVER; GOV
1-48359-043-3
01
1
0411-
54
CONNECTOR; QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M14 & PT3/8 STRAIGHT
1-09650-085-1
01
1
0411-
54
CONNECTOR; QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14 & PT3/8 ELBOW
1-09650-437-0
01
1
0411-
54
CONNECTOR; QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20 & PT3/8 ELBOW
1-09660-684-0
01
1
0411-
59
BOLT; RELEASE VALVE FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER
0-50040-820-0
02
1
0411-0906
59
BOLT; RELEASE VALVE FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER
0-50540-820-0
02
1
0907-
60
NUT; RELEASE VALVE FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8
9-09110-408-0
02
1
0411-0512
60
NUT; RELEASE VALVE FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8
0-91110-508-0
02
1
0601-
93
CONNECTOR; GOV
M12 & PT1/4 STRAIGHT
1-09650-074-1
02
1
0411-
157
RETAINER; VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48419-020-0
01
1
0411-
158
SPRING; VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
9-48419-003-0
01
1
0411-
185
FASTENER; COVER
1-09470-006-0
02
1
0411-
216
REPAIR KIT; QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-85576-235-0
01
1
0411-
