3-20 — AIR TANK (#59063) — 103 parça

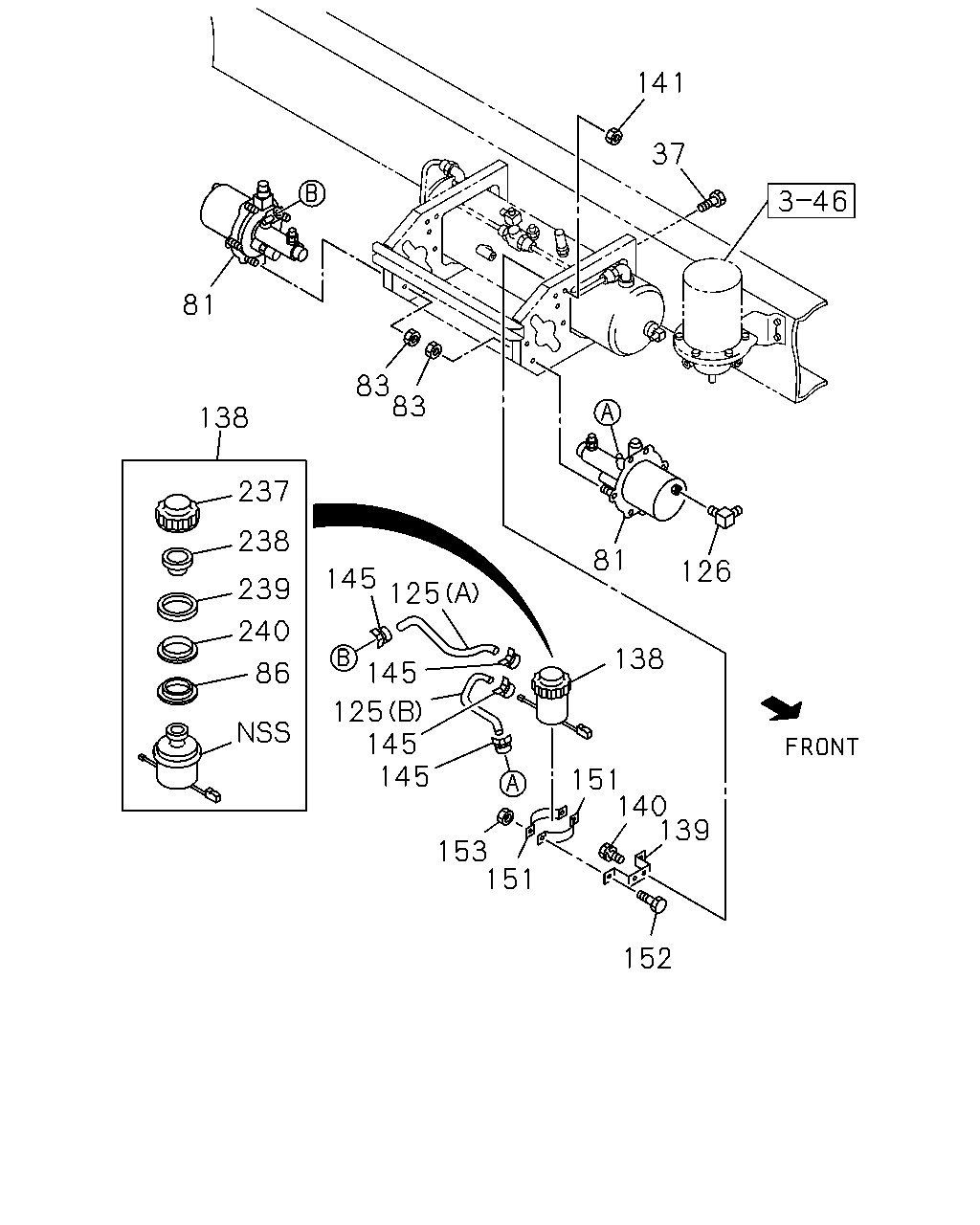

çizim 172496
141 37 81 83 83 138 237 238 81 126 145 239 125 240 138 145 86 12 145 145 151 140 139 153 151 152
BalonParca AdiParca NoAdetTipApplied Date
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(A) 		1-47497-008-0 01 1 0411-
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(B) 		1-47497-009-0 01 1 0411-
37 BOLT; AIR TANK
M10X35 FLANGE 		0-28681-035-0 04 1 0411-0512
37 BOLT; AIR TANK
M10X35 FLANGE 		0-28651-035-0 04 1 0601-
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. 		1-47800-789-0 02 1 0411-0901
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. 		1-47800-827-0 02 1 0902-
83 NUT; AIR MASTER
M8 FLANGE 		0-91150-108-0 08 1 0411-0602
83 NUT; AIR MASTER
M8 FLANGE 		0-91180-108-0 08 1 0603-
86 SEAL; DUST 1-47529-019-0 01 1 0411-
125 HOSE; OIL TANK TO AIR MASTER
(A) L=240 SERVICED BY L=1800 		1-09360-320-0 01 1 0411-
125 HOSE; OIL TANK TO AIR MASTER
(B) L=335 		1-47469-045-0 01 1 0411-
126 CONNECTOR; ELBOW
M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 0411-
138 TANK ASM; OIL,AIR MASTER 1-47530-185-1 01 1 0411-
139 BRACKET; OIL TANK 1-47537-123-1 01 1 0411-
140 BOLT; OIL TANK TO BRKT
M10X20 FLANGE 		0-28681-020-0 02 1 0411-0512
140 BOLT; OIL TANK TO BRKT
M10X20 FLANGE 		0-28651-020-0 02 1 0601-
141 NUT; OIL TANK TO BRKT
M10 FLANGE 		0-91150-210-0 02 1 0411-0602
141 NUT; OIL TANK TO BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603-
145 CLIP; OIL TANK TO AIR MASTER HOSE
ID=14 		1-09704-102-0 04 1 0411-
151 BAND; OIL TANK,AIR MASTER 1-47537-056-2 02 1 0411-
152 BOLT; OIL TANK TO BAND
M8X20 FLANGE 		0-28680-820-0 02 1 0411-0512
152 BOLT; OIL TANK TO BAND
M8X20 FLANGE 		0-28650-820-0 02 1 0601-
153 NUT; OIL TANK TO BAND
M8 FLANGE 		0-91150-108-0 02 1 0411-0602
153 NUT; OIL TANK TO BAND
M8 FLANGE 		0-91180-108-0 02 1 0603-
237 CAP; OIL TANK 1-47525-030-0 01 1 0411-
238 PLATE; BAFFLE 1-47529-022-0 01 1 0411-
239 FILTER; DUST 1-47529-017-0 01 1 0411-
240 HOLDER; FILTER 1-47529-018-0 01 1 0411-

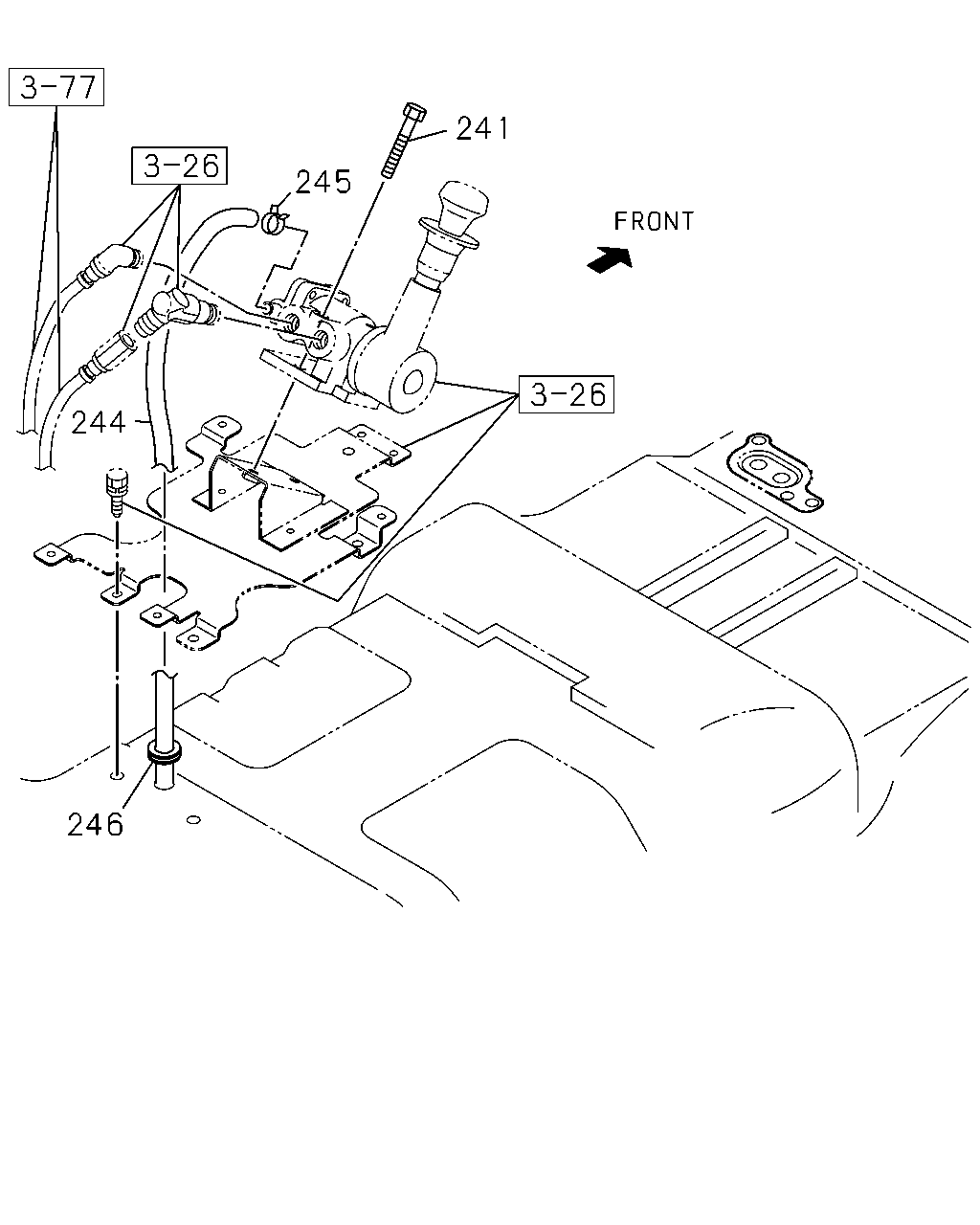

çizim 172501
241 245 244 246
BalonParca AdiParca NoAdetTipApplied Date
241 BOLT; SET,CONT VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X70 FLANGE 		0-28080-870-0 02 1 0411-0512
241 BOLT; SET,CONT VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X70 FLANGE 		0-28050-870-0 02 1 0601-
244 PIPE; VINYL,EXH
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350 SERVICED BY L=10000 		9-09914-701-0 01 1 0411-
245 CLIP; VINYL PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14 		8-94238-572-0 01 1 0411-
246 GROMMET; VINYL PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=24 		9-61166-007-0 01 1 0411-
246 GROMMET; VINYL PIPE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=35 		8-94122-971-0 01 1 0411-

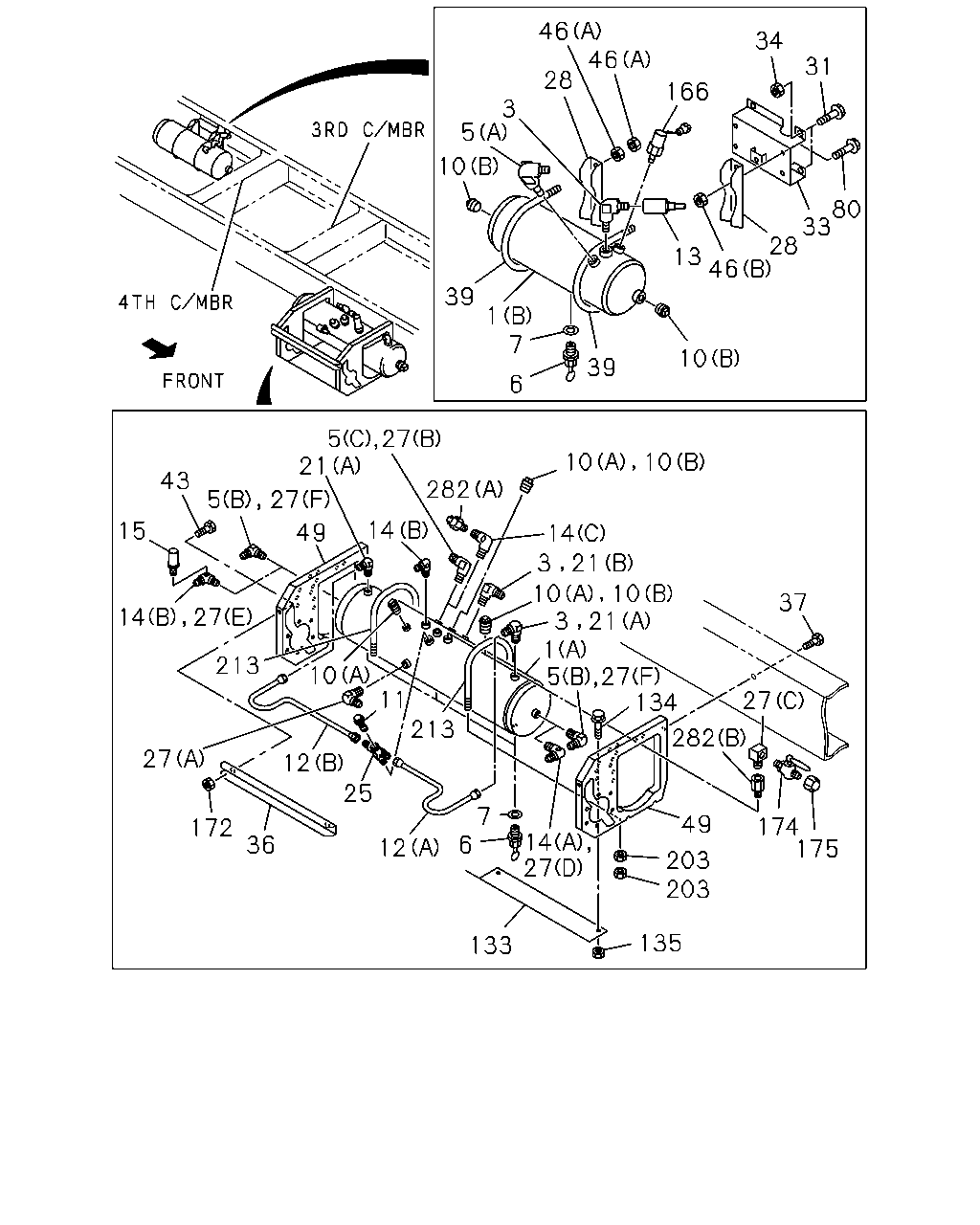

çizim 172507
46 46 34 31 28 166 3 5 10 80 33 28 13 46 39 1 7 10 39 6 21 10 10 43 282 14 15 49 14 21 10 10 10 21 1 134 37 213 27 11 213 282 14 27 27 12 25 7 6 49 174 175 172 36 12 203 203 135 133 27 5 27 5 27 14 3 3 5 27
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
(A) 		1-48330-686-1 01 1 0411-
1 TANK ASM; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-48370-719-0 01 1 0411-
3 VALVE; CHECK,AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20 & PT3/4 ELBOW 		1-48410-412-0 01 1 0411-
5 UNION; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0411-
5 UNION; AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4> (B) M16 & PT1/4 ELBOW 		1-09650-434-0 02 1 0411-0607
5 UNION; AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4> (B) M16 & PT1/4 ELBOW 		0-92134-310-0 02 1 0608-
5 UNION; AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TIREINFLATOR DEVICE<SG4> (C) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 0411-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 03 1 0411-
6 COCK; DRAIN,AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48312-015-0 01 1 0411-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 0411-
7 GASKET; DRAIN COCK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14 		1-09630-145-0 01 1 0411-
10 PLUG; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT3/8 		9-09204-517-0 03 1 0411-
10 PLUG; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT1/4 		9-99204-513-0 02 1 0411-
10 PLUG; AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT1/4 		9-99204-513-0 01 1 0411-
10 PLUG; AIR TANK
EXC. TIRE INFLATOR DEVICE<SG4> (B) PT3/8 		9-09204-517-0 01 1 0411-
11 VALVE; SAFETY,AIR TANK 1-48320-012-2 01 1 0411-
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(A) 		1-47497-008-0 01 1 0411-
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
(B) 		1-47497-009-0 01 1 0411-
13 ADAPTER; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 0411-
14 UNION; 3 WAY,AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M16 & PT1/4 & PT3/8 3WAY 		1-09656-677-0 01 1 0411-
14 UNION; 3 WAY,AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TIRE INFLATOR DEVICE<SG4> (A) M16 & PT1/4X2 3WAY 		1-09656-668-0 01 1 0411-
14 UNION; 3 WAY,AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TIRE INFLATOR DEVICE<SG4> (B) M16 & PT1/4X2 3WAY 		1-09656-669-0 01 1 0411-
15 SWITCH; LOW PRESS,AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 530KPA 		1-48340-054-1 02 1 0411-
15 SWITCH; LOW PRESS,AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 530KPA 		1-48340-054-1 01 1 0411-
21 VALVE; CHECK,AIR TANK
AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW 		1-48410-412-0 03 1 0411-
21 VALVE; CHECK,AIR TANK
EXC. AIR DRYER<PS7> (B) M22 & PT3/4 ELBOW 		1-48410-134-3 01 1 0411-
21 VALVE; CHECK,AIR TANK
EXC. AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW 		1-48410-412-0 02 1 0411-
25 UNION; 4 WAY 1-09656-699-0 01 1 0411-
27 UNION; ELBOW,AIR TANK
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0411-
27 UNION; ELBOW,AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TIRE INFLATOR DEVICE<SG4> (D) M16 & PT1/4X2 3WAY 		1-09656-668-0 01 1 0411-
27 UNION; ELBOW,AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TIRE INFLATOR DEVICE<SG4> (E) M16 & PT1/4X2 3WAY 		1-09656-669-0 01 1 0411-
27 UNION; ELBOW,AIR TANK
TIRE INFLATOR DEVICE<SG4> (C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0411-
27 UNION; ELBOW,AIR TANK
TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) M16 & PT1/4 ELBOW 		1-09650-434-0 02 1 0411-0607
27 UNION; ELBOW,AIR TANK
TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) M16 & PT1/4 ELBOW 		0-92134-310-0 02 1 0608-
27 UNION; ELBOW,AIR TANK
TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 0411-
28 BRACKET; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48317-430-0 02 1 0411-
31 BOLT; BRKT TO FRAME
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X35 FLANGE 		0-28681-035-0 04 1 0411-0512
31 BOLT; BRKT TO FRAME
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X35 FLANGE 		0-28651-035-0 04 1 0601-
33 BRACKET; BRKT,AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48317-431-2 01 1 0411-
34 NUT; BRKT,AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE 		0-91150-210-0 02 1 0411-0602
34 NUT; BRKT,AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE 		0-91180-210-0 02 1 0603-
36 STAY; MAIN TANK 1-48317-307-2 01 1 0411-
37 BOLT; AIR TANK
M10X35 FLANGE 		0-28681-035-0 04 1 0411-0512
37 BOLT; AIR TANK
M10X35 FLANGE 		0-28651-035-0 04 1 0601-
39 U-BOLT; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250 		1-48317-308-0 02 1 0411-
43 BOLT; STAY,AIR TANK,MAIN
M8X20 FLANGE 		0-28680-820-0 02 1 0411-0512
43 BOLT; STAY,AIR TANK,MAIN
M8X20 FLANGE 		0-28650-820-0 02 1 0601-
46 NUT; U-BOLT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10 FLANGE 		0-91150-210-0 04 1 0411-0602
46 NUT; U-BOLT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10 FLANGE 		0-91180-210-0 04 1 0603-
46 NUT; U-BOLT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 		9-09110-408-0 08 1 0411-0512
46 NUT; U-BOLT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 		0-91110-508-0 08 1 0601-
49 BRACKET; AIR TANK 1-48317-709-4 02 1 0411-
80 BOLT; BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X25 FLANGE 		0-28681-025-0 04 1 0411-0512
80 BOLT; BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X25 FLANGE 		0-28651-025-0 04 1 0601-
133 COVER; AIR MASTER 1-48317-641-1 01 1 0411-
134 BOLT; COVER FIX
M8X20 FLANGE 		0-28680-820-0 04 1 0411-0512
134 BOLT; COVER FIX
M8X20 FLANGE 		0-28650-820-0 04 1 0601-
135 NUT; COVER
M8 FLANGE 		0-91150-108-0 04 1 0411-0602
135 NUT; COVER
M8 FLANGE 		0-91180-108-0 04 1 0603-
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 530KPA 		1-48340-054-1 01 1 0411-
172 NUT; STAY,AIR TANK,MAIN
M8 FLANGE 		0-91150-108-0 02 1 0411-0602
172 NUT; STAY,AIR TANK,MAIN
M8 FLANGE 		0-91180-108-0 02 1 0603-
174 COCK; AIR,INFLATOR
TIRE INFLATOR DEVICE<SG4> 		1-09680-099-0 01 1 0411-
175 CAP; AIR COCK
TIRE INFLATOR DEVICE<SG4> 		9-48319-102-0 01 1 0411-
203 NUT
M8 		9-09110-408-0 08 1 0411-0512
203 NUT
M8 		0-91110-508-0 08 1 0601-
213 BOLT; U AIR TANK
L=250 		1-48317-308-0 02 1 0411-
282 UNION; 2 WAY
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0411-
282 UNION; 2 WAY
TIRE INFLATOR DEVICE<SG4> (B) PT3/8 		1-48319-058-0 01 1 0411-
