Sayfa 0-32 - Isuzu EPC

0-32 — WATER PIPING; ENGINE (#5906) — 188 parça

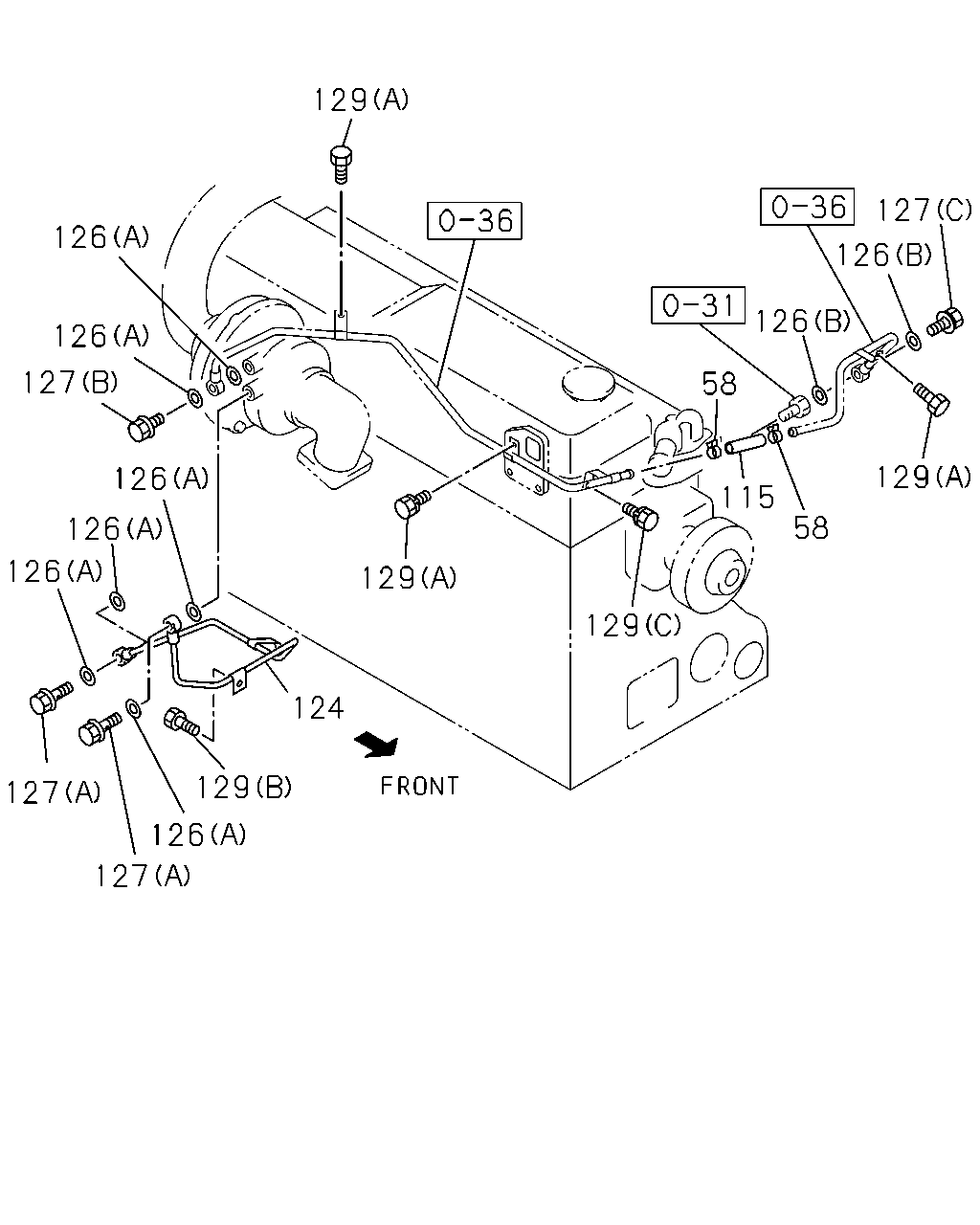

129 127 126 126 126 126 127 58 129 126 115 58 126 126 129 129 124 129 127 126 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
58	CLIP; RUBBER HOSE ID=16	8-94392-924-0	02	1	9811-9902	●
58	CLIP; RUBBER HOSE ID=16	8-94392-924-0	02	1	9903-0203	●	●
58	CLIP; RUBBER HOSE ID=16	8-94392-924-0	02	1	0204-		●
115	HOSE; RUBBER L=60 SERVICED BY L=3000	0-03711-300-0	01	1	9811-9902	●
115	HOSE; RUBBER L=60 SERVICED BY L=3000	0-03711-300-0	01	1	9903-0203	●	●
115	HOSE; RUBBER L=60 SERVICED BY L=3000	0-03711-300-0	01	1	0204-0206		●
115	HOSE; RUBBER L=60 SERVICED BY L=3000	0-03561-300-0	01	1	0207-		●
124	PIPE; WATER,C/BL TO THERMOSTAT HSG	8-94394-534-1	01	1	9811-0203	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	9811-0203	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	02	1	9811-0203	●
127	BOLT; EYE (A) M14X31	1-09675-191-0	02	1	9811-0203	●
127	BOLT; EYE (B) M14X27 FLANGE	1-09675-192-0	01	1	9811-0203	●
127	BOLT; EYE (C) M16X25	5-09675-028-2	01	1	9811-0203	●
129	BOLT; WATER PIPE TO BRKT (B) M8X12 FLANGE	0-28080-812-0	01	1	9811-0203	●
129	BOLT; WATER PIPE TO BRKT (A) M8X16 FLANGE	0-28080-816-0	03	1	9811-0203	●
129	BOLT; WATER PIPE TO BRKT (C) M12X20 W/LK WASHER	0-50051-220-0	01	1	9811-9902	●
129	BOLT; WATER PIPE TO BRKT (D) M8X16 FLANGE	0-28080-816-0	04	1	9903-0512		●
129	BOLT; WATER PIPE TO BRKT (D) M8X16 FLANGE	0-28050-816-0	04	1	0601-		●
129	BOLT; WATER PIPE TO BRKT (C) M12X20 W/LK WASHER	0-50051-220-0	01	1	9903-0203	●	●
129	BOLT; WATER PIPE TO BRKT (C) M12X20 W/LK WASHER	0-50051-220-0	01	1	0204-		●

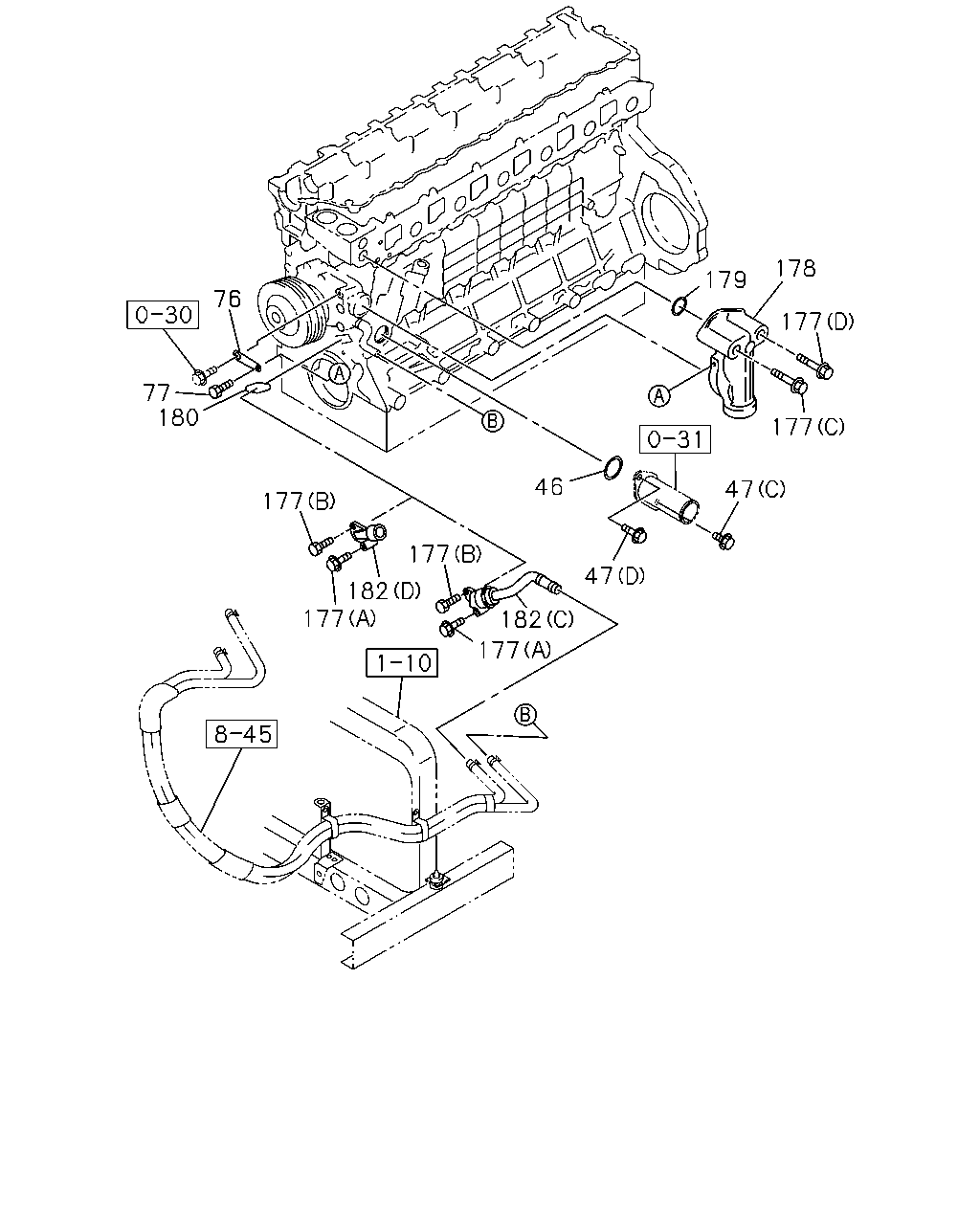

178 179 76 177 77 180 177 46 47 177 177 47 182 177 182 177

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
46	GASKET; WATER DUCT,TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3	8-94396-680-2	01	1	9606-9810			●	●
46	GASKET; WATER DUCT,TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3	8-94396-680-2	01	1	9811-9902	●
46	GASKET; WATER DUCT,TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3	8-94396-680-2	01	1	9903-0203	●	●
46	GASKET; WATER DUCT,TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3	8-94396-680-2	01	1	0204-		●
47	BOLT; DUCT,TO OIL COOLER (A) M8X18 FLANGE	0-28080-818-0	01	1	9606-9810			●	●
47	BOLT; DUCT,TO OIL COOLER (C) M8X25 FLANGE	0-28680-825-0	01	1	9811-9902	●
47	BOLT; DUCT,TO OIL COOLER (C) M8X25 FLANGE	0-28680-825-0	01	1	9903-0203	●	●
47	BOLT; DUCT,TO OIL COOLER (C) M8X25 FLANGE	0-28680-825-0	01	1	0204-0512		●
47	BOLT; DUCT,TO OIL COOLER (C) M8X25 FLANGE	0-28650-825-0	01	1	0601-		●
47	BOLT; DUCT,TO OIL COOLER (B) M8X40 FLANGE	0-28080-840-0	01	1	9606-9810			●	●
47	BOLT; DUCT,TO OIL COOLER (D) M8X45 FLANGE	0-28080-845-0	01	1	9811-9902	●
47	BOLT; DUCT,TO OIL COOLER (D) M8X45 FLANGE	0-28080-845-0	01	1	9903-0203	●	●
47	BOLT; DUCT,TO OIL COOLER (D) M8X45 FLANGE	0-28080-845-0	01	1	0204-0512		●
47	BOLT; DUCT,TO OIL COOLER (D) M8X45 FLANGE	0-28050-845-0	01	1	0601-		●
76	BRACKET; WATER DUCT,PUMP	8-94394-784-0	01	1	9606-9810			●	●
76	BRACKET; WATER DUCT,PUMP	8-94394-784-0	01	1	9811-9902	●
76	BRACKET; WATER DUCT,PUMP	8-94394-784-0	01	1	9903-0203	●	●
76	BRACKET; WATER DUCT,PUMP	8-94394-784-0	01	1	0204-		●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28080-850-0	01	1	9606-9810			●	●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28080-850-0	01	1	9811-9902	●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28080-850-0	01	1	9903-9906	●	●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28080-850-0	01	1	9907-0203	●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28080-850-0	02	1	9907-0512		●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28050-850-0	02	1	0601-		●
177	BOLT; WATER DUCT (B) M8X22 FLANGE	0-28080-822-0	01	1	9606-9709			●	●
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28680-825-0	01	1	9710-9810			●	●
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28680-825-0	01	1	9811-9902	●
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28680-825-0	01	1	9903-0203	●	●
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28680-825-0	01	1	0204-0512		●
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-		●
177	BOLT; WATER DUCT (A) M8X65 FLANGE	1-09044-072-1	01	1	9606-9810			●	●
177	BOLT; WATER DUCT (A) M8X65 FLANGE	1-09044-072-1	01	1	9811-9902	●
177	BOLT; WATER DUCT (A) M8X65 FLANGE	1-09044-072-1	01	1	9903-0203	●	●
177	BOLT; WATER DUCT (A) M8X65 FLANGE	1-09044-072-1	01	1	0204-		●
177	BOLT; WATER DUCT (C) M8X79 FLANGE	8-94311-617-1	01	1	9606-9611			●	●
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28080-880-0	01	1	9612-9810			●	●
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28080-880-0	01	1	9811-9902	●
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28080-880-0	01	1	9903-0203	●	●
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28080-880-0	01	1	0204-0512		●
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28050-880-0	01	1	0601-		●
177	BOLT; WATER DUCT (D) M16X75 FLANGE	8-94397-360-0	01	1	9606-9810			●	●
177	BOLT; WATER DUCT (D) M16X75 FLANGE	8-94397-360-1	01	1	9811-9902	●
177	BOLT; WATER DUCT (D) M16X75 FLANGE	8-94397-360-1	01	1	9903-0203	●	●
177	BOLT; WATER DUCT (D) M16X75 FLANGE	8-94397-360-1	01	1	0204-		●
178	DUCT; WATER,BYPASS	8-94396-627-2	01	1	9606-9810			●	●
178	DUCT; WATER,BYPASS	8-94396-627-2	01	1	9811-9902	●
178	DUCT; WATER,BYPASS	8-94396-627-2	01	1	9903-0203	●	●
178	DUCT; WATER,BYPASS	8-94396-627-2	01	1	0204-		●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-94396-679-0	01	1	9606-9810			●	●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-94396-679-0	01	1	9811-9902	●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-94396-679-0	01	1	9903-0203	●	●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-94396-679-0	01	1	0204-		●
180	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94396-720-1	01	1	9606-9810			●	●
180	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94396-720-1	01	1	9811-9902	●
180	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94396-720-1	01	1	9903-0203	●	●
180	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94396-720-1	01	1	0204-		●
182	DUCT; WATER,HTR HEATER & DEFROSTER<C41> (A)	8-94396-724-4	01	1	9606-9810			●	●
182	DUCT; WATER,HTR EXC. HEATER & DEFROSTER<C41> (B)	8-94390-283-0	01	1	9606-9810			●	●
182	DUCT; WATER,HTR (C)	8-94394-348-5	01	1	9811-9811	●
182	DUCT; WATER,HTR (D)	8-94390-283-0	01	1	9812-0011	●
182	DUCT; WATER,HTR EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> (D)	8-94390-283-0	01	1	0012-0106	●	●
182	DUCT; WATER,HTR (D)	8-94390-283-0	01	1	0107-0203	●	●
182	DUCT; WATER,HTR (D)	8-94390-283-0	01	1	0204-		●
182	DUCT; WATER,HTR (C)	8-94394-348-5	01	1	9903-9905		●
182	DUCT; WATER,HTR EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> (C)	8-94394-348-5	01	1	9906-0011		●
182	DUCT; WATER,HTR SPEED LIMITER CABLE STROKE CONTROL<TDT> (C)	8-97600-236-1	01	1	9906-0011		●

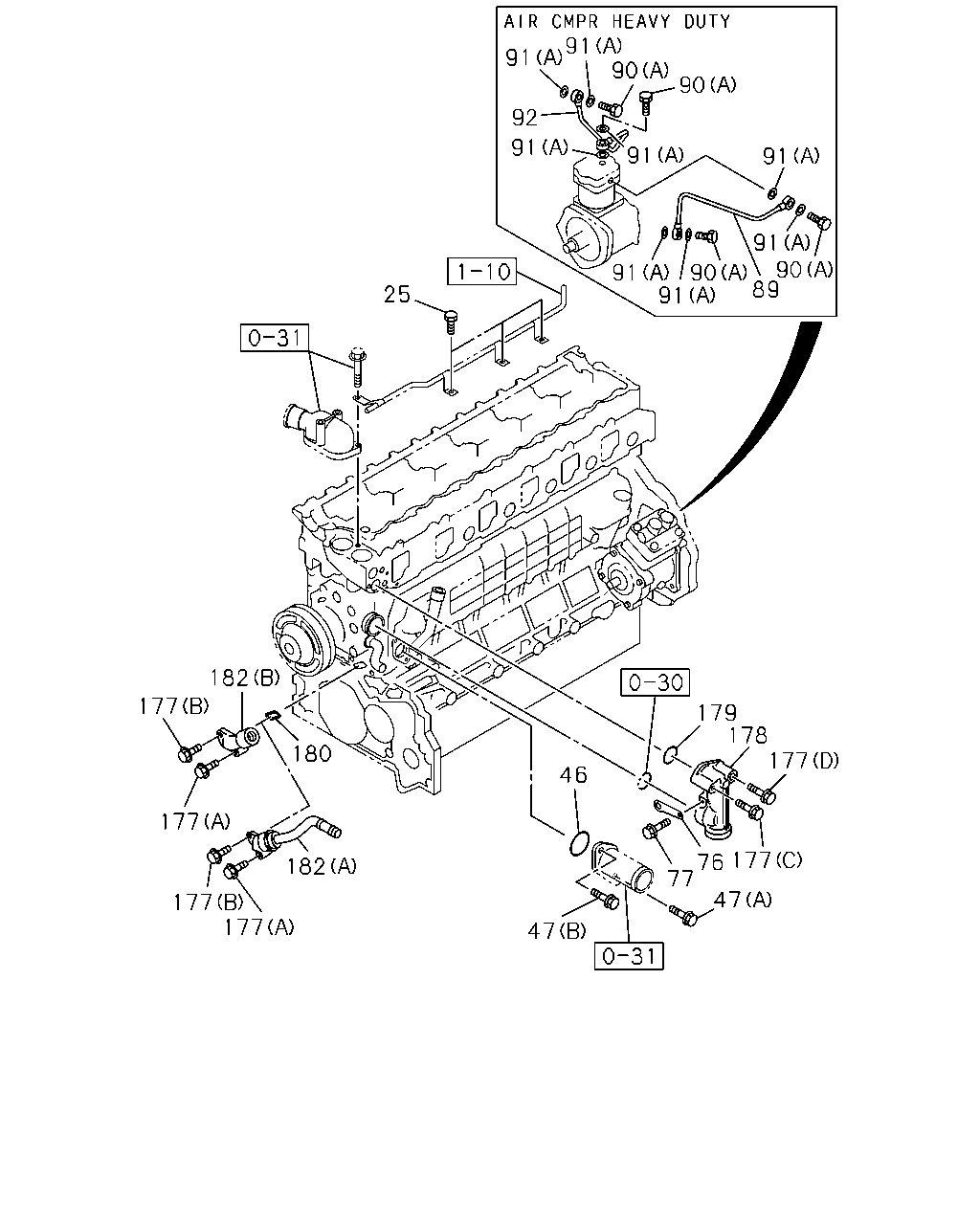

91 90 91 90 92 91 91 91 91 90 89 91 25 182 177 179 178 177 180 46 177 177 76 77 182 47 177 177 47 90 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
25	BOLT; WATER PIPE M8X12 FLANGE	0-28080-812-0	03	1	9606-9810			●	●
46	GASKET; WATER DUCT,TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3	8-94396-680-2	01	1	9606-9810			●	●
46	GASKET; WATER DUCT,TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3	8-94396-680-2	01	1	9811-9902	●
46	GASKET; WATER DUCT,TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3	8-94396-680-2	01	1	9903-0203	●	●
46	GASKET; WATER DUCT,TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3	8-94396-680-2	01	1	0204-		●
47	BOLT; DUCT,TO OIL COOLER (A) M8X18 FLANGE	0-28080-818-0	01	1	9606-9810			●	●
47	BOLT; DUCT,TO OIL COOLER (C) M8X25 FLANGE	0-28680-825-0	01	1	9811-9902	●
47	BOLT; DUCT,TO OIL COOLER (C) M8X25 FLANGE	0-28680-825-0	01	1	9903-0203	●	●
47	BOLT; DUCT,TO OIL COOLER (C) M8X25 FLANGE	0-28680-825-0	01	1	0204-0512		●
47	BOLT; DUCT,TO OIL COOLER (C) M8X25 FLANGE	0-28650-825-0	01	1	0601-		●
47	BOLT; DUCT,TO OIL COOLER (B) M8X40 FLANGE	0-28080-840-0	01	1	9606-9810			●	●
47	BOLT; DUCT,TO OIL COOLER (D) M8X45 FLANGE	0-28080-845-0	01	1	9811-9902	●
47	BOLT; DUCT,TO OIL COOLER (D) M8X45 FLANGE	0-28080-845-0	01	1	9903-0203	●	●
47	BOLT; DUCT,TO OIL COOLER (D) M8X45 FLANGE	0-28080-845-0	01	1	0204-0512		●
47	BOLT; DUCT,TO OIL COOLER (D) M8X45 FLANGE	0-28050-845-0	01	1	0601-		●
76	BRACKET; WATER DUCT,PUMP	8-94394-784-0	01	1	9606-9810			●	●
76	BRACKET; WATER DUCT,PUMP	8-94394-784-0	01	1	9811-9902	●
76	BRACKET; WATER DUCT,PUMP	8-94394-784-0	01	1	9903-0203	●	●
76	BRACKET; WATER DUCT,PUMP	8-94394-784-0	01	1	0204-		●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28080-850-0	01	1	9606-9810			●	●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28080-850-0	01	1	9811-9902	●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28080-850-0	01	1	9903-9906	●	●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28080-850-0	01	1	9907-0203	●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28080-850-0	02	1	9907-0512		●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28050-850-0	02	1	0601-		●
89	PIPE; WATER,AIR CMPR,IN AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94397-035-1	01	1	9606-9810				●
89	PIPE; WATER,AIR CMPR,IN	8-94395-452-2	01	1	9903-		●
90	BOLT; EYE,WATER PIPE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M14X27 EYE-BOLT	1-09675-193-0	04	1	9606-9810				●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	9903-		●
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X25	5-09675-028-2	01	1	9903-		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) (A) ID=14.2 OD=19.2	1-09630-085-0	08	1	9606-9810				●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	9903-		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	9903-		●
92	PIPE; WATER,AIR CMPR,OUT AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94395-742-1	01	1	9606-9810				●
92	PIPE; WATER,AIR CMPR,OUT	8-94390-070-0	01	1	9903-		●
177	BOLT; WATER DUCT (B) M8X22 FLANGE	0-28080-822-0	01	1	9606-9709			●	●
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28680-825-0	01	1	9710-9810			●	●
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28680-825-0	01	1	9811-9902	●
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28680-825-0	01	1	9903-0203	●	●
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28680-825-0	01	1	0204-0512		●
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-		●
177	BOLT; WATER DUCT (A) M8X65 FLANGE	1-09044-072-1	01	1	9606-9810			●	●
177	BOLT; WATER DUCT (A) M8X65 FLANGE	1-09044-072-1	01	1	9811-9902	●
177	BOLT; WATER DUCT (A) M8X65 FLANGE	1-09044-072-1	01	1	9903-0203	●	●
177	BOLT; WATER DUCT (A) M8X65 FLANGE	1-09044-072-1	01	1	0204-		●
177	BOLT; WATER DUCT (C) M8X79 FLANGE	8-94311-617-1	01	1	9606-9611			●	●
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28080-880-0	01	1	9612-9810			●	●
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28080-880-0	01	1	9811-9902	●
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28080-880-0	01	1	9903-0203	●	●
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28080-880-0	01	1	0204-0512		●
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28050-880-0	01	1	0601-		●
177	BOLT; WATER DUCT (D) M16X75 FLANGE	8-94397-360-0	01	1	9606-9810			●	●
177	BOLT; WATER DUCT (D) M16X75 FLANGE	8-94397-360-1	01	1	9811-9902	●
177	BOLT; WATER DUCT (D) M16X75 FLANGE	8-94397-360-1	01	1	9903-0203	●	●
177	BOLT; WATER DUCT (D) M16X75 FLANGE	8-94397-360-1	01	1	0204-		●
178	DUCT; WATER,BYPASS	8-94396-627-2	01	1	9606-9810			●	●
178	DUCT; WATER,BYPASS	8-94396-627-2	01	1	9811-9902	●
178	DUCT; WATER,BYPASS	8-94396-627-2	01	1	9903-0203	●	●
178	DUCT; WATER,BYPASS	8-94396-627-2	01	1	0204-		●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-94396-679-0	01	1	9606-9810			●	●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-94396-679-0	01	1	9811-9902	●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-94396-679-0	01	1	9903-0203	●	●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-94396-679-0	01	1	0204-		●
180	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94396-720-1	01	1	9606-9810			●	●
180	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94396-720-1	01	1	9811-9902	●
180	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94396-720-1	01	1	9903-0203	●	●
180	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94396-720-1	01	1	0204-		●
182	DUCT; WATER,HTR HEATER & DEFROSTER<C41> (A)	8-94396-724-4	01	1	9606-9810			●	●
182	DUCT; WATER,HTR EXC. HEATER & DEFROSTER<C41> (B)	8-94390-283-0	01	1	9606-9810			●	●
182	DUCT; WATER,HTR (C)	8-94394-348-5	01	1	9811-9811	●
182	DUCT; WATER,HTR (D)	8-94390-283-0	01	1	9812-0011	●
182	DUCT; WATER,HTR EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> (D)	8-94390-283-0	01	1	0012-0106	●	●
182	DUCT; WATER,HTR (D)	8-94390-283-0	01	1	0107-0203	●	●
182	DUCT; WATER,HTR (D)	8-94390-283-0	01	1	0204-		●
182	DUCT; WATER,HTR (C)	8-94394-348-5	01	1	9903-9905		●
182	DUCT; WATER,HTR EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> (C)	8-94394-348-5	01	1	9906-0011		●
182	DUCT; WATER,HTR SPEED LIMITER CABLE STROKE CONTROL<TDT> (C)	8-97600-236-1	01	1	9906-0011		●

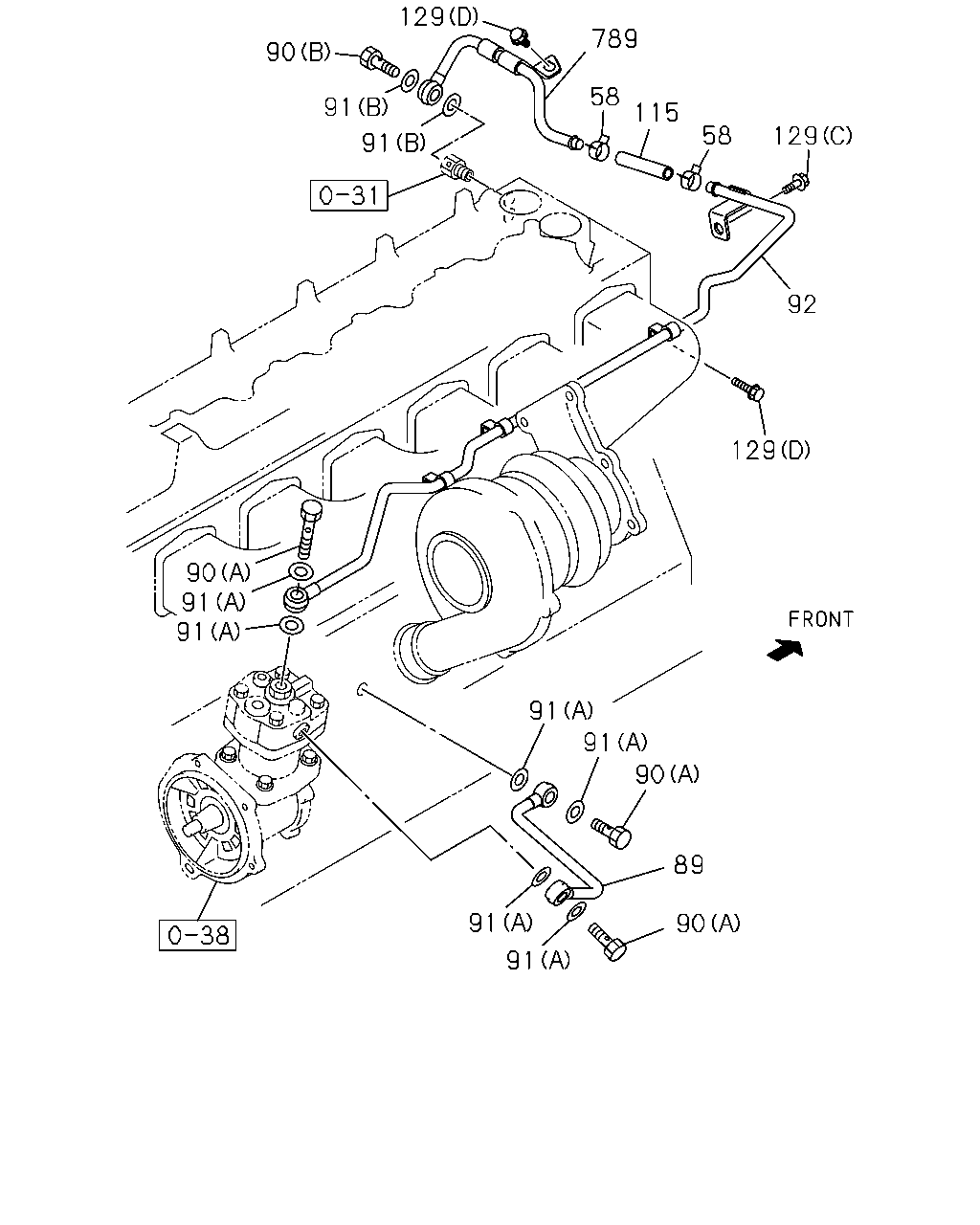

129 789 90 58 91 115 58 129 91 92 129 90 91 91 91 91 90 89 91 90 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	D
58	CLIP; RUBBER HOSE ID=16	8-94392-924-0	02	1	9811-9902	●
58	CLIP; RUBBER HOSE ID=16	8-94392-924-0	02	1	9903-0203	●	●
58	CLIP; RUBBER HOSE ID=16	8-94392-924-0	02	1	0204-		●
89	PIPE; WATER,AIR CMPR,IN AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94397-035-1	01	1	9606-9810			●
89	PIPE; WATER,AIR CMPR,IN	8-94395-452-2	01	1	9903-		●
90	BOLT; EYE,WATER PIPE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M14X27 EYE-BOLT	1-09675-193-0	04	1	9606-9810			●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	9903-		●
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X25	5-09675-028-2	01	1	9903-		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) (A) ID=14.2 OD=19.2	1-09630-085-0	08	1	9606-9810			●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	9903-		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	9903-		●
92	PIPE; WATER,AIR CMPR,OUT AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94395-742-1	01	1	9606-9810			●
92	PIPE; WATER,AIR CMPR,OUT	8-94390-070-0	01	1	9903-		●
115	HOSE; RUBBER L=60 SERVICED BY L=3000	0-03711-300-0	01	1	9811-9902	●
115	HOSE; RUBBER L=60 SERVICED BY L=3000	0-03711-300-0	01	1	9903-0203	●	●
115	HOSE; RUBBER L=60 SERVICED BY L=3000	0-03711-300-0	01	1	0204-0206		●
115	HOSE; RUBBER L=60 SERVICED BY L=3000	0-03561-300-0	01	1	0207-		●
129	BOLT; WATER PIPE TO BRKT (B) M8X12 FLANGE	0-28080-812-0	01	1	9811-0203	●
129	BOLT; WATER PIPE TO BRKT (A) M8X16 FLANGE	0-28080-816-0	03	1	9811-0203	●
129	BOLT; WATER PIPE TO BRKT (C) M12X20 W/LK WASHER	0-50051-220-0	01	1	9811-9902	●
129	BOLT; WATER PIPE TO BRKT (D) M8X16 FLANGE	0-28080-816-0	04	1	9903-0512		●
129	BOLT; WATER PIPE TO BRKT (D) M8X16 FLANGE	0-28050-816-0	04	1	0601-		●
129	BOLT; WATER PIPE TO BRKT (C) M12X20 W/LK WASHER	0-50051-220-0	01	1	9903-0203	●	●
129	BOLT; WATER PIPE TO BRKT (C) M12X20 W/LK WASHER	0-50051-220-0	01	1	0204-		●
789	PIPE; WATER,AIR CMPR TO CYL HD	8-94395-454-4	01	1	9903-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
