1 |

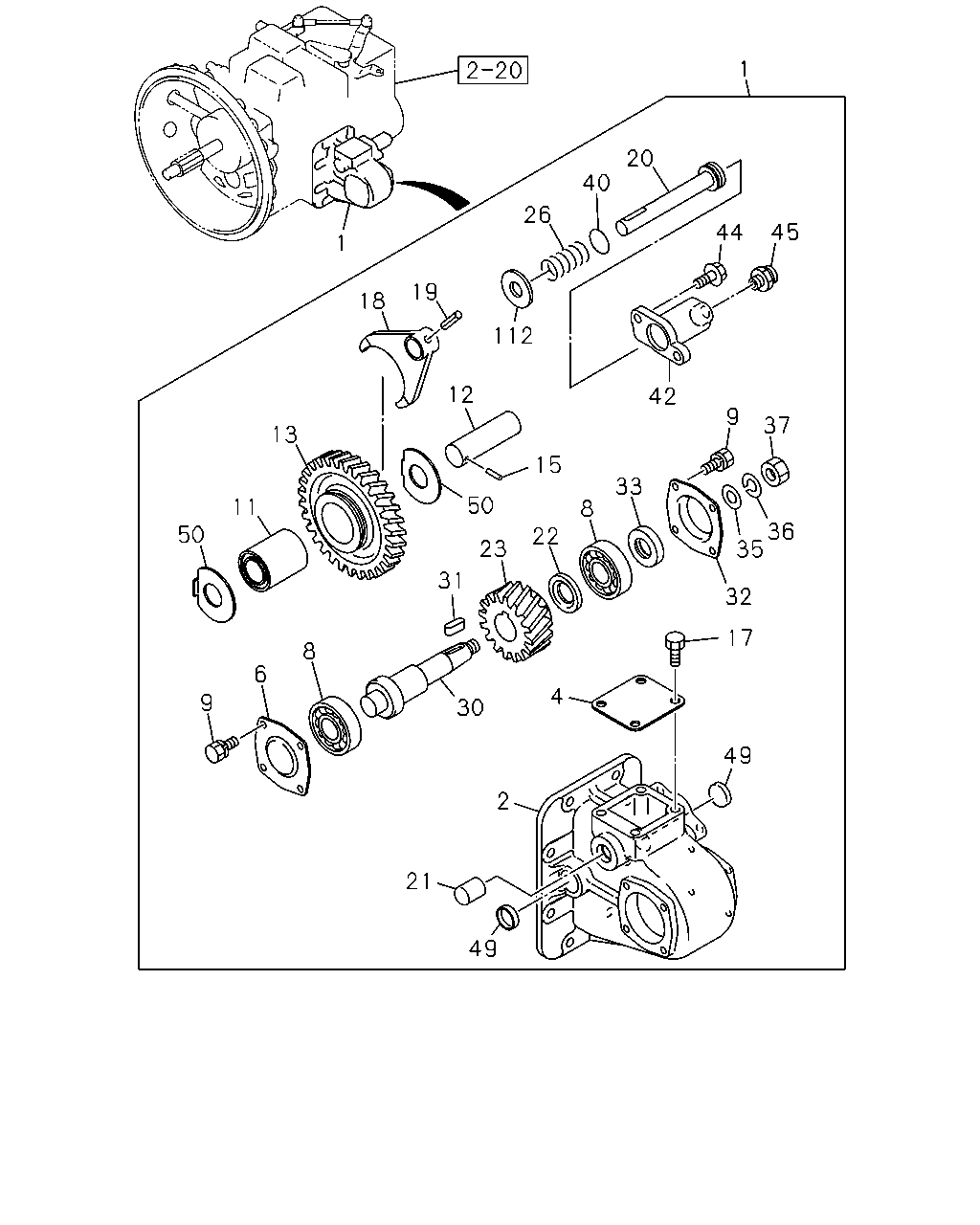

POWER TAKE OFF ASM; TRANS SIDE
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
1-38000-356-2 |
01 |
1 |
0411- |
● |
● |
| |
2 |
CASE; GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
1-38111-102-0 |
01 |
1 |
0411- |
● |
● |
| |
4 |
COVER; UPR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
8-98046-943-0 |
01 |
1 |
0411- |
● |
● |
| |
6 |
COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
8-98046-612-0 |
01 |
1 |
0411- |
● |
● |
| |
8 |
BEARING; OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
8-98149-452-0 |
02 |
1 |
0411- |
● |
● |
| |
9 |
BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT
TRANSMISSION SIDE PTO WO/LEVER(SH5)
M8X16 FLANGE
|
0-28050-816-0 |
08 |
1 |
0411- |
● |
● |
| |
11 |
BEARING; IDLE GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
8-98068-087-0 |
01 |
1 |
0411- |
● |
● |
| |
12 |
SHAFT; IDLE GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
8-98149-740-0 |
01 |
1 |
0411- |
● |
● |
| |
13 |
GEAR; IDLE,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
Z=16
|
8-98149-736-0 |
01 |
1 |
0411- |
● |
● |
| |
15 |
PIN; SPR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
L=16
|
9-09878-613-0 |
01 |
1 |
0411- |
● |
● |
| |
17 |
BOLT; UPR COVER,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
M10X16 FLANGE
|
0-28151-016-0 |
04 |
1 |
0411- |
● |
● |
| |
18 |
ARM; GEAR SHIFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
1-38361-042-0 |
01 |
1 |
0411- |
● |
● |
| |
19 |
PIN; SPR,SHIFT ARM,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
9-09878-614-0 |
01 |
1 |
0411- |
● |
● |
| |
20 |
ROD; GEAR SHIFTER,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
1-38371-062-0 |
01 |
1 |
0411- |
● |
● |
| |
21 |
COVER; SHIFTER ROD,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
8-98046-619-0 |
01 |
1 |
0411- |
● |
● |
| |
22 |
COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
8-98068-086-0 |
01 |
1 |
0411- |
● |
● |
| |
23 |
GEAR; OUTPUT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
Z=19
|
1-38241-120-0 |
01 |
1 |
0411- |
● |
● |
| |
26 |
SPRING; SHIFTER ROD,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
1-38121-004-1 |
01 |
1 |
0411- |
● |
● |
| |
30 |
SHAFT; OUTPUT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
8-97374-129-1 |
01 |
1 |
0411- |
● |
● |
| |
31 |
KEY; OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
L=25
|
8-98068-088-0 |
01 |
1 |
0411- |
● |
● |
| |
32 |
COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
8-98046-610-0 |
01 |
1 |
0411- |
● |
● |
| |
33 |
SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
1-38159-007-0 |
01 |
1 |
0411- |
● |
● |
| |
35 |
WASHER; PL,FLANGE FIX,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
ID=15
|
0-91610-514-0 |
01 |
1 |
0411- |
● |
● |
| |
36 |
WASHER; LK,FLANGE FIX,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
ID=14.2
|
0-91510-814-0 |
01 |
1 |
0411- |
● |
● |
| |
37 |
NUT; FLANGE FIX,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
M14
|
0-91111-514-0 |
01 |
1 |
0411- |
● |
● |
| |
40 |
GASKET; AIR SHIFTER ROD,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
9-09561-324-0 |
01 |
1 |
0411- |
● |
● |
| |
42 |
CYLINDER; AIR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
1-38377-007-0 |
01 |
1 |
0411- |
● |
● |
| |
44 |
BOLT; COVER,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
M10X25 FLANGE
|
0-28151-025-0 |
02 |
1 |
0411- |
● |
● |
| |
45 |
NIPPLE; AIR CYL,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
M12 & PT1/4 STRAIGHT
|
1-09650-074-1 |
01 |
1 |
0411- |
● |
● |
| |
49 |
PLUG; IDLE SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
8-98037-773-0 |
02 |
1 |
0411- |
● |
● |
| |
50 |
WASHER; THRUST,IDLE GEAR,TRANS SIDE PT
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
1-38226-058-1 |
02 |
1 |
0411- |
● |
● |
| |
112 |
COLLAR; SHIFTER ROD,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
1-38226-063-0 |
01 |
1 |
0411- |
● |
● |
