2-30 — GEAR SHIFTER AND QUADRANT BOX (#59052) — 169 parça

382 383

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
382	BRACKET; PARKING BRK CONT CABLE (A)	1-46147-209-3	01	1	0411-	●
382	BRACKET; PARKING BRK CONT CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-46147-187-2	01	1	0411-		●
383	BOLT; BRKT,PARK BRAKE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X16 FLANGE	0-28181-016-0	01	1	0411-0512		●
383	BOLT; BRKT,PARK BRAKE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X16 FLANGE	0-28151-016-0	01	1	0601-		●

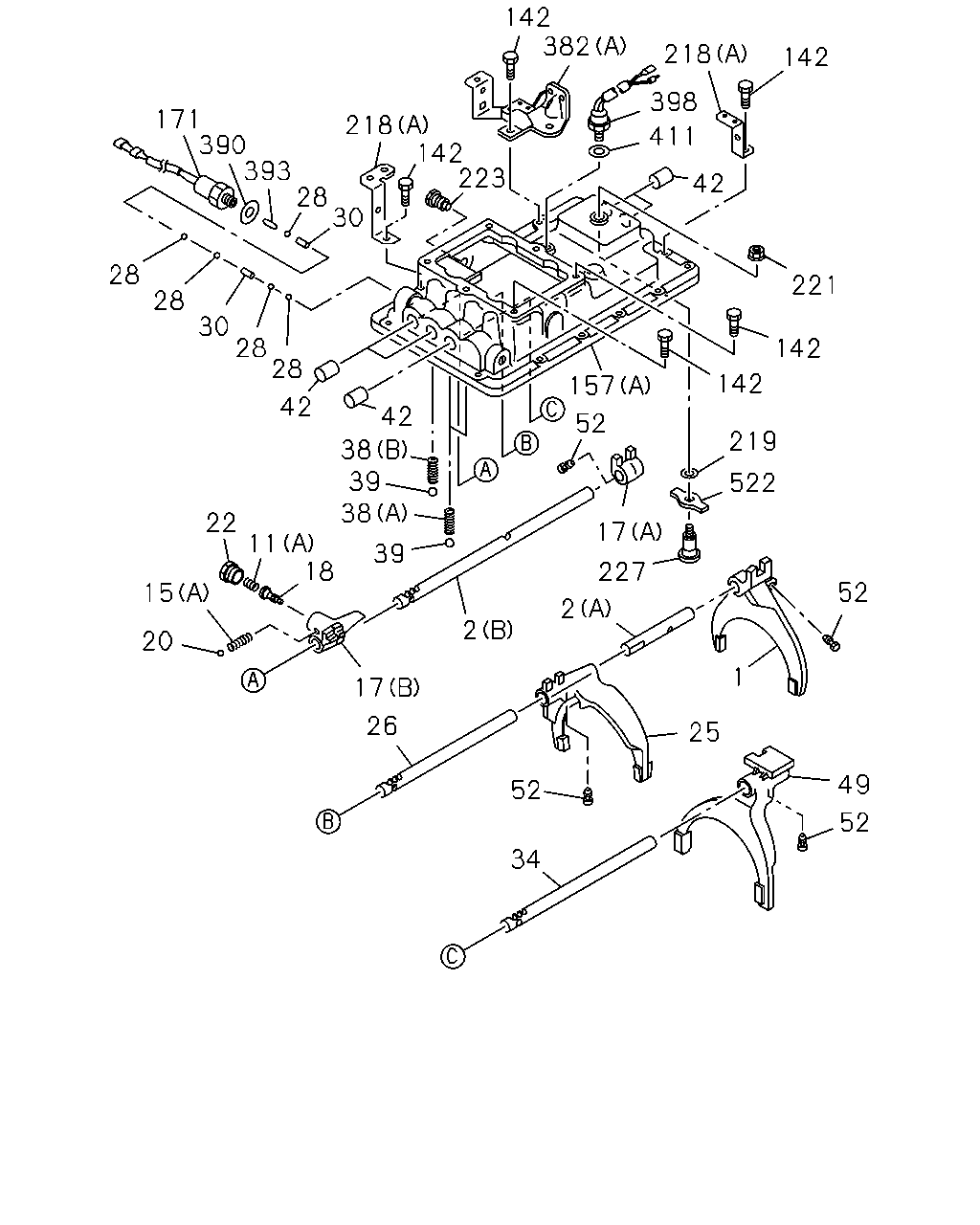

142 382 218 142 398 171 390 393 28 30 218 142 223 411 42 28 221 28 30 28 28 142 142 157 42 42 52 219 38 39 38 522 22 17 11 18 39 227 52 15 2 2 20 1 17 26 25 49 52 52 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ARM; SHIFT,1ST & REV	1-33511-502-1	01	1	0411-	●	●
2	ROD; SHIFT,1ST & REV (B)	1-33531-360-1	01	1	0411-	●	●
2	ROD; SHIFT,1ST & REV (A)	1-33531-361-1	01	1	0411-	●	●
11	SPRING; RETURN,SHIFT SLEEVE (A)	1-09580-444-0	01	1	0411-	●	●
11	SPRING; RETURN,SHIFT SLEEVE (B)	9-09941-160-0	01	1	0411-		●
15	SPRING; LK,SHIFT SLEEVE (A)	1-09580-445-0	01	1	0411-	●	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-526-0	01	1	0411-		●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-387-2	01	1	0411-	●	●
17	BLOCK; SHIFT,1ST & REV (A)	1-33511-432-1	01	1	0411-	●	●
18	SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-029-0	01	1	0411-	●	●
20	BALL; DETENT SLEEVE	9-00097-009-0	01	1	0411-	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0411-	●	●
25	ARM; SHIFT,2ND & 3RD	1-33511-580-1	01	1	0411-	●	●
26	ROD; SHIFT,2ND & 3RD	1-33531-384-0	01	1	0411-	●	●
28	BALL; INTER LK	9-00097-010-0	05	1	0411-	●
28	BALL; INTER LK	9-00097-010-0	07	1	0411-		●
30	PIN; INTER LK	1-33534-002-0	02	1	0411-	●
30	PIN; INTER LK	1-33534-002-0	03	1	0411-		●
34	ROD; SHIFT,4TH & 5TH ARM	1-33531-385-0	01	1	0411-	●	●
38	SPRING; DETENT (A)	1-09580-548-0	02	1	0411-	●
38	SPRING; DETENT (B)	1-09580-374-0	01	1	0411-	●	●
38	SPRING; DETENT (A)	1-09580-548-0	03	1	0411-		●
39	BALL; DETENT	9-00097-013-0	03	1	0411-	●
39	BALL; DETENT	9-00097-013-0	04	1	0411-		●
42	CAP; QUAD BOX OD=20	1-33545-002-1	07	1	0411-	●
42	CAP; QUAD BOX OD=20	1-33545-002-1	08	1	0411-		●
49	ARM; SHIFT,4TH & 5TH	1-33511-582-0	01	1	0411-	●
49	ARM; SHIFT,4TH & 5TH	1-33511-581-1	01	1	0411-		●
52	BOLT; SHIFT ARM	1-09052-034-2	05	1	0411-	●
52	BOLT; SHIFT ARM	1-09052-034-2	07	1	0411-		●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	10	1	0411-0805	●
142	BOLT; QUAD BOX M10X28 FLANGE	8-98044-944-0	10	1	0806-	●
142	BOLT; QUAD BOX M10X32 FLANGE	0-28181-032-0	02	1	0411-	●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	03	1	0411-0805	●	●
142	BOLT; QUAD BOX M10X28 FLANGE	8-98044-944-0	03	1	0806-	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-1	02	1	0411-0805	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-	●	●
142	BOLT; QUAD BOX M10X20,M10X26 L=56	1-09049-014-1	01	1	0411-0805	●	●
142	BOLT; QUAD BOX M10X20,M10X26 L=56	8-98010-334-0	01	1	0806-	●	●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	12	1	0411-0805		●
142	BOLT; QUAD BOX M10X28 FLANGE	8-98044-944-0	12	1	0806-		●
157	BOX; QUAD,TRANS (A)	1-33541-514-0	01	1	0411-	●
157	BOX; QUAD,TRANS (B)	1-33541-472-0	01	1	0411-	●	●
157	BOX; QUAD,TRANS (A)	1-33541-512-0	01	1	0411-		●
171	SWITCH; NEUTRAL	1-82340-534-0	01	1	0411-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	02	1	0411-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-792-2	01	1	0411-		●
219	WASHER; PL,SPINDLE ID=14	9-09851-275-0	01	1	0411-	●	●
221	NUT; SPINDLE M10 FLANGE	0-91150-110-0	01	1	0411-0602	●	●
221	NUT; SPINDLE M10 FLANGE	0-91180-110-0	01	1	0603-	●	●
223	SCREW; SET,QUAD BOX M8X12.5	9-09814-533-0	01	1	0411-	●	●
227	SPINDLE; 1ST & REV	1-33519-130-0	01	1	0411-	●	●
382	BRACKET; PARKING BRK CONT CABLE (A)	1-46147-209-3	01	1	0411-	●
382	BRACKET; PARKING BRK CONT CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-46147-187-2	01	1	0411-		●
390	GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	0411-	●	●
393	PIN; SW	1-33534-003-0	01	1	0411-	●	●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	0411-0602	●	●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0603-1209	●	●
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-	●	●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	0411-	●	●
522	LEVER; SHIFT,1-REV	1-33521-135-0	01	1	0411-	●	●

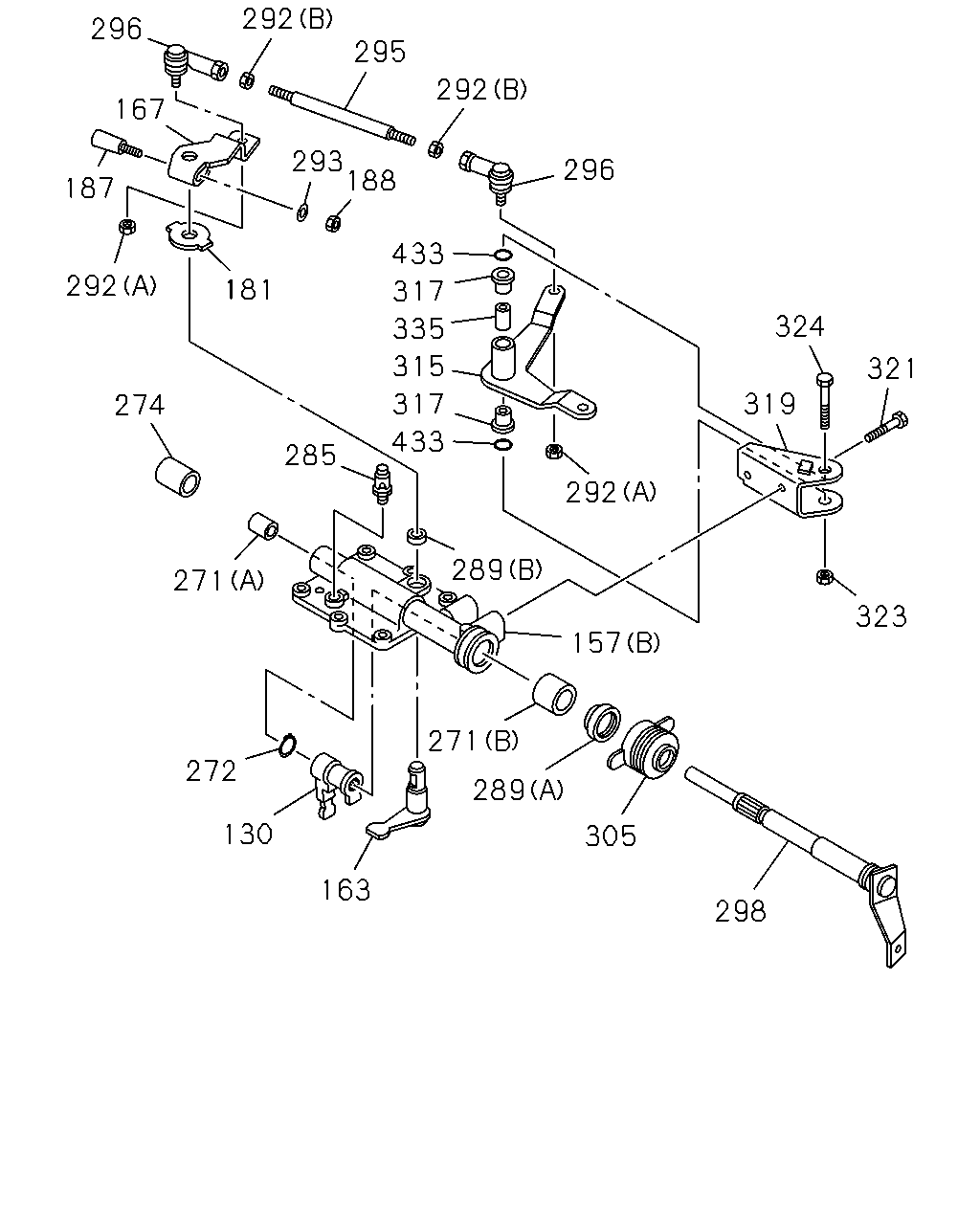

292 296 295 292 167 293 188 296 187 433 292 181 317 324 335 315 321 319 317 274 433 285 292 289 271 323 157 271 272 289 130 305 163 298

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
130	LEVER; SHIFT,INTERNAL	1-33521-131-1	01	1	0411-	●	●
157	BOX; QUAD,TRANS (A)	1-33541-514-0	01	1	0411-	●
157	BOX; QUAD,TRANS (B)	1-33541-472-0	01	1	0411-	●	●
157	BOX; QUAD,TRANS (A)	1-33541-512-0	01	1	0411-		●
163	LEVER; SELECT,INTERNAL	1-33522-130-0	01	1	0411-	●	●
167	LEVER; SELECT,EXTERNAL	1-33521-139-0	01	1	0411-	●	●
181	WASHER; PL,SELECT LEVER OD=37	1-09532-007-0	01	1	0411-	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	0411-	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	0411-	●	●
271	BUSHING; QUAD BOX (B) ID=25 OD=28	1-33549-107-0	01	1	0411-	●	●
271	BUSHING; QUAD BOX (A) ID=17 OD=19	1-33549-108-0	01	1	0411-	●	●
272	RING; SNAP,QUAD BOX	1-09588-174-0	01	1	0411-	●	●
274	COVER; SHAFT,QUAD BOX OD=24 L=31	9-33545-011-1	01	1	0411-	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	0411-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A)	1-09625-269-0	01	1	0411-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B)	1-09625-369-0	01	1	0411-	●	●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-062-1	02	1	0411-	●	●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	0411-0512	●	●
292	NUT; LINK ROD (B) M8	0-91111-508-0	02	1	0601-	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	0411-0605	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	0-91610-708-0	01	1	0606-	●	●
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	0411-	●	●
296	ROD END L=45.5	1-09760-118-1	02	1	0411-	●	●
298	SHAFT; SHIFT LEVER	1-33522-167-0	01	1	0411-	●	●
305	BOOT; LEVER SHAFT	1-33529-051-0	01	1	0411-	●	●
315	LEVER; SELECT	1-33651-703-0	01	1	0411-	●	●
317	BUSHING; LEVER	1-09330-119-0	02	1	0411-	●	●
319	BRACKET; SELECT LEVER	1-33657-603-0	01	1	0411-	●	●
321	BOLT; BRKT,RELAY LEVER M10X22 FLANGE	0-28181-022-0	02	1	0411-	●	●
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	0411-	●	●
324	BOLT; SHAFT M10X60 FLANGE	0-28081-060-0	01	1	0411-	●	●
335	COLLAR; DIST,RELAY LEVER ASM	1-33659-220-0	01	1	0411-	●	●
433	GASKET; BUSHING	1-09623-594-0	02	1	0411-	●	●

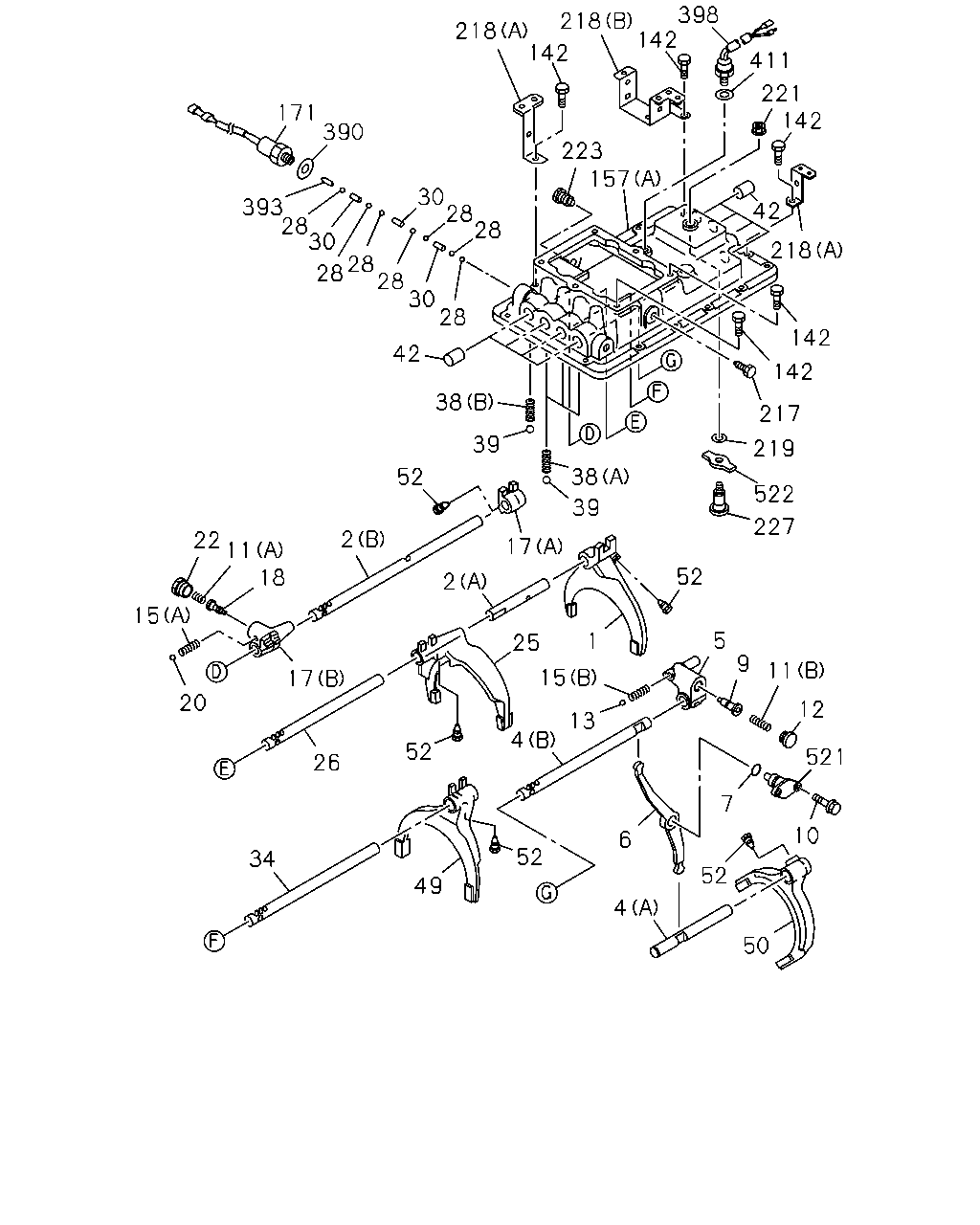

398 218 142 218 142 411 221 142 171 390 223 157 30 28 28 393 28 30 42 218 28 28 28 30 28 142 42 142 38 217 39 219 52 38 522 39 227 2 22 11 18 17 52 2 15 5 1 25 9 11 15 17 20 12 13 4 52 521 26 7 10 6 52 34 52 49 4 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ARM; SHIFT,1ST & REV	1-33511-502-1	01	1	0411-	●	●
2	ROD; SHIFT,1ST & REV (B)	1-33531-360-1	01	1	0411-	●	●
2	ROD; SHIFT,1ST & REV (A)	1-33531-361-1	01	1	0411-	●	●
4	ROD; SHIFT,6TH (A)	1-33531-341-1	01	1	0411-		●
4	ROD; SHIFT,6TH (B)	1-33531-387-0	01	1	0411-		●
5	BLOCK; SHIFT,6TH	1-33511-326-1	01	1	0411-		●
6	LEVER; RELAY	1-33511-574-1	01	1	0411-		●
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	01	1	0411-		●
9	SLEEVE; 6TH,SHIFT BLOCK	1-33516-029-0	01	1	0411-		●
10	BOLT; SPINDLE M14X20	1-09044-078-0	02	1	0411-		●
11	SPRING; RETURN,SHIFT SLEEVE (A)	1-09580-444-0	01	1	0411-	●	●
11	SPRING; RETURN,SHIFT SLEEVE (B)	9-09941-160-0	01	1	0411-		●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0411-		●
13	BALL; LK,SHIFT SLEEVE	9-00097-009-0	01	1	0411-		●
15	SPRING; LK,SHIFT SLEEVE (A)	1-09580-445-0	01	1	0411-	●	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-526-0	01	1	0411-		●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-387-2	01	1	0411-	●	●
17	BLOCK; SHIFT,1ST & REV (A)	1-33511-432-1	01	1	0411-	●	●
18	SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-029-0	01	1	0411-	●	●
20	BALL; DETENT SLEEVE	9-00097-009-0	01	1	0411-	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0411-	●	●
25	ARM; SHIFT,2ND & 3RD	1-33511-580-1	01	1	0411-	●	●
26	ROD; SHIFT,2ND & 3RD	1-33531-384-0	01	1	0411-	●	●
28	BALL; INTER LK	9-00097-010-0	05	1	0411-	●
28	BALL; INTER LK	9-00097-010-0	07	1	0411-		●
30	PIN; INTER LK	1-33534-002-0	02	1	0411-	●
30	PIN; INTER LK	1-33534-002-0	03	1	0411-		●
34	ROD; SHIFT,4TH & 5TH ARM	1-33531-385-0	01	1	0411-	●	●
38	SPRING; DETENT (A)	1-09580-548-0	02	1	0411-	●
38	SPRING; DETENT (B)	1-09580-374-0	01	1	0411-	●	●
38	SPRING; DETENT (A)	1-09580-548-0	03	1	0411-		●
39	BALL; DETENT	9-00097-013-0	03	1	0411-	●
39	BALL; DETENT	9-00097-013-0	04	1	0411-		●
42	CAP; QUAD BOX OD=20	1-33545-002-1	07	1	0411-	●
42	CAP; QUAD BOX OD=20	1-33545-002-1	08	1	0411-		●
49	ARM; SHIFT,4TH & 5TH	1-33511-582-0	01	1	0411-	●
49	ARM; SHIFT,4TH & 5TH	1-33511-581-1	01	1	0411-		●
50	ARM; SHIFT,6TH	1-33511-477-0	01	1	0411-		●
52	BOLT; SHIFT ARM	1-09052-034-2	05	1	0411-	●
52	BOLT; SHIFT ARM	1-09052-034-2	07	1	0411-		●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	10	1	0411-0805	●
142	BOLT; QUAD BOX M10X28 FLANGE	8-98044-944-0	10	1	0806-	●
142	BOLT; QUAD BOX M10X32 FLANGE	0-28181-032-0	02	1	0411-	●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	03	1	0411-0805	●	●
142	BOLT; QUAD BOX M10X28 FLANGE	8-98044-944-0	03	1	0806-	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-1	02	1	0411-0805	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-	●	●
142	BOLT; QUAD BOX M10X20,M10X26 L=56	1-09049-014-1	01	1	0411-0805	●	●
142	BOLT; QUAD BOX M10X20,M10X26 L=56	8-98010-334-0	01	1	0806-	●	●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	12	1	0411-0805		●
142	BOLT; QUAD BOX M10X28 FLANGE	8-98044-944-0	12	1	0806-		●
157	BOX; QUAD,TRANS (A)	1-33541-514-0	01	1	0411-	●
157	BOX; QUAD,TRANS (B)	1-33541-472-0	01	1	0411-	●	●
157	BOX; QUAD,TRANS (A)	1-33541-512-0	01	1	0411-		●
171	SWITCH; NEUTRAL	1-82340-534-0	01	1	0411-	●	●
217	SCREW; SET,6TH SHIFT BLOCK M8X12.5	9-09814-533-0	01	1	0411-		●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	02	1	0411-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-792-2	01	1	0411-		●
219	WASHER; PL,SPINDLE ID=14	9-09851-275-0	01	1	0411-	●	●
221	NUT; SPINDLE M10 FLANGE	0-91150-110-0	01	1	0411-0602	●	●
221	NUT; SPINDLE M10 FLANGE	0-91180-110-0	01	1	0603-	●	●
223	SCREW; SET,QUAD BOX M8X12.5	9-09814-533-0	01	1	0411-	●	●
227	SPINDLE; 1ST & REV	1-33519-130-0	01	1	0411-	●	●
390	GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	0411-	●	●
393	PIN; SW	1-33534-003-0	01	1	0411-	●	●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	0411-0602	●	●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0603-1209	●	●
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-	●	●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	0411-	●	●
521	SPINDLE; 6TH	1-33519-008-1	01	1	0411-		●
522	LEVER; SHIFT,1-REV	1-33521-135-0	01	1	0411-	●	●
