◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10739 - FSR-LHD(BUS CHASSIS) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-31 - THERMOSTAT AND HOUSING ▶
0-31 — THERMOSTAT AND HOUSING (#5905) — 68 parça

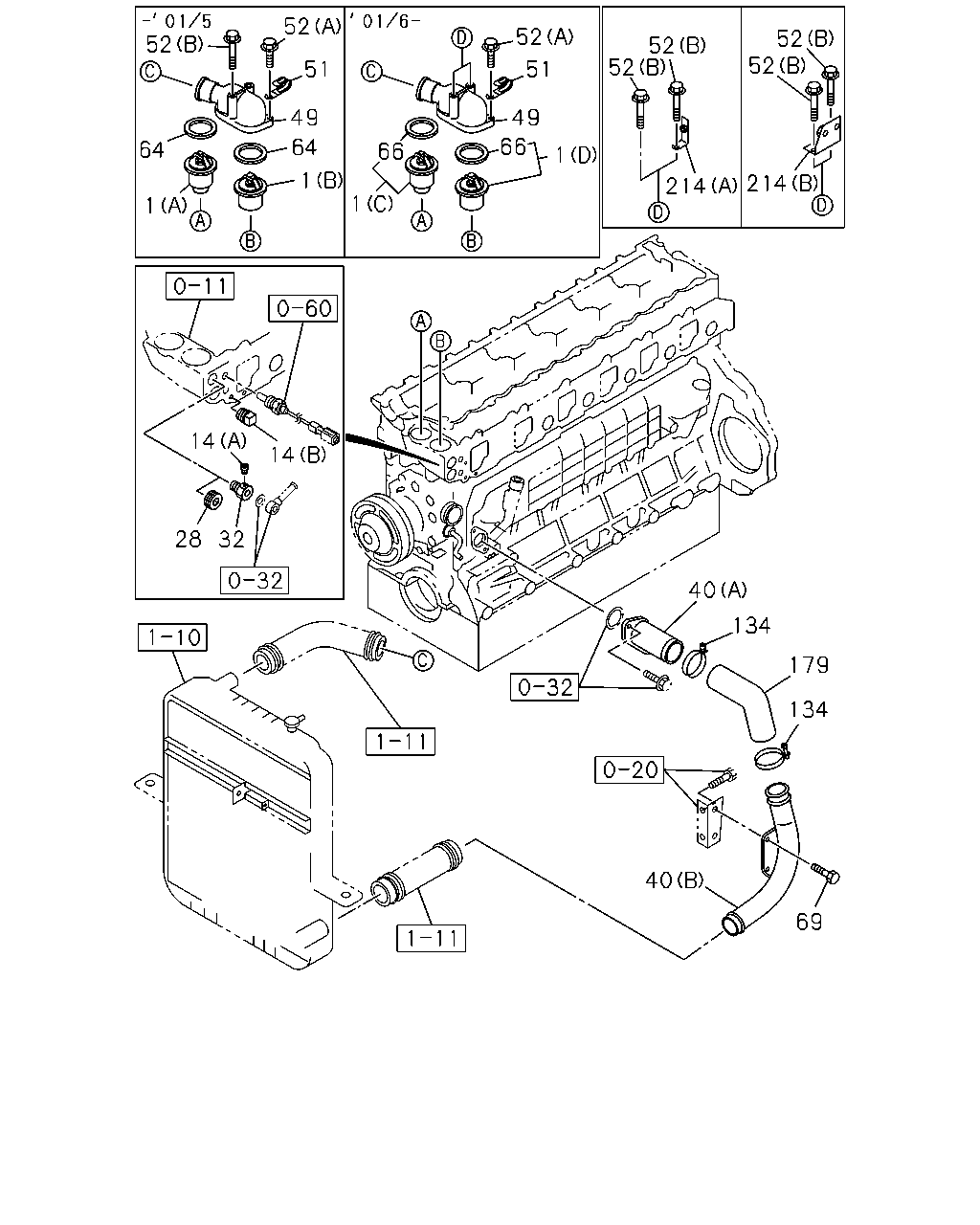

çizim 42594
52 52 52 52 52 52 52 51 51 49 49 66 64 64 66 1 1 214 214 1 1 14 14 28 32 40 134 179 134 40 69
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 THERMOSTAT
(A) 82 CELSIUS 		8-94397-310-0 01 1 9606-9810 ● ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-94397-310-0 01 1 9811-9902 ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-94397-310-0 01 1 9903-0105 ● ●
1 THERMOSTAT
(C) 82 CELSIUS 		8-97602-048-1 01 1 0106-0203 ● ●
1 THERMOSTAT
(C) 82 CELSIUS 		8-97602-048-2 01 1 0204- ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-94397-311-0 01 1 9606-9807 ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-94392-817-0 01 1 9808-9810 ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-94392-817-0 01 1 9811-9902 ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-94392-817-0 01 1 9903-0105 ● ●
1 THERMOSTAT
(D) 82 CELSIUS 		8-97602-037-0 01 1 0106-0112 ● ●
1 THERMOSTAT
(D) 82 CELSIUS 		8-97602-393-0 01 1 0201-0203 ● ●
1 THERMOSTAT
(D) 82 CELSIUS 		8-97602-393-1 01 1 0204- ●
14 PLUG; SW
(B) PT3/8 		8-94397-338-0 01 1 9606-9810 ● ●
14 PLUG; SW
(B) PT3/8 		8-94397-338-0 01 1 9811-9902 ●
14 PLUG; SW
(B) PT3/8 		8-94397-338-0 01 1 9903-0203 ● ●
14 PLUG; SW
(B) PT3/8 		8-94397-338-0 01 1 0204- ●
14 PLUG; SW
(A) PT1/4 		1-09605-019-0 01 1 9811-9902 ●
14 PLUG; SW
(A) PT1/4 		1-09605-019-0 01 1 9903-0203 ● ●
14 PLUG; SW
(A) PT1/4 		1-09605-019-0 01 1 0204- ●
28 PLUG; HTR
PT3/4 		1-09605-020-0 01 1 9606-9810 ● ●
32 CONNECTOR; HTR 8-94395-851-1 01 1 9811-9902 ●
32 CONNECTOR; HTR 8-94395-851-1 01 1 9903-0203 ● ●
32 CONNECTOR; HTR 8-94395-851-1 01 1 0204- ●
40 DUCT; WATER,SUCTION
(A) 		8-94397-005-2 01 1 9606-9810 ● ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-0 01 1 9811-9902 ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-0 01 1 9903-0203 ● ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-1 01 1 0204- ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 9811-0203 ● ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 0204- ●
49 PIPE; WATER OUTLET 8-94399-499-1 01 1 9606-9810 ● ●
49 PIPE; WATER OUTLET 8-94399-499-1 01 1 9811-9902 ●
49 PIPE; WATER OUTLET 8-94399-499-1 01 1 9903-0105 ● ●
49 PIPE; WATER OUTLET 8-97602-047-0 01 1 0106-0203 ● ●
49 PIPE; WATER OUTLET 8-97602-047-0 01 1 0204- ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-94225-185-0 02 1 9606-9810 ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-94225-185-0 01 1 9811-9902 ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-94225-185-0 01 1 9903-0203 ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-94225-185-0 01 1 0204-0801 ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-97367-985-1 01 1 0802- ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X22 FLANGE 		0-28080-822-0 02 1 9606-9709 ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9710-9810 ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9811-9902 ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9903-0203 ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0204-0512 ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X79 FLANGE 		8-94311-617-1 02 1 9606-9611 ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28080-880-0 02 1 9612-9810 ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28080-880-0 02 1 9811-9902 ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28080-880-0 02 1 9903-9905 ● ●
52 BOLT; JOINT,THERMOSTAT
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> (B) M8X80 FLANGE 		0-28080-880-0 02 1 9906-0512 ● ●
52 BOLT; JOINT,THERMOSTAT
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> (B) M8X80 FLANGE 		0-28050-880-0 02 1 0601- ● ●
52 BOLT; JOINT,THERMOSTAT
SPEED LIMITER CABLE STROKE CONTROL<TDT> (B) M8X80 FLANGE 		0-28080-880-0 01 1 9906-0001 ●
52 BOLT; JOINT,THERMOSTAT
SPEED LIMITER CABLE STROKE CONTROL<TDT> (B) M8X85 FLANGE 		8-97023-062-0 01 1 9906-0001 ●
52 BOLT; JOINT,THERMOSTAT
SPEED LIMITER CABLE STROKE CONTROL<TDT> (B) M8X85 FLANGE 		8-97023-062-0 02 1 0006- ●
64 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94370-480-0 02 1 9606-9810 ● ●
64 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94370-480-0 02 1 9811-9902 ●
64 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94370-480-0 02 1 9903-0105 ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97300-793-0 02 1 0106-0203 ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97300-793-0 02 1 0204- ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28080-820-0 02 1 9811-0203 ● ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28080-820-0 02 1 0204-0512 ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28050-820-0 02 1 0601- ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 9811-0203 ● ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 0204- ●
179 HOSE; RUBBER,WATER DUCT 8-94394-535-2 01 1 9811-0203 ● ●
179 HOSE; RUBBER,WATER DUCT 8-94394-535-2 01 1 0204- ●
214 BRACKET; HARNESS
SPEED LIMITER CABLE STROKE CONTROL<TDT> (A) 		8-94393-074-1 01 1 9906-0001 ●
214 BRACKET; HARNESS
SPEED LIMITER CABLE STROKE CONTROL<TDT> (B) 		8-97601-383-0 01 1 0004- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
