◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11333 - FRR(MIDEAST)6H ENG ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-01 - CLUTCH ▶
2-01 — CLUTCH (#59043) — 48 parça

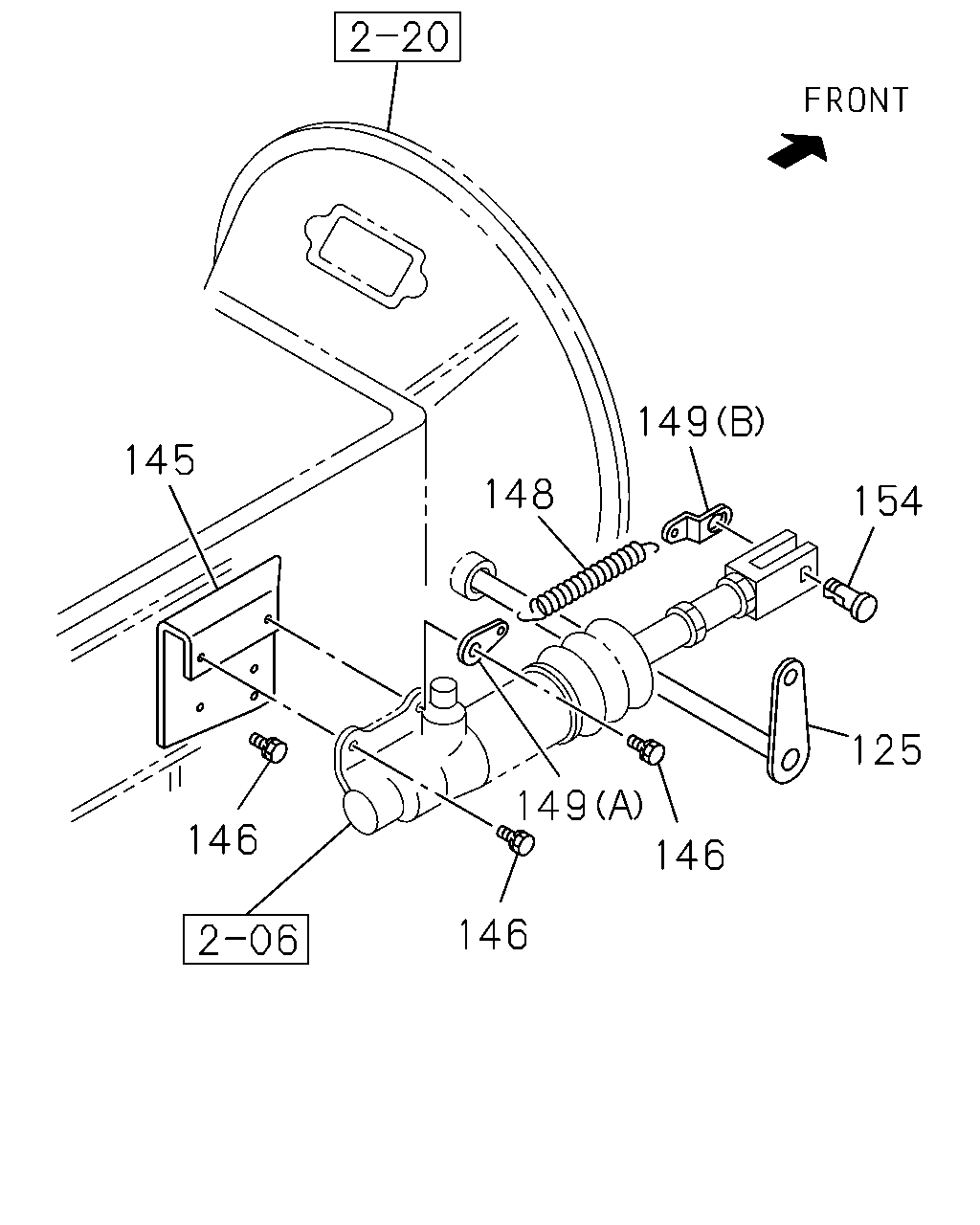

çizim 172462
149 145 148 154 125 149 146 146 146
BalonParca AdiParca NoAdetTipApplied Date A B
125 SHAFT; CLU 1-31342-299-0 01 1 0411- ● ●
145 BRACKET; SLAVE CYL,OIL CLU 1-47579-059-0 01 1 0411- ● ●
146 BOLT; SLAVE CYL TO TRANS CASE
M10X25 FLANGE 		0-28181-025-0 04 1 0411-0512 ● ●
146 BOLT; SLAVE CYL TO TRANS CASE
M10X25 FLANGE 		0-28151-025-0 04 1 0601- ● ●
148 SPRING; CLU RETURN 1-09583-249-0 01 1 0411- ● ●
149 EYE; SPRING,RETURN SPRING
(B) 		1-31426-019-1 01 1 0411- ● ●
149 EYE; SPRING,RETURN SPRING
(A) T=2.3 		1-47324-005-1 01 1 0411- ● ●
154 PIN; JAW JOINT 1-31424-009-0 01 1 0411- ● ●

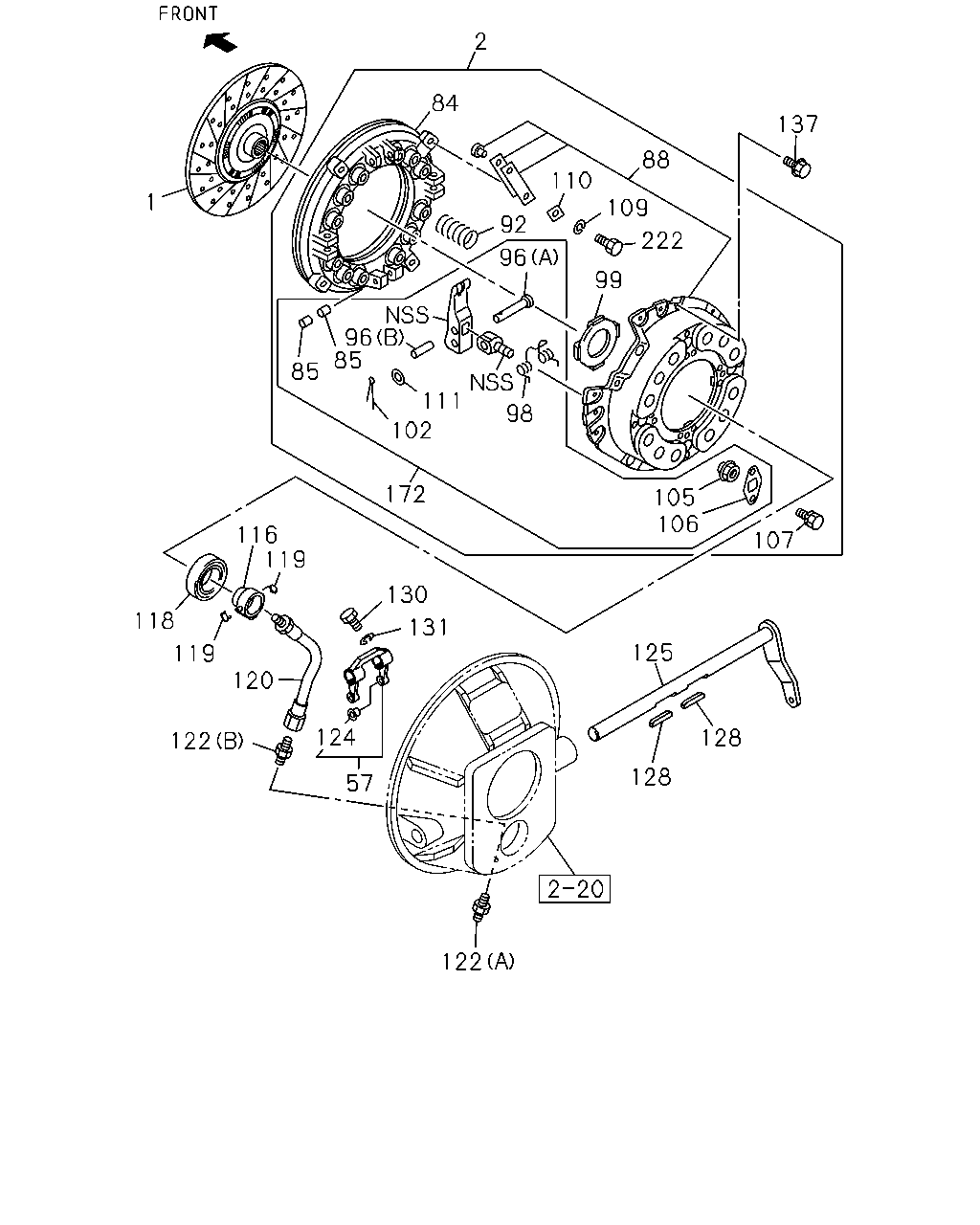

çizim 172467
2 84 137 88 110 1 109 92 222 96 99 96 85 85 111 98 102 172 105 106 116 119 107 130 118 131 125 119 120 124 128 122 128 57 122
BalonParca AdiParca NoAdetTipApplied Date A B
1 DISC; CLUTCH
13" 		1-31240-900-0 01 1 0411- ● ●
2 PLATE ASM; PRESSURE,CLU 1-31220-393-1 01 1 0411- ● ●
57 FORK; SHIFT,CLU 1-31340-056-1 01 1 0411- ● ●
84 PLATE; PRESSURE
13" 		1-31221-105-0 01 1 0411-0912 ● ●
84 PLATE; PRESSURE 1-31221-140-0 01 1 1001- ● ●
85 BUSHING; RELEASE LEVER 1-31239-004-0 08 1 0411- ● ●
88 COVER SUB ASM; CLU 1-31210-016-0 01 1 0411-0912 ● ●
88 COVER SUB ASM; CLU 1-31210-028-0 01 1 1001- ● ●
92 SPRING; CLU 1-31214-034-0 12 1 0411- ● ●
96 PIN; RELEASE LEVER
(A) L=63.0 		1-31232-002-0 04 1 0411- ● ●
96 PIN; RELEASE LEVER
(B) L=29.0 		1-31232-003-0 04 1 0411- ● ●
98 SPRING; RETURN 1-31233-010-0 04 1 0411- ● ●
99 PLATE; RELEASE LEVER 1-31321-006-0 01 1 0411- ● ●
102 PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22 		9-08113-022-0 04 1 0411- ● ●
105 NUT; SUPPORT 1-31239-006-0 04 1 0411- ● ●
106 PLATE; LK,LEVER SUPPORT 1-31239-017-0 04 1 0411- ● ●
107 BOLT; LK PLATE 1-31239-015-0 08 1 0411- ● ●
109 WASHER; LK,STRAP
ID=10.2 		9-09150-010-0 04 1 0411- ● ●
110 WASHER; SPECIAL,STRAP 1-31239-060-0 04 1 0411- ● ●
111 WASHER; PL,STRAP 1-31239-058-0 04 1 0411- ● ●
116 BLOCK; SHIFT,CLU 1-31321-080-2 01 1 0411- ● ●
118 BEARING; CLU RELEASE 1-09820-114-0 01 1 0411- ● ●
118 BEARING; CLU RELEASE
BEST VALUE PARTS 		1-87610-148-0 01 1 0411- ● ●
119 SPRING; SHIFT FORK 1-09585-053-1 01 1 0411- ● ●
119 SPRING; SHIFT FORK 1-09585-054-1 01 1 0411- ● ●
120 HOSE; FLEX,SHIFT BLOCK,CLU
L=170 		1-09364-869-0 01 1 0411- ● ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(B) PT1/8 & M10 		1-09660-710-0 01 1 0411- ● ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0411-0512 ● ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601- ● ●
124 BEARING; CAM,SHIFT FORK 1-31349-004-1 02 1 0411- ● ●
125 SHAFT; CLU 1-31342-299-0 01 1 0411- ● ●
128 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 0411- ● ●
130 SCREW; SHIFT FORK
M8X14 		9-06120-814-0 01 1 0411-0512 ● ●
130 SCREW; SHIFT FORK
M8X14 		0-61200-814-0 01 1 0601- ● ●
131 WASHER; LK,SHIFT FORK
ID=8.2 		9-09150-508-0 01 1 0411-0603 ● ●
131 WASHER; LK,SHIFT FORK
ID=8.2 		0-91510-508-0 01 1 0604- ● ●
137 BOLT; CLU COVER
M10X20 FLANGE 		0-28181-020-0 10 1 0411-0512 ● ●
137 BOLT; CLU COVER
M10X20 FLANGE 		0-28151-020-0 10 1 0601- ● ●
172 LEVER KIT; RELEASE,CLU
13" 		1-87830-086-5 01 1 0411- ● ●
222 BOLT; STRAP
M10X24 		9-09802-708-0 04 1 0411- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
