◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10739 - FSR-LHD(BUS CHASSIS) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-30 - WATER PUMP AND CORROSION RESISTOR ▶
0-30 — WATER PUMP AND CORROSION RESISTOR (#5904) — 269 parça
çizim 6272
24 24 1 42 125 18 1 15 64 59 15 17 64 66 29 24 28 10 11 10 9 69 57 45 8 7 17 66 18 29 28 64 9 8 4
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PUMP ASM; WATER,W/GASKET
HEATER & DEFROSTER<C41> 		8-94395-657-1 01 1 9606-9810 ● ●
1 PUMP ASM; WATER,W/GASKET
EXC. HEATER & DEFROSTER<C41> 		8-94390-601-0 01 1 9606-9810 ● ●
1 PUMP ASM; WATER,W/GASKET 8-94391-059-1 01 1 9811-9811 ●
1 PUMP ASM; WATER,W/GASKET 8-94391-060-4 01 1 9812-0011 ●
1 PUMP ASM; WATER,W/GASKET
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> 		8-94391-060-4 01 1 0012-0106 ● ●
1 PUMP ASM; WATER,W/GASKET 8-94391-060-4 01 1 0107-0203 ● ●
1 PUMP ASM; WATER,W/GASKET 8-94391-060-5 01 1 0204-0301 ●
1 PUMP ASM; WATER,W/GASKET 8-97602-781-1 01 1 0302- ●
1 PUMP ASM; WATER,W/GASKET 8-94391-059-2 01 1 9903-9905 ●
1 PUMP ASM; WATER,W/GASKET
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> 		8-94391-059-4 01 1 9906-0011 ●
1 PUMP ASM; WATER,W/GASKET
SPEED LIMITER CABLE STROKE CONTROL<TDT> 		8-97600-352-2 01 1 9906-0011 ●
4 REPAIR KIT; WATER PUMP 1-87811-051-0 01 1 9606-9810 ● ●
4 REPAIR KIT; WATER PUMP 1-87811-318-0 01 1 9811-9902 ●
4 REPAIR KIT; WATER PUMP 1-87811-318-0 01 1 9903-9911 ● ●
4 REPAIR KIT; WATER PUMP 1-87812-028-0 01 1 9912-0011 ● ●
4 REPAIR KIT; WATER PUMP
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> 		1-87812-028-0 01 1 0012-0106 ● ●
4 REPAIR KIT; WATER PUMP 1-87812-028-0 01 1 0107-0203 ● ●
4 REPAIR KIT; WATER PUMP 1-87812-028-1 01 1 0204- ●
7 PULLEY; WATER PUMP
2-GROOVE 		8-94394-826-0 01 1 9606-9810 ● ●
7 PULLEY; WATER PUMP
4-GROOVE 		8-94394-927-0 01 1 9811-9902 ●
7 PULLEY; WATER PUMP
4-GROOVE 		8-94394-927-0 01 1 9903-0011 ● ●
7 PULLEY; WATER PUMP
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> 4-GROOVE 		8-94394-927-0 01 1 0012-0106 ● ●
7 PULLEY; WATER PUMP
4-GROOVE 		8-94394-927-0 01 1 0107-0203 ● ●
7 PULLEY; WATER PUMP
4-GROOVE 		8-94394-927-0 01 1 0204- ●
8 THROWER; DUST,WATER PUMP 8-94399-457-0 01 1 9606-9810 ● ●
8 THROWER; DUST,WATER PUMP 8-94399-457-0 01 1 9811-9902 ●
8 THROWER; DUST,WATER PUMP 8-94399-457-0 01 1 9903-0011 ● ●
8 THROWER; DUST,WATER PUMP
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> 		8-94399-457-0 01 1 0012-0106 ● ●
8 THROWER; DUST,WATER PUMP 8-94399-457-0 01 1 0107-0203 ● ●
8 THROWER; DUST,WATER PUMP 8-94399-457-0 01 1 0204- ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 9606-9810 ● ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 9811-9902 ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 9903-0011 ● ●
9 RING; SNAP,WATER PUMP
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> ID=57.9 		9-09180-162-0 01 1 0012-0106 ● ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 0107-0203 ● ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 0204- ●
10 BEARING; WATER PUMP
(C) 		1-09800-011-0 02 1 9606-9810 ● ●
10 BEARING; WATER PUMP
(A) 		8-94391-298-0 02 1 9811-9902 ●
10 BEARING; WATER PUMP
(A) 		8-94391-298-0 02 1 9903-0011 ● ●
10 BEARING; WATER PUMP
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> (A) 		8-94391-298-0 02 1 0012-0106 ● ●
10 BEARING; WATER PUMP
(A) 		8-94391-298-0 02 1 0107-0203 ● ●
10 BEARING; WATER PUMP
(A) 		8-94391-298-0 02 1 0204- ●
10 BEARING; WATER PUMP
(B) 		8-94391-299-0 01 1 9811-9902 ●
10 BEARING; WATER PUMP
(B) 		8-94391-299-0 01 1 9903-0011 ● ●
10 BEARING; WATER PUMP
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> (B) 		8-94391-299-0 01 1 0012-0106 ● ●
10 BEARING; WATER PUMP
(B) 		8-94391-299-0 01 1 0107-0203 ● ●
10 BEARING; WATER PUMP
(B) 		8-94391-299-0 01 1 0204- ●
11 SPACER; BRG,WATER PUMP 1-13634-025-0 01 1 9606-9810 ● ●
11 SPACER; BRG,WATER PUMP 1-13634-040-0 01 1 9811-9902 ●
11 SPACER; BRG,WATER PUMP 1-13634-040-0 01 1 9903-0011 ● ●
11 SPACER; BRG,WATER PUMP
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> 		1-13634-040-0 01 1 0012-0106 ● ●
11 SPACER; BRG,WATER PUMP 1-13634-040-0 01 1 0107-0203 ● ●
11 SPACER; BRG,WATER PUMP 1-13634-040-0 01 1 0204- ●
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT 		1-09380-002-0 01 1 9606-9810 ● ●
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT 		1-09380-002-0 01 1 9811-9902 ●
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT 		1-09380-002-0 01 1 9903-0011 ● ●
15 NIPPLE; GREASE,WATER PUMP
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> (A) PT1/8 STRAIGHT 		1-09380-002-0 01 1 0012-0106 ● ●
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT 		1-09380-002-0 01 1 0107-0203 ● ●
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT 		1-09380-002-0 01 1 0204- ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9606-9810 ● ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9811-9902 ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9903-0011 ● ●
15 NIPPLE; GREASE,WATER PUMP
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> (B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0012-0106 ● ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0107-0203 ● ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0204-0512 ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ●
17 SEAL UNIT; WATER PUMP 8-94395-036-0 01 1 9606-9810 ● ●
17 SEAL UNIT; WATER PUMP 8-94395-036-0 01 1 9811-9902 ●
17 SEAL UNIT; WATER PUMP 8-94395-036-0 01 1 9903-9912 ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0001-0011 ● ●
17 SEAL UNIT; WATER PUMP
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> 		8-94392-090-0 01 1 0012-0106 ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0107-0203 ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0204- ●
18 IMPELLER; WATER PUMP 8-94397-375-0 01 1 9606-9810 ● ●
18 IMPELLER; WATER PUMP 8-94397-375-0 01 1 9811-9902 ●
18 IMPELLER; WATER PUMP 8-94397-375-0 01 1 9903-0011 ● ●
18 IMPELLER; WATER PUMP
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> 		8-94397-375-0 01 1 0012-0106 ● ●
18 IMPELLER; WATER PUMP 8-94397-375-0 01 1 0107-0203 ● ●
18 IMPELLER; WATER PUMP 8-94397-375-0 01 1 0204- ●
24 BOLT; WATER PUMP
(A) M8X58 FLANGE 		8-94130-055-1 03 1 9606-9810 ● ●
24 BOLT; WATER PUMP
(A) M8X58 FLANGE 		8-94130-055-1 03 1 9811-9902 ●
24 BOLT; WATER PUMP
(A) M8X58 FLANGE 		8-94130-055-1 03 1 9903-0203 ● ●
24 BOLT; WATER PUMP
(A) M8X58 FLANGE 		8-94130-055-1 03 1 0204- ●
24 BOLT; WATER PUMP
(B) M8X79 FLANGE 		8-94311-617-1 01 1 9606-9611 ● ●
24 BOLT; WATER PUMP
(B) M8X80 FLANGE 		0-28080-880-0 01 1 9612-9810 ● ●
24 BOLT; WATER PUMP
(B) M8X80 FLANGE 		0-28080-880-0 01 1 9811-9902 ●
24 BOLT; WATER PUMP
(B) M8X80 FLANGE 		0-28080-880-0 01 1 9903-0203 ● ●
24 BOLT; WATER PUMP
(B) M8X80 FLANGE 		0-28080-880-0 01 1 0204-0512 ●
24 BOLT; WATER PUMP
(B) M8X80 FLANGE 		0-28050-880-0 01 1 0601- ●
24 BOLT; WATER PUMP
(C) M10X85 FLANGE 		8-94397-359-1 01 1 9606-9810 ● ●
24 BOLT; WATER PUMP
(C) M10X85 FLANGE 		8-94397-359-1 01 1 9811-9902 ●
24 BOLT; WATER PUMP
(C) M10X85 FLANGE 		8-94397-359-1 01 1 9903-0203 ● ●
24 BOLT; WATER PUMP
(C) M10X85 FLANGE 		8-94397-359-1 01 1 0204- ●
28 WASHER; WATER PUMP
ID=25.5 OD=50 		8-94397-097-0 01 1 9606-9810 ● ●
28 WASHER; WATER PUMP
ID=25.5 OD=50 		8-94397-097-0 01 1 9811-9902 ●
28 WASHER; WATER PUMP
ID=25.5 OD=50 		8-94397-097-0 01 1 9903-0011 ● ●
28 WASHER; WATER PUMP
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> ID=25.5 OD=50 		8-94397-097-0 01 1 0012-0106 ● ●
28 WASHER; WATER PUMP
ID=25.5 OD=50 		8-94397-097-0 01 1 0107-0203 ● ●
28 WASHER; WATER PUMP
ID=25.5 OD=50 		8-94397-097-0 01 1 0204- ●
29 SHAFT; WATER PUMP 8-94397-374-0 01 1 9606-9810 ● ●
29 SHAFT; WATER PUMP 8-94396-130-1 01 1 9811-9902 ●
29 SHAFT; WATER PUMP 8-94396-130-1 01 1 9903-0011 ● ●
29 SHAFT; WATER PUMP
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> 		8-94396-130-1 01 1 0012-0106 ● ●
29 SHAFT; WATER PUMP 8-94396-130-1 01 1 0107-0203 ● ●
29 SHAFT; WATER PUMP 8-94396-130-1 01 1 0204- ●
42 STUD; WATER PUMP
M8X30 L=46 		9-04010-830-0 01 1 9606-9810 ● ●
42 STUD; WATER PUMP
M8X30 L=46 		9-04010-830-0 01 1 9811-9902 ●
42 STUD; WATER PUMP
M8X30 L=46 		9-04010-830-0 01 1 9903-0203 ● ●
42 STUD; WATER PUMP
M8X30 L=46 		9-04010-830-0 01 1 0204-0604 ●
42 STUD; WATER PUMP
M8X30 L=46 		0-40110-830-0 01 1 0605- ●
45 JOINT; HTR HOSE,WATER PUMP
HEATER & DEFROSTER<C41> (A) 		8-94397-377-2 01 1 9606-9810 ● ●
45 JOINT; HTR HOSE,WATER PUMP
(B) 		8-94394-389-0 01 1 9811-9811 ●
45 JOINT; HTR HOSE,WATER PUMP
(B) 		8-94394-389-0 01 1 9903-9905 ●
45 JOINT; HTR HOSE,WATER PUMP
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> (B) 		8-94394-389-0 01 1 9906-0011 ●
45 JOINT; HTR HOSE,WATER PUMP
SPEED LIMITER CABLE STROKE CONTROL<TDT> (C) 		8-94392-827-1 01 1 9906-0011 ●
57 PLUG; HTR,WATER PUMP
M20 		9-99202-320-0 01 1 0304- ●
59 DOWEL; WATER PUMP 9-13119-022-0 02 1 9606-9810 ● ●
59 DOWEL; WATER PUMP
OD=12 L=9 		1-13119-003-0 02 1 9811-9902 ●
59 DOWEL; WATER PUMP
OD=12 L=9 		1-13119-003-0 02 1 9903-0011 ● ●
59 DOWEL; WATER PUMP
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> OD=12 L=9 		1-13119-003-0 02 1 0012-0106 ● ●
59 DOWEL; WATER PUMP
OD=12 L=9 		1-13119-003-0 02 1 0107-0203 ● ●
59 DOWEL; WATER PUMP
OD=12 L=9 		1-13119-003-0 02 1 0204- ●
64 GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7 		1-09623-383-0 01 1 9606-9810 ● ●
64 GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7 		1-09623-383-0 01 1 9811-9902 ●
64 GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7 		1-09623-383-0 01 1 9903-0203 ● ●
64 GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7 		1-09623-383-0 01 1 0204- ●
66 SEAL; SECONDARY 1-09625-437-0 01 1 9606-9810 ● ●
69 GASKET; PLUG,HTR
ID=20.5 OD=28.0 		9-09571-420-0 01 1 0304- ●
125 NUT; WATER PUMP
M8 FLANGE 		0-91150-108-0 04 1 9606-9810 ● ●
125 NUT; WATER PUMP
M8 FLANGE 		0-91150-108-0 04 1 9811-9902 ●
125 NUT; WATER PUMP
M8 FLANGE 		0-91150-108-0 04 1 9903-0203 ● ●
125 NUT; WATER PUMP
M8 FLANGE 		0-91150-108-0 04 1 0204-0602 ●
125 NUT; WATER PUMP
M8 FLANGE 		0-91180-108-0 04 1 0603- ●

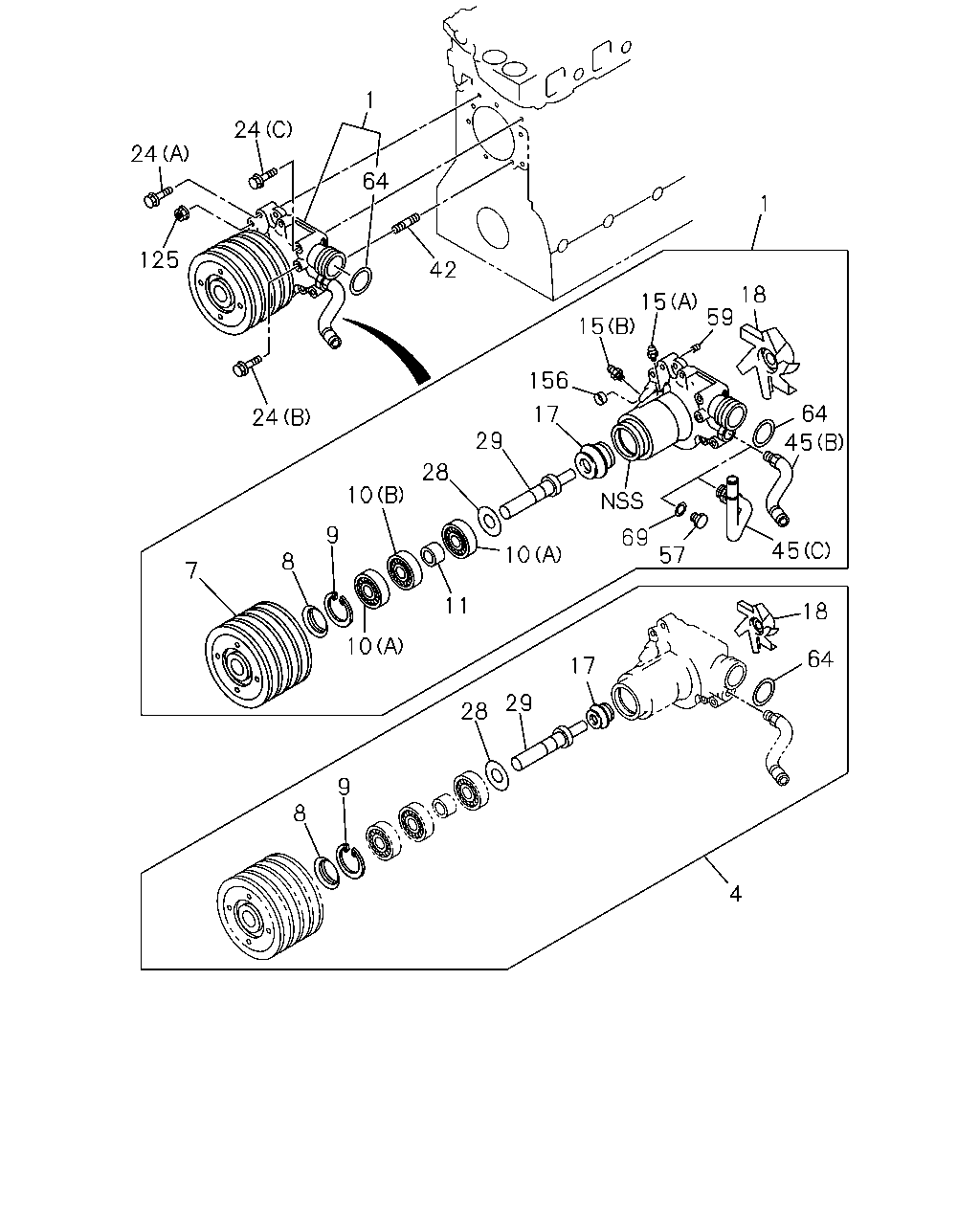

çizim 7173
1 24 24 64 1 125 42 18 59 15 15 156 64 17 24 29 45 28 10 9 69 45 10 57 8 7 11 18 10 64 17 29 28 9 8 4
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PUMP ASM; WATER,W/GASKET
HEATER & DEFROSTER<C41> 		8-94395-657-1 01 1 9606-9810 ● ●
1 PUMP ASM; WATER,W/GASKET
EXC. HEATER & DEFROSTER<C41> 		8-94390-601-0 01 1 9606-9810 ● ●
1 PUMP ASM; WATER,W/GASKET 8-94391-059-1 01 1 9811-9811 ●
1 PUMP ASM; WATER,W/GASKET 8-94391-060-4 01 1 9812-0011 ●
1 PUMP ASM; WATER,W/GASKET
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> 		8-94391-060-4 01 1 0012-0106 ● ●
1 PUMP ASM; WATER,W/GASKET 8-94391-060-4 01 1 0107-0203 ● ●
1 PUMP ASM; WATER,W/GASKET 8-94391-060-5 01 1 0204-0301 ●
1 PUMP ASM; WATER,W/GASKET 8-97602-781-1 01 1 0302- ●
1 PUMP ASM; WATER,W/GASKET 8-94391-059-2 01 1 9903-9905 ●
1 PUMP ASM; WATER,W/GASKET
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> 		8-94391-059-4 01 1 9906-0011 ●
1 PUMP ASM; WATER,W/GASKET
SPEED LIMITER CABLE STROKE CONTROL<TDT> 		8-97600-352-2 01 1 9906-0011 ●
4 REPAIR KIT; WATER PUMP 1-87811-051-0 01 1 9606-9810 ● ●
4 REPAIR KIT; WATER PUMP 1-87811-318-0 01 1 9811-9902 ●
4 REPAIR KIT; WATER PUMP 1-87811-318-0 01 1 9903-9911 ● ●
4 REPAIR KIT; WATER PUMP 1-87812-028-0 01 1 9912-0011 ● ●
4 REPAIR KIT; WATER PUMP
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> 		1-87812-028-0 01 1 0012-0106 ● ●
4 REPAIR KIT; WATER PUMP 1-87812-028-0 01 1 0107-0203 ● ●
4 REPAIR KIT; WATER PUMP 1-87812-028-1 01 1 0204- ●
7 PULLEY; WATER PUMP
2-GROOVE 		8-94394-826-0 01 1 9606-9810 ● ●
7 PULLEY; WATER PUMP
4-GROOVE 		8-94394-927-0 01 1 9811-9902 ●
7 PULLEY; WATER PUMP
4-GROOVE 		8-94394-927-0 01 1 9903-0011 ● ●
7 PULLEY; WATER PUMP
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> 4-GROOVE 		8-94394-927-0 01 1 0012-0106 ● ●
7 PULLEY; WATER PUMP
4-GROOVE 		8-94394-927-0 01 1 0107-0203 ● ●
7 PULLEY; WATER PUMP
4-GROOVE 		8-94394-927-0 01 1 0204- ●
8 THROWER; DUST,WATER PUMP 8-94399-457-0 01 1 9606-9810 ● ●
8 THROWER; DUST,WATER PUMP 8-94399-457-0 01 1 9811-9902 ●
8 THROWER; DUST,WATER PUMP 8-94399-457-0 01 1 9903-0011 ● ●
8 THROWER; DUST,WATER PUMP
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> 		8-94399-457-0 01 1 0012-0106 ● ●
8 THROWER; DUST,WATER PUMP 8-94399-457-0 01 1 0107-0203 ● ●
8 THROWER; DUST,WATER PUMP 8-94399-457-0 01 1 0204- ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 9606-9810 ● ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 9811-9902 ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 9903-0011 ● ●
9 RING; SNAP,WATER PUMP
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> ID=57.9 		9-09180-162-0 01 1 0012-0106 ● ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 0107-0203 ● ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 0204- ●
10 BEARING; WATER PUMP
(C) 		1-09800-011-0 02 1 9606-9810 ● ●
10 BEARING; WATER PUMP
(A) 		8-94391-298-0 02 1 9811-9902 ●
10 BEARING; WATER PUMP
(A) 		8-94391-298-0 02 1 9903-0011 ● ●
10 BEARING; WATER PUMP
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> (A) 		8-94391-298-0 02 1 0012-0106 ● ●
10 BEARING; WATER PUMP
(A) 		8-94391-298-0 02 1 0107-0203 ● ●
10 BEARING; WATER PUMP
(A) 		8-94391-298-0 02 1 0204- ●
10 BEARING; WATER PUMP
(B) 		8-94391-299-0 01 1 9811-9902 ●
10 BEARING; WATER PUMP
(B) 		8-94391-299-0 01 1 9903-0011 ● ●
10 BEARING; WATER PUMP
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> (B) 		8-94391-299-0 01 1 0012-0106 ● ●
10 BEARING; WATER PUMP
(B) 		8-94391-299-0 01 1 0107-0203 ● ●
10 BEARING; WATER PUMP
(B) 		8-94391-299-0 01 1 0204- ●
11 SPACER; BRG,WATER PUMP 1-13634-025-0 01 1 9606-9810 ● ●
11 SPACER; BRG,WATER PUMP 1-13634-040-0 01 1 9811-9902 ●
11 SPACER; BRG,WATER PUMP 1-13634-040-0 01 1 9903-0011 ● ●
11 SPACER; BRG,WATER PUMP
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> 		1-13634-040-0 01 1 0012-0106 ● ●
11 SPACER; BRG,WATER PUMP 1-13634-040-0 01 1 0107-0203 ● ●
11 SPACER; BRG,WATER PUMP 1-13634-040-0 01 1 0204- ●
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT 		1-09380-002-0 01 1 9606-9810 ● ●
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT 		1-09380-002-0 01 1 9811-9902 ●
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT 		1-09380-002-0 01 1 9903-0011 ● ●
15 NIPPLE; GREASE,WATER PUMP
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> (A) PT1/8 STRAIGHT 		1-09380-002-0 01 1 0012-0106 ● ●
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT 		1-09380-002-0 01 1 0107-0203 ● ●
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT 		1-09380-002-0 01 1 0204- ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9606-9810 ● ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9811-9902 ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9903-0011 ● ●
15 NIPPLE; GREASE,WATER PUMP
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> (B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0012-0106 ● ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0107-0203 ● ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0204-0512 ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ●
17 SEAL UNIT; WATER PUMP 8-94395-036-0 01 1 9606-9810 ● ●
17 SEAL UNIT; WATER PUMP 8-94395-036-0 01 1 9811-9902 ●
17 SEAL UNIT; WATER PUMP 8-94395-036-0 01 1 9903-9912 ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0001-0011 ● ●
17 SEAL UNIT; WATER PUMP
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> 		8-94392-090-0 01 1 0012-0106 ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0107-0203 ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0204- ●
18 IMPELLER; WATER PUMP 8-94397-375-0 01 1 9606-9810 ● ●
18 IMPELLER; WATER PUMP 8-94397-375-0 01 1 9811-9902 ●
18 IMPELLER; WATER PUMP 8-94397-375-0 01 1 9903-0011 ● ●
18 IMPELLER; WATER PUMP
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> 		8-94397-375-0 01 1 0012-0106 ● ●
18 IMPELLER; WATER PUMP 8-94397-375-0 01 1 0107-0203 ● ●
18 IMPELLER; WATER PUMP 8-94397-375-0 01 1 0204- ●
24 BOLT; WATER PUMP
(A) M8X58 FLANGE 		8-94130-055-1 03 1 9606-9810 ● ●
24 BOLT; WATER PUMP
(A) M8X58 FLANGE 		8-94130-055-1 03 1 9811-9902 ●
24 BOLT; WATER PUMP
(A) M8X58 FLANGE 		8-94130-055-1 03 1 9903-0203 ● ●
24 BOLT; WATER PUMP
(A) M8X58 FLANGE 		8-94130-055-1 03 1 0204- ●
24 BOLT; WATER PUMP
(B) M8X79 FLANGE 		8-94311-617-1 01 1 9606-9611 ● ●
24 BOLT; WATER PUMP
(B) M8X80 FLANGE 		0-28080-880-0 01 1 9612-9810 ● ●
24 BOLT; WATER PUMP
(B) M8X80 FLANGE 		0-28080-880-0 01 1 9811-9902 ●
24 BOLT; WATER PUMP
(B) M8X80 FLANGE 		0-28080-880-0 01 1 9903-0203 ● ●
24 BOLT; WATER PUMP
(B) M8X80 FLANGE 		0-28080-880-0 01 1 0204-0512 ●
24 BOLT; WATER PUMP
(B) M8X80 FLANGE 		0-28050-880-0 01 1 0601- ●
24 BOLT; WATER PUMP
(C) M10X85 FLANGE 		8-94397-359-1 01 1 9606-9810 ● ●
24 BOLT; WATER PUMP
(C) M10X85 FLANGE 		8-94397-359-1 01 1 9811-9902 ●
24 BOLT; WATER PUMP
(C) M10X85 FLANGE 		8-94397-359-1 01 1 9903-0203 ● ●
24 BOLT; WATER PUMP
(C) M10X85 FLANGE 		8-94397-359-1 01 1 0204- ●
28 WASHER; WATER PUMP
ID=25.5 OD=50 		8-94397-097-0 01 1 9606-9810 ● ●
28 WASHER; WATER PUMP
ID=25.5 OD=50 		8-94397-097-0 01 1 9811-9902 ●
28 WASHER; WATER PUMP
ID=25.5 OD=50 		8-94397-097-0 01 1 9903-0011 ● ●
28 WASHER; WATER PUMP
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> ID=25.5 OD=50 		8-94397-097-0 01 1 0012-0106 ● ●
28 WASHER; WATER PUMP
ID=25.5 OD=50 		8-94397-097-0 01 1 0107-0203 ● ●
28 WASHER; WATER PUMP
ID=25.5 OD=50 		8-94397-097-0 01 1 0204- ●
29 SHAFT; WATER PUMP 8-94397-374-0 01 1 9606-9810 ● ●
29 SHAFT; WATER PUMP 8-94396-130-1 01 1 9811-9902 ●
29 SHAFT; WATER PUMP 8-94396-130-1 01 1 9903-0011 ● ●
29 SHAFT; WATER PUMP
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> 		8-94396-130-1 01 1 0012-0106 ● ●
29 SHAFT; WATER PUMP 8-94396-130-1 01 1 0107-0203 ● ●
29 SHAFT; WATER PUMP 8-94396-130-1 01 1 0204- ●
42 STUD; WATER PUMP
M8X30 L=46 		9-04010-830-0 01 1 9606-9810 ● ●
42 STUD; WATER PUMP
M8X30 L=46 		9-04010-830-0 01 1 9811-9902 ●
42 STUD; WATER PUMP
M8X30 L=46 		9-04010-830-0 01 1 9903-0203 ● ●
42 STUD; WATER PUMP
M8X30 L=46 		9-04010-830-0 01 1 0204-0604 ●
42 STUD; WATER PUMP
M8X30 L=46 		0-40110-830-0 01 1 0605- ●
45 JOINT; HTR HOSE,WATER PUMP
HEATER & DEFROSTER<C41> (A) 		8-94397-377-2 01 1 9606-9810 ● ●
45 JOINT; HTR HOSE,WATER PUMP
(B) 		8-94394-389-0 01 1 9811-9811 ●
45 JOINT; HTR HOSE,WATER PUMP
(B) 		8-94394-389-0 01 1 9903-9905 ●
45 JOINT; HTR HOSE,WATER PUMP
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> (B) 		8-94394-389-0 01 1 9906-0011 ●
45 JOINT; HTR HOSE,WATER PUMP
SPEED LIMITER CABLE STROKE CONTROL<TDT> (C) 		8-94392-827-1 01 1 9906-0011 ●
57 PLUG; HTR,WATER PUMP
M20 		9-99202-320-0 01 1 0304- ●
59 DOWEL; WATER PUMP 9-13119-022-0 02 1 9606-9810 ● ●
59 DOWEL; WATER PUMP
OD=12 L=9 		1-13119-003-0 02 1 9811-9902 ●
59 DOWEL; WATER PUMP
OD=12 L=9 		1-13119-003-0 02 1 9903-0011 ● ●
59 DOWEL; WATER PUMP
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> OD=12 L=9 		1-13119-003-0 02 1 0012-0106 ● ●
59 DOWEL; WATER PUMP
OD=12 L=9 		1-13119-003-0 02 1 0107-0203 ● ●
59 DOWEL; WATER PUMP
OD=12 L=9 		1-13119-003-0 02 1 0204- ●
64 GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7 		1-09623-383-0 01 1 9606-9810 ● ●
64 GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7 		1-09623-383-0 01 1 9811-9902 ●
64 GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7 		1-09623-383-0 01 1 9903-0203 ● ●
64 GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7 		1-09623-383-0 01 1 0204- ●
69 GASKET; PLUG,HTR
ID=20.5 OD=28.0 		9-09571-420-0 01 1 0304- ●
125 NUT; WATER PUMP
M8 FLANGE 		0-91150-108-0 04 1 9606-9810 ● ●
125 NUT; WATER PUMP
M8 FLANGE 		0-91150-108-0 04 1 9811-9902 ●
125 NUT; WATER PUMP
M8 FLANGE 		0-91150-108-0 04 1 9903-0203 ● ●
125 NUT; WATER PUMP
M8 FLANGE 		0-91150-108-0 04 1 0204-0602 ●
125 NUT; WATER PUMP
M8 FLANGE 		0-91180-108-0 04 1 0603- ●
156 CUP; SEALING
OD=25 		1-09600-016-0 01 1 0004-0011 ● ●
156 CUP; SEALING
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> OD=25 		1-09600-016-0 01 1 0012-0106 ● ●
156 CUP; SEALING
OD=25 		1-09600-016-0 01 1 0107-0203 ● ●
156 CUP; SEALING
OD=25 		1-09600-016-0 01 1 0204- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
