Isuzu WW
▶
TRUCKS
▶
FRR
▶
11333 - FRR(MIDEAST)6H ENG
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-01 - ACCELERATOR PEDAL AND CONTROL
▶
1-01 — ACCELERATOR PEDAL AND CONTROL
(#59032) — 80 parça
◀

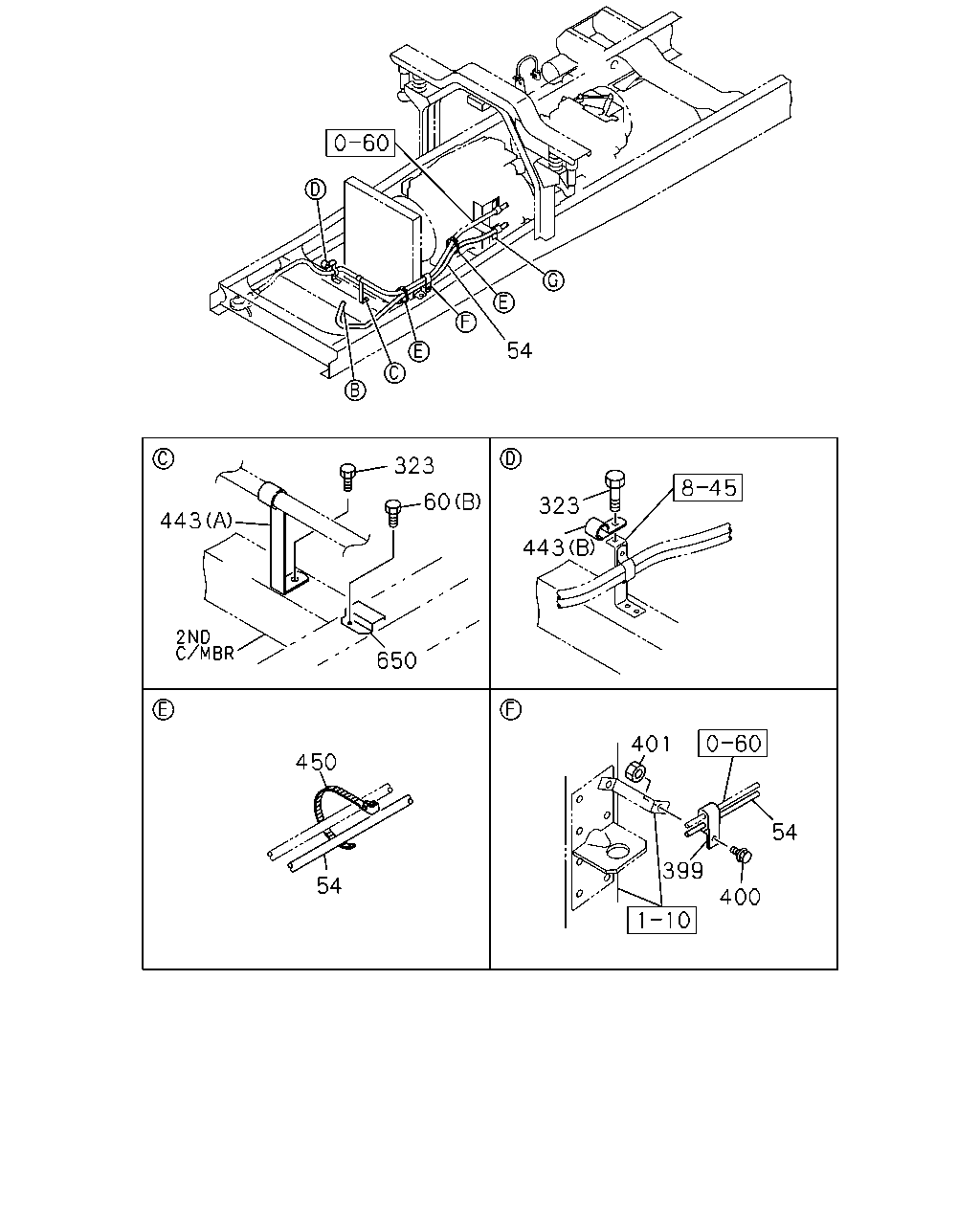

[101A] CLIP;CONTROL CABLE (19 parça)

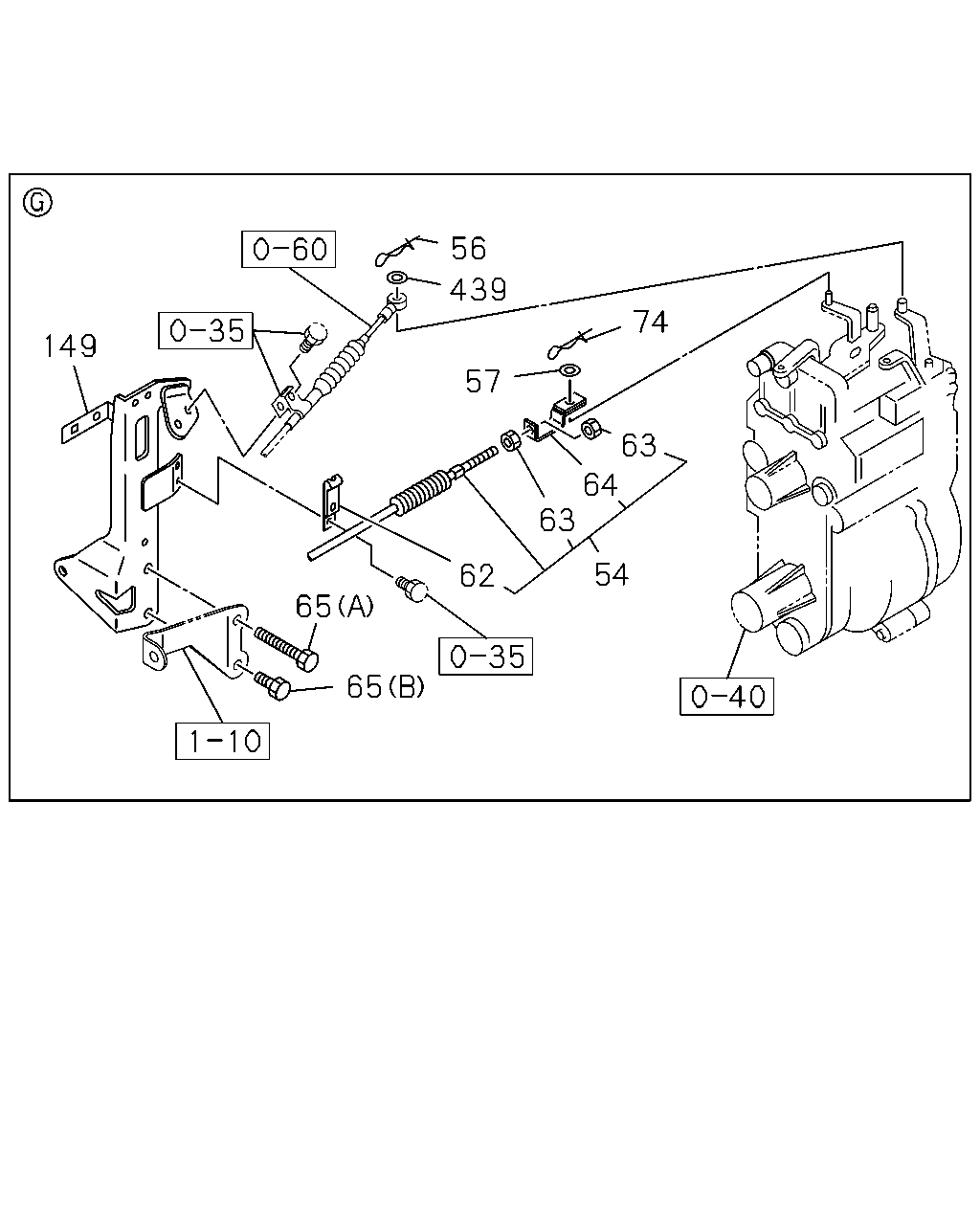

[101A] ENGINE SIDE (17 parça)

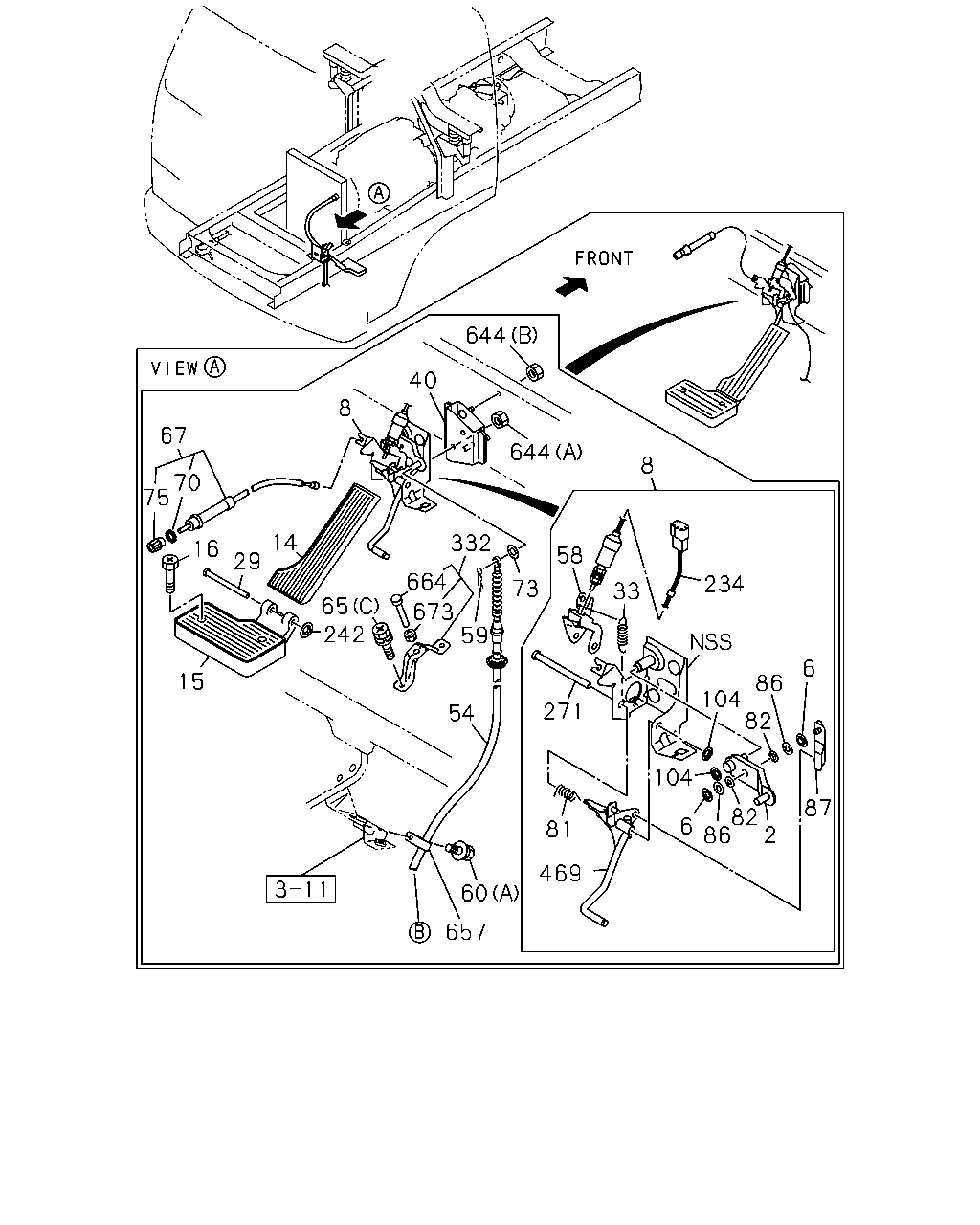

[101A] ACCELERATOR PEDAL SIDE (44 parça)
▶
54
323
60
323
443
443
650
401
450
54
399
54
400
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
54
CABLE; ENG CONT
L=1624
1-73996-240-9
01
1
0411-
60
BOLT; CABLE
(B) M8X20 FLANGE
0-28080-820-0
01
1
0411-0512
60
BOLT; CABLE
(B) M8X20 FLANGE
0-28050-820-0
01
1
0601-
60
BOLT; CABLE
(A) M8X24.5 W/LK&PL WASHER
8-94279-208-0
01
1
0411-0904
60
BOLT; CABLE
(A) M8X24.5 W/LK&PL WASHER
8-98059-720-0
01
1
0905-
323
BOLT; CLIP
M8X16 FLANGE
0-28080-816-0
01
1
0411-0512
323
BOLT; CLIP
M8X16 FLANGE
0-28080-816-0
01
1
0411-0512
323
BOLT; CLIP
M8X16 FLANGE
0-28050-816-0
01
1
0601-
323
BOLT; CLIP
M8X16 FLANGE
0-28050-816-0
01
1
0601-
399
CLIP; CABLE,RAD SIDE
1-09701-260-0
01
1
0411-
400
BOLT; CLIP,RAD SIDE
M8X16 FLANGE
0-28080-816-0
01
1
0411-0512
400
BOLT; CLIP,RAD SIDE
M8X16 FLANGE
0-28050-816-0
01
1
0601-
401
NUT; CLIP,RAD SIDE
M8 FLANGE
0-91150-108-0
01
1
0411-0602
401
NUT; CLIP,RAD SIDE
M8 FLANGE
0-91180-108-0
01
1
0603-
443
CLIP; CABLE
(A)
8-94107-647-0
01
1
0411-
443
CLIP; CABLE
(B) ID=7 L=20
9-09524-635-0
01
1
0411-0606
443
CLIP; CABLE
(B) ID=7 L=20
0-95234-635-0
01
1
0607-
450
CLIP; BAND
L=140
5-09707-031-1
02
1
0411-
650
PROTECTOR; ACCEL CABLE
1-47478-691-0
01
1
0411-
56
439
74
149
57
63
64
63
54
62
65
65
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
54
CABLE; ENG CONT
L=1624
1-73996-240-9
01
1
0411-
56
PIN; SNAP,JAW JOINT
L=17.9
1-09747-015-0
01
1
0411-
57
WASHER; ENG CONT CABLE
ID=8.4
9-09160-508-0
01
1
0411-0605
57
WASHER; ENG CONT CABLE
ID=8.4 OD=16
0-91610-508-0
01
1
0606-
62
CLIP; ENG CONT CABLE
L=30
1-09701-104-0
01
1
0411-
63
NUT; LOCK,BRKT
M8
9-09111-408-0
02
1
0411-
64
BRACKET; ENG CONT CABLE
1-23219-105-1
01
1
0411-
65
BOLT
(C) M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
0411-
65
BOLT
(A) M10X60
0-16811-060-0
01
1
0412-0512
65
BOLT
(A) M10X60
0-16861-060-0
01
1
0601-
65
BOLT
(B) M10X20 FLANGE
0-28181-020-0
01
1
0412-0512
65
BOLT
(B) M10X20 FLANGE
0-28151-020-0
01
1
0601-
74
PIN; SNAP,CABLE END
L=27.7
8-94157-841-0
01
1
0411-1509
74
PIN; SNAP,CABLE END
L=27.7
1-09987-141-0
01
1
1510-
149
BRACKET; ENG CONT
8-94390-006-2
01
1
0412-
439
WASHER; PL,PIN,JAW JOINT
ID=5.3
9-09160-505-0
01
1
0411-0605
439
WASHER; PL,PIN,JAW JOINT
ID=5.3
0-91610-505-0
01
1
0606-
644
40
8
67
644
8
70
75
14
332
16
58
29
664
234
73
33
65
242
673
59
6
15
86
104
82
271
54
104
87
82
6
81
469
60
657
86
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
LEVER; ENG CONT
1-71907-210-2
01
1
0411-
6
RING; SNAP,LINK TO LINK
ID=4
9-09185-404-0
02
1
0411-0604
6
RING; SNAP,LINK TO LINK
ID=4
0-91805-504-0
02
1
0605-
8
LINK ASM; ENG CONT
1-73996-206-6
01
1
0411-
14
PAD; PEDAL,ACCEL
1-73907-563-0
01
1
0411-
15
STAND; HEEL,ACCEL PEDAL
1-73907-266-3
01
1
0411-
16
SCREW; HEEL STAND,ACCEL PEDAL
M6X28 W/LK&PL WASHER
1-09980-543-0
02
1
0411-
29
SHAFT; ACCEL PEDAL
OD=8.0 L=74
1-71907-212-1
01
1
0411-
33
SPRING; IDLING CONT LEVER
8-94414-815-0
01
1
0411-
40
BRACKET; ENG CONT CABLE
1-71907-269-0
01
1
0411-
54
CABLE; ENG CONT
L=1624
1-73996-240-9
01
1
0411-
58
LEVER; IDLING CONT
1-71907-242-1
01
1
0411-
59
PIN; SNAP,ENG CONT CABLE
L=27.7
1-09747-005-0
01
1
0411-
60
BOLT; CABLE
(B) M8X20 FLANGE
0-28080-820-0
01
1
0411-0512
60
BOLT; CABLE
(B) M8X20 FLANGE
0-28050-820-0
01
1
0601-
60
BOLT; CABLE
(A) M8X24.5 W/LK&PL WASHER
8-94279-208-0
01
1
0411-0904
60
BOLT; CABLE
(A) M8X24.5 W/LK&PL WASHER
8-98059-720-0
01
1
0905-
65
BOLT
(C) M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
0411-
65
BOLT
(A) M10X60
0-16811-060-0
01
1
0412-0512
65
BOLT
(A) M10X60
0-16861-060-0
01
1
0601-
65
BOLT
(B) M10X20 FLANGE
0-28181-020-0
01
1
0412-0512
65
BOLT
(B) M10X20 FLANGE
0-28151-020-0
01
1
0601-
67
CABLE ASM; IDLE CONT
L=315
1-73908-423-1
01
1
0411-
70
NUT; CONT CABLE
1-73908-045-1
01
1
0411-
73
WASHER; PL,ACCEL CONT CABLE
ID=8.4
9-09160-508-0
01
1
0411-0605
73
WASHER; PL,ACCEL CONT CABLE
ID=8.4 OD=16
0-91610-508-0
01
1
0606-
75
KNOB ASM; IDLING CONT
1-73908-409-0
01
1
0411-
81
SPRING; RETURN,ENG CONT LEVER
8-97853-205-1
01
1
0411-
82
BUSHING; ENG CONT LVR
1-71907-244-1
02
1
0411-
86
WASHER; PL,ENG CONT LEVER
ID=6.4
9-09160-506-0
02
1
0411-
87
LINK; ENG CONT
1-71907-211-1
01
1
0411-
104
NUT; ENG CONT
ID=7.9 PUSH NUT
8-94368-617-0
02
1
0411-
234
SWITCH; ACCEL
1-82380-114-3
01
1
0411-
242
NUT; ACCEL PEDAL
ID=7.9 PUSH NUT
8-97022-565-0
01
1
0411-
271
SHAFT; ENG CONT
OD=8.0 L=74
1-71907-212-1
01
1
0411-
332
BRACKET; ACCEL PEDAL STOPPER
1-73908-428-0
01
1
0411-
469
LEVER ASM
1-71907-209-5
01
1
0411-
644
NUT; LINK,ENG CONT
(A) M8 FLANGE
0-91150-108-0
02
1
0411-0602
644
NUT; LINK,ENG CONT
(A) M8 FLANGE
0-91180-108-0
02
1
0603-
644
NUT; LINK,ENG CONT
(B) M8 FLANGE W/RUBBER
1-09984-176-0
03
1
0411-
657
CLIP; ENG CONT CABLE
D=18 H=30
1-09701-028-0
01
1
0411-
664
BOLT; STOPPER
M8X45
0-20800-845-0
01
1
0411-
673
NUT; STOPPER
M8
9-09111-408-0
01
1
0411-0512
673
NUT; STOPPER
M8
0-91111-508-0
01
1
0601-
