0-28 — VENTILATION SYSTEM
(#5903) — 36 parça
Tümü
A - 6HE1 STD ENG
B - 6HE1 N ENG
C - 6HE1 TC ENG
D - 6HE1 TCC ENG
◀

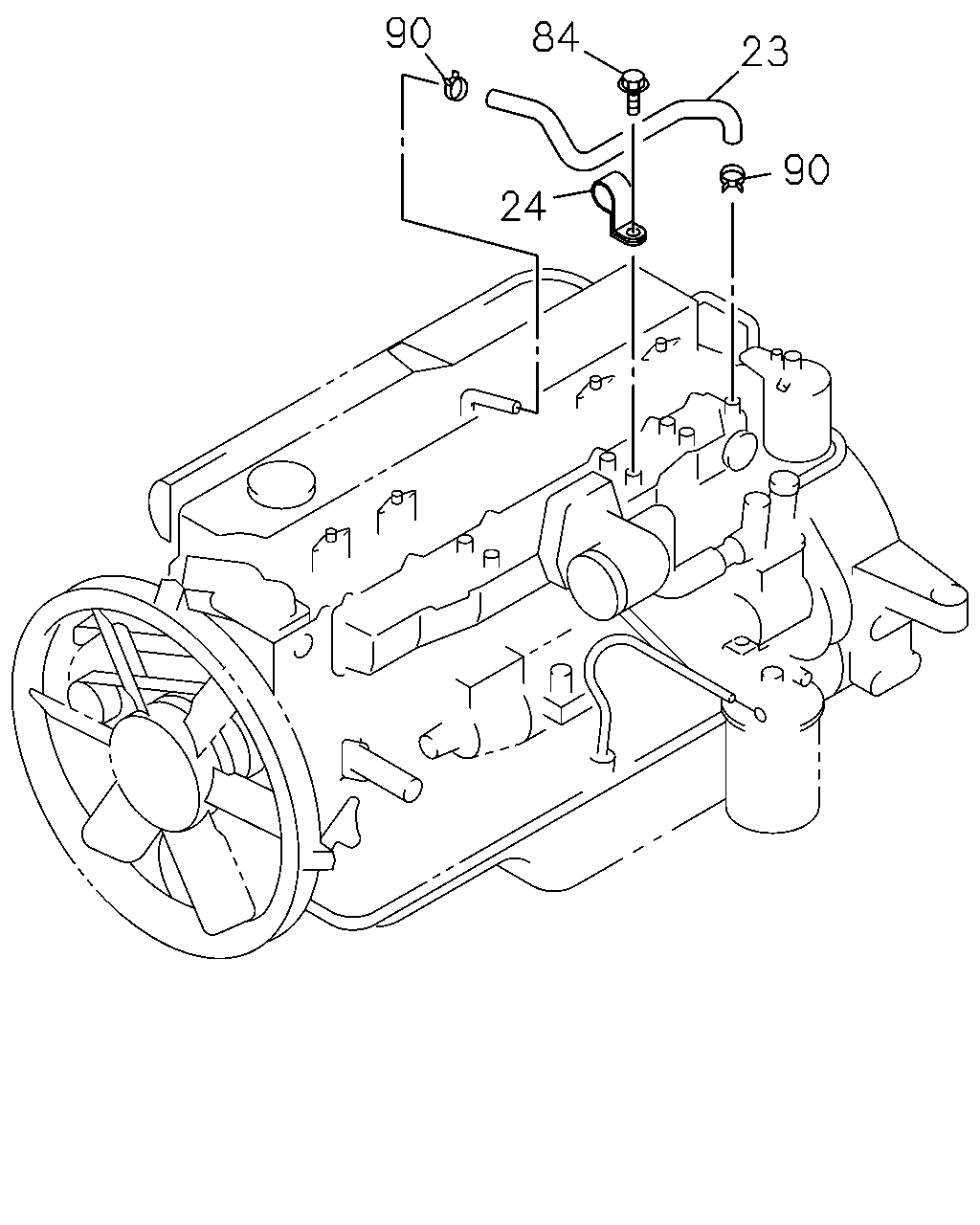

[028A] 6HE1 STD,N (11 parça)

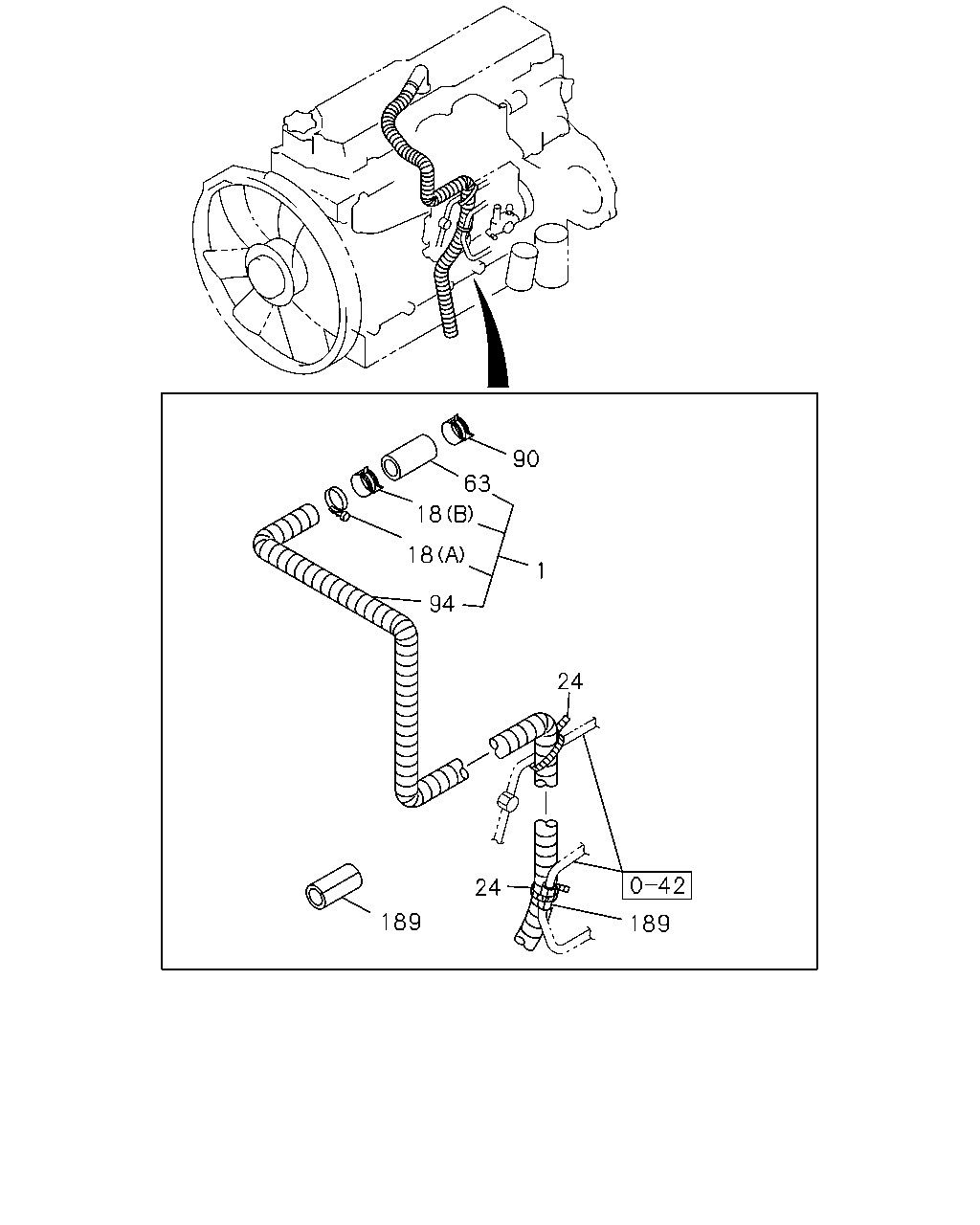

[028A] 6HE1 TC,TCC (25 parça)
▶
90
84
23
90
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
23
HOSE; RUBBER,VENTILATOR PIPE
8-94396-111-0
01
1
9606-9810
●
●
24
CLIP; RUBBER HOSE,VENTILATOR
8-94397-160-1
01
1
9606-9810
●
●
24
CLIP; RUBBER HOSE,VENTILATOR
L=250
5-09707-030-1
02
1
9811-9902
●
24
CLIP; RUBBER HOSE,VENTILATOR
L=250
5-09707-030-1
02
1
9903-0005
●
●
24
CLIP; RUBBER HOSE,VENTILATOR
L=250
5-09707-030-1
02
1
0006-0203
●
24
CLIP; RUBBER HOSE,VENTILATOR
L=250
5-09707-030-1
03
1
0006-
●
84
BOLT; PIPE CLIP,VENTILATOR
M8X12 FLANGE
0-28080-812-0
01
1
9606-9810
●
●
90
CLIP; RUBBER HOSE
ID=22.7
8-94466-382-0
02
1
9606-9810
●
●
90
CLIP; RUBBER HOSE
ID=33.6
8-94362-518-0
01
1
9811-9902
●
90
CLIP; RUBBER HOSE
ID=33.6
8-94362-518-0
01
1
9903-0203
●
●
90
CLIP; RUBBER HOSE
ID=33.6
8-94362-518-0
01
1
0204-
●
90
63
1
18
1
94
24
24
189
189
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
BREATHER; AIR
8-94394-777-1
01
1
9811-9902
●
1
BREATHER; AIR
8-94394-777-1
01
1
9903-0203
●
●
1
BREATHER; AIR
8-94394-777-2
01
1
0204-
●
18
CLIP; RUBBER HOSE,AIR BREATHER
(B) ID=33.6
8-94362-518-0
01
1
9811-9902
●
18
CLIP; RUBBER HOSE,AIR BREATHER
(B) ID=33.6
8-94362-518-0
01
1
9903-0203
●
●
18
CLIP; RUBBER HOSE,AIR BREATHER
(B) ID=33.6
8-94362-518-0
01
1
0204-
●
18
CLIP; RUBBER HOSE,AIR BREATHER
(A) ID=38
9-09915-041-1
01
1
9811-9902
●
18
CLIP; RUBBER HOSE,AIR BREATHER
(A) ID=38
9-09915-041-1
01
1
9903-0203
●
●
18
CLIP; RUBBER HOSE,AIR BREATHER
(A) ID=38
9-09915-041-1
01
1
0204-
●
24
CLIP; RUBBER HOSE,VENTILATOR
8-94397-160-1
01
1
9606-9810
●
●
24
CLIP; RUBBER HOSE,VENTILATOR
L=250
5-09707-030-1
02
1
9811-9902
●
24
CLIP; RUBBER HOSE,VENTILATOR
L=250
5-09707-030-1
02
1
9903-0005
●
●
24
CLIP; RUBBER HOSE,VENTILATOR
L=250
5-09707-030-1
02
1
0006-0203
●
24
CLIP; RUBBER HOSE,VENTILATOR
L=250
5-09707-030-1
03
1
0006-
●
63
HOSE; RUBBER,AIR BREATHER
8-94394-471-0
01
1
9811-9902
●
63
HOSE; RUBBER,AIR BREATHER
8-94394-471-0
01
1
9903-0203
●
●
63
HOSE; RUBBER,AIR BREATHER
8-94394-471-0
01
1
0204-
●
90
CLIP; RUBBER HOSE
ID=22.7
8-94466-382-0
02
1
9606-9810
●
●
90
CLIP; RUBBER HOSE
ID=33.6
8-94362-518-0
01
1
9811-9902
●
90
CLIP; RUBBER HOSE
ID=33.6
8-94362-518-0
01
1
9903-0203
●
●
90
CLIP; RUBBER HOSE
ID=33.6
8-94362-518-0
01
1
0204-
●
94
HOSE; BREATHER TO PIPE
L=1100
8-94394-785-0
01
1
9811-9902
●
94
HOSE; BREATHER TO PIPE
L=1100
8-94394-785-0
01
1
9903-0203
●
●
94
HOSE; BREATHER TO PIPE
L=1100
8-94394-785-0
01
1
0204-
●
189
SLEEVE; RUBBER
ID=10 OD=14 L=30
9-09956-682-0
02
1
0002-0203
●
