0-27 — EXHAUST MANIFOLD (#5902) — 77 parça

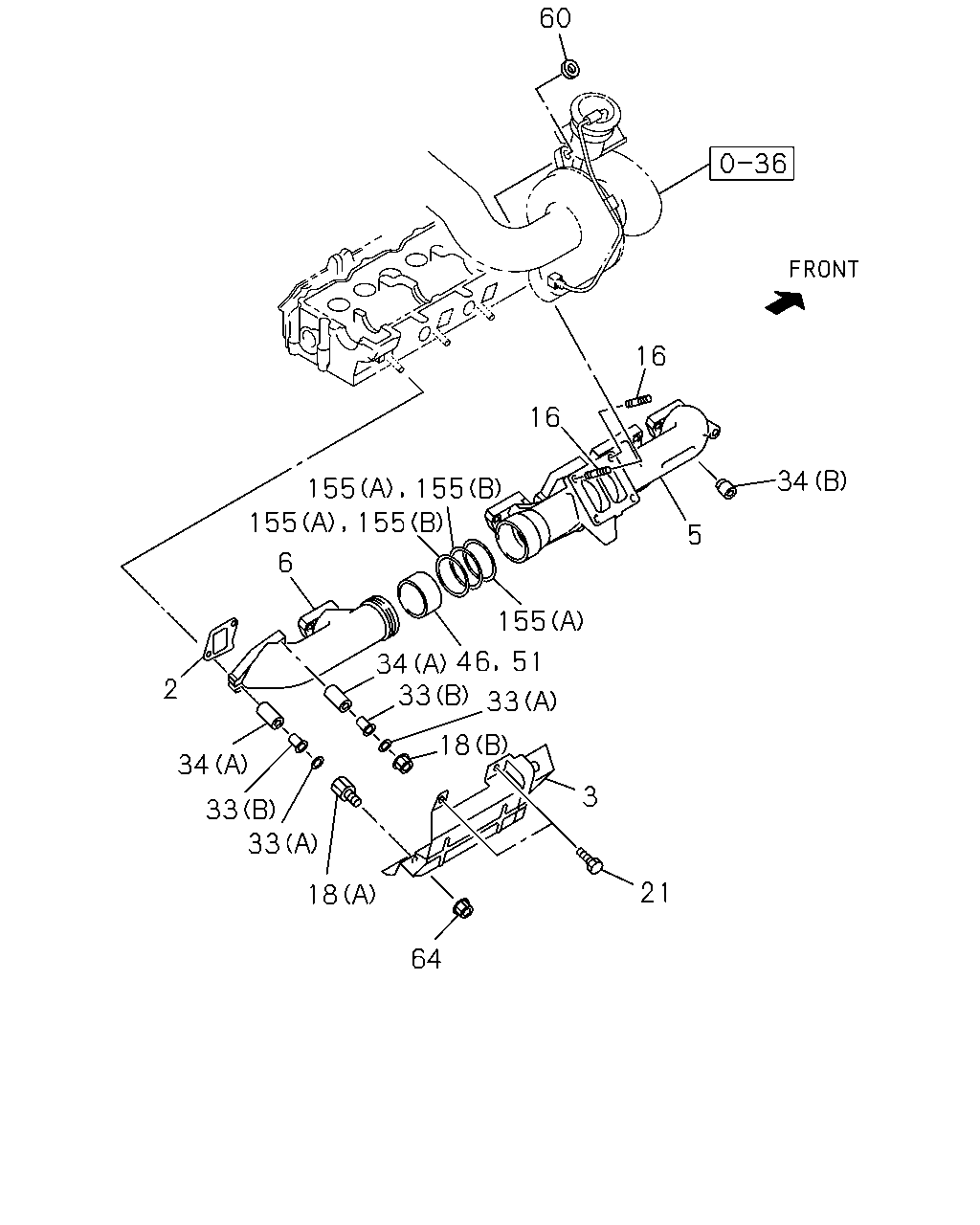

çizim 42629
60 16 16 155 155 155 34 155 5 6 155 34 46 33 51 2 33 18 34 3 33 33 21 18 64
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94396-351-1 06 1 9606-9810 ● ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94396-351-1 06 1 9811-0203 ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94393-672-2 06 1 9903- ●
3 PROTECTOR; HEAT,EXH MANIF 8-94391-582-1 01 1 9903- ●
5 MANIFOLD; EXH,FRT 8-94394-366-2 01 1 9811-0203 ●
5 MANIFOLD; EXH,FRT 8-94395-422-2 01 1 9903-0104 ●
5 MANIFOLD; EXH,FRT 8-97602-056-0 01 1 0105- ●
6 MANIFOLD; EXH,RR 8-94393-744-0 01 1 9811-0203 ●
6 MANIFOLD; EXH,RR 8-94394-636-1 01 1 9903-0104 ●
6 MANIFOLD; EXH,RR 8-97600-970-0 01 1 0105- ●
16 STUD; EXH PIPE TO MANIF
M12X103 L=123 		8-94394-656-0 03 1 9606-9810 ● ●
16 STUD; EXH PIPE TO MANIF
M10X25 L=40 		9-04731-025-0 02 1 9811-9902 ●
16 STUD; EXH PIPE TO MANIF
M10X25 L=40 		9-04731-025-0 02 1 9903-0203 ● ●
16 STUD; EXH PIPE TO MANIF
M10X25 L=40 		9-04731-025-0 02 1 0204- ●
18 NUT; EXH MANIF
(B) M10 FLANGE 		0-91150-210-0 12 1 9606-9810 ● ●
18 NUT; EXH MANIF
(B) M10 FLANGE 		0-91150-210-0 12 1 9811-0203 ●
18 NUT; EXH MANIF
(B) M10 FLANGE 		0-91150-210-0 10 1 9903-0602 ●
18 NUT; EXH MANIF
(B) M10 FLANGE 		0-91180-210-0 10 1 0603- ●
18 NUT; EXH MANIF
(A) M10 L=51 		8-94394-991-1 02 1 9903- ●
21 BOLT; HEAT PROTECTOR
M8X16 FLANGE 		0-28080-816-0 02 1 9903-0512 ●
21 BOLT; HEAT PROTECTOR
M8X16 FLANGE 		0-28050-816-0 02 1 0601- ●
33 WASHER; EXH MANIF
(A) T=2.2 		1-09556-015-0 12 1 9606-9810 ● ●
33 WASHER; EXH MANIF
(A) T=2.2 		1-09556-015-0 12 1 9811-9902 ●
33 WASHER; EXH MANIF
(A) T=2.2 		1-09556-015-0 12 1 9903-0203 ● ●
33 WASHER; EXH MANIF
(B) T=5.5 		1-14149-042-0 10 1 9606-9810 ● ●
33 WASHER; EXH MANIF
(B) T=5.5 		1-14149-042-0 11 1 9811-0203 ●
33 WASHER; EXH MANIF
(A) T=2.2 		1-09556-015-0 12 1 0204- ●
34 COLLAR; DIST,EXH MANIF
(B) L=28 		8-94395-679-0 02 1 9606-9810 ● ●
34 COLLAR; DIST,EXH MANIF
(B) L=28 		8-94395-679-0 01 1 9811-0203 ●
34 COLLAR; DIST,EXH MANIF
(A) L=43 		8-94396-406-0 10 1 9606-9810 ● ●
34 COLLAR; DIST,EXH MANIF
(A) L=43 		8-94396-406-0 11 1 9811-0203 ●
34 COLLAR; DIST,EXH MANIF
(A),(B) L=28 		8-94395-679-0 12 1 9903-0209 ●
34 COLLAR; DIST,EXH MANIF
(A),(B) L=28 		8-97250-073-1 12 1 0210- ●
46 PIPE; SEAL,EXH MANIF
OD=49.5 L=43 		1-14149-131-1 01 1 9903-0104 ●
51 PIPE; SEAL
OD=49.5 L=43 		1-14149-131-1 01 1 9811-0203 ●
60 WASHER; PL,EXH PIPE
ID=10 		1-09503-033-1 02 1 9811-0203 ●
64 NUT; HEAT PROTECTOR
M10 FLANGE 		0-91150-210-0 02 1 9903-0602 ●
64 NUT; HEAT PROTECTOR
M10 FLANGE 		0-91180-210-0 02 1 0603- ●
155 RING; SEAL,EXH MANIF
(B) 		1-14149-184-0 02 1 0502- ●
155 RING; SEAL,EXH MANIF
(A) 		1-14149-151-0 03 1 9811-9902 ●
155 RING; SEAL,EXH MANIF
(A) 		1-14149-151-0 03 1 9903-0203 ● ●
155 RING; SEAL,EXH MANIF
(A) 		1-14149-151-0 03 1 0204-0501 ●
155 RING; SEAL,EXH MANIF
(A) 		1-14149-151-0 01 1 0502- ●

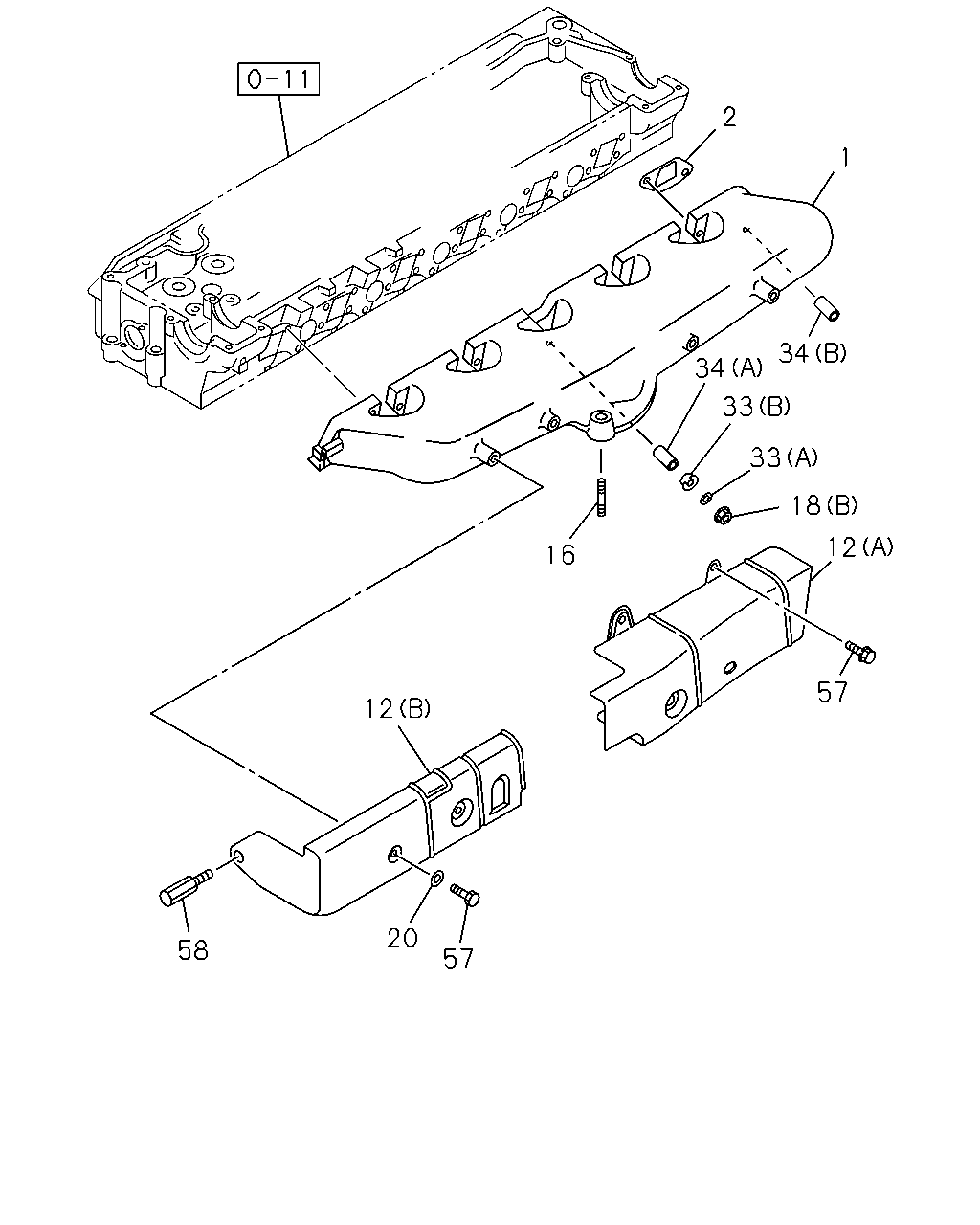

çizim 42747
2 1 34 34 33 33 18 12 16 57 12 20 58 57
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 MANIFOLD; EXHAUST 8-94395-987-0 01 1 9606-9810 ● ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94396-351-1 06 1 9606-9810 ● ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94396-351-1 06 1 9811-0203 ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94393-672-2 06 1 9903- ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
(A) 		8-94395-204-0 01 1 9606-9810 ● ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
(B) 		8-94395-413-1 01 1 9606-9609 ● ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
(B) 		8-94391-040-0 01 1 9610-9809 ● ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
(B) 		8-94392-947-0 01 1 9810-9810 ● ●
16 STUD; EXH PIPE TO MANIF
M12X103 L=123 		8-94394-656-0 03 1 9606-9810 ● ●
16 STUD; EXH PIPE TO MANIF
M10X25 L=40 		9-04731-025-0 02 1 9811-9902 ●
16 STUD; EXH PIPE TO MANIF
M10X25 L=40 		9-04731-025-0 02 1 9903-0203 ● ●
16 STUD; EXH PIPE TO MANIF
M10X25 L=40 		9-04731-025-0 02 1 0204- ●
18 NUT; EXH MANIF
(B) M10 FLANGE 		0-91150-210-0 12 1 9606-9810 ● ●
18 NUT; EXH MANIF
(B) M10 FLANGE 		0-91150-210-0 12 1 9811-0203 ●
18 NUT; EXH MANIF
(B) M10 FLANGE 		0-91150-210-0 10 1 9903-0602 ●
18 NUT; EXH MANIF
(B) M10 FLANGE 		0-91180-210-0 10 1 0603- ●
18 NUT; EXH MANIF
(A) M10 L=51 		8-94394-991-1 02 1 9903- ●
20 WASHER; PL,HEAT PROTECTOR
ID=8.4 OD=18 		9-09160-608-0 01 1 9606-9803 ● ●
33 WASHER; EXH MANIF
(A) T=2.2 		1-09556-015-0 12 1 9606-9810 ● ●
33 WASHER; EXH MANIF
(A) T=2.2 		1-09556-015-0 12 1 9811-9902 ●
33 WASHER; EXH MANIF
(A) T=2.2 		1-09556-015-0 12 1 9903-0203 ● ●
33 WASHER; EXH MANIF
(B) T=5.5 		1-14149-042-0 10 1 9606-9810 ● ●
33 WASHER; EXH MANIF
(B) T=5.5 		1-14149-042-0 11 1 9811-0203 ●
33 WASHER; EXH MANIF
(A) T=2.2 		1-09556-015-0 12 1 0204- ●
34 COLLAR; DIST,EXH MANIF
(B) L=28 		8-94395-679-0 02 1 9606-9810 ● ●
34 COLLAR; DIST,EXH MANIF
(B) L=28 		8-94395-679-0 01 1 9811-0203 ●
34 COLLAR; DIST,EXH MANIF
(A) L=43 		8-94396-406-0 10 1 9606-9810 ● ●
34 COLLAR; DIST,EXH MANIF
(A) L=43 		8-94396-406-0 11 1 9811-0203 ●
34 COLLAR; DIST,EXH MANIF
(A),(B) L=28 		8-94395-679-0 12 1 9903-0209 ●
34 COLLAR; DIST,EXH MANIF
(A),(B) L=28 		8-97250-073-1 12 1 0210- ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
M8X12 FLANGE 		0-28080-812-0 02 1 9606-9810 ● ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
M8X14 FLANGE 		8-94312-699-1 04 1 9606-9803 ● ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
M8X14 FLANGE 		8-94312-699-1 05 1 9804-9810 ● ●
58 STUD; HEAT PROTECTOR 8-94396-828-2 01 1 9606-9803 ● ●
