0-40 — FUEL INJECTION SYSTEM
(#59017) — 51 parça
◀

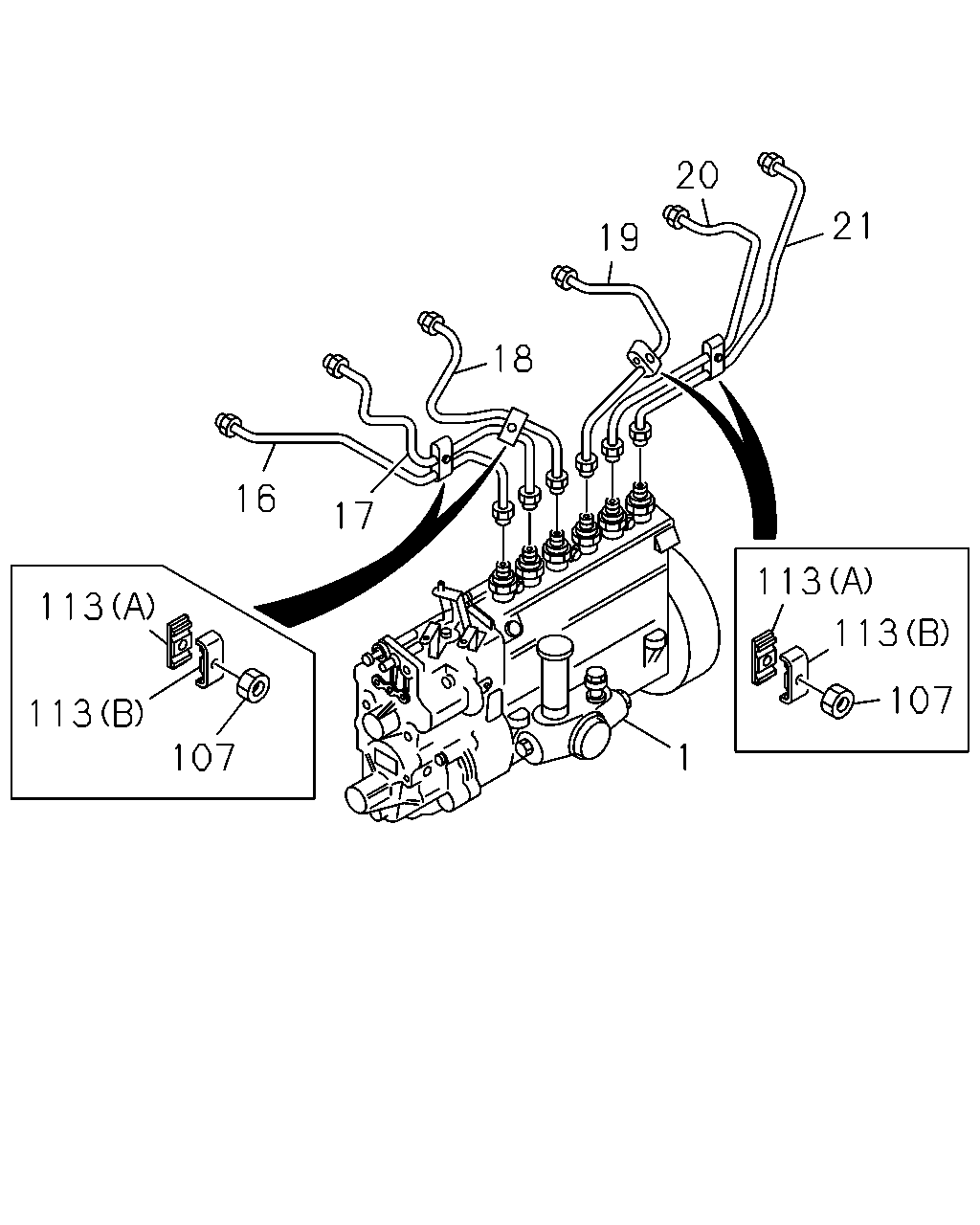

[040A] CLIP;INJ PIPE (11 parça)
[040A] NOZZLE ASM (9 parça)

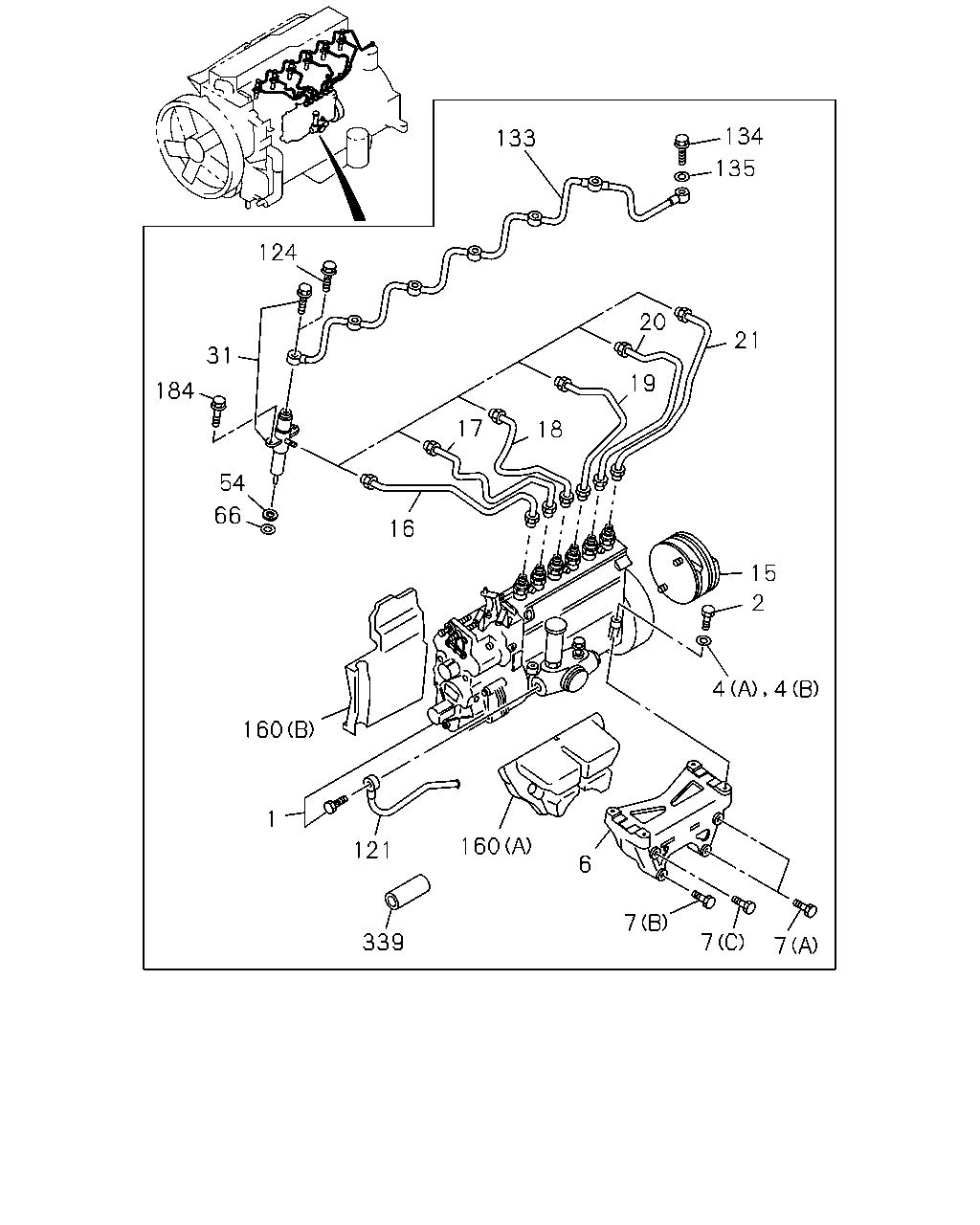

[040A] PUMP ASM AND INJ PIPE (31 parça)
▶
20
21
19
18
16
17
113
113
113
107
113
1
107
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.
8-94390-081-1
01
1
0412-
16
PIPE; INJ NO.1
8-94394-546-0
01
1
0412-
17
PIPE; INJ NO.2
8-94394-547-0
01
1
0412-
18
PIPE; INJ NO.3
8-94394-548-0
01
1
0412-
19
PIPE; INJ NO.4
8-94394-549-0
01
1
0412-
20
PIPE; INJ NO.5
8-94394-550-0
01
1
0412-
21
PIPE; INJ NO.6
8-94394-551-0
01
1
0412-
107
NUT; INJ PIPE CLIP
M6 FLANGE
0-91150-106-0
04
1
0412-0602
107
NUT; INJ PIPE CLIP
M6 FLANGE
0-91180-106-0
04
1
0603-
113
CLIP; INJ PIPE
(A)
8-94396-793-0
04
1
0412-
113
CLIP; INJ PIPE
(B)
8-94397-444-0
04
1
0412-
37
38
31
39
32
44
45
33
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
31
NOZZLE ASM; INJ
8-94395-498-2
06
1
0412-
32
HOLDER ASM; NOZZLE
8-94390-384-0
06
1
0412-
33
NOZZLE; INJ
8-94390-382-0
06
1
0412-
35
NUT; NOZZLE RET,NOZZLE HOLDER
1-15349-135-0
06
1
0412-
37
NUT; CAP,NOZZLE HOLDER
1-15349-136-0
06
1
0412-
38
GASKET; CAP NUT,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENGINE).
5-15339-060-0
06
1
0412-
39
SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER
8-94169-503-0
06
1
0412-
44
SPRING; NOZZLE,NOZZLE HOLDER
5-15343-005-0
06
1
0412-
45
ROD; PUSH,NOZZLE HOLDER
8-94169-502-0
06
1
0412-
134
133
135
124
20
21
31
19
184
17
18
54
66
16
15
2
4
4
160
1
160
121
6
7
339
7
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.
8-94390-081-1
01
1
0412-
2
BOLT; INJ PUMP
M8X75
0-10810-875-0
04
1
0412-
4
WASHER; INJ PUMP
(A) ID=8.5 MITSUBISHI
9-09851-934-0
04
1
0412-
4
WASHER; INJ PUMP
(B) ID=8.5 KAWASAKI
9-09851-983-0
04
1
0412-
6
BRACKET; INJ PUMP TO C/BL
8-94393-689-2
01
1
0412-
7
BOLT; INJ PUMP BRKT
(A) M10X80 FLANGE
0-28181-080-0
02
1
0412-0512
7
BOLT; INJ PUMP BRKT
(A) M10X80 FLANGE
0-28151-080-0
02
1
0601-
7
BOLT; INJ PUMP BRKT
(B) M10X75 FLANGE
8-94399-669-1
01
1
0412-
7
BOLT; INJ PUMP BRKT
(C) M10X55 FLANGE
8-94399-863-1
01
1
0412-0805
7
BOLT; INJ PUMP BRKT
(C) M10X55 FLANGE
8-97365-449-0
01
1
0806-
15
COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT.
8-94393-962-2
01
1
0412-
16
PIPE; INJ NO.1
8-94394-546-0
01
1
0412-
17
PIPE; INJ NO.2
8-94394-547-0
01
1
0412-
18
PIPE; INJ NO.3
8-94394-548-0
01
1
0412-
19
PIPE; INJ NO.4
8-94394-549-0
01
1
0412-
20
PIPE; INJ NO.5
8-94394-550-0
01
1
0412-
21
PIPE; INJ NO.6
8-94394-551-0
01
1
0412-
31
NOZZLE ASM; INJ
8-94395-498-2
06
1
0412-
54
COVER; DUST,NOZZLE HOLDER
9-15339-051-0
06
1
0412-
66
GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1
8-97601-447-2
06
1
0412-0909
66
GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1
8-98079-248-0
06
1
0910-
121
PIPE; FUEL,FEED PUMP,SUCTION
8-94394-408-0
01
1
0412-
124
BOLT; EYE LEAK OFF PIPE
M8X18 EYE-BOLT
1-09675-037-1
06
1
0412-
133
PIPE; INJ NOZZLE LEAK OFF
8-94395-805-0
01
1
0412-
134
BOLT; JOINT,LEAK OFF PIPE
M8X18 EYE-BOLT
1-09675-037-1
01
1
0412-
135
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2
1-09630-082-0
14
1
0412-
160
SPACER; INJ PUMP
(B)
8-94390-169-0
01
1
0412-
160
SPACER; INJ PUMP
(A)
8-94395-673-1
01
1
0412-
184
BOLT; NOZZLE HOLDER
M8X40 FLANGE
0-28080-840-0
12
1
0412-0512
184
BOLT; NOZZLE HOLDER
M8X40 FLANGE
0-28050-840-0
12
1
0601-
339
RUBBER; COVER
ID=6 OD=10 L=70
1-09376-512-0
01
1
0412-
