0-25 — INLET MANIFOLD (#5901) — 120 parça

170 170 55 192 55 55 324 192 324 44 232 44 32 327 70 75 344 32 228 7 2 228 228 32 353 50 192 55 167 364 363 587 167 364 353 341

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	COVER; INL	8-94395-959-0	01	1	9606-9810	●	●
2	COVER; INL	8-94394-301-5	01	1	9811-0203			●
2	COVER; INL	8-94391-107-2	01	1	9903-				●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94397-039-1	01	1	9606-9810	●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94397-039-1	01	1	9811-9902			●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94397-039-1	01	1	9903-0203			●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94397-039-1	01	1	0204-				●
32	STUD; INL PIPE (A) M6X25 L=34	9-04110-625-0	04	1	9811-0203			●
32	STUD; INL PIPE (B) M10X20 L=35	9-04411-020-0	04	1	0204-				●
32	STUD; INL PIPE (B) M10X20 L=35	9-04411-020-0	04	1	9811-9902			●
32	STUD; INL PIPE (A) M6X30 L=38	9-04110-630-0	03	1	9903-0604				●
32	STUD; INL PIPE (A) M6X30 L=38	0-41010-630-0	03	1	0605-				●
32	STUD; INL PIPE (B) M10X20 L=35	9-04411-020-0	04	1	9903-0203			●	●
44	NUT; PIPE BRKT M8 FLANGE	0-91150-108-0	02	1	9811-0203			●
44	NUT; PIPE BRKT M8 FLANGE	0-91150-108-0	03	1	9903-0602				●
44	NUT; PIPE BRKT M8 FLANGE	0-91180-108-0	03	1	0603-				●
50	PIPE; INL	8-94396-214-0	01	1	9606-9609	●	●
50	PIPE; INL	8-94397-063-2	01	1	9610-9810	●	●
50	PIPE; INL	8-94394-400-1	01	1	9811-0203			●
50	PIPE; INL	8-94391-478-1	01	1	9903-0001				●
50	PIPE; INL	8-97601-301-0	01	1	0002-				●
55	NUT; INL PIPE (A) M10 FLANGE	0-91150-110-0	04	1	9811-9902			●
55	NUT; INL PIPE (A) M10 FLANGE	0-91150-110-0	04	1	9903-0203			●	●
55	NUT; INL PIPE (A) M10 FLANGE	0-91150-110-0	04	1	0204-0602				●
55	NUT; INL PIPE (A) M10 FLANGE	0-91180-110-0	04	1	0603-				●
55	NUT; INL PIPE (B) M8	9-09110-408-0	03	1	9811-9902			●
55	NUT; INL PIPE (B) M8	9-09110-408-0	03	1	9903-0203			●	●
55	NUT; INL PIPE (B) M8	9-09110-408-0	03	1	0204-0512				●
55	NUT; INL PIPE (B) M8	0-91110-508-0	03	1	0601-				●
70	STUD; WATER PIPE M10X30 L=45	9-04411-030-0	02	1	9811-0203			●
75	STUD; BRKT,AIR PIPE M10X25 L=40	9-04411-025-0	02	1	9903-0604				●
75	STUD; BRKT,AIR PIPE M10X25 L=40	0-44011-025-0	02	1	0605-				●
167	PLUG; INL MANIF	1-09604-078-0	06	1	9811-0203			●
170	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	9811-9902			●
170	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	9903-0203			●	●
170	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	0204-0512				●
170	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-				●
170	BOLT; BRKT (B) M8X25 FLANGE	0-28080-825-0	01	1	9811-9902			●
170	BOLT; BRKT (B) M8X25 FLANGE	0-28080-825-0	01	1	9903-0203			●	●
170	BOLT; BRKT (B) M8X25 FLANGE	0-28080-825-0	01	1	0204-0512				●
170	BOLT; BRKT (B) M8X25 FLANGE	0-28050-825-0	01	1	0601-				●
170	BOLT; BRKT (C) M10X25 FLANGE	0-28081-025-0	01	1	9903-0512				●
170	BOLT; BRKT (C) M10X25 FLANGE	0-28051-025-0	01	1	0601-				●
192	WASHER; PL,INL PIPE ID=8.4 OD=26	9-09164-808-0	03	1	9811-9902			●
192	WASHER; PL,INL PIPE ID=8.4 OD=26	9-09164-808-0	03	1	9903-0203			●	●
192	WASHER; PL,INL PIPE ID=8.4 OD=26	9-09164-808-0	03	1	0204-0605				●
192	WASHER; PL,INL PIPE ID=8.4 OD=26	0-91614-808-0	03	1	0606-				●
228	STUD; INL COVER (C) M8X16 L=28	9-04110-816-0	06	1	9811-9902			●
228	STUD; INL COVER (C) M8X16 L=28	9-04110-816-0	06	1	9903-0203			●	●
228	STUD; INL COVER (C) M8X16 L=28	9-04110-816-0	06	1	0204-0604				●
228	STUD; INL COVER (C) M8X16 L=28	0-41010-816-0	06	1	0605-				●
228	STUD; INL COVER (A) M8X25 L=37	9-04110-825-0	01	1	9903-0604				●
228	STUD; INL COVER (A) M8X25 L=37	0-41010-825-0	01	1	0605-				●
228	STUD; INL COVER (B) M8X40 L=52	9-04110-840-0	01	1	9903-0604				●
228	STUD; INL COVER (B) M8X40 L=52	0-41010-840-0	01	1	0605-				●
232	BRACKET; INJ PIPE	8-94395-027-0	01	1	9903-0108				●
232	BRACKET; INJ PIPE	8-94391-452-0	01	1	0109-				●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94399-417-0	01	1	9606-9810	●	●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=62.6	1-09623-505-0	02	1	9811-9902			●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=62.6	1-09623-505-0	02	1	9903-0203			●	●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=62.6	1-09623-505-0	02	1	0204-				●
327	VALVE; SAFETY,TURBOCHARGER	8-94393-227-0	01	1	9811-0203			●
341	BOLT; BRKT,INL COVER M10X20 FLANGE	0-28181-020-0	01	1	9811-0203			●
344	BRACKET; INL PIPE	8-94393-865-0	01	1	9811-9902			●
344	BRACKET; INL PIPE	8-94393-865-0	01	1	9903-0203			●	●
344	BRACKET; INL PIPE	8-94393-865-0	01	1	0204-				●
353	PIPE; AIR,BOOST (A)	8-94394-439-0	01	1	9811-0203			●
353	PIPE; AIR,BOOST (B) PT1/4 ELBOW	8-94221-562-0	01	1	9903-				●
363	BOLT; EYE	1-09675-184-0	01	1	9811-0203			●
364	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	02	1	9811-0203			●
587	MOUNTING; INTAKE DUCT	8-94395-966-0	13	1	9811-9902			●
587	MOUNTING; INTAKE DUCT	8-94395-966-0	13	1	9903-0203			●	●
587	MOUNTING; INTAKE DUCT	8-94395-966-0	13	1	0204-				●

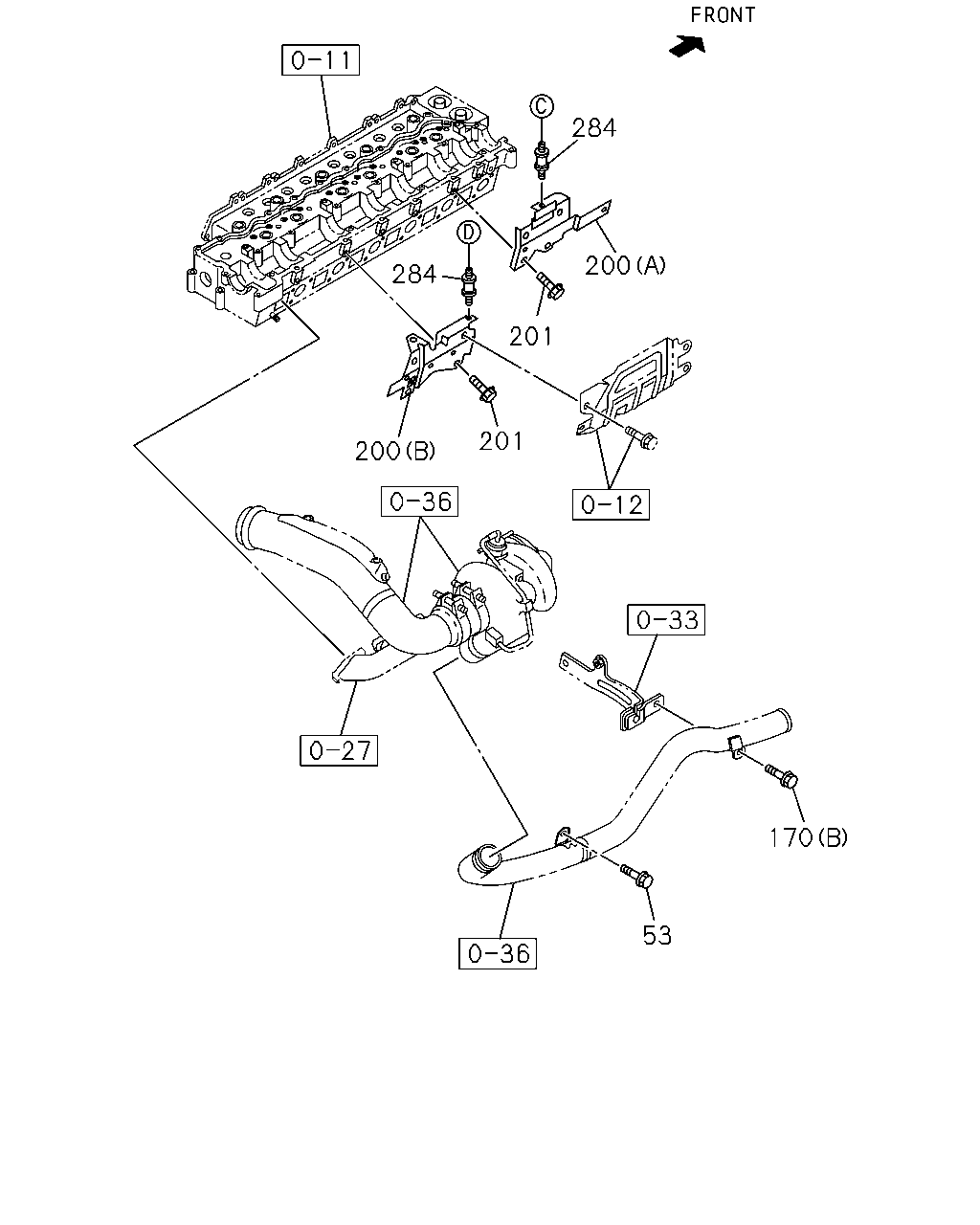

284 284 200 201 201 200 170 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C	D
53	BOLT; INL PIPE M8X16 FLANGE	0-28080-816-0	01	1	9811-0203	●
170	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	9811-9902	●
170	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	9903-0203	●	●
170	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	0204-0512		●
170	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-		●
170	BOLT; BRKT (B) M8X25 FLANGE	0-28080-825-0	01	1	9811-9902	●
170	BOLT; BRKT (B) M8X25 FLANGE	0-28080-825-0	01	1	9903-0203	●	●
170	BOLT; BRKT (B) M8X25 FLANGE	0-28080-825-0	01	1	0204-0512		●
170	BOLT; BRKT (B) M8X25 FLANGE	0-28050-825-0	01	1	0601-		●
170	BOLT; BRKT (C) M10X25 FLANGE	0-28081-025-0	01	1	9903-0512		●
170	BOLT; BRKT (C) M10X25 FLANGE	0-28051-025-0	01	1	0601-		●
200	BRACKET; AIR DUCT (B)	8-94390-088-0	01	1	9811-9812	●
200	BRACKET; AIR DUCT (B)	8-97600-201-0	01	1	9901-0203	●
200	BRACKET; AIR DUCT (A)	8-94394-312-1	01	1	0204-		●
200	BRACKET; AIR DUCT (A)	8-94394-312-1	01	1	9811-9902	●
200	BRACKET; AIR DUCT (B)	8-94390-088-0	01	1	9903-		●
200	BRACKET; AIR DUCT (A)	8-94394-312-1	01	1	9903-0203	●	●
201	BOLT; BRKT,AIR DUCT M8X16 FLANGE	0-28080-816-0	05	1	9811-9902	●
201	BOLT; BRKT,AIR DUCT M8X16 FLANGE	0-28080-816-0	05	1	9903-0203	●	●
201	BOLT; BRKT,AIR DUCT M8X16 FLANGE	0-28080-816-0	05	1	0204-0512		●
201	BOLT; BRKT,AIR DUCT M8X16 FLANGE	0-28050-816-0	05	1	0601-		●
284	RUBBER; INL PIPE MTG	8-94394-268-1	02	1	9811-9902	●
284	RUBBER; INL PIPE MTG	8-94394-268-1	02	1	9903-0203	●	●
284	RUBBER; INL PIPE MTG	8-94394-268-1	02	1	0204-		●

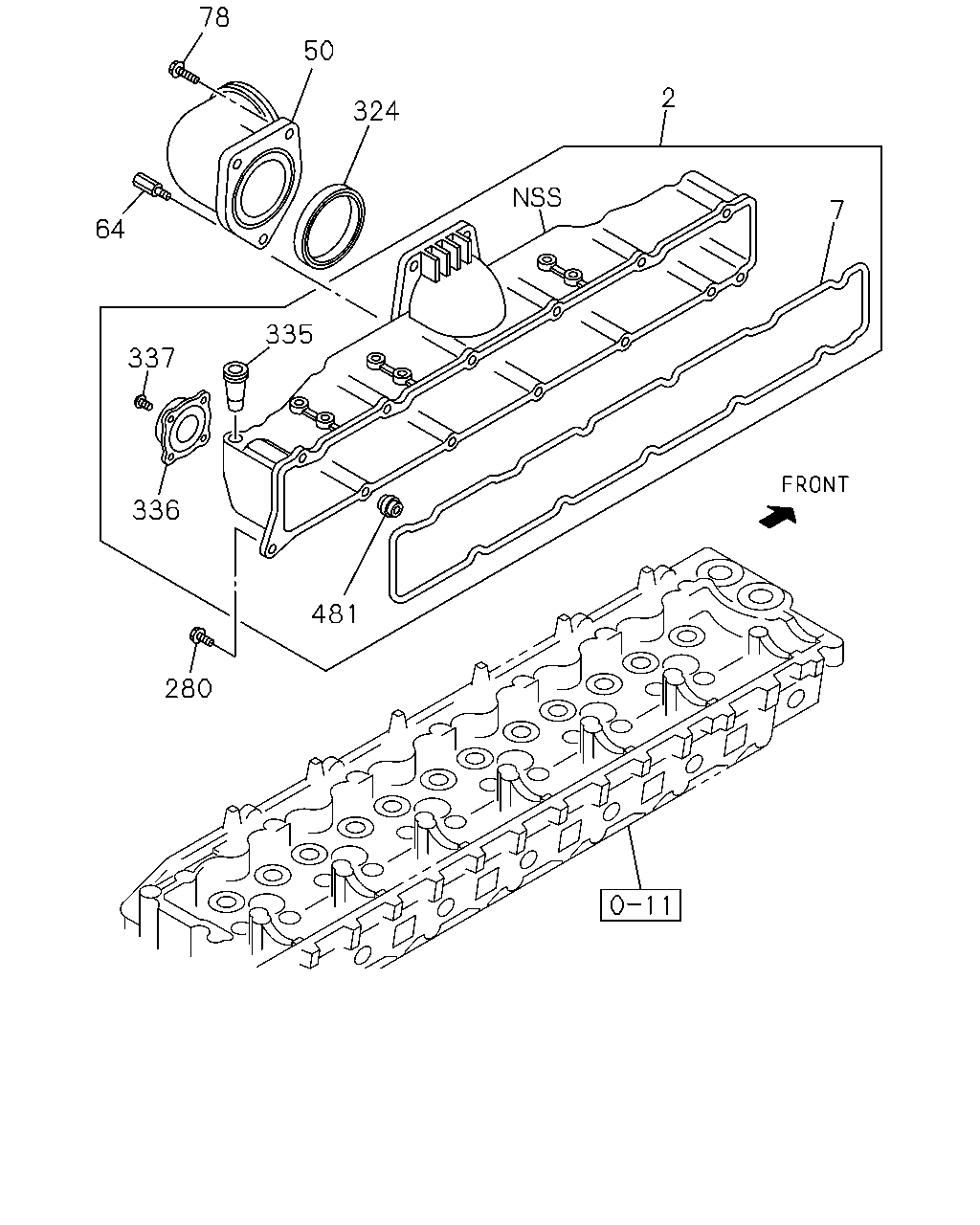

78 50 2 324 7 64 335 337 336 481 280

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	COVER; INL	8-94395-959-0	01	1	9606-9810	●	●
2	COVER; INL	8-94394-301-5	01	1	9811-0203			●
2	COVER; INL	8-94391-107-2	01	1	9903-				●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94397-039-1	01	1	9606-9810	●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94397-039-1	01	1	9811-9902			●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94397-039-1	01	1	9903-0203			●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94397-039-1	01	1	0204-				●
50	PIPE; INL	8-94396-214-0	01	1	9606-9609	●	●
50	PIPE; INL	8-94397-063-2	01	1	9610-9810	●	●
50	PIPE; INL	8-94394-400-1	01	1	9811-0203			●
50	PIPE; INL	8-94391-478-1	01	1	9903-0001				●
50	PIPE; INL	8-97601-301-0	01	1	0002-				●
64	STUD; INL PIPE M10X25 L=75	8-94397-086-0	01	1	9606-9810	●	●
78	BOLT; INL PIPE TO INL MANIF M10X30 FLANGE	0-28181-030-0	02	1	9606-9810	●	●
280	BOLT; INL COVER M8X28 FLANGE	0-28080-828-0	12	1	9606-9810	●	●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94399-417-0	01	1	9606-9810	●	●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=62.6	1-09623-505-0	02	1	9811-9902			●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=62.6	1-09623-505-0	02	1	9903-0203			●	●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=62.6	1-09623-505-0	02	1	0204-				●
335	JOINT; BREATHER	8-94396-347-0	01	1	9606-9810	●	●
336	VALVE; VENTILATION	8-94396-346-0	01	1	9606-9810	●	●
337	BOLT; VENTILATION VLV M4X8 W/LK WASHER	9-03910-408-0	04	1	9606-9810	●	●
481	TUBE; DIST,INL COVER OD=22	8-94395-684-0	12	1	9606-9810	●	●
