0-22 — ENGINE MOUNTING (#5900) — 141 parça

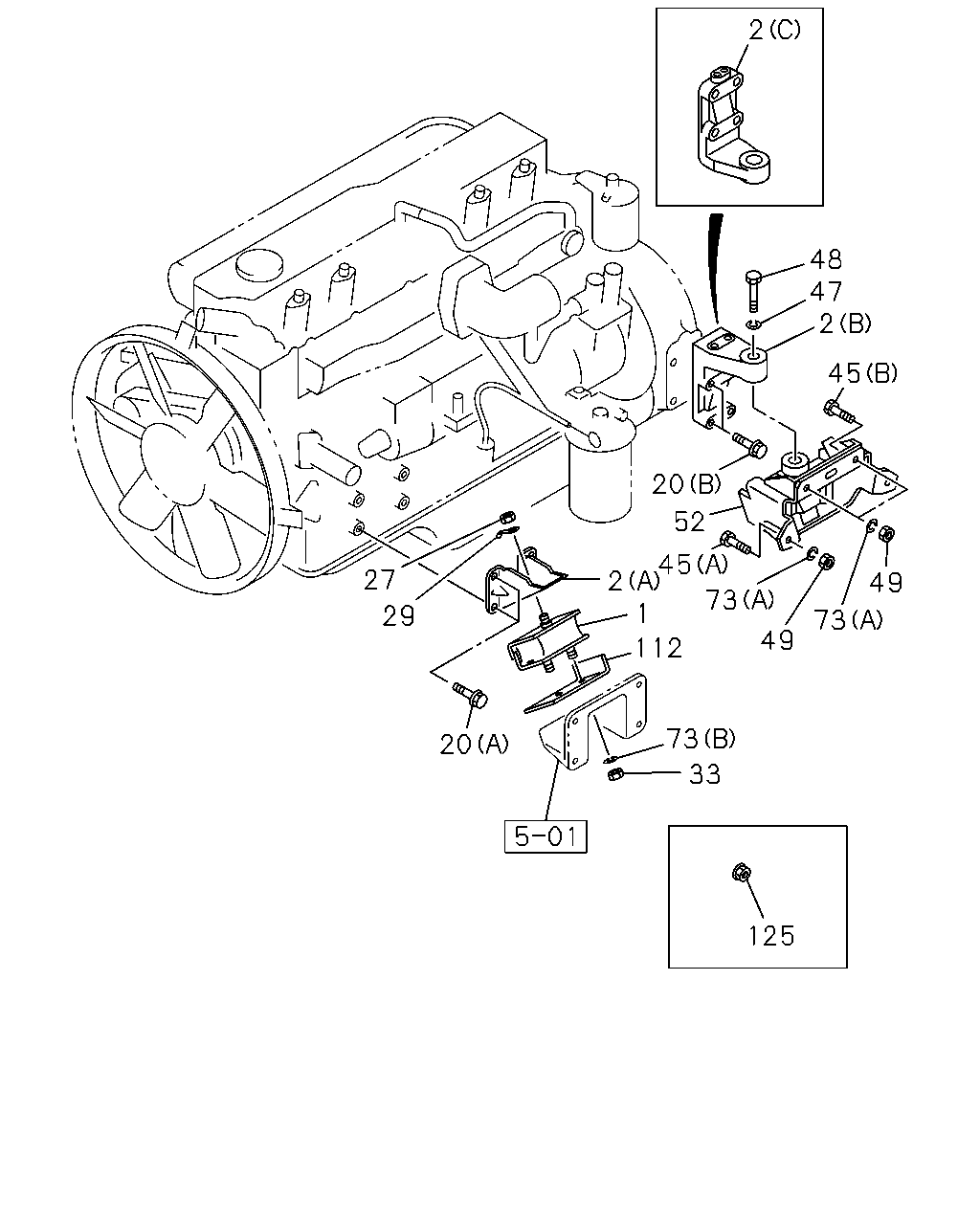

çizim 42119
2 48 47 2 45 20 52 45 2 1 27 49 73 29 73 49 112 73 20 33 125
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 RUBBER; ENG FOOT,FRT 1-53215-176-0 02 1 9606-9810 ● ●
1 RUBBER; ENG FOOT,FRT 1-53215-172-0 02 1 9811- ● ●
2 FOOT; ENG
FRONT AXLE F049<FS4> (C) 		8-94396-953-3 02 1 9610-9810 ●
2 FOOT; ENG
(E) 		8-94395-941-0 01 1 9811-9902 ●
2 FOOT; ENG
(E) 		8-94395-941-0 01 1 9903-0203 ● ●
2 FOOT; ENG
(E) 		8-94395-941-0 01 1 0204- ●
2 FOOT; ENG
(B) 		8-94399-490-0 02 1 9606-9609 ● ●
2 FOOT; ENG
EXC. FRONT AXLE F049<FS4> (B) 		8-94399-490-0 02 1 9610-9810 ●
2 FOOT; ENG
(B) 		8-94399-490-0 02 1 9610-9810 ●
2 FOOT; ENG
(A) 		8-94393-147-0 01 1 9606-9810 ● ●
2 FOOT; ENG
(E) 		8-94395-942-0 01 1 9811-9902 ●
2 FOOT; ENG
(E) 		8-94395-942-0 01 1 9903-0203 ● ●
2 FOOT; ENG
(E) 		8-94395-942-0 01 1 0204- ●
2 FOOT; ENG
(A) 		8-94393-146-0 01 1 9606-9810 ● ●
2 FOOT; ENG
(D) 		8-94393-491-0 02 1 9811-9902 ●
2 FOOT; ENG
(D) 		8-94393-491-0 02 1 9903-0203 ● ●
2 FOOT; ENG
(D) 		8-94393-491-1 02 1 0204- ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		8-94395-721-0 08 1 9606-9810 ● ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		8-94395-721-0 08 1 9811-9902 ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		8-94395-721-0 08 1 9903-0203 ● ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		8-94395-721-0 08 1 0204- ●
20 BOLT; ENG FOOT
(B) M12X55 		8-94399-884-1 08 1 9606-9810 ● ●
20 BOLT; ENG FOOT
(B) M12X55 		8-94399-884-1 08 1 9811-9902 ●
20 BOLT; ENG FOOT
(B) M12X55 		8-94399-884-1 08 1 9903-0203 ● ●
20 BOLT; ENG FOOT
(B) M12X55 		8-94399-884-1 08 1 0204- ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 		9-99110-512-0 02 1 9606-9801 ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE 		0-91150-212-0 02 1 9802-9810 ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE 		0-91150-212-0 02 1 9811-0203 ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE 		0-91150-212-0 02 1 0204-0602 ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE 		0-91180-212-0 02 1 0603- ●
29 PLATE; LK,CUSHION RUBBER,FRT 1-53229-052-1 02 1 9606-9810 ● ●
29 PLATE; LK,CUSHION RUBBER,FRT 1-53229-052-1 02 1 9811-0203 ● ●
29 PLATE; LK,CUSHION RUBBER,FRT 1-53229-052-1 02 1 0204- ●
33 NUT; CUSHION RUBBER TO BRKT
M14 		9-99110-414-0 04 1 9606-9810 ● ●
45 BOLT; CUSHION RUBBER TO FRAME
(A) M12X35 FLANGE 		0-28691-235-0 04 1 9606-9810 ● ●
45 BOLT; CUSHION RUBBER TO FRAME
(B) M12X40 FLANGE 		0-28691-240-0 04 1 9606-9810 ● ●
47 WASHER; LK,CUSHION RUBBER
HEAVY DUTY PACKAGE TRUCK<RD2> ID=22.5 		9-09150-622-0 02 1 9610-9810 ●
47 WASHER; LK,CUSHION RUBBER
ID=16.2 		9-09150-616-0 02 1 9811-0203 ● ●
47 WASHER; LK,CUSHION RUBBER
ID=16.2 		9-09150-616-0 02 1 0204-0603 ●
47 WASHER; LK,CUSHION RUBBER
ID=16.2 		0-91510-616-0 02 1 0604-0705 ●
47 WASHER; LK,CUSHION RUBBER
ID=18.2 		9-09150-518-0 02 1 9606-9609 ● ●
47 WASHER; LK,CUSHION RUBBER
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=18.2 		9-09150-518-0 02 1 9610-9810 ● ●
48 BOLT; CUSHION RUBBER TO ENG
HEAVY DUTY PACKAGE TRUCK<RD2> M22X75 		1-09020-087-2 02 1 9610-9810 ●
48 BOLT; CUSHION RUBBER TO ENG
M18X65 		8-94393-260-1 02 1 9606-9810 ● ●
48 BOLT; CUSHION RUBBER TO ENG
M16X60 		9-91066-660-0 02 1 9811-0203 ● ●
48 BOLT; CUSHION RUBBER TO ENG
M16X60 		9-91066-660-0 02 1 0204-0512 ●
48 BOLT; CUSHION RUBBER TO ENG
M16X60 		0-10956-660-0 02 1 0601- ●
49 NUT; CUSHION RUBBER TO FRAME
M12 		9-99110-512-0 08 1 9606-9810 ● ●
52 RUBBER; CUSHION,ENG MTG,RR
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53225-267-1 02 1 9610-9810 ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-313-1 01 1 9811-9902 ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-313-1 01 1 9903-0203 ● ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-313-1 01 1 0204- ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-173-2 02 1 9606-9609 ● ●
52 RUBBER; CUSHION,ENG MTG,RR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53225-173-2 02 1 9610-9810 ● ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-314-1 01 1 9811-9902 ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-314-1 01 1 9903-0203 ● ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-314-1 01 1 0204- ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
(B) ID=14.2 		9-09150-514-0 04 1 9606-9810 ● ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
(A) ID=12.2 		9-09150-612-0 08 1 9606-9810 ● ●
112 PROTECTOR; HEAT 1-53219-395-1 01 1 9606-9810 ● ●
112 PROTECTOR; HEAT
(A) 		1-53219-629-4 01 1 9811-0203 ● ●
112 PROTECTOR; HEAT 1-53219-629-4 01 1 0204- ●
112 PROTECTOR; HEAT
(B) 		1-53219-638-0 01 1 9811-0203 ● ●
112 PROTECTOR; HEAT 1-53219-638-0 01 1 0204- ●
125 NUT; ENG FOOT
FRONT AXLE F049<FS4> M12 FLANGE 		8-94394-704-0 08 1 9610-9810 ●

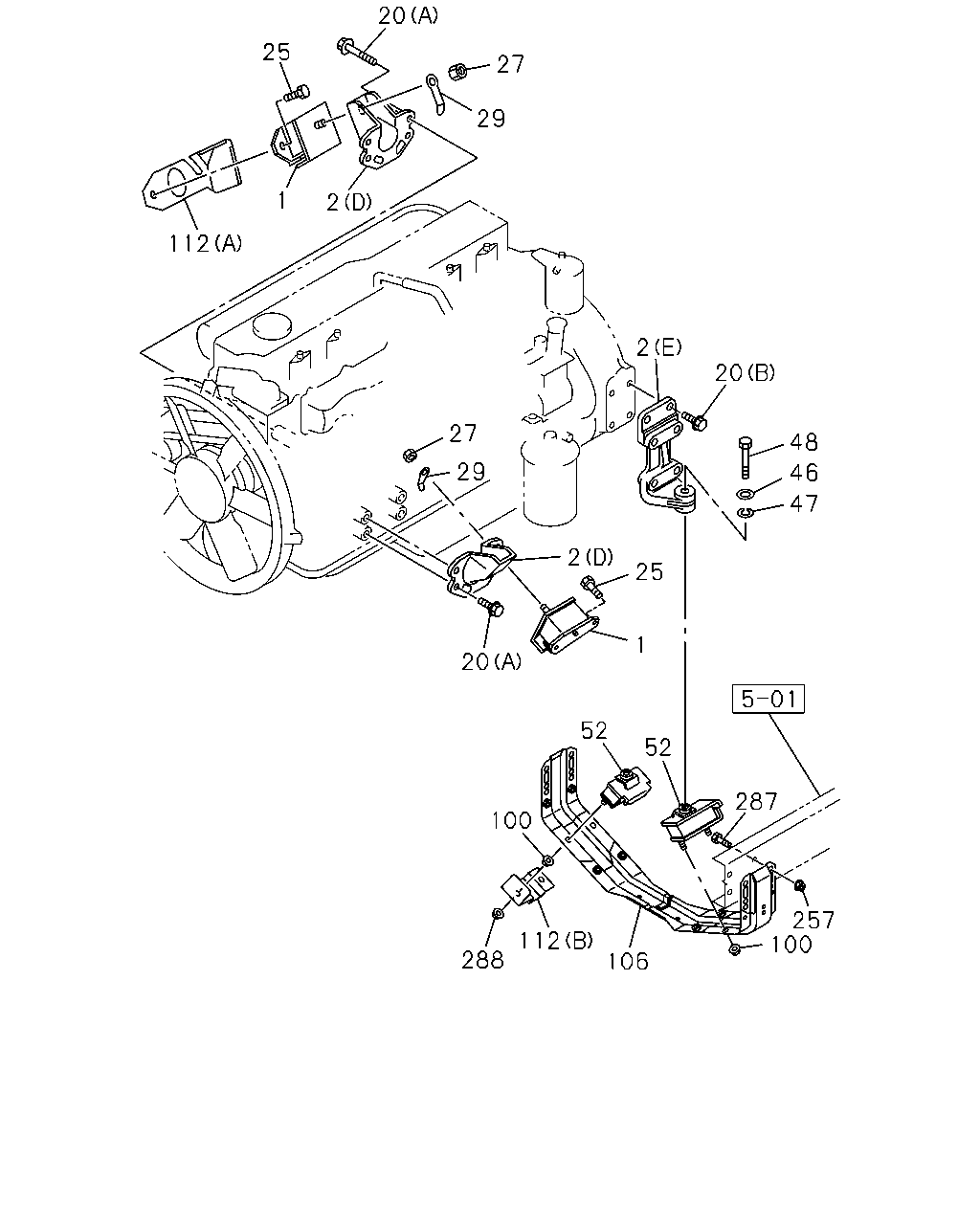

çizim 42387
20 25 27 29 1 2 112 2 20 27 48 29 46 47 2 25 1 20 52 52 287 100 257 100 112 288 106
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 RUBBER; ENG FOOT,FRT 1-53215-176-0 02 1 9606-9810 ● ●
1 RUBBER; ENG FOOT,FRT 1-53215-172-0 02 1 9811- ● ●
2 FOOT; ENG
FRONT AXLE F049<FS4> (C) 		8-94396-953-3 02 1 9610-9810 ●
2 FOOT; ENG
(E) 		8-94395-941-0 01 1 9811-9902 ●
2 FOOT; ENG
(E) 		8-94395-941-0 01 1 9903-0203 ● ●
2 FOOT; ENG
(E) 		8-94395-941-0 01 1 0204- ●
2 FOOT; ENG
(B) 		8-94399-490-0 02 1 9606-9609 ● ●
2 FOOT; ENG
EXC. FRONT AXLE F049<FS4> (B) 		8-94399-490-0 02 1 9610-9810 ●
2 FOOT; ENG
(B) 		8-94399-490-0 02 1 9610-9810 ●
2 FOOT; ENG
(A) 		8-94393-147-0 01 1 9606-9810 ● ●
2 FOOT; ENG
(E) 		8-94395-942-0 01 1 9811-9902 ●
2 FOOT; ENG
(E) 		8-94395-942-0 01 1 9903-0203 ● ●
2 FOOT; ENG
(E) 		8-94395-942-0 01 1 0204- ●
2 FOOT; ENG
(A) 		8-94393-146-0 01 1 9606-9810 ● ●
2 FOOT; ENG
(D) 		8-94393-491-0 02 1 9811-9902 ●
2 FOOT; ENG
(D) 		8-94393-491-0 02 1 9903-0203 ● ●
2 FOOT; ENG
(D) 		8-94393-491-1 02 1 0204- ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		8-94395-721-0 08 1 9606-9810 ● ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		8-94395-721-0 08 1 9811-9902 ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		8-94395-721-0 08 1 9903-0203 ● ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		8-94395-721-0 08 1 0204- ●
20 BOLT; ENG FOOT
(B) M12X55 		8-94399-884-1 08 1 9606-9810 ● ●
20 BOLT; ENG FOOT
(B) M12X55 		8-94399-884-1 08 1 9811-9902 ●
20 BOLT; ENG FOOT
(B) M12X55 		8-94399-884-1 08 1 9903-0203 ● ●
20 BOLT; ENG FOOT
(B) M12X55 		8-94399-884-1 08 1 0204- ●
25 BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE 		0-28681-235-0 04 1 9811-0203 ● ●
25 BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE 		0-28681-235-0 04 1 0204-0512 ●
25 BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE 		0-28651-235-0 04 1 0601- ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 		9-99110-512-0 02 1 9606-9801 ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE 		0-91150-212-0 02 1 9802-9810 ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE 		0-91150-212-0 02 1 9811-0203 ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE 		0-91150-212-0 02 1 0204-0602 ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE 		0-91180-212-0 02 1 0603- ●
29 PLATE; LK,CUSHION RUBBER,FRT 1-53229-052-1 02 1 9606-9810 ● ●
29 PLATE; LK,CUSHION RUBBER,FRT 1-53229-052-1 02 1 9811-0203 ● ●
29 PLATE; LK,CUSHION RUBBER,FRT 1-53229-052-1 02 1 0204- ●
46 WASHER; PL,CUSHION TO ENG,RR
ID=17 		9-09164-516-0 02 1 0706- ●
47 WASHER; LK,CUSHION RUBBER
HEAVY DUTY PACKAGE TRUCK<RD2> ID=22.5 		9-09150-622-0 02 1 9610-9810 ●
47 WASHER; LK,CUSHION RUBBER
ID=16.2 		9-09150-616-0 02 1 9811-0203 ● ●
47 WASHER; LK,CUSHION RUBBER
ID=16.2 		9-09150-616-0 02 1 0204-0603 ●
47 WASHER; LK,CUSHION RUBBER
ID=16.2 		0-91510-616-0 02 1 0604-0705 ●
47 WASHER; LK,CUSHION RUBBER
ID=18.2 		9-09150-518-0 02 1 9606-9609 ● ●
47 WASHER; LK,CUSHION RUBBER
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=18.2 		9-09150-518-0 02 1 9610-9810 ● ●
48 BOLT; CUSHION RUBBER TO ENG
HEAVY DUTY PACKAGE TRUCK<RD2> M22X75 		1-09020-087-2 02 1 9610-9810 ●
48 BOLT; CUSHION RUBBER TO ENG
M18X65 		8-94393-260-1 02 1 9606-9810 ● ●
48 BOLT; CUSHION RUBBER TO ENG
M16X60 		9-91066-660-0 02 1 9811-0203 ● ●
48 BOLT; CUSHION RUBBER TO ENG
M16X60 		9-91066-660-0 02 1 0204-0512 ●
48 BOLT; CUSHION RUBBER TO ENG
M16X60 		0-10956-660-0 02 1 0601- ●
52 RUBBER; CUSHION,ENG MTG,RR
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53225-267-1 02 1 9610-9810 ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-313-1 01 1 9811-9902 ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-313-1 01 1 9903-0203 ● ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-313-1 01 1 0204- ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-173-2 02 1 9606-9609 ● ●
52 RUBBER; CUSHION,ENG MTG,RR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53225-173-2 02 1 9610-9810 ● ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-314-1 01 1 9811-9902 ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-314-1 01 1 9903-0203 ● ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-314-1 01 1 0204- ●
100 NUT; CUSHION RUBBER
M12 FLANGE 		0-91150-212-0 04 1 9811-0203 ● ●
100 NUT; CUSHION RUBBER
M12 FLANGE 		0-91150-212-0 04 1 0204-0602 ●
100 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 04 1 0603- ●
106 MEMBER; MTG,RR 1-53221-191-0 01 1 9811-0203 ● ●
106 MEMBER; MTG,RR 1-53221-191-0 01 1 0204- ●
112 PROTECTOR; HEAT 1-53219-395-1 01 1 9606-9810 ● ●
112 PROTECTOR; HEAT
(A) 		1-53219-629-4 01 1 9811-0203 ● ●
112 PROTECTOR; HEAT 1-53219-629-4 01 1 0204- ●
112 PROTECTOR; HEAT
(B) 		1-53219-638-0 01 1 9811-0203 ● ●
112 PROTECTOR; HEAT 1-53219-638-0 01 1 0204- ●
257 NUT; MEMBER
M12 FLANGE 		0-91150-212-0 08 1 9811-0203 ● ●
257 NUT; MEMBER
M12 FLANGE 		0-91150-212-0 08 1 0204-0602 ●
257 NUT; MEMBER
M12 FLANGE 		0-91180-212-0 08 1 0603- ●
287 BOLT; MEMBER
M12X40 FLANGE 		0-28681-240-0 08 1 9811-0203 ● ●
287 BOLT; MEMBER
M12X40 FLANGE 		0-28681-240-0 08 1 0204-0512 ●
287 BOLT; MEMBER
M12X40 FLANGE 		0-28651-240-0 08 1 0601- ●
288 NUT; HEAT PROTECTOR
M12 FLANGE 		0-91150-212-0 02 1 9811-0203 ● ●
288 NUT; HEAT PROTECTOR
M12 FLANGE 		0-91150-212-0 02 1 0204-0602 ●
288 NUT; HEAT PROTECTOR
M12 FLANGE 		0-91180-212-0 02 1 0603- ●
