◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11329 - FVR AUST/NZ EURO5 ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#58996) — 75 parça

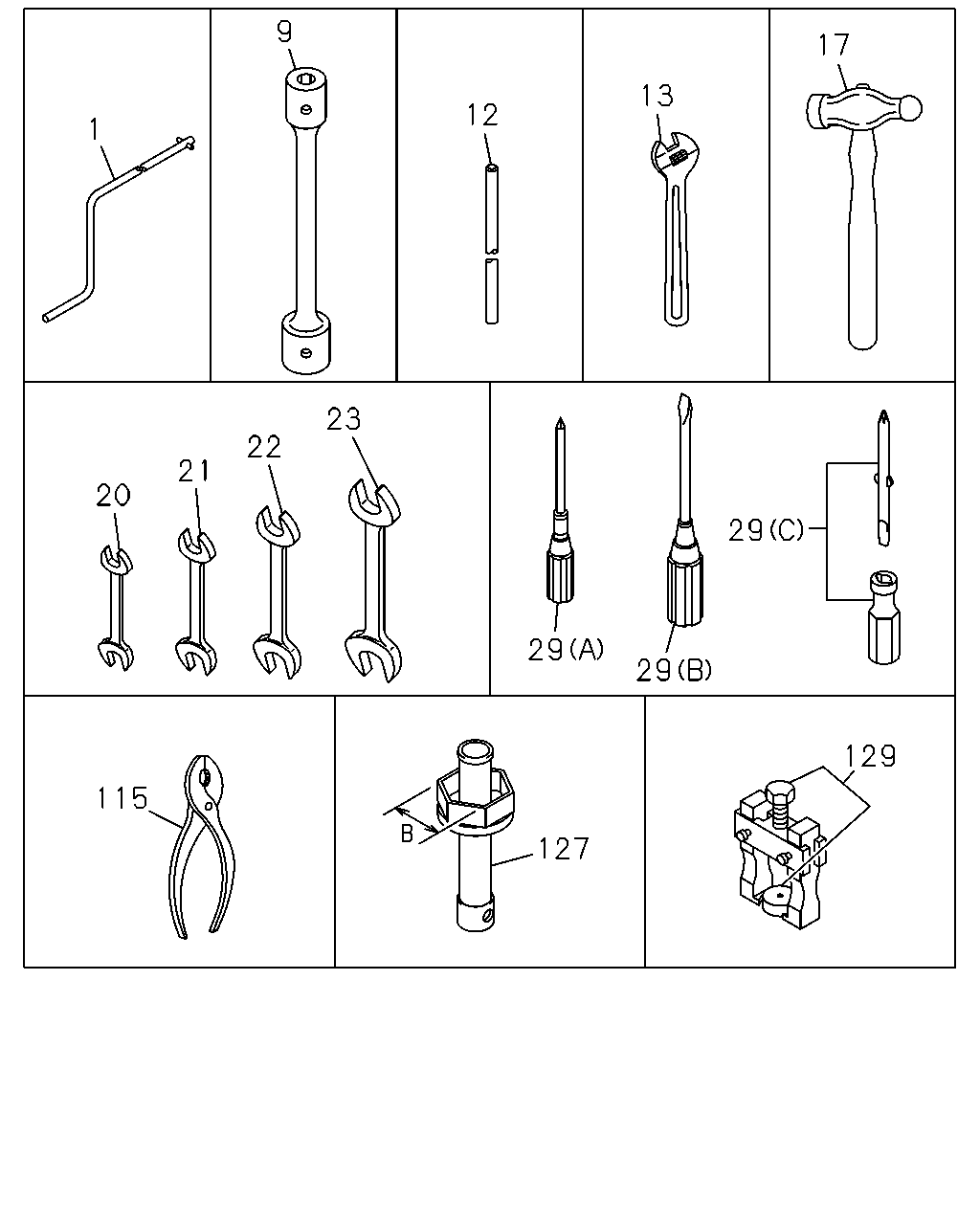

çizim 172210
1 9 12 13 17 29 29 29 23 22 21 20 115 127 129
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		9-23110-018-0 01 1 1010-1107 ●
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		9-23110-018-0 01 1 1010-1107 ●
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13> 		9-23110-018-0 01 1 1108- ●
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		9-23110-018-0 01 1 1108- ●
9 WRENCH; WHEEL PIN
B=33X30 L=450 		1-85111-033-1 01 1 1010-1306 ●
9 WRENCH; WHEEL PIN
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) B=33X30 L=450 		1-85111-033-1 01 1 1010-1306 ●
9 WRENCH; WHEEL PIN
B=33X30 L=450 		1-85111-033-1 01 1 1307- ● ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		1-85116-011-0 01 1 1010-1306 ●
12 HANDLE; WRENCH,WHEEL PIN
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) OD=25 L=480 		1-85116-011-0 01 1 1010-1306 ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		1-85116-011-0 01 1 1307-1501 ● ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		8-98257-407-0 01 1 1502- ● ●
13 WRENCH; MONKEY
L=247 		1-85117-006-0 01 1 1010-1306 ●
13 WRENCH; MONKEY
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) L=247 		1-85117-006-0 01 1 1010-1306 ●
13 WRENCH; MONKEY
L=247 		1-85117-006-0 01 1 1307-1407 ● ●
13 WRENCH; MONKEY
L=255 		8-98270-303-0 01 1 1408- ● ●
17 HAMMER 9-85121-406-0 01 1 1010-1306 ●
17 HAMMER
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) 		9-85121-406-0 01 1 1010-1306 ●
17 HAMMER 9-85121-406-0 01 1 1307- ● ●
20 WRENCH; 10X12
10X12 		0-95902-510-0 01 1 1010-1306 ●
20 WRENCH; 10X12
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) 10X12 		0-95902-510-0 01 1 1010-1306 ●
20 WRENCH; 10X12
10X12 		0-95902-510-0 01 1 1307- ● ●
21 WRENCH; 14X17
14X17 		0-95902-514-0 01 1 1010-1306 ●
21 WRENCH; 14X17
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) 14X17 		0-95902-514-0 01 1 1010-1306 ●
21 WRENCH; 14X17
14X17 		0-95902-514-0 01 1 1307- ● ●
22 WRENCH; 19X22
19X22 		0-95902-519-0 01 1 1010-1306 ●
22 WRENCH; 19X22
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) 19X22 		0-95902-519-0 01 1 1010-1306 ●
22 WRENCH; 19X22
19X22 		0-95902-519-0 01 1 1307- ● ●
23 WRENCH; 24X27
24X27 		0-95902-524-0 01 1 1010-1306 ●
23 WRENCH; 24X27
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) 24X27 		0-95902-524-0 01 1 1010-1306 ●
23 WRENCH; 24X27
24X27 		0-95902-524-0 01 1 1307- ● ●
29 DRIVER; SCREW
(C) <+>,<-> L=160 		8-94242-798-1 01 1 1010-1306 ●
29 DRIVER; SCREW
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (C) <+>,<-> L=160 		8-94242-798-1 01 1 1010-1306 ●
29 DRIVER; SCREW
(C) <+>,<-> L=160 		8-94242-798-1 01 1 1307- ● ●
29 DRIVER; SCREW
(B) <-> L=275 		8-98061-105-0 01 1 1010-1306 ●
29 DRIVER; SCREW
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (B) <-> L=275 		8-98061-105-0 01 1 1010-1306 ●
29 DRIVER; SCREW
(B) <-> L=275 		8-98061-105-0 01 1 1307- ● ●
29 DRIVER; SCREW
(A) <+> L=190 		9-09595-522-0 01 1 1010-1306 ●
29 DRIVER; SCREW
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) <+> L=190 		9-09595-522-0 01 1 1010-1306 ●
29 DRIVER; SCREW
(A) <+> L=190 		9-09595-522-0 01 1 1307- ● ●
115 PLIER 5-85171-002-0 01 1 1010-1306 ●
115 PLIER
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) 		5-85171-002-0 01 1 1010-1306 ●
115 PLIER 5-85171-002-0 01 1 1307-1410 ● ●
115 PLIER 8-98282-845-0 01 1 1411- ● ●
127 WRENCH ASM; HUB BRG NUT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=400 B=116 		8-98119-000-0 01 1 1010-1306 ●
129 PULLER ASM; PITMAN ARM 1-85210-011-0 01 1 1010-1306 ● ●
çizim 172212
268 274 271 282 284 311 281 285 283 209
BalonParca AdiParca NoAdetTipApplied Date A B
209 CLIP; JACK HANDLE 8-98053-799-0 02 1 1010- ● ●
268 SCREW; CLIP
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1010-1108 ● ●
268 SCREW; CLIP
T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 02 1 1109-1212 ● ●
268 SCREW; CLIP
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1301- ● ●
271 CLIP; TIRE HANGER 8-98053-800-0 02 1 1010- ● ●
274 SCREW; CLIP
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1010-1108 ● ●
274 SCREW; CLIP
T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 02 1 1109-1212 ● ●
274 SCREW; CLIP
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1301- ● ●
281 BRACKET; TOOL BOX
KEY LOCK TOOL<RC5> 		1-53459-665-2 02 1 1010- ● ●
282 NUT; BRKT
KEY LOCK TOOL<RC5> M10 FLANGE 		0-91180-210-0 04 1 1010- ● ●
283 WASHER; LK,BRKT
KEY LOCK TOOL<RC5> ID=10.2 		0-91510-510-0 04 1 1010- ● ●
284 BOLT; TOOL BOX
KEY LOCK TOOL<RC5> M10X20 FLANGE 		0-28651-020-0 04 1 1010- ● ●
285 NUT; TOOL BOX
KEY LOCK TOOL<RC5> M10 FLANGE 		0-91180-210-0 04 1 1010- ● ●
311 BOX ASM; TOOL
KEY LOCK TOOL<RC5> 		1-85561-006-3 01 1 1010- ● ●
çizim 172217
192 230 227 174 169 193 208 237
BalonParca AdiParca NoAdetTipApplied Date A B
169 BRACKET; SPLINE YOKE
ZF9S1110 M/T(Y5E) 		1-85221-317-0 01 1 1010-1306 ● ●
169 BRACKET; SPLINE YOKE
P90 PROP SHAFT(C5T) 		1-85221-317-0 01 1 1307- ● ●
174 PULLER ASM; MAIN CLU SHAFT
ZF9S1110 M/T(Y5E) 		9-85210-148-0 01 1 1010- ● ●
192 GAUGE; TIRE PRESSURE 1-85315-002-0 01 1 1010- ● ●
193 JACK ASM
10TON 		8-97607-599-0 01 1 1010-1306 ●
193 JACK ASM
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) 10TON 		8-97607-599-0 01 1 1010-1306 ●
193 JACK ASM
10TON 		8-97607-599-0 01 1 1307- ● ●
208 HANDLE; JACK
L=600 		1-85515-009-0 01 1 1010-1107 ● ●
208 HANDLE; JACK
L=600 		8-98181-437-0 01 1 1108- ● ●
227 PUMP ASM; TIRE 9-85521-132-0 01 1 1010- ● ●
230 PUMP; GREASE 1-85556-007-5 01 1 1010-1306 ●
230 PUMP; GREASE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) 		1-85556-007-5 01 1 1010-1306 ●
230 PUMP; GREASE 1-85556-007-5 01 1 1307- ● ●
237 BAG; TOOL 8-97130-902-1 01 1 1010-1306 ●
237 BAG; TOOL
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) 		8-97130-902-1 01 1 1010-1306 ●
237 BAG; TOOL 8-97130-902-1 01 1 1307- ● ●
