◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10739 - FSR-LHD(BUS CHASSIS) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-20 - TIMING GEAR CASE AND FLYWHEEL HOUSING ▶
0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#5899) — 326 parça

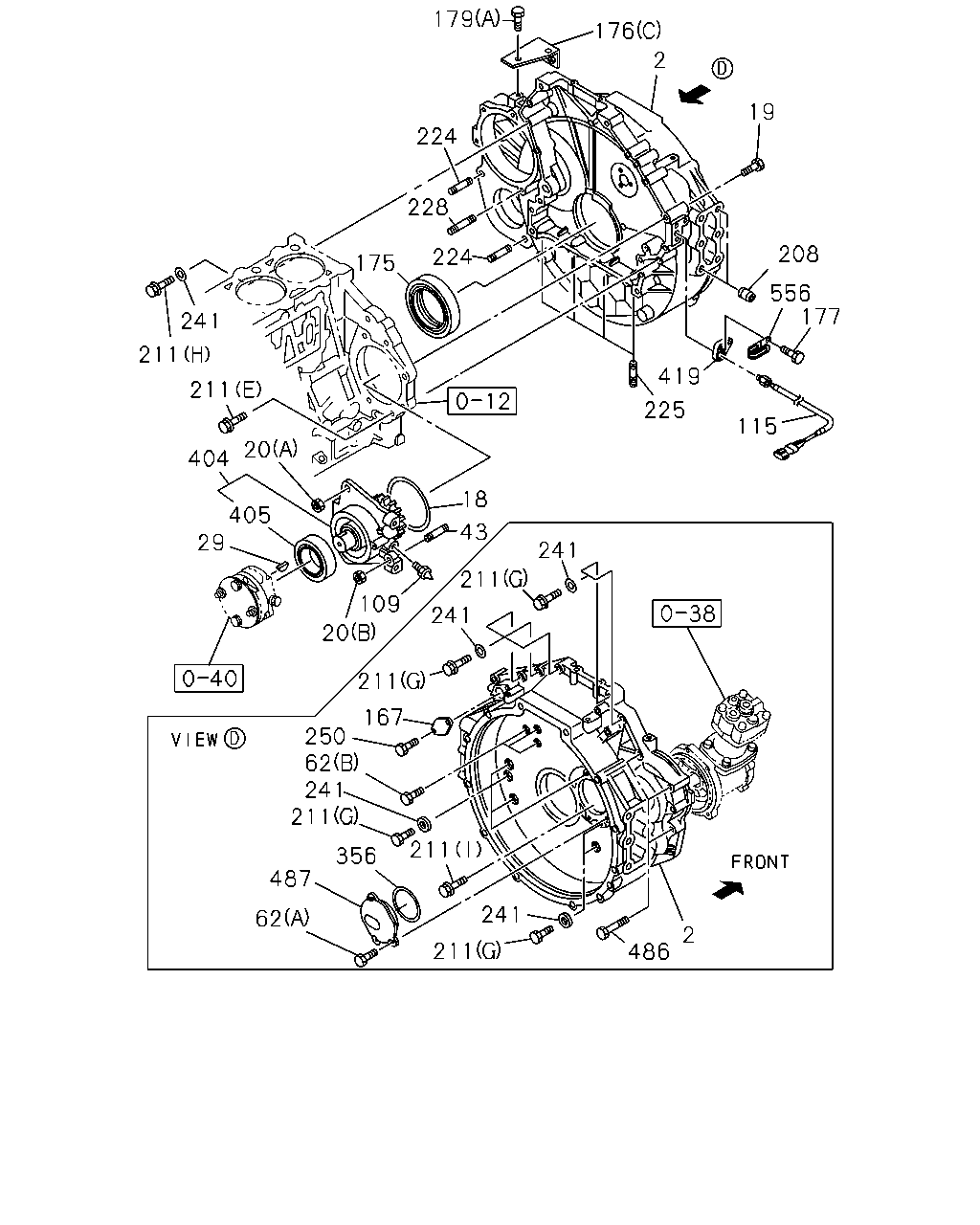

çizim 7521
179 176 2 19 224 228 208 224 175 556 177 241 211 419 211 225 115 20 404 18 405 29 43 241 211 109 241 20 211 167 250 62 241 211 211 356 487 241 62 2 211 486
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 HOUSING; FLYWHEEL
FRONT AXLE F049<FS4> 		8-94396-732-7 01 1 9610-9810 ●
2 HOUSING; FLYWHEEL 8-94393-404-3 01 1 9811-0203 ●
2 HOUSING; FLYWHEEL 8-94390-036-0 01 1 9606-9609 ● ●
2 HOUSING; FLYWHEEL
EXC. FRONT AXLE F049<FS4> 		8-94390-036-0 01 1 9610-9810 ●
2 HOUSING; FLYWHEEL 8-94390-036-0 01 1 9610-9810 ●
2 HOUSING; FLYWHEEL 8-94395-018-8 01 1 9903-9903 ●
2 HOUSING; FLYWHEEL 8-97600-260-5 01 1 9903- ●
18 GASKET; BRG CASE,DRIVE SHAFT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6 		1-09623-464-0 01 1 9903- ●
19 BOLT; BRG CASE
M12X100 FLANGE 		0-28181-200-0 01 1 9903-0512 ●
19 BOLT; BRG CASE
M12X100 FLANGE 		0-28151-200-0 01 1 0601- ●
20 NUT; BRG CASE
(A) M10 FLANGE 		0-91150-110-0 02 1 9903-0602 ●
20 NUT; BRG CASE
(A) M10 FLANGE 		0-91180-110-0 02 1 0603- ●
20 NUT; BRG CASE
(B) M12 FLANGE 		0-91150-212-0 01 1 9903-0602 ●
20 NUT; BRG CASE
(B) M12 FLANGE 		0-91180-212-0 01 1 0603- ●
29 KEY; COUPLING 9-08055-416-0 01 1 9811-0203 ●
29 KEY; COUPLING 9-08055-516-0 01 1 9903- ●
43 STUD; BRG COVER
M12X67 L=82 		1-09302-112-0 01 1 9903- ●
62 BOLT; COVER
EXC. POWER STEERING(N40) M10X25 FLANGE 		0-28181-025-0 01 1 9606-9810 ● ●
62 BOLT; COVER
EXC. POWER STEERING(N40) M10X55 FLANGE 		8-94399-863-1 02 1 9606-9810 ● ●
62 BOLT; COVER
(A) M8X14 FLANGE 		0-28080-814-0 03 1 9903- ●
62 BOLT; COVER
(B) M8X20 FLANGE 		0-28080-820-0 03 1 9903-0512 ●
62 BOLT; COVER
(B) M8X20 FLANGE 		0-28050-820-0 03 1 0601- ●
109 POINTER; TIMING
L=21 		9-11327-602-0 01 1 9903- ●
115 SENSOR; REVOLUTION,ENG SPD
TACHOMETER<UD7> 		1-81510-343-2 01 1 9606-9810 ● ●
115 SENSOR; REVOLUTION,ENG SPD 1-81510-561-0 01 1 9811-0203 ●
115 SENSOR; REVOLUTION,ENG SPD 1-81510-549-1 01 1 9903-0002 ●
115 SENSOR; REVOLUTION,ENG SPD 8-97601-117-2 01 1 0003- ●
167 COVER; OIL 1-11219-163-0 01 1 9606-9609 ● ●
167 COVER; OIL
EXC. FRONT AXLE F049<FS4>,FLUID DRIVE FAN<KA3> 		1-11219-163-0 01 1 9610-9810 ●
167 COVER; OIL 1-11219-163-0 01 1 9610-9810 ●
167 COVER; OIL 1-11219-163-0 01 1 9903- ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94370-637-0 01 1 9606-9810 ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94370-637-0 01 1 9811-9902 ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94370-637-0 01 1 9903-0112 ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97602-379-0 01 1 0201-0203 ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97602-379-0 01 1 0204- ●
176 BRACKET; HARNESS
(A) 		1-82699-402-3 01 1 9606-9810 ● ●
176 BRACKET; HARNESS
(B) 		1-82699-412-1 01 1 9606-9810 ● ●
176 BRACKET; HARNESS
(B) 		1-82699-412-1 01 1 9811-0203 ●
176 BRACKET; HARNESS
(C) 		1-82699-828-1 01 1 9903- ●
177 BOLT; SENSOR
M6X16 FLANGE 		0-28080-616-0 01 1 9606-9810 ● ●
177 BOLT; SENSOR
TACHOMETER<UD7> M6X16 FLANGE 		0-28080-616-0 02 1 9606-9810 ● ●
177 BOLT; SENSOR
M6X16 FLANGE 		0-28080-616-0 01 1 9811-0203 ●
177 BOLT; SENSOR
M8X20 FLANGE 		0-28680-820-0 02 1 9903-0512 ●
177 BOLT; SENSOR
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 02 1 9606-9810 ● ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9811-9902 ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9903-0203 ● ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0204-0512 ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
179 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 02 1 9811-9902 ●
179 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 02 1 9903-0203 ● ●
179 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 02 1 0204-0512 ●
179 BOLT; BRKT
(B) M8X20 FLANGE 		0-28050-820-0 02 1 0601- ●
208 DOWEL; ENG FOOT
FRONT AXLE F049<FS4> 		9-43269-009-1 04 1 9610-9810 ●
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 9811-9902 ●
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 9903-9908 ● ●
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 9909-9912 ●
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 0001-0203 ● ●
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 0204- ●
208 DOWEL; ENG FOOT 8-94396-208-0 04 1 9606-9609 ● ●
208 DOWEL; ENG FOOT
EXC. FRONT AXLE F049<FS4> 		8-94396-208-0 04 1 9610-9810 ●
208 DOWEL; ENG FOOT 8-94396-208-0 04 1 9610-9810 ●
211 BOLT; HSG
FRONT AXLE F049<FS4> (A) M12X130 FLANGE 		0-28196-213-0 01 1 9610-9810 ●
211 BOLT; HSG
FRONT AXLE F049<FS4> (B) M12X153 		1-09020-054-1 01 1 9610-9810 ●
211 BOLT; HSG
FRONT AXLE F049<FS4> (C) M12X128 		8-94399-252-0 01 1 9610-9810 ●
211 BOLT; HSG
FRONT AXLE F049<FS4> (D) M12X65 		9-01666-265-0 01 1 9610-9810 ●
211 BOLT; HSG
(D) M12X65 		9-01666-265-0 03 1 9811-0203 ●
211 BOLT; HSG
(E) M10X50 FLANGE 		0-28181-050-0 02 1 9606-9810 ● ●
211 BOLT; HSG
(E) M10X50 FLANGE 		0-28181-050-0 02 1 9811-0203 ●
211 BOLT; HSG
(E) M10X50 FLANGE 		0-28181-050-0 01 1 0204-0512 ●
211 BOLT; HSG
(E) M10X50 FLANGE 		0-28151-050-0 01 1 0601- ●
211 BOLT; HSG
(F) M14X70 FLANGE W/PL WASHER 		8-94396-095-0 01 1 9606-9810 ● ●
211 BOLT; HSG
(F) M14X70 FLANGE W/PL WASHER 		8-94396-095-0 01 1 9811-0203 ●
211 BOLT; HSG
(D) M12X65 		9-01666-265-0 03 1 9606-9609 ● ●
211 BOLT; HSG
EXC. FRONT AXLE F049<FS4> (D) M12X65 		9-01666-265-0 03 1 9610-9810 ●
211 BOLT; HSG
(D) M12X65 		9-01666-265-0 03 1 9610-9810 ●
211 BOLT; HSG
(G) M12X70 		9-01666-270-0 10 1 9606-9609 ● ●
211 BOLT; HSG
EXC. FRONT AXLE F049<FS4> (G) M12X70 		9-01666-270-0 01 1 9610-9810 ●
211 BOLT; HSG
(G) M12X70 		9-01666-270-0 01 1 9610-9810 ●
211 BOLT; HSG
(G) M12X70 		9-01666-270-0 09 1 9610-9810 ● ●
211 BOLT; HSG
(G) M12X70 		9-01666-270-0 10 1 9811-0203 ●
211 BOLT; HSG
(G) M12X70 		9-01666-270-0 11 1 0204-0512 ●
211 BOLT; HSG
(G) M12X70 		0-16956-270-0 11 1 0601- ●
211 BOLT; HSG
(H) M12X60 		0-16806-260-0 01 1 9903-0512 ●
211 BOLT; HSG
(H) M12X60 		0-16856-260-0 01 1 0601- ●
211 BOLT; HSG
(E) M10X50 FLANGE 		0-28181-050-0 01 1 9903-0203 ●
211 BOLT; HSG
(I) M14X27 FLANGE 		8-94393-995-0 01 1 9903- ●
211 BOLT; HSG
(G) M12X70 		9-01666-270-0 11 1 9903-0203 ●
224 STUD; STARTER
M14X35 L=56 		9-04411-435-0 02 1 9606-9810 ● ●
224 STUD; STARTER
M14X35 L=56 		9-04411-435-0 02 1 9811-9902 ●
224 STUD; STARTER
M14X35 L=56 		9-04411-435-0 02 1 9903-0203 ● ●
224 STUD; STARTER
M14X35 L=56 		9-04411-435-0 02 1 0204-0604 ●
224 STUD; STARTER
M14X35 L=56 		0-44011-435-0 02 1 0605- ●
225 STUD; OIL PAN
M8X28 L=38 		8-94396-512-0 04 1 9606-9810 ● ●
225 STUD; OIL PAN
M8X28 L=38 		8-94396-512-0 04 1 9811-9902 ●
225 STUD; OIL PAN
M8X28 L=38 		8-94396-512-0 04 1 9903-0203 ● ●
225 STUD; OIL PAN
M8X28 L=38 		8-94396-512-0 04 1 0204- ●
228 STUD; AIR CMPR
M12X60 L=78 		9-94411-260-0 01 1 9606-9810 ● ●
228 STUD; AIR CMPR
M12X60 L=78 		9-94411-260-0 01 1 9811-0203 ●
228 STUD; AIR CMPR
M12X35 L=53 		9-94411-235-0 01 1 9903-0604 ●
228 STUD; AIR CMPR
M12X35 L=53 		0-44011-235-0 01 1 0605- ●
241 WASHER; PL,HSG
FRONT AXLE F049<FS4> ID=12.5 OD=22 		8-94393-140-1 12 1 9610-9810 ●
241 WASHER; PL,HSG
ID=12.5 OD=22 		8-94393-140-1 13 1 9811-0203 ●
241 WASHER; PL,HSG
ID=12.5 OD=22 		8-94393-140-1 12 1 0204- ●
241 WASHER; PL,HSG
ID=12.5 OD=22 		8-94393-140-1 13 1 9606-9609 ● ●
241 WASHER; PL,HSG
EXC. FRONT AXLE F049<FS4> ID=12.5 OD=22 		8-94393-140-1 13 1 9610-9810 ●
241 WASHER; PL,HSG
ID=12.5 OD=22 		8-94393-140-1 13 1 9610-9810 ●
241 WASHER; PL,HSG
ID=12.5 OD=22 		8-94393-140-1 12 1 9903-0203 ●
250 BOLT; COVER,OIL
M8X18 FLANGE 		0-28080-818-0 02 1 9606-9609 ● ●
250 BOLT; COVER,OIL
EXC. FRONT AXLE F049<FS4>,FLUID DRIVE FAN<KA3> M8X18 FLANGE 		0-28080-818-0 02 1 9610-9810 ●
250 BOLT; COVER,OIL
M8X18 FLANGE 		0-28080-818-0 02 1 9610-9810 ●
250 BOLT; COVER,OIL
M8X18 FLANGE 		0-28080-818-0 02 1 9903- ●
356 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=110 		8-94394-186-0 01 1 9903- ●
404 CASE ASM; BRG,INJ PUMP 8-94391-643-0 01 1 9903- ●
405 SEAL; OIL,BRG CASE 1-09625-576-0 01 1 9903- ●
419 BRACKET; SENSOR 8-94394-773-1 01 1 9903- ●
486 BOLT; AIR CMPR
M12X70 FLANGE 		0-28181-270-0 03 1 9903-0512 ●
486 BOLT; AIR CMPR
M12X70 FLANGE 		0-28151-270-0 03 1 0601- ●
487 COVER; HOLE 8-94394-513-1 01 1 9903-0805 ●
487 COVER; HOLE 8-98023-824-1 01 1 0806- ●
556 CLIP; HARNESS,SENSOR
ID=18 L=44 		8-94225-185-0 01 1 0003-0801 ●
556 CLIP; HARNESS,SENSOR
ID=18 L=44 		8-97367-985-1 01 1 0802- ●

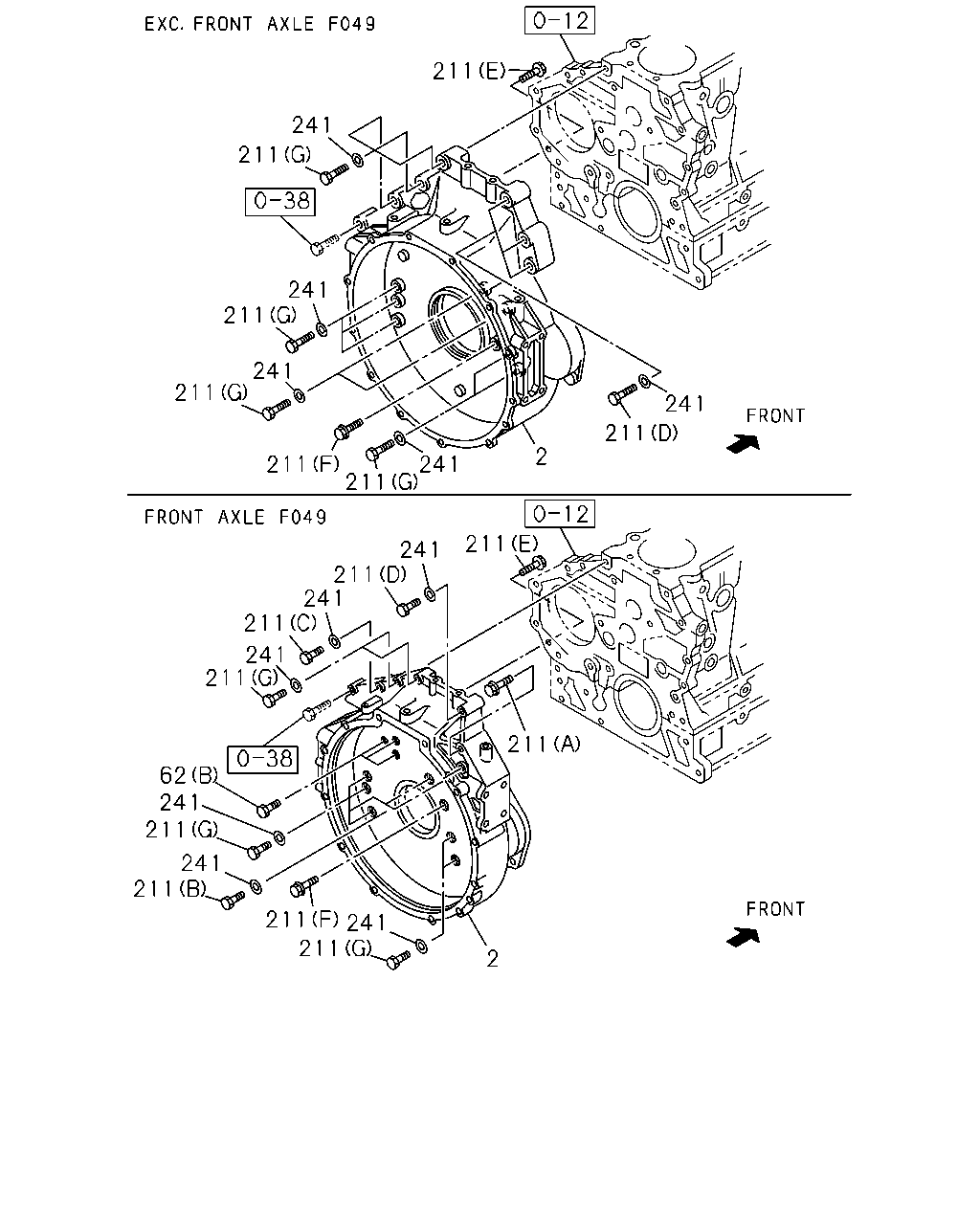

çizim 41807
211 241 211 241 211 241 211 241 211 241 2 211 211 211 241 211 241 211 241 211 211 62 241 211 241 211 211 241 211 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 HOUSING; FLYWHEEL
FRONT AXLE F049<FS4> 		8-94396-732-7 01 1 9610-9810 ●
2 HOUSING; FLYWHEEL 8-94393-404-3 01 1 9811-0203 ●
2 HOUSING; FLYWHEEL 8-94390-036-0 01 1 9606-9609 ● ●
2 HOUSING; FLYWHEEL
EXC. FRONT AXLE F049<FS4> 		8-94390-036-0 01 1 9610-9810 ●
2 HOUSING; FLYWHEEL 8-94390-036-0 01 1 9610-9810 ●
2 HOUSING; FLYWHEEL 8-94395-018-8 01 1 9903-9903 ●
2 HOUSING; FLYWHEEL 8-97600-260-5 01 1 9903- ●
62 BOLT; COVER
EXC. POWER STEERING(N40) M10X25 FLANGE 		0-28181-025-0 01 1 9606-9810 ● ●
62 BOLT; COVER
EXC. POWER STEERING(N40) M10X55 FLANGE 		8-94399-863-1 02 1 9606-9810 ● ●
62 BOLT; COVER
(A) M8X14 FLANGE 		0-28080-814-0 03 1 9903- ●
62 BOLT; COVER
(B) M8X20 FLANGE 		0-28080-820-0 03 1 9903-0512 ●
62 BOLT; COVER
(B) M8X20 FLANGE 		0-28050-820-0 03 1 0601- ●
211 BOLT; HSG
FRONT AXLE F049<FS4> (A) M12X130 FLANGE 		0-28196-213-0 01 1 9610-9810 ●
211 BOLT; HSG
FRONT AXLE F049<FS4> (B) M12X153 		1-09020-054-1 01 1 9610-9810 ●
211 BOLT; HSG
FRONT AXLE F049<FS4> (C) M12X128 		8-94399-252-0 01 1 9610-9810 ●
211 BOLT; HSG
FRONT AXLE F049<FS4> (D) M12X65 		9-01666-265-0 01 1 9610-9810 ●
211 BOLT; HSG
(D) M12X65 		9-01666-265-0 03 1 9811-0203 ●
211 BOLT; HSG
(E) M10X50 FLANGE 		0-28181-050-0 02 1 9606-9810 ● ●
211 BOLT; HSG
(E) M10X50 FLANGE 		0-28181-050-0 02 1 9811-0203 ●
211 BOLT; HSG
(E) M10X50 FLANGE 		0-28181-050-0 01 1 0204-0512 ●
211 BOLT; HSG
(E) M10X50 FLANGE 		0-28151-050-0 01 1 0601- ●
211 BOLT; HSG
(F) M14X70 FLANGE W/PL WASHER 		8-94396-095-0 01 1 9606-9810 ● ●
211 BOLT; HSG
(F) M14X70 FLANGE W/PL WASHER 		8-94396-095-0 01 1 9811-0203 ●
211 BOLT; HSG
(D) M12X65 		9-01666-265-0 03 1 9606-9609 ● ●
211 BOLT; HSG
EXC. FRONT AXLE F049<FS4> (D) M12X65 		9-01666-265-0 03 1 9610-9810 ●
211 BOLT; HSG
(D) M12X65 		9-01666-265-0 03 1 9610-9810 ●
211 BOLT; HSG
(G) M12X70 		9-01666-270-0 10 1 9606-9609 ● ●
211 BOLT; HSG
EXC. FRONT AXLE F049<FS4> (G) M12X70 		9-01666-270-0 01 1 9610-9810 ●
211 BOLT; HSG
(G) M12X70 		9-01666-270-0 01 1 9610-9810 ●
211 BOLT; HSG
(G) M12X70 		9-01666-270-0 09 1 9610-9810 ● ●
211 BOLT; HSG
(G) M12X70 		9-01666-270-0 10 1 9811-0203 ●
211 BOLT; HSG
(G) M12X70 		9-01666-270-0 11 1 0204-0512 ●
211 BOLT; HSG
(G) M12X70 		0-16956-270-0 11 1 0601- ●
211 BOLT; HSG
(H) M12X60 		0-16806-260-0 01 1 9903-0512 ●
211 BOLT; HSG
(H) M12X60 		0-16856-260-0 01 1 0601- ●
211 BOLT; HSG
(E) M10X50 FLANGE 		0-28181-050-0 01 1 9903-0203 ●
211 BOLT; HSG
(I) M14X27 FLANGE 		8-94393-995-0 01 1 9903- ●
211 BOLT; HSG
(G) M12X70 		9-01666-270-0 11 1 9903-0203 ●
241 WASHER; PL,HSG
FRONT AXLE F049<FS4> ID=12.5 OD=22 		8-94393-140-1 12 1 9610-9810 ●
241 WASHER; PL,HSG
ID=12.5 OD=22 		8-94393-140-1 13 1 9811-0203 ●
241 WASHER; PL,HSG
ID=12.5 OD=22 		8-94393-140-1 12 1 0204- ●
241 WASHER; PL,HSG
ID=12.5 OD=22 		8-94393-140-1 13 1 9606-9609 ● ●
241 WASHER; PL,HSG
EXC. FRONT AXLE F049<FS4> ID=12.5 OD=22 		8-94393-140-1 13 1 9610-9810 ●
241 WASHER; PL,HSG
ID=12.5 OD=22 		8-94393-140-1 13 1 9610-9810 ●
241 WASHER; PL,HSG
ID=12.5 OD=22 		8-94393-140-1 12 1 9903-0203 ●

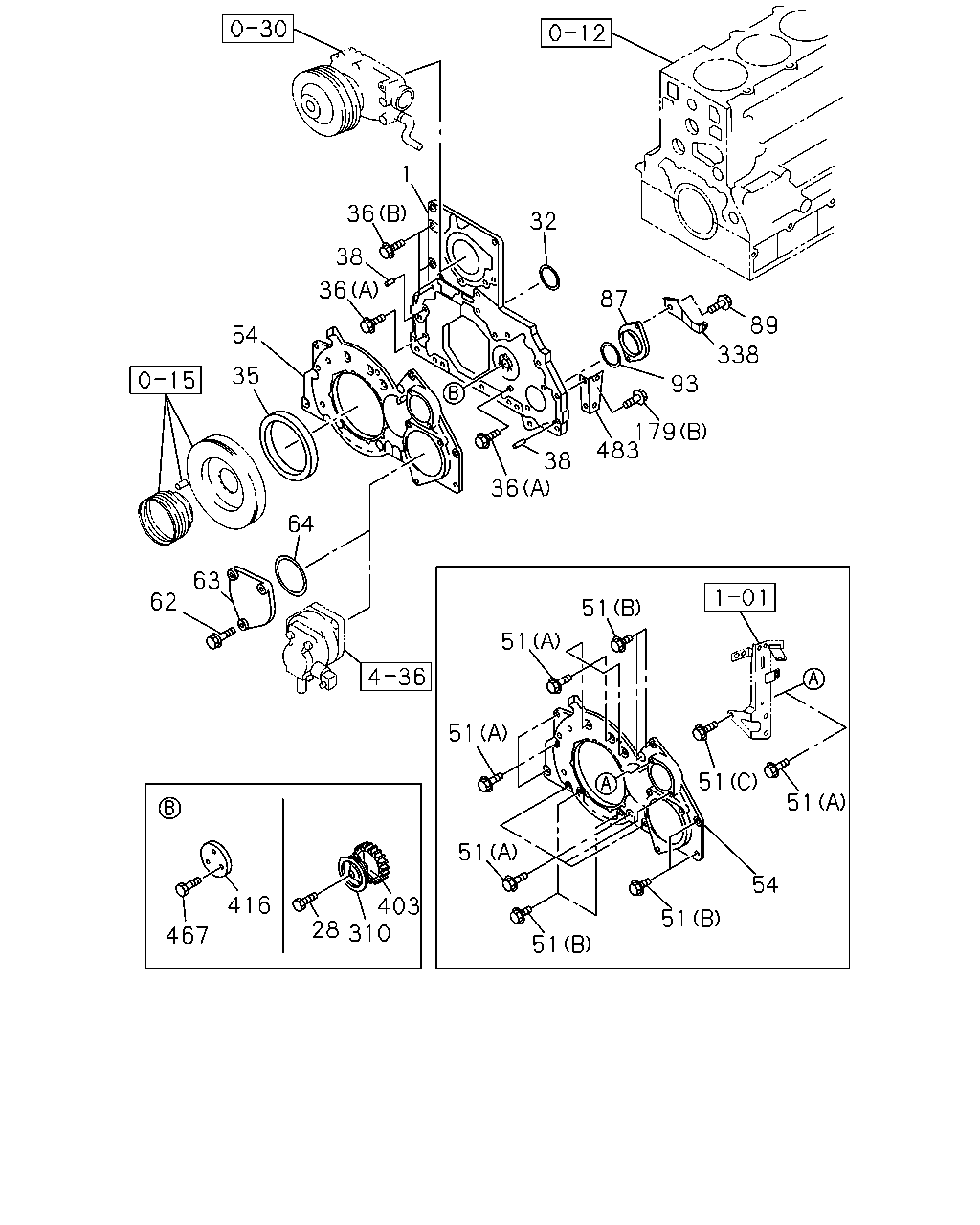

çizim 42087
1 36 32 38 36 87 89 54 338 35 93 179 483 38 36 64 63 62 51 51 51 51 51 51 54 416 403 28 310 51 467 51
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CASE; TIMING GEAR 8-94393-110-2 01 1 9606-9802 ● ●
1 CASE; TIMING GEAR 8-94396-434-5 01 1 9803-9810 ● ●
1 CASE; TIMING GEAR 8-94396-434-5 01 1 9811-9902 ●
1 CASE; TIMING GEAR 8-94396-434-5 01 1 9903-0203 ● ●
1 CASE; TIMING GEAR 8-94396-434-6 01 1 0204- ●
28 BOLT; DRIVE GEAR
POWER STEERING(N40) M8X28 		8-94399-256-0 03 1 9606-9810 ● ●
28 BOLT; DRIVE GEAR
M8X28 		8-94399-256-0 03 1 9811-9902 ●
28 BOLT; DRIVE GEAR
M8X28 		8-94399-256-0 03 1 9903-0203 ● ●
28 BOLT; DRIVE GEAR
M8X28 		8-94399-256-0 03 1 0204- ●
32 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.2 		8-94397-364-0 01 1 9606-9805 ● ●
32 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.1 		8-97028-748-1 01 1 9806-9810 ● ●
32 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.1 		8-97028-748-1 01 1 9811-9902 ●
32 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.1 		8-97028-748-1 01 1 9903-0203 ● ●
32 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.1 		8-97028-748-1 01 1 0204- ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137 		8-94396-199-1 01 1 9606-9810 ● ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137 		8-94396-199-1 01 1 9811-9902 ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137 		8-94396-199-1 01 1 9903-0112 ● ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137 		8-97602-378-0 01 1 0201-0203 ● ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137 		8-97602-378-1 01 1 0204- ●
36 BOLT; GEAR CASE
(A) M8X28 FLANGE 		0-28080-828-0 02 1 9606-9810 ● ●
36 BOLT; GEAR CASE
(A) M8X28 FLANGE 		0-28080-828-0 02 1 9811-9902 ●
36 BOLT; GEAR CASE
(A) M8X28 FLANGE 		0-28080-828-0 02 1 9903-0203 ● ●
36 BOLT; GEAR CASE
(A) M8X28 FLANGE 		0-28080-828-0 02 1 0204-0801 ●
36 BOLT; GEAR CASE
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0802- ●
36 BOLT; GEAR CASE
(B) M8X32 FLANGE 		0-28080-832-0 04 1 9606-9810 ● ●
36 BOLT; GEAR CASE
(B) M8X32 FLANGE 		0-28080-832-0 04 1 9811-9902 ●
36 BOLT; GEAR CASE
(B) M8X32 FLANGE 		0-28080-832-0 04 1 9903-0203 ● ●
36 BOLT; GEAR CASE
(B) M8X32 FLANGE 		0-28080-832-0 04 1 0204-0801 ●
36 BOLT; GEAR CASE
(B) M8X35 FLANGE 		0-28050-835-0 04 1 0802- ●
38 PIN; GEAR CASE COVER
L=22 		8-94483-674-0 02 1 9606-9810 ● ●
38 PIN; GEAR CASE COVER
L=22 		8-94483-674-0 02 1 9811-9902 ●
38 PIN; GEAR CASE COVER
L=22 		8-94483-674-0 02 1 9903-0203 ● ●
38 PIN; GEAR CASE COVER
L=22 		8-94483-674-0 02 1 0204- ●
51 BOLT; GEAR CASE COVER
(A) M8X40 FLANGE 		0-28080-840-0 10 1 9606-9810 ● ●
51 BOLT; GEAR CASE COVER
(A) M8X40 FLANGE 		0-28080-840-0 10 1 9811-0203 ●
51 BOLT; GEAR CASE COVER
(C) M8X45 FLANGE 		0-28080-845-0 01 1 9606-9810 ● ●
51 BOLT; GEAR CASE COVER
(C) M8X45 FLANGE 		0-28080-845-0 01 1 9811-0203 ●
51 BOLT; GEAR CASE COVER
(B) M8X20 FLANGE 		0-28680-820-0 06 1 9606-9810 ● ●
51 BOLT; GEAR CASE COVER
(B) M8X20 FLANGE 		0-28680-820-0 06 1 9811-9902 ●
51 BOLT; GEAR CASE COVER
(A) M8X40 FLANGE 		0-28080-840-0 11 1 9903-0512 ●
51 BOLT; GEAR CASE COVER
(A) M8X40 FLANGE 		0-28050-840-0 11 1 0601- ●
51 BOLT; GEAR CASE COVER
(B) M8X20 FLANGE 		0-28680-820-0 06 1 9903-0203 ● ●
51 BOLT; GEAR CASE COVER
(B) M8X20 FLANGE 		0-28680-820-0 06 1 0204-0512 ●
51 BOLT; GEAR CASE COVER
(B) M8X20 FLANGE 		0-28650-820-0 06 1 0601- ●
54 COVER; GEAR CASE 8-94396-085-3 01 1 9606-9810 ● ●
54 COVER; GEAR CASE 8-94393-304-1 01 1 9811-9902 ●
54 COVER; GEAR CASE 8-94393-304-1 01 1 9903-0203 ● ●
54 COVER; GEAR CASE 8-94393-304-1 01 1 0204- ●
62 BOLT; COVER
EXC. POWER STEERING(N40) M10X25 FLANGE 		0-28181-025-0 01 1 9606-9810 ● ●
62 BOLT; COVER
EXC. POWER STEERING(N40) M10X55 FLANGE 		8-94399-863-1 02 1 9606-9810 ● ●
62 BOLT; COVER
(A) M8X14 FLANGE 		0-28080-814-0 03 1 9903- ●
62 BOLT; COVER
(B) M8X20 FLANGE 		0-28080-820-0 03 1 9903-0512 ●
62 BOLT; COVER
(B) M8X20 FLANGE 		0-28050-820-0 03 1 0601- ●
63 COVER; P/S
EXC. POWER STEERING(N40) 		8-94399-436-1 01 1 9606-9810 ● ●
64 GASKET; COVER,P/S
EXC. POWER STEERING(N40) 		8-94396-678-0 01 1 9606-9810 ● ●
87 COVER; TACHOMETER DRIVE 8-94396-370-0 01 1 9606-9810 ● ●
87 COVER; TACHOMETER DRIVE 8-94396-370-0 01 1 9811-9902 ●
87 COVER; TACHOMETER DRIVE 8-94396-370-0 01 1 9903-0203 ● ●
87 COVER; TACHOMETER DRIVE 8-94396-370-0 01 1 0204- ●
89 BOLT; ELBOW
M8X18 FLANGE 		0-28080-818-0 02 1 9606-9810 ● ●
89 BOLT; ELBOW
M8X18 FLANGE 		0-28080-818-0 02 1 9811-9902 ●
89 BOLT; ELBOW
M8X18 FLANGE 		0-28080-818-0 02 1 9903-0203 ● ●
89 BOLT; ELBOW
M8X18 FLANGE 		0-28080-818-0 02 1 0204- ●
93 GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE). OD=54.7 		1-09623-180-0 01 1 9606-9810 ● ●
93 GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE). OD=54.7 		1-09623-180-0 01 1 9811-9902 ●
93 GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE). OD=54.7 		1-09623-180-0 01 1 9903-0203 ● ●
93 GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE). OD=54.7 		1-09623-180-0 01 1 0204- ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 02 1 9606-9810 ● ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9811-9902 ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9903-0203 ● ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0204-0512 ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
179 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 02 1 9811-9902 ●
179 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 02 1 9903-0203 ● ●
179 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 02 1 0204-0512 ●
179 BOLT; BRKT
(B) M8X20 FLANGE 		0-28050-820-0 02 1 0601- ●
310 SHAFT; IDLE GEAR
POWER STEERING(N40) 		8-94394-806-0 01 1 9606-9810 ● ●
310 SHAFT; IDLE GEAR 8-94394-806-0 01 1 9811-9902 ●
310 SHAFT; IDLE GEAR 8-94394-806-0 01 1 9903-0203 ● ●
310 SHAFT; IDLE GEAR 8-94394-806-0 01 1 0204- ●
338 BRACKET; CLIP,HARNESS 1-82699-889-0 01 1 9606-9810 ● ●
338 BRACKET; CLIP,HARNESS 1-82699-889-0 01 1 9811-9902 ●
338 BRACKET; CLIP,HARNESS 1-82699-889-0 01 1 9903-0203 ● ●
338 BRACKET; CLIP,HARNESS 1-82699-889-0 01 1 0204- ●
403 GEAR; IDLE,FRONT
POWER STEERING(N40) Z=33 		8-94395-943-1 01 1 9606-9810 ● ●
403 GEAR; IDLE,FRONT
Z=33 		8-94395-943-1 01 1 9811-9902 ●
403 GEAR; IDLE,FRONT
Z=33 		8-94395-943-1 01 1 9903-0203 ● ●
403 GEAR; IDLE,FRONT
Z=33 		8-94395-943-1 01 1 0204- ●
416 COVER; IDLE GEAR
EXC. POWER STEERING(N40) 		8-94399-420-0 01 1 9606-9810 ● ●
467 BOLT; PLATE
EXC. POWER STEERING(N40) M8X28 		8-94399-256-0 03 1 9606-9810 ● ●
483 BRACKET; WATER DUCT 8-94394-405-1 01 1 9811-9902 ●
483 BRACKET; WATER DUCT 8-94394-405-1 01 1 9903-0203 ● ●
483 BRACKET; WATER DUCT 8-94394-405-1 01 1 0204- ●

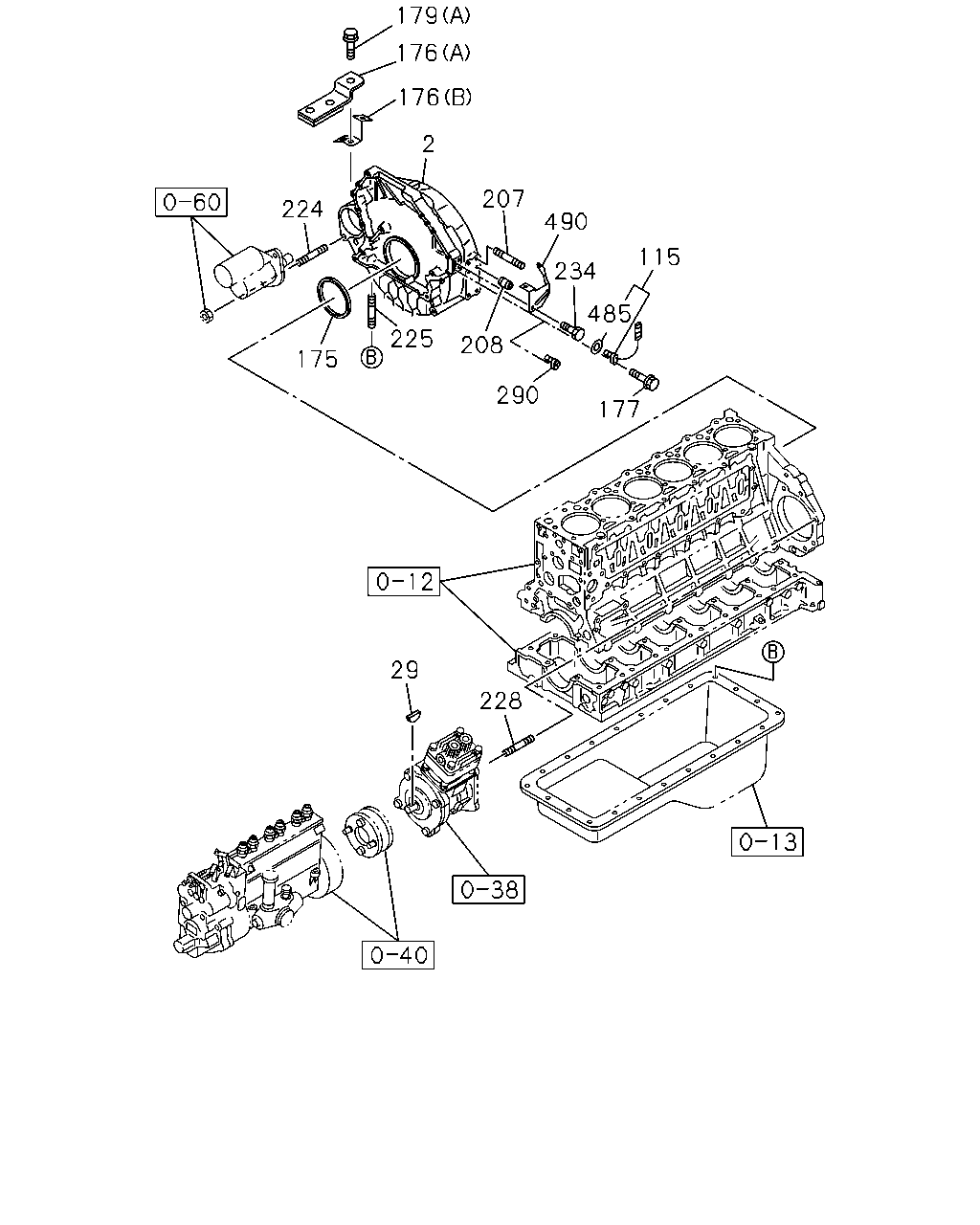

çizim 44808
179 176 176 2 207 224 490 115 234 485 225 208 175 290 177 29 228
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 HOUSING; FLYWHEEL
FRONT AXLE F049<FS4> 		8-94396-732-7 01 1 9610-9810 ●
2 HOUSING; FLYWHEEL 8-94393-404-3 01 1 9811-0203 ●
2 HOUSING; FLYWHEEL 8-94390-036-0 01 1 9606-9609 ● ●
2 HOUSING; FLYWHEEL
EXC. FRONT AXLE F049<FS4> 		8-94390-036-0 01 1 9610-9810 ●
2 HOUSING; FLYWHEEL 8-94390-036-0 01 1 9610-9810 ●
2 HOUSING; FLYWHEEL 8-94395-018-8 01 1 9903-9903 ●
2 HOUSING; FLYWHEEL 8-97600-260-5 01 1 9903- ●
29 KEY; COUPLING 9-08055-416-0 01 1 9811-0203 ●
29 KEY; COUPLING 9-08055-516-0 01 1 9903- ●
115 SENSOR; REVOLUTION,ENG SPD
TACHOMETER<UD7> 		1-81510-343-2 01 1 9606-9810 ● ●
115 SENSOR; REVOLUTION,ENG SPD 1-81510-561-0 01 1 9811-0203 ●
115 SENSOR; REVOLUTION,ENG SPD 1-81510-549-1 01 1 9903-0002 ●
115 SENSOR; REVOLUTION,ENG SPD 8-97601-117-2 01 1 0003- ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94370-637-0 01 1 9606-9810 ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94370-637-0 01 1 9811-9902 ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94370-637-0 01 1 9903-0112 ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97602-379-0 01 1 0201-0203 ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97602-379-0 01 1 0204- ●
176 BRACKET; HARNESS
(A) 		1-82699-402-3 01 1 9606-9810 ● ●
176 BRACKET; HARNESS
(B) 		1-82699-412-1 01 1 9606-9810 ● ●
176 BRACKET; HARNESS
(B) 		1-82699-412-1 01 1 9811-0203 ●
176 BRACKET; HARNESS
(C) 		1-82699-828-1 01 1 9903- ●
177 BOLT; SENSOR
M6X16 FLANGE 		0-28080-616-0 01 1 9606-9810 ● ●
177 BOLT; SENSOR
TACHOMETER<UD7> M6X16 FLANGE 		0-28080-616-0 02 1 9606-9810 ● ●
177 BOLT; SENSOR
M6X16 FLANGE 		0-28080-616-0 01 1 9811-0203 ●
177 BOLT; SENSOR
M8X20 FLANGE 		0-28680-820-0 02 1 9903-0512 ●
177 BOLT; SENSOR
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 02 1 9606-9810 ● ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9811-9902 ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9903-0203 ● ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0204-0512 ●
179 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
179 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 02 1 9811-9902 ●
179 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 02 1 9903-0203 ● ●
179 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 02 1 0204-0512 ●
179 BOLT; BRKT
(B) M8X20 FLANGE 		0-28050-820-0 02 1 0601- ●
207 STUD; ENG FOOT
FRONT AXLE F049<FS4> M12X10 L=55 		9-94321-255-0 08 1 9610-9810 ●
208 DOWEL; ENG FOOT
FRONT AXLE F049<FS4> 		9-43269-009-1 04 1 9610-9810 ●
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 9811-9902 ●
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 9903-9908 ● ●
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 9909-9912 ●
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 0001-0203 ● ●
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 0204- ●
208 DOWEL; ENG FOOT 8-94396-208-0 04 1 9606-9609 ● ●
208 DOWEL; ENG FOOT
EXC. FRONT AXLE F049<FS4> 		8-94396-208-0 04 1 9610-9810 ●
208 DOWEL; ENG FOOT 8-94396-208-0 04 1 9610-9810 ●
224 STUD; STARTER
M14X35 L=56 		9-04411-435-0 02 1 9606-9810 ● ●
224 STUD; STARTER
M14X35 L=56 		9-04411-435-0 02 1 9811-9902 ●
224 STUD; STARTER
M14X35 L=56 		9-04411-435-0 02 1 9903-0203 ● ●
224 STUD; STARTER
M14X35 L=56 		9-04411-435-0 02 1 0204-0604 ●
224 STUD; STARTER
M14X35 L=56 		0-44011-435-0 02 1 0605- ●
225 STUD; OIL PAN
M8X28 L=38 		8-94396-512-0 04 1 9606-9810 ● ●
225 STUD; OIL PAN
M8X28 L=38 		8-94396-512-0 04 1 9811-9902 ●
225 STUD; OIL PAN
M8X28 L=38 		8-94396-512-0 04 1 9903-0203 ● ●
225 STUD; OIL PAN
M8X28 L=38 		8-94396-512-0 04 1 0204- ●
228 STUD; AIR CMPR
M12X60 L=78 		9-94411-260-0 01 1 9606-9810 ● ●
228 STUD; AIR CMPR
M12X60 L=78 		9-94411-260-0 01 1 9811-0203 ●
228 STUD; AIR CMPR
M12X35 L=53 		9-94411-235-0 01 1 9903-0604 ●
228 STUD; AIR CMPR
M12X35 L=53 		0-44011-235-0 01 1 0605- ●
234 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 02 1 9811-0203 ●
290 PLUG; SENSOR HOLE
EXC. TACHOMETER<UD7> 		1-11349-157-0 01 1 9606-9810 ● ●
485 GASKET; SENSOR
TACHOMETER<UD7> 		9-09565-212-0 01 1 9606-9810 ● ●
485 GASKET; SENSOR 9-09565-212-0 01 1 9811-0203 ●
490 BRACKET; AIR PIPE,VSS 8-94394-857-0 01 1 9811-9910 ●
490 BRACKET; AIR PIPE,VSS 8-94394-857-0 01 1 0001-0203 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
