3-22 — AIR CONTROL PARTS
(#58984) — 62 parça
◀

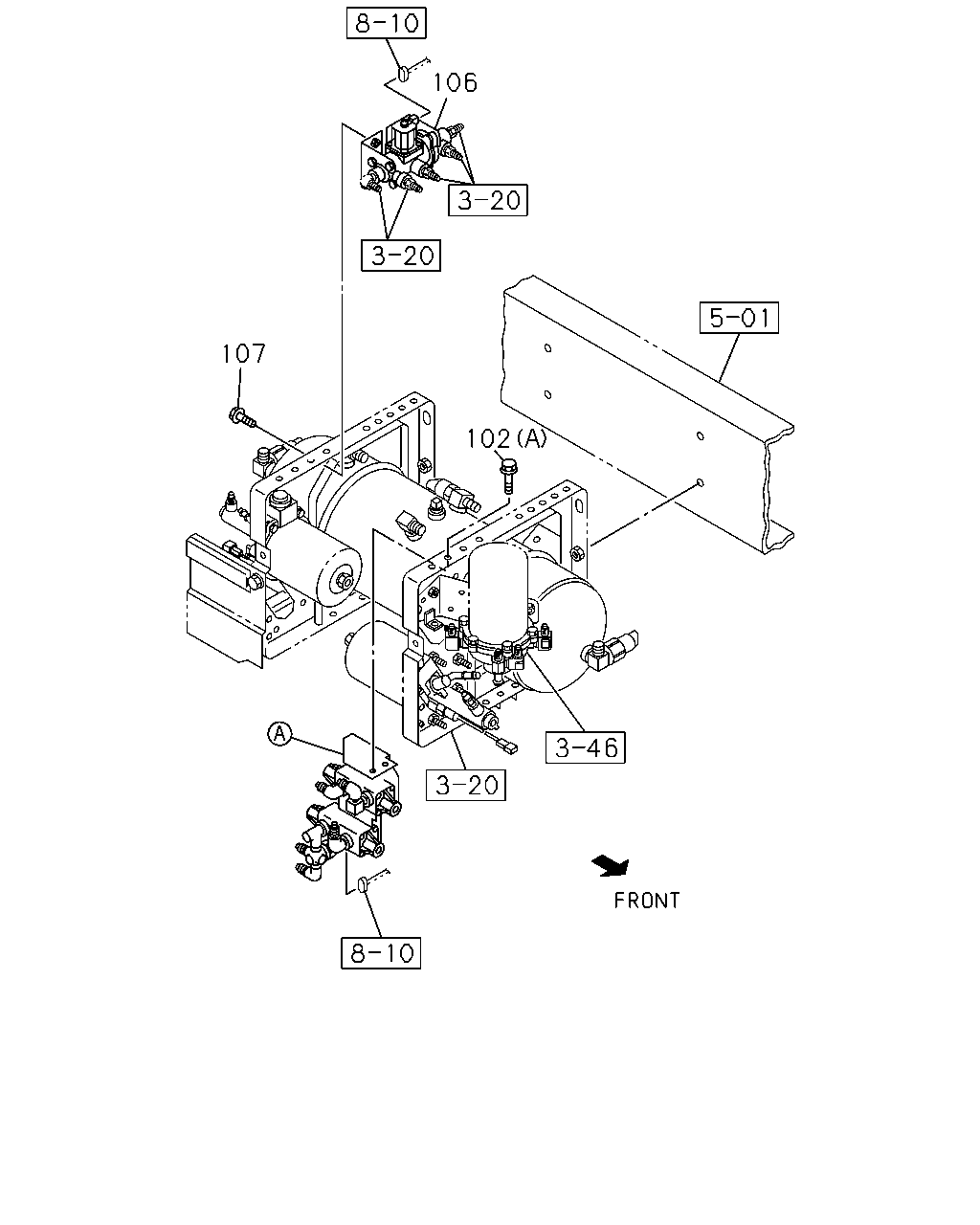

[322A] FIXING (4 parça)
[322A] REPAIR KIT;HSA VALVE (2 parça)
[322A] COMPONENT;HSA VALVE (17 parça)

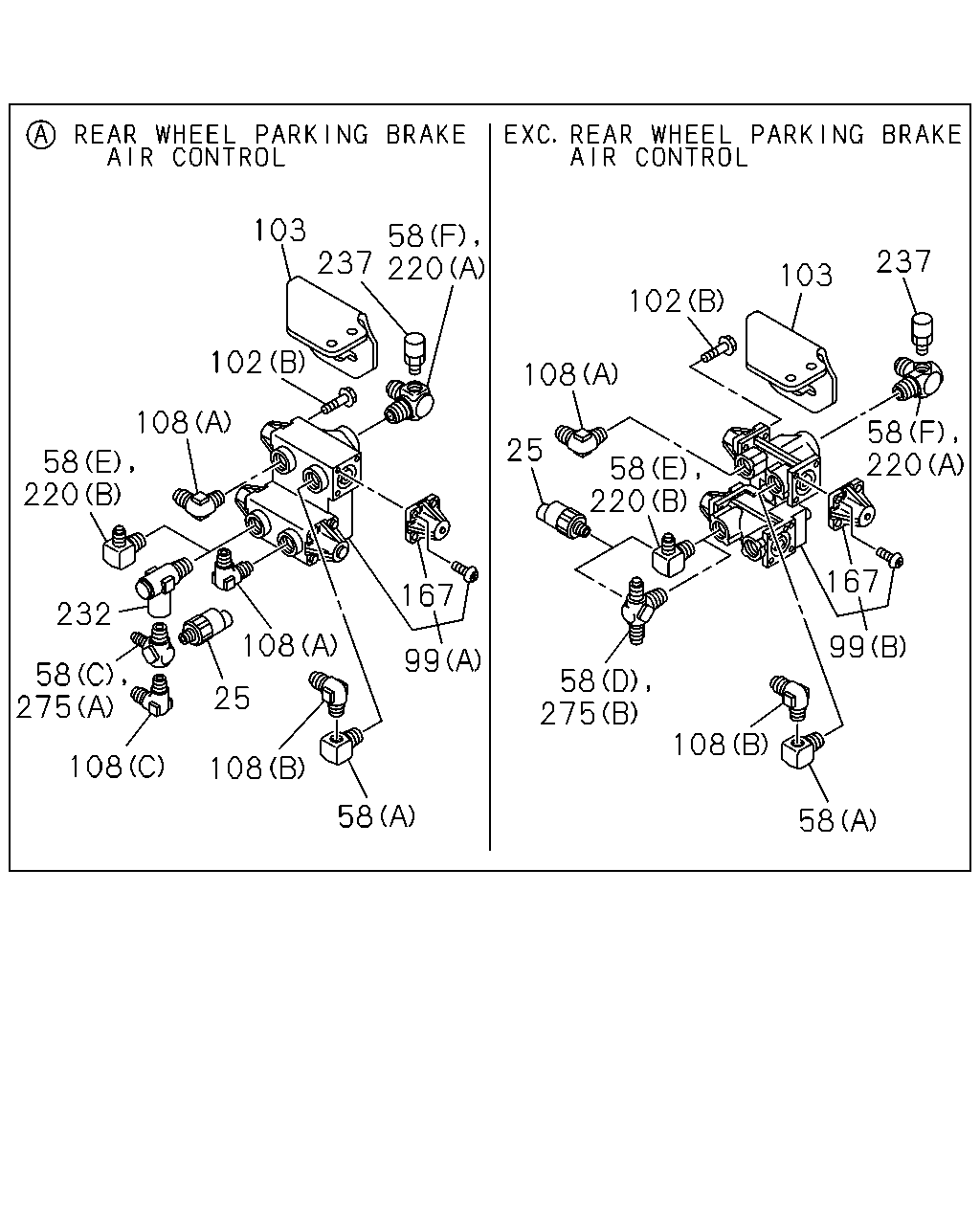

[322A] COMPONENT;PROTECTION VALVE (25 parça)

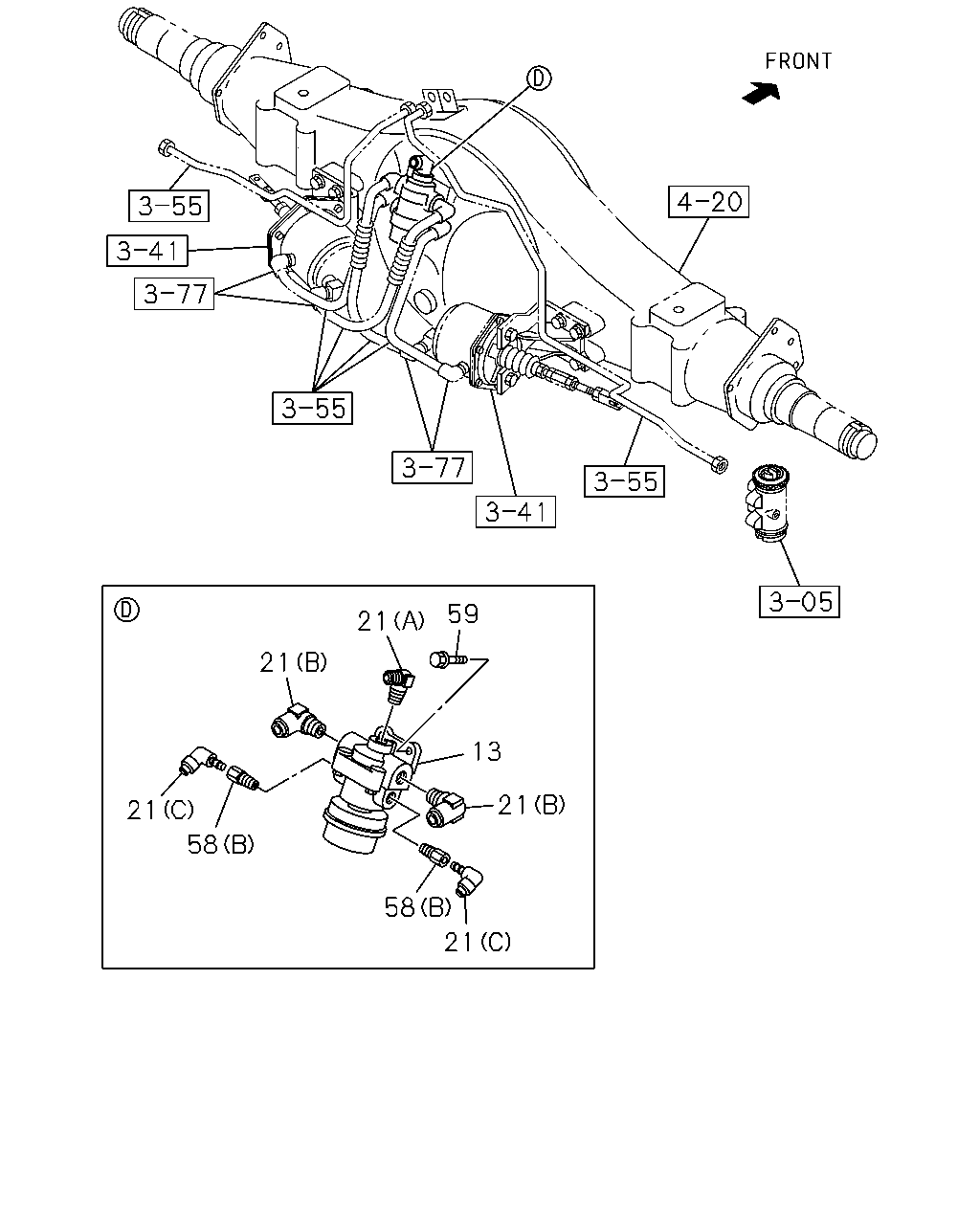

[322A] QUICK RELEASE VALVE (12 parça)
[322A] REPAIR KIT;PROTECTION VALVE (2 parça)
▶
106
107
102
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
102
BOLT; PROTECTION VALVE
(B) M8X16 FLANGE
0-28050-816-0
02
1
0809-
102
BOLT; PROTECTION VALVE
(A) M8X20 FLANGE
0-28650-820-0
02
1
0809-
106
VALVE; HSA
H.S.A SYSTEM<6EP>
1-46362-123-1
01
1
0809-
107
BOLT; VLV
H.S.A SYSTEM<6EP> M8X20 FLANGE
0-28650-820-0
03
1
0809-
188
204
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
188
REPAIR KIT; HSA VLV
H.S.A SYSTEM<6EP>
1-85576-304-1
01
1
0809-
204
PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP>
1-46366-194-0
01
1
0809-
195
201
106
189
192
204
202
190
198
203
205
196
199
200
198
205
197
201
199
201
196
203
197
200
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
106
VALVE; HSA
H.S.A SYSTEM<6EP>
1-46362-123-1
01
1
0809-
189
VALVE ASM; SOLENOID,HSA VLV
H.S.A SYSTEM<6EP>
1-46366-247-0
01
1
0809-
190
BODY; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP>
1-46366-234-0
01
1
0809-
192
SPRING; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP>
1-46366-181-0
01
1
0809-
195
SCREW; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP>
1-46366-191-0
04
1
0809-
196
PISTON; HSA VLV
H.S.A SYSTEM<6EP>
1-46366-232-0
02
1
0809-
197
SPRING; INNER,HSA VLV
H.S.A SYSTEM<6EP>
1-46366-161-0
02
1
0809-
198
PIN; STRAIGHT,HSA VLV
H.S.A SYSTEM<6EP>
1-46366-122-0
02
1
0809-
199
RETAINER; HSA VLV
H.S.A SYSTEM<6EP>
1-46366-121-0
02
1
0809-
200
SPRING; OUTER,HSA VLV
H.S.A SYSTEM<6EP>
1-46366-120-0
02
1
0809-
201
COVER; HSA VLV
H.S.A SYSTEM<6EP> (A)
1-46366-118-1
02
1
0809-
201
COVER; HSA VLV
H.S.A SYSTEM<6EP> (B)
1-46366-241-0
01
1
0809-
202
FILTER; HSA VLV
H.S.A SYSTEM<6EP>
1-46366-117-1
02
1
0809-
203
SCREW; HSA VLV
H.S.A SYSTEM<6EP>
1-46366-116-1
06
1
0809-
204
PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP>
1-46366-194-0
01
1
0809-
205
BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (A)
1-46366-149-0
01
1
0809-
205
BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (B)
1-46366-150-0
01
1
0809-
103
58
220
237
102
108
58
220
232
58
275
108
25
108
108
58
99
167
275
58
25
108
102
103
237
58
220
108
58
99
167
220
58
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
25
SWITCH; PRESSURE
STAMP 5.5
8-97609-249-0
01
1
0809-
58
ADAPTER
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)
8-98035-011-0
01
1
1204-
58
ADAPTER
H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)
1-09656-704-0
01
1
1204-
58
ADAPTER
(F) DIN9 & RC3/8 & M20 3WAY
8-98031-239-0
01
1
1204-
58
ADAPTER
EXC. H.S.A SYSTEM<6EP> (E) DIN6 & PT1/4 & M12 3WAY
1-09656-698-0
01
1
1204-
58
ADAPTER
(A) PT1/4 & PT3/8 2WAY
1-09660-809-0
01
1
0809-
58
ADAPTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN7 & DIN9 ADAPTOR
1-09661-815-0
02
1
0809-
99
VALVE; PROTECTION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)
1-48110-288-3
01
1
0809-
99
VALVE; PROTECTION
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)
1-48110-287-3
01
1
0809-
102
BOLT; PROTECTION VALVE
(B) M8X16 FLANGE
0-28050-816-0
02
1
0809-
102
BOLT; PROTECTION VALVE
(A) M8X20 FLANGE
0-28650-820-0
02
1
0809-
103
BRACKET; PROTECTION VALVE
8-98034-985-1
01
1
0809-1311
103
BRACKET; PROTECTION VALVE
8-98221-293-0
01
1
1312-
108
CONNECTOR; ELBOW
(B) M16 & PT1/4 ELBOW
0-92134-310-0
01
1
0809-
108
CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M12 & PT1/4 ELBOW
1-09650-430-0
01
1
0809-
108
CONNECTOR; ELBOW
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW
1-09650-438-0
02
1
0809-
108
CONNECTOR; ELBOW
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW
1-09650-438-0
01
1
0809-
167
COVER; VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48119-625-0
04
1
0809-
167
COVER; VALVE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48119-625-0
03
1
0809-
220
CONNECTOR; 3WAY
(A) DIN9 & RC3/8 & M20 3WAY
8-98031-239-0
01
1
0809-1203
220
CONNECTOR; 3WAY
EXC. H.S.A SYSTEM<6EP> (B) DIN6 & PT1/4 & M12 3WAY
1-09656-698-0
01
1
0809-1203
232
VALVE; CHECK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN18 & R3/8 & RC3/8 3WAY
8-98032-527-0
01
1
0809-
237
VALVE; SAFETY
1-48320-012-2
01
1
0809-
275
CONNECTOR; 4WAY
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)
8-98035-011-0
01
1
0809-1203
275
CONNECTOR; 4WAY
H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)
1-09656-704-0
01
1
0809-1203
59
21
21
13
21
21
58
58
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
VALVE ASM; QUICK RELEASE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48410-783-0
01
1
0809-
21
CONNECTOR; QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW
1-09650-438-0
01
1
0809-
21
CONNECTOR; QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & R3/8 ELBOW
1-09660-959-0
02
1
0809-
21
CONNECTOR; QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN4 & DIN6 SWIVEL CONNECTOR
1-09661-816-0
02
1
0809-
58
ADAPTER
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)
8-98035-011-0
01
1
1204-
58
ADAPTER
H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)
1-09656-704-0
01
1
1204-
58
ADAPTER
(F) DIN9 & RC3/8 & M20 3WAY
8-98031-239-0
01
1
1204-
58
ADAPTER
EXC. H.S.A SYSTEM<6EP> (E) DIN6 & PT1/4 & M12 3WAY
1-09656-698-0
01
1
1204-
58
ADAPTER
(A) PT1/4 & PT3/8 2WAY
1-09660-809-0
01
1
0809-
58
ADAPTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN7 & DIN9 ADAPTOR
1-09661-815-0
02
1
0809-
59
BOLT; RELEASE VALVE FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE
0-28650-825-0
02
1
0809-0906
59
BOLT; RELEASE VALVE FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE
0-28050-820-0
02
1
0907-
241
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
241
REPAIR KIT; PROTECTION VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-85576-451-2
01
1
0809-
241
REPAIR KIT; PROTECTION VALVE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-85576-452-2
01
1
0809-
