1 |

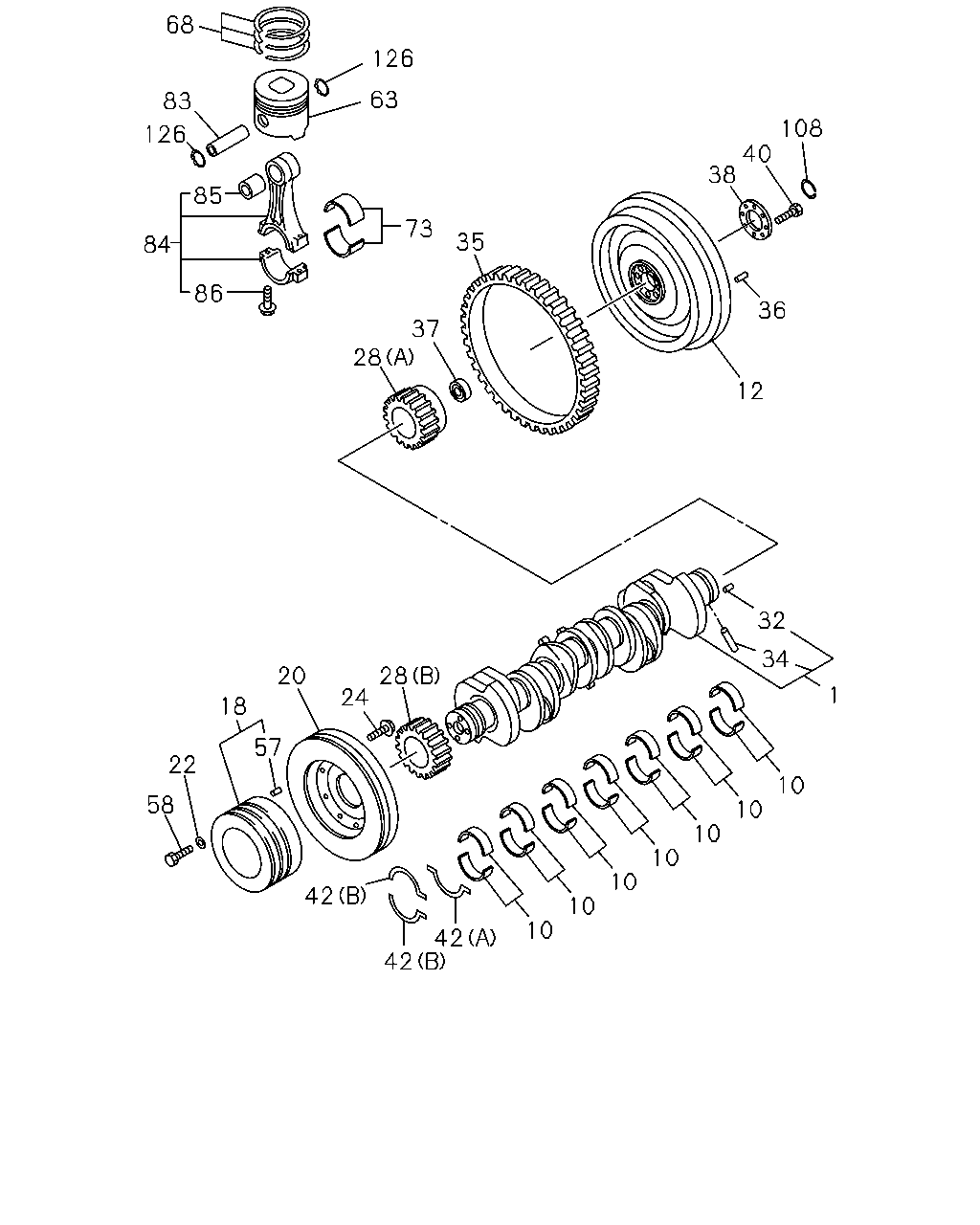

CRANKSHAFT
|
8-94395-025-0 |
01 |
1 |
9606-9810 |
● |
● |
|
|
| |
1 |
CRANKSHAFT
|
8-94396-737-3 |
01 |
1 |
9811-9902 |
|
|
● |
|
| |
1 |
CRANKSHAFT
|
8-94396-737-4 |
01 |
1 |
9903-0203 |
|
|
● |
● |
| |
1 |
CRANKSHAFT
|
8-94396-737-4 |
01 |
1 |
0204-0305 |
|
|
|
● |
| |
1 |
CRANKSHAFT
|
8-97603-004-0 |
01 |
1 |
0306- |
|
|
|
● |
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
BLUE
|
8-97372-076-1 |
07 |
1 |
0306- |
|
|
|
● |
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
BLACK
|
8-97372-077-1 |
07 |
1 |
0306- |
|
|
|
● |
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
BROWN
|
8-97372-078-1 |
07 |
1 |
0306- |
|
|
|
● |
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
PINK
|
8-94391-514-0 |
07 |
1 |
9606-9810 |
● |
● |
|
|
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
GREEN
|
8-94391-515-0 |
07 |
1 |
9606-9810 |
● |
● |
|
|
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
YELLOW
|
8-94391-516-0 |
07 |
1 |
9606-9810 |
● |
● |
|
|
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
PINK
|
8-94391-514-0 |
07 |
1 |
9811-9902 |
|
|
● |
|
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
GREEN
|
8-94391-515-0 |
07 |
1 |
9811-9902 |
|
|
● |
|
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
YELLOW
|
8-94391-516-0 |
07 |
1 |
9811-9902 |
|
|
● |
|
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
PINK
|
8-94391-514-0 |
07 |
1 |
9903-0305 |
|
|
● |
● |
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
GREEN
|
8-94391-515-0 |
07 |
1 |
9903-0305 |
|
|
● |
● |
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
YELLOW
|
8-94391-516-0 |
07 |
1 |
9903-0305 |
|
|
● |
● |
| |
12 |
FLYWHEEL
FRONT AXLE F049<FS4>
|
8-94399-067-1 |
01 |
1 |
9610-9810 |
● |
|
|
|
| |
12 |
FLYWHEEL
|
8-94393-849-1 |
01 |
1 |
9811-9902 |
|
|
● |
|
| |
12 |
FLYWHEEL
|
8-94393-849-1 |
01 |
1 |
9903-0203 |
|
|
● |
● |
| |
12 |
FLYWHEEL
|
8-94393-849-1 |
01 |
1 |
0204- |
|
|
|
● |
| |
12 |
FLYWHEEL
|
8-94399-903-2 |
01 |
1 |
9606-9609 |
● |
● |
|
|
| |
12 |
FLYWHEEL
EXC. FRONT AXLE F049<FS4>
|
8-94399-903-2 |
01 |
1 |
9610-9810 |
● |
|
|
|
| |
12 |
FLYWHEEL
|
8-94399-903-2 |
01 |
1 |
9610-9810 |
|
● |
|
|
| |
18 |
PULLEY; CR/SHF
FLUID DRIVE FAN<KA3>
3-GROOVE
|
8-94393-803-0 |
01 |
1 |
9606-9609 |
● |
|
|
|
| |
18 |
PULLEY; CR/SHF
FLUID DRIVE FAN<KA3>
EXC. FRONT AXLE F049<FS4>
3-GROOVE
|
8-94393-803-0 |
01 |
1 |
9610-9810 |
● |
|
|
|
| |
18 |
PULLEY; CR/SHF
EXC. FLUID DRIVE FAN<KA3>
3-GROOVE
|
8-94395-956-1 |
01 |
1 |
9606-9609 |
● |
|
|
|
| |
18 |
PULLEY; CR/SHF
3-GROOVE
|
8-94395-956-1 |
01 |
1 |
9606-9609 |
|
● |
|
|
| |
18 |
PULLEY; CR/SHF
EXC. FRONT AXLE F049<FS4>,FLUID DRIVE FAN<KA3>
3-GROOVE
|
8-94395-956-2 |
01 |
1 |
9610-9810 |
● |
|
|
|
| |
18 |
PULLEY; CR/SHF
3-GROOVE
|
8-94395-956-2 |
01 |
1 |
9610-9810 |
|
● |
|
|
| |
18 |
PULLEY; CR/SHF
FRONT AXLE F049<FS4>
3-GROOVE
|
8-94396-438-3 |
01 |
1 |
9610-9612 |
● |
|
|
|
| |
18 |
PULLEY; CR/SHF
FRONT AXLE F049<FS4>
3-GROOVE
|
8-94394-296-3 |
01 |
1 |
9701-9810 |
● |
|
|
|
| |
18 |
PULLEY; CR/SHF
3-GROOVE
|
8-94390-166-2 |
01 |
1 |
9811-9902 |
|
|
● |
|
| |
18 |
PULLEY; CR/SHF
3-GROOVE
|
8-94390-166-2 |
01 |
1 |
9903-0203 |
|
|
● |
● |
| |
18 |
PULLEY; CR/SHF
3-GROOVE
|
8-94390-166-2 |
01 |
1 |
0204- |
|
|
|
● |
| |
20 |
DAMPER; CR/SHF
FLUID DRIVE FAN<KA3>
|
8-94397-479-2 |
01 |
1 |
9606-9810 |
● |
|
|
|
| |
20 |
DAMPER; CR/SHF
|
8-94394-354-4 |
02 |
1 |
9811-0203 |
|
|
● |
|
| |
20 |
DAMPER; CR/SHF
EXC. FLUID DRIVE FAN<KA3>
|
8-94393-456-2 |
01 |
1 |
9606-9810 |
● |
|
|
|
| |
20 |
DAMPER; CR/SHF
|
8-94393-456-2 |
01 |
1 |
9606-9810 |
|
● |
|
|
| |
20 |
DAMPER; CR/SHF
|
8-94394-354-7 |
01 |
1 |
9903- |
|
|
|
● |
| |
22 |
PLATE; PULLEY
ID=17 OD=30
|
9-09851-935-0 |
04 |
1 |
9606-9810 |
● |
● |
|
|
| |
22 |
PLATE; PULLEY
ID=17 OD=30
|
9-09851-935-0 |
04 |
1 |
9811-9902 |
|
|
● |
|
| |
22 |
PLATE; PULLEY
ID=17 OD=30
|
9-09851-935-0 |
04 |
1 |
9903-0203 |
|
|
● |
● |
| |
22 |
PLATE; PULLEY
ID=17 OD=30
|
9-09851-935-0 |
04 |
1 |
0204- |
|
|
|
● |
| |
24 |
BOLT; DAMPER
M10X16 FLANGE
|
0-28181-016-0 |
06 |
1 |
9606-9810 |
● |
● |
|
|
| |
24 |
BOLT; DAMPER
M10X16 FLANGE
|
0-28181-016-0 |
06 |
1 |
9811-9902 |
|
|
● |
|
| |
24 |
BOLT; DAMPER
M10X16 FLANGE
|
0-28181-016-0 |
06 |
1 |
9903-0203 |
|
|
● |
● |
| |
24 |
BOLT; DAMPER
M10X16 FLANGE
|
0-28181-016-0 |
06 |
1 |
0204-0512 |
|
|
|
● |
| |
24 |
BOLT; DAMPER
M10X16 FLANGE
|
0-28151-016-0 |
06 |
1 |
0601- |
|
|
|
● |
| |
28 |
GEAR; CR/SHF
EXC. FLUID DRIVE FAN<KA3>
(B)
Z=41
|
8-94396-954-2 |
01 |
1 |
9606-9810 |
● |
|
|
|
| |
28 |
GEAR; CR/SHF
(B)
Z=41
|
8-94396-954-2 |
01 |
1 |
9606-9810 |
|
● |
|
|
| |
28 |
GEAR; CR/SHF
(B)
Z=41
|
8-94396-954-2 |
01 |
1 |
9811-9902 |
|
|
● |
|
| |
28 |
GEAR; CR/SHF
(B)
Z=41
|
8-94396-954-2 |
01 |
1 |
9903-0203 |
|
|
● |
● |
| |
28 |
GEAR; CR/SHF
(B)
Z=41
|
8-94396-954-2 |
01 |
1 |
0204- |
|
|
|
● |
| |
28 |
GEAR; CR/SHF
(A)
Z=42
|
8-94394-342-4 |
01 |
1 |
9606-9810 |
● |
● |
|
|
| |
28 |
GEAR; CR/SHF
(A)
Z=42
|
8-94394-342-4 |
01 |
1 |
9811-9902 |
|
|
● |
|
| |
28 |
GEAR; CR/SHF
(A)
Z=42
|
8-94394-342-4 |
01 |
1 |
9903-0203 |
|
|
● |
● |
| |
28 |
GEAR; CR/SHF
(A)
Z=42
|
8-94394-342-4 |
01 |
1 |
0204- |
|
|
|
● |
| |
32 |
PIN; FLYWHEEL
OD=8 L=16
|
9-08150-816-0 |
02 |
1 |
9606-9810 |
● |
● |
|
|
| |
32 |
PIN; FLYWHEEL
OD=8 L=16
|
9-08150-816-0 |
02 |
1 |
9811-9902 |
|
|
● |
|
| |
32 |
PIN; FLYWHEEL
OD=8 L=16
|
9-08150-816-0 |
02 |
1 |
9903-0203 |
|
|
● |
● |
| |
32 |
PIN; FLYWHEEL
OD=8 L=16
|
9-08150-816-0 |
02 |
1 |
0204- |
|
|
|
● |
| |
34 |
PIN; GEAR SETTING
OD=5 L=6
|
9-09878-626-0 |
01 |
1 |
9606-9810 |
● |
● |
|
|
| |
34 |
PIN; GEAR SETTING
OD=5 L=6
|
9-09878-626-0 |
01 |
1 |
9811-9902 |
|
|
● |
|
| |
34 |
PIN; GEAR SETTING
OD=5 L=6
|
9-09878-626-0 |
01 |
1 |
9903-0203 |
|
|
● |
● |
| |
34 |
PIN; GEAR SETTING
OD=5 L=6
|
9-09878-626-0 |
01 |
1 |
0204- |
|
|
|
● |
| |
35 |
GEAR; RING
FRONT AXLE F049<FS4>
Z=140
|
8-94396-784-0 |
01 |
1 |
9610-9810 |
● |
|
|
|
| |
35 |
GEAR; RING
Z=140
|
8-94396-784-0 |
01 |
1 |
9811-9902 |
|
|
● |
|
| |
35 |
GEAR; RING
Z=140
|
8-94396-784-0 |
01 |
1 |
9903-0203 |
|
|
● |
● |
| |
35 |
GEAR; RING
Z=140
|
8-94396-784-1 |
01 |
1 |
0204- |
|
|
|
● |
| |
35 |
GEAR; RING
ID=361 Z=129
|
8-94393-132-0 |
01 |
1 |
9606-9609 |
● |
● |
|
|
| |
35 |
GEAR; RING
EXC. FRONT AXLE F049<FS4>
ID=361 Z=129
|
8-94393-132-0 |
01 |
1 |
9610-9810 |
● |
|
|
|
| |
35 |
GEAR; RING
ID=361 Z=129
|
8-94393-132-0 |
01 |
1 |
9610-9810 |
|
● |
|
|
| |
36 |
PIN; FLYWHEEL
OD=10 L=22
|
9-08151-022-0 |
02 |
1 |
9606-9810 |
● |
● |
|
|
| |
36 |
PIN; FLYWHEEL
OD=10 L=22
|
9-08151-022-0 |
02 |
1 |
9811-9902 |
|
|
● |
|
| |
36 |
PIN; FLYWHEEL
OD=10 L=22
|
9-08151-022-0 |
02 |
1 |
9903-0203 |
|
|
● |
● |
| |
36 |
PIN; FLYWHEEL
OD=10 L=22
|
9-08151-022-0 |
02 |
1 |
0204- |
|
|
|
● |
| |
37 |
BEARING; PILOT,TOP GEAR SHAFT
|
1-09800-214-0 |
01 |
1 |
9606-9810 |
● |
● |
|
|
| |
37 |
BEARING; PILOT,TOP GEAR SHAFT
|
1-09800-214-0 |
01 |
1 |
9811-9901 |
|
|
● |
|
| |
37 |
BEARING; PILOT,TOP GEAR SHAFT
|
8-94392-288-0 |
01 |
1 |
9902-9902 |
|
|
● |
|
| |
37 |
BEARING; PILOT,TOP GEAR SHAFT
|
8-94392-288-0 |
01 |
1 |
9903-0203 |
|
|
● |
● |
| |
37 |
BEARING; PILOT,TOP GEAR SHAFT
|
8-94392-288-0 |
01 |
1 |
0204- |
|
|
|
● |
| |
38 |
WASHER; FLYWHEEL
ID=55 OD=110
|
8-94397-496-1 |
01 |
1 |
9606-9810 |
● |
● |
|
|
| |
38 |
WASHER; FLYWHEEL
ID=55 OD=110
|
8-94397-496-1 |
01 |
1 |
9811-9902 |
|
|
● |
|
| |
38 |
WASHER; FLYWHEEL
ID=55 OD=110
|
8-94397-496-1 |
01 |
1 |
9903-0203 |
|
|
● |
● |
| |
38 |
WASHER; FLYWHEEL
ID=55 OD=110
|
8-94397-496-1 |
01 |
1 |
0204- |
|
|
|
● |
| |
40 |
BOLT; FLYWHEEL
M16X62
|
8-94393-070-1 |
08 |
1 |
9606-9810 |
● |
● |
|
|
| |
40 |
BOLT; FLYWHEEL
M16X62
|
8-94393-070-1 |
08 |
1 |
9811-9902 |
|
|
● |
|
| |
40 |
BOLT; FLYWHEEL
M16X62
|
8-94393-070-2 |
08 |
1 |
9903-0203 |
|
|
● |
● |
| |
40 |
BOLT; FLYWHEEL
M16X62
|
8-94393-070-2 |
08 |
1 |
0204- |
|
|
|
● |
| |
42 |
WASHER; THRUST,CR/SHF
(A)
|
8-94399-277-0 |
01 |
1 |
9606-9810 |
● |
● |
|
|
| |
42 |
WASHER; THRUST,CR/SHF
(A)
|
8-94399-277-0 |
01 |
1 |
9811-9902 |
|
|
● |
|
| |
42 |
WASHER; THRUST,CR/SHF
(A)
|
8-94399-277-0 |
01 |
1 |
9903-0203 |
|
|
● |
● |
| |
42 |
WASHER; THRUST,CR/SHF
(A)
|
8-94399-277-0 |
01 |
1 |
0204-0703 |
|
|
|
● |
| |
42 |
WASHER; THRUST,CR/SHF
(A)
|
8-97386-548-0 |
01 |
1 |
0704- |
|
|
|
● |
| |
42 |
WASHER; THRUST,CR/SHF
(B)
|
8-94399-283-0 |
02 |
1 |
9606-9810 |
● |
● |
|
|
| |
42 |
WASHER; THRUST,CR/SHF
(B)
|
8-94399-283-0 |
02 |
1 |
9811-9902 |
|
|
● |
|
| |
42 |
WASHER; THRUST,CR/SHF
(B)
|
8-94399-283-0 |
02 |
1 |
9903-0203 |
|
|
● |
● |
| |
42 |
WASHER; THRUST,CR/SHF
(B)
|
8-94399-283-0 |
02 |
1 |
0204-0703 |
|
|
|
● |
| |
42 |
WASHER; THRUST,CR/SHF
(B)
|
8-97386-549-0 |
02 |
1 |
0704- |
|
|
|
● |
| |
57 |
PIN; PULLEY
EXC. FRONT AXLE F049<FS4>,FLUID DRIVE FAN<KA3>
OD=8 L=16
|
8-94391-156-0 |
01 |
1 |
9701-9810 |
● |
|
|
|
| |
57 |
PIN; PULLEY
OD=8 L=16
|
8-94391-156-0 |
01 |
1 |
9701-9810 |
|
● |
|
|
| |
57 |
PIN; PULLEY
OD=8 L=16
|
8-94391-156-0 |
01 |
1 |
9811-9902 |
|
|
● |
|
| |
57 |
PIN; PULLEY
OD=8 L=16
|
8-94391-156-0 |
01 |
1 |
9903-0203 |
|
|
● |
● |
| |
57 |
PIN; PULLEY
OD=8 L=16
|
8-94391-156-0 |
01 |
1 |
0204- |
|
|
|
● |
| |
57 |
PIN; PULLEY
OD=8 L=16
|
9-08150-816-0 |
01 |
1 |
9606-9612 |
● |
● |
|
|
| |
57 |
PIN; PULLEY
FLUID DRIVE FAN<KA3>
EXC. FRONT AXLE F049<FS4>
OD=8 L=16
|
9-08150-816-0 |
01 |
1 |
9701-9810 |
● |
|
|
|
| |
58 |
BOLT; CR/SHF PULLEY
M16X50
|
9-92061-650-0 |
04 |
1 |
9606-9810 |
● |
● |
|
|
| |
58 |
BOLT; CR/SHF PULLEY
M16X50
|
9-92061-650-0 |
04 |
1 |
9811-9902 |
|
|
● |
|
| |
58 |
BOLT; CR/SHF PULLEY
M16X50
|
9-92061-650-0 |
04 |
1 |
9903-0203 |
|
|
● |
● |
| |
58 |
BOLT; CR/SHF PULLEY
M16X50
|
9-92061-650-0 |
04 |
1 |
0204-0512 |
|
|
|
● |
| |
58 |
BOLT; CR/SHF PULLEY
M16X50
|
0-20951-650-0 |
04 |
1 |
0601- |
|
|
|
● |
| |
63 |
PISTON
ALSO INCLUDED IN LINER SET.
NON GRADE
|
8-94391-597-0 |
06 |
1 |
9606-9810 |
● |
● |
|
|
| |
63 |
PISTON
ALSO INCLUDED IN LINER SET.
NON GRADE
|
8-94391-594-2 |
06 |
1 |
9811-0203 |
|
|
● |
|
| |
63 |
PISTON
ALSO INCLUDED IN LINER SET.
NON GRADE
|
8-94391-596-1 |
06 |
1 |
9903- |
|
|
|
● |
| |
68 |
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
|
8-94396-840-0 |
06 |
1 |
9606-9810 |
● |
● |
|
|
| |
68 |
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
|
8-94395-061-5 |
06 |
1 |
9811-9902 |
|
|
● |
|
| |
68 |
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
|
8-94395-061-6 |
06 |
1 |
9903-0203 |
|
|
● |
● |
| |
68 |
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
|
8-94395-061-7 |
06 |
1 |
0204- |
|
|
|
● |
| |
73 |
METAL SET; CONN ROD,STANDARD
|
8-94393-328-0 |
06 |
1 |
9606-9810 |
● |
● |
|
|
| |
73 |
METAL SET; CONN ROD,STANDARD
YELLOW
|
8-97131-186-0 |
06 |
1 |
9811-9902 |
|
|
● |
|
| |
73 |
METAL SET; CONN ROD,STANDARD
YELLOW
|
8-97131-186-0 |
06 |
1 |
9903-0203 |
|
|
● |
● |
| |
73 |
METAL SET; CONN ROD,STANDARD
YELLOW
|
8-97131-186-1 |
06 |
1 |
0204-0706 |
|
|
|
● |
| |
73 |
METAL SET; CONN ROD,STANDARD
GREEN
|
8-94395-757-0 |
06 |
1 |
9811-9902 |
|
|
● |
|
| |
73 |
METAL SET; CONN ROD,STANDARD
GREEN
|
8-94395-757-0 |
06 |
1 |
9903-0203 |
|
|
● |
● |
| |
73 |
METAL SET; CONN ROD,STANDARD
GREEN
|
8-94395-757-1 |
06 |
1 |
0204-0706 |
|
|
|
● |
| |
73 |
METAL SET; CONN ROD,STANDARD
YELLOW
|
8-98055-479-0 |
06 |
1 |
0707- |
|
|
|
● |
| |
73 |
METAL SET; CONN ROD,STANDARD
GREEN
|
8-98055-480-0 |
06 |
1 |
0707- |
|
|
|
● |
| |
83 |
PIN; PISTON
ALSO INCLUDED IN LINER SET.
|
8-94396-589-0 |
06 |
1 |
9606-9810 |
● |
● |
|
|
| |
83 |
PIN; PISTON
ALSO INCLUDED IN LINER SET.
|
8-94396-731-0 |
06 |
1 |
9811-9902 |
|
|
● |
|
| |
83 |
PIN; PISTON
ALSO INCLUDED IN LINER SET.
|
8-94396-731-1 |
06 |
1 |
9903-0203 |
|
|
● |
● |
| |
83 |
PIN; PISTON
ALSO INCLUDED IN LINER SET.
|
8-94396-731-1 |
06 |
1 |
0204- |
|
|
|
● |
| |
84 |
ROD ASM; CONN
|
8-94396-394-2 |
06 |
1 |
9606-9810 |
● |
● |
|
|
| |
84 |
ROD ASM; CONN
|
8-94399-661-1 |
06 |
1 |
9811-9902 |
|
|
● |
|
| |
84 |
ROD ASM; CONN
|
8-94399-661-1 |
06 |
1 |
9903-0108 |
|
|
● |
● |
| |
84 |
ROD ASM; CONN
|
8-94391-791-1 |
06 |
1 |
0109-0203 |
|
|
● |
● |
| |
84 |
ROD ASM; CONN
|
8-94391-791-1 |
06 |
1 |
0204-0305 |
|
|
|
● |
| |
84 |
ROD ASM; CONN
|
8-94399-661-2 |
06 |
1 |
0306-0706 |
|
|
|
● |
| |
84 |
ROD ASM; CONN
|
8-98018-425-0 |
06 |
1 |
0707- |
|
|
|
● |
| |
85 |
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
|
1-12251-036-0 |
06 |
1 |
9606-9810 |
● |
● |
|
|
| |
85 |
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
|
8-94394-613-0 |
06 |
1 |
9811-9902 |
|
|
● |
|
| |
85 |
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
|
8-94394-613-0 |
06 |
1 |
9903-0108 |
|
|
● |
● |
| |
85 |
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
|
8-94391-794-0 |
06 |
1 |
0109-0203 |
|
|
● |
● |
| |
85 |
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
|
8-94391-794-0 |
06 |
1 |
0204-0305 |
|
|
|
● |
| |
85 |
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
|
8-94394-613-0 |
06 |
1 |
0306-0706 |
|
|
|
● |
| |
85 |
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
|
8-94391-794-0 |
06 |
1 |
0707- |
|
|
|
● |
| |
86 |
BOLT; CONNROD
M13X57 FLANGE
|
1-12235-035-0 |
12 |
1 |
9606-9810 |
● |
● |
|
|
| |
86 |
BOLT; CONNROD
M13X57 FLANGE
|
1-12235-035-0 |
12 |
1 |
9811-9902 |
|
|
● |
|
| |
86 |
BOLT; CONNROD
M13X57 FLANGE
|
1-12235-035-0 |
12 |
1 |
9903-0203 |
|
|
● |
● |
| |
86 |
BOLT; CONNROD
M13X57 FLANGE
|
1-12235-035-0 |
12 |
1 |
0204- |
|
|
|
● |
| |
108 |
RING; SNAP,BRG SET
OD=59.2
|
9-09180-155-0 |
01 |
1 |
9606-9810 |
● |
● |
|
|
| |
108 |
RING; SNAP,BRG SET
OD=59.2
|
9-09180-155-0 |
01 |
1 |
9811-9902 |
|
|
● |
|
| |
108 |
RING; SNAP,BRG SET
OD=59.2
|
9-09180-155-0 |
01 |
1 |
9903-0203 |
|
|
● |
● |
| |
108 |
RING; SNAP,BRG SET
OD=59.2
|
9-09180-155-0 |
01 |
1 |
0204- |
|
|
|
● |
| |
126 |
RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET.
|
8-94318-798-2 |
12 |
1 |
9606-9810 |
● |
● |
|
|
| |
126 |
RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET.
|
1-09587-081-1 |
12 |
1 |
9811-9902 |
|
|
● |
|
| |
126 |
RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET.
|
1-09587-081-1 |
12 |
1 |
9903-0203 |
|
|
● |
● |
| |
126 |
RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET.
|
1-09587-081-1 |
12 |
1 |
0204- |
|
|
|
● |
