2-85 — POWER TAKE OFF CONTROL
(#58977) — 16 parça
◀

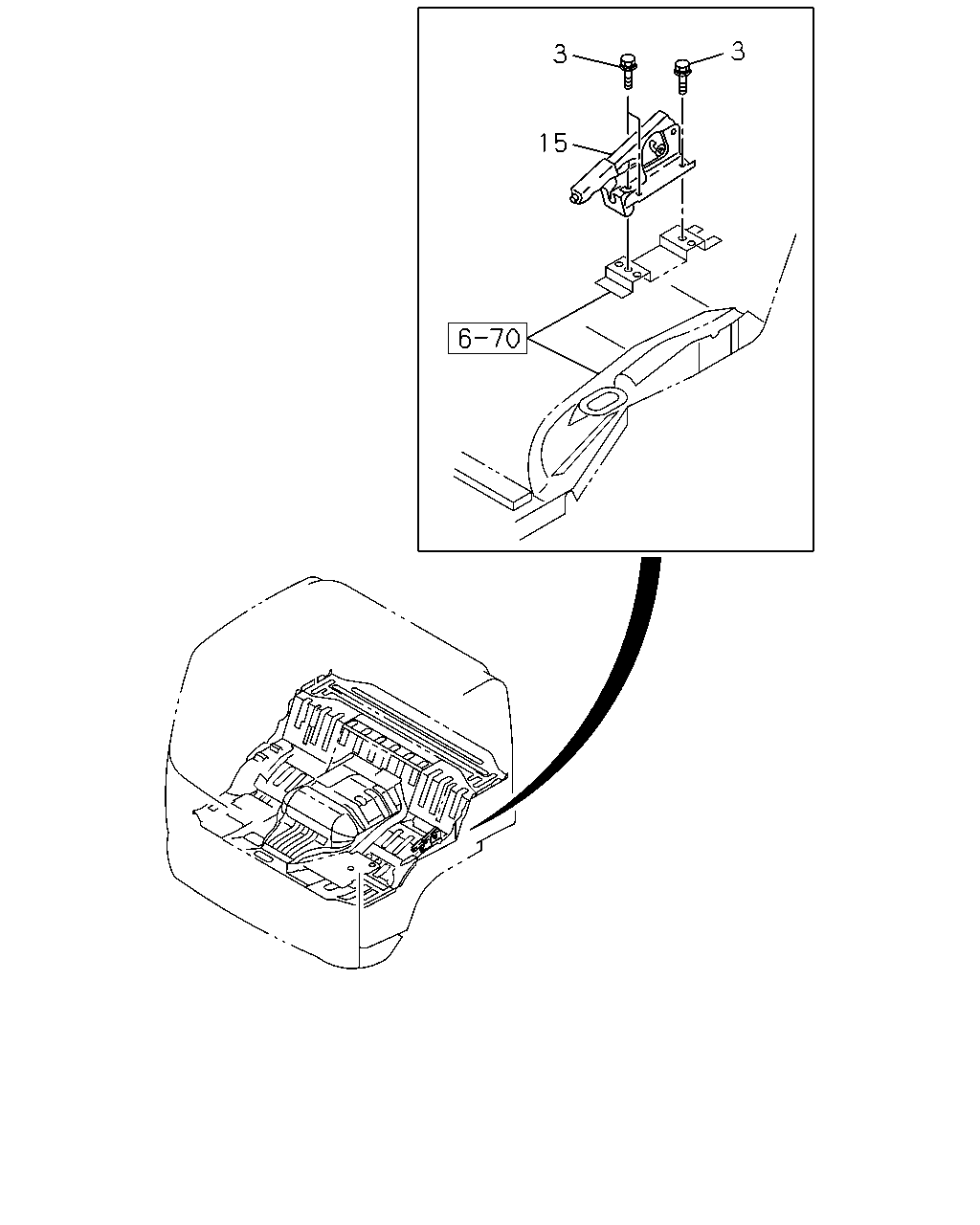

[285A] CONTROL LEVER (2 parça)
[285A] HOSE (14 parça)
▶
3
3
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER
8-94279-207-0
03
1
0809-
15
LEVER ASM; PTO CONT
DUMP CONTROL LEVER<RC4>
1-79996-092-0
01
1
0809-
48
317
57
318
303
317
303
318
317
57
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
HOSE; FLEX,PTO
MLD6S M/T(X7W) PTO CONTROL<SV6> L=580
1-09363-613-1
01
1
0906-1011
48
HOSE; FLEX,PTO
MZZ6W M/T(RSA),MLD6S M/T(X7W) PTO CONTROL<SV6> L=580
1-09363-613-1
01
1
1012-
48
HOSE; FLEX,PTO
MZW6P M/T(RSZ) PTO CONTROL<SV6> L=560
1-09363-914-0
01
1
0907-
48
HOSE; FLEX,PTO
PTO CONTROL<SV6> L=540
1-09363-612-1
01
1
0809-0905
48
HOSE; FLEX,PTO
MZX6P M/T(RSW) PTO CONTROL<SV6> L=540
1-09363-612-1
01
1
0906-
57
BOLT; BRKT
PTO CONTROL<SV6> M10X25 FLANGE
0-28651-025-0
01
1
0906-
303
BRACKET; CLIP
MLD6S M/T(X7W) PTO CONTROL<SV6> (A)
8-98136-977-0
01
1
0906-
303
BRACKET; CLIP
MZW6P M/T(RSZ) PTO CONTROL<SV6> (A)
8-98136-973-0
01
1
0907-
303
BRACKET; CLIP
MZX6P M/T(RSW) PTO CONTROL<SV6> (A)
8-98136-974-0
01
1
0906-
303
BRACKET; CLIP
MZZ6W M/T(RSA) PTO CONTROL<SV6> (B)
8-98136-975-0
01
1
1012-
317
CLIP; NYLON TUBE
PTO CONTROL<SV6> (A) ID=11 L=16
0-95235-025-0
01
1
0906-0907
317
CLIP; NYLON TUBE
PTO CONTROL<SV6> (B) ID=15 L=22 H=30
1-09701-215-1
01
1
0908-
318
BOLT; CLIP
PTO CONTROL<SV6> M8X16 FLANGE
0-28050-816-0
01
1
0906-0909
318
BOLT; CLIP
PTO CONTROL<SV6> M8X20 FLANGE
0-28650-820-0
01
1
0910-
