◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10739 - FSR-LHD(BUS CHASSIS) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-14 - CAMSHAFT AND VALVE ▶
0-14 — CAMSHAFT AND VALVE (#5897) — 168 parça

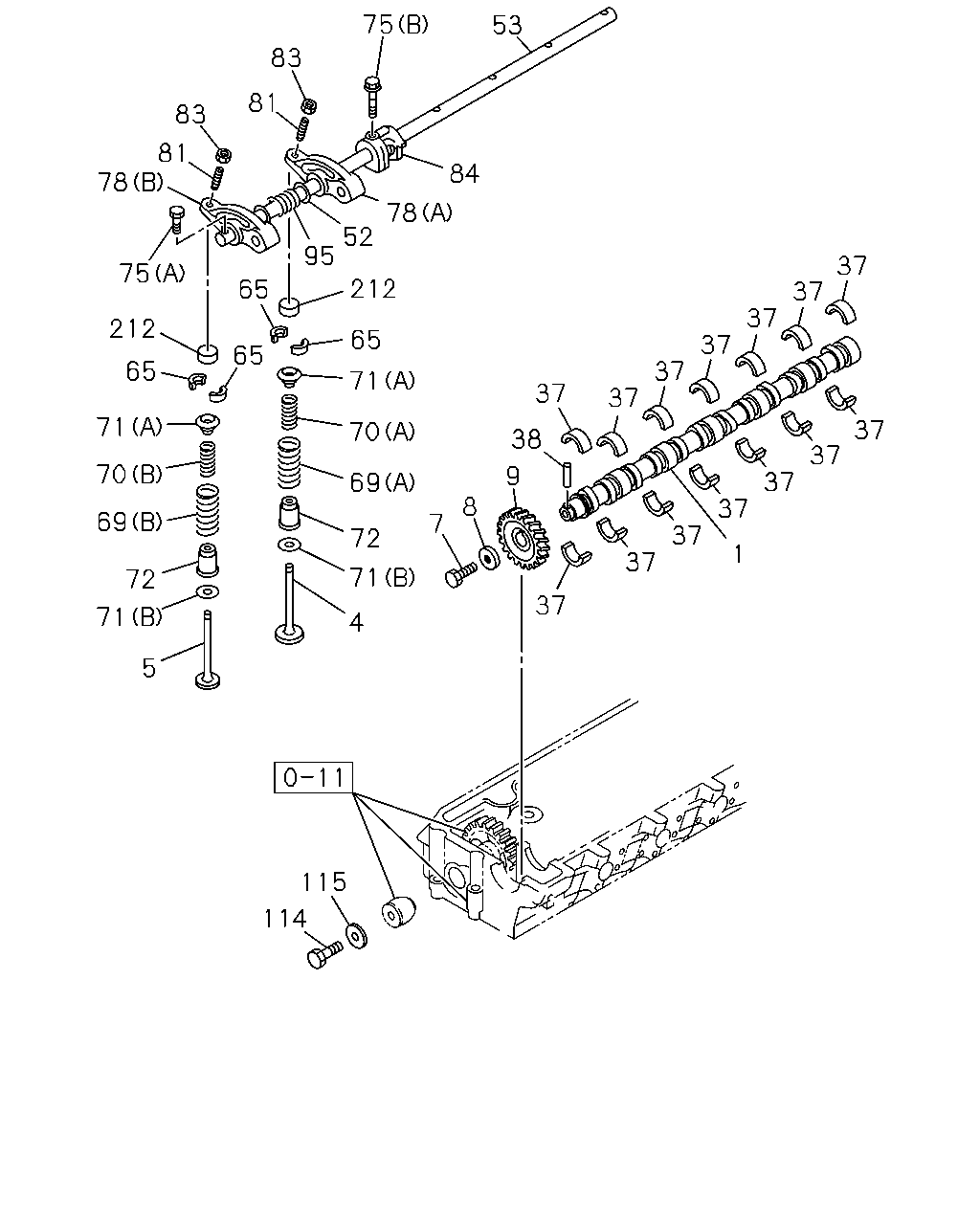

çizim 5730
75 53 83 81 83 81 78 84 78 52 95 37 75 212 65 37 37 212 65 37 65 65 37 71 37 37 71 37 70 38 37 70 9 37 69 8 37 69 7 37 72 1 37 71 72 37 71 4 5 115 114
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CAMSHAFT 8-94395-576-2 01 1 9606-9810 ● ●
1 CAMSHAFT 8-94395-758-2 01 1 9811-9902 ●
1 CAMSHAFT 8-94395-758-2 01 1 9903-0203 ● ●
1 CAMSHAFT 8-94395-758-2 01 1 0204- ●
4 VALVE; INL 8-94395-112-0 06 1 9606-9810 ● ●
4 VALVE; INL 8-94395-113-1 06 1 9811-9902 ●
4 VALVE; INL 8-94395-113-1 06 1 9903-0203 ● ●
4 VALVE; INL 8-94395-113-1 06 1 0204- ●
5 VALVE; EXH 8-97060-415-0 06 1 9606-9810 ● ●
5 VALVE; EXH 8-94395-462-0 06 1 9811-9902 ●
5 VALVE; EXH 8-94395-462-0 06 1 9903-0203 ● ●
5 VALVE; EXH 8-94395-462-1 06 1 0204- ●
7 BOLT; CM/SHF GEAR
M14X40 		8-94396-439-0 01 1 9606-9810 ● ●
7 BOLT; CM/SHF GEAR
M14X40 		8-94396-439-0 01 1 9811-9902 ●
7 BOLT; CM/SHF GEAR
M14X40 		8-94396-439-0 01 1 9903-0203 ● ●
7 BOLT; CM/SHF GEAR
M14X40 		8-94396-439-0 01 1 0204- ●
8 WASHER; CM/SHF GEAR
ID=14.5 		9-09851-850-3 01 1 9606-9810 ● ●
8 WASHER; CM/SHF GEAR
ID=14.5 		9-09851-850-3 01 1 9811-9902 ●
8 WASHER; CM/SHF GEAR
ID=14.5 		9-09851-850-3 01 1 9903-0203 ● ●
8 WASHER; CM/SHF GEAR
ID=14.5 		9-09851-850-3 01 1 0204- ●
9 GEAR; CM/SHF
Z=35 		8-97094-440-2 01 1 9606-9810 ● ●
9 GEAR; CM/SHF
Z=35 		8-97094-440-2 01 1 9811-9902 ●
9 GEAR; CM/SHF
Z=35 		8-97094-440-2 01 1 9903-0203 ● ●
9 GEAR; CM/SHF
Z=35 		8-97094-440-2 01 1 0204- ●
37 METAL; CM/SHF
UPPER B=16 		8-97356-939-0 04 1 0401-0706 ●
37 METAL; CM/SHF
UPPER B=16 		8-97386-189-0 04 1 0707- ●
37 METAL; CM/SHF 8-94393-380-0 14 1 9606-9608 ● ●
37 METAL; CM/SHF 8-94363-100-0 08 1 9609-9810 ● ●
37 METAL; CM/SHF 8-94363-100-0 08 1 9811-9902 ●
37 METAL; CM/SHF 8-94363-100-0 08 1 9903-0203 ● ●
37 METAL; CM/SHF 8-94363-100-1 08 1 0204-0206 ●
37 METAL; CM/SHF
B=22 		8-97602-698-0 08 1 0207-0312 ●
37 METAL; CM/SHF
LOWER B=22 		8-97602-698-0 04 1 0401- ●
38 PIN; CAM BRG SET 8-94399-487-0 01 1 9606-9810 ● ●
38 PIN; CAM BRG SET 8-94399-487-0 01 1 9811-9902 ●
38 PIN; CAM BRG SET 8-94399-487-0 01 1 9903-0203 ● ●
38 PIN; CAM BRG SET 8-94399-487-0 01 1 0204- ●
52 WASHER; ROCKER ARM SHAFT 8-94362-105-0 12 1 9606-9810 ● ●
52 WASHER; ROCKER ARM SHAFT 8-94362-105-0 12 1 9811-9902 ●
52 WASHER; ROCKER ARM SHAFT 8-94362-105-0 12 1 9903-0203 ● ●
52 WASHER; ROCKER ARM SHAFT 8-94362-105-0 12 1 0204- ●
53 SHAFT; ROCKER ARM 8-94393-984-3 01 1 9606-9810 ● ●
53 SHAFT; ROCKER ARM 8-94393-984-3 01 1 9811-9902 ●
53 SHAFT; ROCKER ARM 8-94393-984-3 01 1 9903-0203 ● ●
53 SHAFT; ROCKER ARM 8-94393-984-4 01 1 0204- ●
65 COLLAR; SPLIT 5-12565-006-0 24 1 9606-9810 ● ●
65 COLLAR; SPLIT 5-12565-006-0 24 1 9811-9902 ●
65 COLLAR; SPLIT 5-12565-006-0 24 1 9903-0203 ● ●
65 COLLAR; SPLIT 5-12565-006-0 24 1 0204- ●
69 SPRING; VLV,OUTER
(B) MARK YELLOW 		8-94393-310-0 06 1 9606-9810 ● ●
69 SPRING; VLV,OUTER
(B) MARK YELLOW 		8-94393-310-0 06 1 9811-9902 ●
69 SPRING; VLV,OUTER
(B) MARK YELLOW 		8-94393-310-0 06 1 9903-0203 ● ●
69 SPRING; VLV,OUTER
(B) MARK YELLOW 		8-94393-310-0 06 1 0204- ●
69 SPRING; VLV,OUTER
(A) 		8-94394-996-0 06 1 9606-9810 ● ●
69 SPRING; VLV,OUTER
(A) 		8-94394-996-0 06 1 9811-9902 ●
69 SPRING; VLV,OUTER
(A) 		8-94394-996-0 06 1 9903-0111 ● ●
69 SPRING; VLV,OUTER
(A) MARK PINK 		8-97120-912-0 06 1 0112-0203 ● ●
69 SPRING; VLV,OUTER
(A) MARK PINK 		8-97120-912-0 06 1 0204- ●
70 SPRING; VLV,INNER
(A) 		8-94395-266-0 06 1 9606-9810 ● ●
70 SPRING; VLV,INNER
(A) 		8-94395-266-0 06 1 9811-9902 ●
70 SPRING; VLV,INNER
(A) 		8-94395-266-0 06 1 9903-0111 ● ●
70 SPRING; VLV,INNER
(A) MARK PINK 		8-97120-911-0 06 1 0112-0203 ● ●
70 SPRING; VLV,INNER
(A) MARK PINK 		8-97120-911-0 06 1 0204- ●
70 SPRING; VLV,INNER
(B) MARK YELLOW 		8-94397-500-0 06 1 9606-9810 ● ●
70 SPRING; VLV,INNER
(B) MARK YELLOW 		8-94397-500-0 06 1 9811-9902 ●
70 SPRING; VLV,INNER
(B) MARK YELLOW 		8-94397-500-0 06 1 9903-0203 ● ●
70 SPRING; VLV,INNER
(B) MARK YELLOW 		8-94397-500-0 06 1 0204- ●
71 SEAT; SPR
(A) OD=38 		8-94385-029-1 12 1 9606-9810 ● ●
71 SEAT; SPR
(A) OD=38 		8-94385-029-1 12 1 9811-9902 ●
71 SEAT; SPR
(A) OD=38 		8-94385-029-2 12 1 9903-0203 ● ●
71 SEAT; SPR
(A) OD=38 		8-94385-029-2 12 1 0204- ●
71 SEAT; SPR
(B) ID=14.3 T=0.5 		8-94396-014-0 12 1 9606-9810 ● ●
71 SEAT; SPR
(B) ID=14.3 T=0.5 		8-94396-014-0 12 1 9811-9902 ●
71 SEAT; SPR
(B) ID=14.3 T=0.5 		8-94396-014-0 12 1 9903-0203 ● ●
71 SEAT; SPR
(B) ID=14.3 T=0.5 		8-94396-014-0 12 1 0204- ●
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94396-609-2 12 1 9606-9810 ● ●
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94396-609-2 12 1 9811-9902 ●
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94396-609-2 12 1 9903-0203 ● ●
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94396-609-2 12 1 0204- ●
75 BOLT; BRKT
(A) M8X35 FLANGE 		0-28080-835-0 02 1 9606-9810 ● ●
75 BOLT; BRKT
(A) M8X35 FLANGE 		0-28080-835-0 02 1 9811-9902 ●
75 BOLT; BRKT
(A) M8X35 FLANGE 		0-28080-835-0 02 1 9903-0203 ● ●
75 BOLT; BRKT
(A) M8X35 FLANGE 		0-28080-835-0 02 1 0204-0512 ●
75 BOLT; BRKT
(A) M8X35 FLANGE 		0-28050-835-0 02 1 0601- ●
75 BOLT; BRKT
(B) M10X62 FLANGE 		8-94393-131-0 05 1 9606-9810 ● ●
75 BOLT; BRKT
(B) M10X62 FLANGE 		8-94393-131-0 05 1 9811-9902 ●
75 BOLT; BRKT
(B) M10X62 FLANGE 		8-94393-131-0 05 1 9903-0203 ● ●
75 BOLT; BRKT
(B) M10X62 FLANGE 		8-94393-131-0 05 1 0204- ●
78 ARM; ROCKER
(B) EXHAUST JBK 		8-97014-258-1 06 1 9606-9810 ● ●
78 ARM; ROCKER
(B) EXHAUST JBK 		8-97014-258-1 06 1 9811-9902 ●
78 ARM; ROCKER
(B) EXHAUST JBK 		8-97014-258-1 06 1 9903-0203 ● ●
78 ARM; ROCKER
(B) EXHAUST JBK 		8-97014-258-2 06 1 0204- ●
78 ARM; ROCKER
(A) INLET JBK 		8-97074-614-0 06 1 9606-9810 ● ●
78 ARM; ROCKER
(A) INLET JBK 		8-97074-614-0 06 1 9811-9902 ●
78 ARM; ROCKER
(A) INLET JBK 		8-97074-614-0 06 1 9903-0203 ● ●
78 ARM; ROCKER
(A) INLET JBK 		8-97074-614-1 06 1 0204- ●
81 SCREW; ADJ,ROCKER ARM
M10 L=32 		8-94395-024-0 12 1 9606-9810 ● ●
81 SCREW; ADJ,ROCKER ARM
M10 L=32 		8-94395-024-0 12 1 9811-9902 ●
81 SCREW; ADJ,ROCKER ARM
M10 L=32 		8-94395-024-0 12 1 9903-0203 ● ●
81 SCREW; ADJ,ROCKER ARM
M10 L=32 		8-94395-024-0 12 1 0204- ●
83 NUT; ADJ SCREW,LK
M10 		9-09111-510-0 12 1 9606-9705 ● ●
83 NUT; ADJ SCREW,LK
M10 		9-09111-410-0 12 1 9706-9810 ● ●
83 NUT; ADJ SCREW,LK
M10 		9-09111-410-0 12 1 9811-9902 ●
83 NUT; ADJ SCREW,LK
M10 		9-09111-410-0 12 1 9903-0203 ● ●
83 NUT; ADJ SCREW,LK
M10 		9-09111-410-0 12 1 0204-0512 ●
83 NUT; ADJ SCREW,LK
M10 		0-91111-510-0 12 1 0601- ●
84 BRACKET; ROCKER SHAFT,INTER
JBK 		8-94388-109-3 05 1 9606-9810 ● ●
84 BRACKET; ROCKER SHAFT,INTER
JBK 		8-94388-109-3 05 1 9811-9902 ●
84 BRACKET; ROCKER SHAFT,INTER
JBK 		8-94388-109-3 05 1 9903-0203 ● ●
84 BRACKET; ROCKER SHAFT,INTER
JBK 		8-94388-109-3 05 1 0204- ●
95 SPRING; ROCKER SHAFT
JBK 		8-94397-263-0 06 1 9606-9810 ● ●
95 SPRING; ROCKER SHAFT
JBK 		8-94397-263-0 06 1 9811-9902 ●
95 SPRING; ROCKER SHAFT
JBK 		8-94397-263-0 06 1 9903-0203 ● ●
95 SPRING; ROCKER SHAFT
JBK 		8-94397-263-0 06 1 0204- ●
114 BOLT; IDLE GEAR
M14X36.5 		8-94372-221-1 01 1 9606-9810 ● ●
114 BOLT; IDLE GEAR
M14X36.5 		8-94372-221-1 01 1 9811-9902 ●
114 BOLT; IDLE GEAR
M14X36.5 		8-94372-221-1 01 1 9903-0203 ● ●
114 BOLT; IDLE GEAR
M14X36.5 		8-94372-221-1 01 1 0204- ●
115 WASHER; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-94370-688-0 01 1 9606-9810 ● ●
115 WASHER; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-94370-688-0 01 1 9811-9902 ●
115 WASHER; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-94370-688-0 01 1 9903-0203 ● ●
115 WASHER; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-94370-688-0 01 1 0204-0306 ●
115 WASHER; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-97209-728-2 01 1 0307- ●
212 CAP; ADJ SCREW 8-94396-015-2 12 1 9606-9810 ● ●
212 CAP; ADJ SCREW 8-94396-015-2 12 1 9811-9902 ●
212 CAP; ADJ SCREW 8-94396-015-2 12 1 9903-0203 ● ●
212 CAP; ADJ SCREW 8-94396-015-2 12 1 0204- ●

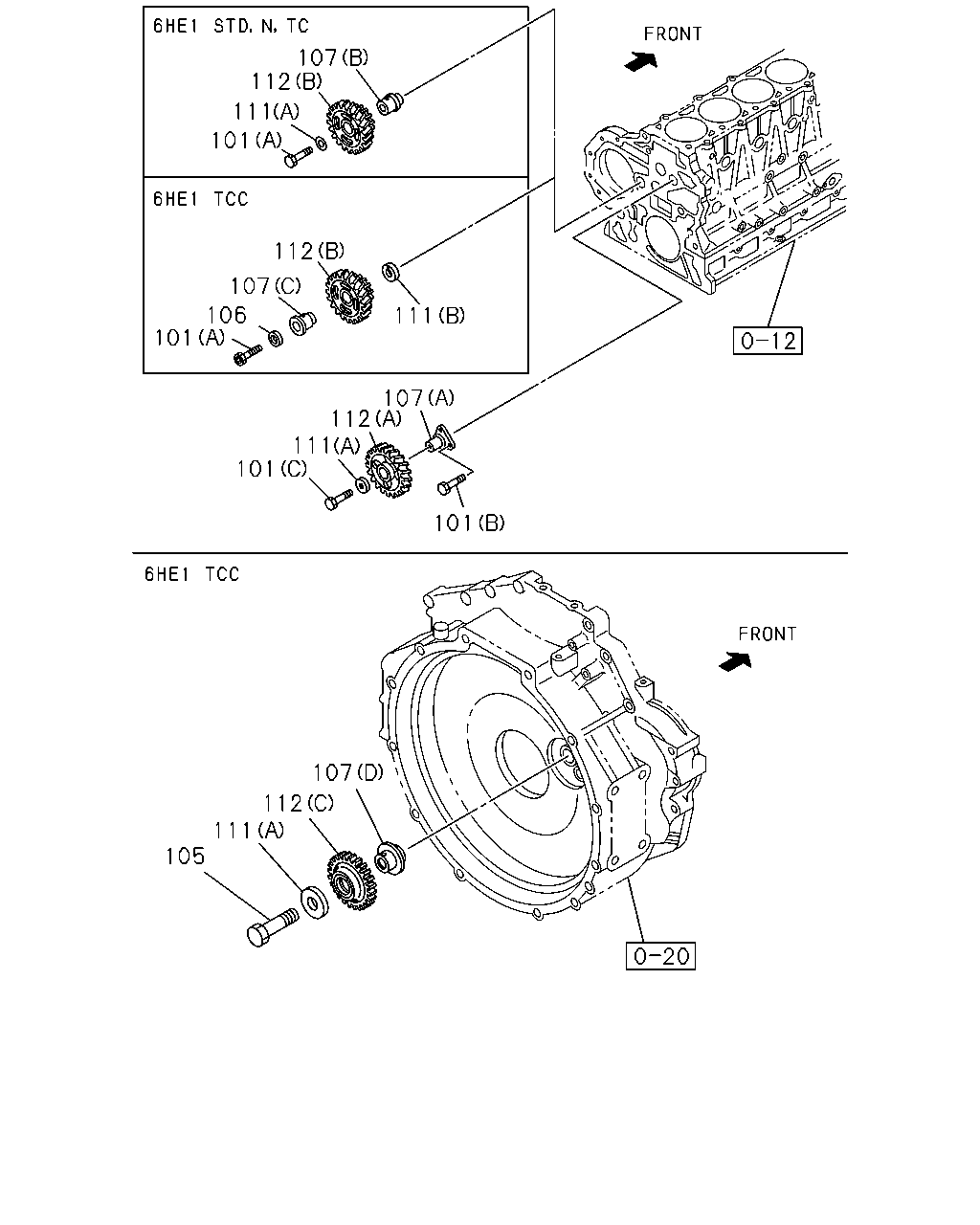

çizim 42030
107 112 101 112 107 106 101 111 107 112 101 101 107 112 111 105 111 111
BalonParca AdiParca NoAdetTipApplied Date A B C D
101 BOLT; THRUST COLLAR
(B) M8X14 		8-97073-782-0 03 1 9606-9611 ● ●
101 BOLT; THRUST COLLAR
(B) M8X16 FLANGE 		0-28090-816-0 03 1 9612-9810 ● ●
101 BOLT; THRUST COLLAR
(B) M8X16 FLANGE 		0-28090-816-0 03 1 9811-9902 ●
101 BOLT; THRUST COLLAR
(B) M8X16 FLANGE 		0-28090-816-0 03 1 9903-0203 ● ●
101 BOLT; THRUST COLLAR
(B) M8X16 FLANGE 		0-28090-816-0 03 1 0204-0512 ●
101 BOLT; THRUST COLLAR
(B) M8X16 FLANGE 		0-28060-816-0 03 1 0601- ●
101 BOLT; THRUST COLLAR
(A) M14X60 		9-91666-460-0 01 1 9606-9810 ● ●
101 BOLT; THRUST COLLAR
(A) M14X60 		9-91666-460-0 01 1 9811-0203 ●
101 BOLT; THRUST COLLAR
(C) M14X30 		9-92361-430-0 01 1 9606-9810 ● ●
101 BOLT; THRUST COLLAR
(C) M14X30 		9-92361-430-0 01 1 9811-9902 ●
101 BOLT; THRUST COLLAR
(C) M14X30 		9-92361-430-0 01 1 9903-0203 ● ●
101 BOLT; THRUST COLLAR
(C) M14X30 		9-92361-430-0 01 1 0204-0512 ●
101 BOLT; THRUST COLLAR
(C) M14X30 		0-23951-430-0 01 1 0601- ●
101 BOLT; THRUST COLLAR
(A) M14X67 HEX SOCKET 		8-94394-779-2 01 1 9903- ●
105 BOLT; IDLE GEAR SHAFT
M14X65 		8-97066-798-0 01 1 9903- ●
106 WASHER; IDLE GEAR SHAFT
ID=14.2 OD=23 		1-09503-031-0 01 1 9903- ●
107 SHAFT; IDLE GEAR
(A) 		8-97073-938-1 01 1 9606-9805 ● ●
107 SHAFT; IDLE GEAR
(A) 		8-97189-244-0 01 1 9806-9810 ● ●
107 SHAFT; IDLE GEAR
(A) 		8-97189-244-0 01 1 9811-9902 ●
107 SHAFT; IDLE GEAR
(A) 		8-97189-244-0 01 1 9903-0203 ● ●
107 SHAFT; IDLE GEAR
(A) 		8-97189-244-1 01 1 0204-0204 ●
107 SHAFT; IDLE GEAR
(A) 		8-97350-021-0 01 1 0205- ●
107 SHAFT; IDLE GEAR
(B) 		8-97104-380-0 01 1 9606-9810 ● ●
107 SHAFT; IDLE GEAR
(B) 		8-97104-380-0 01 1 9811-0203 ●
107 SHAFT; IDLE GEAR
(C) 		8-94395-073-2 01 1 9903-0205 ●
107 SHAFT; IDLE GEAR
(C) 		8-97602-588-0 01 1 0206- ●
107 SHAFT; IDLE GEAR
(D) 		8-94395-096-0 01 1 9903-0304 ●
107 SHAFT; IDLE GEAR
(D) 		8-94334-682-0 01 1 0305- ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46 		8-94370-688-0 02 1 9606-9810 ● ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46 		8-94370-688-0 02 1 9811-9902 ●
111 COLLAR; THRUST,IDLE GEAR
(B) ID=24 OD=70 		8-94394-097-1 01 1 9903- ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46 		8-94370-688-0 02 1 9903-0203 ● ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46 		8-94370-688-0 02 1 0204-0306 ●
111 COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46 		8-97209-728-2 02 1 0307- ●
112 GEAR; IDLE
(B) Z=72-30 		8-94395-107-1 01 1 9606-9810 ● ●
112 GEAR; IDLE
(B) Z=72-30 		8-94395-107-1 01 1 9811-0203 ●
112 GEAR; IDLE
(A) Z=61 		8-97094-546-1 01 1 9606-9810 ● ●
112 GEAR; IDLE
(A) Z=61 		8-97094-546-1 01 1 9811-0203 ●
112 GEAR; IDLE
(A) Z=61 		8-94393-439-4 01 1 9903- ●
112 GEAR; IDLE
(B) Z=72-30 		8-94394-092-3 01 1 9903- ●
112 GEAR; IDLE
(C) Z=34 		8-94394-509-3 01 1 9903- ●
