2-25 — SPEEDOMETER DRIVEN GEAR (#58969) — 83 parça

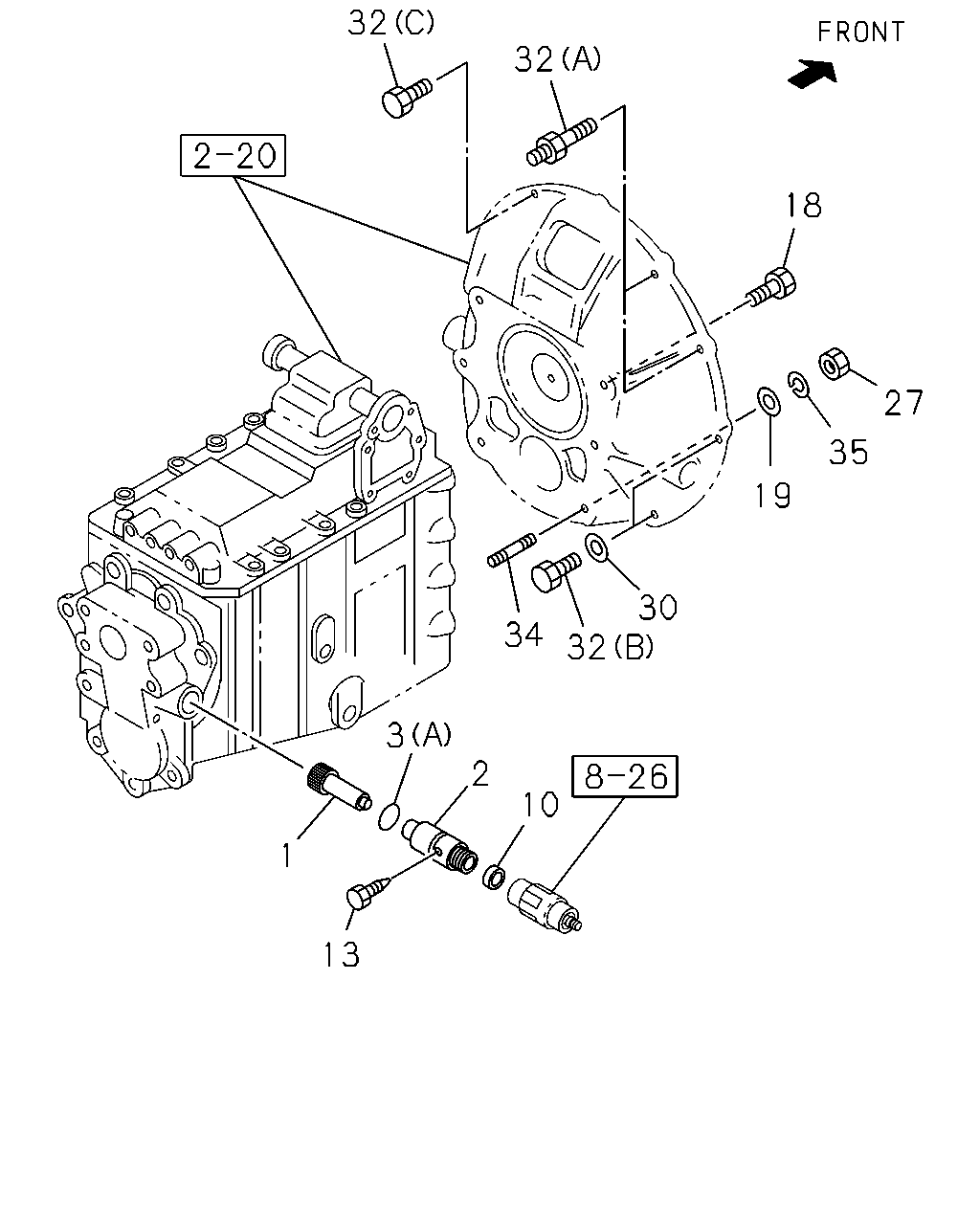

çizim 173017
10 13 1 3 2 34 32 30 19 35 27 18 32 32
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 GEAR; DRIVEN,SPD
Z=15 		1-33372-133-5 01 1 0809-0906 ● ●
1 GEAR; DRIVEN,SPD
Z=15 		1-33372-133-5 01 1 0907- ● ● ●
1 GEAR; DRIVEN,SPD
Z=12 		8-97253-563-1 01 1 1012- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 1-33373-058-3 01 1 0809- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 8-98000-271-0 01 1 0809-0906 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 8-98000-271-0 01 1 0907- ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
MARK "12,13,14,15" 		8-97253-125-0 01 1 1012- ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-09623-246-0 01 1 0809-0906 ● ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-09623-246-0 01 1 0907- ● ● ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). (B) NOK 		8-97131-328-1 01 1 1012- ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). (C) 		9-09561-324-0 01 1 1012- ●
10 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK 		1-09625-510-0 01 1 0809-0906 ● ●
10 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK 		1-09625-510-0 01 1 0907- ● ● ●
13 SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE 		8-98014-141-0 01 1 0809- ●
18 BOLT; CLU HSG TO TRANS 1-09033-015-0 06 1 0809- ●
19 WASHER; PL,CLU HSG TO TRANS
ID=17 OD=30 		0-91610-516-0 02 1 0809- ●
27 NUT; CLU HSG TO TRANS
M16 		0-91110-516-0 02 1 0809- ●
30 WASHER; PL,TRANS
ID=11 OD=24 		8-94152-902-0 02 1 1302- ● ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(C) M10X45 FLANGE 		0-28151-045-0 06 1 0809-0906 ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(C) M10X45 FLANGE 		0-28151-045-0 06 1 0907-1011 ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(C) M10X45 FLANGE 		0-28151-045-0 06 1 1012- ● ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X50 FLANGE 		0-28151-050-0 02 1 0809-0906 ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X50 FLANGE 		0-28151-050-0 02 1 0907-1011 ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X50 FLANGE 		0-28151-050-0 02 1 1012-1301 ● ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X55 FLANGE 		8-97365-449-0 02 1 1302- ● ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X20,M10X45 L=75 		8-98010-335-0 02 1 0809-0906 ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X20,M10X45 L=75 		8-98010-335-0 02 1 0907-1011 ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X20,M10X45 L=75 		8-98010-335-0 02 1 1012- ● ● ● ●
34 STUD; CLU HSG
M16X45 L=69 		9-04411-645-0 02 1 0809- ●
35 WASHER; LK,CLU HSG TO TRANS
ID=16.2 		0-91510-516-0 02 1 0809- ●

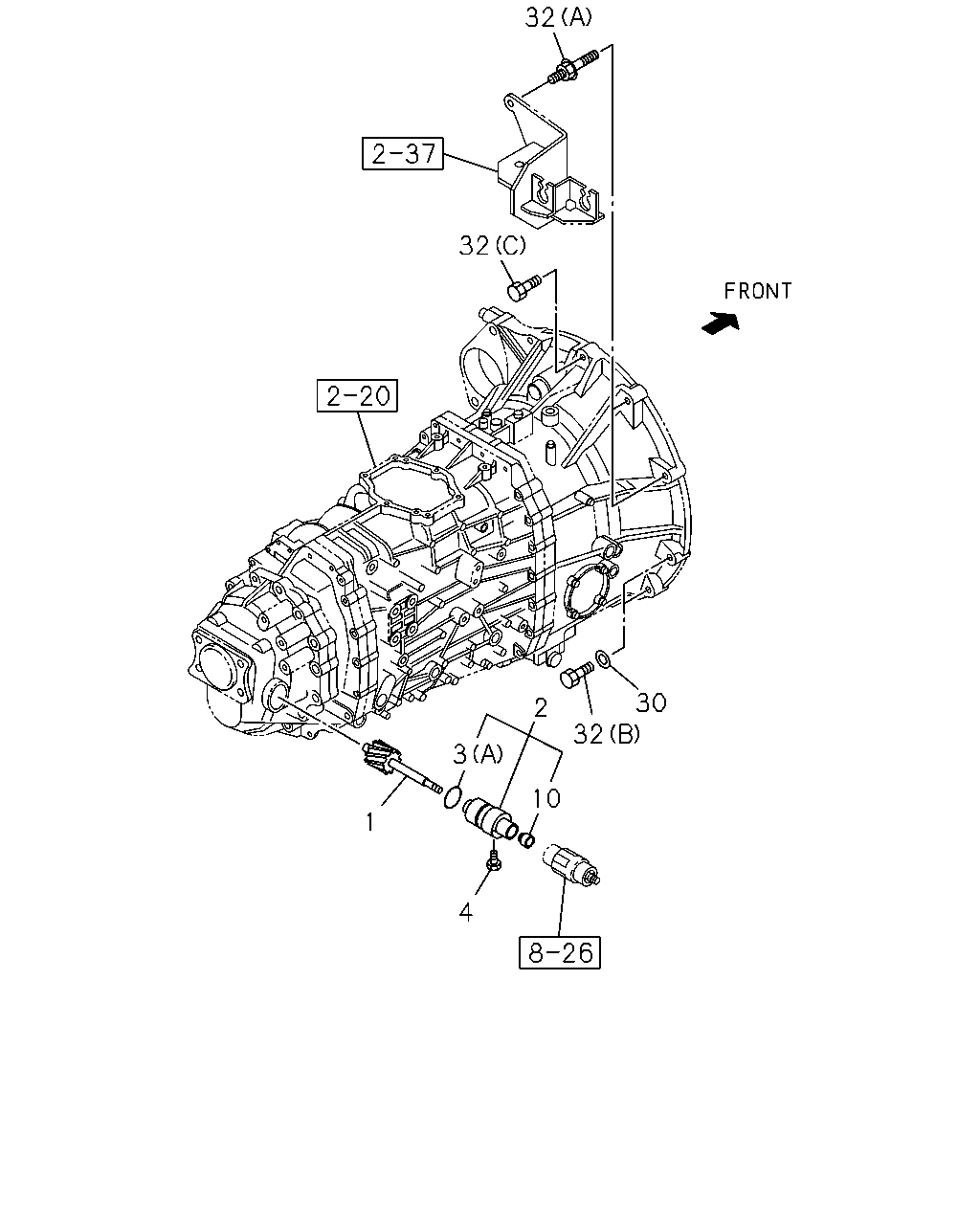

çizim 173019
4 1 3 2 32 30 10 32 32
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 GEAR; DRIVEN,SPD
Z=15 		1-33372-133-5 01 1 0809-0906 ● ●
1 GEAR; DRIVEN,SPD
Z=15 		1-33372-133-5 01 1 0907- ● ● ●
1 GEAR; DRIVEN,SPD
Z=12 		8-97253-563-1 01 1 1012- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 1-33373-058-3 01 1 0809- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 8-98000-271-0 01 1 0809-0906 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 8-98000-271-0 01 1 0907- ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
MARK "12,13,14,15" 		8-97253-125-0 01 1 1012- ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-09623-246-0 01 1 0809-0906 ● ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-09623-246-0 01 1 0907- ● ● ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). (B) NOK 		8-97131-328-1 01 1 1012- ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). (C) 		9-09561-324-0 01 1 1012- ●
4 BOLT; RET,DRIVEN GEAR
M6X12.5 FLANGE 		8-98014-141-0 01 1 0809-0906 ●
4 BOLT; RET,DRIVEN GEAR
M6X12.5 FLANGE 		8-98014-141-0 01 1 0907- ● ●
4 BOLT; RET,DRIVEN GEAR
M8X20 FLANGE 		0-28650-820-0 01 1 1012- ●
10 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK 		1-09625-510-0 01 1 0809-0906 ● ●
10 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK 		1-09625-510-0 01 1 0907- ● ● ●
30 WASHER; PL,TRANS
ID=11 OD=24 		8-94152-902-0 02 1 1302- ● ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(C) M10X45 FLANGE 		0-28151-045-0 06 1 0809-0906 ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(C) M10X45 FLANGE 		0-28151-045-0 06 1 0907-1011 ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(C) M10X45 FLANGE 		0-28151-045-0 06 1 1012- ● ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X50 FLANGE 		0-28151-050-0 02 1 0809-0906 ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X50 FLANGE 		0-28151-050-0 02 1 0907-1011 ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X50 FLANGE 		0-28151-050-0 02 1 1012-1301 ● ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X55 FLANGE 		8-97365-449-0 02 1 1302- ● ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X20,M10X45 L=75 		8-98010-335-0 02 1 0809-0906 ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X20,M10X45 L=75 		8-98010-335-0 02 1 0907-1011 ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X20,M10X45 L=75 		8-98010-335-0 02 1 1012- ● ● ● ●

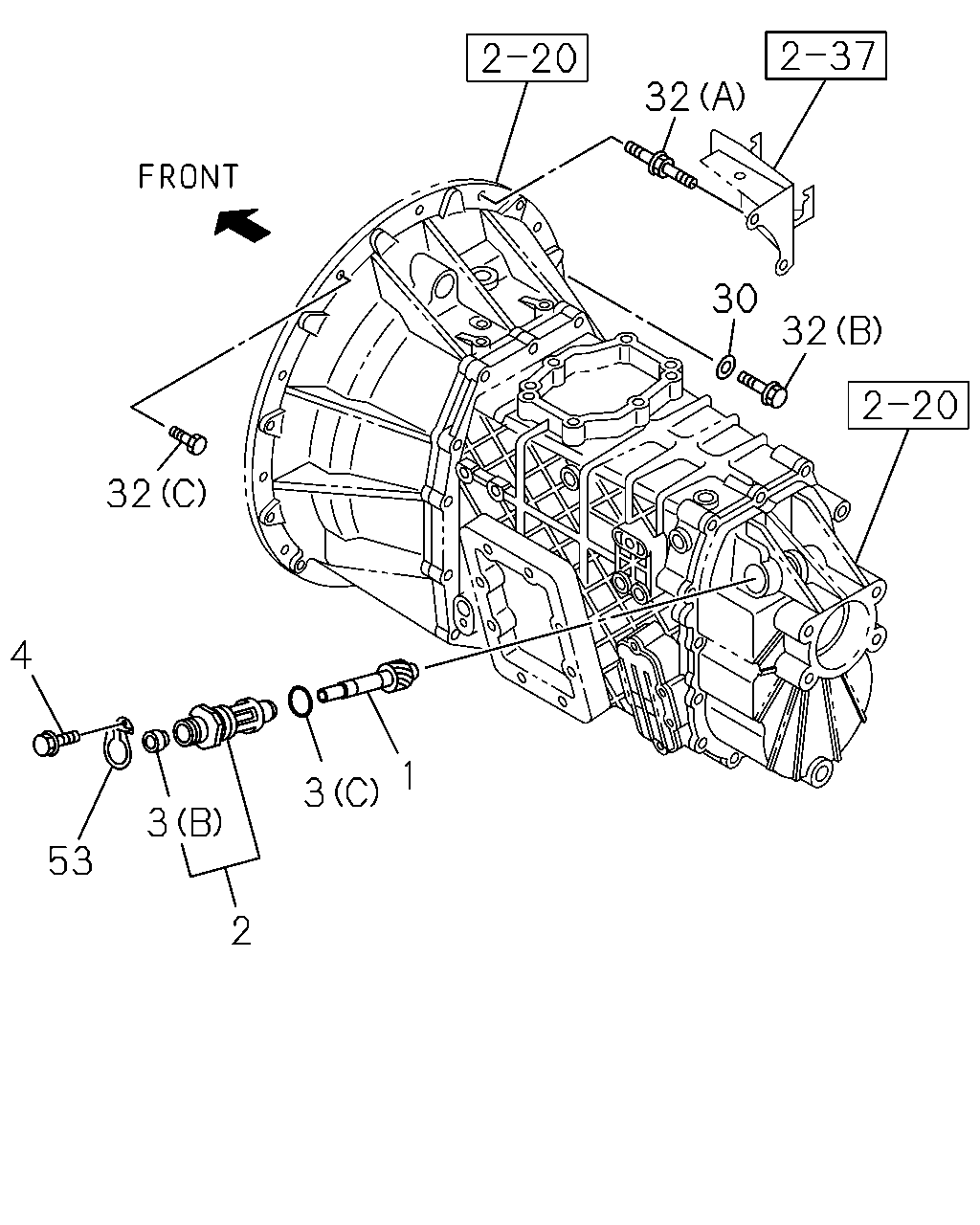

çizim 173032
1 3 2 3 53 4 32 32 30 32
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 GEAR; DRIVEN,SPD
Z=15 		1-33372-133-5 01 1 0809-0906 ● ●
1 GEAR; DRIVEN,SPD
Z=15 		1-33372-133-5 01 1 0907- ● ● ●
1 GEAR; DRIVEN,SPD
Z=12 		8-97253-563-1 01 1 1012- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 1-33373-058-3 01 1 0809- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 8-98000-271-0 01 1 0809-0906 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 8-98000-271-0 01 1 0907- ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
MARK "12,13,14,15" 		8-97253-125-0 01 1 1012- ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-09623-246-0 01 1 0809-0906 ● ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-09623-246-0 01 1 0907- ● ● ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). (B) NOK 		8-97131-328-1 01 1 1012- ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). (C) 		9-09561-324-0 01 1 1012- ●
4 BOLT; RET,DRIVEN GEAR
M6X12.5 FLANGE 		8-98014-141-0 01 1 0809-0906 ●
4 BOLT; RET,DRIVEN GEAR
M6X12.5 FLANGE 		8-98014-141-0 01 1 0907- ● ●
4 BOLT; RET,DRIVEN GEAR
M8X20 FLANGE 		0-28650-820-0 01 1 1012- ●
30 WASHER; PL,TRANS
ID=11 OD=24 		8-94152-902-0 02 1 1302- ● ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(C) M10X45 FLANGE 		0-28151-045-0 06 1 0809-0906 ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(C) M10X45 FLANGE 		0-28151-045-0 06 1 0907-1011 ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(C) M10X45 FLANGE 		0-28151-045-0 06 1 1012- ● ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X50 FLANGE 		0-28151-050-0 02 1 0809-0906 ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X50 FLANGE 		0-28151-050-0 02 1 0907-1011 ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X50 FLANGE 		0-28151-050-0 02 1 1012-1301 ● ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X55 FLANGE 		8-97365-449-0 02 1 1302- ● ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X20,M10X45 L=75 		8-98010-335-0 02 1 0809-0906 ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X20,M10X45 L=75 		8-98010-335-0 02 1 0907-1011 ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X20,M10X45 L=75 		8-98010-335-0 02 1 1012- ● ● ● ●
53 PLATE; LOCK,DRIVEN GEAR 8-98046-217-0 01 1 1012- ●
