Sayfa 2-20 - Isuzu EPC

2-20 — MANUAL TRANSMISSION ASM AND CASE (#58968) — 433 parça

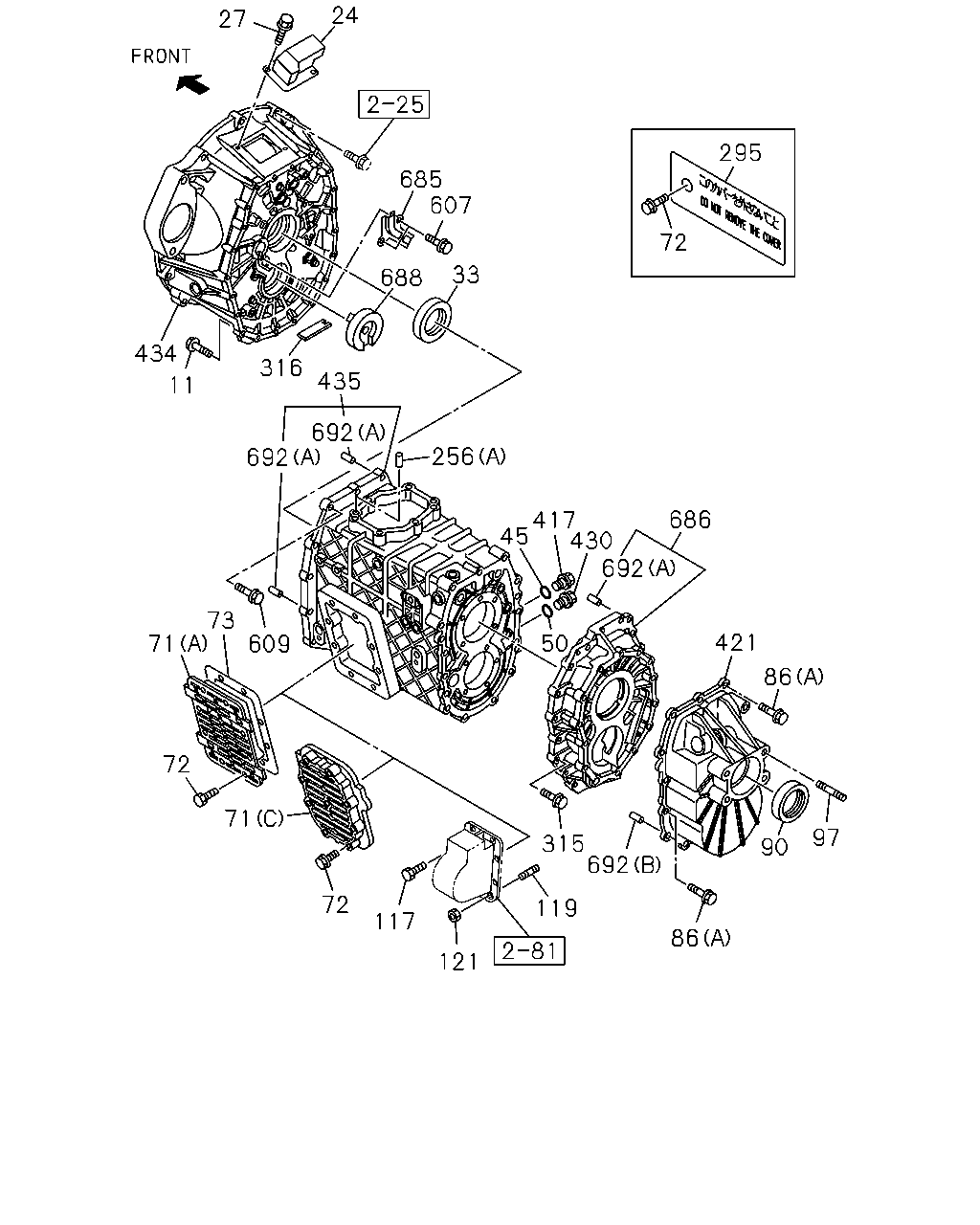

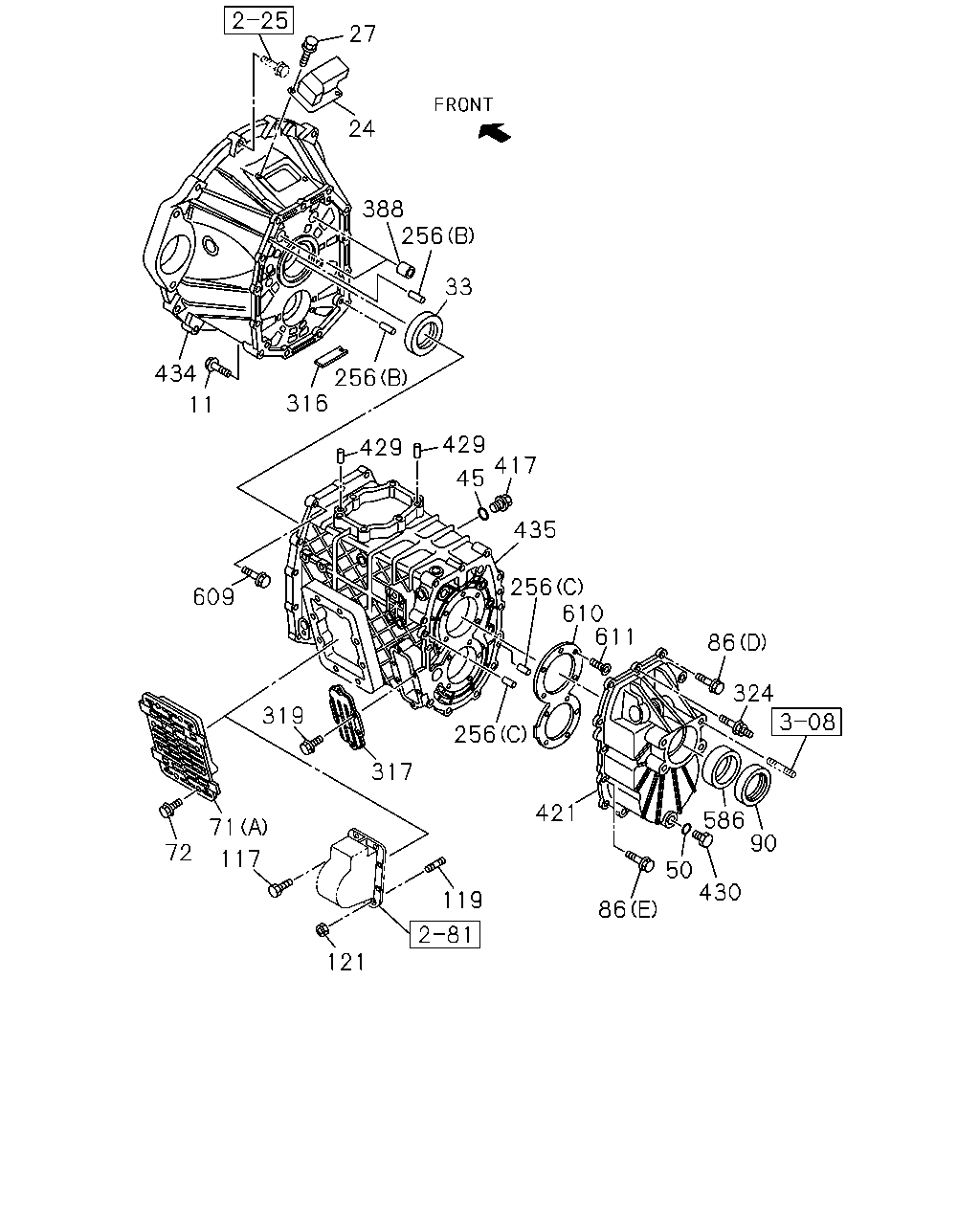

27 24 434 11 316 256 388 256 33 429 429 417 45 609 319 71 72 117 121 317 119 421 256 435 256 610 611 86 324 586 90 430 50 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
11	BOLT; BRKT EURO2 SPECIFICATION<NT2> M12X25 FLANGE	0-28151-225-0	01	1	1309-	●	●	●	●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	0809-0906		●		●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	0907-1011		●	●	●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	1012-1410	●	●	●	●
24	COVER; CHECK HOLE,DUST	8-98284-107-0	01	1	1411-	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0809-1410				●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	1411-	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	02	1	0809-0906		●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	02	1	0907-1011		●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	02	1	1012-1410	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-497-0	01	1	0809-				●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97377-947-0	01	1	0809-0906		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97377-947-0	01	1	0907-		●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	1012-	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0809-				●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0809-0906		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0907-1011		●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1012-1509	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1510-	●	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1405-			●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0809-				●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0809-0906		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0907-1011		●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1012-	●	●	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-33141-033-0	01	1	0809-				●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-97377-949-0	01	1	0809-0901		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-97252-624-2	01	1	0902-1011		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-97252-624-2	01	1	1012-	●	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98122-318-0	01	1	0907-1408			●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98270-265-1	01	1	1409-			●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28151-016-0	08	1	0809-				●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X12 FLANGE	0-28050-812-0	01	1	0809-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 FLANGE	8-98014-142-0	06	1	0809-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20	8-98114-447-0	02	1	0809-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE	1-09044-081-0	08	1	0907-			●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 FLANGE	8-98014-142-0	08	1	1012-	●
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	08	1	0809-				●
86	BOLT; RR COVER (B) M12X60	1-09044-084-0	01	1	0809-				●
86	BOLT; RR COVER (A) M10X40 FLANGE	8-98045-397-0	14	1	0809-0906		●
86	BOLT; RR COVER (A) M10X40 FLANGE	8-98045-397-0	14	1	0907-		●	●
86	BOLT; RR COVER (D) M10X40 FLANGE	0-28151-040-0	10	1	1012-	●
86	BOLT; RR COVER (E) M10X40 FLANGE	8-97365-377-0	02	1	1012-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97377-948-0	01	1	1104-		●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0809-0906		●		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0907-1103		●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	1104-				●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-551-1	01	1	1012-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	8-98044-944-0	06	1	0809-1011				●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	8-98044-944-0	06	1	1012-	●			●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 FLANGE	0-28751-030-0	06	1	0809-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 FLANGE	0-28151-040-0	02	1	0907-			●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 L=45	0-44011-030-0	02	1	0809-				●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	0-44011-025-0	02	1	0809-1011		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	0-44011-025-0	02	1	1012-	●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X35 L=50	0-44011-035-0	06	1	0907-			●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	0809-1011		●		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	1012-	●	●		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	06	1	0907-			●
256	PIN; KNOCK (A) OD=6 L=12	9-08150-612-0	02	1	0809-0906		●
256	PIN; KNOCK (A) OD=6 L=12	9-08150-612-0	02	1	0907-		●	●
256	PIN; KNOCK (B) OD=10 L=20	8-97135-423-0	02	1	1012-	●
256	PIN; KNOCK (C) ID=6 L=12	9-08160-612-0	02	1	1012-	●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	0809-0906		●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	0907-1011		●	●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	1012-1509	●	●	●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	1510-	●	●	●	●
317	COVER; CASE	8-97252-626-0	01	1	1012-	●
319	BOLT; COVER M8X20 FLANGE	0-28050-820-0	06	1	1012-	●
324	STUD; RR COVER M10X15,M10X40 L=65	8-97365-379-0	01	1	1012-	●
388	BUSHING; CLU HSG	8-97241-326-2	02	1	1012-	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0809-				●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	0809-0906		●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	0907-1011		●	●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	1012-1509	●	●	●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	1510-	●	●	●	●
421	COVER; RR,TRANS EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98186-773-0	01	1	1101-1109	●
421	COVER; RR,TRANS	1-33131-177-1	01	1	0809-				●
421	COVER; RR,TRANS	8-98004-790-1	01	1	0809-0901		●
421	COVER; RR,TRANS	8-98051-477-0	01	1	0902-0906		●
421	COVER; RR,TRANS	8-98051-477-0	01	1	0907-		●	●
421	COVER; RR,TRANS	8-97238-934-4	01	1	1012-1012	●
421	COVER; RR,TRANS REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-97238-934-4	01	1	1101-1109	●
421	COVER; RR,TRANS	8-97238-934-5	01	1	1110-	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	0809-				●
429	PIN; STRAIGHT OD=10 L=20	8-97135-423-0	02	1	1012-	●
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1405-			●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0809-				●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0809-0906		●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0907-1011		●	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1012-	●	●	●
434	HOUSING; CLU	8-98114-530-2	01	1	0809-				●
434	HOUSING; CLU	8-98004-507-2	01	1	0809-0906		●
434	HOUSING; CLU	8-98004-507-2	01	1	0907-		●	●
434	HOUSING; CLU	8-97382-931-1	01	1	1012-	●
435	CASE; TRANS	8-98113-243-0	01	1	0809-				●
435	CASE; TRANS	8-97388-872-4	01	1	0809-		●
435	CASE; TRANS	8-98123-098-1	01	1	0907-1108			●
435	CASE; TRANS	8-98186-449-0	01	1	1109-1404			●
435	CASE; TRANS	8-98236-421-1	01	1	1405-			●
435	CASE; TRANS	8-97382-868-1	01	1	1012-	●
586	BEARING; NEEDLE	8-97253-108-0	01	1	1012-	●
609	BOLT; HSG TO CASE M8X40 FLANGE	0-28050-840-0	22	1	0809-0906		●
609	BOLT; HSG TO CASE M8X40 FLANGE	0-28050-840-0	22	1	0907-		●	●
609	BOLT; HSG TO CASE M10X40 FLANGE	0-28151-040-0	13	1	1012-	●
610	RETAINER; BRG	8-97241-314-2	01	1	1012-	●
611	SCREW M10X27 TORQUES	8-97365-354-0	10	1	1012-	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D

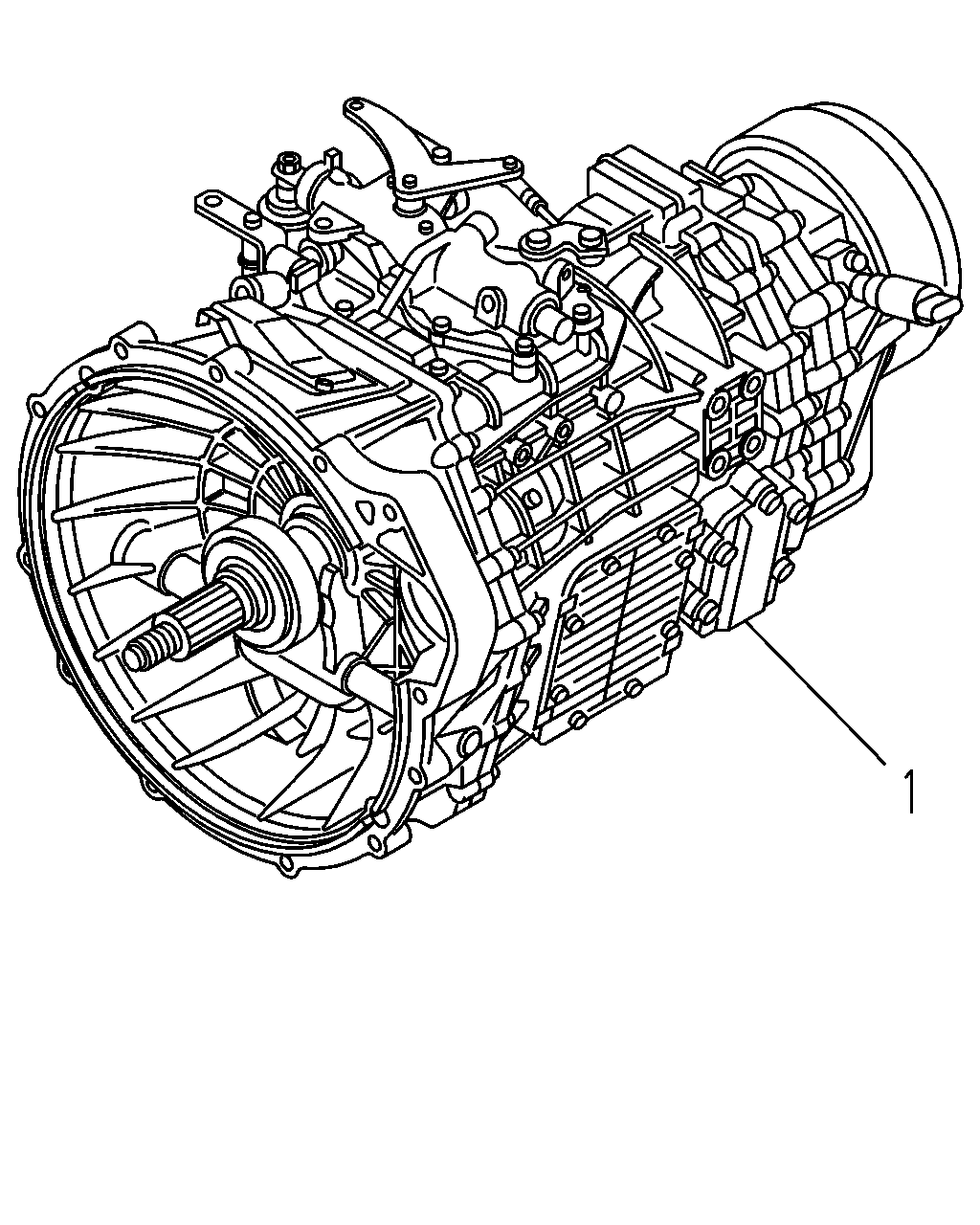

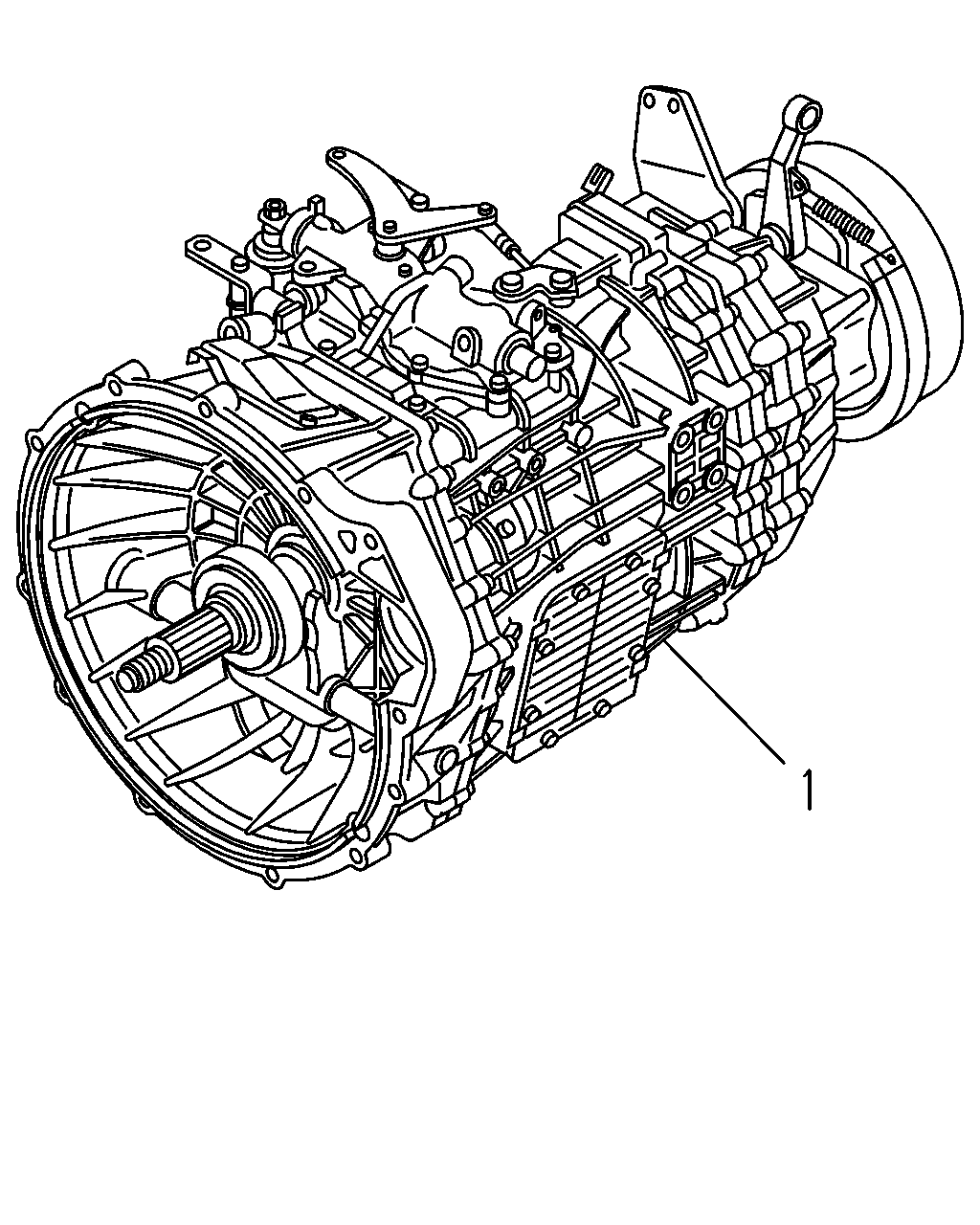

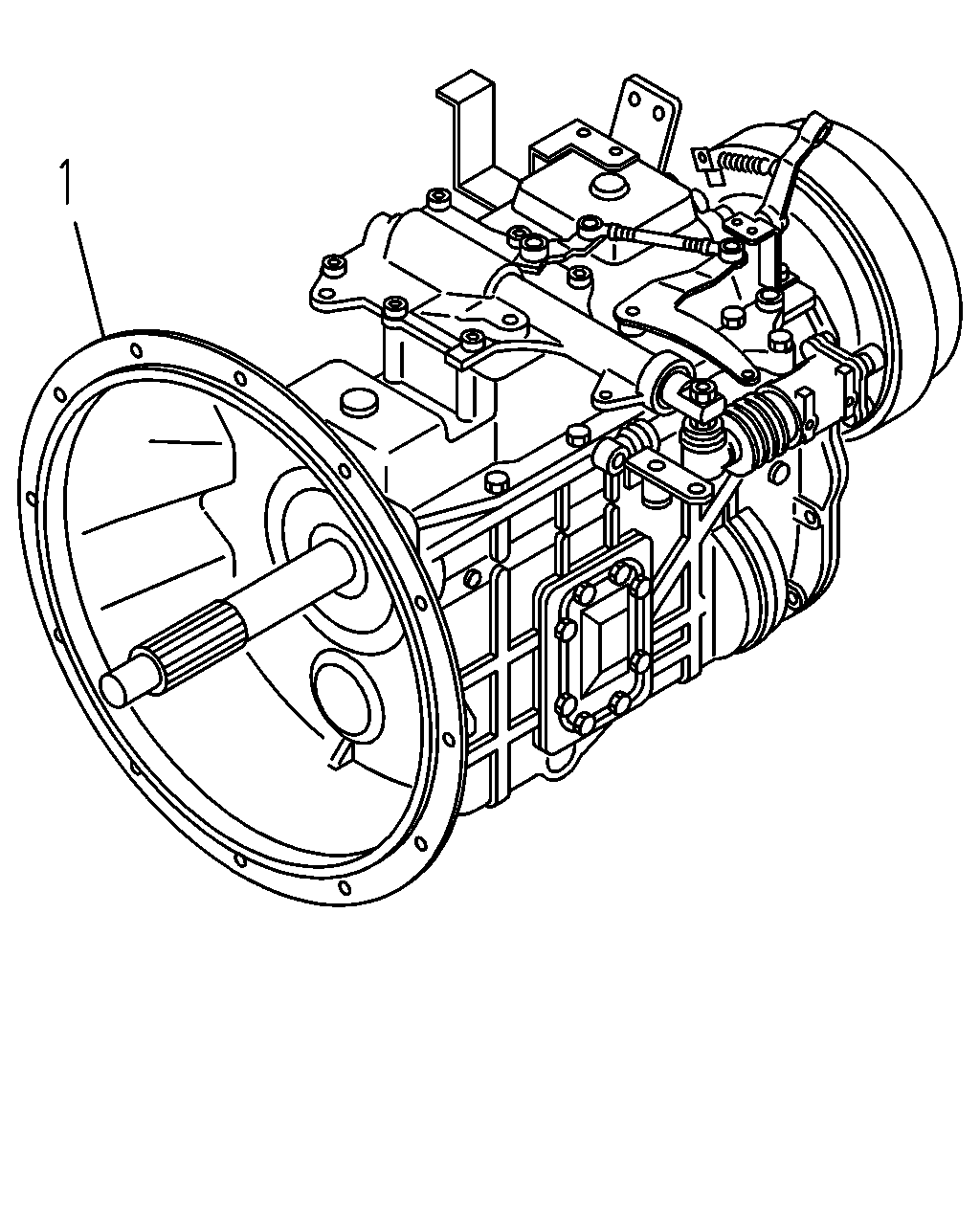

1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-185-0	01	1	0809-				●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33044-185-0	01	1	0809-				●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33044-288-0	01	1	0809-				●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	1-33044-288-0	01	1	0809-				●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-178-0	01	1	0809-				●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33044-178-0	01	1	0809-				●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33044-286-0	01	1	0809-				●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	1-33044-286-0	01	1	0809-				●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98115-539-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98041-787-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98059-799-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	8-98115-547-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98115-537-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98041-830-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98064-379-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	8-98115-546-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-578-0	01	1	0907-			●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98134-578-0	01	1	0907-			●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98134-594-0	01	1	0907-			●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	8-98134-594-0	01	1	0907-			●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-586-0	01	1	0907-			●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98134-586-0	01	1	0907-			●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98134-596-0	01	1	0907-			●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	8-98134-596-0	01	1	0907-			●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98171-392-0	01	1	1012-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98171-392-0	01	1	1012-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98171-396-0	01	1	1012-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	8-98171-396-0	01	1	1012-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98171-394-0	01	1	1012-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98171-394-0	01	1	1012-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98171-398-0	01	1	1012-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	8-98171-398-0	01	1	1012-	●

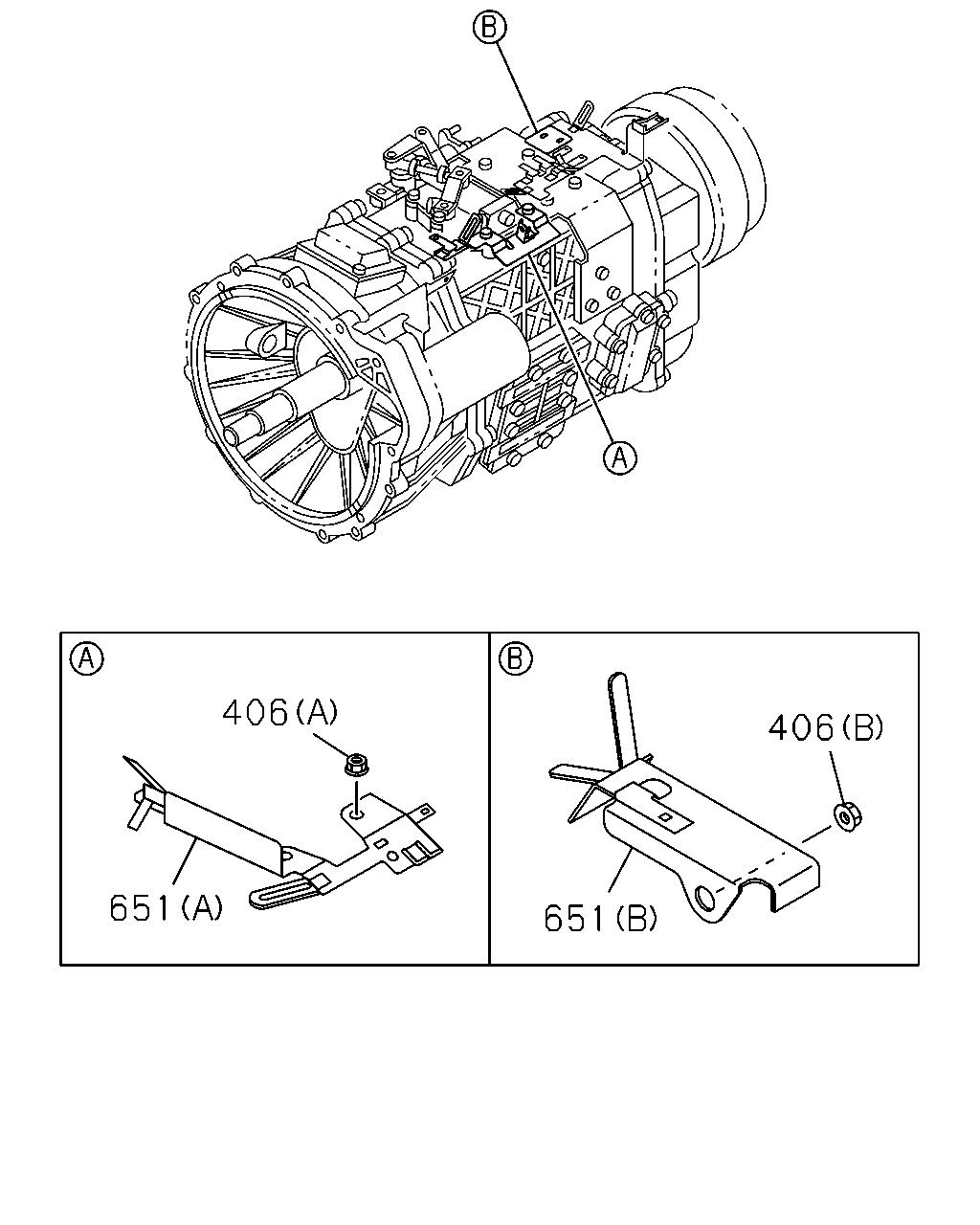

406 406 651 651

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
406	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	0809-0906		●
406	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	0907-1011		●	●
406	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1012-	●	●	●
406	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1012-	●
651	BRACKET; T/M HARNESS (A)	8-97609-800-2	01	1	0809-0906		●
651	BRACKET; T/M HARNESS (A)	8-97609-800-3	01	1	0907-1011		●	●
651	BRACKET; T/M HARNESS (A)	8-97609-800-3	01	1	1012-	●	●	●
651	BRACKET; T/M HARNESS (B)	8-98044-568-1	01	1	1012-	●

27 24 685 607 33 688 316 434 11 435 692 692 256 417 45 430 686 692 50 609 73 71 72 71 72 117 121 119 315 692 86 90 97 86 421 72 295

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
11	BOLT; BRKT EURO2 SPECIFICATION<NT2> M12X25 FLANGE	0-28151-225-0	01	1	1309-	●	●	●	●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	0809-0906		●		●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	0907-1011		●	●	●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	1012-1410	●	●	●	●
24	COVER; CHECK HOLE,DUST	8-98284-107-0	01	1	1411-	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0809-1410				●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	1411-	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	02	1	0809-0906		●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	02	1	0907-1011		●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	02	1	1012-1410	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-497-0	01	1	0809-				●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97377-947-0	01	1	0809-0906		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97377-947-0	01	1	0907-		●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	1012-	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0809-				●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0809-0906		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0907-1011		●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1012-1509	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1510-	●	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1405-			●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0809-				●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0809-0906		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0907-1011		●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1012-	●	●	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-33141-033-0	01	1	0809-				●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-97377-949-0	01	1	0809-0901		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-97252-624-2	01	1	0902-1011		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-97252-624-2	01	1	1012-	●	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98122-318-0	01	1	0907-1408			●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98270-265-1	01	1	1409-			●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28151-016-0	08	1	0809-				●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X12 FLANGE	0-28050-812-0	01	1	0809-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 FLANGE	8-98014-142-0	06	1	0809-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20	8-98114-447-0	02	1	0809-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE	1-09044-081-0	08	1	0907-			●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 FLANGE	8-98014-142-0	08	1	1012-	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	0809-		●		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98122-320-0	01	1	0907-0908			●
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	08	1	0809-				●
86	BOLT; RR COVER (B) M12X60	1-09044-084-0	01	1	0809-				●
86	BOLT; RR COVER (A) M10X40 FLANGE	8-98045-397-0	14	1	0809-0906		●
86	BOLT; RR COVER (A) M10X40 FLANGE	8-98045-397-0	14	1	0907-		●	●
86	BOLT; RR COVER (D) M10X40 FLANGE	0-28151-040-0	10	1	1012-	●
86	BOLT; RR COVER (E) M10X40 FLANGE	8-97365-377-0	02	1	1012-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97377-948-0	01	1	1104-		●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0809-0906		●		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0907-1103		●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	1104-				●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-551-1	01	1	1012-	●
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0809-0906				●
97	STUD; PARKING BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0809-0906		●
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0907-				●
97	STUD; PARKING BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0907-		●	●
97	STUD; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X22 WO/DRY-ROCK	8-98014-137-0	03	1	0809-				●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	8-98044-944-0	06	1	0809-1011				●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	8-98044-944-0	06	1	1012-	●			●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 FLANGE	0-28751-030-0	06	1	0809-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 FLANGE	0-28151-040-0	02	1	0907-			●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 L=45	0-44011-030-0	02	1	0809-				●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	0-44011-025-0	02	1	0809-1011		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	0-44011-025-0	02	1	1012-	●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X35 L=50	0-44011-035-0	06	1	0907-			●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	0809-1011		●		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	1012-	●	●		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	06	1	0907-			●
256	PIN; KNOCK (A) OD=6 L=12	9-08150-612-0	02	1	0809-0906		●
256	PIN; KNOCK (A) OD=6 L=12	9-08150-612-0	02	1	0907-		●	●
256	PIN; KNOCK (B) OD=10 L=20	8-97135-423-0	02	1	1012-	●
256	PIN; KNOCK (C) ID=6 L=12	9-08160-612-0	02	1	1012-	●
295	PLATE; COVER,PTO EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98116-575-0	01	1	0809-		●
315	BOLT; CASE M8X40 FLANGE	0-28050-840-0	18	1	0809-0906		●
315	BOLT; CASE M8X40 FLANGE	0-28050-840-0	18	1	0907-		●	●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	0809-0906		●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	0907-1011		●	●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	1012-1509	●	●	●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	1510-	●	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0809-				●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	0809-0906		●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	0907-1011		●	●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	1012-1509	●	●	●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	1510-	●	●	●	●
421	COVER; RR,TRANS EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98186-773-0	01	1	1101-1109	●
421	COVER; RR,TRANS	1-33131-177-1	01	1	0809-				●
421	COVER; RR,TRANS	8-98004-790-1	01	1	0809-0901		●
421	COVER; RR,TRANS	8-98051-477-0	01	1	0902-0906		●
421	COVER; RR,TRANS	8-98051-477-0	01	1	0907-		●	●
421	COVER; RR,TRANS	8-97238-934-4	01	1	1012-1012	●
421	COVER; RR,TRANS REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-97238-934-4	01	1	1101-1109	●
421	COVER; RR,TRANS	8-97238-934-5	01	1	1110-	●
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1405-			●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0809-				●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0809-0906		●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0907-1011		●	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1012-	●	●	●
434	HOUSING; CLU	8-98114-530-2	01	1	0809-				●
434	HOUSING; CLU	8-98004-507-2	01	1	0809-0906		●
434	HOUSING; CLU	8-98004-507-2	01	1	0907-		●	●
434	HOUSING; CLU	8-97382-931-1	01	1	1012-	●
435	CASE; TRANS	8-98113-243-0	01	1	0809-				●
435	CASE; TRANS	8-97388-872-4	01	1	0809-		●
435	CASE; TRANS	8-98123-098-1	01	1	0907-1108			●
435	CASE; TRANS	8-98186-449-0	01	1	1109-1404			●
435	CASE; TRANS	8-98236-421-1	01	1	1405-			●
435	CASE; TRANS	8-97382-868-1	01	1	1012-	●
607	BOLT; COVER M8X16 FLANGE	0-28050-816-0	02	1	0809-0906		●
607	BOLT; COVER M8X16 FLANGE	0-28050-816-0	02	1	0907-		●	●
609	BOLT; HSG TO CASE M8X40 FLANGE	0-28050-840-0	22	1	0809-0906		●
609	BOLT; HSG TO CASE M8X40 FLANGE	0-28050-840-0	22	1	0907-		●	●
609	BOLT; HSG TO CASE M10X40 FLANGE	0-28151-040-0	13	1	1012-	●
685	COVER; OIL PORT	8-98018-864-1	01	1	0809-0906		●
685	COVER; OIL PORT	8-98018-864-1	01	1	0907-		●	●
686	CASE; RR,TRANS	8-97388-873-1	01	1	0809-0906		●
686	CASE; RR,TRANS	8-97388-873-1	01	1	0907-		●	●
688	NOZZLE; OIL,COUNTER	8-98007-741-0	01	1	0809-0906		●
688	NOZZLE; OIL,COUNTER	8-98007-741-0	01	1	0907-1110		●	●
688	NOZZLE; OIL,COUNTER	8-98202-402-0	01	1	1111-1508		●	●
688	NOZZLE; OIL,COUNTER	8-98309-860-0	01	1	1509-		●	●
692	PIN; DOWEL (A) OD=11 L=8	9-11229-058-1	04	1	0809-0906		●
692	PIN; DOWEL (A) OD=11 L=8	9-11229-058-1	04	1	0907-		●	●
692	PIN; DOWEL (B) OD=14 L=10	9-11319-065-3	02	1	0809-0906		●
692	PIN; DOWEL (B) OD=14 L=10	9-11319-065-3	02	1	0907-		●	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-185-0	01	1	0809-				●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33044-185-0	01	1	0809-				●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33044-288-0	01	1	0809-				●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	1-33044-288-0	01	1	0809-				●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-178-0	01	1	0809-				●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33044-178-0	01	1	0809-				●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33044-286-0	01	1	0809-				●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	1-33044-286-0	01	1	0809-				●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98115-539-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98041-787-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98059-799-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	8-98115-547-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98115-537-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98041-830-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98064-379-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	8-98115-546-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-578-0	01	1	0907-			●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98134-578-0	01	1	0907-			●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98134-594-0	01	1	0907-			●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	8-98134-594-0	01	1	0907-			●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-586-0	01	1	0907-			●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98134-586-0	01	1	0907-			●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98134-596-0	01	1	0907-			●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	8-98134-596-0	01	1	0907-			●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98171-392-0	01	1	1012-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98171-392-0	01	1	1012-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98171-396-0	01	1	1012-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	8-98171-396-0	01	1	1012-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98171-394-0	01	1	1012-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98171-394-0	01	1	1012-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98171-398-0	01	1	1012-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	8-98171-398-0	01	1	1012-	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-185-0	01	1	0809-				●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33044-185-0	01	1	0809-				●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33044-288-0	01	1	0809-				●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	1-33044-288-0	01	1	0809-				●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-178-0	01	1	0809-				●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33044-178-0	01	1	0809-				●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33044-286-0	01	1	0809-				●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	1-33044-286-0	01	1	0809-				●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98115-539-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98041-787-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98059-799-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	8-98115-547-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98115-537-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98041-830-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98064-379-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	8-98115-546-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-578-0	01	1	0907-			●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98134-578-0	01	1	0907-			●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98134-594-0	01	1	0907-			●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	8-98134-594-0	01	1	0907-			●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-586-0	01	1	0907-			●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98134-586-0	01	1	0907-			●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98134-596-0	01	1	0907-			●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	8-98134-596-0	01	1	0907-			●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98171-392-0	01	1	1012-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98171-392-0	01	1	1012-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98171-396-0	01	1	1012-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 8.5"(B1S) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	8-98171-396-0	01	1	1012-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98171-394-0	01	1	1012-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98171-394-0	01	1	1012-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98171-398-0	01	1	1012-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	8-98171-398-0	01	1	1012-	●

27 24 29 32 429 435 417 45 33 37 36 51 430 28 434 50 62 421 97 90 117 119 301 86 86 121 73 71 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	0809-0906		●		●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	0907-1011		●	●	●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	1012-1410	●	●	●	●
24	COVER; CHECK HOLE,DUST	8-98284-107-0	01	1	1411-	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0809-1410				●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	1411-	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	02	1	0809-0906		●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	02	1	0907-1011		●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	02	1	1012-1410	●	●	●
28	COVER; FRT,TRANS CASE	1-33121-108-1	01	1	0809-				●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	8-97365-375-0	04	1	0809-				●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	0809-				●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-497-0	01	1	0809-				●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97377-947-0	01	1	0809-0906		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97377-947-0	01	1	0907-		●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	1012-	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	0809-				●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	0809-				●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0809-				●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0809-0906		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0907-1011		●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1012-1509	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1510-	●	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1405-			●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0809-				●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0809-0906		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0907-1011		●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1012-	●	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-1	01	1	0809-				●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	0809-				●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-33141-033-0	01	1	0809-				●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-97377-949-0	01	1	0809-0901		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-97252-624-2	01	1	0902-1011		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-97252-624-2	01	1	1012-	●	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98122-318-0	01	1	0907-1408			●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98270-265-1	01	1	1409-			●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28151-016-0	08	1	0809-				●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X12 FLANGE	0-28050-812-0	01	1	0809-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 FLANGE	8-98014-142-0	06	1	0809-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20	8-98114-447-0	02	1	0809-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE	1-09044-081-0	08	1	0907-			●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 FLANGE	8-98014-142-0	08	1	1012-	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	0809-		●		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98122-320-0	01	1	0907-0908			●
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	08	1	0809-				●
86	BOLT; RR COVER (B) M12X60	1-09044-084-0	01	1	0809-				●
86	BOLT; RR COVER (A) M10X40 FLANGE	8-98045-397-0	14	1	0809-0906		●
86	BOLT; RR COVER (A) M10X40 FLANGE	8-98045-397-0	14	1	0907-		●	●
86	BOLT; RR COVER (D) M10X40 FLANGE	0-28151-040-0	10	1	1012-	●
86	BOLT; RR COVER (E) M10X40 FLANGE	8-97365-377-0	02	1	1012-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97377-948-0	01	1	1104-		●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0809-0906		●		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0907-1103		●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	1104-				●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-551-1	01	1	1012-	●
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0809-0906				●
97	STUD; PARKING BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0809-0906		●
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0907-				●
97	STUD; PARKING BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0907-		●	●
97	STUD; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X22 WO/DRY-ROCK	8-98014-137-0	03	1	0809-				●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	8-98044-944-0	06	1	0809-1011				●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	8-98044-944-0	06	1	1012-	●			●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 FLANGE	0-28751-030-0	06	1	0809-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 FLANGE	0-28151-040-0	02	1	0907-			●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 L=45	0-44011-030-0	02	1	0809-				●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	0-44011-025-0	02	1	0809-1011		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	0-44011-025-0	02	1	1012-	●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X35 L=50	0-44011-035-0	06	1	0907-			●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	0809-1011		●		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	1012-	●	●		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	06	1	0907-			●
301	PLATE; DIST,PTO TO TRANS TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38119-037-0	01	1	0809-				●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0809-				●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	0809-0906		●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	0907-1011		●	●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	1012-1509	●	●	●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	1510-	●	●	●	●
421	COVER; RR,TRANS EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98186-773-0	01	1	1101-1109	●
421	COVER; RR,TRANS	1-33131-177-1	01	1	0809-				●
421	COVER; RR,TRANS	8-98004-790-1	01	1	0809-0901		●
421	COVER; RR,TRANS	8-98051-477-0	01	1	0902-0906		●
421	COVER; RR,TRANS	8-98051-477-0	01	1	0907-		●	●
421	COVER; RR,TRANS	8-97238-934-4	01	1	1012-1012	●
421	COVER; RR,TRANS REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-97238-934-4	01	1	1101-1109	●
421	COVER; RR,TRANS	8-97238-934-5	01	1	1110-	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	0809-				●
429	PIN; STRAIGHT OD=10 L=20	8-97135-423-0	02	1	1012-	●
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1405-			●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0809-				●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0809-0906		●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0907-1011		●	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1012-	●	●	●
434	HOUSING; CLU	8-98114-530-2	01	1	0809-				●
434	HOUSING; CLU	8-98004-507-2	01	1	0809-0906		●
434	HOUSING; CLU	8-98004-507-2	01	1	0907-		●	●
434	HOUSING; CLU	8-97382-931-1	01	1	1012-	●
435	CASE; TRANS	8-98113-243-0	01	1	0809-				●
435	CASE; TRANS	8-97388-872-4	01	1	0809-		●
435	CASE; TRANS	8-98123-098-1	01	1	0907-1108			●
435	CASE; TRANS	8-98186-449-0	01	1	1109-1404			●
435	CASE; TRANS	8-98236-421-1	01	1	1405-			●
435	CASE; TRANS	8-97382-868-1	01	1	1012-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
