1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#58960) — 32 parça

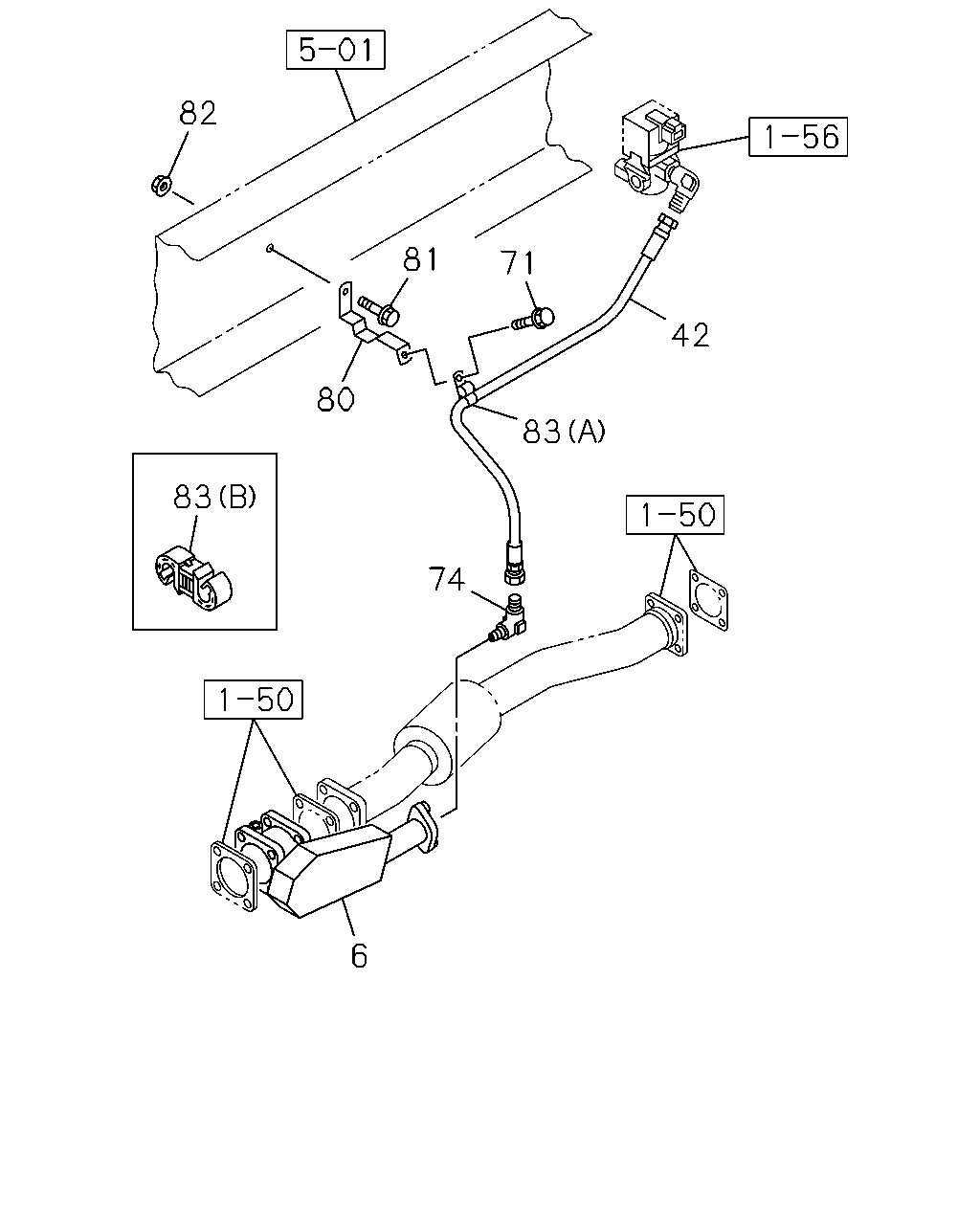

çizim 173334
82 81 71 42 80 83 83 74 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 VALVE; EXH BRAKE 8-98054-172-6 01 1 0809-1011 ●
6 VALVE; EXH BRAKE 8-98054-172-6 01 1 1012- ● ●
42 HOSE; FLEX,EXH BRK
MLD6S M/T(X7W) L=660 		1-09363-971-0 01 1 0809- ●
42 HOSE; FLEX,EXH BRK
MZX6P M/T(RSW) L=600 		1-09363-639-0 01 1 0809-0906 ●
42 HOSE; FLEX,EXH BRK
MZX6P M/T(RSW),MZW6P M/T(RSZ) L=600 		1-09363-639-0 01 1 0907-1011 ●
42 HOSE; FLEX,EXH BRK
MZX6P M/T(RSW),MZW6P M/T(RSZ) L=600 		1-09363-639-0 01 1 1012- ●
42 HOSE; FLEX,EXH BRK
L=600 		1-09363-639-0 01 1 1012- ●
71 BOLT; CLIP
MZX6P M/T(RSW) M8X25 FLANGE 		0-28650-825-0 01 1 0809-0812 ●
71 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0901-1011 ●
71 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
74 CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0809-1011 ●
74 CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1012- ● ●
80 BRACKET; FLEX HOSE
MZX6P M/T(RSW) 		8-98078-153-0 01 1 0809-0906 ●
80 BRACKET; FLEX HOSE
MZX6P M/T(RSW),MZW6P M/T(RSZ) 		8-98078-153-0 01 1 0907-1011 ●
80 BRACKET; FLEX HOSE
MZX6P M/T(RSW),MZW6P M/T(RSZ) 		8-98078-153-0 01 1 1012- ●
80 BRACKET; FLEX HOSE 8-98078-153-0 01 1 1012- ●
81 BOLT; HOSE BRKT
MZX6P M/T(RSW) M10X25 FLANGE 		0-28051-025-0 01 1 0809-0906 ●
81 BOLT; HOSE BRKT
MZX6P M/T(RSW),MZW6P M/T(RSZ) M10X25 FLANGE 		0-28051-025-0 01 1 0907-1011 ●
81 BOLT; HOSE BRKT
MZX6P M/T(RSW),MZW6P M/T(RSZ) M10X25 FLANGE 		0-28051-025-0 01 1 1012- ●
81 BOLT; HOSE BRKT
M10X25 FLANGE 		0-28051-025-0 01 1 1012- ●
82 NUT; HOSE BRKT
M10 FLANGE 		0-91180-210-0 01 1 0809-0812 ●
82 NUT; HOSE BRKT
MZX6P M/T(RSW) M10 FLANGE 		0-91180-210-0 01 1 0901-0906 ●
82 NUT; HOSE BRKT
MZX6P M/T(RSW),MZW6P M/T(RSZ) M10 FLANGE 		0-91180-210-0 01 1 0907-1011 ●
82 NUT; HOSE BRKT
MZX6P M/T(RSW),MZW6P M/T(RSZ) M10 FLANGE 		0-91180-210-0 01 1 1012- ●
82 NUT; HOSE BRKT
M10 FLANGE 		0-91180-210-0 01 1 1012- ●
83 CLIP; FLEX HOSE
(B) ID=10 & 10 		1-09709-277-1 01 1 0809-1011 ●
83 CLIP; FLEX HOSE
(B) ID=10 & 10 		1-09709-277-1 01 1 1012- ● ●
83 CLIP; FLEX HOSE
MLD6S M/T(X7W) (A) ID=11 L=50 		0-95235-085-0 01 1 0901- ●
83 CLIP; FLEX HOSE
MZX6P M/T(RSW) (A) ID=11X2 L=16 		1-09700-820-0 01 1 0809-0906 ●
83 CLIP; FLEX HOSE
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) ID=11X2 L=16 		1-09700-820-0 01 1 0907-1011 ●
83 CLIP; FLEX HOSE
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) ID=11X2 L=16 		1-09700-820-0 01 1 1012- ●
83 CLIP; FLEX HOSE
(A) ID=11X2 L=16 		1-09700-820-0 01 1 1012- ●
