0-13 — OIL PAN AND LEVEL GAUGE (#5896) — 106 parça

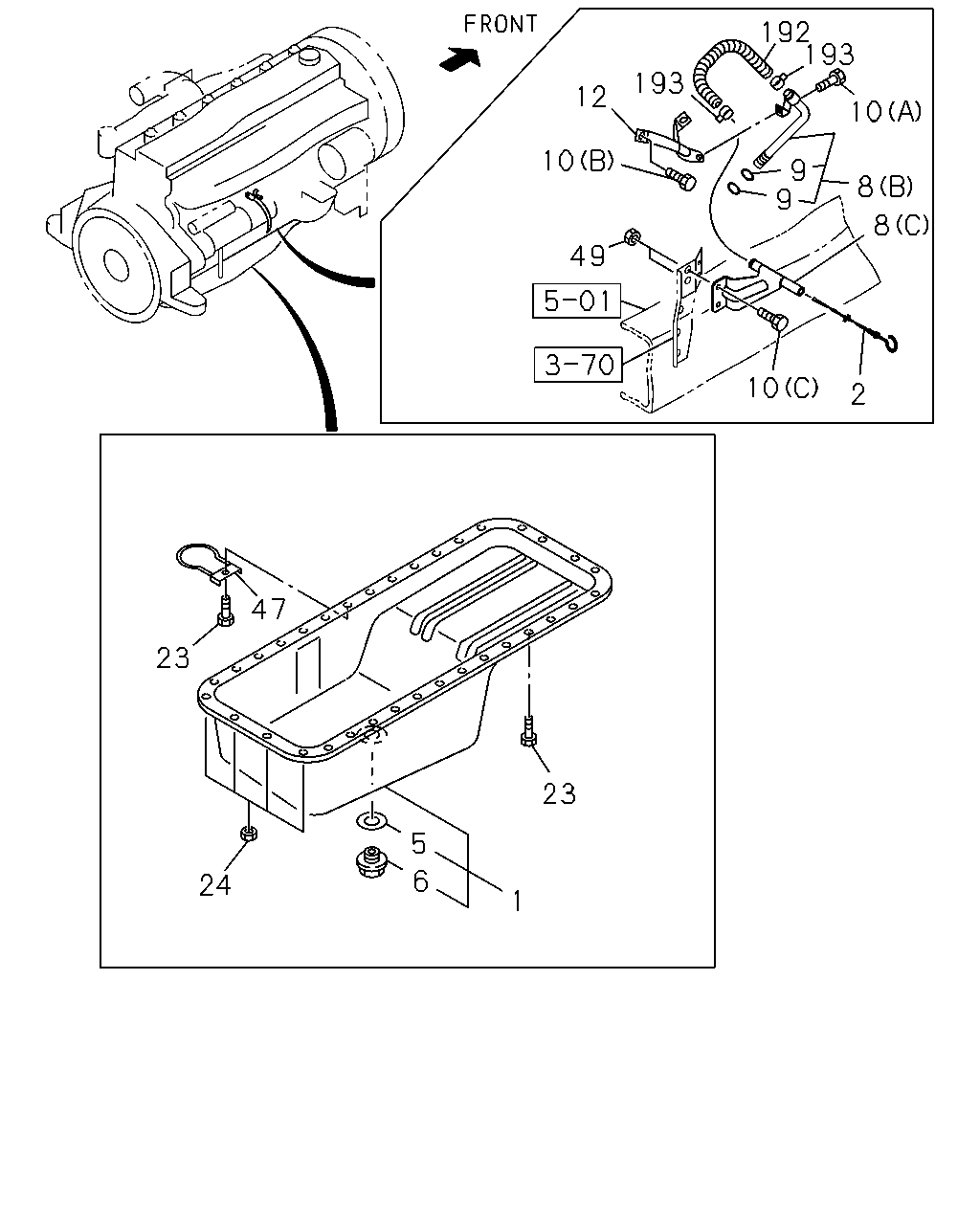

çizim 42932
192 193 193 12 10 10 9 9 8 8 49 10 2 47 23 23 5 6 24 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PAN ASM; OIL 8-94393-176-0 01 1 9606-9810 ● ●
1 PAN ASM; OIL 8-94394-711-0 01 1 9811-9902 ●
1 PAN ASM; OIL 8-94394-711-1 01 1 9903-0203 ● ●
1 PAN ASM; OIL 8-94394-711-1 01 1 0204- ●
2 GAUGE; OIL LEVEL 8-94393-034-0 01 1 9606-9810 ● ●
2 GAUGE; OIL LEVEL 1-11760-396-0 01 1 9811-0203 ● ●
2 GAUGE; OIL LEVEL 1-11760-396-1 01 1 0204- ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-057-0 01 1 9606-9810 ● ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-057-0 01 1 9811-9902 ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-057-0 01 1 9903-0203 ● ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-057-0 01 1 0204- ●
6 PLUG; OIL DRAIN 9-09662-012-0 01 1 9606-9810 ● ●
6 PLUG; OIL DRAIN 9-09662-012-0 01 1 9811-9902 ●
6 PLUG; OIL DRAIN 9-09662-012-0 01 1 9903-0203 ● ●
6 PLUG; OIL DRAIN 9-09662-012-0 01 1 0204- ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(A) 		8-94393-038-0 01 1 9606-9810 ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(B) 		8-94395-114-2 01 1 9811-9902 ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(B) 		8-94395-114-3 01 1 9903-0203 ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(B) 		8-94395-114-3 01 1 0204- ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(C) 		1-11766-452-0 01 1 9811-0203 ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(C) 		1-11766-452-0 01 1 0204- ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 02 1 9606-9810 ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 02 1 9811-9902 ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 02 1 9903-0112 ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		1-09623-469-0 02 1 0201-0203 ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		1-09623-469-0 02 1 0204- ●
10 BOLT; GUIDE TUBE
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9606-9810 ● ●
10 BOLT; GUIDE TUBE
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9811-9902 ●
10 BOLT; GUIDE TUBE
(B) M8X20 FLANGE 		0-28080-820-0 02 1 9903-0512 ●
10 BOLT; GUIDE TUBE
(B) M8X20 FLANGE 		0-28050-820-0 02 1 0601- ●
10 BOLT; GUIDE TUBE
(B) M8X12 FLANGE 		0-28080-812-0 01 1 9811-0203 ●
10 BOLT; GUIDE TUBE
(B) M8X30 FLANGE 		0-28080-830-0 01 1 9811-0203 ●
10 BOLT; GUIDE TUBE
(C) M8X20 FLANGE 		0-28680-820-0 02 1 9811-0203 ● ●
10 BOLT; GUIDE TUBE
(C) M8X20 FLANGE 		0-28680-820-0 02 1 0204-0512 ●
10 BOLT; GUIDE TUBE
(C) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
10 BOLT; GUIDE TUBE
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9903-0203 ● ●
10 BOLT; GUIDE TUBE
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0204-0512 ●
10 BOLT; GUIDE TUBE
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
12 BRACKET; TUBE,OIL LEVEL GAUGE 8-94395-150-0 01 1 9811-0203 ●
12 BRACKET; TUBE,OIL LEVEL GAUGE 8-94395-843-0 01 1 9903- ●
23 BOLT; OIL PAN
M8X18 FLANGE 		0-28080-818-0 30 1 9606-9810 ● ●
23 BOLT; OIL PAN
M8X18 FLANGE 		0-28080-818-0 30 1 9811-9902 ●
23 BOLT; OIL PAN
M8X18 FLANGE 		0-28080-818-0 30 1 9903-0203 ● ●
23 BOLT; OIL PAN
M8X18 FLANGE 		0-28080-818-0 30 1 0204- ●
24 NUT; OIL PAN
M8 FLANGE 		0-91150-108-0 04 1 9606-9810 ● ●
24 NUT; OIL PAN
M8 FLANGE 		0-91150-108-0 04 1 9811-9902 ●
24 NUT; OIL PAN
M8 FLANGE 		0-91150-108-0 04 1 9903-0203 ● ●
24 NUT; OIL PAN
M8 FLANGE 		0-91150-108-0 04 1 0204-0602 ●
24 NUT; OIL PAN
M8 FLANGE 		0-91180-108-0 04 1 0603- ●
47 CLIP; HOSE,AIR BREATHER 1-11369-115-0 01 1 9811-9902 ●
47 CLIP; HOSE,AIR BREATHER 1-11369-115-0 01 1 9903-0203 ● ●
47 CLIP; HOSE,AIR BREATHER 1-11369-115-0 01 1 0204- ●
49 NUT; GUIDE TUBE
M8 FLANGE 		0-91150-108-0 02 1 9811-0203 ● ●
49 NUT; GUIDE TUBE
M8 FLANGE 		0-91150-108-0 02 1 0204-0602 ●
49 NUT; GUIDE TUBE
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
192 HOSE; GUIDE TUBE
L=300 		1-09360-945-1 01 1 9811-0203 ● ●
192 HOSE; GUIDE TUBE
L=300 		1-09360-945-1 01 1 0204- ●
193 CLIP; HOSE,GUIDE TUBE
ID=17 		1-09707-158-0 02 1 9811-0203 ● ●
193 CLIP; HOSE,GUIDE TUBE
ID=17 		1-09707-158-0 02 1 0204- ●

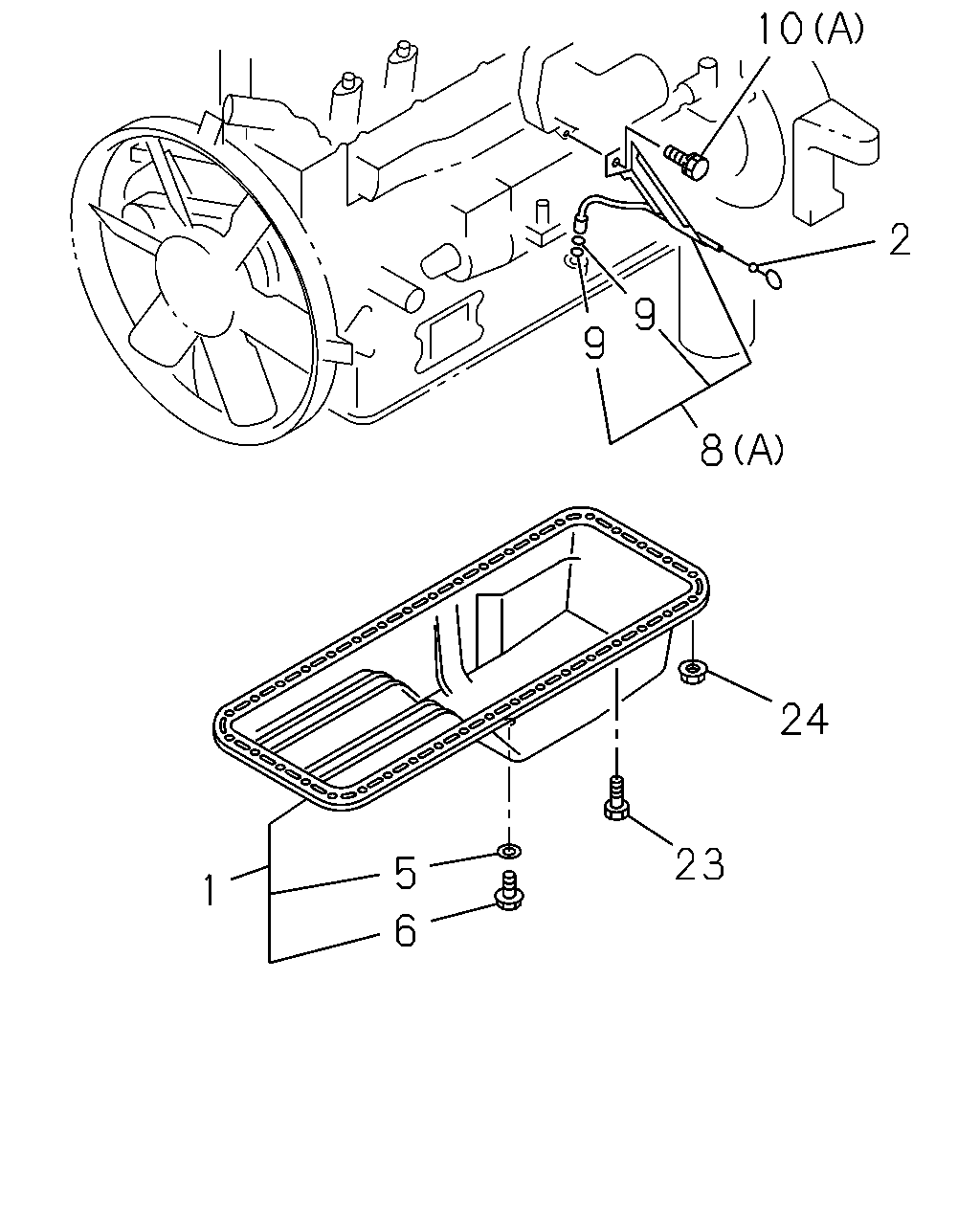

çizim 44844
10 2 9 9 8 24 23 5 1 6
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PAN ASM; OIL 8-94393-176-0 01 1 9606-9810 ● ●
1 PAN ASM; OIL 8-94394-711-0 01 1 9811-9902 ●
1 PAN ASM; OIL 8-94394-711-1 01 1 9903-0203 ● ●
1 PAN ASM; OIL 8-94394-711-1 01 1 0204- ●
2 GAUGE; OIL LEVEL 8-94393-034-0 01 1 9606-9810 ● ●
2 GAUGE; OIL LEVEL 1-11760-396-0 01 1 9811-0203 ● ●
2 GAUGE; OIL LEVEL 1-11760-396-1 01 1 0204- ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-057-0 01 1 9606-9810 ● ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-057-0 01 1 9811-9902 ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-057-0 01 1 9903-0203 ● ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-057-0 01 1 0204- ●
6 PLUG; OIL DRAIN 9-09662-012-0 01 1 9606-9810 ● ●
6 PLUG; OIL DRAIN 9-09662-012-0 01 1 9811-9902 ●
6 PLUG; OIL DRAIN 9-09662-012-0 01 1 9903-0203 ● ●
6 PLUG; OIL DRAIN 9-09662-012-0 01 1 0204- ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(A) 		8-94393-038-0 01 1 9606-9810 ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(B) 		8-94395-114-2 01 1 9811-9902 ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(B) 		8-94395-114-3 01 1 9903-0203 ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(B) 		8-94395-114-3 01 1 0204- ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(C) 		1-11766-452-0 01 1 9811-0203 ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(C) 		1-11766-452-0 01 1 0204- ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 02 1 9606-9810 ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 02 1 9811-9902 ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 02 1 9903-0112 ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		1-09623-469-0 02 1 0201-0203 ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		1-09623-469-0 02 1 0204- ●
10 BOLT; GUIDE TUBE
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9606-9810 ● ●
10 BOLT; GUIDE TUBE
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9811-9902 ●
10 BOLT; GUIDE TUBE
(B) M8X20 FLANGE 		0-28080-820-0 02 1 9903-0512 ●
10 BOLT; GUIDE TUBE
(B) M8X20 FLANGE 		0-28050-820-0 02 1 0601- ●
10 BOLT; GUIDE TUBE
(B) M8X12 FLANGE 		0-28080-812-0 01 1 9811-0203 ●
10 BOLT; GUIDE TUBE
(B) M8X30 FLANGE 		0-28080-830-0 01 1 9811-0203 ●
10 BOLT; GUIDE TUBE
(C) M8X20 FLANGE 		0-28680-820-0 02 1 9811-0203 ● ●
10 BOLT; GUIDE TUBE
(C) M8X20 FLANGE 		0-28680-820-0 02 1 0204-0512 ●
10 BOLT; GUIDE TUBE
(C) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
10 BOLT; GUIDE TUBE
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9903-0203 ● ●
10 BOLT; GUIDE TUBE
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0204-0512 ●
10 BOLT; GUIDE TUBE
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
23 BOLT; OIL PAN
M8X18 FLANGE 		0-28080-818-0 30 1 9606-9810 ● ●
23 BOLT; OIL PAN
M8X18 FLANGE 		0-28080-818-0 30 1 9811-9902 ●
23 BOLT; OIL PAN
M8X18 FLANGE 		0-28080-818-0 30 1 9903-0203 ● ●
23 BOLT; OIL PAN
M8X18 FLANGE 		0-28080-818-0 30 1 0204- ●
24 NUT; OIL PAN
M8 FLANGE 		0-91150-108-0 04 1 9606-9810 ● ●
24 NUT; OIL PAN
M8 FLANGE 		0-91150-108-0 04 1 9811-9902 ●
24 NUT; OIL PAN
M8 FLANGE 		0-91150-108-0 04 1 9903-0203 ● ●
24 NUT; OIL PAN
M8 FLANGE 		0-91150-108-0 04 1 0204-0602 ●
24 NUT; OIL PAN
M8 FLANGE 		0-91180-108-0 04 1 0603- ●
