◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11350 - FRR(MIDEAST)4H ENG ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-41 - FUEL PIPING; CHASSIS ▶
1-41 — FUEL PIPING; CHASSIS (#58957) — 210 parça

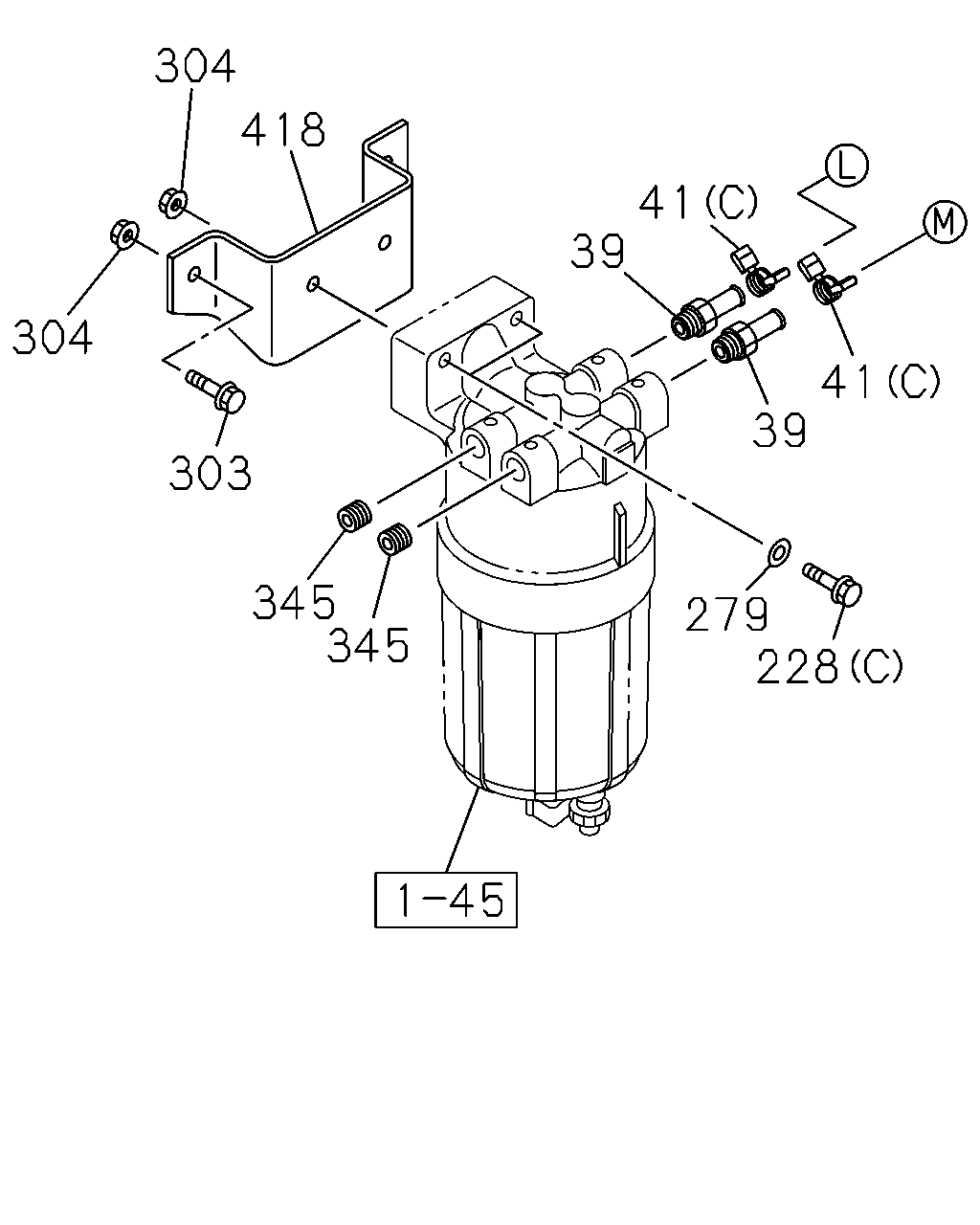

çizim 173333
304 418 41 39 304 41 39 303 345 345 279 228
BalonParca AdiParca NoAdetTipApplied Date
39 PIPE; FUEL 8-97358-699-0 02 1 0809-0903
39 PIPE; FUEL
NPTF3/8-18 OD=10 		8-98122-953-0 02 1 0904-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 04 1 0809-0809
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 03 1 0809-1011
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 03 1 1012-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 06 1 0809-1011
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 03 1 1012-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=140 		5-09707-031-1 04 1 0809-1003
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 03 1 1004-1011
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 06 1 1012-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 0809-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 08 1 0809-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 02 1 0902-
228 BOLT; BRKT,SEDIMENTER
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0809-
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE 		0-28050-825-0 02 1 0809-
228 BOLT; BRKT,SEDIMENTER
(C) M10X50 FLANGE 		0-28051-050-0 02 1 0809-
279 WASHER
ID=10.5 OD=26 		0-91614-710-0 02 1 0809-
303 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0809-0809
303 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0809-0809
303 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0809-1006
303 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0809-1006
303 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 01 1 1007-1011
303 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 01 1 1007-1011
303 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1012-
303 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1012-
303 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 01 1 0809-1006
303 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 01 1 0809-1006
303 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1007-1011
303 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1007-1011
303 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 01 1 1012-
303 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 01 1 1012-
303 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0809-
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0809-1003
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0809-1003
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1004-1006
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1004-1006
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1007-1011
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1007-1011
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1012-
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1012-
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0809-1006
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0809-1006
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1007-1011
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1007-1011
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1012-
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1012-
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0809-
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0809-
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1009-
345 PLUG
NPTF3/8-18 		8-97329-623-0 02 1 0809-
418 BRACKET; PRE FUEL FILTER 8-98114-787-0 01 1 0809-

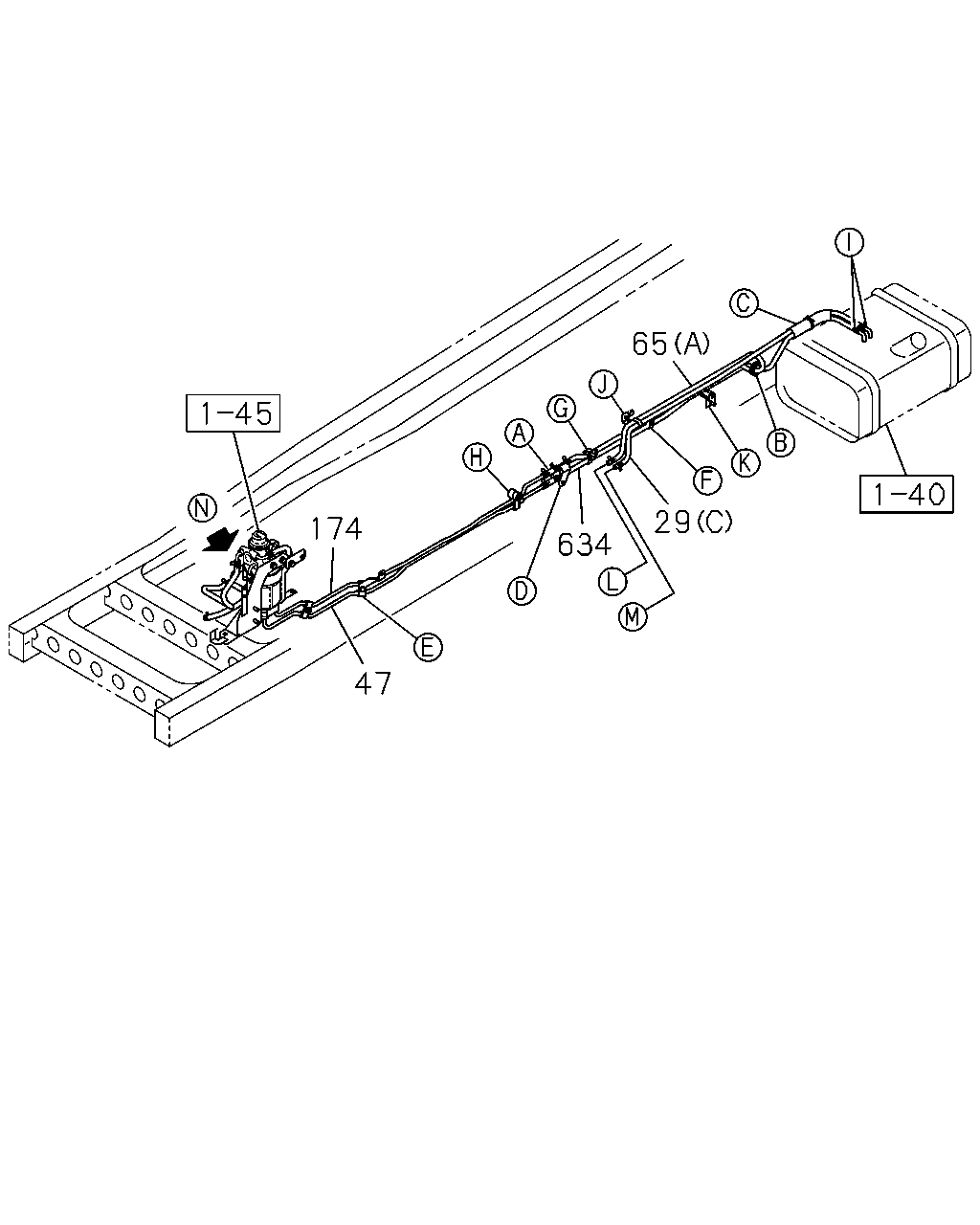

çizim 173338
174 47 634 29 65
BalonParca AdiParca NoAdetTipApplied Date
29 HOSE; FUEL
(C) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 0809-
29 HOSE; FUEL
(A) 		8-98078-194-3 01 1 0809-
29 HOSE; FUEL
(B) 		8-98078-195-1 01 1 0809-
47 PIPE; FUEL,RETURN
L=1496 SERVICED BY L=1550 		1-47428-851-0 01 1 0809-
65 HOSE; FUEL,DELIVERY PIPE
(B) L=60 SERVICED BY L=3000 		0-01260-300-0 01 1 0809-
65 HOSE; FUEL,DELIVERY PIPE
(A) L=2850 SERVICED BY L=3000 		0-01260-300-0 01 1 0809-
174 PIPE; FUEL,FEED,FRT
L=1322 		8-98100-140-0 01 1 0809-
634 HOSE; RUBBER RETURN
L=2200 SERVICED BY L=3000 		0-01558-300-0 01 1 0809-

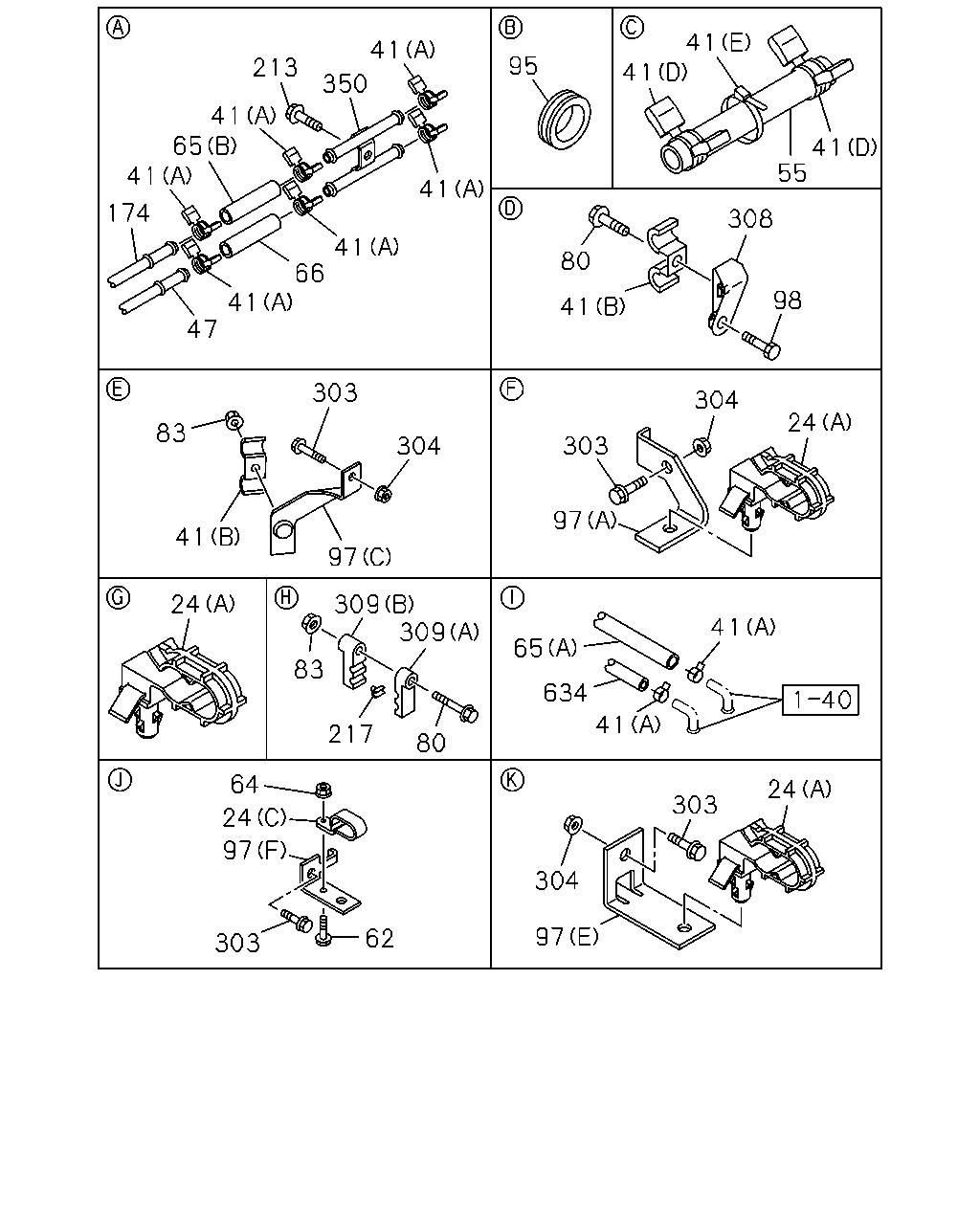

çizim 173342
41 41 41 95 213 350 41 65 41 41 55 41 174 308 41 66 80 98 41 47 41 303 304 24 83 303 304 97 41 97 24 309 309 41 65 83 634 41 217 80 64 24 303 24 97 304 97 62 303
BalonParca AdiParca NoAdetTipApplied Date
24 CLIP; FUEL HOSE
(B) ID=15 H=24 L=20 		1-09700-606-0 01 1 0809-
24 CLIP; FUEL HOSE
(C) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 0809-1011
24 CLIP; FUEL HOSE
(A) ID=14.5 & 14.5 		1-09701-246-1 06 1 1012-
24 CLIP; FUEL HOSE
(A) ID=14.5 & 14.5 		1-09701-246-1 06 1 0809-1011
24 CLIP; FUEL HOSE
(C) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 1012-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 04 1 0809-0809
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 03 1 0809-1011
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 03 1 1012-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 06 1 0809-1011
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 03 1 1012-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=140 		5-09707-031-1 04 1 0809-1003
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 03 1 1004-1011
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 06 1 1012-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 0809-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 08 1 0809-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 02 1 0902-
47 PIPE; FUEL,RETURN
L=1496 SERVICED BY L=1550 		1-47428-851-0 01 1 0809-
55 COVER; PIPE,FUEL TANK
ID=32 OD=36 L=50 		1-09337-023-0 01 1 0809-1003
55 COVER; PIPE,FUEL TANK
L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0809-0809
55 COVER; PIPE,FUEL TANK
ID=27 L=500 		8-98119-327-0 01 1 0809-1003
55 COVER; PIPE,FUEL TANK
L=800 		1-09361-018-0 01 1 1004-
62 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 01 1 0809-
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0809-
65 HOSE; FUEL,DELIVERY PIPE
(B) L=60 SERVICED BY L=3000 		0-01260-300-0 01 1 0809-
65 HOSE; FUEL,DELIVERY PIPE
(A) L=2850 SERVICED BY L=3000 		0-01260-300-0 01 1 0809-
66 HOSE; FUEL,RETURN PIPE
L=60 SERVICED BY L=3000 		0-01558-300-0 01 1 0809-
80 BOLT; CLIP,FUEL TANK
M8X50 FLANGE 		0-28050-850-0 01 1 0809-
80 BOLT; CLIP,FUEL TANK
M8X20 FLANGE 		0-28650-820-0 01 1 0809-
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 04 1 0809-
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17 		9-09956-256-2 01 1 0809-
97 BRACKET; CLIP
(B) L=50 		1-47475-299-2 01 1 0809-1011
97 BRACKET; CLIP
(F) 		8-98100-216-1 01 1 1012-
97 BRACKET; CLIP
(C) 		8-98078-201-0 01 1 0809-
97 BRACKET; CLIP
(D) 		8-98083-537-0 01 1 0809-
97 BRACKET; CLIP
(F) 		8-98100-216-1 01 1 0809-1011
97 BRACKET; CLIP
(B) L=50 		1-47475-299-2 01 1 1012-
97 BRACKET; CLIP
(E) 		8-98109-768-0 01 1 0809-
97 BRACKET; CLIP
(A) 		8-98083-349-0 01 1 0809-
98 BOLT; BRKT,FUEL PIPE
M10X30 FLANGE 		0-28651-030-0 01 1 0809-
174 PIPE; FUEL,FEED,FRT
L=1322 		8-98100-140-0 01 1 0809-
213 BOLT; FUEL PIPE FIX
M8X20 FLANGE 		0-28650-820-0 01 1 0809-
217 COLLAR; FUEL PIPE FIX
ID=8 		1-47459-011-0 01 1 0809-
303 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0809-0809
303 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0809-0809
303 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0809-1006
303 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0809-1006
303 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 01 1 1007-1011
303 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 01 1 1007-1011
303 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1012-
303 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1012-
303 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 01 1 0809-1006
303 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 01 1 0809-1006
303 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1007-1011
303 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1007-1011
303 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 01 1 1012-
303 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 01 1 1012-
303 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0809-
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0809-1003
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0809-1003
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1004-1006
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1004-1006
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1007-1011
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1007-1011
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1012-
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1012-
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0809-1006
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0809-1006
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1007-1011
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1007-1011
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1012-
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1012-
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0809-
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0809-
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1009-
308 BRACKET; FUEL PIPE 8-98117-691-0 01 1 0809-
309 CLIP; PIPE
(A) ID=10 & 10 		1-09709-241-0 01 1 0809-
309 CLIP; PIPE
(B) ID=10 & 10 		1-09709-243-0 01 1 0809-
350 PIPE; FUEL,DEL & RET 8-98084-131-0 01 1 0809-
634 HOSE; RUBBER RETURN
L=2200 SERVICED BY L=3000 		0-01558-300-0 01 1 0809-

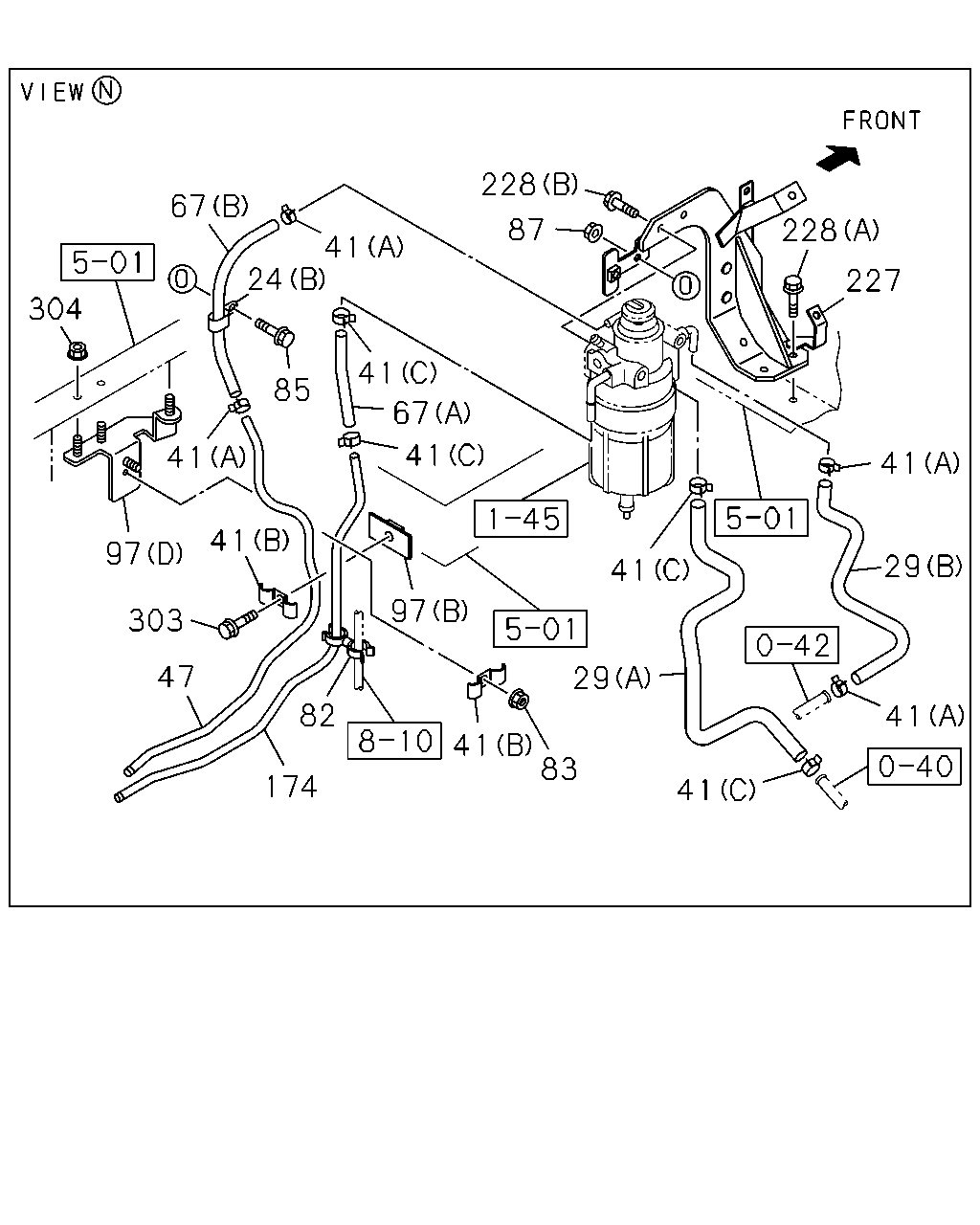

çizim 173344
67 41 228 87 228 227 24 304 85 41 97 41 303 47 82 174 97 41 83 29 41 67 41 41 41 29 41 41
BalonParca AdiParca NoAdetTipApplied Date
24 CLIP; FUEL HOSE
(B) ID=15 H=24 L=20 		1-09700-606-0 01 1 0809-
24 CLIP; FUEL HOSE
(C) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 0809-1011
24 CLIP; FUEL HOSE
(A) ID=14.5 & 14.5 		1-09701-246-1 06 1 1012-
24 CLIP; FUEL HOSE
(A) ID=14.5 & 14.5 		1-09701-246-1 06 1 0809-1011
24 CLIP; FUEL HOSE
(C) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 1012-
29 HOSE; FUEL
(C) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 0809-
29 HOSE; FUEL
(A) 		8-98078-194-3 01 1 0809-
29 HOSE; FUEL
(B) 		8-98078-195-1 01 1 0809-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 04 1 0809-0809
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 03 1 0809-1011
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 03 1 1012-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 06 1 0809-1011
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 03 1 1012-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=140 		5-09707-031-1 04 1 0809-1003
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 03 1 1004-1011
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 06 1 1012-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 0809-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 08 1 0809-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 02 1 0902-
47 PIPE; FUEL,RETURN
L=1496 SERVICED BY L=1550 		1-47428-851-0 01 1 0809-
67 HOSE; FUEL,DELIVERY
(A) L=140 SERVICED BY L=3000 		0-01260-300-0 01 1 0809-
67 HOSE; FUEL,DELIVERY
(B) L=210 SERVICED BY L=3000 		0-01558-300-0 01 1 0809-
82 CLIP; FUEL HOSE
ID=13 & 16.5 		8-94169-028-0 01 1 0809-
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 04 1 0809-
85 BOLT; CLIP,FUEL HOSE
M8X20 FLANGE 		0-28650-820-0 01 1 0809-
87 NUT; CLIP,FUEL HOSE
M8 FLANGE 		0-91180-108-0 01 1 0809-
97 BRACKET; CLIP
(B) L=50 		1-47475-299-2 01 1 0809-1011
97 BRACKET; CLIP
(F) 		8-98100-216-1 01 1 1012-
97 BRACKET; CLIP
(C) 		8-98078-201-0 01 1 0809-
97 BRACKET; CLIP
(D) 		8-98083-537-0 01 1 0809-
97 BRACKET; CLIP
(F) 		8-98100-216-1 01 1 0809-1011
97 BRACKET; CLIP
(B) L=50 		1-47475-299-2 01 1 1012-
97 BRACKET; CLIP
(E) 		8-98109-768-0 01 1 0809-
97 BRACKET; CLIP
(A) 		8-98083-349-0 01 1 0809-
174 PIPE; FUEL,FEED,FRT
L=1322 		8-98100-140-0 01 1 0809-
227 BRACKET; FUEL SEDIMENTER 8-98044-367-3 01 1 0809-0809
227 BRACKET; FUEL SEDIMENTER 8-98130-667-0 01 1 0809-
228 BOLT; BRKT,SEDIMENTER
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0809-
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE 		0-28050-825-0 02 1 0809-
228 BOLT; BRKT,SEDIMENTER
(C) M10X50 FLANGE 		0-28051-050-0 02 1 0809-
303 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0809-0809
303 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0809-0809
303 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0809-1006
303 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0809-1006
303 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 01 1 1007-1011
303 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 01 1 1007-1011
303 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1012-
303 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1012-
303 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 01 1 0809-1006
303 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 01 1 0809-1006
303 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1007-1011
303 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1007-1011
303 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 01 1 1012-
303 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 01 1 1012-
303 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0809-
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0809-1003
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0809-1003
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1004-1006
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1004-1006
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1007-1011
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1007-1011
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1012-
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1012-
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0809-1006
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0809-1006
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1007-1011
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1007-1011
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1012-
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1012-
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0809-
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0809-
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1009-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
