◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11350 - FRR(MIDEAST)4H ENG ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#58954) — 153 parça

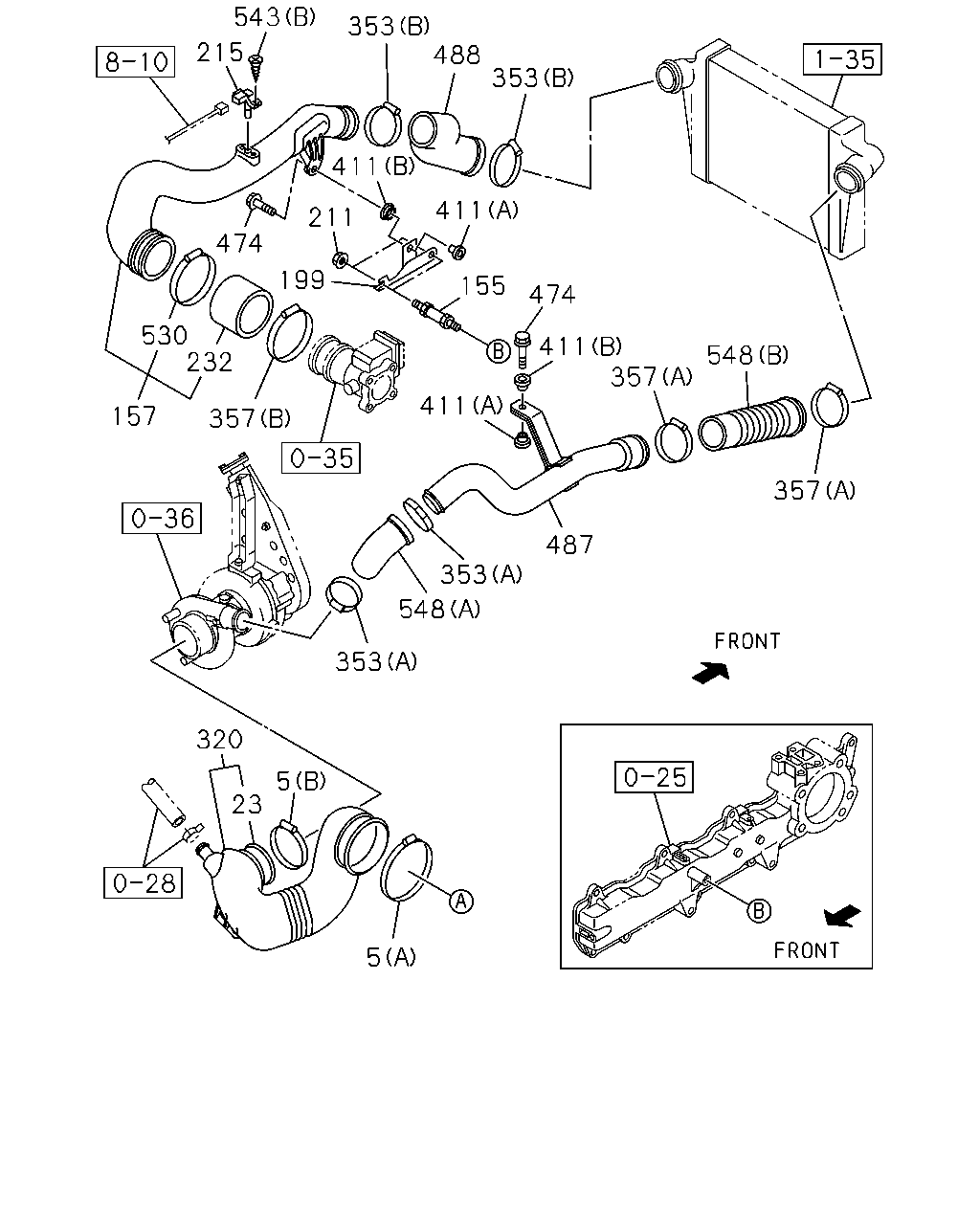

çizim 173329
543 353 488 353 215 411 411 211 474 199 155 474 530 232 411 357 548 411 157 357 357 487 353 548 353 320 5 23 5
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; AIR DUCT
(A) ID=104-139 		1-09707-200-0 01 1 0809-0812 ●
5 CLIP; AIR DUCT
(A) ID=110-130 		8-98133-359-0 01 1 0901-1001 ●
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-139-0 01 1 1002-1011 ●
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142 		1-09707-139-0 01 1 1012- ● ●
5 CLIP; AIR DUCT
(B) ID=58-76 		1-09707-203-0 01 1 0809-0811 ●
5 CLIP; AIR DUCT
(B) ID=55-75 		8-98133-349-0 01 1 0812-1001 ●
5 CLIP; AIR DUCT
(B) ID=58-79 		1-09707-136-0 01 1 1002-1011 ●
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (B) ID=58-79 		1-09707-136-0 01 1 1012-1111 ● ●
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (B) ID=75 		8-98206-613-0 01 1 1112- ● ●
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (B) ID=55-75 		8-98133-349-0 01 1 1012- ● ●
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (A) ID=110-130 		8-98133-359-0 01 1 1012- ● ●
23 CLIP; HOSE
ID=87-116 		1-09707-144-0 01 1 1102- ● ●
155 BOLT; BRKT
M10X17,M10X30 L=105 		8-97233-428-0 02 1 0809-1011 ●
155 BOLT; BRKT
M10X17,M10X30 L=105 		8-97233-428-0 02 1 1012- ● ●
157 PIPE; AIR 8-98010-719-3 01 1 0809-1011 ●
157 PIPE; AIR 8-98010-719-3 01 1 1012- ● ●
199 BRACKET; PIPE 8-97385-293-1 01 1 0809-1011 ●
199 BRACKET; PIPE 8-97385-293-1 01 1 1012- ● ●
211 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0809-1011 ●
211 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1012- ● ●
215 SENSOR; MAP 8-98009-418-0 01 1 0809-1011 ●
215 SENSOR; MAP 8-98009-418-0 01 1 1012- ● ●
232 HOSE; CONN 8-98067-929-0 01 1 0809-1011 ●
232 HOSE; CONN 8-98067-929-0 01 1 1012- ● ●
320 HOSE; CONN,ACL 8-98073-539-3 01 1 0809-1011 ●
320 HOSE; CONN,ACL
EURO2 SPECIFICATION<NT2> 		8-98073-539-3 01 1 1012- ● ●
320 HOSE; CONN,ACL
EURO3 SPECIFICATION<NT3> 		8-98073-540-3 01 1 1012- ● ●
353 CLIP; RUBBER HOSE
(B) ID=58-76 		1-09707-203-0 02 1 0809-0811 ●
353 CLIP; RUBBER HOSE
(B) ID=55-75 		8-98133-349-0 02 1 0812-1001 ●
353 CLIP; RUBBER HOSE
(B) ID=58-79 		1-09707-136-0 02 1 1002-1011 ●
353 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (B) ID=58-79 		1-09707-136-0 02 1 1012- ● ●
353 CLIP; RUBBER HOSE
(A) ID=60-65 		8-98096-418-0 02 1 0809-1011 ●
353 CLIP; RUBBER HOSE
(A) ID=60-65 		8-98096-418-0 02 1 1012- ● ●
353 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (B) ID=55-75 		8-98133-349-0 02 1 1012- ● ●
357 CLIP; RUBBER HOSE
(B) ID=77-95 		1-09707-198-0 01 1 0809-0810 ●
357 CLIP; RUBBER HOSE
(B) ID=75-95 		8-98133-357-0 01 1 0811-1001 ●
357 CLIP; RUBBER HOSE
(B) ID=77-99 		1-09707-141-0 01 1 1002-1011 ●
357 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (B) ID=77-99 		1-09707-141-0 01 1 1012- ● ●
357 CLIP; RUBBER HOSE
(A) ID=58-76 		1-09707-203-0 02 1 0809-0811 ●
357 CLIP; RUBBER HOSE
(A) ID=55-75 		8-98133-349-0 02 1 0812-1001 ●
357 CLIP; RUBBER HOSE
(A) ID=58-79 		1-09707-136-0 02 1 1002-1011 ●
357 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (A) ID=58-79 		1-09707-136-0 02 1 1012- ● ●
357 CLIP; RUBBER HOSE
(C) ID=24 		8-98025-921-0 02 1 0809-1011 ●
357 CLIP; RUBBER HOSE
(C) ID=24 		8-98025-921-0 02 1 1012- ● ●
357 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (A) ID=55-75 		8-98133-349-0 02 1 1012- ● ●
357 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (B) ID=75-95 		8-98133-357-0 01 1 1012- ● ●
411 RUBBER; CUSHION
(A) OD=32 		8-94395-766-0 02 1 0809-1011 ●
411 RUBBER; CUSHION
(A) OD=32 		8-94395-766-0 02 1 1012- ● ●
411 RUBBER; CUSHION
(B) OD=23 		8-97105-689-6 02 1 0809-1011 ●
411 RUBBER; CUSHION
(B) OD=23 		8-97105-689-6 02 1 1012- ● ●
474 BOLT; PIPE
M8X40 FLANGE 		0-28650-840-0 02 1 0809-1011 ●
474 BOLT; PIPE
M8X40 FLANGE 		0-28650-840-0 02 1 1012- ● ●
487 PIPE; TURBO TO CHARGE AIR COOLER 8-98073-592-0 01 1 0809-1011 ●
487 PIPE; TURBO TO CHARGE AIR COOLER 8-98073-592-0 01 1 1012- ● ●
488 HOSE; RUBBER,PIPE 8-98010-723-0 01 1 0809-1011 ●
488 HOSE; RUBBER,PIPE 8-98010-723-0 01 1 1012- ● ●
530 CLAMP; AIR DUCT
ID=77-95 		1-09707-198-0 01 1 0809-0810 ●
530 CLAMP; AIR DUCT
ID=75-95 		8-98133-357-0 01 1 0811-1011 ●
530 CLAMP; AIR DUCT
ID=75-95 		8-98133-357-0 01 1 1012- ● ●
543 SCREW; SENSOR
(A) M5X14 W/LK WASHER 		0-36220-514-0 01 1 0809-1011 ●
543 SCREW; SENSOR
(A) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1012- ● ●
543 SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0809-1011 ●
543 SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1012- ● ●
543 SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1012- ● ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EURO2 SPECIFICATION<NT2> (A) 		8-98181-971-1 01 1 1102- ● ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EURO2 SPECIFICATION<NT2> (B) 		8-98181-972-1 01 1 1102- ● ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(A) 		8-98061-809-1 01 1 0809-1011 ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(A) 		8-98061-809-1 01 1 1012-1101 ● ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EXC. EURO2 SPECIFICATION<NT2> (A) 		8-98061-809-1 01 1 1102- ● ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(B) 		8-98061-810-0 01 1 0809-1011 ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(B) 		8-98061-810-0 01 1 1012-1101 ● ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EXC. EURO2 SPECIFICATION<NT2> (B) 		8-98061-810-0 01 1 1102- ● ●

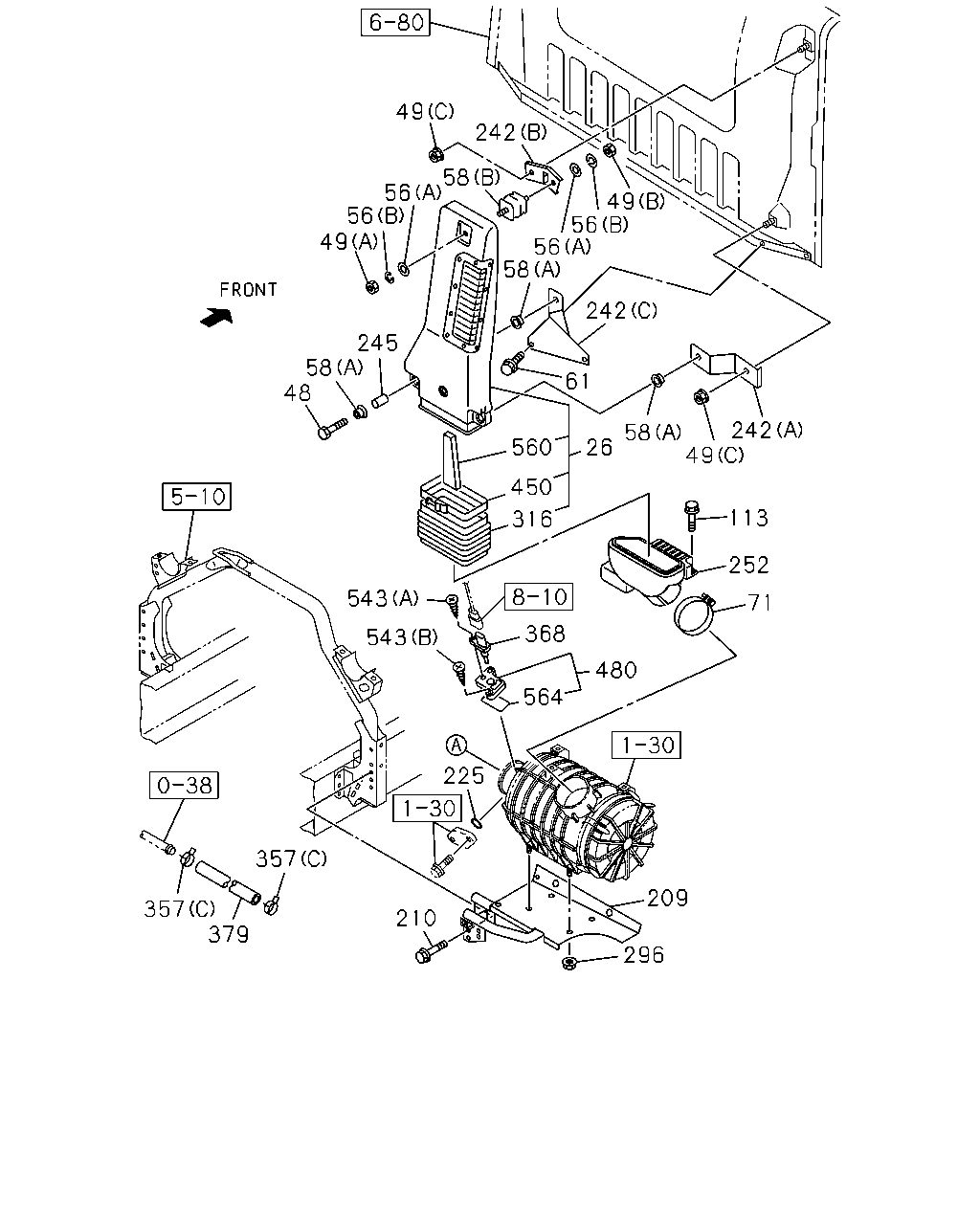

çizim 173330
49 242 58 56 56 49 49 56 56 58 242 245 61 58 48 242 49 58 26 560 450 113 316 252 543 71 368 543 480 564 225 357 209 357 379 210 296
BalonParca AdiParca NoAdetTipApplied Date A B
26 DUCT; AIR INT 8-98010-361-2 01 1 0809-1011 ●
26 DUCT; AIR INT 8-98010-361-2 01 1 1012- ● ●
48 BOLT; AIR DUCT
M10X60 		1-09030-044-1 02 1 0809-1011 ●
48 BOLT; AIR DUCT
M10X60 		1-09030-044-1 02 1 1012- ● ●
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 0809-1011 ●
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 1012- ● ●
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 0809-1011 ●
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1012- ● ●
49 NUT; AIR DUCT
(C) M8 FLANGE 		8-94279-517-0 02 1 0809-1011 ●
49 NUT; AIR DUCT
(C) M8 FLANGE 		8-94279-517-0 02 1 1012- ● ●
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 0809-1011 ●
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 1012- ● ●
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 0809-1011 ●
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1012- ● ●
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 0809-1011 ●
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1012- ● ●
58 SUPPORT; AIR INL DUCT
(B) 		1-14119-452-0 01 1 0809-0810 ●
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 0811-1011 ●
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1012- ● ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 0809-1011 ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1012- ● ●
71 CLIP; AIR DUCT
ID=104-139 		1-09707-200-0 01 1 0809-0812 ●
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 0901-1011 ●
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1012- ● ●
113 BOLT; RESONATOR
M6X16 W/PL WASHER 		8-98094-071-0 03 1 0809-1011 ●
113 BOLT; RESONATOR
M6X16 W/PL WASHER 		8-98094-071-0 03 1 1012-1012 ● ●
113 BOLT; RESONATOR
EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> M6X16 W/PL WASHER 		8-98094-071-0 03 1 1012- ● ●
113 BOLT; RESONATOR
EURO3 SPECIFICATION<NT3> M6X16 W/PL WASHER 		8-98094-071-0 03 1 1012- ● ●
209 BRACKET; ACL 8-98010-343-4 01 1 0809-1011 ●
209 BRACKET; ACL 8-98010-343-4 01 1 1012- ● ●
210 BOLT; ACL BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0809-1011 ●
210 BOLT; ACL BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1012- ● ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 0809-1011 ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 0809-1011 ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1012- ● ●
225 GASKET; AIR PIPE
EURO2 SPECIFICATION<NT2> ID=24.4 		1-09623-057-0 01 1 1012- ● ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 0809-1011 ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1012- ● ●
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 0809-1011 ●
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 1012- ● ●
242 BRACKET; AIR DUCT
(A) 		8-98019-303-1 01 1 0809-1011 ●
242 BRACKET; AIR DUCT
(A) 		8-98019-303-1 01 1 1012- ● ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 0809-1011 ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1012- ● ●
252 DUCT; AIR INT
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> 		8-98010-639-1 01 1 1012- ● ●
252 DUCT; AIR INT 8-98095-778-0 01 1 0809-1011 ●
252 DUCT; AIR INT 8-98095-778-0 01 1 1012-1012 ● ●
252 DUCT; AIR INT
EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> 		8-98095-778-0 01 1 1012- ● ●
252 DUCT; AIR INT
EURO3 SPECIFICATION<NT3> 		8-98095-778-0 01 1 1012- ● ●
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 0809-1011 ●
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 1012- ● ●
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 0908-1011 ●
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1012- ● ●
357 CLIP; RUBBER HOSE
(B) ID=77-95 		1-09707-198-0 01 1 0809-0810 ●
357 CLIP; RUBBER HOSE
(B) ID=75-95 		8-98133-357-0 01 1 0811-1001 ●
357 CLIP; RUBBER HOSE
(B) ID=77-99 		1-09707-141-0 01 1 1002-1011 ●
357 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (B) ID=77-99 		1-09707-141-0 01 1 1012- ● ●
357 CLIP; RUBBER HOSE
(A) ID=58-76 		1-09707-203-0 02 1 0809-0811 ●
357 CLIP; RUBBER HOSE
(A) ID=55-75 		8-98133-349-0 02 1 0812-1001 ●
357 CLIP; RUBBER HOSE
(A) ID=58-79 		1-09707-136-0 02 1 1002-1011 ●
357 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (A) ID=58-79 		1-09707-136-0 02 1 1012- ● ●
357 CLIP; RUBBER HOSE
(C) ID=24 		8-98025-921-0 02 1 0809-1011 ●
357 CLIP; RUBBER HOSE
(C) ID=24 		8-98025-921-0 02 1 1012- ● ●
357 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (A) ID=55-75 		8-98133-349-0 02 1 1012- ● ●
357 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (B) ID=75-95 		8-98133-357-0 01 1 1012- ● ●
368 SENSOR; TEMP 8-98065-377-0 01 1 0809-1011 ●
368 SENSOR; TEMP 8-98065-377-0 01 1 1012- ● ●
379 HOSE; RUBBER 8-98075-713-1 01 1 0809-1011 ●
379 HOSE; RUBBER 8-98075-713-1 01 1 1012- ● ●
450 CLAMP; HOSE 9-09915-504-1 01 1 0809-1011 ●
450 CLAMP; HOSE 9-09915-504-1 01 1 1012- ● ●
480 ADAPTER 8-98086-417-0 01 1 0809-1011 ●
480 ADAPTER 8-98086-417-0 01 1 1012- ● ●
543 SCREW; SENSOR
(A) M5X14 W/LK WASHER 		0-36220-514-0 01 1 0809-1011 ●
543 SCREW; SENSOR
(A) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1012- ● ●
543 SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0809-1011 ●
543 SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1012- ● ●
543 SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1012- ● ●
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 0809- ●
564 GASKET; ADAPTER 8-98071-416-0 01 1 0809-1011 ●
564 GASKET; ADAPTER 8-98071-416-0 01 1 1012- ● ●
