1-11 — RADIATOR HOSE AND SUB TANK (#58952) — 45 parça

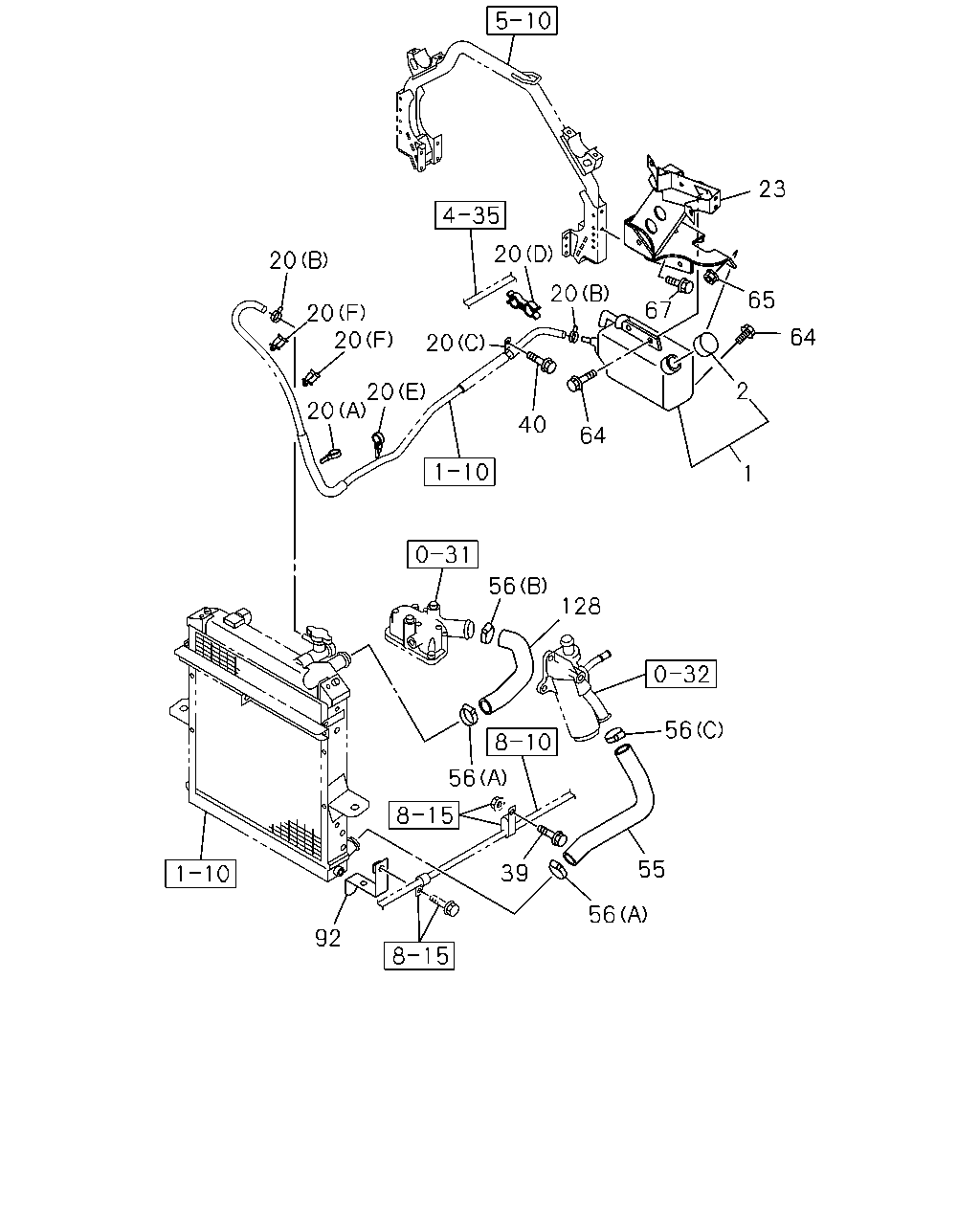

çizim 173328
23 20 20 20 65 67 20 20 64 20 2 20 20 40 64 1 56 128 56 56 55 39 56 92
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK; SURGE,RAD 8-98010-309-2 01 1 0809-1009 ●
1 TANK; SURGE,RAD 8-98171-757-0 01 1 1010-1011 ●
1 TANK; SURGE,RAD 8-98171-757-0 01 1 1012- ● ●
2 CAP; SURGE TANK 8-97217-796-0 01 1 0809-1009 ●
2 CAP; SURGE TANK 8-98178-074-0 01 1 1010-1011 ●
2 CAP; SURGE TANK 8-98178-074-0 01 1 1012- ● ●
20 CLIP; HOSE,RAD
(C) ID=13 L=20 		0-95235-235-0 01 1 0809-1011 ●
20 CLIP; HOSE,RAD
(C) ID=13 L=20 		0-95235-235-0 01 1 1012- ● ●
20 CLIP; HOSE,RAD
(D) ID=10.5 & 18 		8-94381-420-0 01 1 0809-1011 ●
20 CLIP; HOSE,RAD
(D) ID=10.5 & 18 		8-94381-420-0 01 1 1012- ● ●
20 CLIP; HOSE,RAD
(B) ID=11.5 		8-97375-638-0 02 1 0809-1011 ●
20 CLIP; HOSE,RAD
(B) ID=11.5 		8-97375-638-0 02 1 1012- ● ●
20 CLIP; HOSE,RAD
(F) ID=12 		8-98029-256-0 03 1 0809-1011 ●
20 CLIP; HOSE,RAD
(F) ID=12 		8-98029-256-0 03 1 1012- ● ●
20 CLIP; HOSE,RAD
(E) ID=14 L=44 		9-09917-427-0 01 1 0809-1011 ●
20 CLIP; HOSE,RAD
(E) ID=14 L=44 		9-09917-427-0 01 1 1012- ● ●
20 CLIP; HOSE,RAD
(A) ID=20 L=50 		9-09917-430-0 01 1 0809-1011 ●
20 CLIP; HOSE,RAD
(A) ID=20 L=50 		9-09917-430-0 01 1 1012- ● ●
23 BRACKET; RESERVE TANK 8-98010-310-3 01 1 0809-1011 ●
23 BRACKET; RESERVE TANK 8-98010-310-3 01 1 1012- ● ●
39 BOLT; BRKT FIX
M8X20 FLANGE 		0-28650-820-0 01 1 0809-1011 ●
39 BOLT; BRKT FIX
M8X20 FLANGE 		0-28650-820-0 01 1 1012- ● ●
40 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0809-1011 ●
40 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1012- ● ●
55 HOSE; WATER,RAD OUTLET 8-98010-573-2 01 1 0809-1011 ●
55 HOSE; WATER,RAD OUTLET 8-98010-573-2 01 1 1012- ● ●
56 CLIP; WATER HOSE,RAD
(A) ID=48 		8-98036-282-0 02 1 0809-0912 ●
56 CLIP; WATER HOSE,RAD
(A) ID=48 		8-98133-956-0 02 1 1001-1011 ●
56 CLIP; WATER HOSE,RAD
(A) ID=48 		8-98133-956-0 02 1 1012- ● ●
56 CLIP; WATER HOSE,RAD
(B) ID=52 		8-98036-283-0 01 1 0809-0912 ●
56 CLIP; WATER HOSE,RAD
(B) ID=52 		1-09704-057-0 01 1 1001-1011 ●
56 CLIP; WATER HOSE,RAD
(B) ID=52 		1-09704-057-0 01 1 1012- ● ●
56 CLIP; WATER HOSE,RAD
(C) ID=62 		8-98036-284-0 01 1 0809-0912 ●
56 CLIP; WATER HOSE,RAD
(C) ID=62 		8-98133-957-0 01 1 1001-1011 ●
56 CLIP; WATER HOSE,RAD
(C) ID=62 		8-98133-957-0 01 1 1012- ● ●
64 BOLT; BRKT,SUB TANK
M8X25 W/LK&PL WASHER 		1-09030-093-0 03 1 0809-1011 ●
64 BOLT; BRKT,SUB TANK
M8X25 W/LK&PL WASHER 		1-09030-093-0 03 1 1012- ● ●
65 NUT; BRKT,SUB TANK
M8 FLANGE 		0-91180-108-0 01 1 0809-1011 ●
65 NUT; BRKT,SUB TANK
M8 FLANGE 		0-91180-108-0 01 1 1012- ● ●
67 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 03 1 0809-1011 ●
67 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 03 1 1012- ● ●
92 BRACKET; CLIP,RUBBER HOSE 8-98055-051-0 01 1 0809-1011 ●
92 BRACKET; CLIP,RUBBER HOSE 8-98055-051-0 01 1 1012- ● ●
128 HOSE; WATER,RAD INL 8-98010-572-1 01 1 0809-1011 ●
128 HOSE; WATER,RAD INL 8-98010-572-1 01 1 1012- ● ●
