Sayfa 0-12 - Isuzu EPC

0-12 — CYLINDER BLOCK (#5895) — 290 parça

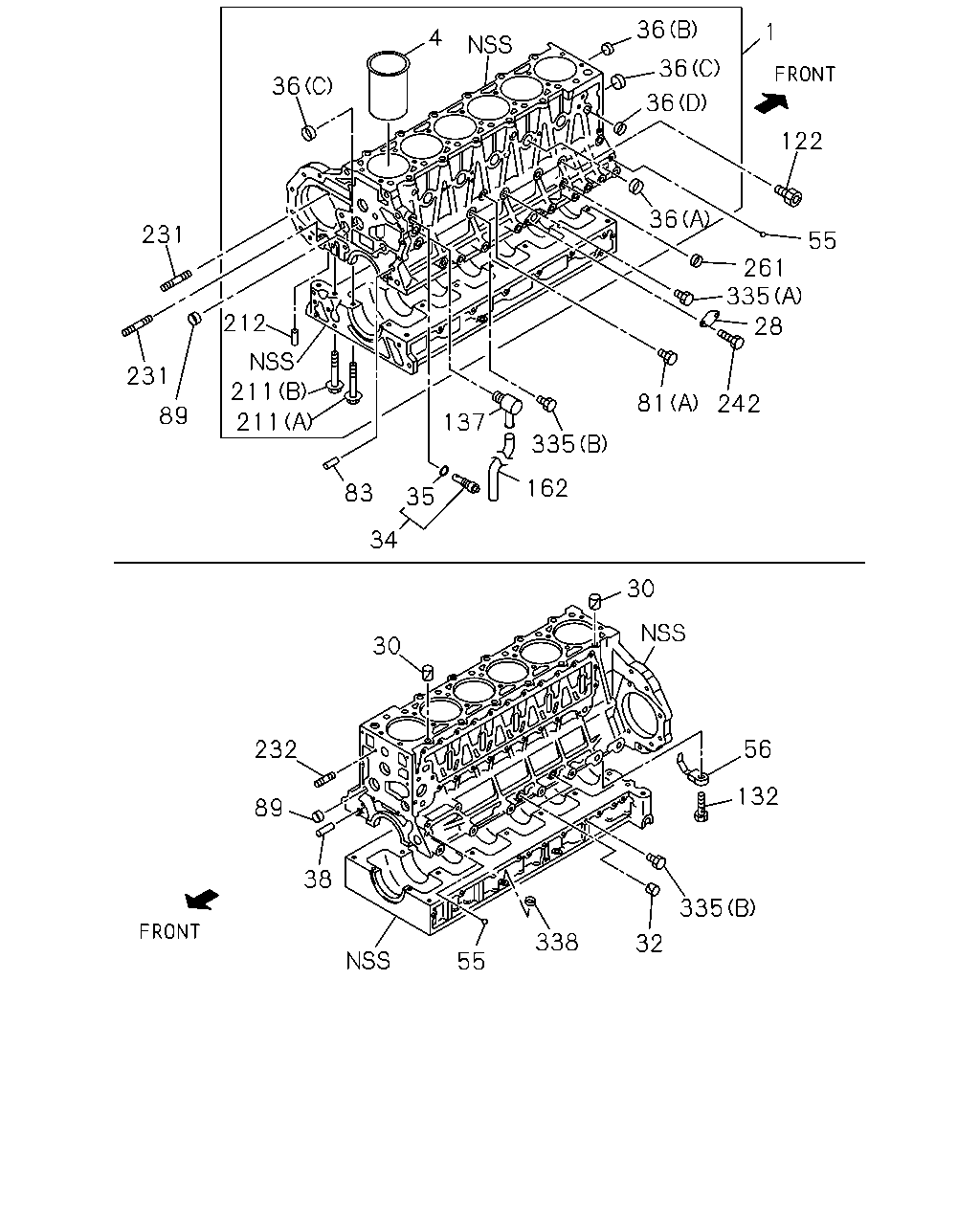

36 1 4 36 36 36 122 36 231 55 261 335 212 28 211 231 81 242 89 211 137 335 162 83 35 34 30 30 56 232 132 89 38 335 338 32 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BLOCK ASM; CYL	8-94393-958-9	01	1	9606-9810	●	●
1	BLOCK ASM; CYL	8-97601-297-0	01	1	9811-0203			●
1	BLOCK ASM; CYL	8-97601-299-4	01	1	9903-				●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-600-0	06	1	9606-9810	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-600-0	06	1	9811-9902			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-600-0	06	1	9903-0203			●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-600-1	06	1	0204-				●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-601-0	06	1	9606-9810	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-601-0	06	1	9811-9902			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-601-0	06	1	9903-0203			●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-601-1	06	1	0204-				●
28	COVER; OIL PORT	1-11219-163-0	01	1	9606-9810	●	●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	9606-9810	●	●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	9811-9902			●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	9903-0203			●	●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	0204-				●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	9606-9810	●	●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	9811-9902			●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	9903-0203			●	●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	0204-				●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	9606-9810	●	●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	9811-9902			●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	9903-0203			●	●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	0204-				●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	9606-9810	●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	9811-9902			●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	9903-0203			●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	0204-				●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	05	1	9606-9810	●	●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	05	1	9811-0203			●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	9606-9810	●	●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	9811-9902			●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	9903-0203			●	●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	0204-				●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	9606-9810	●	●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	9811-9902			●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	9903-0203			●	●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	0204-				●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	9606-9810	●	●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	9811-9902			●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	9903-0203			●	●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	0204-0502				●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-97096-824-0	04	1	0503-				●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	04	1	9903-				●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	9606-9810	●	●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	9811-9902			●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	9903-0203			●	●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	0204-				●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	9606-9810	●	●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	9811-9902			●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	9903-0203			●	●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	0204-				●
56	JET; OIL,PISTON COOLING	8-94399-187-0	06	1	9606-9810	●	●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	9811-9902			●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	9903-0203			●	●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	0204-0703				●
56	JET; OIL,PISTON COOLING	8-98020-649-0	06	1	0704-				●
81	PLUG; WATER JACKET (A) M14	8-94399-225-0	01	1	9606-9810	●	●
81	PLUG; WATER JACKET (B) NPTF1-11 1/2	1-09605-065-1	01	1	9903-0507				●
81	PLUG; WATER JACKET (D) M14X14	9-09862-156-0	01	1	0508-				●
81	PLUG; WATER JACKET (C) PT3/8	8-94397-338-0	01	1	9903-				●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	9606-9810	●	●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	9811-9902			●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	9903-0203			●	●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0204-0306				●
83	PIN; FLYWHEEL HSG OD=10 L=20	8-97135-423-0	02	1	0307-0307				●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0308-				●
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	9606-9810	●	●
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	9811-9902			●
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	9903-0203			●	●
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	0204-				●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-1	01	1	9606-9810	●	●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-2	01	1	9811-9902			●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-2	01	1	9903-0203			●	●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-2	01	1	0204-				●
132	VALVE; CHECK,OIL M10X18.5	1-13161-012-0	06	1	9606-9810	●	●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	9811-9902			●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	9903-0203			●	●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	0204-				●
137	COCK; DRAIN,WATER	1-09680-024-0	01	1	9606-9810	●	●
137	COCK; DRAIN,WATER	8-94393-716-1	01	1	9811-9902			●
137	COCK; DRAIN,WATER	8-94393-716-1	01	1	9903-0203			●	●
137	COCK; DRAIN,WATER	8-94393-716-1	01	1	0204-				●
162	HOSE; WATER DRAIN,C/BL L=310 SERVICED BY L=3000	0-03259-300-0	01	1	9606-9810	●	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	9606-9810	●	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	9811-9902			●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	9903-0203			●	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	0204-				●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	9606-9810	●	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	9811-9902			●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	9903-0203			●	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	0204-				●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	9606-9810	●	●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	9811-9902			●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	9903-0203			●	●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	0204-0306				●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	04	1	0307-				●
231	STUD; AIR CMPR M10X36.5 L=48.5	8-94396-145-0	02	1	9606-9810	●	●
231	STUD; AIR CMPR M10X36.5 L=48.5	8-94396-145-0	02	1	9811-0203			●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	9606-9810	●	●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	9811-9902			●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	9903-0203			●	●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	0204-0604				●
232	STUD; WATER PUMP M8X55 L=67	0-41010-855-0	03	1	0605-				●
242	BOLT; COVER,OIL PORT M8X16 FLANGE	0-28080-816-0	02	1	9606-9810	●	●
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	9606-9810	●	●
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	9811-9902			●
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	9903-0203			●	●
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	0204-0307				●
335	PLUG; C/BL,SIDE (A) M14	8-94399-225-0	04	1	9606-9810	●	●
335	PLUG; C/BL,SIDE (A) M14	8-94399-225-0	04	1	9811-0203			●
335	PLUG; C/BL,SIDE (B) M8X6	8-94399-421-0	01	1	0204-0501				●
335	PLUG; C/BL,SIDE (B) M8X10	8-98003-416-0	01	1	0502-				●
335	PLUG; C/BL,SIDE (B) M8X6	8-94399-421-0	01	1	9811-9902			●
335	PLUG; C/BL,SIDE (A) M14	8-94399-225-0	02	1	9903-0703				●
335	PLUG; C/BL,SIDE (A) M14X16.5	8-97329-617-0	02	1	0704-				●
335	PLUG; C/BL,SIDE (B) M8X6	8-94399-421-0	01	1	9903-0203			●	●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	9606-9810	●	●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	9811-9902			●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	9903-0203			●	●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	0204-0607				●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	02	1	0608-				●

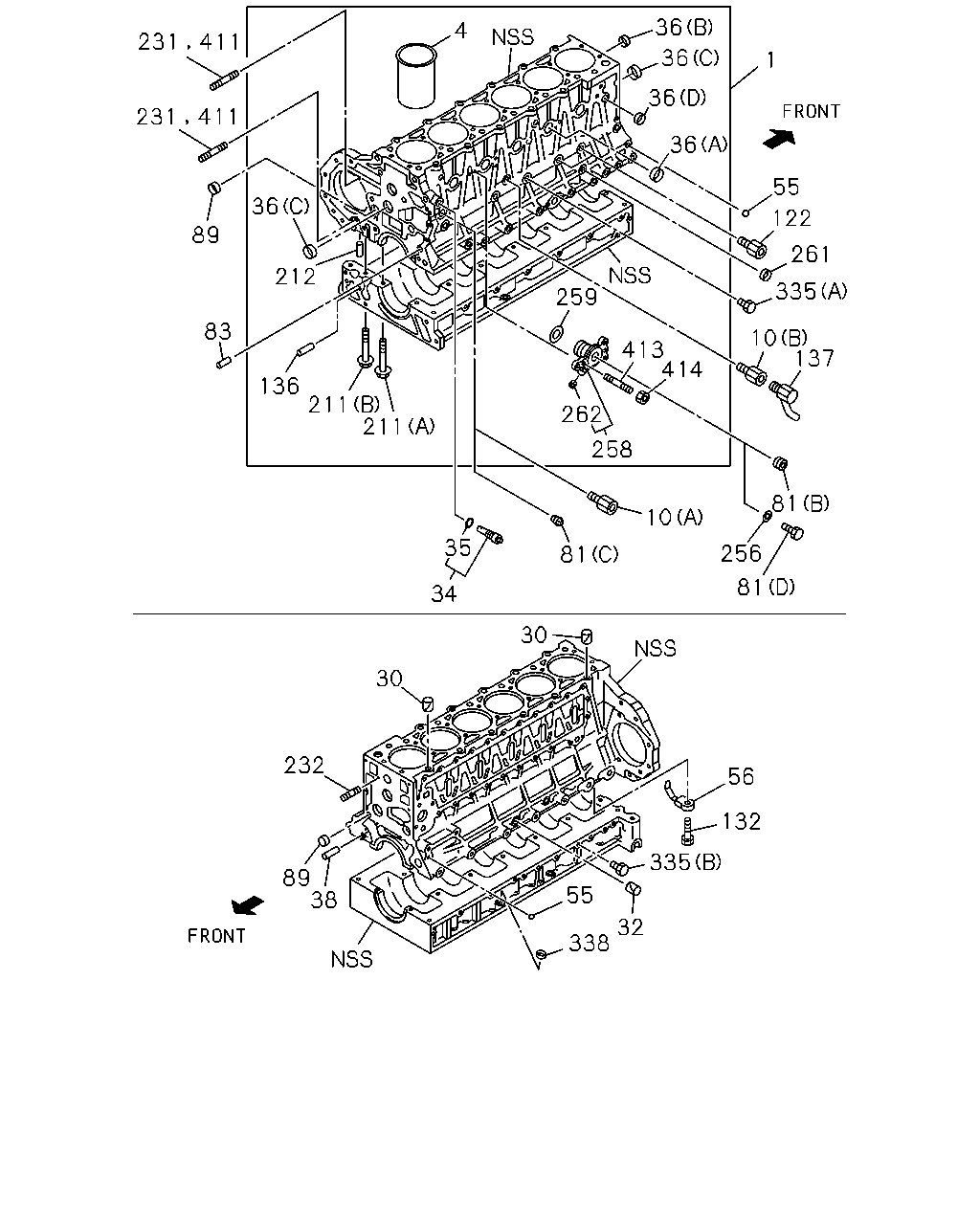

36 4 231 411 36 1 36 231 411 36 55 36 122 89 261 259 212 335 83 413 414 10 137 136 211 211 262 258 81 10 35 256 81 81 34 30 30 232 56 132 335 89 38 55 32 338

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BLOCK ASM; CYL	8-94393-958-9	01	1	9606-9810	●	●
1	BLOCK ASM; CYL	8-97601-297-0	01	1	9811-0203			●
1	BLOCK ASM; CYL	8-97601-299-4	01	1	9903-				●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-600-0	06	1	9606-9810	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-600-0	06	1	9811-9902			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-600-0	06	1	9903-0203			●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-600-1	06	1	0204-				●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-601-0	06	1	9606-9810	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-601-0	06	1	9811-9902			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-601-0	06	1	9903-0203			●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-601-1	06	1	0204-				●
10	CONNECTOR; WATER DRAIN (A)	1-09660-408-0	01	1	9811-0203			●
10	CONNECTOR; WATER DRAIN (A)	8-94396-378-0	01	1	0204-				●
10	CONNECTOR; WATER DRAIN (B)	8-94396-378-0	01	1	9811-9902			●
10	CONNECTOR; WATER DRAIN (B)	8-94396-378-0	01	1	9903-0203			●	●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	9606-9810	●	●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	9811-9902			●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	9903-0203			●	●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	0204-				●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	9606-9810	●	●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	9811-9902			●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	9903-0203			●	●
32	PIN; INJ PUMP BRKT OD=14	8-94453-344-0	02	1	0204-				●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	9606-9810	●	●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	9811-9902			●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	9903-0203			●	●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	0204-				●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	9606-9810	●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	9811-9902			●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	9903-0203			●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	0204-				●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	05	1	9606-9810	●	●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	05	1	9811-0203			●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	9606-9810	●	●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	9811-9902			●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	9903-0203			●	●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	0204-				●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	9606-9810	●	●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	9811-9902			●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	9903-0203			●	●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	0204-				●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	9606-9810	●	●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	9811-9902			●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	9903-0203			●	●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	0204-0502				●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-97096-824-0	04	1	0503-				●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	04	1	9903-				●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	9606-9810	●	●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	9811-9902			●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	9903-0203			●	●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	0204-				●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	9606-9810	●	●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	9811-9902			●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	9903-0203			●	●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	0204-				●
56	JET; OIL,PISTON COOLING	8-94399-187-0	06	1	9606-9810	●	●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	9811-9902			●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	9903-0203			●	●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	0204-0703				●
56	JET; OIL,PISTON COOLING	8-98020-649-0	06	1	0704-				●
81	PLUG; WATER JACKET (A) M14	8-94399-225-0	01	1	9606-9810	●	●
81	PLUG; WATER JACKET (B) NPTF1-11 1/2	1-09605-065-1	01	1	9903-0507				●
81	PLUG; WATER JACKET (D) M14X14	9-09862-156-0	01	1	0508-				●
81	PLUG; WATER JACKET (C) PT3/8	8-94397-338-0	01	1	9903-				●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	9606-9810	●	●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	9811-9902			●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	9903-0203			●	●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0204-0306				●
83	PIN; FLYWHEEL HSG OD=10 L=20	8-97135-423-0	02	1	0307-0307				●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0308-				●
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	9606-9810	●	●
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	9811-9902			●
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	9903-0203			●	●
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	0204-				●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-1	01	1	9606-9810	●	●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-2	01	1	9811-9902			●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-2	01	1	9903-0203			●	●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-2	01	1	0204-				●
132	VALVE; CHECK,OIL M10X18.5	1-13161-012-0	06	1	9606-9810	●	●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	9811-9902			●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	9903-0203			●	●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	0204-				●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-94393-596-1	02	1	9903-0812				●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-98091-566-0	02	1	0901-				●
137	COCK; DRAIN,WATER	1-09680-024-0	01	1	9606-9810	●	●
137	COCK; DRAIN,WATER	8-94393-716-1	01	1	9811-9902			●
137	COCK; DRAIN,WATER	8-94393-716-1	01	1	9903-0203			●	●
137	COCK; DRAIN,WATER	8-94393-716-1	01	1	0204-				●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	9606-9810	●	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	9811-9902			●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	9903-0203			●	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	0204-				●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	9606-9810	●	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	9811-9902			●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	9903-0203			●	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	0204-				●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	9606-9810	●	●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	9811-9902			●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	9903-0203			●	●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	0204-0306				●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	04	1	0307-				●
231	STUD; AIR CMPR M10X36.5 L=48.5	8-94396-145-0	02	1	9606-9810	●	●
231	STUD; AIR CMPR M10X36.5 L=48.5	8-94396-145-0	02	1	9811-0203			●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	9606-9810	●	●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	9811-9902			●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	9903-0203			●	●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	0204-0604				●
232	STUD; WATER PUMP M8X55 L=67	0-41010-855-0	03	1	0605-				●
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	01	1	0508-				●
258	ADAPTER; BLOCK HTR	8-94395-868-0	01	1	9903-0507				●
258	ADAPTER; BLOCK HTR	8-97602-806-0	01	1	0508-				●
259	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7	1-09623-184-0	01	1	9903-				●
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	9606-9810	●	●
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	9811-9902			●
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	9903-0203			●	●
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	0204-0307				●
262	PLUG; ADAPTER	1-13163-002-0	01	1	9903-				●
335	PLUG; C/BL,SIDE (A) M14	8-94399-225-0	04	1	9606-9810	●	●
335	PLUG; C/BL,SIDE (A) M14	8-94399-225-0	04	1	9811-0203			●
335	PLUG; C/BL,SIDE (B) M8X6	8-94399-421-0	01	1	0204-0501				●
335	PLUG; C/BL,SIDE (B) M8X10	8-98003-416-0	01	1	0502-				●
335	PLUG; C/BL,SIDE (B) M8X6	8-94399-421-0	01	1	9811-9902			●
335	PLUG; C/BL,SIDE (A) M14	8-94399-225-0	02	1	9903-0703				●
335	PLUG; C/BL,SIDE (A) M14X16.5	8-97329-617-0	02	1	0704-				●
335	PLUG; C/BL,SIDE (B) M8X6	8-94399-421-0	01	1	9903-0203			●	●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	9606-9810	●	●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	9811-9902			●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	9903-0203			●	●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	0204-0607				●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	02	1	0608-				●
411	STUD; BRG CASE M10X36.5 L=48.5	8-94396-145-0	02	1	9903-0301				●
411	STUD; BRG CASE M10X25 L=40	0-49841-025-0	02	1	0302-0512				●
411	STUD; BRG CASE M10X25 L=48.5	0-49241-025-0	02	1	0601-				●
413	STUD; ADAPTER M8X30 L=41	9-04110-830-0	02	1	9903-0604				●
413	STUD; ADAPTER M8X30 L=41	0-41010-830-0	04	1	0605-				●
414	NUT; ADAPTER M8 FLANGE	0-91150-208-0	02	1	9903-0602				●
414	NUT; ADAPTER M8 FLANGE	0-91180-208-0	04	1	0603-				●

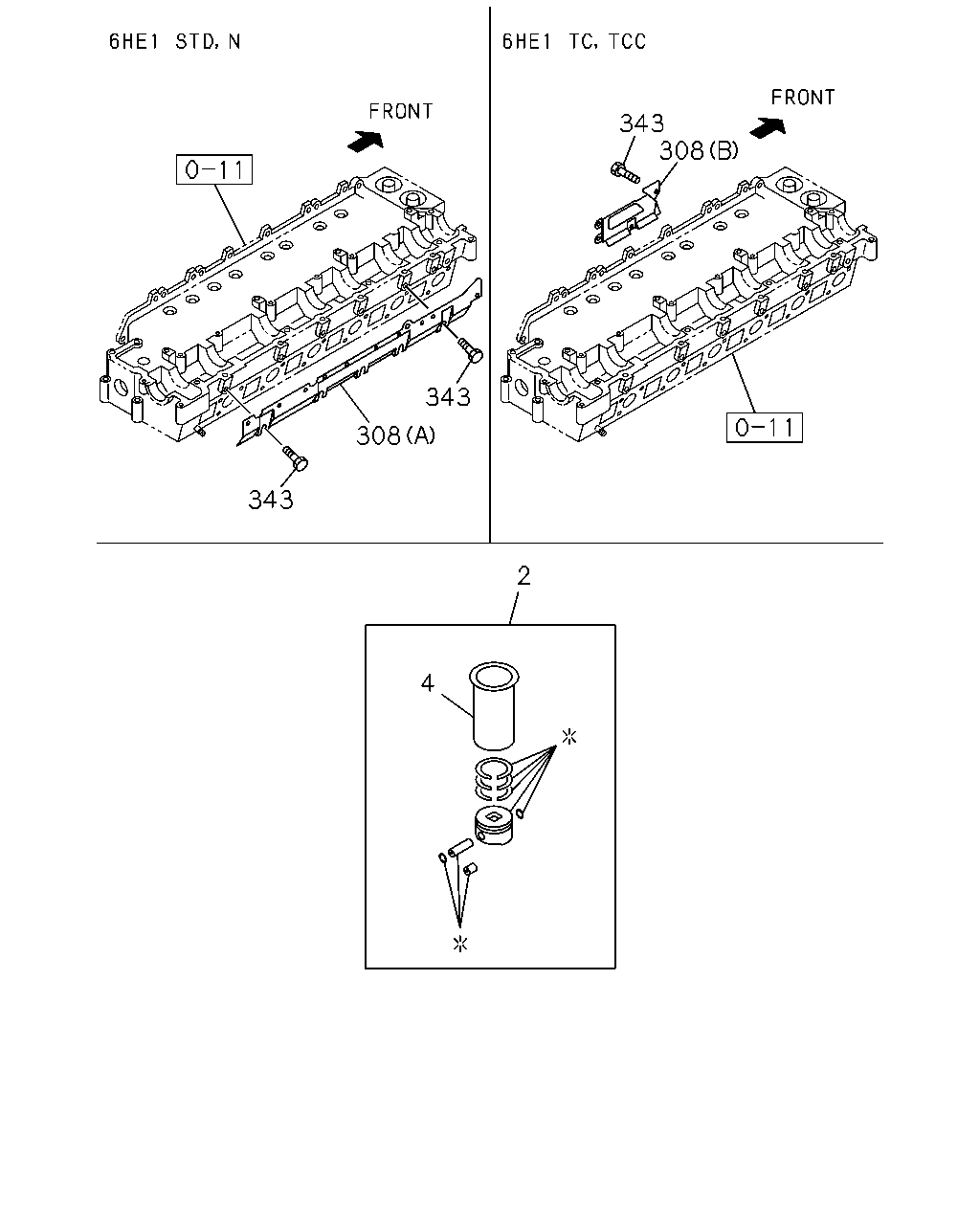

343 308 343 308 343 2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	LINER SET; ENG CYL GRADE=1X	1-87811-455-0	06	1	9606-9810	●	●
2	LINER SET; ENG CYL GRADE=1X	1-87811-459-2	06	1	9811-0108			●
2	LINER SET; ENG CYL GRADE=1X	1-87812-205-1	06	1	0109-0203			●
2	LINER SET; ENG CYL GRADE=3X	1-87811-456-0	06	1	9606-9810	●	●
2	LINER SET; ENG CYL GRADE=3X	1-87811-460-2	06	1	9811-0108			●
2	LINER SET; ENG CYL GRADE=3X	1-87812-206-1	06	1	0109-0203			●
2	LINER SET; ENG CYL GRADE=1X	1-87811-701-2	06	1	9903-0108				●
2	LINER SET; ENG CYL GRADE=1X	1-87812-203-3	06	1	0109-0305				●
2	LINER SET; ENG CYL GRADE=1X	1-87811-701-4	06	1	0306-0706				●
2	LINER SET; ENG CYL GRADE=1X	1-87812-203-3	06	1	0707-				●
2	LINER SET; ENG CYL GRADE=3X	1-87811-702-2	06	1	9903-0108				●
2	LINER SET; ENG CYL GRADE=3X	1-87812-204-3	06	1	0109-0305				●
2	LINER SET; ENG CYL GRADE=3X	1-87811-702-4	06	1	0306-0706				●
2	LINER SET; ENG CYL GRADE=3X	1-87812-204-3	06	1	0707-				●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-600-0	06	1	9606-9810	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-600-0	06	1	9811-9902			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-600-0	06	1	9903-0203			●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-600-1	06	1	0204-				●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-601-0	06	1	9606-9810	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-601-0	06	1	9811-9902			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-601-0	06	1	9903-0203			●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-601-1	06	1	0204-				●
308	PROTECTOR; HEAT,HD COVER (A)	8-94390-548-0	01	1	9606-9810	●	●
308	PROTECTOR; HEAT,HD COVER (B)	8-94395-748-0	01	1	9811-9902			●
308	PROTECTOR; HEAT,HD COVER (B)	8-94395-748-0	01	1	9903-0203			●	●
308	PROTECTOR; HEAT,HD COVER (B)	8-94395-748-0	01	1	0204-				●
343	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28080-812-0	05	1	9606-9810	●	●
343	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28080-812-0	04	1	9811-9902			●
343	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28080-812-0	04	1	9903-0203			●	●
343	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28080-812-0	04	1	0204-0512				●
343	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28050-812-0	04	1	0601-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
